Gledopto Zigbee 3.0 RF Protocol 2 Wires CCT/Dimmer 2in1 LED Strip Controller Pro Receive

Gledopto Zigbee 3.0 RF Protocol 2 Wires CCT/Dimmer 2in1 LED Strip Controller Pro Receive
price

$8.50 - $10.50

GL-C-003P
1 piece
Quantity
  • Warranty(Year):2-Year
  • Lighting solutions service:Lighting and circuitry design, Project Installation
  • Luminous Efficacy(lm/w):0
  • Product Weight(kg):0.079
  • Place of Origin:Guangdong, China
  • Brand Name:Gledopto
  • Type:Remote Control
  • Max. Load Power:144w
  • Connection Mode:Zigbee3.0+RF
  • Product name:2 Wires CCT/DIM 2in1 LED Controller Pro
  • Compatible with:Zigbee3.0& RF 2.4G
  • Color:CCT/DIM
  • CCT temperature:2200-6500K
  • Control way:smartphone app + voice control
  • Application:Colorful lighting decoration
  • Protection rate:IP20
  • Power Supply:DC12-24V
  • max power loaded:max 144W power loaded
  • Fit for:various installation and DIY scenes

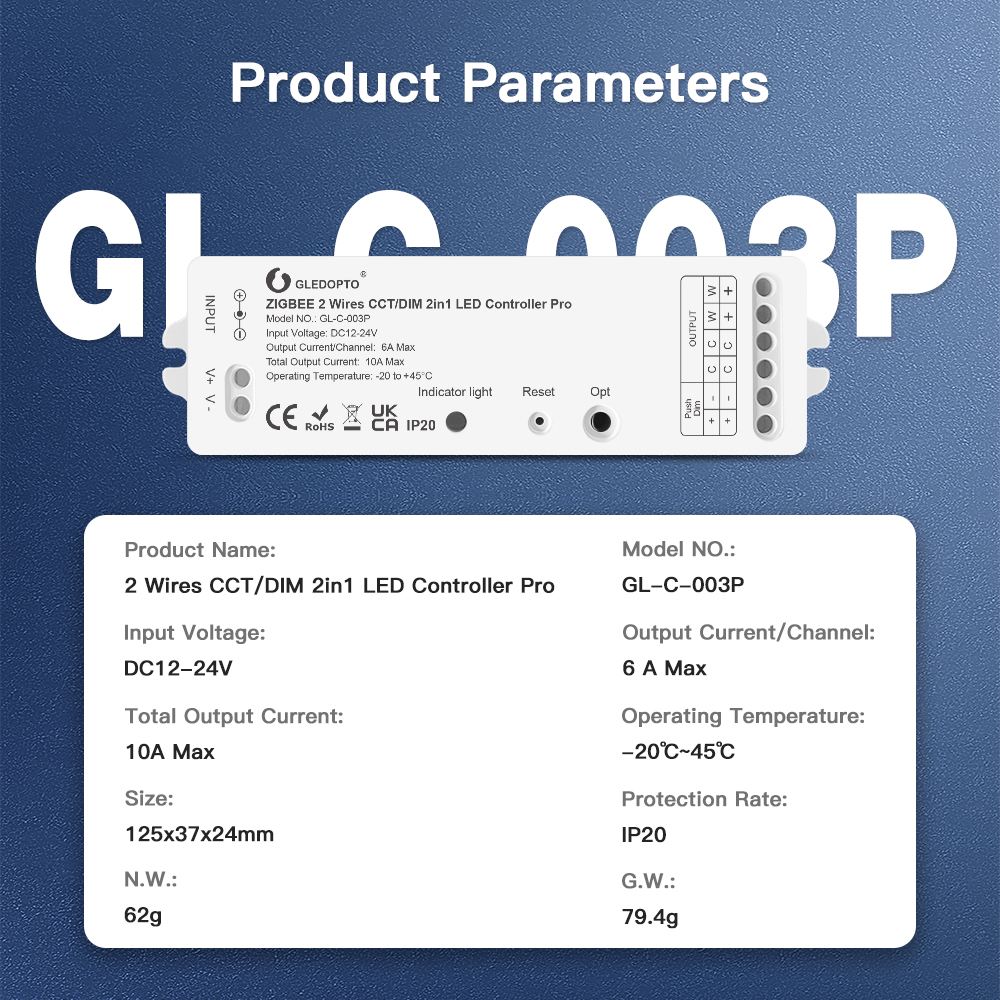

Product Description
Zigbee LED Controller ww cw
Product Name
Zigbee 2 Wires CCT/DIM 2in1 LED Controller Pro
Model
GL-C-003P
Input Voltage
DC12-24V
Color
CCT/Dimmer
Output Current/Channel
6A Max
Total Output Current
10A Max
Total Power
144W Max
Remote Distance
30Meter

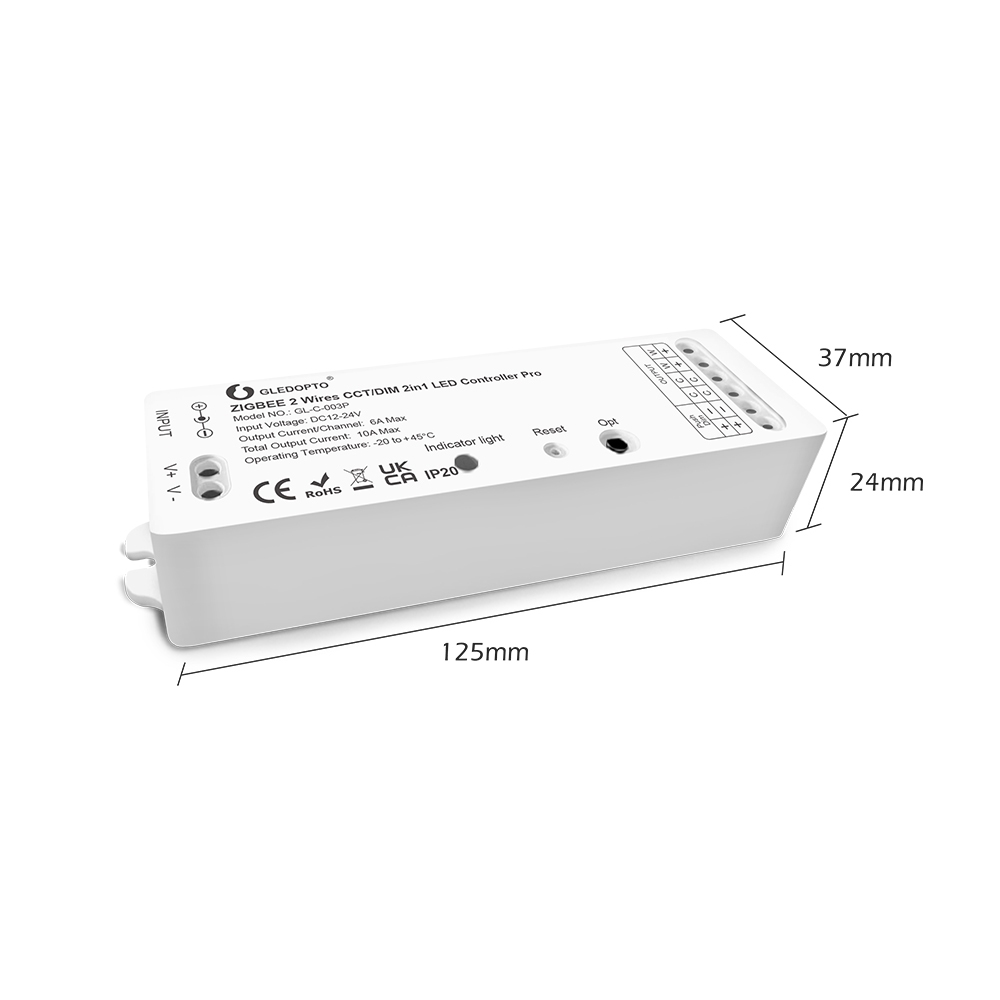

Size
125x37x24mm
Operation Temperature
-20°C-45°C
Protection Rate
IP20
Net Weight
62g
Gross Weight
80g
Warranty
2years

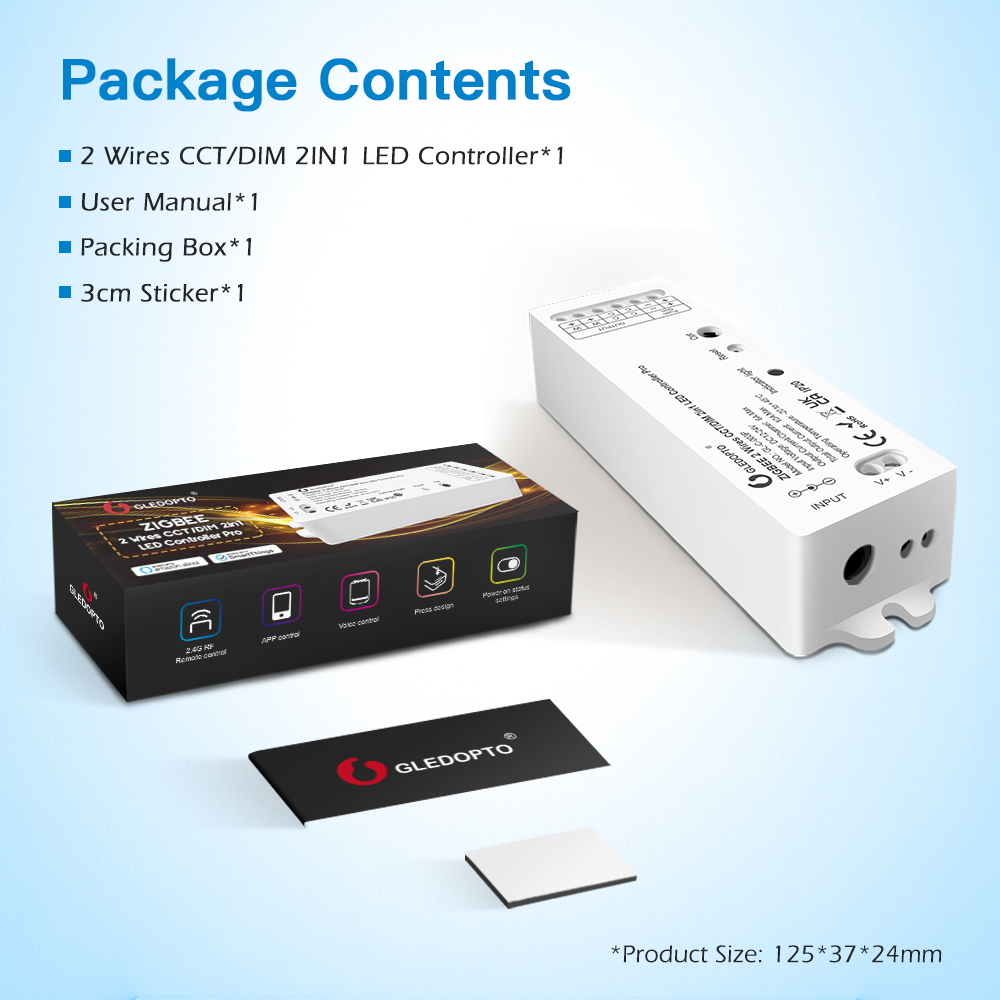

Package Included:
1. 2 Wires CCT/DIM 2in1 LED Controller Pro*1
2. 3cm Sticker*1
3. Instruction Manual*1
4. Box *1
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
Input Voltage
Fit for 12-24V LED Strip Light.
Suitable for various installation and DIY scenes
Zigbee LED Controller ww cw

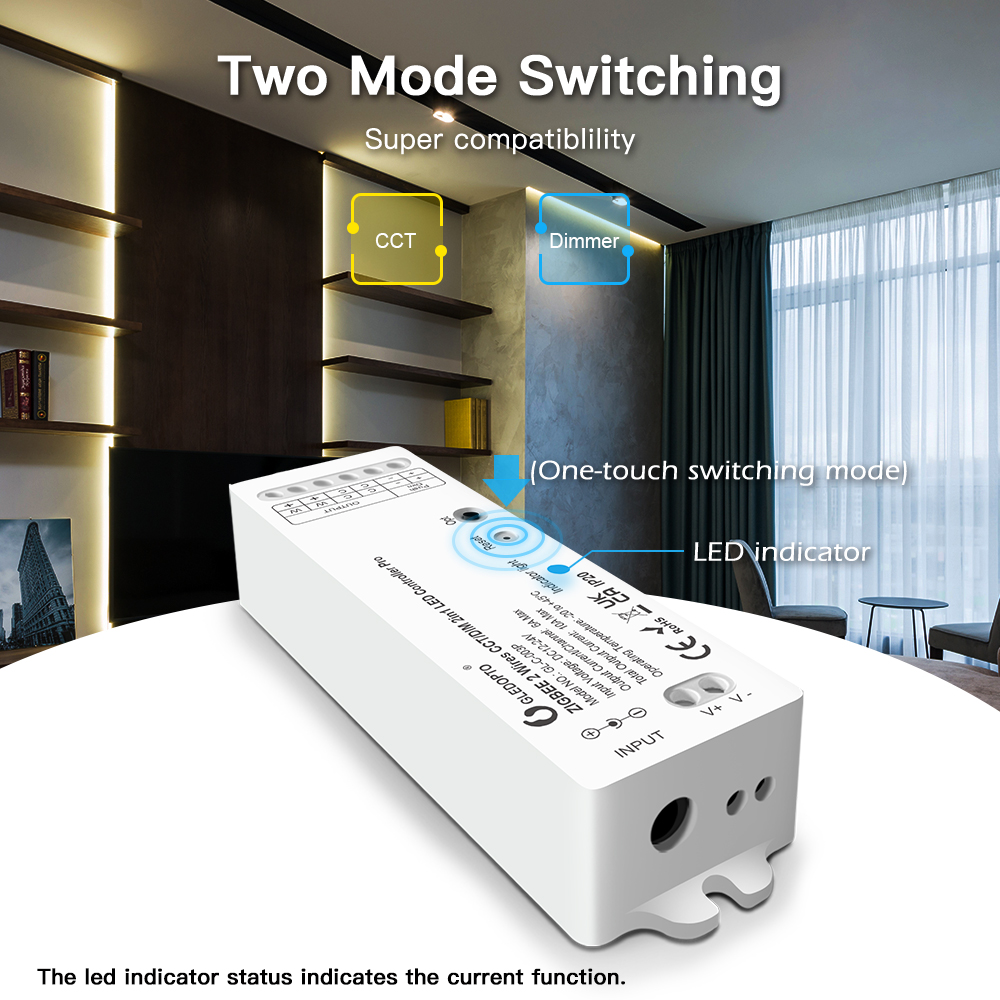

Two Mode Switching:
Color Temperature and Dimmer adjustment
Zigbee LED Controller ww cw

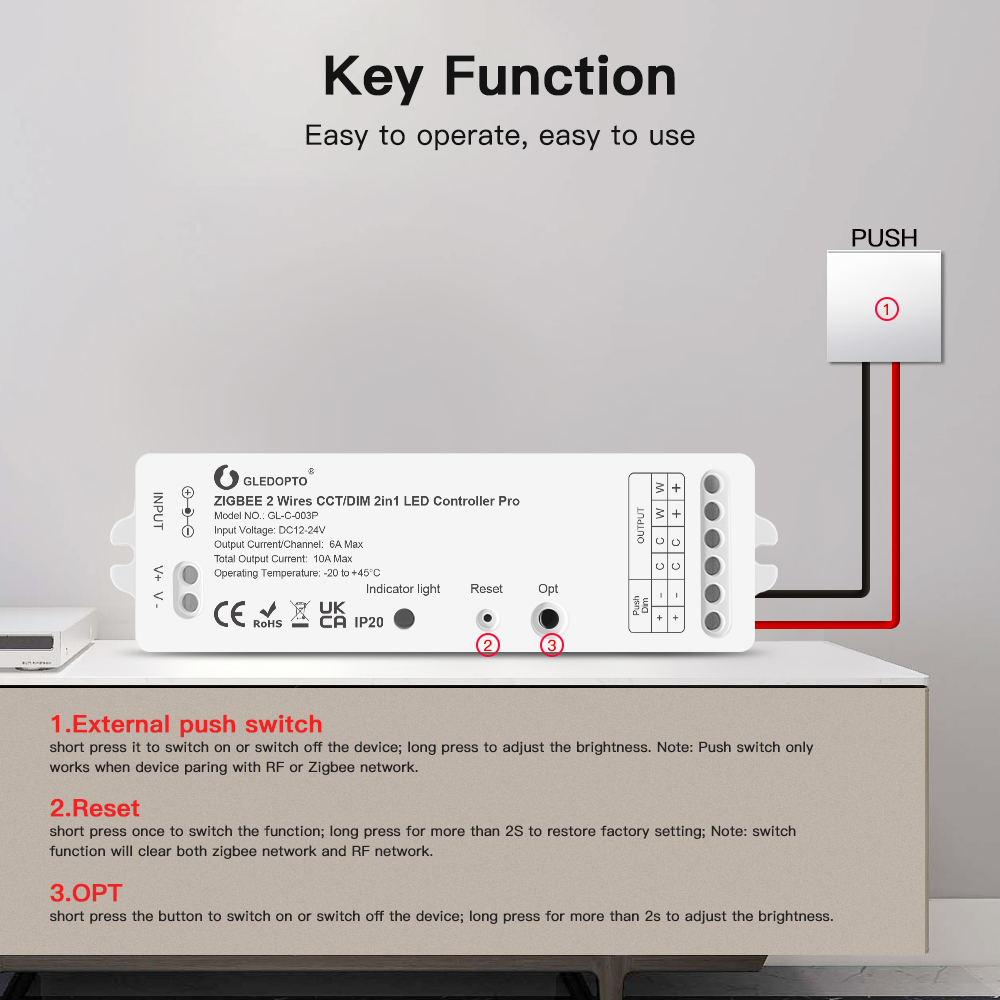

Key Function
1. External push switch
short press it to switch on or switch off the device; long press to adjust the brightness. Note: Push switch only works when device paring with RF or Zigbee network.
2. Reset
short press once to switch the function; long press for more than 2S to restore factory setting; Note: switch function will clear both zigbee network and RF network.
3. OPT
short press the button to switch on or switch off the device; long press for more than 2s to adjust the brightness.
Zigbee LED Controller ww cw

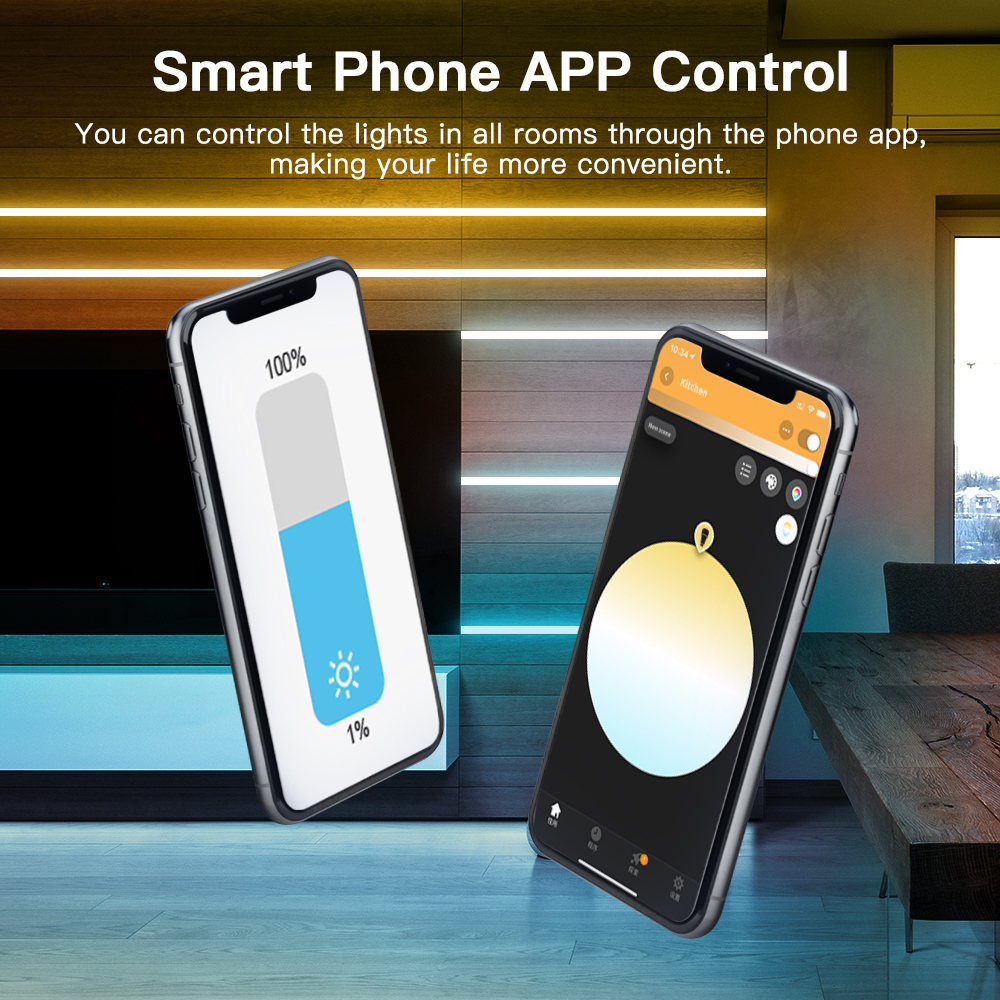

Smartphone APP Control

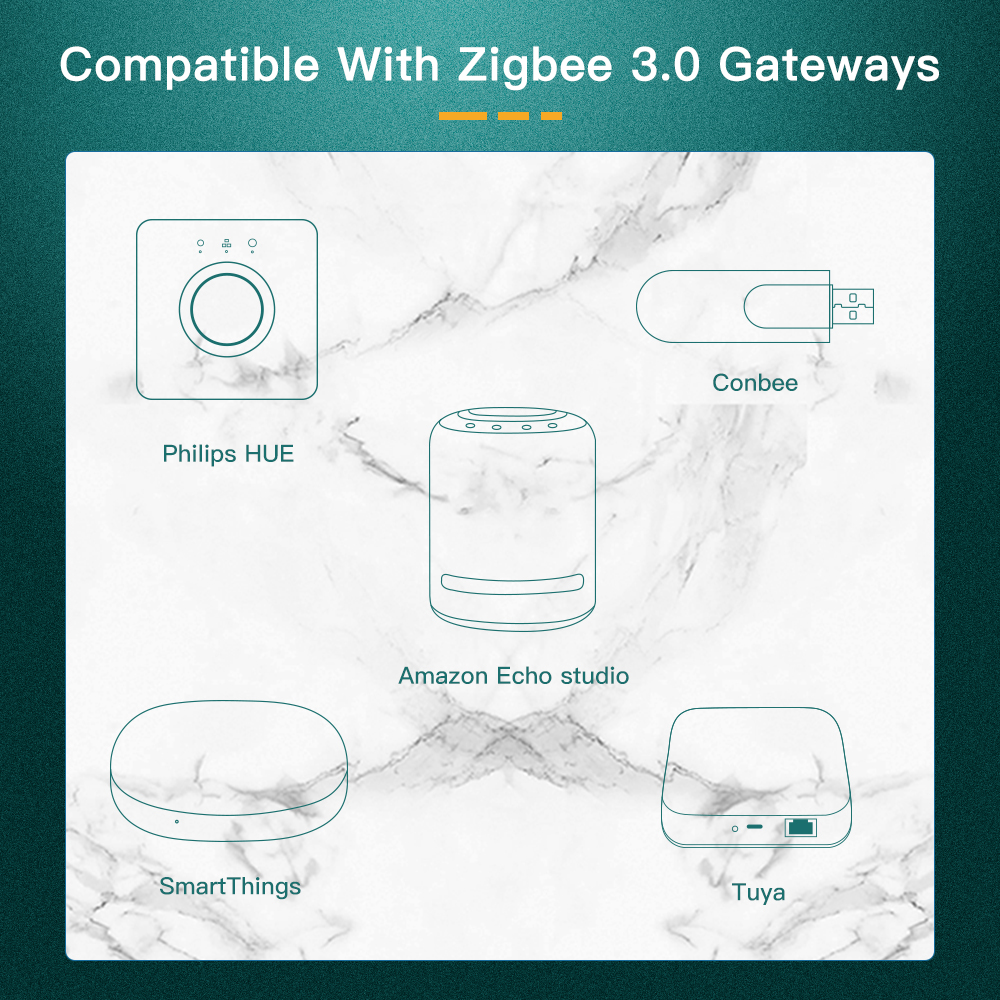

Support voice control by Alexa Echo/Google Home via SmartThings hub or Tuya Zigbee hub.
Zigbee LED Controller ww cw
Brightness adjustment
Choose the right brightness 1%-100% according to your needs.
Zigbee LED Controller ww cw

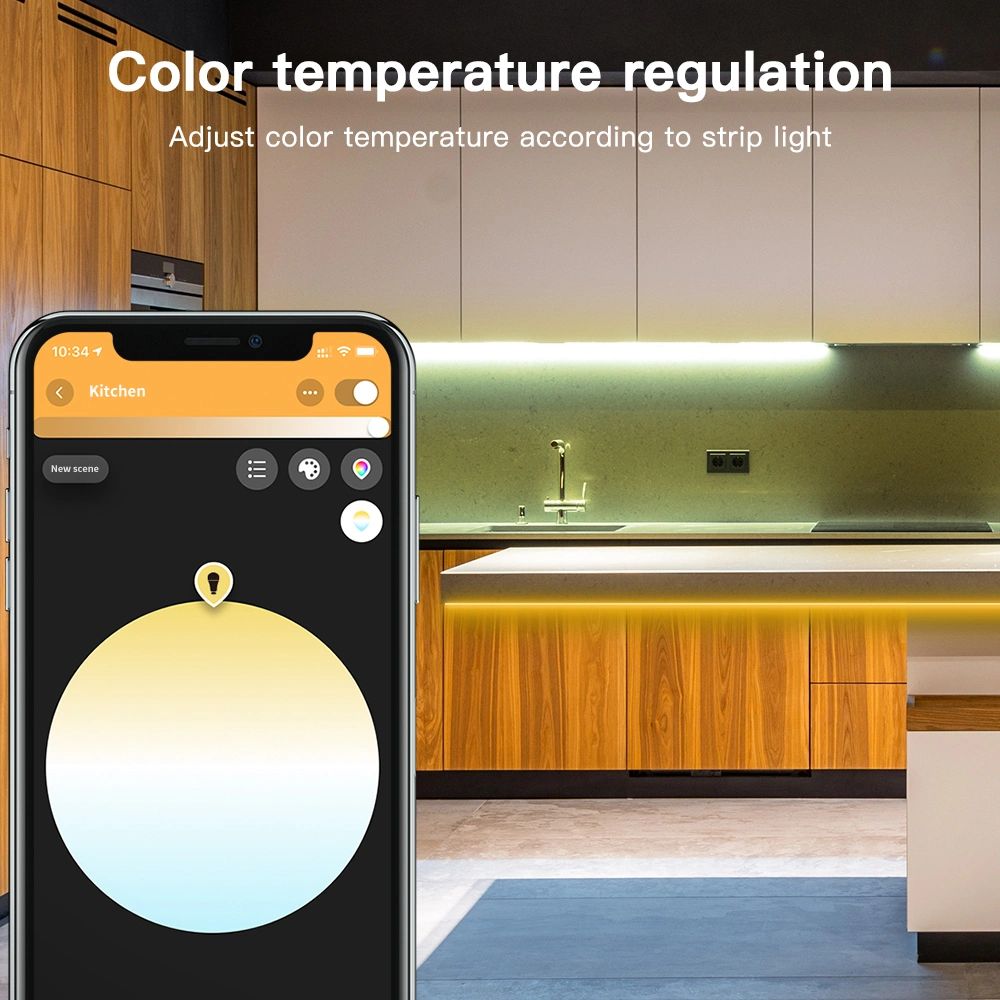

Color Temperature regulation
Adjust color temperature according to led strip light
Zigbee LED Controller ww cw
Works with Amazon echo plus
adjust on/off, brightness , and change light colors through your voice command.
Zigbee LED Controller ww cw

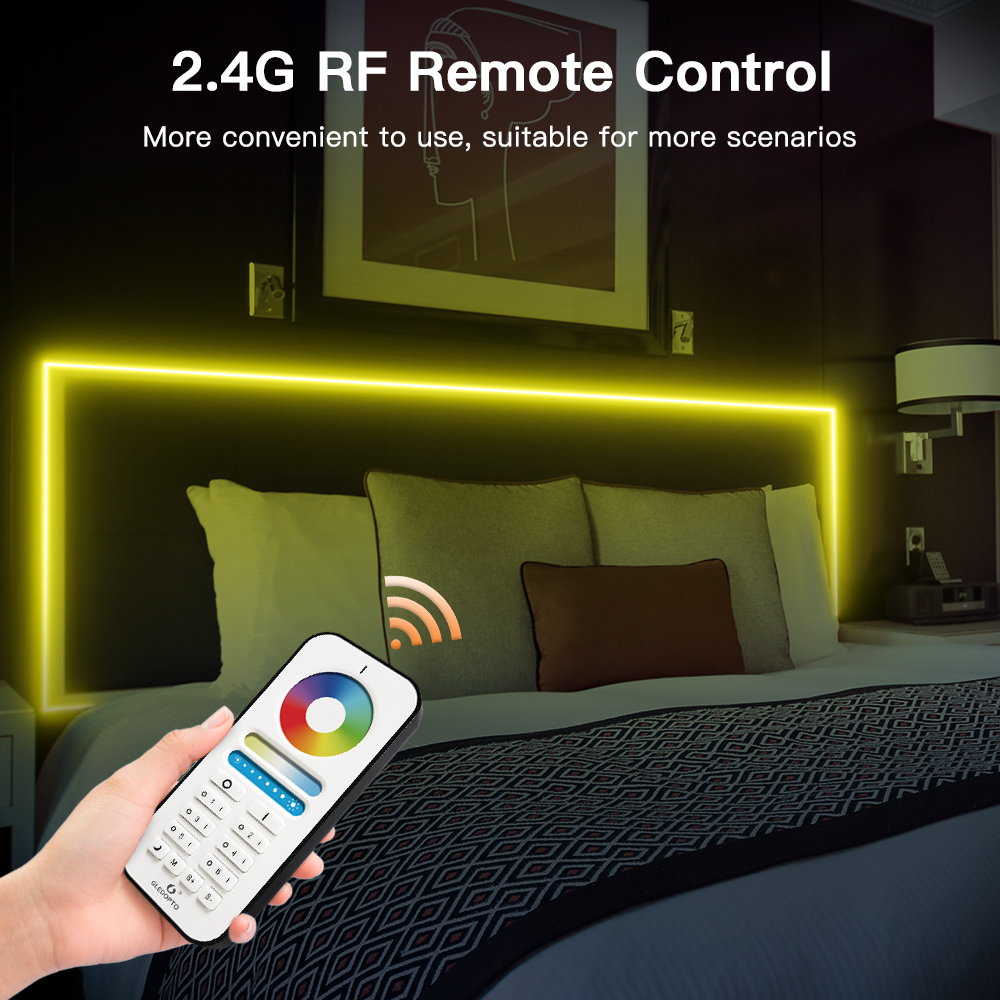

2.4G RF Remote Control
Support 2.4G RF remote control directly, without zigbee hub.
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
Zigbee LED Controller ww cw
