$7.19 - $16.99 / piece
- Warranty(Year):2-Year
- Lighting solutions service:Smart Lighting Control Solution
- Luminous Efficacy(lm/w):0
- Product Weight（kg）:0.04
- Place of Origin:Guangdong, China
- Brand Name:GLEDOPTO
- Type:Remote Control
- Max. Load Power:144W
- Connection Mode:Press-to-insert

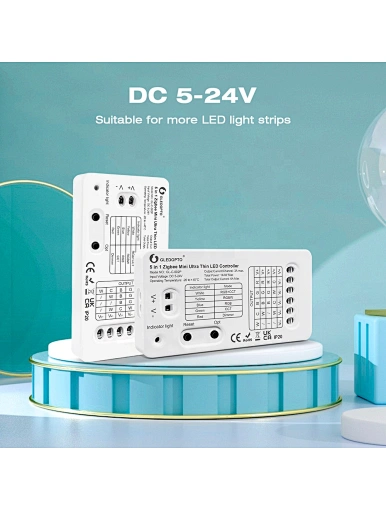

- Input Voltage:DC 5-24V
- Total Channels:5
- Max Output Current per Channel:3A
- Total Max Output Current:6A
- Total Output Power:144W
- Controlling Solution:ZigBee 3.0 + 2.4G RF Remote Control

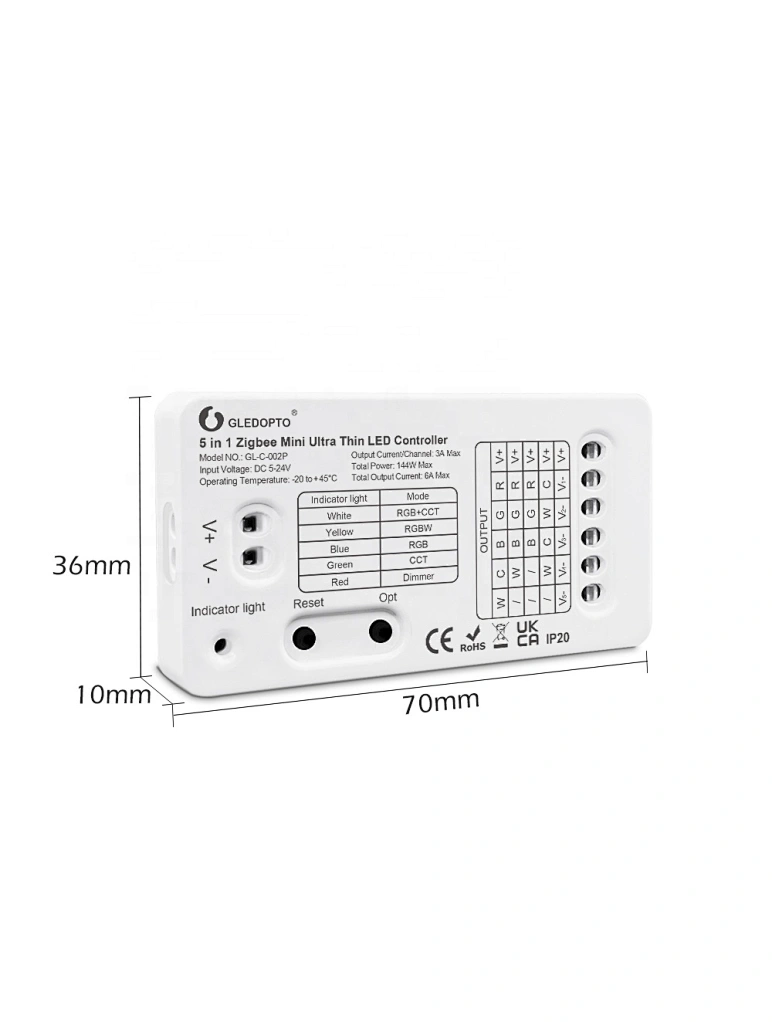

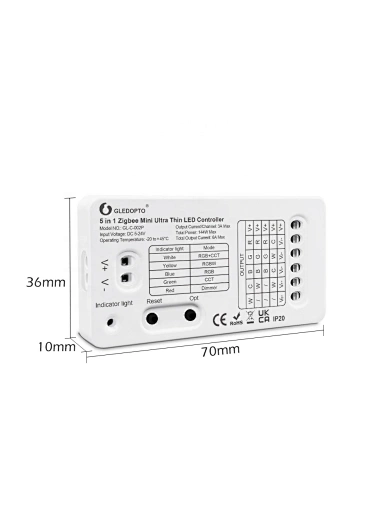

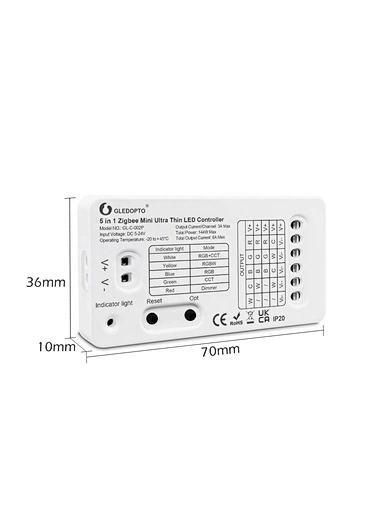

- Size:70*36*10mm
- Net Weight:23.5g
- Materials:Plastic
- IP Rate:IP20

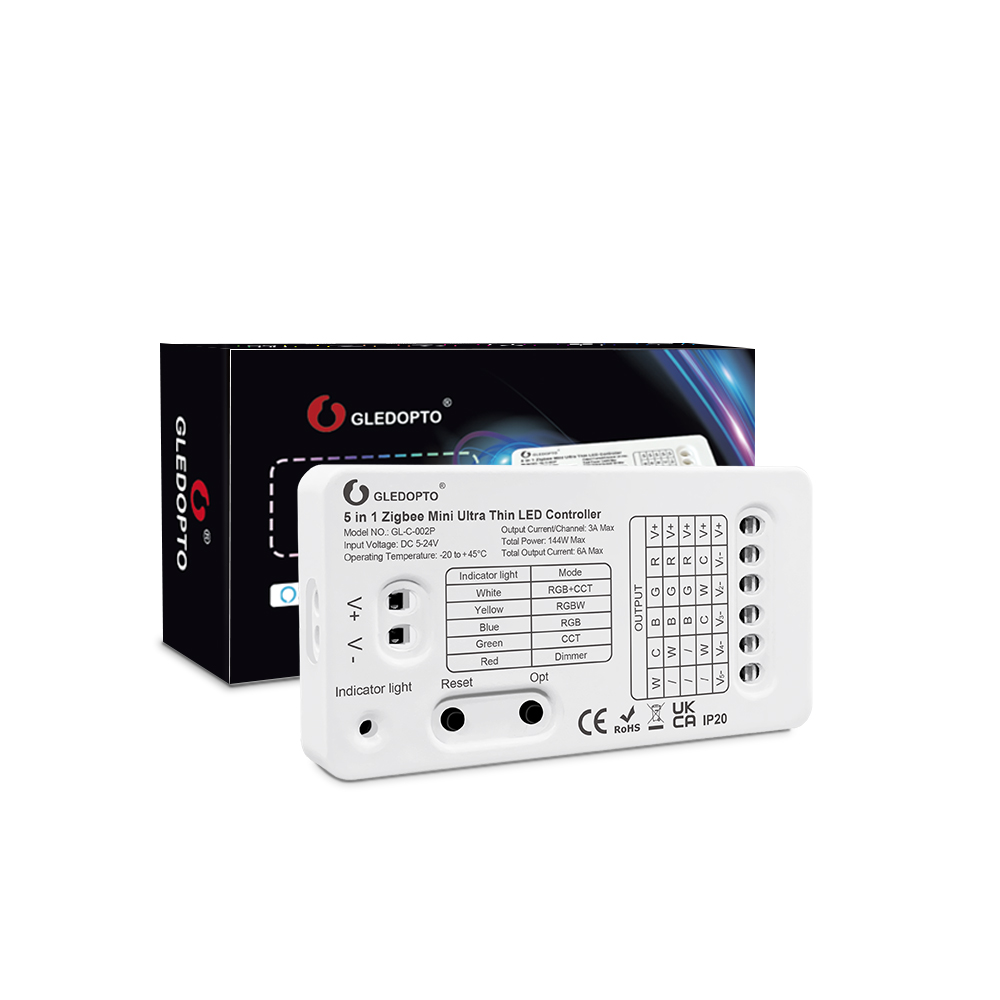

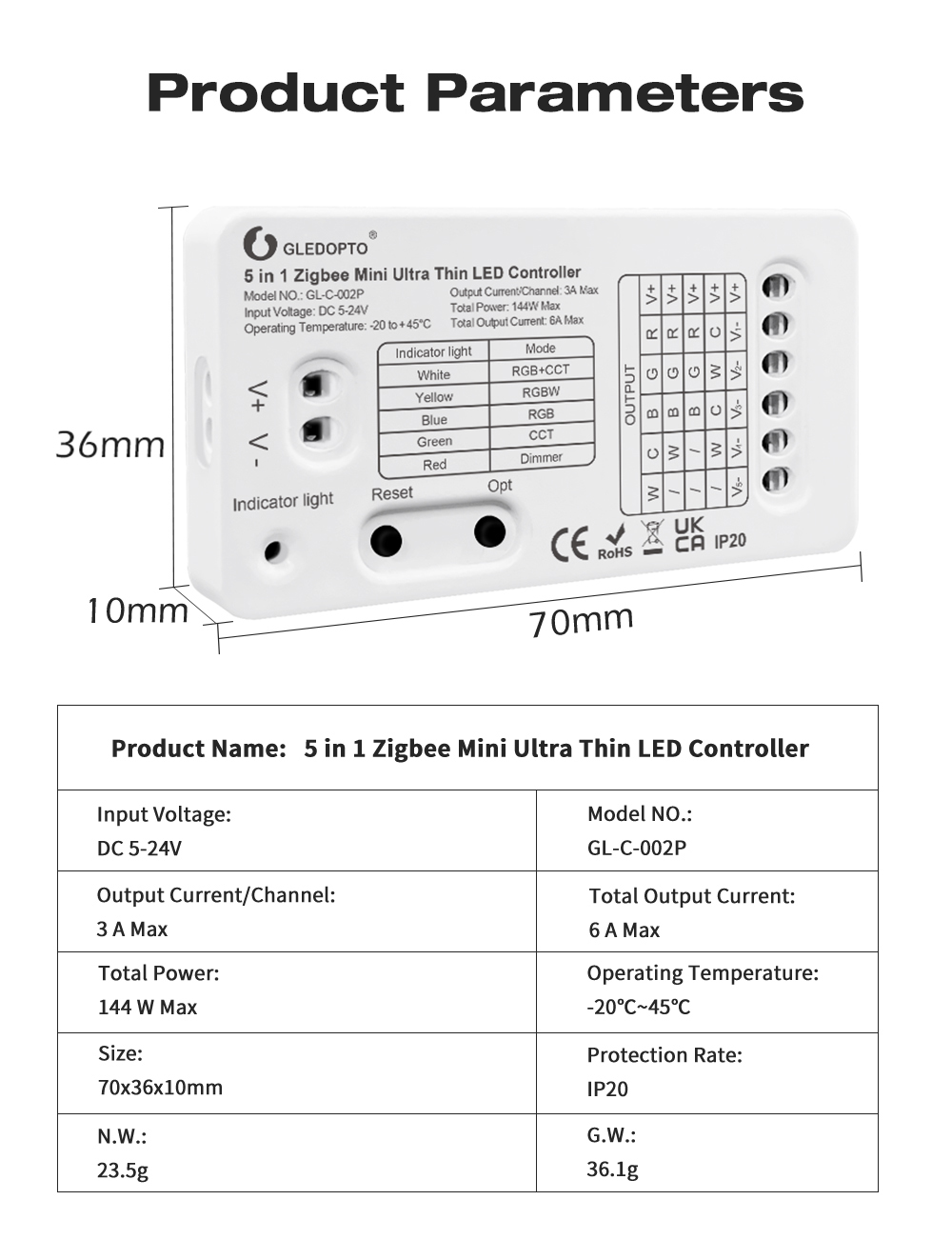

Main Specs of Mini 5in1 ZigBee 3.0 LED Strip Controller | ||
Input Volt. | 5V ~ 24V DC | |
Output Power | Total 144W max. | |
Common Anode | Yes | |
Control Tech. | ZigBee 3.0 + 2.4G RF | |
Lighting Color | RGB/RGBW/RGBCCT/CCT/Dimer | |
Remote Distance | 30Meter | |
Shelf Material | ABS | |
Working Temp. | -20°C~60°C | |

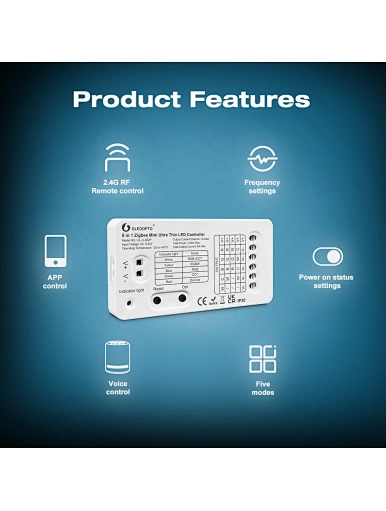

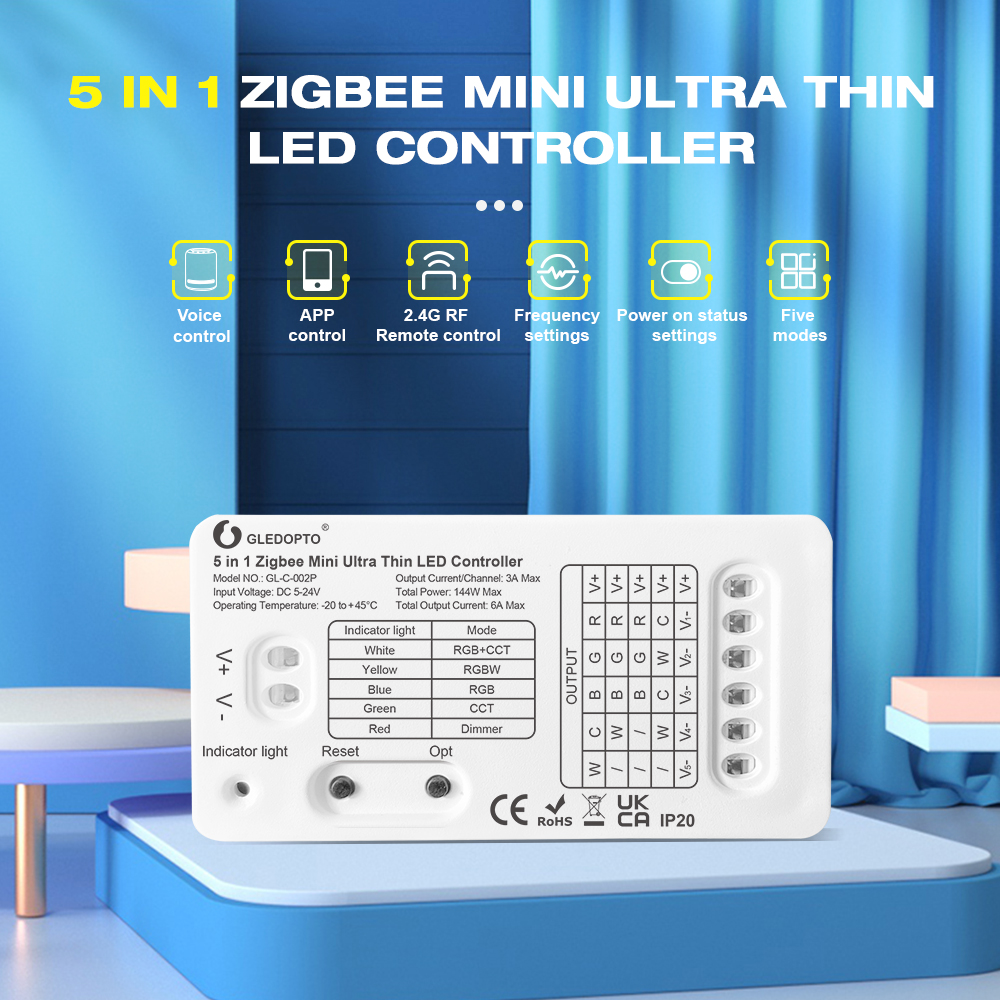

5-in-1 Smart ZigBee LED Controller

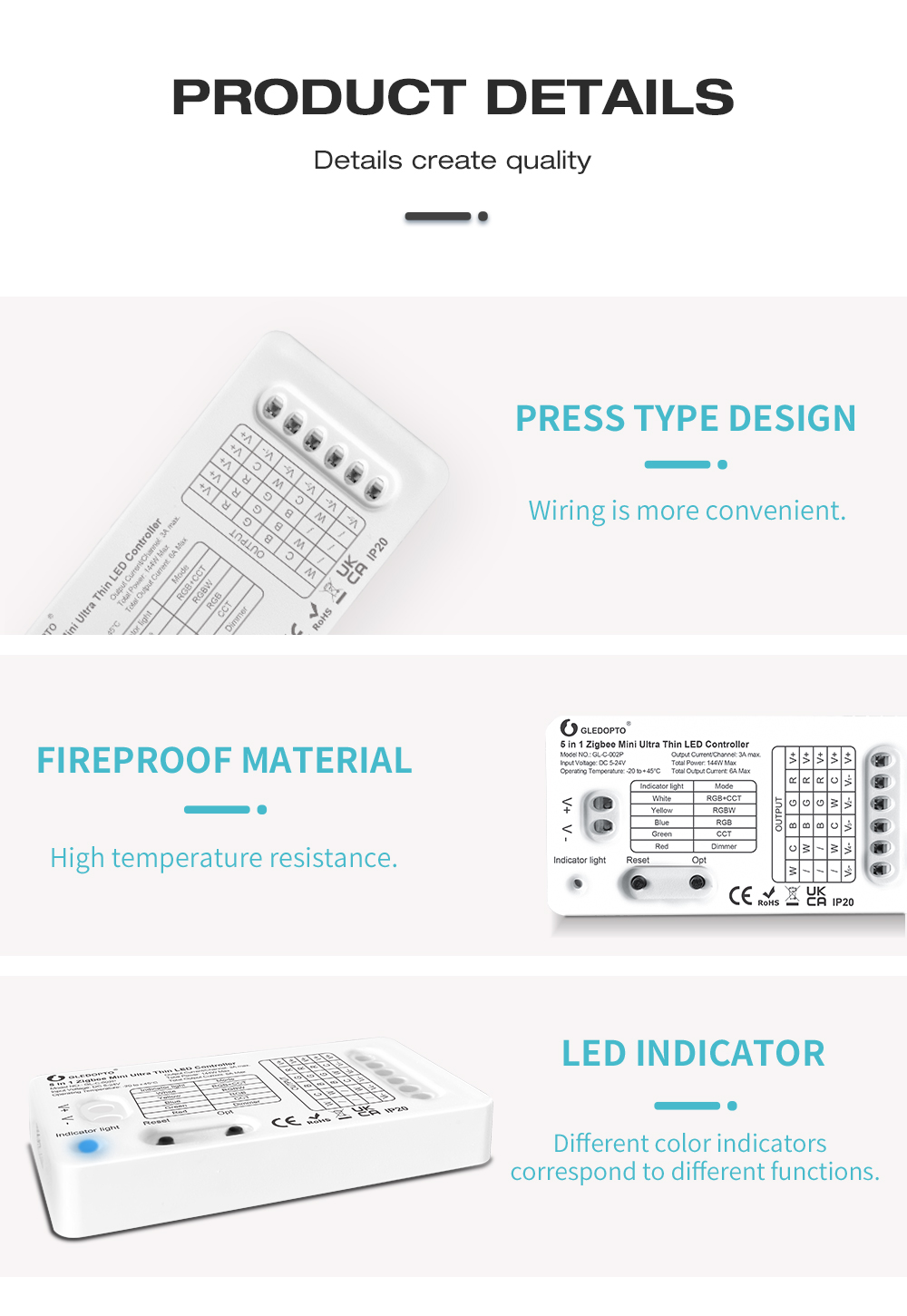

1.LED Indicator:
Different indicator colors represent different functions.
2.Reset:
Short press once to switch PWM frequency;
Short press twice to enter into Find and Binding;
Short press three times to enter into ZigBee Touchlink Commisioning;

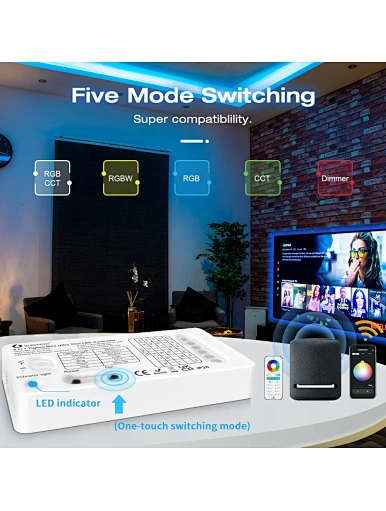

3.OPT:

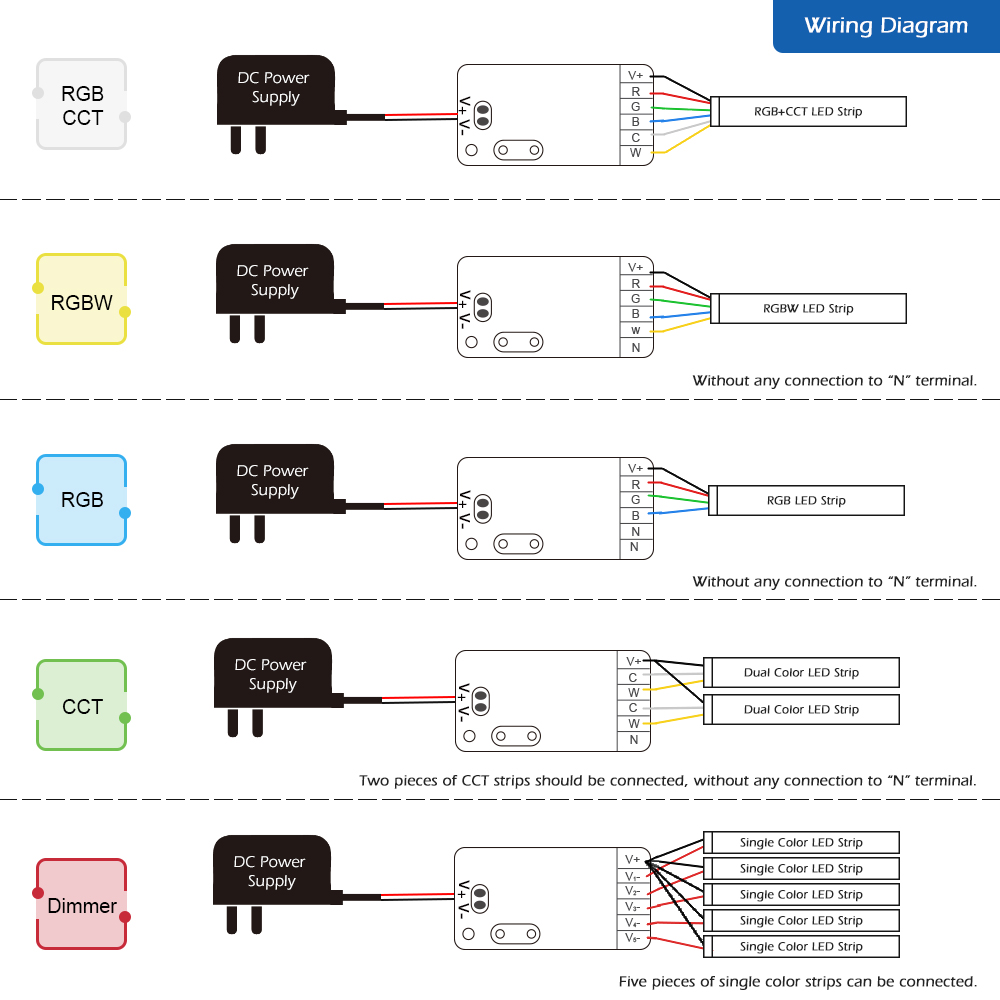

Short press once to switch functions for different colors of LED strips RGBCCT->RGBW->RGB->CCT->Dimmer

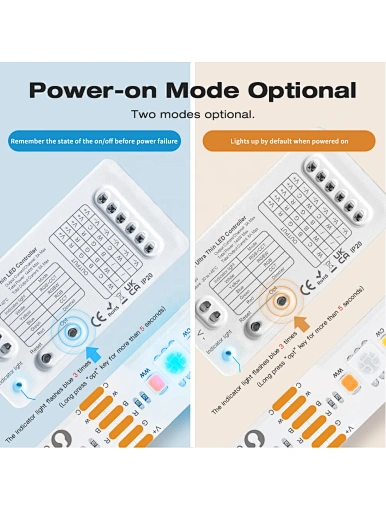

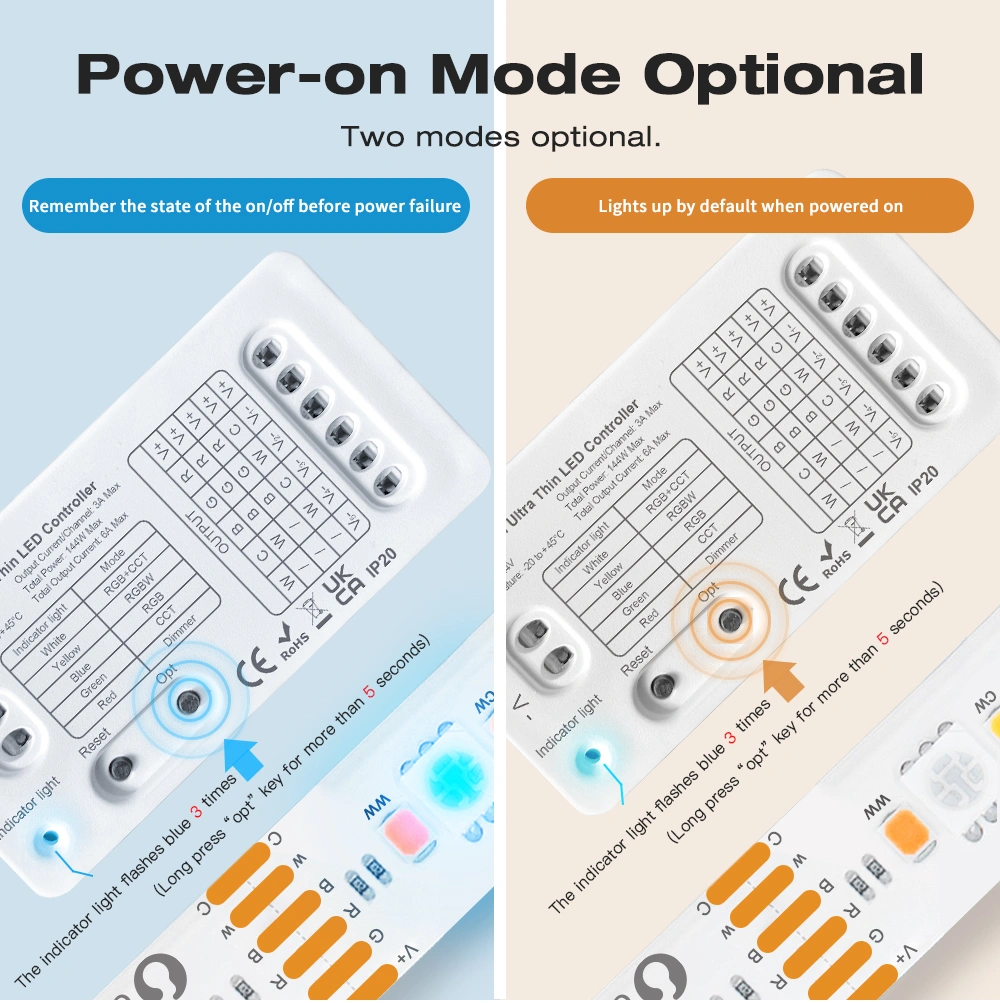

4.Power-on-behaviour status setting:
Press"OPT"key and hold for more than 5 seconds to set power-on status.

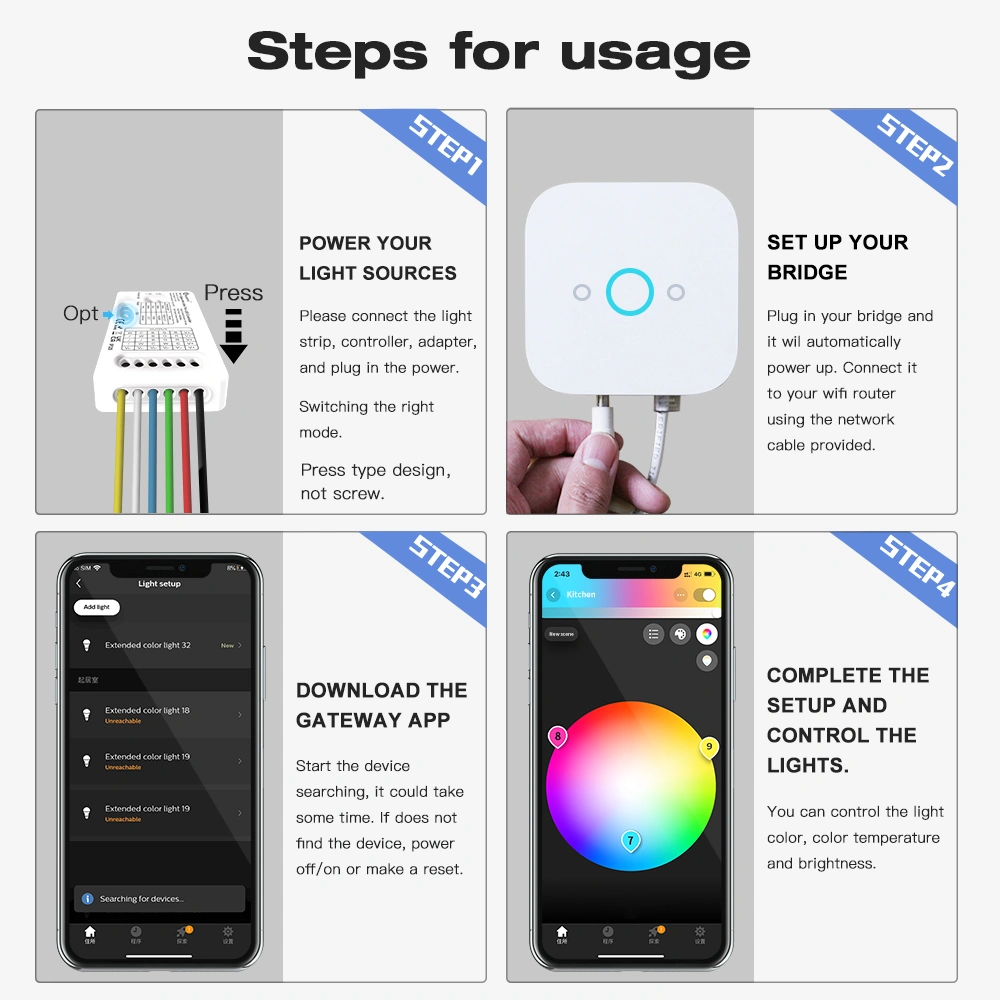

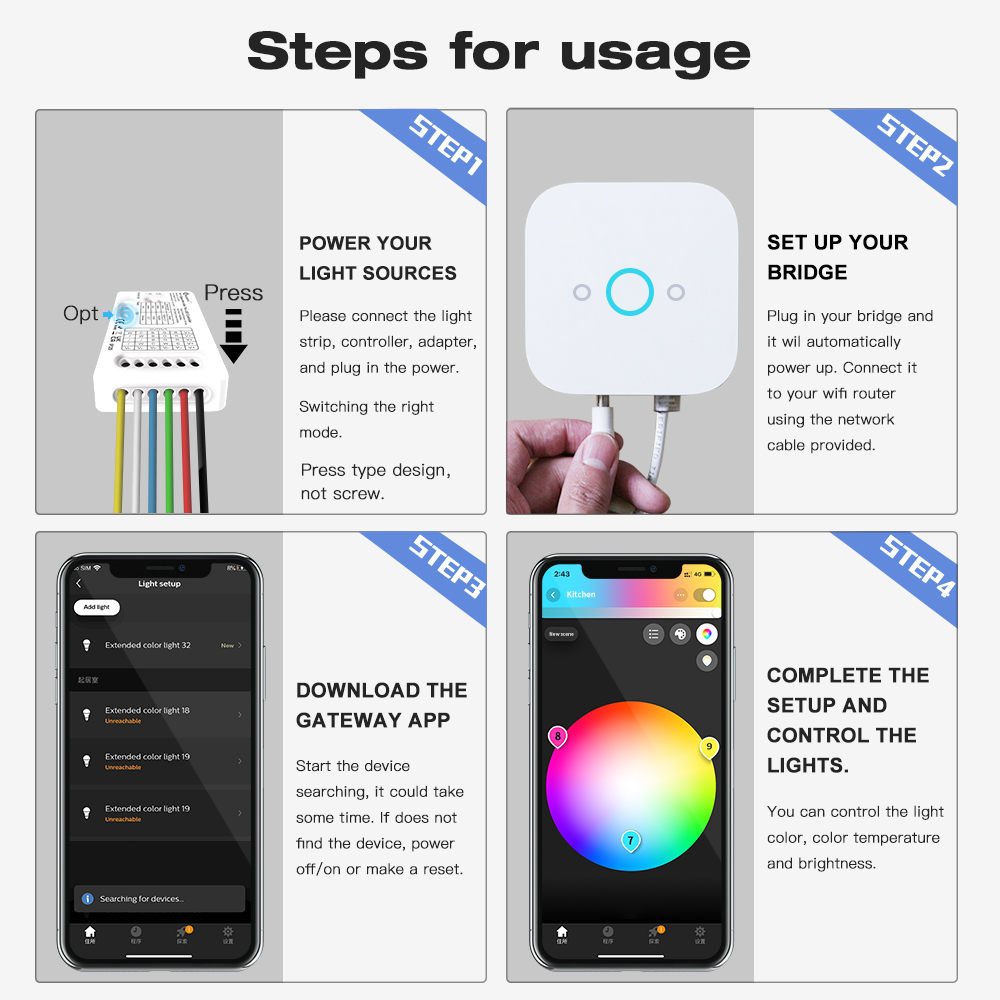

Pairing with ZigBee Network
Add the device to a ZigBee network via coordinator or hub.
1> Please make sure the device not being paired. Otherwise, please"Reset"the device according to the method of"Reset".
2> After step 1, there will be a pairing process about 90s. Once time out, you need to repeat Step 1 again.
3> Open the ZigBee App (Hue or Amazon Alexa) to add the device.
4> If the pairing done successfully after the above steps, the device will blink 3 times.
Touchlink to a ZigBee Remote Control or Touch Panel.
1> Make sure the distance between the device and remote control or touch panel less than 10cm.
2>Method A: Please short press key"Reset"3 times or power on/off the device 3 times to enter into"Touchlink Commissioning"mode, the device will blink 5 times.
Method B: Re-power on the device, Touchlink Commissioning will start after 15s if not being added to a ZigBee network, 165s time out. Or start immediately if it's already being added to a network, 180s time out. Once time out, repeat the operation again.
3> Set the remote or touch panel to enter"Touchlink Commissioning", please refer to the user manual of the corresponding remote or touch panel.
4> There shall be indication on the remote or touch panel for a successful pairing, the device will blink 2 times. Now the device shall be controllable via the remote or touch panel.
ZigBee Find and Bind Mode
Note: Make sure that the device and remote are in the same network.
1> Short press"Reset"key (or re-power on the device) for 2 times. The device will blink twice, and start"Find and Bind"mode to find the"Target Node"
2> Set the remote control or touch panel (target node) to enter the"Find and Bind"mode to search for"Bind Initiator". Please refer to the user manual of the corresponding remote or touch panel.
3>"Find and Bind"is completed, the remote or touch panel shall have indication. Now the device shall be remote control or touch panel controllable.

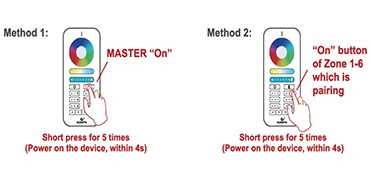

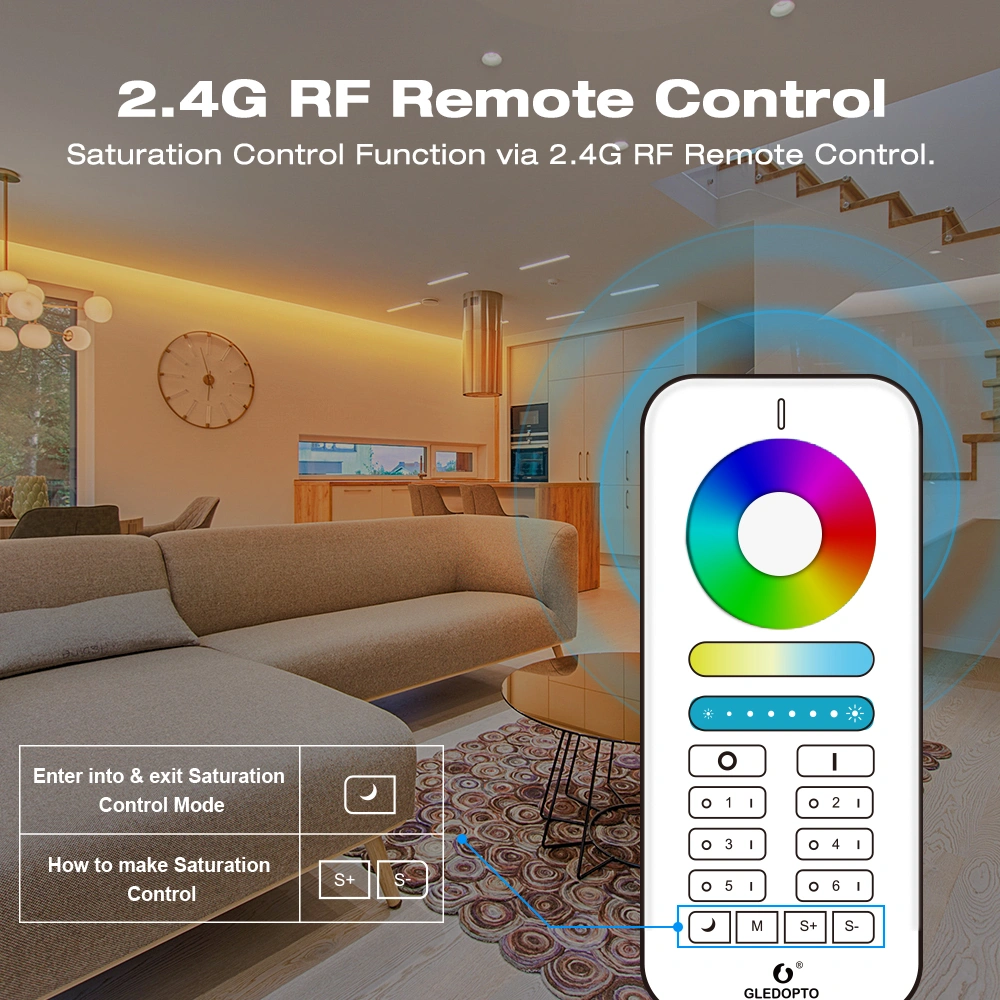

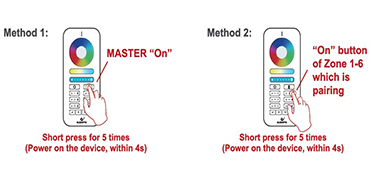

Pairing with 2.4G HZ RF Remote Control/Touch Panel (No ZigBee Hub Needed)

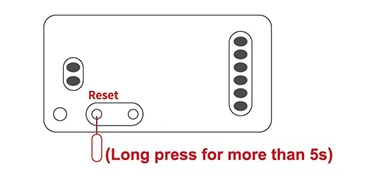

Unpairing the ZigBee Network
Unpairing the 2.4G HZ RF Network
2> Short press continuously 5 times the zone"on"key the device being paired within 4s after the device powered on, the device
will blink 3 times.
Status of Power-on-behaviour Settings

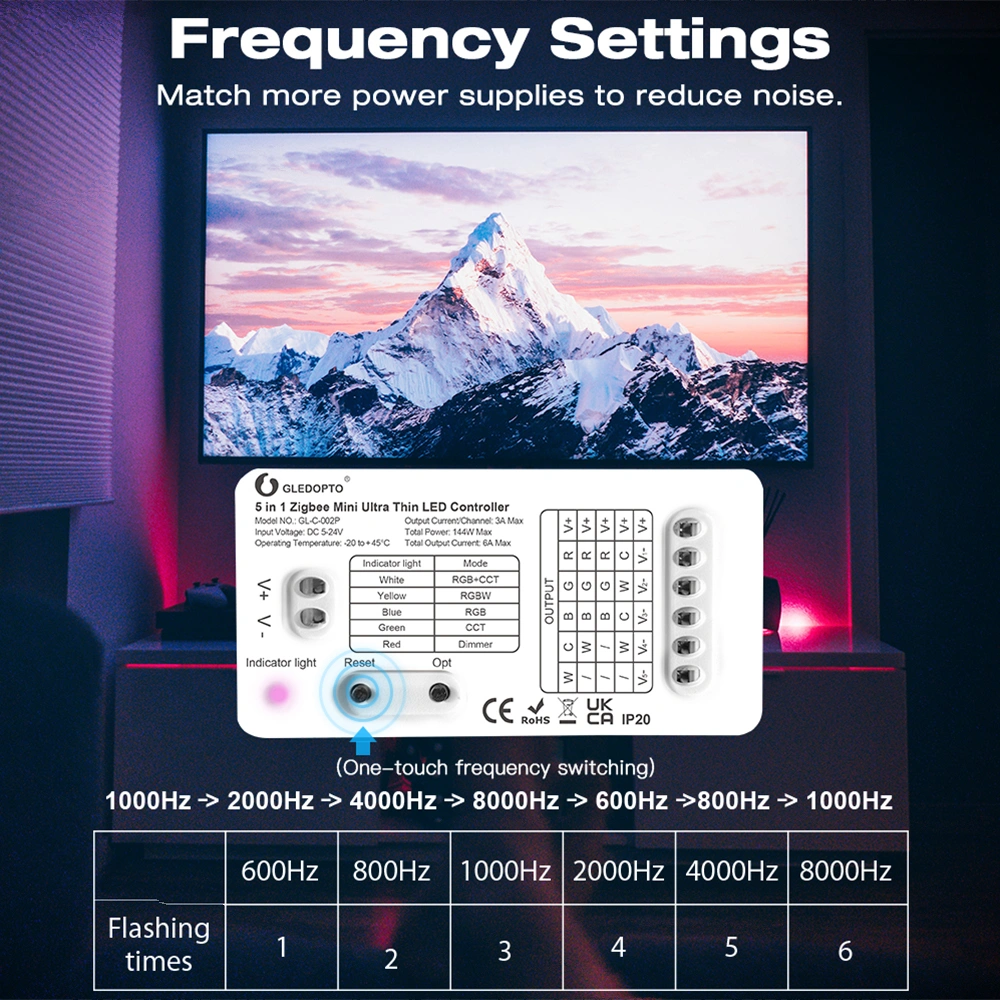

Frequency Settings
