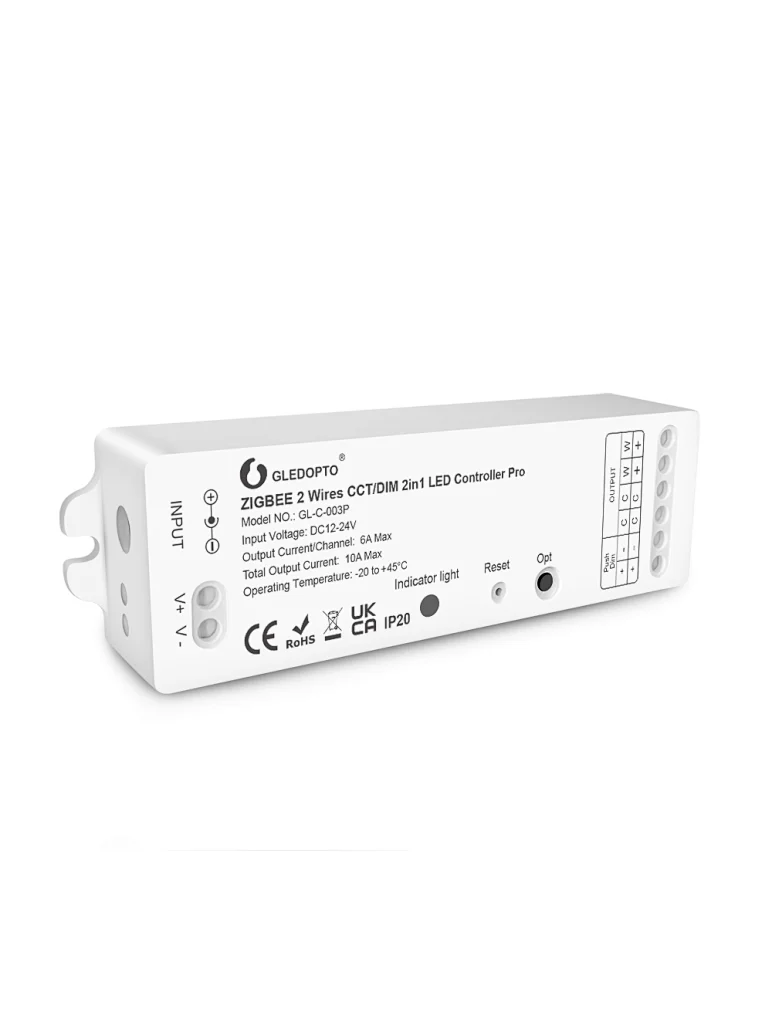

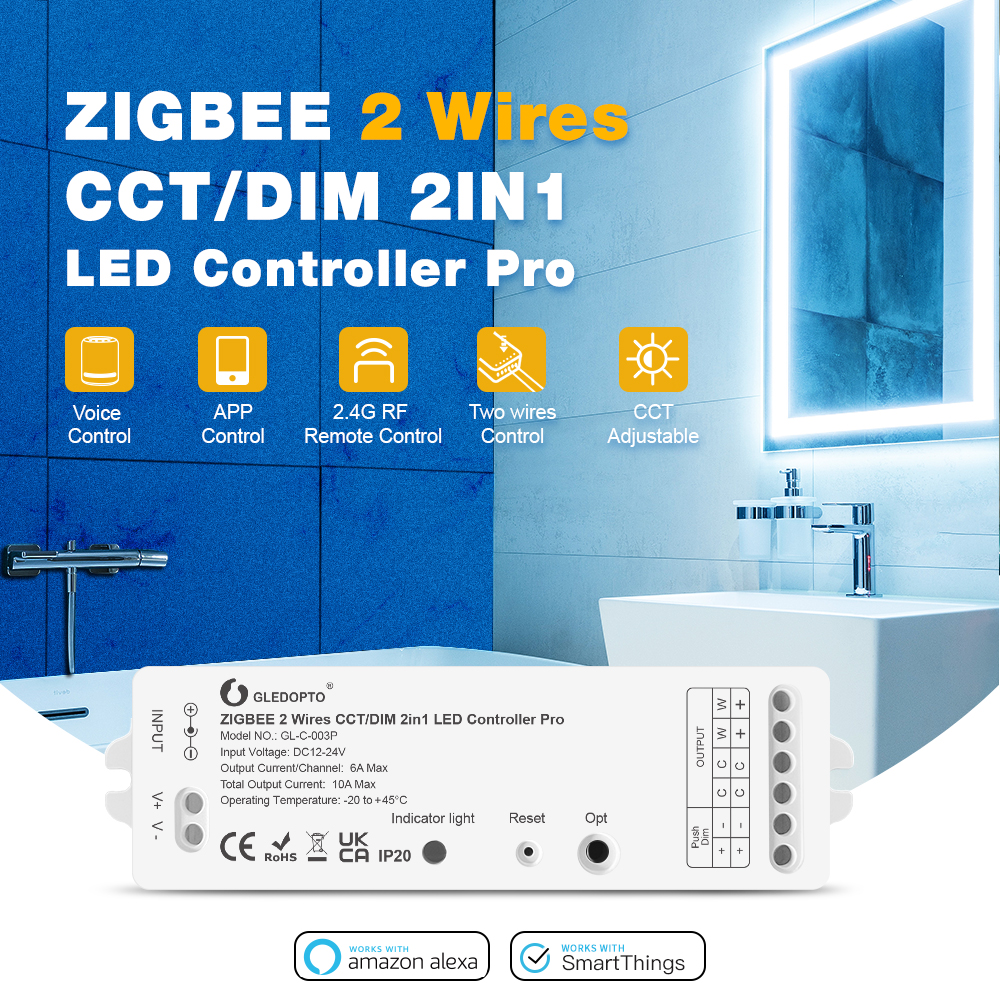

Zigbee Pro Smart 2 Wires CCT/Dimmer 2in1 LED Strip Controller Receive Gledopto
price
$8.50 - $10.50 / piece
GL-C-003P
1 piece
Quantity
- Warranty(Year):2-Year
- Lighting solutions service:Lighting and circuitry design, Project Installation
- Luminous Efficacy(lm/w):0
- Product Weight（kg）:0.079
- Place of Origin:Guangdong, China
- Brand Name:Gledopto
- Type:Remote Control
- Max. Load Power:144w
- Connection Mode:Zigbee3.0+RF

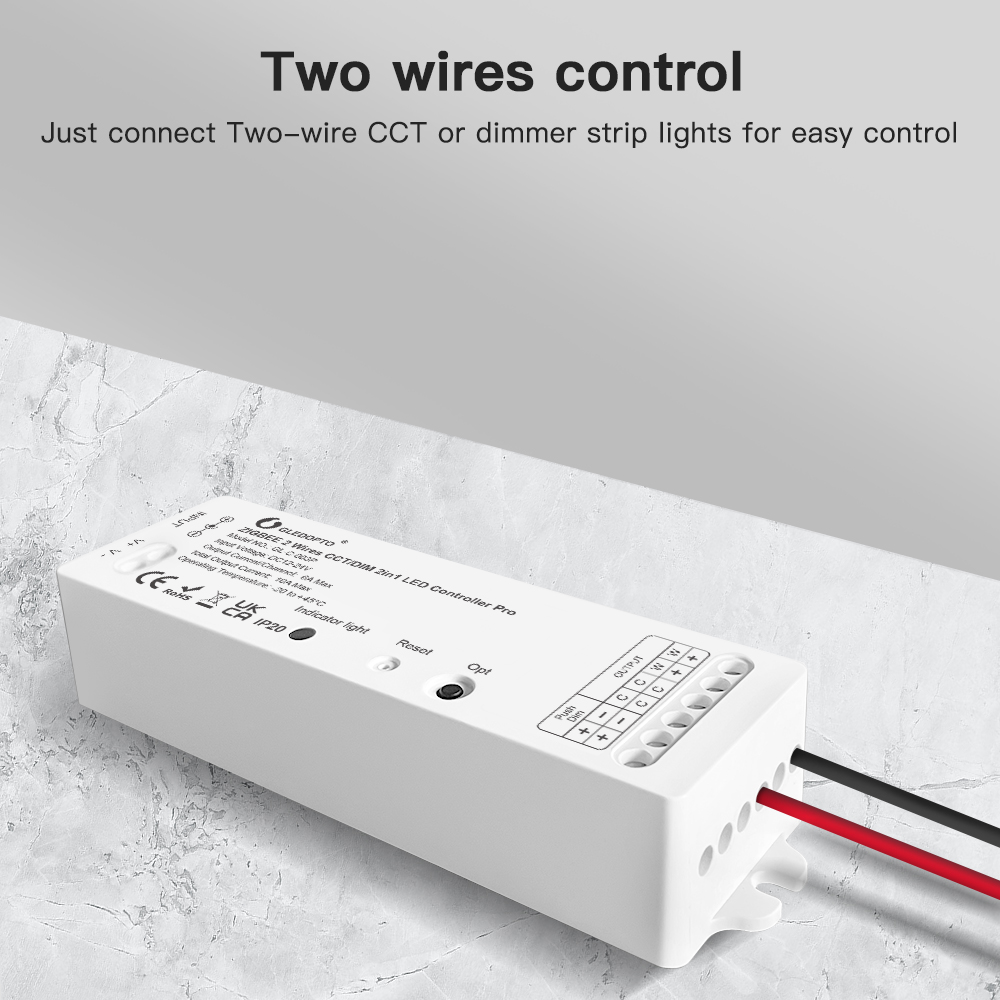

- Product name:2 Wires CCT/DIM 2in1 LED Controller Pro
- Compatible with:Zigbee3.0& RF 2.4G
- Color:CCT/DIM
- CCT temperature:2200-6500K
- Control way:smartphone app + voice control
- Application:Colorful lighting decoration
- Protection rate:IP20
- Power Supply:DC12-24V
- max power loaded:max 144W power loaded
- Fit for:various installation and DIY scenes

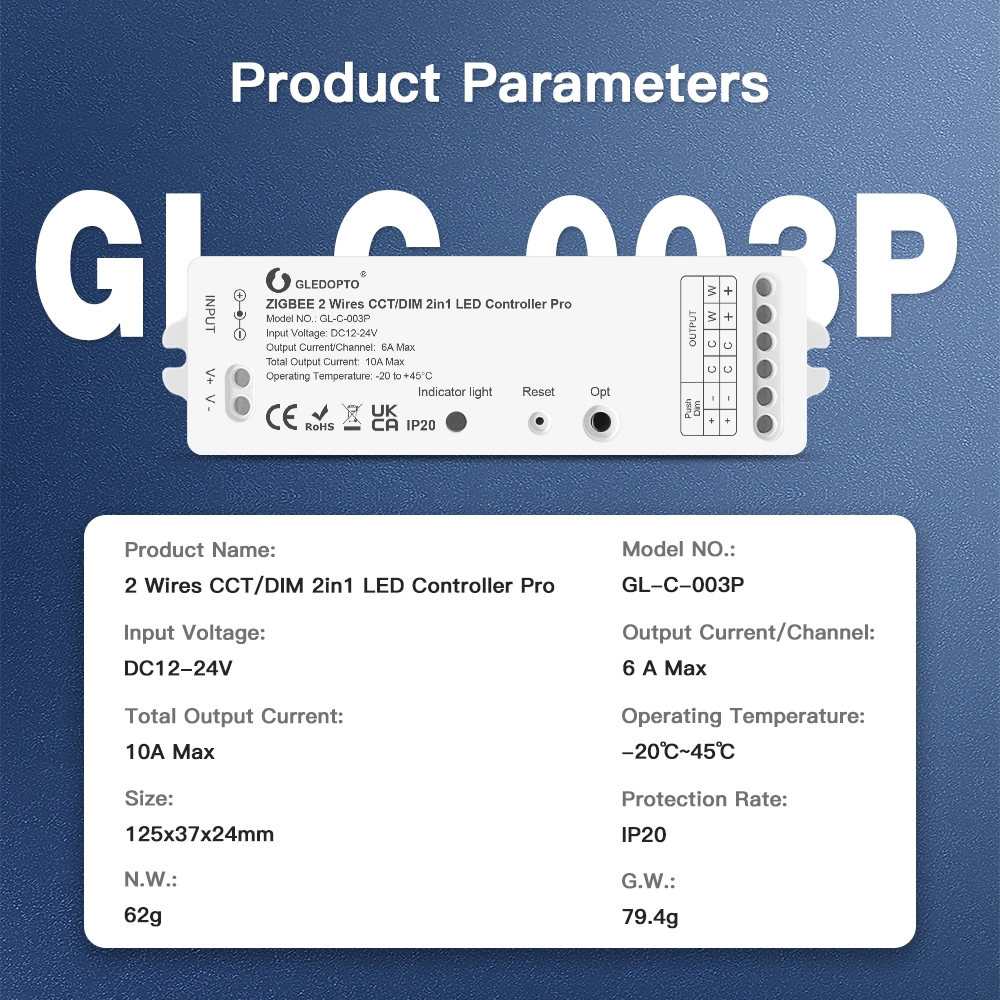

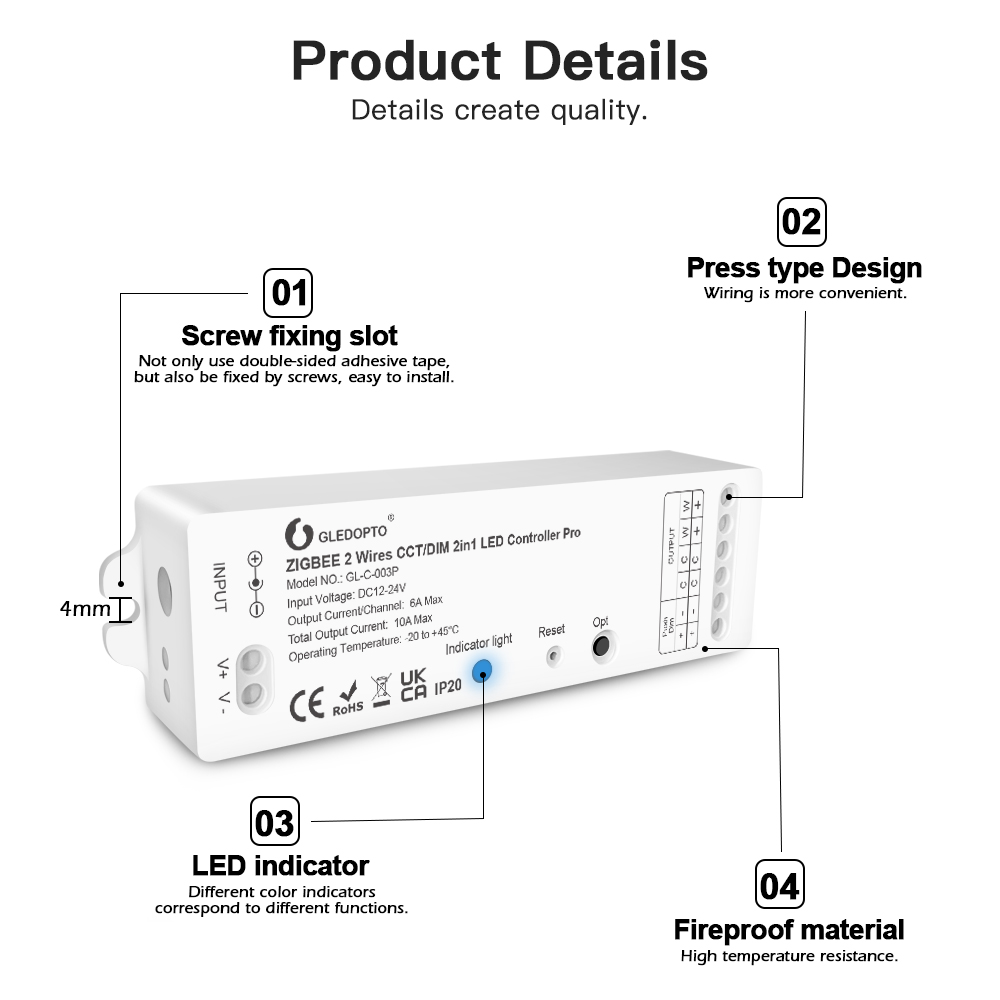

Product Description
Product Name | Zigbee 2 Wires CCT/DIM 2in1 LED Controller Pro |
Model | GL-C-003P |
Input Voltage | DC12-24V |
Color | CCT/Dimmer |
Output Current/Channel | 6A Max |
Total Output Current | 10A Max |
Total Power | 144W Max |
Remote Distance | 30Meter |

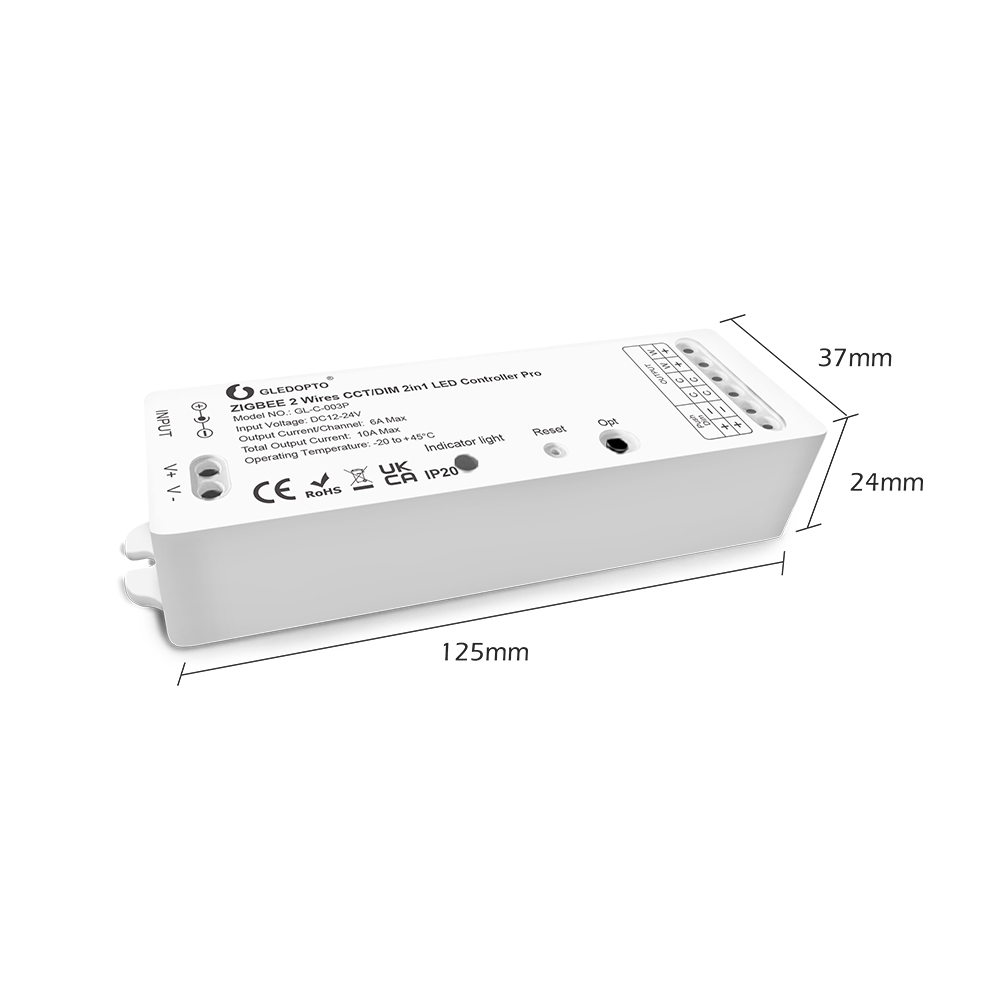

Size | 125x37x24mm |
Operation Temperature | -20°C-45°C |
Protection Rate | IP20 |
Net Weight | 62g |
Gross Weight | 80g |
Warranty | 2years |

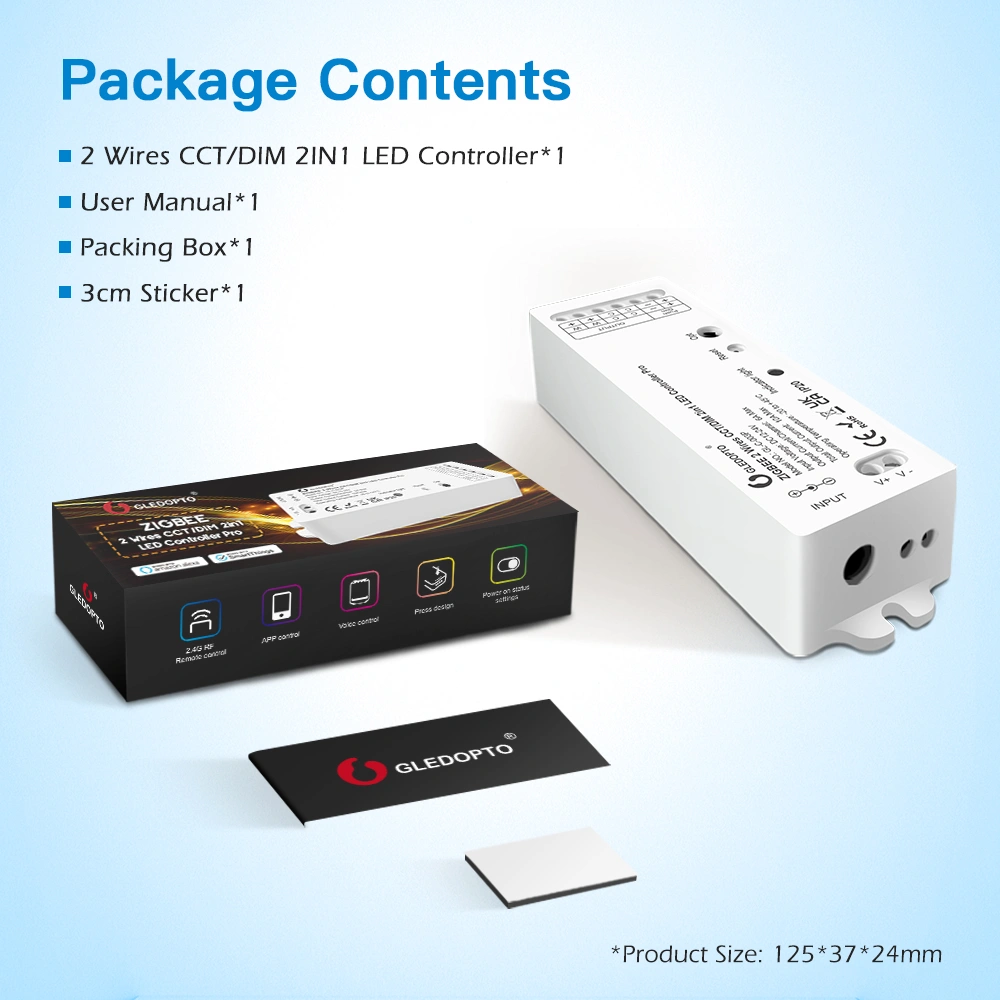

Package Included: | 1. 2 Wires CCT/DIM 2in1 LED Controller Pro*1 2. 3cm Sticker*1 3. Instruction Manual*1 4. Box *1 |

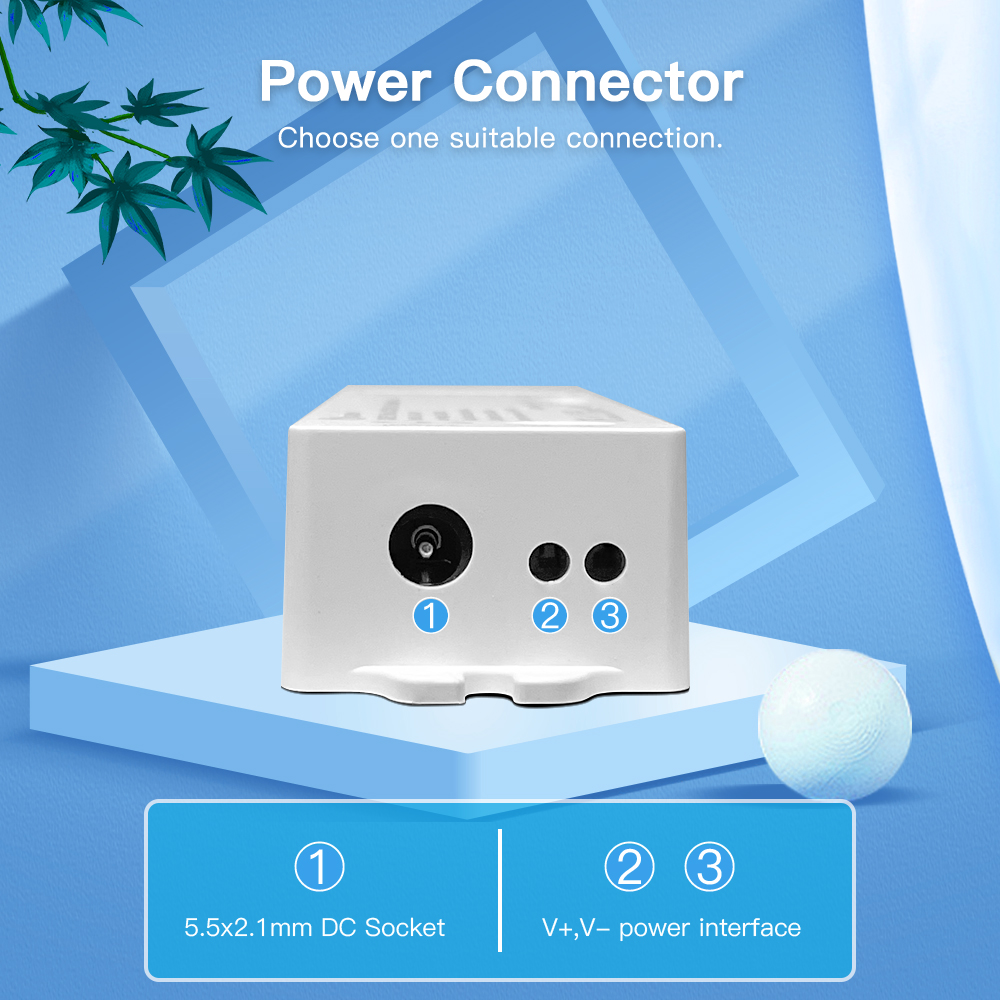

Input Voltage
Fit for 12-24V LED Strip Light.
Suitable for various installation and DIY scenes

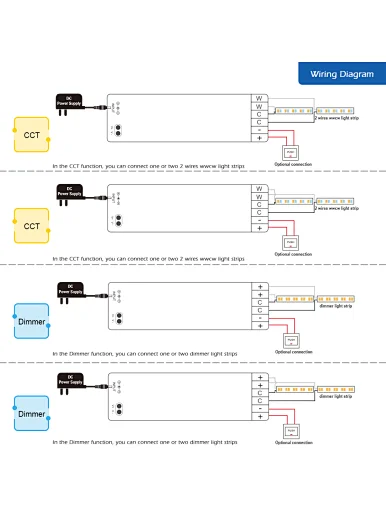

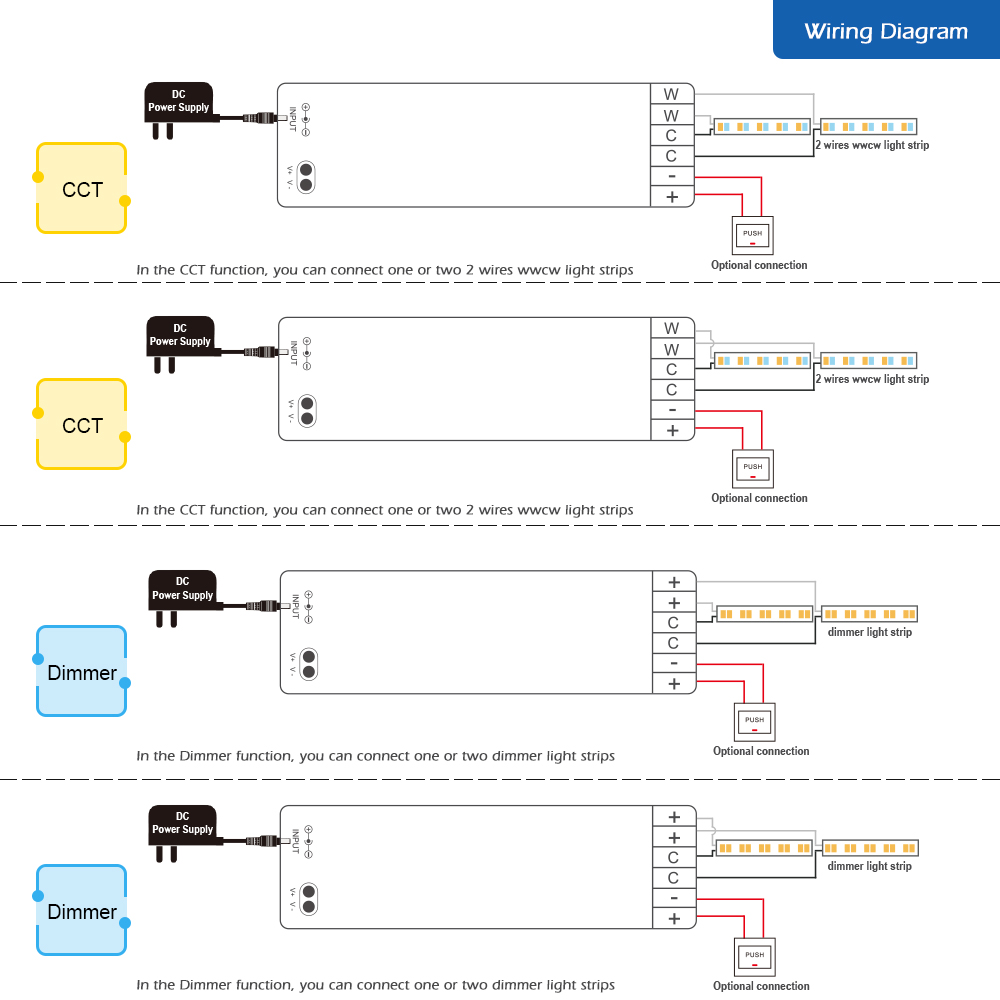

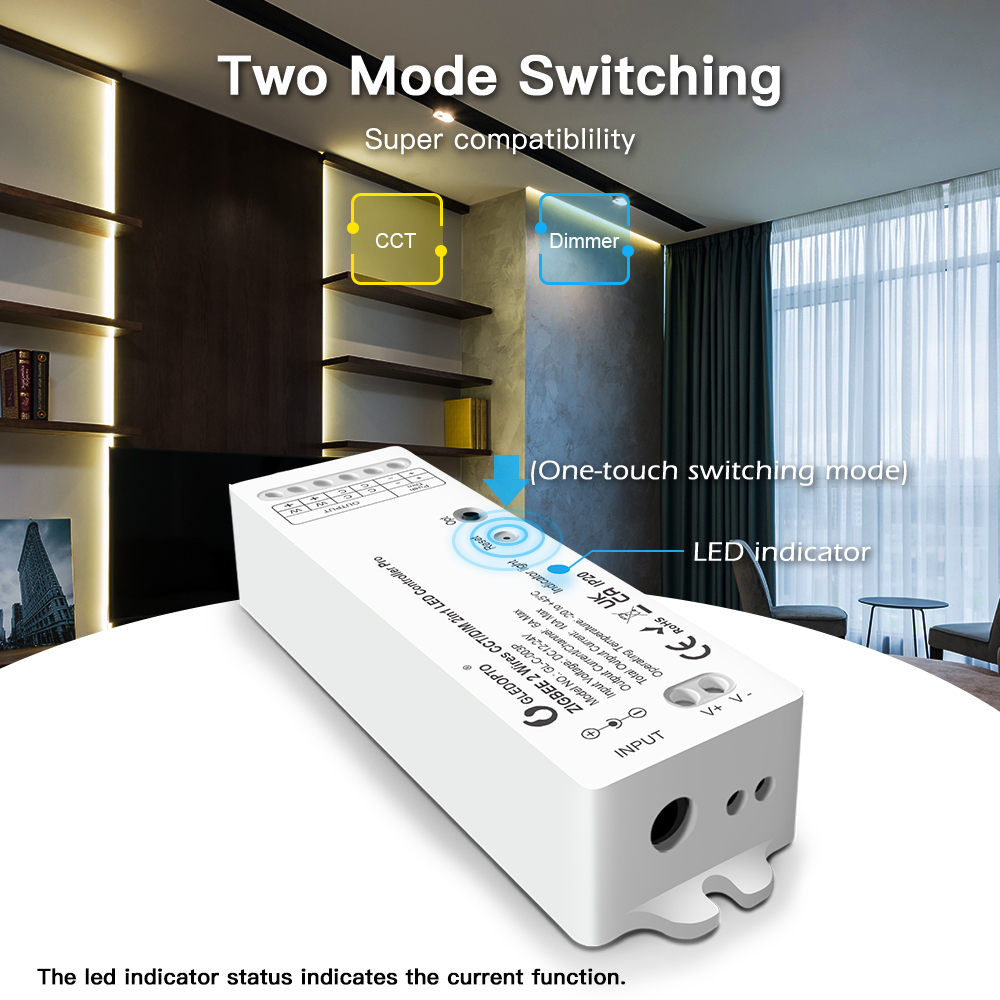

Two Mode Switching:
Color Temperature and Dimmer adjustment

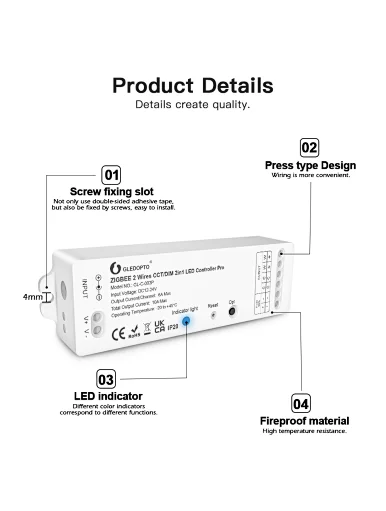

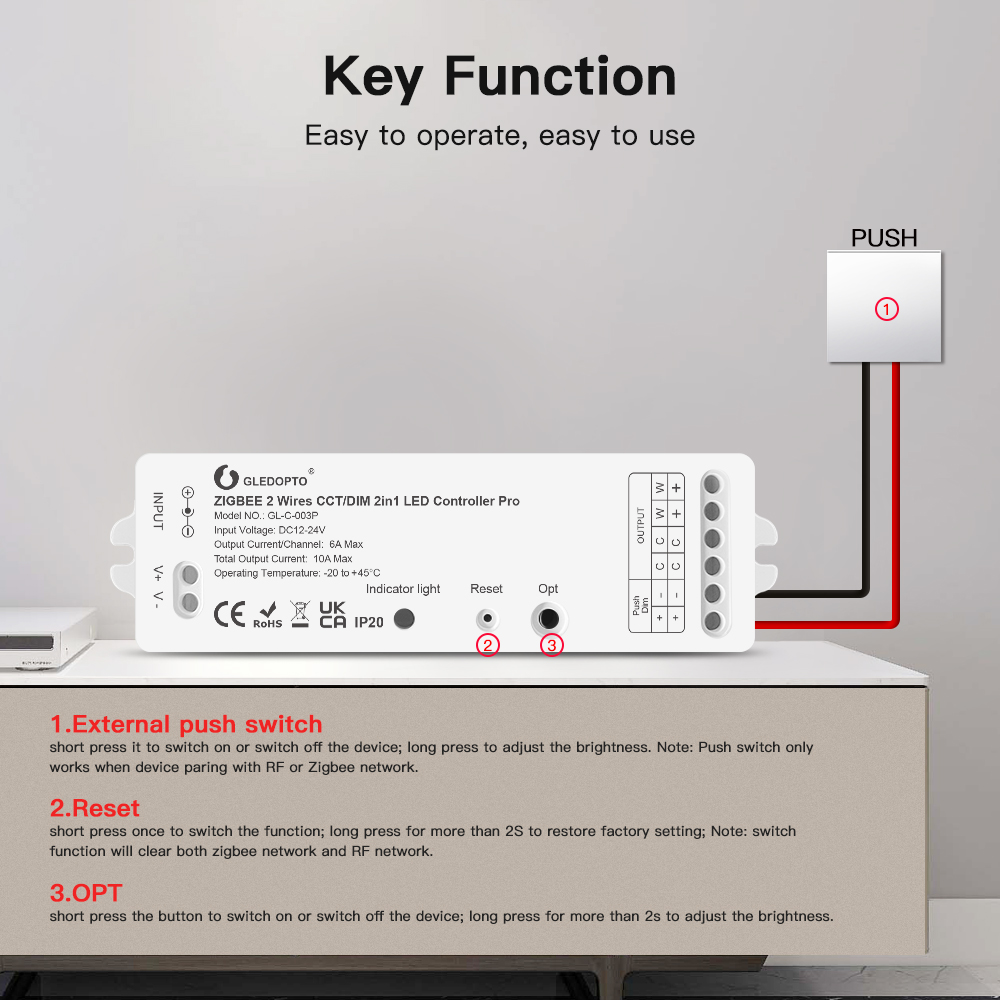

Key Function
1. External push switch
short press it to switch on or switch off the device; long press to adjust the brightness. Note: Push switch only works when device paring with RF or Zigbee network.
2. Reset
short press once to switch the function; long press for more than 2S to restore factory setting; Note: switch function will clear both zigbee network and RF network.
3. OPT
short press the button to switch on or switch off the device; long press for more than 2s to adjust the brightness.
Smartphone APP Control
Support voice control by Alexa Echo/Google Home via SmartThings hub or Tuya Zigbee hub.
Brightness adjustment
Choose the right brightness 1%-100% according to your needs.

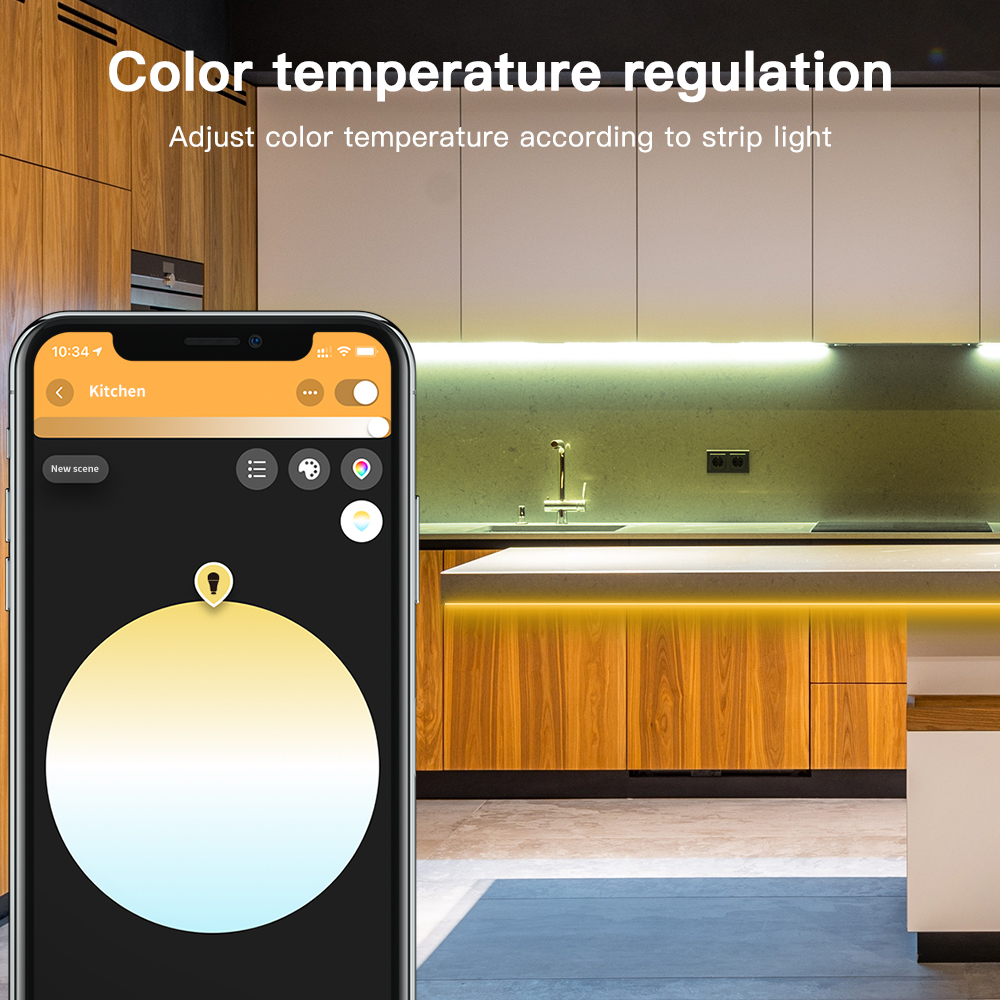

Color Temperature regulation
Adjust color temperature according to led strip light
Works with Amazon echo plus
adjust on/off, brightness , and change light colors through your voice command.
2.4G RF Remote Control
Support 2.4G RF remote control directly, without zigbee hub.
