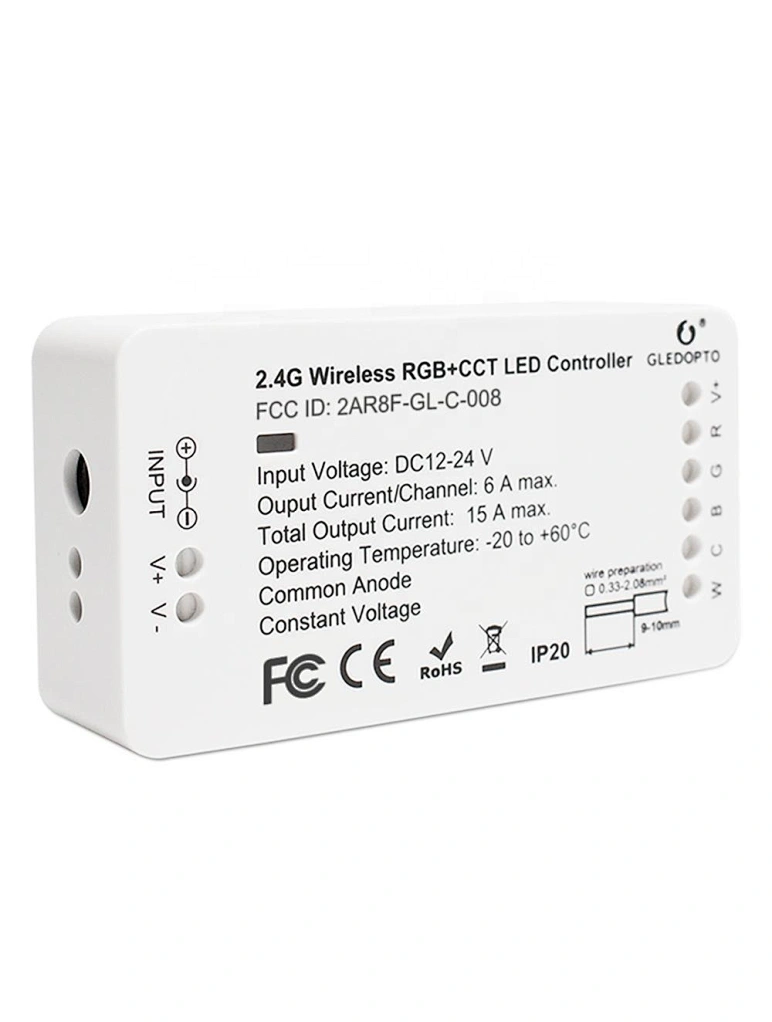

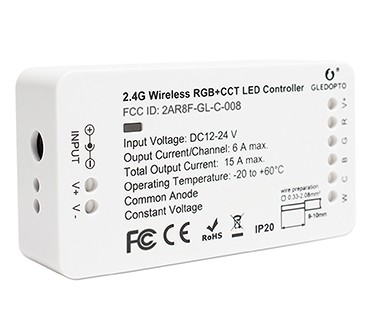

Gledopto GL-C-008 RGB and White Color Dimmable LED Lighting Strip ZigBee3.0 Homekit Zigbee Home Automation Light Controller

Gledopto GL-C-008 RGB and White Color Dimmable LED Lighting Strip ZigBee3.0 Homekit Zigbee Home Automation Light Controller
price

$11.99 - $24.00

GL-C-008
1 piece
Quantity
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control
  • Max. Load Power:15A
  • Voltage:DC12-24V
  • Input Voltage:12-24V DC
  • Max Current per Channel:6A
  • Total Output Current:15A
  • Output Channel:5 Channel
  • Controlling Protocol:ZigBee (ZigBee3.0, ZLL, ZHA)
  • Remote Control Distance:≤30meter
  • Working Temperature:-20-60℃
  • Shell Material:ABS Material
  • Size:L89*W48*H23.5mm
  • Warranty:2Year
Specifications
zigbee home automation controller
Main Specs of DC12-24V ZigBee LED Strip Controller
Input Volt.
12V ~24V DC
Output Current
Total 15A max.
Common Anode
Yes
Control Tech.
ZigBee 3.0
Lighting Color
RGB+CCT
Remote Distance
≤30Meter
Shelf Material
ABS
Working Temp.
-20°C~60°C
Product Description
zigbee home automation controller

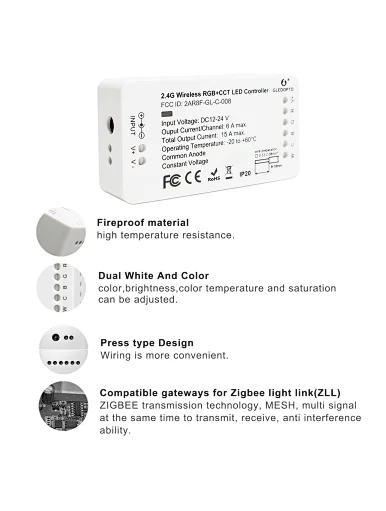

Product Features

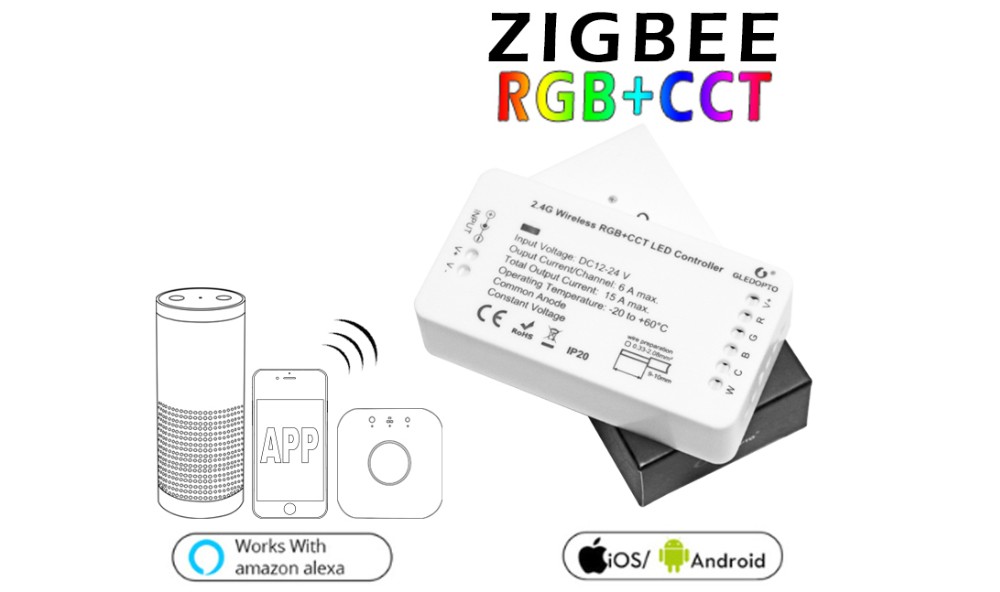

ZigBee RGBW/RGB+CCT LED Strip Controller is a newly developed LED controller. This LED controller is designed by a delicate & fashionable ABS housing body; based on ZigBee 3.0 protocol, which compatible to ZLL gateways such as Philips Hue, Amazon Echo Plus, Ikea Tradfri, etc.

for common LED lighting with RGB color change, RGB + WW, RGB + CCT, CCT and single color LED lighting to 12V or 24V DC voltage.

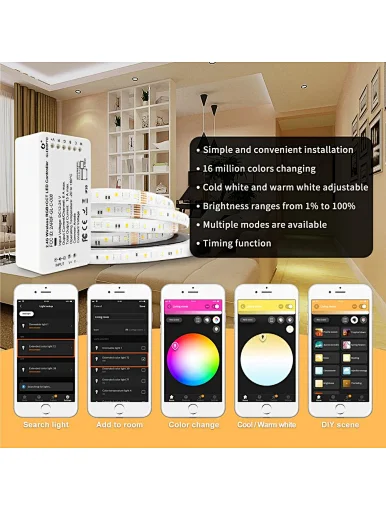

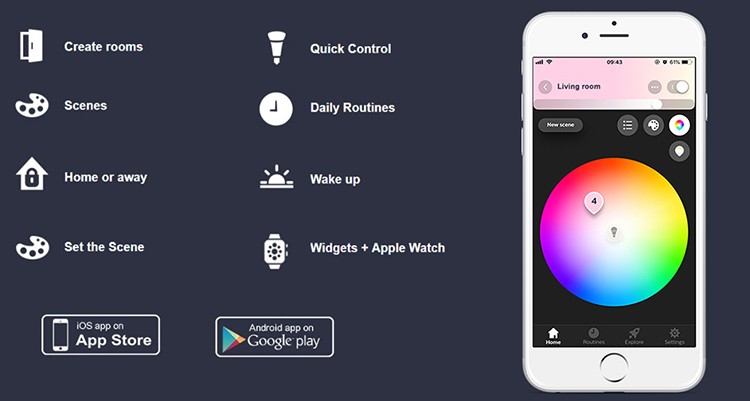

Main Functions of RGB+CCT LED Controller

△ Creat Rooms, divide your lamps into one or several rooms, to control lamps in each room together or seperately

△ Set the Scene, Scenes that automatically adjust to the lights in your room according to environment

△ Home or away, set time to turn on your lights automatically even you are away from home, as a reminder there's people at home

△ Wake up, set time to turn on light gently, to wake you up in the morning

△ Sync Effect with Screenbloom, sync your lights with movies, music and games, to enjoy the lighting effect which synchronizes with the plot of the picture changes

zigbee home automation controller
zigbee home automation controller

Easy Guide to Connect with Gateways

1. Connect the LED product to the controller see section"wire connection".
2. Start the device searching on the ZigBee Light Link Gateway, it could take some time. If the Gateway does not find the device, plug power off/on or make a reset.
3. The Gateway found your device and you can assign it to the different rooms/zones/groups.
4. Now you can use the device.

Notes

The controller is available in 1ID or 2ID version design, and the preset version is 1ID from us.

1ID - will show 1ID on the APP, easy to manage the lights and can control the Color light (RGB) or white light separately.
2ID - will show 2IDs in the App, Color light (RGB) can work with white light together or separately.

To help you to confirm which ID version is best suitable, we suggest to tell us what brand of Gateway/Hubs you are using firstly.

zigbee home automation controller
What You Can Do by Using GLEDOPTO® ZigBee LED Controllers & Lamps
zigbee home automation controller

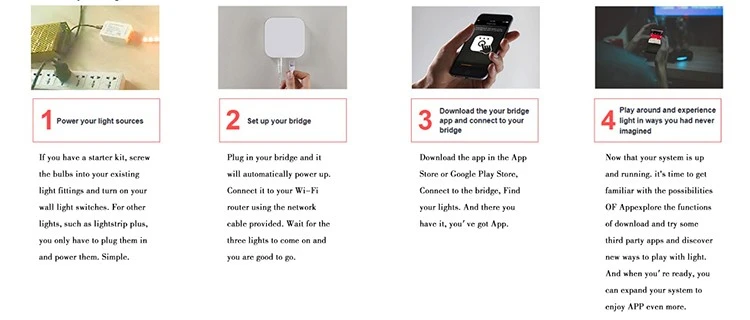

Quick Start of Using Our ZigBee serie Wireless Controlled LED Lamps & Controllers
zigbee home automation controller
zigbee home automation controller
zigbee home automation controller

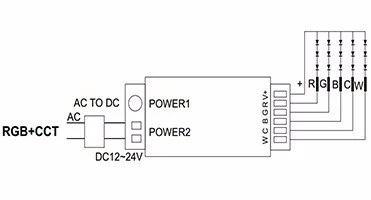

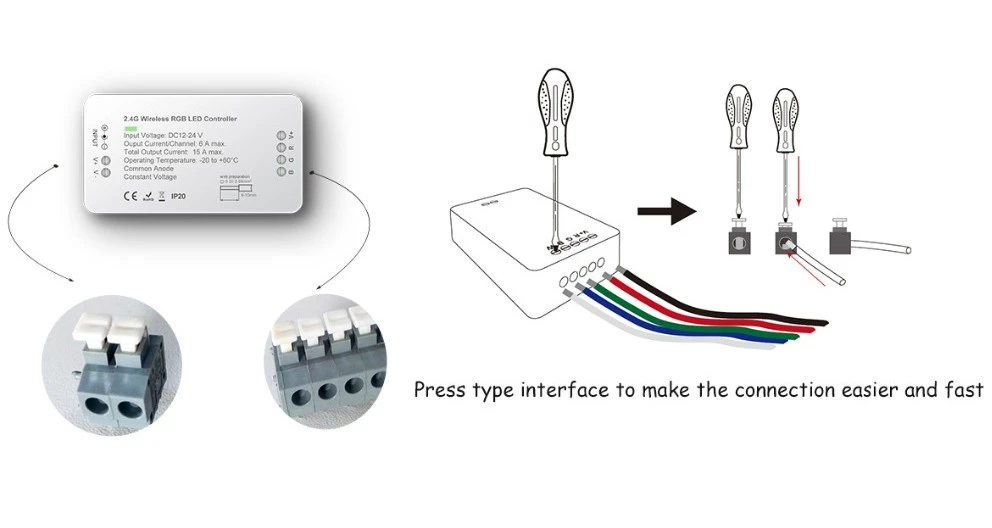

Installation Process
zigbee home automation controller

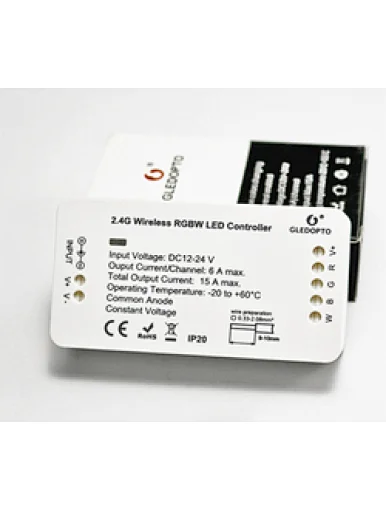

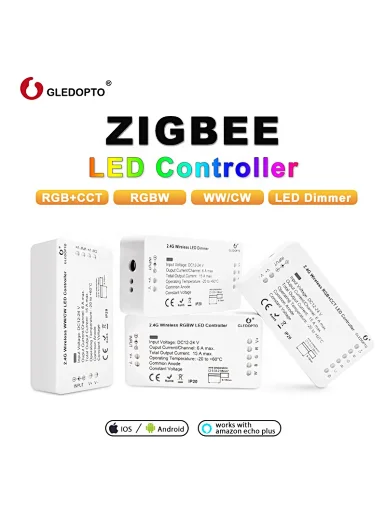

Similar RGBW/WW&CW/Single Color ZigBee LED Flexible Strip Controllers
zigbee home automation controller
zigbee home automation controller
zigbee home automation controller
zigbee home automation controller
Item No.
#GL-W-001Z
#GL-C-006
#GL-C-007
#GL-C-009
Input Volt.
AC 100~240V
DC 12~24V
DC 12~24V
DC 12~24V
Control Tech.
ZigBee protocol compatible to ZLL gatways, e.g. Philips Hue, Amazon Echo Plus, Ikea Tradfri, ..
Lighting Color
on/off function
RGBWW/CW
RGBW
Single Color Dimmer

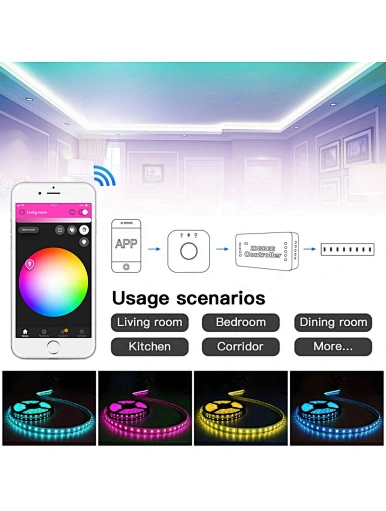

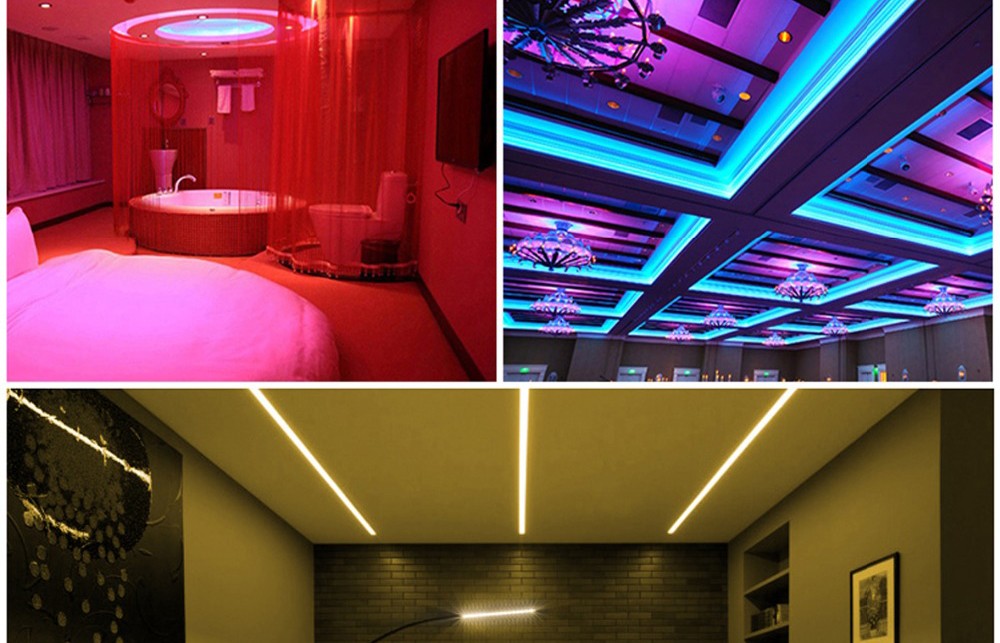

Applications Cases
zigbee home automation controller
zigbee home automation controller
zigbee home automation controller

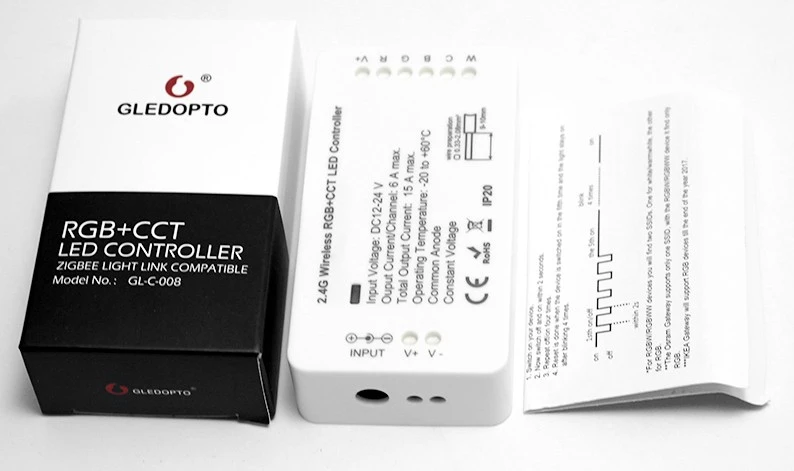

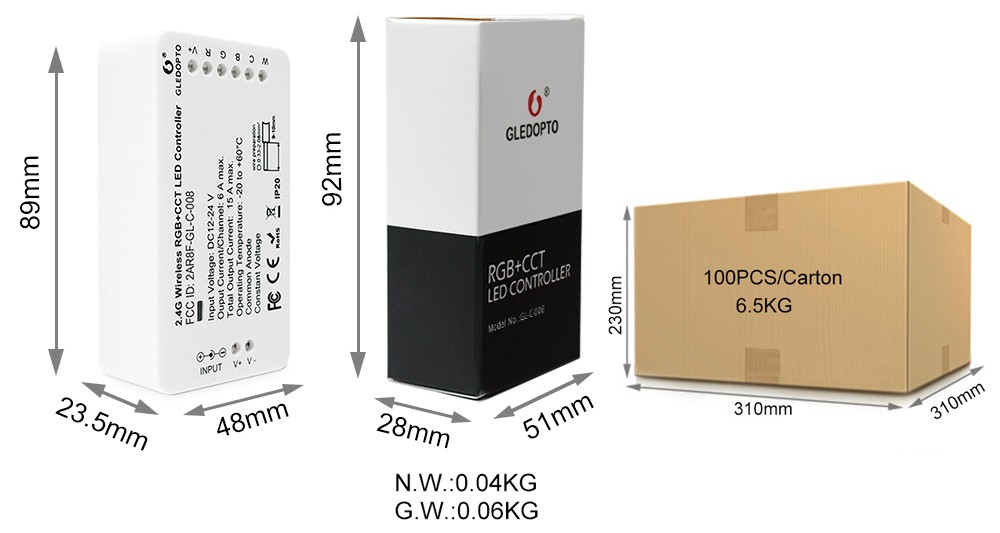

Gledopto ZigBee LED Strip Rope String Light Controller Packing Details
zigbee home automation controller
Certifications
zigbee home automation controller
zigbee home automation controller
zigbee home automation controller
zigbee home automation controller
Company Information
zigbee home automation controller
zigbee home automation controller
zigbee home automation controller
zigbee home automation controller
FAQs

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 1000pcs

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly, please let us know your requirements or application.
    Secondly, we'll make quotation according to your requirements or our suggestions.
    Thirdly, customer confirms the samples and places deposit for official order.
    Fourthly, we arrange the production.
    Fifthly, customers make balance payment for the order, and we arrange shipment once the payment received.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%.

    Secondly, during the guarantee period, we will send new lights with new order for small quantity.
    For large defective products, we can arrange to repair them and resend them to you, or we can discuss the solution
    including re-call according to actual situation.
