GLEDOPTO Zigbee3.0 Dimmer PRO LED Controller two color adjustable CCT temperature
price
$14.00 - $27.99 / piece
GL-C-006P wwcw
1 piece
Quantity
- Warranty(Year):2-Year
- Lighting solutions service:zigbee le llighting system
- Place of Origin:Guangdong, China
- Brand Name:GLEDOPTO
- Type:Remote Control, wwcw
- Product name:PRO WWCW LED Controller
- Voltage:12V-24V-36V-48V-54V
- Output Current::5A/Channel
- Compatible with:ZLL+zigbee3.0+RF
- Size:89(L)X48(W)X23.5(H)
- Control way:Phone App+ remote control
- Kelvin:2000-6500K
- Zigbee hub and app:H*u-e, SmartThings, Alexa, Google, etc.
- Application:colorful lighting decoration
Product Description
GLEDOPTO ZIGBEE PRO RGBCCT LED CONTROLLER 12-54V
This controller use two protocol of 2.4GHz Zigbee3.0 and RF combined into one,
makes it even more convenient for smart control and voice command control.
Project case
These devices compatible with many zigbee bridge to bring your family and office with dream color and custom lighting scenes.
POWER SUPPLY - CHOOSE THE CORRECT VOLTAGE
One of the most important things to consider when installing LED Strip lights is the effect of what is called “Voltage Drop”. In DC circuits, voltage gradually drops as it travels along through a length of wire (or an LED strip light). So, with every foot of wire, the available voltage to each foot gradually decreases along the length of wire. This can lead to having one end of your strip lights being brighter than the other end.
LED STRIP
The amount of voltage drop will vary based on the brand and power consumption of the LED strip lights. 12V LED strips will lose voltage faster than 24V strip lights, so if you are looking it make longer runs over 40 feet, we would recommend going with 24V strips.
This PRO controller has a wider voltage range, so you can use it for DIY more projects.(from12-54V)
Detail images

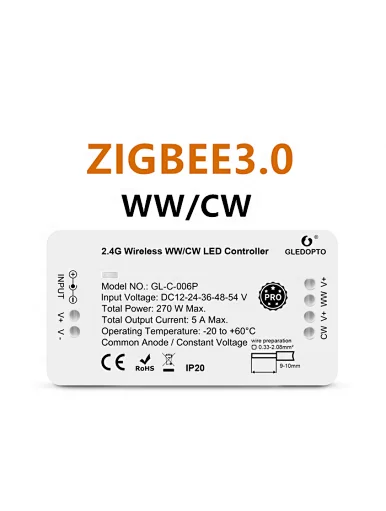

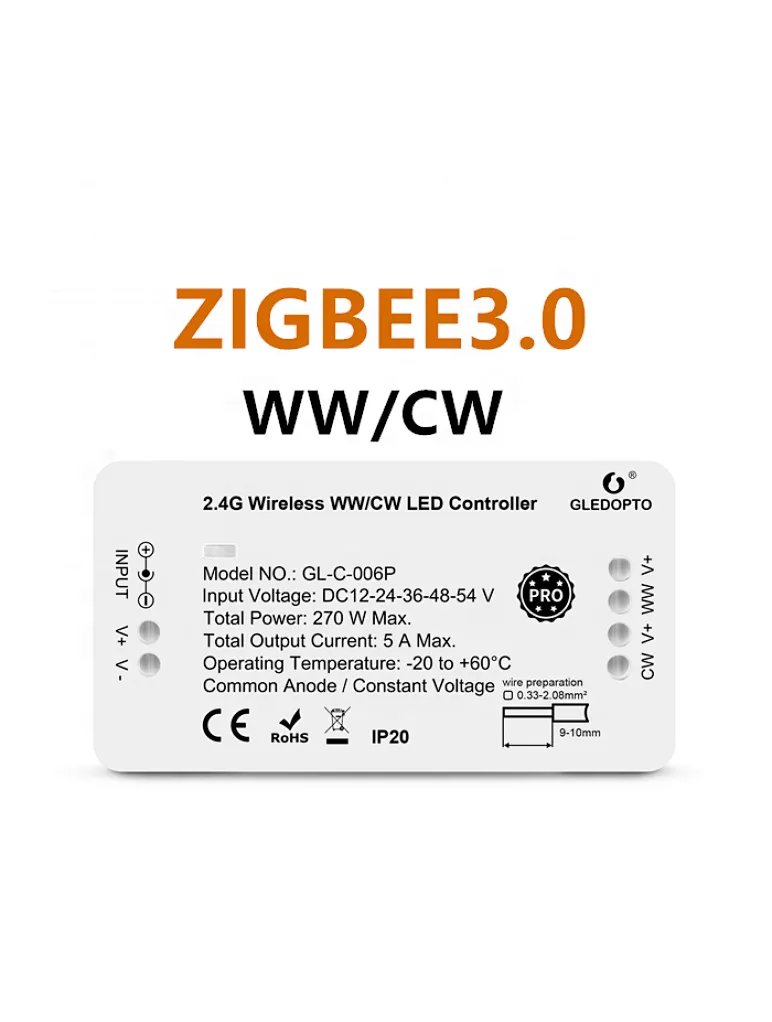

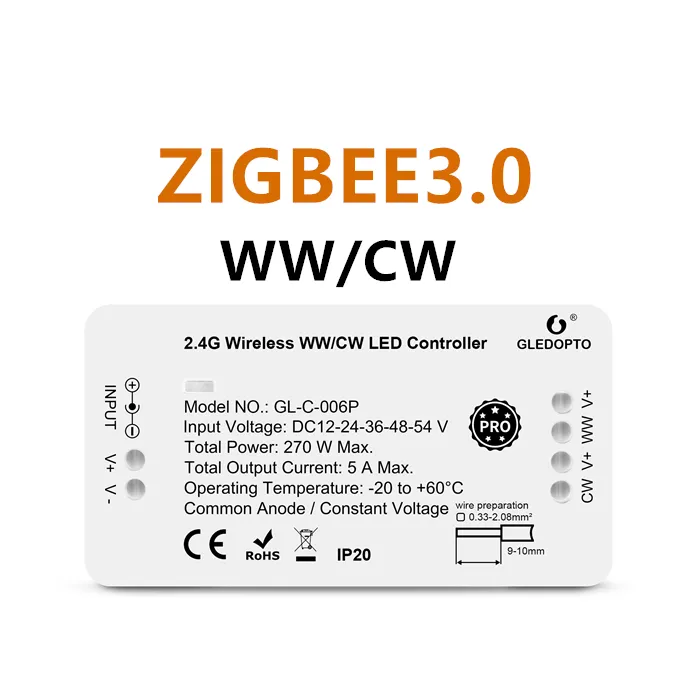

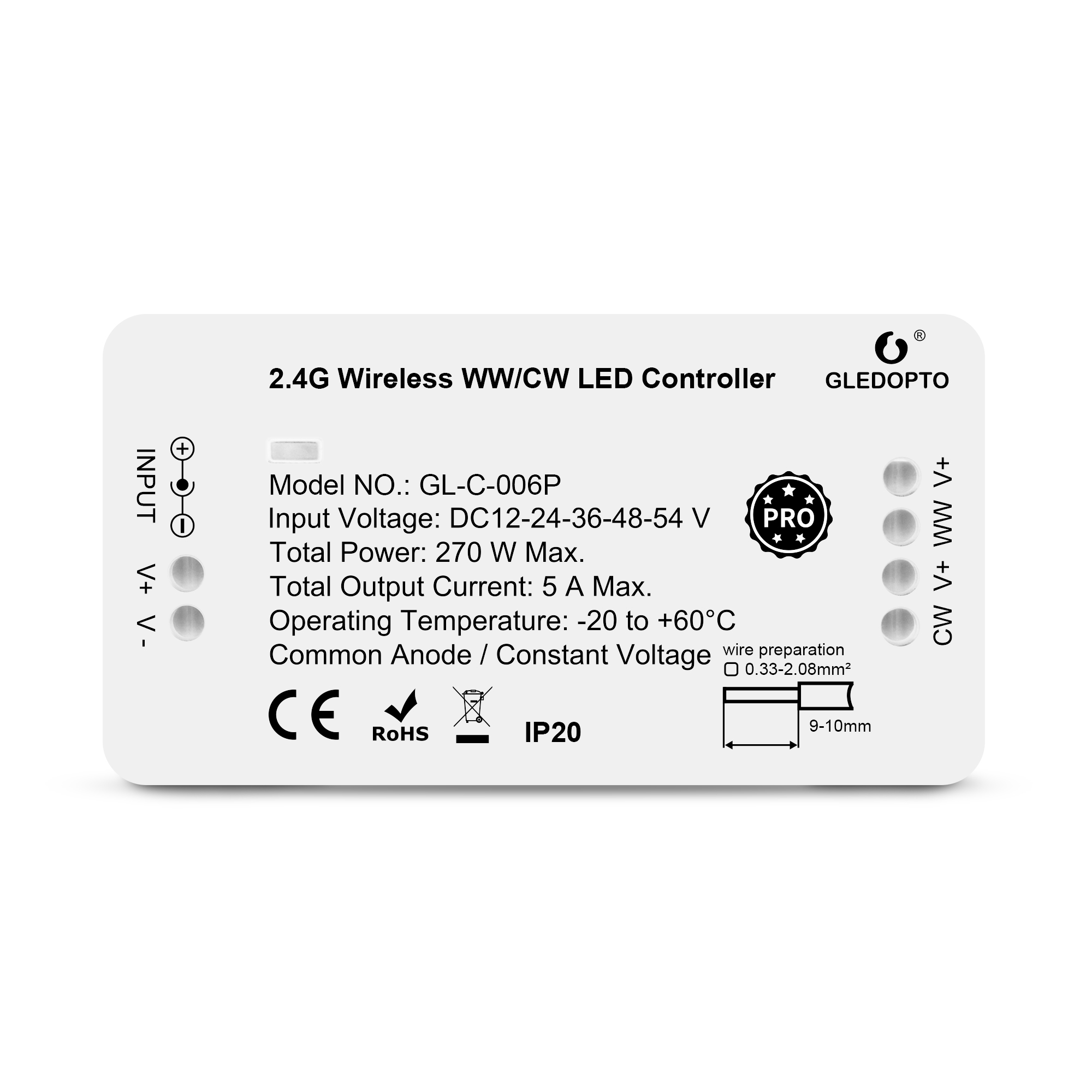

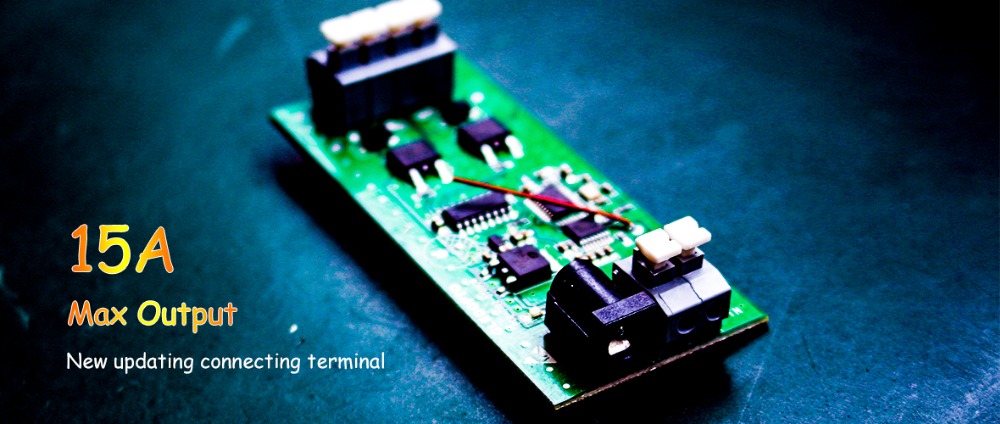

Product detail drawing
Fireproof material for high temperature resistance.
Update wide voltage range of 12V 24V 36V 48V 54V for more possibilities.
Use zigbee3.0 chip to compatible with zigbee3.0 and ZLL communication method.
Zigbee self-meshing network reduces the devices dropout possibility.

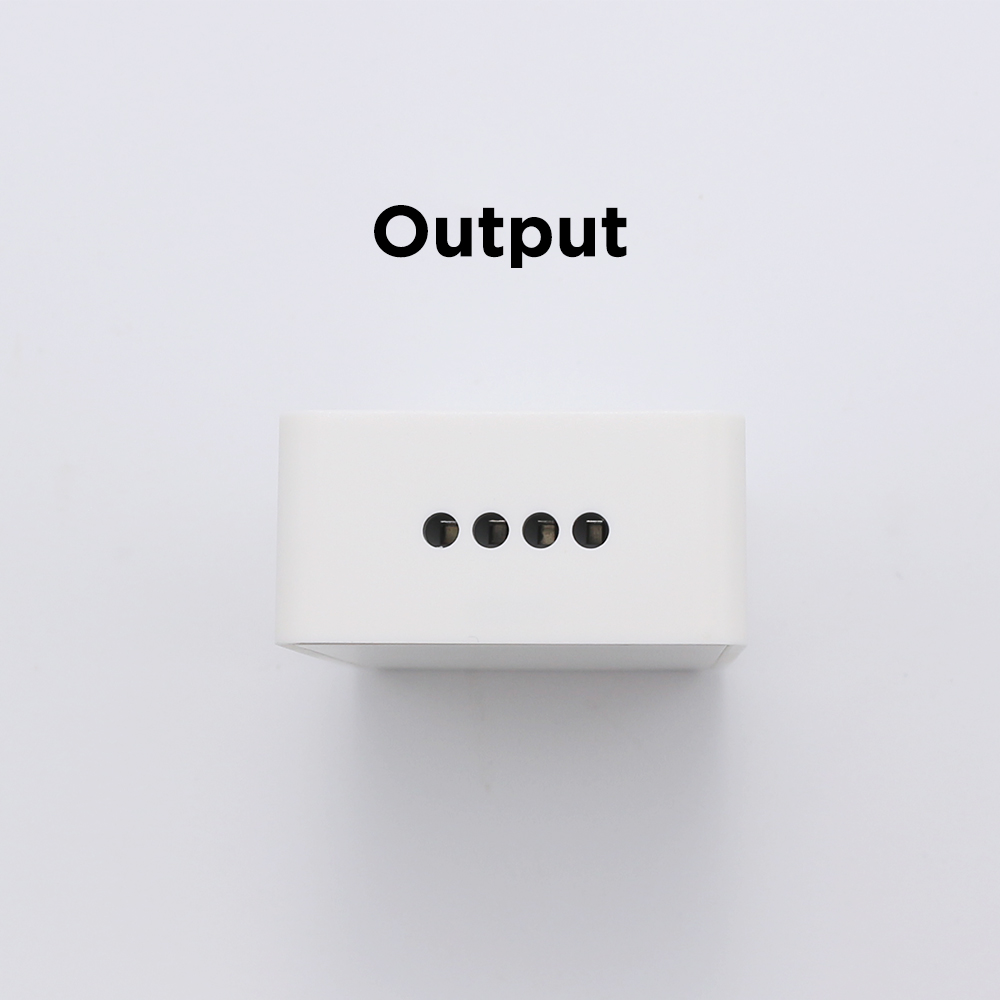

“CWWW” 2channels for your warmwhite and coldwhite wire connection.
Easy press and insert the wire to connect the wire.

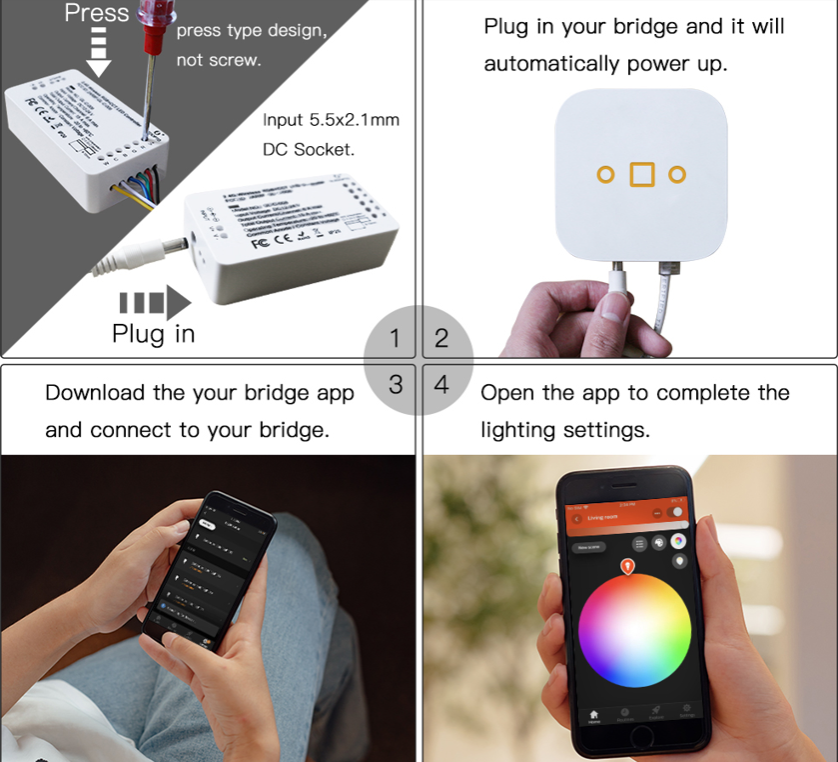

PARING WITH ZIGBEE BRIDGE FOR SMARTPHONE CONTROL
1. plug GLEDOPTO light source to a power supply
2. connect the Zigbee Bridge(optional)to a power supply and connect to your router
3. download and install the Zigbee Bridge App
4. Search and connect the light on the App's settings
5. create and modify your own zigbee network
2. connect the Zigbee Bridge(optional)to a power supply and connect to your router
3. download and install the Zigbee Bridge App
4. Search and connect the light on the App's settings
5. create and modify your own zigbee network
PAIRING WITH 2.4g RF TOUCH REMOTE
MATCH (more about “DELETE process” please refer the User Instruction)
1. battery power the wall switch or manual remote control
2. within 3s of power on the gledopto light source, press zone “I” (of any group you want the light in) to do the pairing.
3. the indicator turns green to show successfully paring
4. create and modify your own RF lights system
1. battery power the wall switch or manual remote control
2. within 3s of power on the gledopto light source, press zone “I” (of any group you want the light in) to do the pairing.
3. the indicator turns green to show successfully paring
4. create and modify your own RF lights system
product presentation
Product Name | ZIGBEE PRO WW/CW LED Controller |
Brand | GLEDOPTO |
Function | Light dimmer and CCT temperature adjustment |
CCT temperature | 2000-6500K |
Current/Channel | 5A |
Voltage | DC 12V 24V 36V 48V 54V |
Size | 23.5x48x89mm |
Control Method | Wireless Zigbee control and RF touch remote control |
Model | GL-C-007P |
BRIGHTNESS ADJUSTABLE
Adjust the brightness according to your different using requirements, give the light you want.
They can be your brushes which paint your flat, house or castle in a realistic manner or like a fairy tale, perfectly suiting your
wishes or mood.
They can be your brushes which paint your flat, house or castle in a realistic manner or like a fairy tale, perfectly suiting your
wishes or mood.
Visual Timer
Via the app, you can easily add timers to make the light turn on/off automatically at a preset time.Connect with the sensors, you
can make the light to turn on and off with to your motion. A perfect choose when you get up at night.
Set the lights to work based around your daily routine to have a better smart home experience.
can make the light to turn on and off with to your motion. A perfect choose when you get up at night.
Set the lights to work based around your daily routine to have a better smart home experience.
VOICE ACTIVATED
Gledopto lights work with Amazon Alexa and Google Assistant to manage your devices through voice commands.
Assign a name to each smart light for voice command. You can also create a group for all your smart devices in an area and control
them all in one command.
Assign a name to each smart light for voice command. You can also create a group for all your smart devices in an area and control
them all in one command.

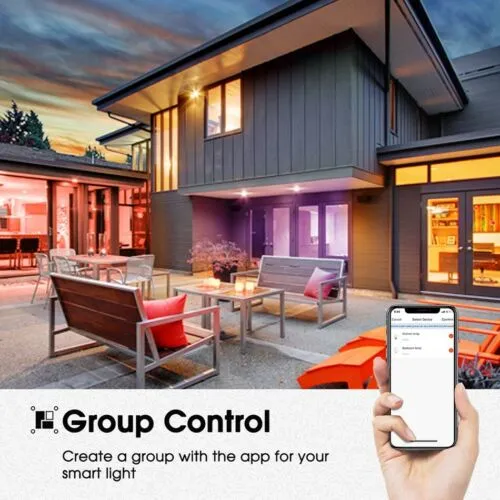

GOURP CONTROL
Gledopto lights can be managed to different group according to the lights located area, or the personal preference.
Our bodies respond to the psychological effects of lighting, and it often can change our moods. When light biologically impacts
us, it can improve or disrupt our sleep, cognition, mood and even stabilize our circadian rhythms.
Our bodies respond to the psychological effects of lighting, and it often can change our moods. When light biologically impacts
us, it can improve or disrupt our sleep, cognition, mood and even stabilize our circadian rhythms.

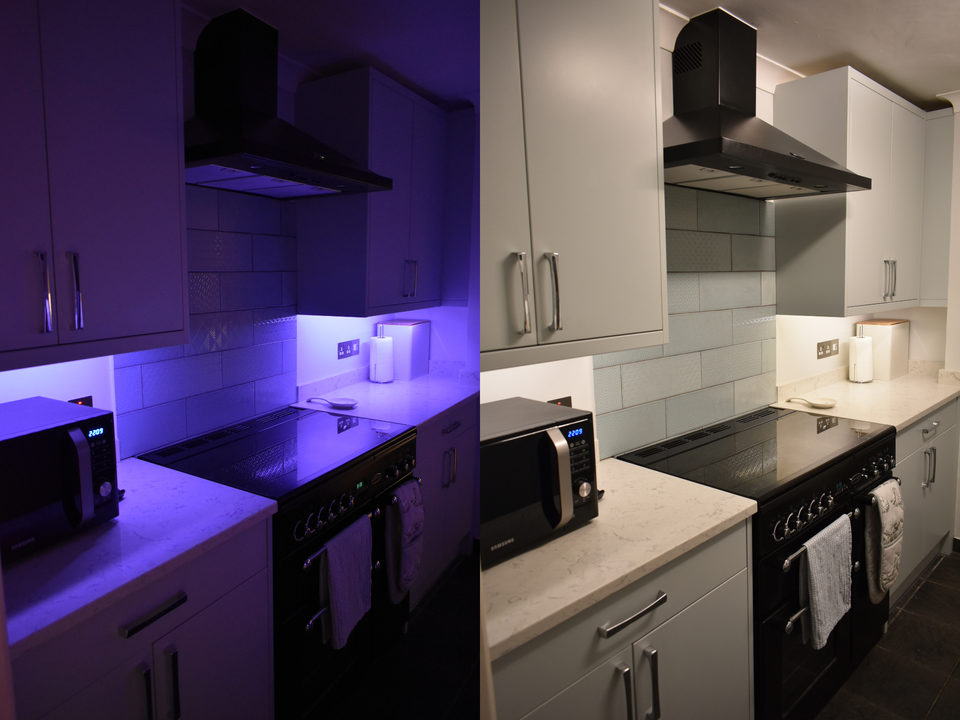

Application
