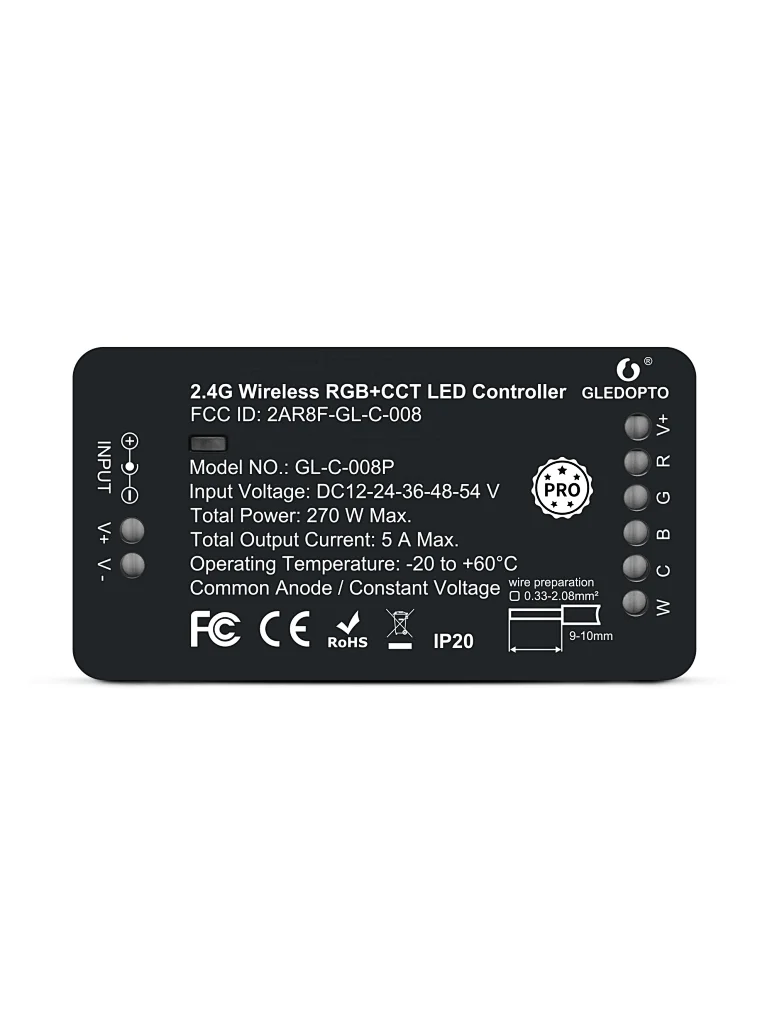

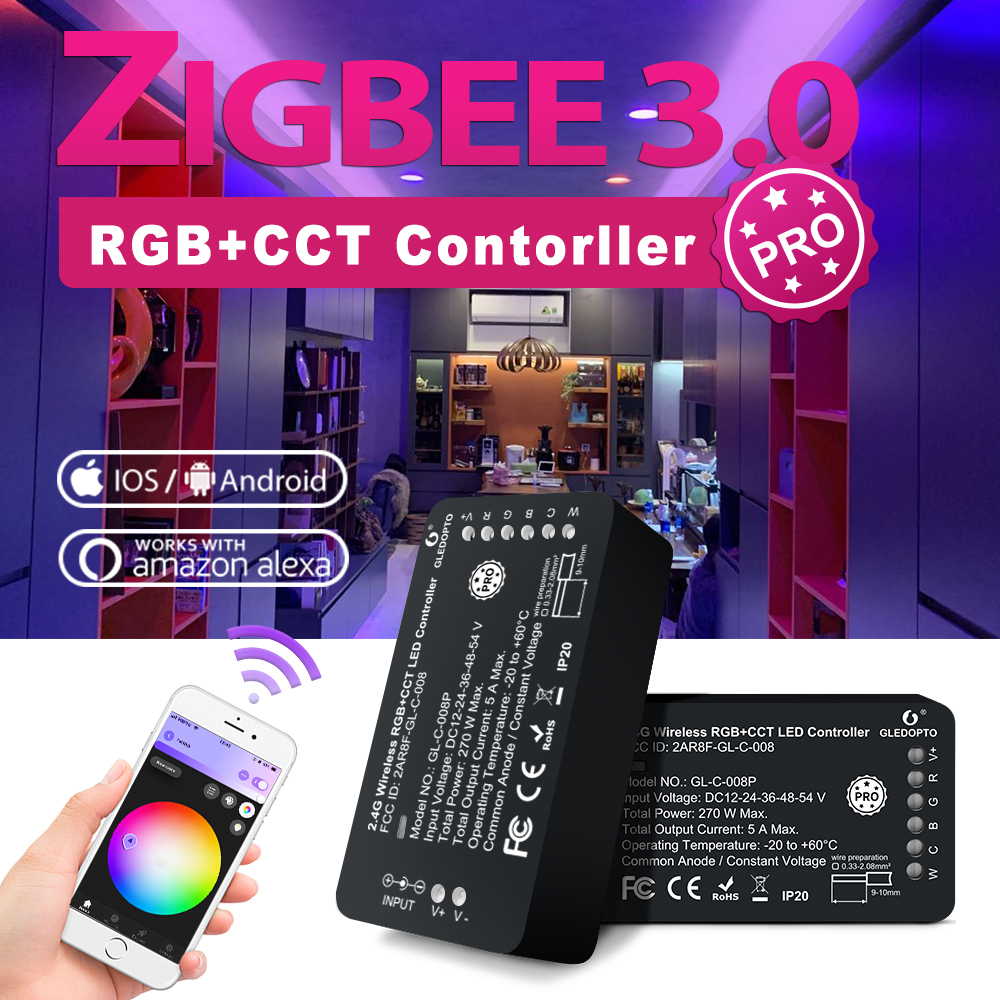

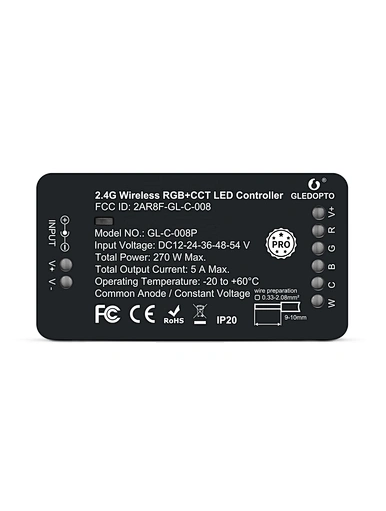

DC12V - 54V Gledopto Pro Edition ZigBee Smart LED Controllers CCT Dimmable RGB LED Controller RF WiFi LED Controller RGBCCT 270W

DC12V - 54V Gledopto Pro Edition ZigBee Smart LED Controllers CCT Dimmable RGB LED Controller RF WiFi LED Controller RGBCCT 270W
price

$14.79 - $28.99

GL-C-008P
1 piece
Quantity
  • Warranty(Year):2-Year
  • Lighting solutions service:Smart Lighting Control Solution
  • Luminous Efficacy(lm/w):0
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control

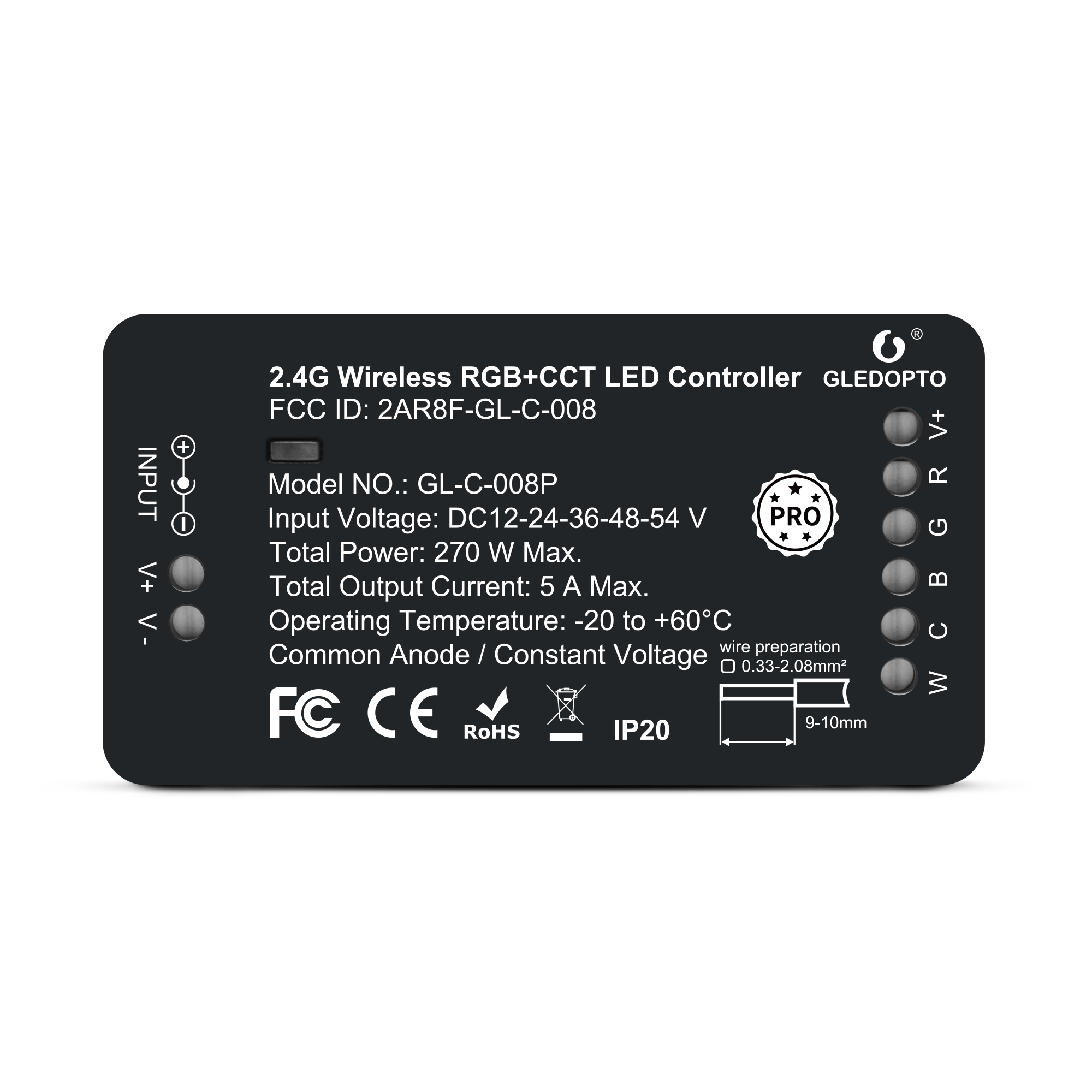

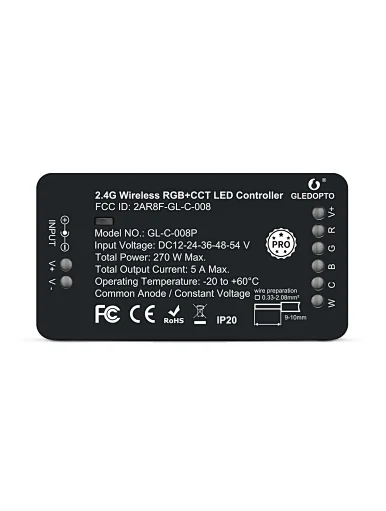

  • Max. Load Power:270W
  • Input Voltage:12-54V DC
  • Max Current per Channel:5A
  • Output Channel:5 Channel
  • Controlling Protocol:ZigBee 3.0
  • Remote Control Distance:30meter
  • Working Temperature:-20-60℃
  • Shell Material:ABS Material
  • Size:L89*W48*H23.5mm
  • Warranty:2Year
  • Output Way:Common Anode & Constant Voltage

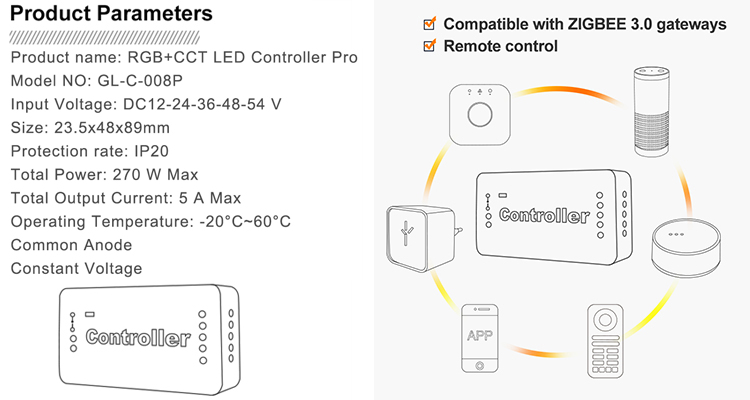

Product Paramenters
Zigbee rgb cct controller
Main Specs of ZigBee 3.0 LED Strip Controller Pro
Input Volt.
12V ~54V DC
Output Power
Total 270W max.
Common Anode
Yes
Control Tech.
ZigBee 3.0 + 2.4G RF
Lighting Color
RGB+CCT
Remote Distance
30Meter
Shelf Material
ABS
Working Temp.
-20°C~60°C
Product Description
Zigbee rgb cct controller

Product Features

Gledopto ZigBee RGBW/RGB+CCT LED Strip Controller Pro series is the newly developed LED controller available to be controlled by 6-zone or 8-zone remote control and via ZigBee 3.0 hubs.

It is made of delicate & fashionable ABS housing body, based on standard ZigBee protocol which compatible to ZigBee gateways such as Philips Hue, Amazon Echo Plus, Samsung Smartthings, ConBee/RaspBee II, Hubitat, Homee, etc. for common LED lighting with RGB color change, RGB + WW, RGB + CCT, CCT and single color LED lighting with 12V or 24V DC voltage.

This latest Pro serie controllers or LED lamps are designed for purpose of considering the users who are not familiar with ZigBee controlling, so alternatively it is can be controlled by the remote directly and much easy to manage the multiple lighting control functions.

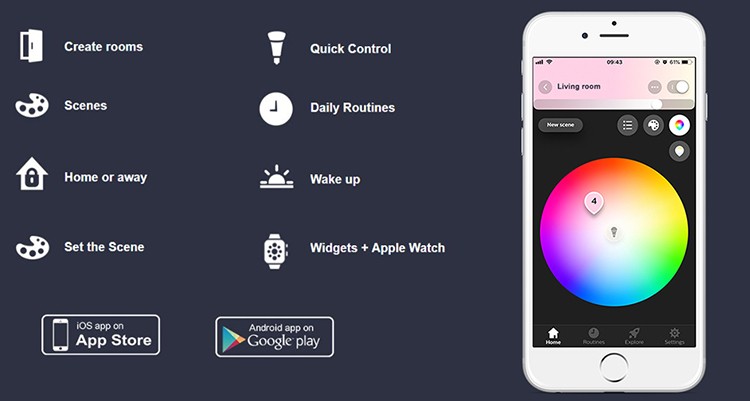

Main features to be controlled by different ZigBee Gateways

△ Creat Rooms, divide your lamps into one or several rooms, to control lamps in each room together or seperately

△ Set the Scene, Scenes that automatically adjust to the lights in your room according to environment

△ Home or away, set time to turn on your lights automatically even you are away from home, as a reminder there's people at home

△ Wake up, set time to turn on light gently, to wake you up in the morning

△ Sync Effect with Screenbloom, sync your lights with movies, music and games, to enjoy the lighting effect which synchronizes with the plot of the picture changes

△ Powerful Mesh feature which enables you to make long distance remote controlling, best for large area lighting project

△ Switch on/off the controllers or lights at the same time without any delay

Extremelt low standby power consumption: GU10, MR16, candle light≤0.3W; controllers: 10mA

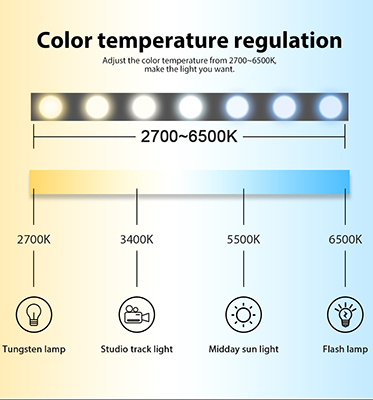

△ Smoothly dimming & tunable feature, soft starting.

Zigbee rgb cct controller
Zigbee rgb cct controller

Easy Guide to Connect with ZigBee Home Automation Gateways

Installation:

1. Tuen off the power

2. Plug in the controller

3. Now you can connect it with the gateway

Connection with Gateway:

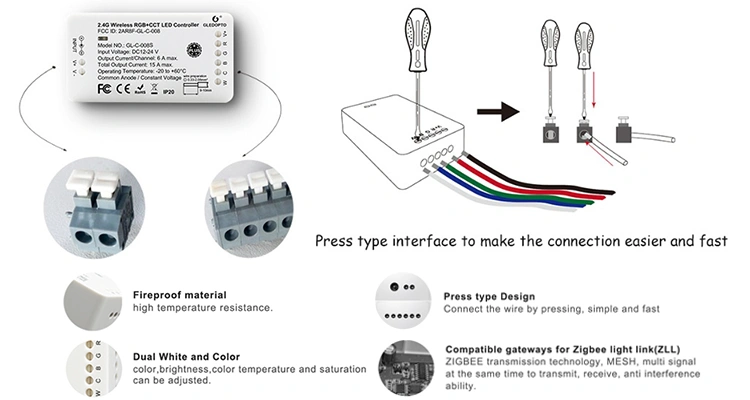

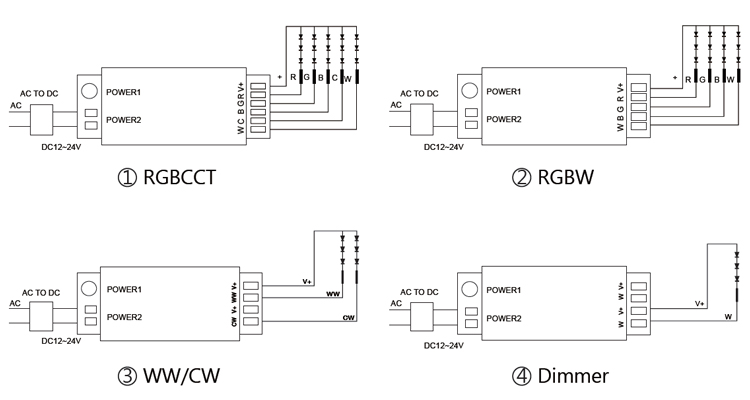

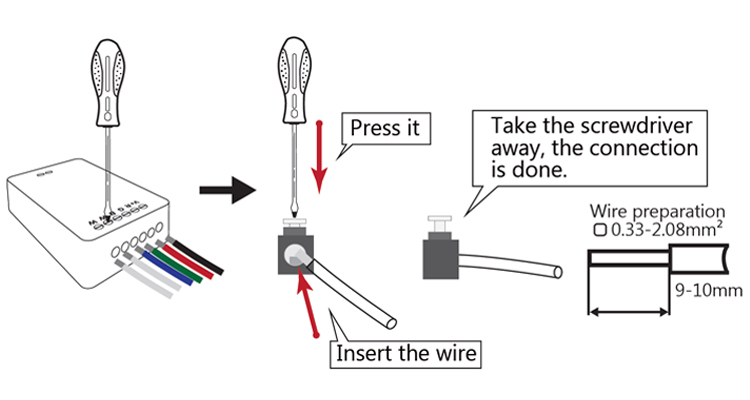

1. Connect the LED product to the controller see section"wire connection"

2. Start the device searching on the ZigBee Light Link gateway, it would take some time to complete.

   If the gateway does not find the device, power on/off or reset it again.

3. After finding the device, the light will turn green, then you can save it to the rooms/groups

4. Now you can use the device

Reset:

1. Switch on your device

2. Now within 2 seconds on/off again

3. Repeat off/on four times

4. Reset is done when the device is switched on at the 5th time, and the LED light will be fully bright, then flashing for 5 times.

Compatibility - to work with different  ZLL /ZigBee Gateways

App work with Hue gateway:

Hue, hueparty, hue Disco, iConnectHue, Hue Widget, Light DJ, etc.

Work with Home Assistant:

https://www.reddit.com/r/Gledopto/comments/ad9mbh/how_to_use_home_assistantha_to_control_gledopto/

Work with Homekit:

https://www.reddit.com/r/Gledopto/comments/amp3v9/i_wrote_a_little_guide_on_getting_the_gledopto/

Sync effect with screenbloom:

Sync your lights with movies, music and games, enjoy the lighting effect which synchronizes with the plot of the picture immediately, and experience the more delicate atmosphere lighting effect.

How to sync?

Please follow this website: http://www.screenbloom.com/

Demo Show of Sync: https://youtu.be/zZjtJMy_774

Zigbee rgb cct controller
2.4G RF & Zigbee 3.0 Hub Control

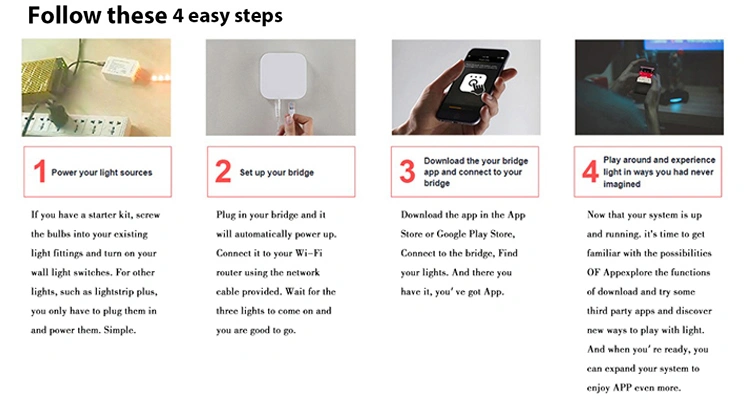

Quick Start to Connect ZigBee LED Controller to ZigBee 3.0 or ZigBee Light Link Bridge
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller

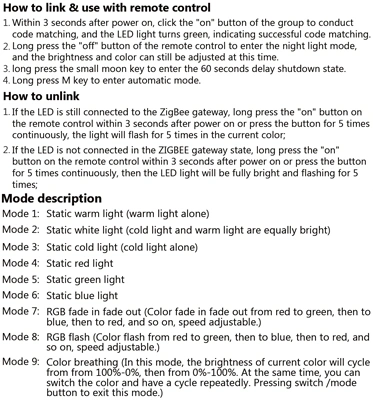

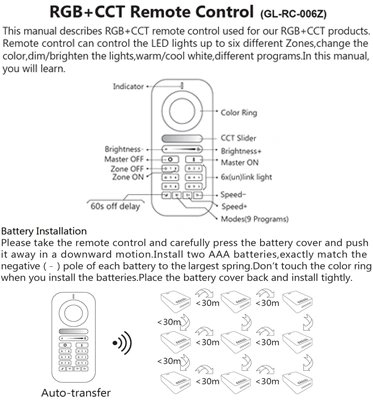

GLEDOPTO® 2.4G RF Remote Control LED Controller Connection
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Applications Cases
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller

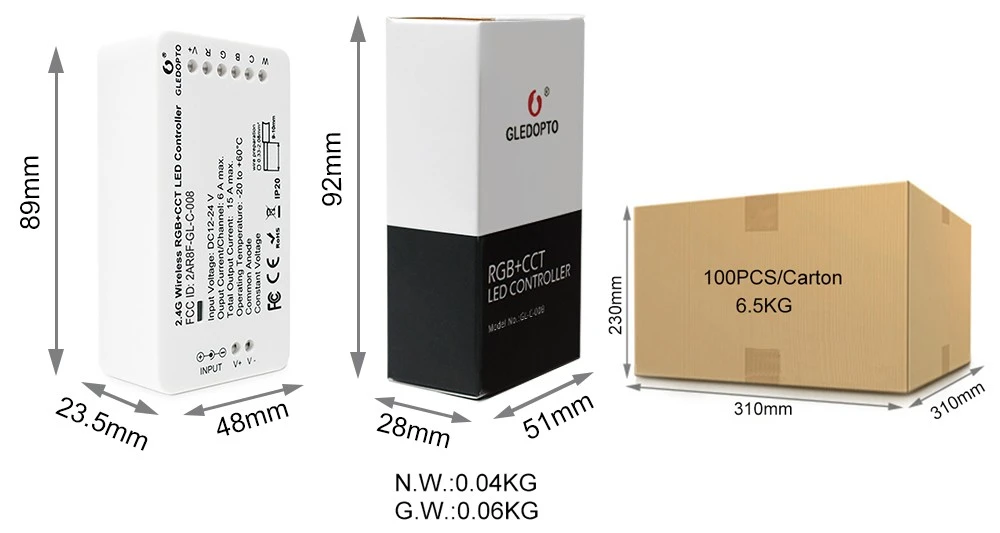

Gledopto ZigBee LED Strip Rope String Light Controller Packing Details
Zigbee rgb cct controller
Related Products
Certifications
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller

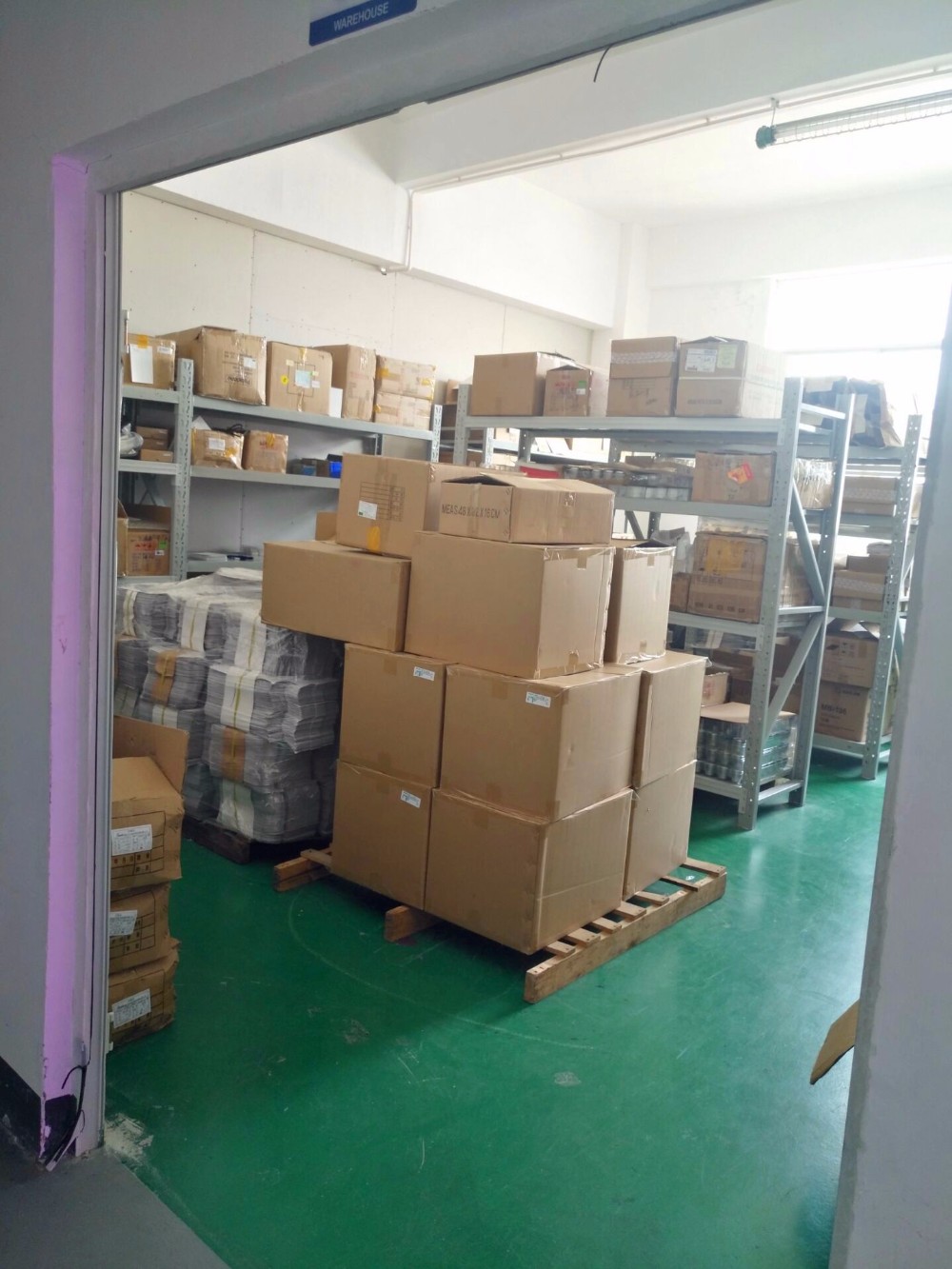

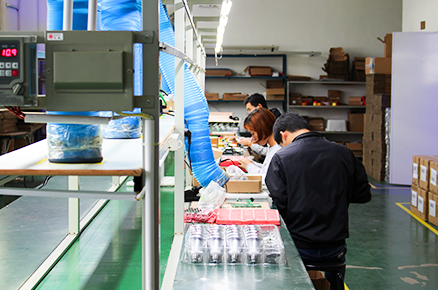

Company Information
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
Zigbee rgb cct controller
