Gledopto ZigBee MR16 Bulb RGBW Color Home And Away App Control Smart GU5.3 Spotlight Siri Controlling Alexa Dimmable Bulbs RGBCW

Gledopto ZigBee MR16 Bulb RGBW Color Home And Away App Control Smart GU5.3 Spotlight Siri Controlling Alexa Dimmable Bulbs RGBCW
price

$11.49 - $21.99

GL-S-004P
1 piece
Quantity
  • Item Type:Spotlights
  • Color Temperature(CCT):2000K-6500K Tunable
  • Lamp Luminous Efficiency(lm/w):80
  • Color Rendering Index(Ra):80
  • Light Source:LED, 1.5W RGB SMD5050 2pcs; 1.0W SMD 3030 6pcs
  • Support Dimmer:Yes
  • Lighting solutions service:Smart Lighting Control Solution
  • Application:Living Room, Hotel, Bar, Cafe, etc.
  • Design Style:Modern
  • Lifespan (hours):50000
  • Working Time (hours):50000
  • Input Voltage(V):AC/DC 12V
  • Lamp Luminous Flux(lm):250~300LM at White Color
  • Working Lifetime(Hour):50000
  • Lamp Body Material:Aluminum Alloy
  • Base Type:MR16/GU5.3
  • Place of Origin:Guangdong, China
  • Brand Name:Gledopto
  • Model Number:GL-S-004P
  • IP Rating:IP20
  • Warranty(Year):2-Year
  • Controlling Protocol:ZIGBEE 3.0
  • Compatible ZLL Gateway:(P)hilips (H)ue, Am(a)zon Echo, (I)kea Tradfri, (S)martthings, etc.
  • CRI:Ra>80
  • Remote Distance:≤30Mtr
  • Base:MR16/GU5.3
  • Work Temperature:-20°C~60°C
  • Size:D49.5*H56mm
  • Net Weight:0.15KG
  • Certificate:CE RoHS
  • CRI (Ra>):80
  • Certification:ce, EMC, FCC, LVD, RoHS
  • Wattage:4W

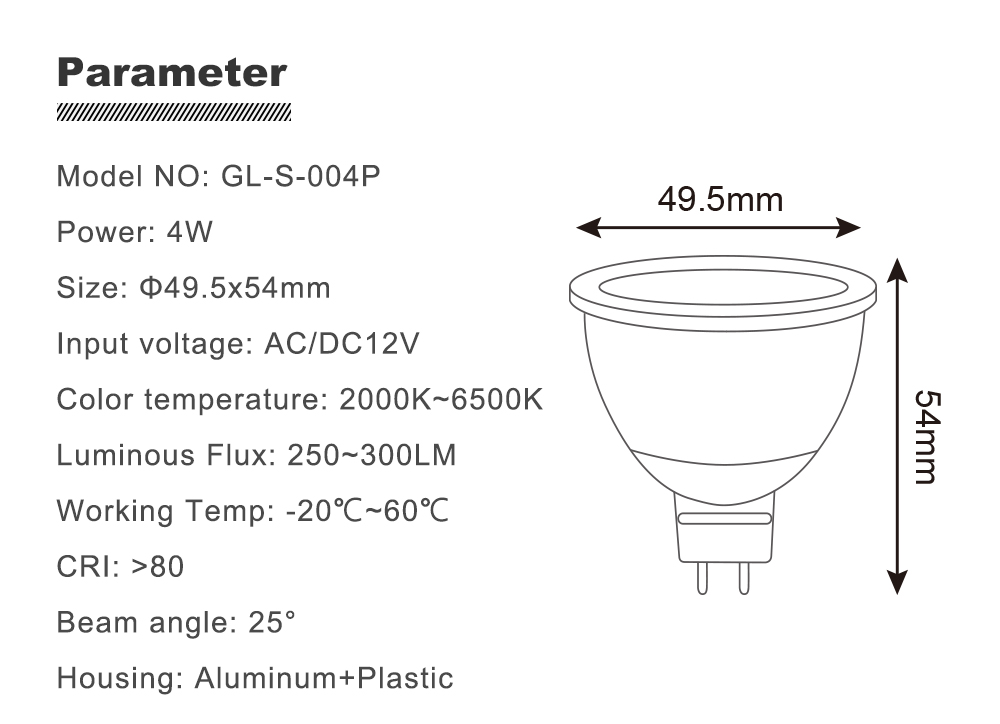

Main Specifications
Zigbee MR16 led bulb
Main Specs of ZigBee PRO MR16 LED Spotlight
Input Voltage
AC/DC 12V
Power Rated
4W
Lighting Color
RGB+Dual White (WW&CW)
Lumen Flux
250~300LM (2700-6500K)
Control Tech.
ZigBee 3.0 + 2.4GHZ RF
Remote Distance
≤30 mtr.
Housing Material
Alu. Alloy + PMMA Lens
Net Weight
100g
Zigbee MR16 led bulb
Zigbee MR16 led bulb
Product Description
Zigbee MR16 led bulb

LIGHTING FEATURES OF WHITE AND COLOR AMBIANCE SMART CONTROL LED BULBS

> Switch between multiple lighting modes at will > Rich lamplight atmosphere, give you more pure and fresh sense, available in Timmer & night light mode option

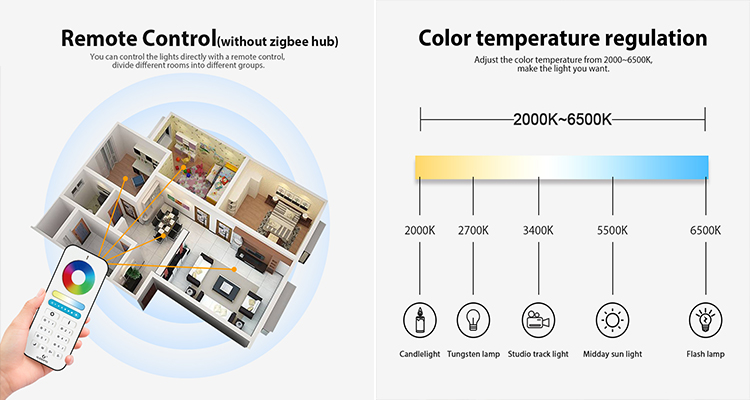

> Brightness and color temperature tunable from warm white 3000K to cool/cold white 6500K

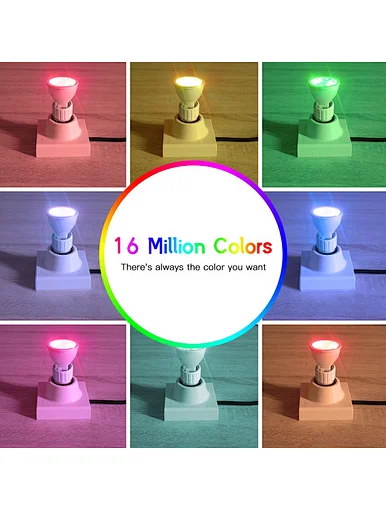

> Customize your colorful life, 16 million color saturation changes, make life full of beauty
> Home or Away lighting mode, to remote control the smart LED bulb even away from home, to ensure the saftety of your home

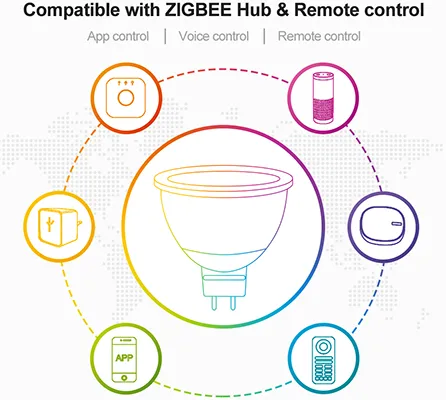

ZigBee3.0 Lighting Control Features

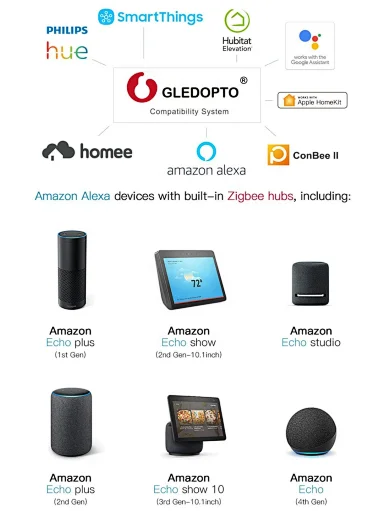

Gledopto Zigbee LED Lamp and Controller directly work with HUE, Amazon Echo Plus, Samsung Smartthings, Osram Lightify, Ikea TRÅDFRI, Homee, Google home & all other alexa devices.
>Time setting
You do not have to remember to turn off the bulb before you go to sleep. The sleep timer will automatically turn off the light after the preset time has elapsed per your settings. You also can set a wake-up time with your favorite color.
>Voice Control & Remote Control
The smart bulb Compatible with Alexa. It can help you save time and it is convenient to your life through voice control. The light works with your existing Wi-Fi or cellphone traffic. You can control your bulb no matter where you are. You can turn it on or turn it off without leaving your bed.
Zigbee MR16 led bulb
Zigbee MR16 led bulb

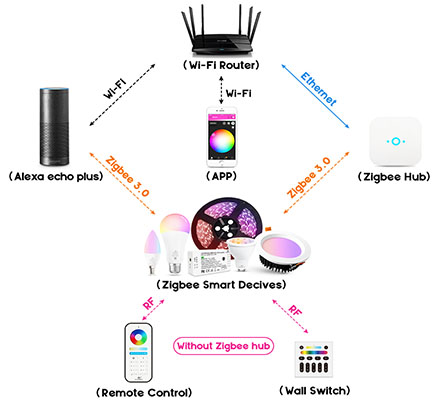

MORE SMART HOME CONTROLLING FEATURES

>The Plus series is ZigBee + Radio Frequency controlling design. The LED strip controllers and indoor/outdoor lamps will work with
both the RF Remote and ZigBee.
>These are great if you want to control your lights with just the remote or with your ZigBee hub. Sometimes you don't want to pull
out the phone to open an App just to turn on the lights, the remote or the wall mounted controller can do it.
>Or if you are putting these lights somewhere outside of the WiFi coverage, e.g. a camper, backyard, garage workshop, etc., you
can use the RF Remote Controller directly, no need to find to link to a ZigBee bridge.
>Powerful MESH feature
Thanks to the powerful new Silicon Labs chipset being used, the Pro version ZigBee lights and controllers are now with much more
powerful MESH function. It will allow you to control as many smart lights together or individually after connected with the
ZigBee3.0 bridge. One bulb can read and synchronize the same lighting mode from another one, so to make all the lighting changes
into the same status, best for long distance & large area lighting project.

TO CONTROL GLEDOPTO PLUS WITHOUT A ZIGBEE HUB

>The Plus series is ZigBee + Radio Frequency controlling design. The LED strip controllers and indoor/outdoor lamps will work with both the RF Remote and ZigBee.
>These are great if you want to control your lights with just the remote or with your ZigBee hub. Sometimes you don't want to pull out the phone to open an App just to turn on the lights, the remote or the wall mounted controller can do it.
>Or if you are putting these lights somewhere outside of the WiFi coverage, e.g. a camper, backyard, garage workshop, etc., you can use the RF Remote Controller directly, no need to find to link to a ZigBee bridge.
>Auto sync & transfer.
This is the best feature for 2.4GHZ RF Remote Controlling design, it's most suitable for long distance and large area lighting application. Your RGBW or RGB+CCT color LED lights can receive the controlling signal sent from the handheld or wall mounted remote control, as long as the distance between two lamps is within 15mtr to 20mtr, the first lamp can send the signal automatically to the second lamp, and then to third lamp, and so on, until all lamps totally synced and changing the lighting color or modes all the same at the same time.

Zigbee MR16 led bulb

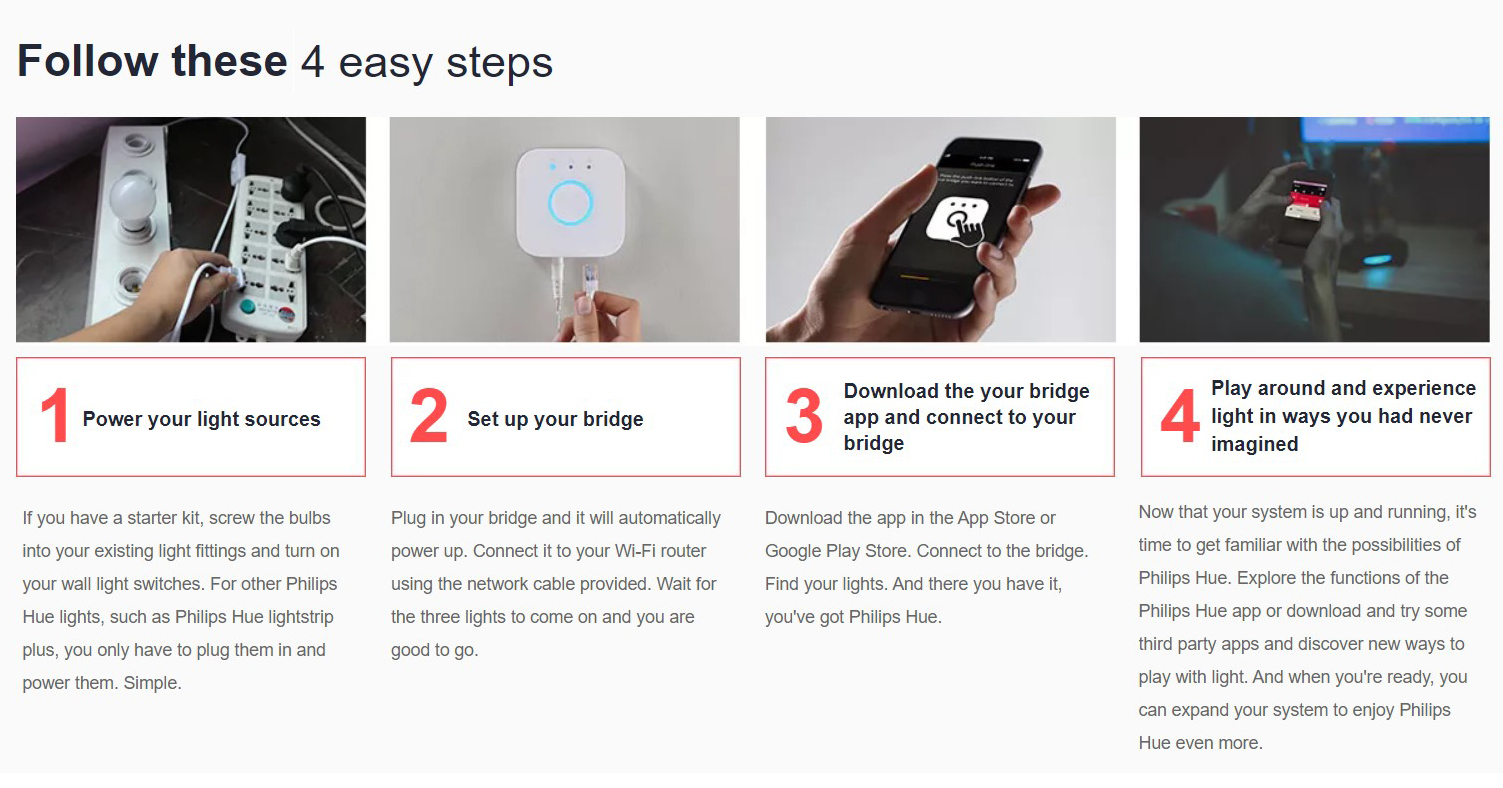

ZigBee Bridge Control Settings
Zigbee MR16 led bulb

Installation

1.Turn off the Power.
2.Plug in the bulb.
3.Now you can connect it with the gateway.

Connection with Gateway:
1.Start the device searching on the ZigBee Light Link Gateway, it could take some time.
If the Gateway does not find the device, switch off/on the gateway and try again or
3.The Gateway found your device and you can assign it to the different rooms/zones/groups.
4.Now you can use the device.

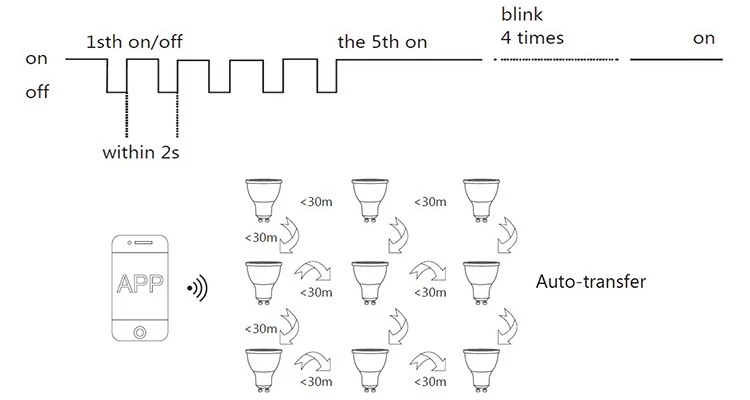

Reset
1.Switch on your device.
2.Now switch off and on within 2 seconds.
3.Repeat off/on four times.
4.Reset is done when the device is switched on in the fifth time and the light stays on after blinking 4 times.

Zigbee MR16 led bulb

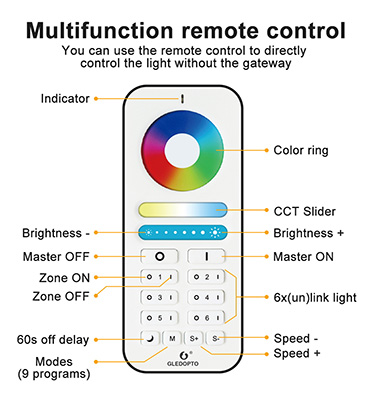

Gledopto 2.4G RF Remote Controlling Link & Unlink
Zigbee MR16 led bulb

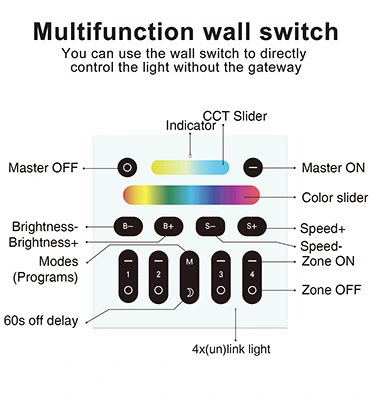

Link & unlink with 2.4GHZ RF Remote Control

> How to Link
1. Within 3 seconds after power on, click the"on"button of the group to conduct code matching, and the LED lights turns green, indicating successful code matching.
2. Long press the"off"button of the remote control to enter the night light mode, and the brightness and color can still be adjusted at this time.
3. Long press the small moon key to enter the 60 seconds delay shutdown state.
4. Long press M key to enter automatic mode.
> How to unlink
1. If the LED is still connected to the ZigBee gateway, long press the"on"button on the remote control within 3 seconds after power on or press the button for 5 times continuously, the light will flash for 5 times in the current color.
2. If the LED is not connected to the ZigBee gateway status, lon gpress the"on"button on the remote control within 3 seconds after power on or press the button for 5 times continuously, then the LED light will be fully bright and flashing for 5 times.
Zigbee MR16 led bulb

Different Lighting Modes Description

Mode 1: Static warm white color (warm white color only)Mode 2: Static white color (cold and warm white color are equally bright)
Mode 3: Static cold white color (cold white color only)
Mode 4: Static red color
Mode 5: Static green color
Mode 6: Static blue color
Mode 7: RGB fade in and out (from red --> green --> blue --> red, and so on, speed adjustable)
Mode 8: RGB flashing (from red --> green --> blue --> red, and so on, speed adjustable)
Mode 9: Color breathing (On this mode, the brightness of current color will cycle from 100% to 0%, then from 0% to 100%. At the same time, you can switch the color and have a cycle repeatedly. Pressing switch/mode button to exit this mode)
More Features & Lighting Application
Zigbee MR16 led bulb
Zigbee MR16 led bulb
Zigbee MR16 led bulb
Zigbee MR16 led bulb

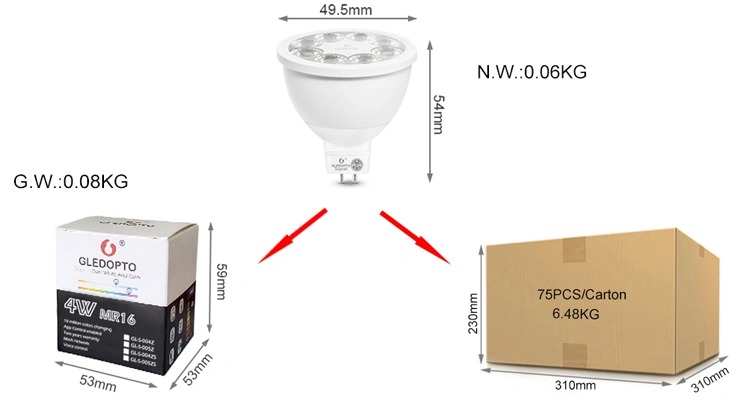

4W RGB+CCT Color ZigBee + RF Remote Control Spotlights Packing Details
Zigbee MR16 led bulb
Gledopto Certificates
Zigbee MR16 led bulb
Zigbee MR16 led bulb
Zigbee MR16 led bulb
Zigbee MR16 led bulb

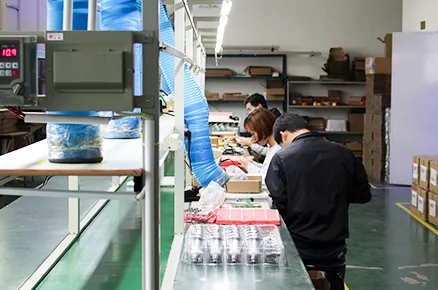

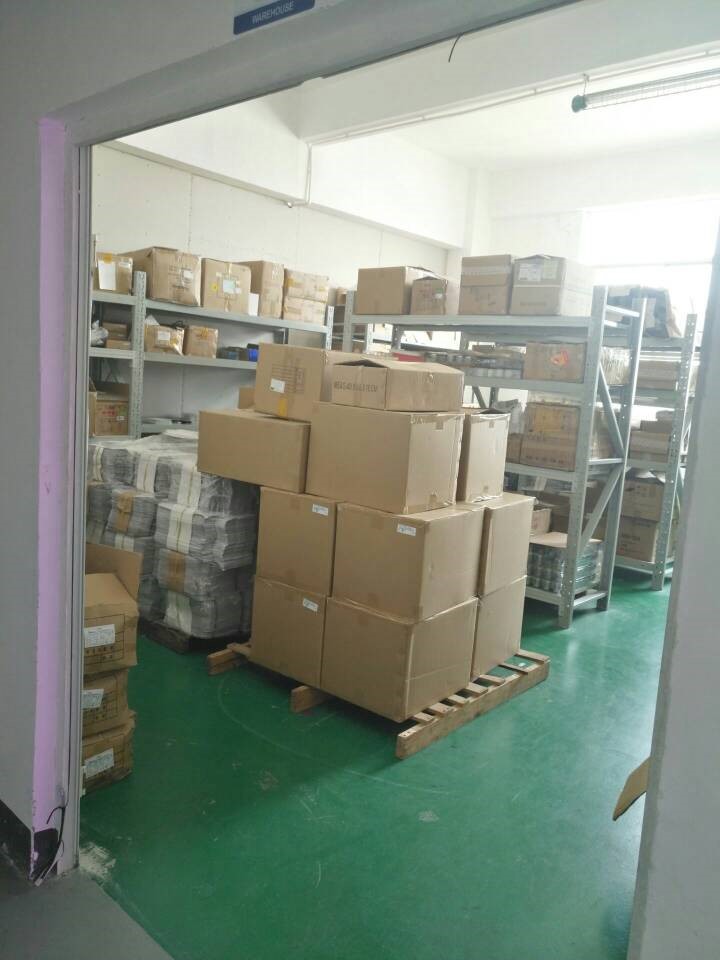

Company Information
Zigbee MR16 led bulb
Zigbee MR16 led bulb
Zigbee MR16 led bulb
Zigbee MR16 led bulb
FAQs

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 1000pcs

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly, please let us know your requirements or application.
Secondly, we'll make quotation according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for official order.
Fourthly, we arrange the production.

Fifthly, customers make balance payment for the order, and we arrange shipment once the payment received.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-3 years warranty for our products.

Q8: How to deal with the faulty?

A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.

For large defective products, we can arrange to repair them and resend them to you, or we can discuss the solution

including re-call according to actual situation.
