$16.99 - $20.49 / piece
- Warranty(Year):2-Year
- Lighting solutions service:Smart Lighting Control Solution
- Luminous Efficacy(lm/w):0
- Product Weight（kg）:0.35
- Place of Origin:Guangdong, China
- Brand Name:GLEDOPTO
- Type:Remote Control
- Max. Load Power:24W
- Connection Mode:Wireless Connection
- Input Voltage:12V DC
- Max Current Output:2A
- Max Power Output:24W
- Controlling Protocol:ZigBee 3.0 & 2.4G RF Remote Control
- Remote Control Distance:30meter
- Working Temperature:-20-60℃
- Shell Material:ABS Material

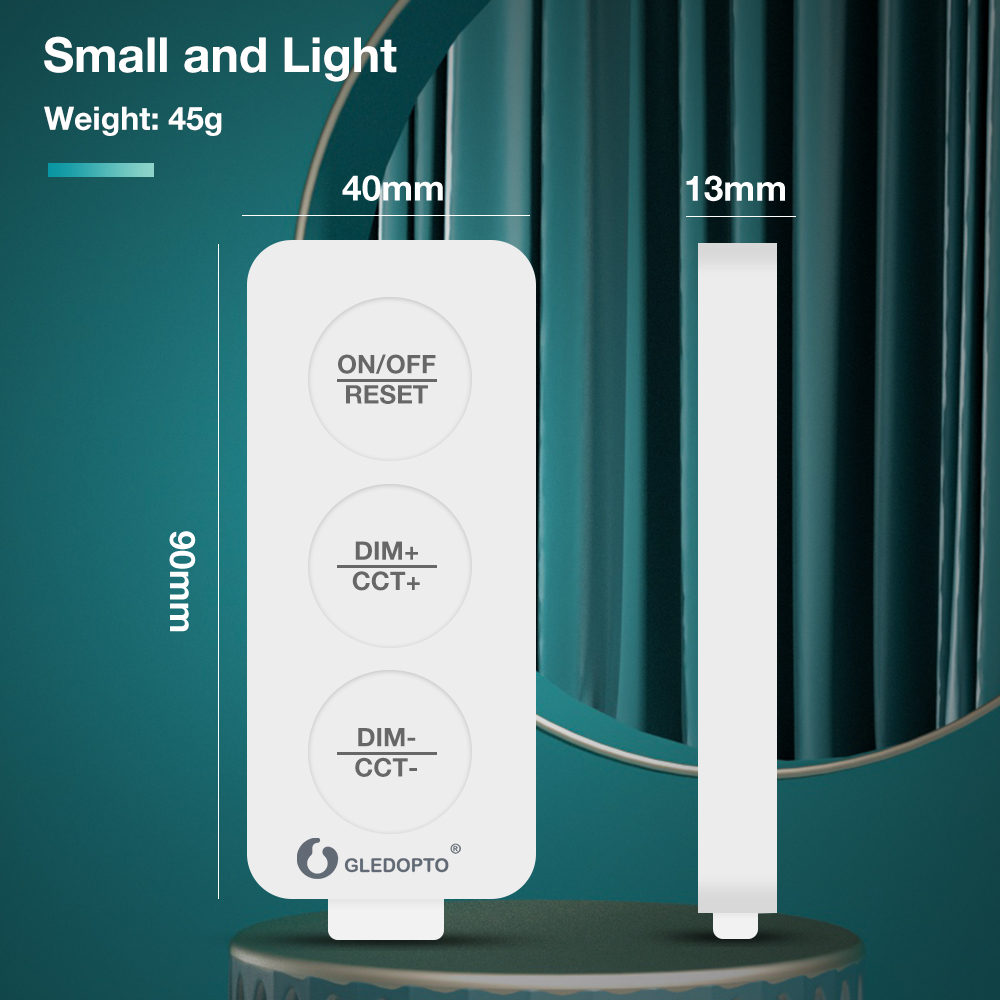

- Size:L90*W40*H13mm
- Warranty:2Year
- Output Way:Common Anode & Constant Voltage

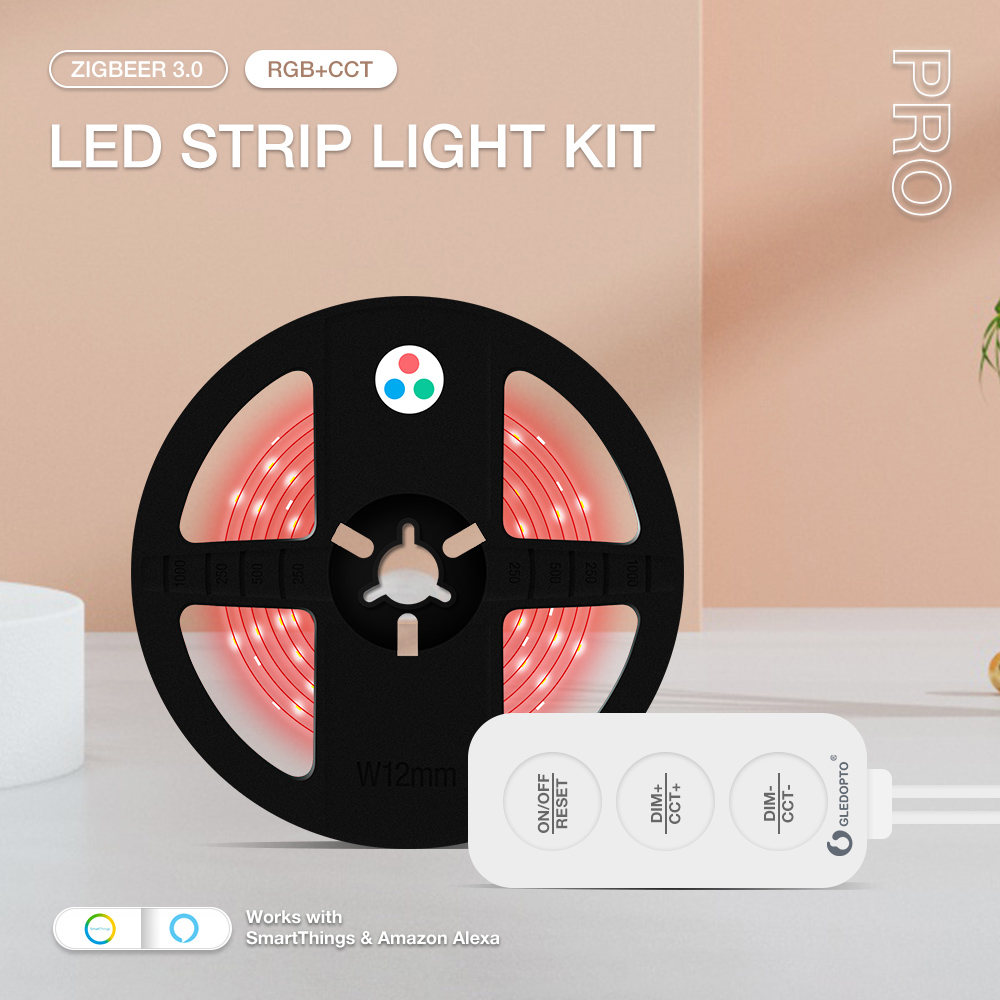

3-Button RGBCCT ZigBee 3.0 LED Strip Controller Kit | ||
Input Volt. | 12V DC | |
Output Power | 24W max. | |
Common Anode | Yes | |
Control Tech. | ZigBee 3.0 + 2.4G RF | |
Lighting Color | RGB+CCT | |
Remote Distance | 30Meter | |
Shelf Material | ABS | |
Working Temp. | -20°C~60°C | |
Product Features
This new Gledopto Three-button ZigBee RGB+CCT LED Strip Controller is newly developed starter kit package based on ZigBee Pro version design, to be wirelessly controlled by 6-zone or 8-zone remote control or via App/Voice after connecting with the ZLL/ZigBee 3.0 hubs.

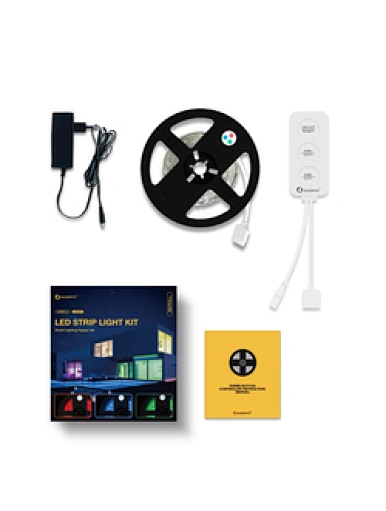

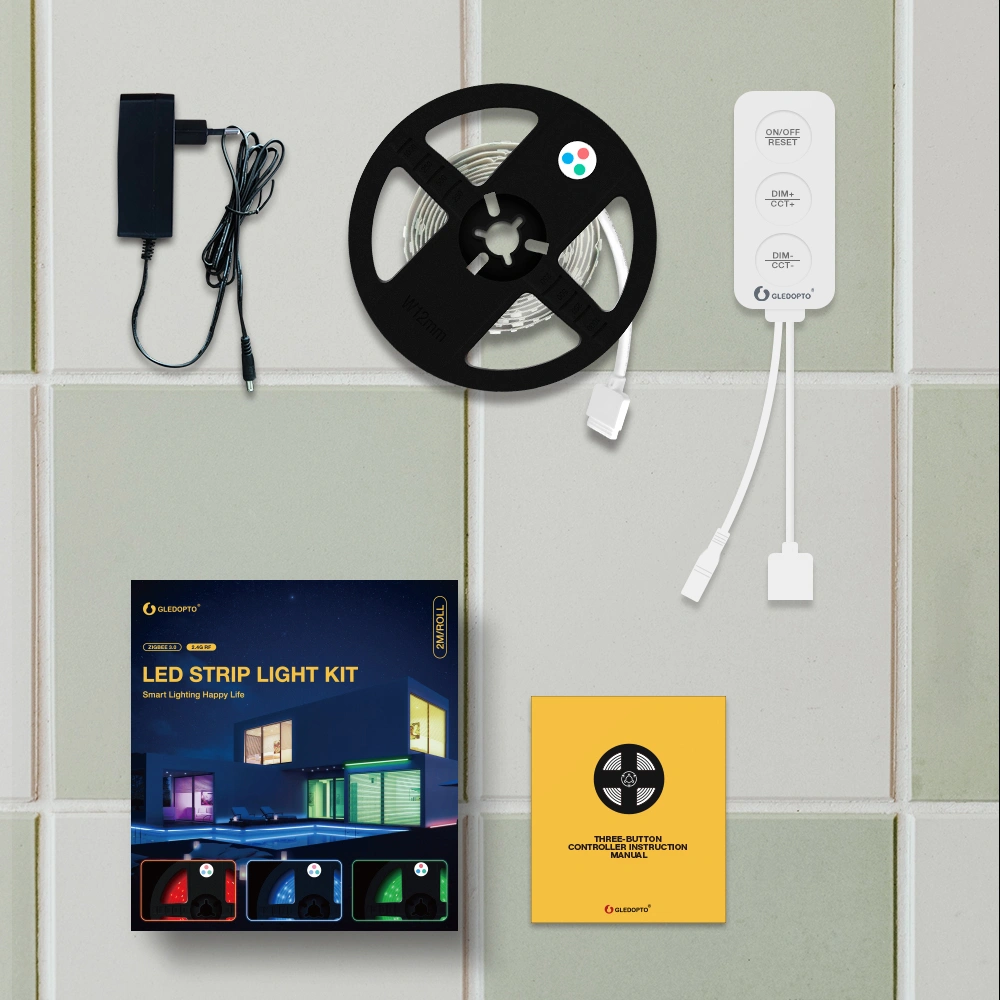

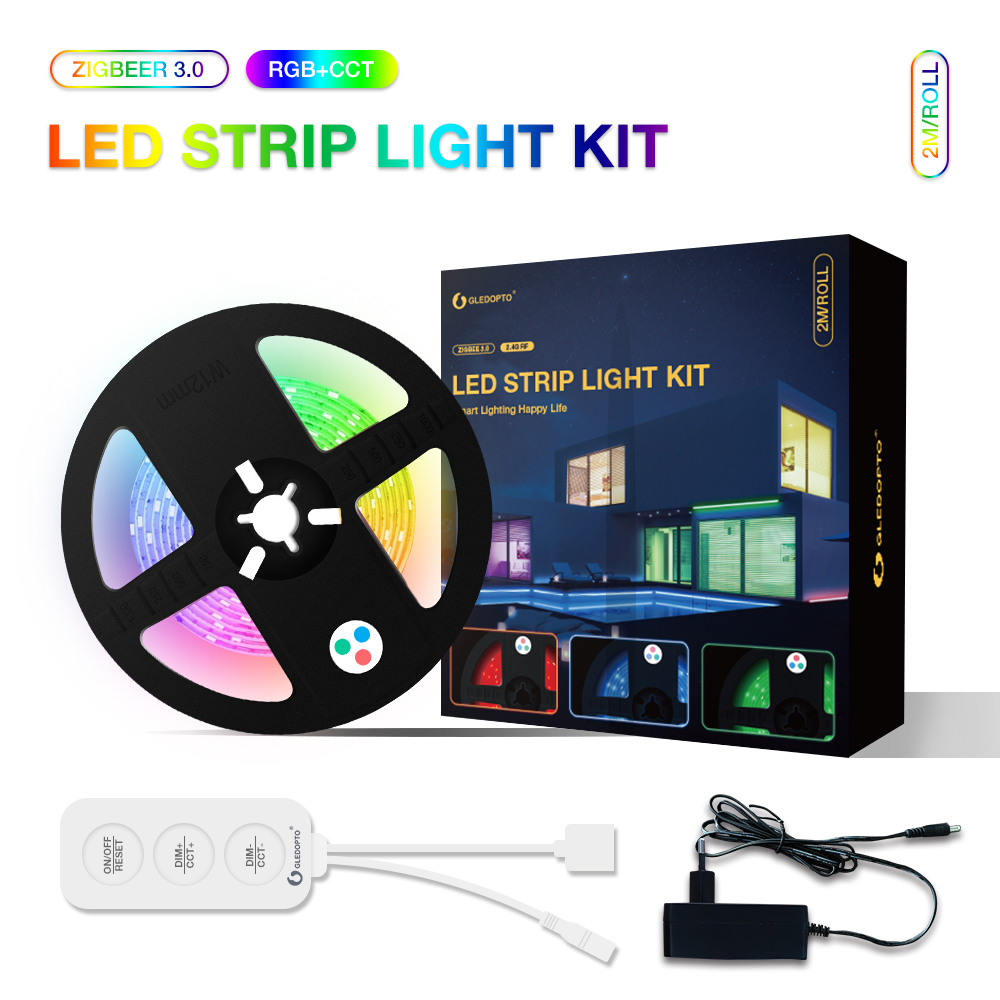

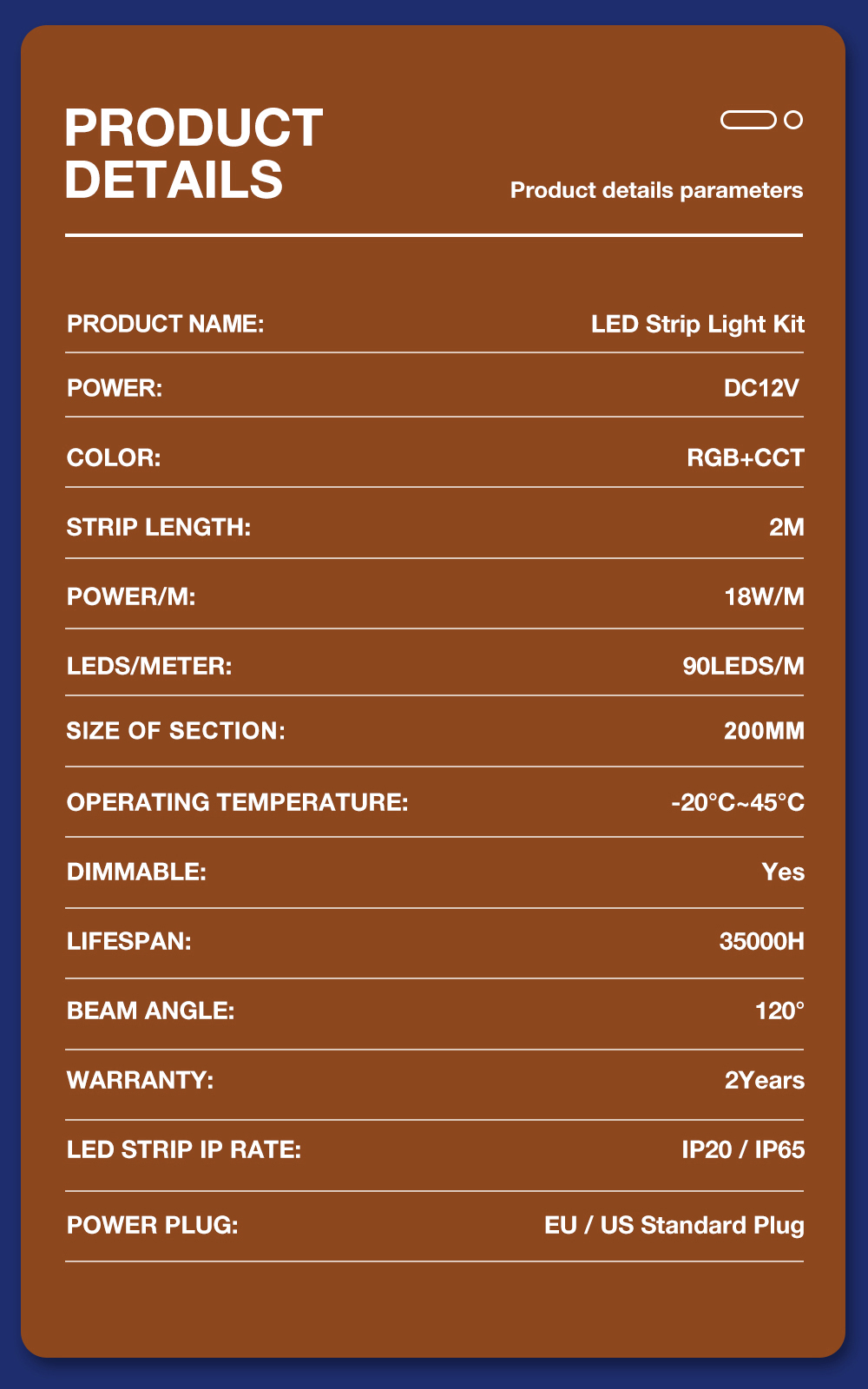

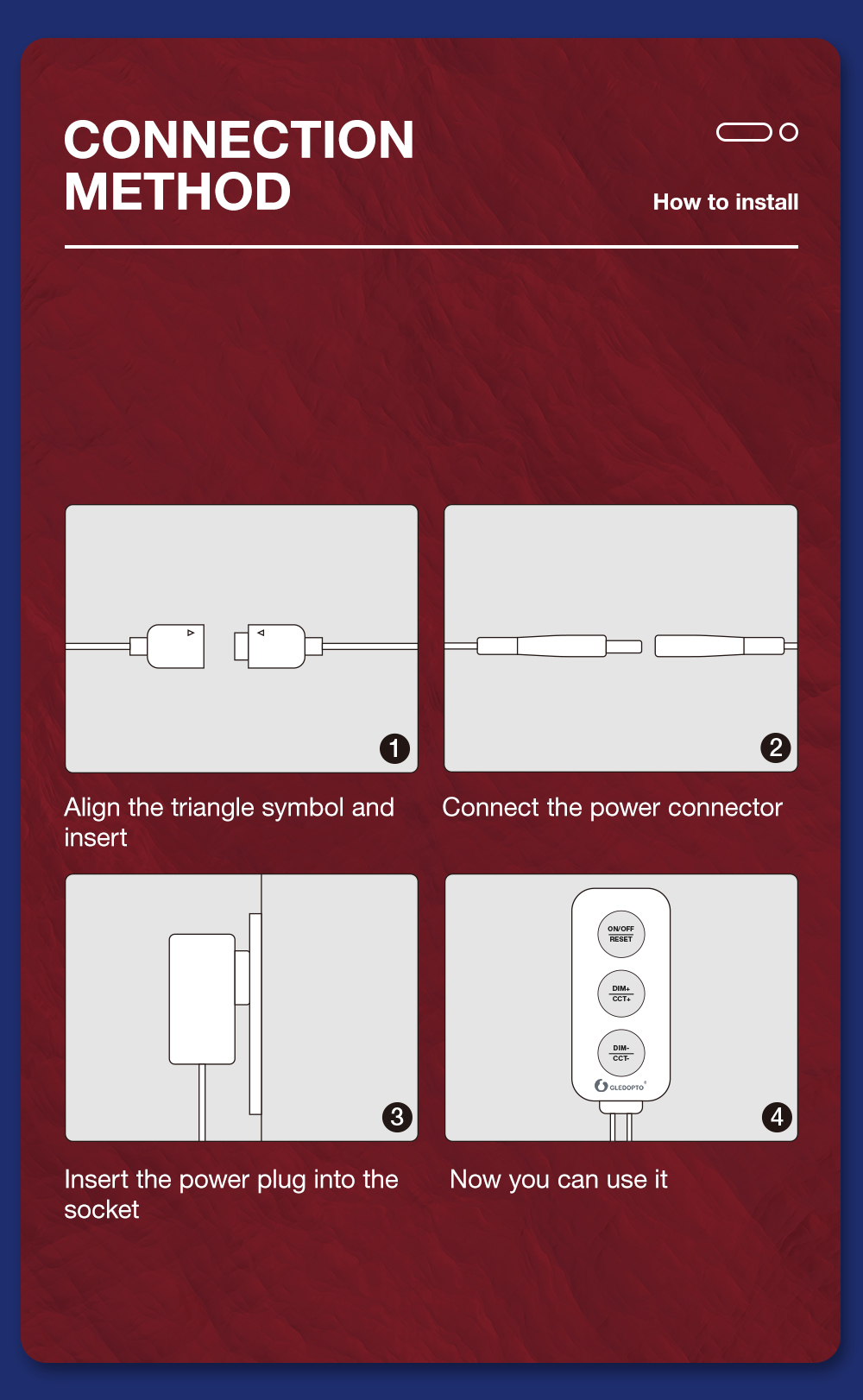

This complete kit has included 1x RGBCCT controller, 1x DC12V RGBCCT LED Strip 2Mtr length, 1x US/EU LED Driver, and 1x User Manul. So the user can use this whole kit directly after receiving the kit, no need to buy elsewhere the needed accessories to save lots of time.

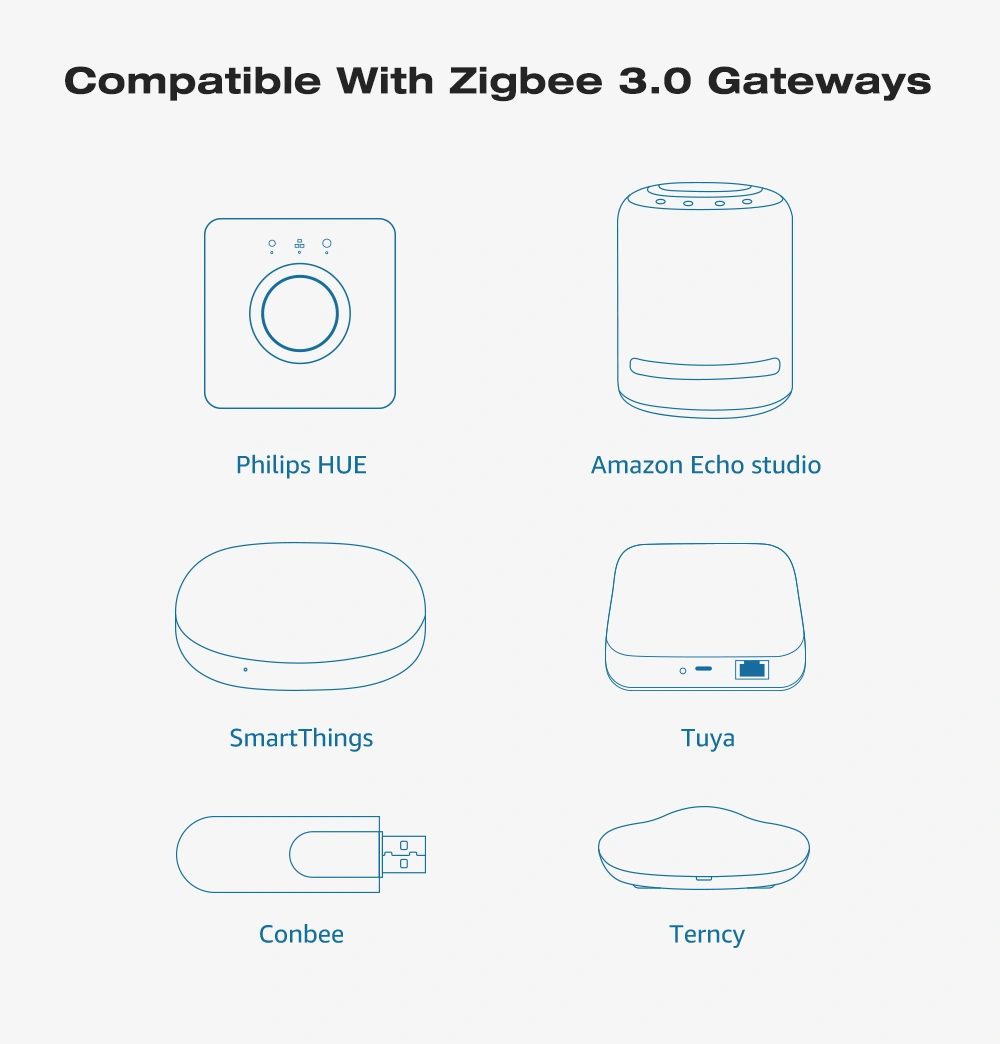

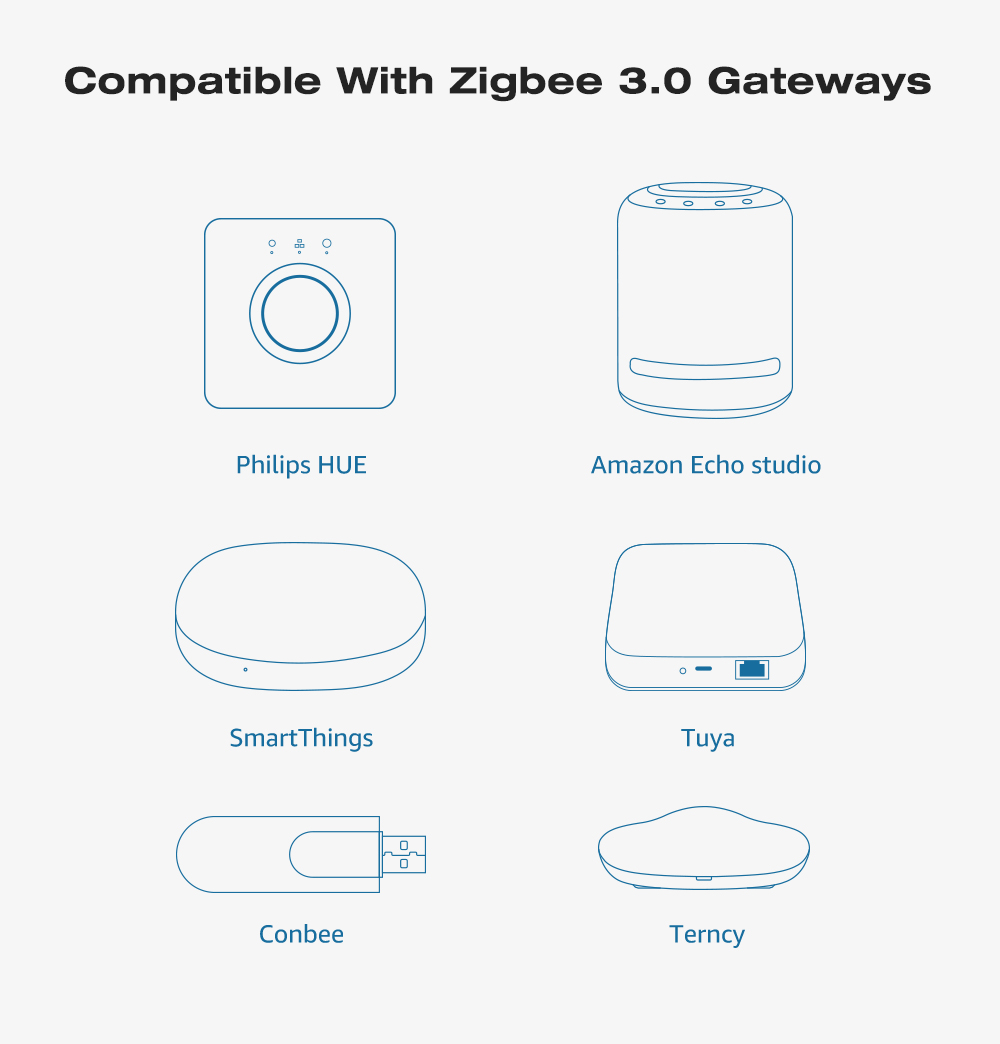

It is made of delicate & fashionable ABS housing body, based on standard ZigBee protocol which compatible to ZigBee gateways such as Philips Hue, Amazon Echo Plus, Samsung Smartthings, ConBee/RaspBee II, Hubitat, Homee, Homey, etc. for constant voltage RGB + CCT LED strip light 12V DC input.
This latest Pro serie controllers or LED lamps are designed for purpose of considering the users who are not familiar with ZigBee controlling, so alternatively it is can be controlled by the remote directly and much easy to manage the multiple lighting control functions.
Quick Controlling by Pressing Keys/Buttons

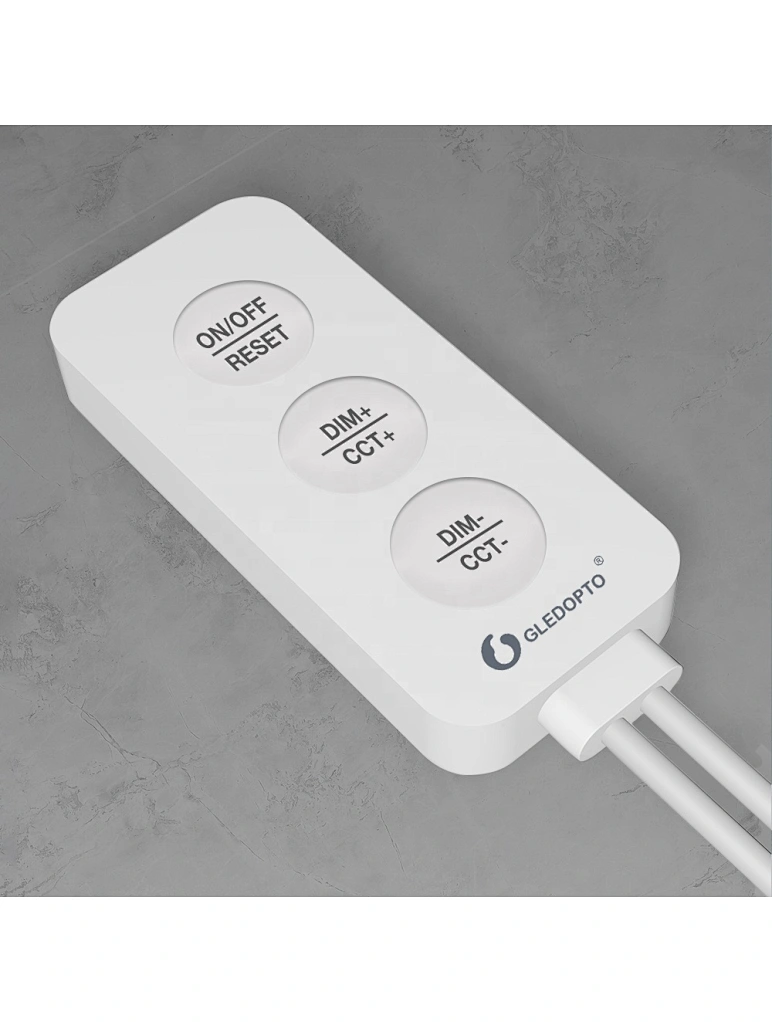

There are three buttons on the controller, you can make quick controlling directly by pressing these buttons without using the App.
△OnOff/Reset:
Short press on/off, and long press for more than 5 seconds to reset the controller
△DIM+/CCT+:
Short press to increase brightness, and long press to increase the color temperature
△DIM-/CCT-:
Short press to decrease brightness, and long press to decrease the color temperature
Power-on-behavior Setting and more functions
△The device will enter"touch link"mode by default after power off and restart, this mode will be turned off after 160 seconds. If the device has been connected to the ZigBee network, it will enter"find and binding"mode directly, this mode will be turned off after 180 seconds.

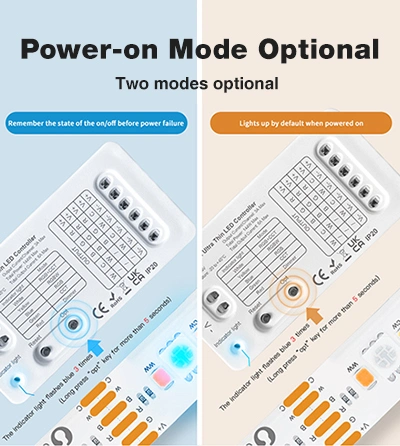

△Repeat power off and on 3 times to enter into the"Power-On-Behavior"mode ( the device will"save the status before powering off"), which means: If the lighting is on, after electricity break and back again, the lighting will still be on. If the lighting is off, after electricity break and back again, the lighting will still be off. Power on/off 3 times to turn off the"Power-On-Behavior"mode, the device will be back to"default lighting on"status.

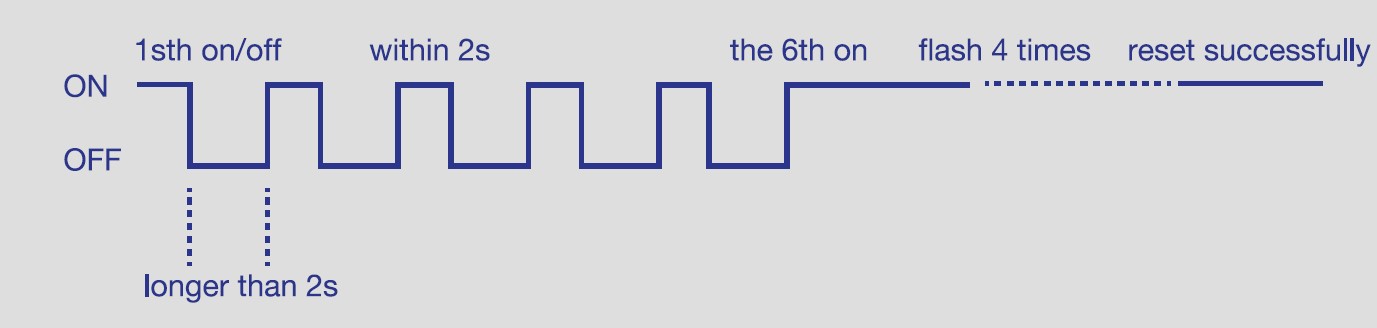

△Reset: repeat power off and on 5 times

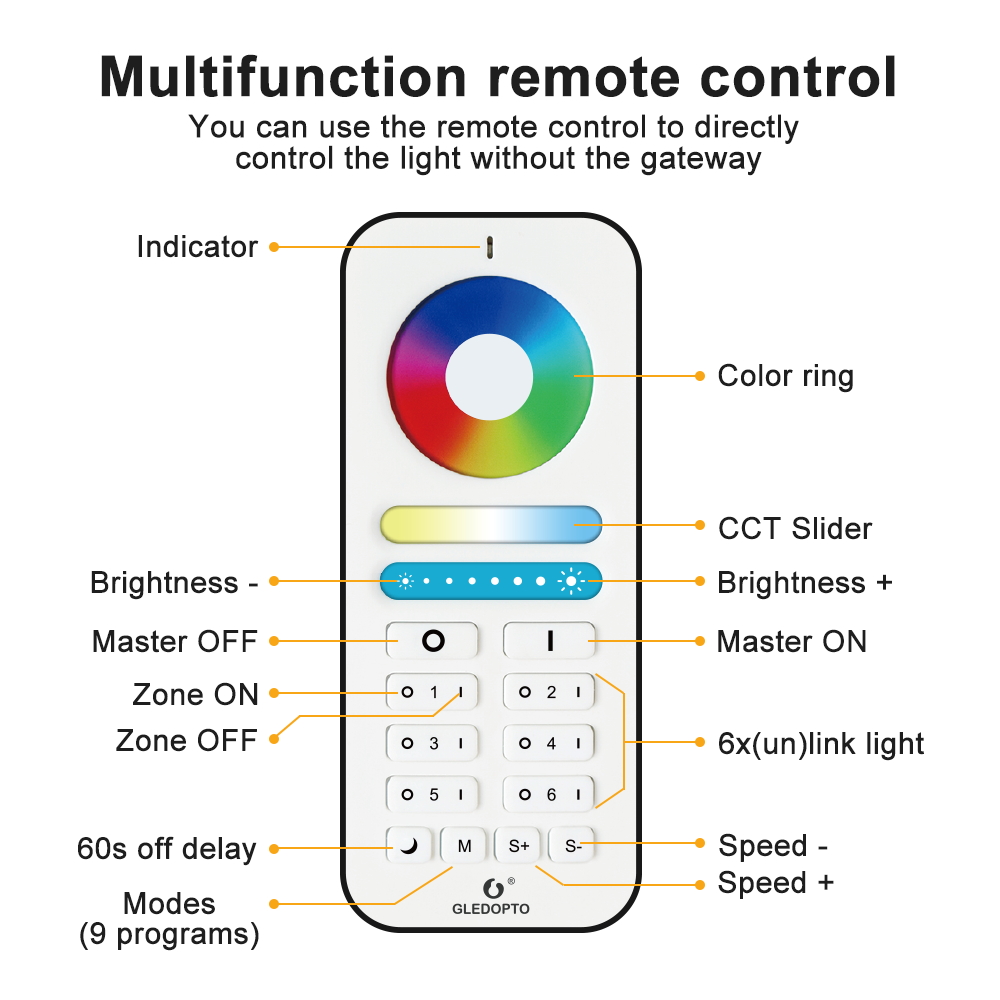

TO CONTROL GLEDOPTO ZIGBEE SMART CONTROLLERS/LIGHTS W/O A ZIGBEE HUB
>Or if you are putting these lights somewhere outside of the WiFi coverage, e.g. a camper, backyard, garage workshop, etc., you can use the RF Remote Controller directly, no need to find to link to a ZigBee bridge.
>Auto sync & transfer.
This is the best feature for 2.4GHZ RF Remote Controlling design, most suitable for big lighting project. Your RGBW or RGB+CCT color LED lights can receive the controlling signal sent from the remote or wall controller, as long as the distance between two lamps is within 15mtr to 20mtr, the first lamp can send the signal automatically to the second lamp, and then to third lamp, and so on, until all lamps totally synced and changing the lighting color or modes all the same at the same time.
Compared to those color changing lamps with signal transferred through wires, this wireless controlling design will save huge the labour job and cost.

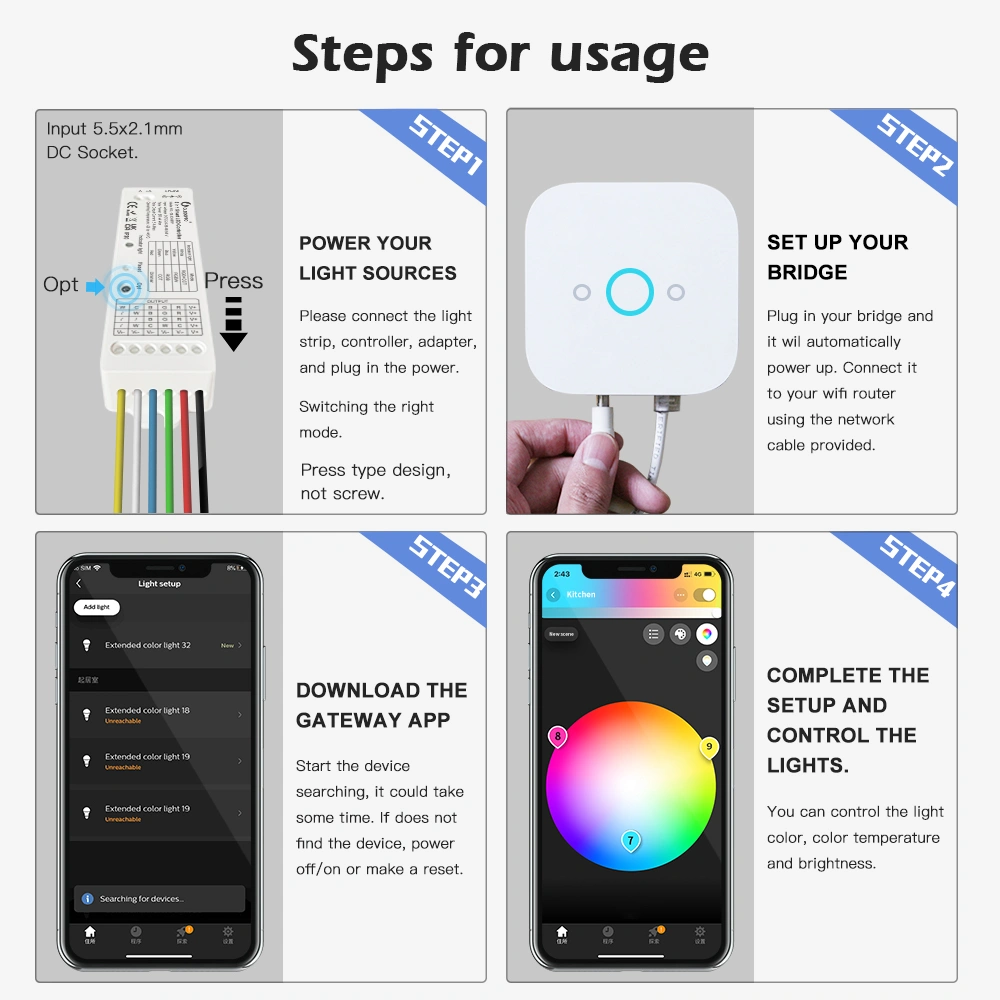

Quick Start to Connect ZigBee LED Controller to ZigBee 3.0 or ZigBee Light Link Bridge | ||||||
GLEDOPTO® Smart Controller 2.4G RF Network Pairing & Unpairing | ||||||
How to pair and use the Remote Control
How to unpair the 2.4G HZ RF Remote Controlling
Gledopto ZigBee LED Strip Rope String Light Controller Packing Details | ||||||
