GL-C-004P Gledopto 12V 2Meter ZigBee LED Strip Kit Dimmable by Key Pressing Smart ZigBee3.0 LED Controller RGBCCT Voice Control

zigbee led strip controller kit
GL-C-004P Gledopto 12V 2Meter ZigBee LED Strip Kit Dimmable by Key Pressing Smart ZigBee3.0 LED Controller RGBCCT Voice Control
price

$16.99 - $20.49 / piece

GL-C-004P
1 piece
Quantity
  • Warranty(Year):2-Year
  • Lighting solutions service:Smart Lighting Control Solution
  • Luminous Efficacy(lm/w):0
  • Product Weight(kg):0.35
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control
  • Max. Load Power:24W
  • Connection Mode:Wireless Connection
  • Input Voltage:12V DC
  • Max Current Output:2A
  • Max Power Output:24W
  • Controlling Protocol:ZigBee 3.0 & 2.4G RF Remote Control
  • Remote Control Distance:30meter
  • Working Temperature:-20-60℃
  • Shell Material:ABS Material

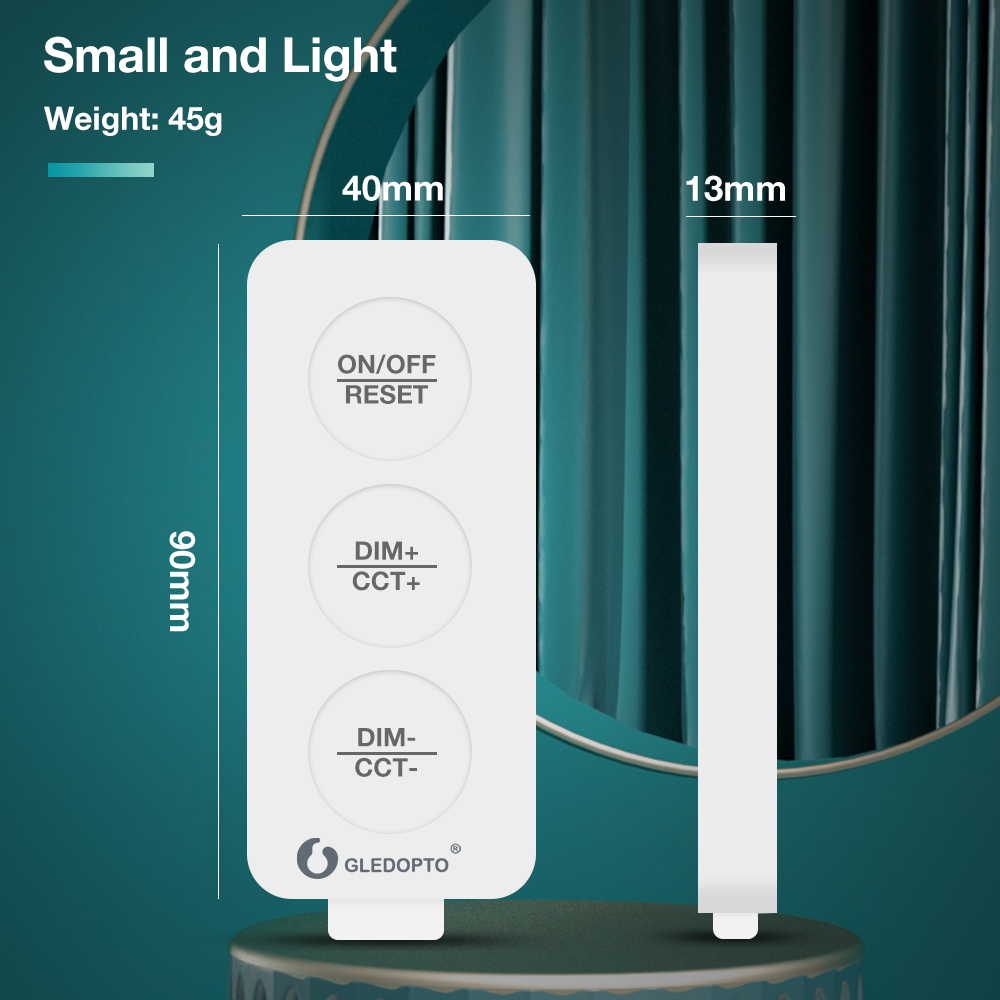

  • Size:L90*W40*H13mm
  • Warranty:2Year
  • Output Way:Common Anode & Constant Voltage

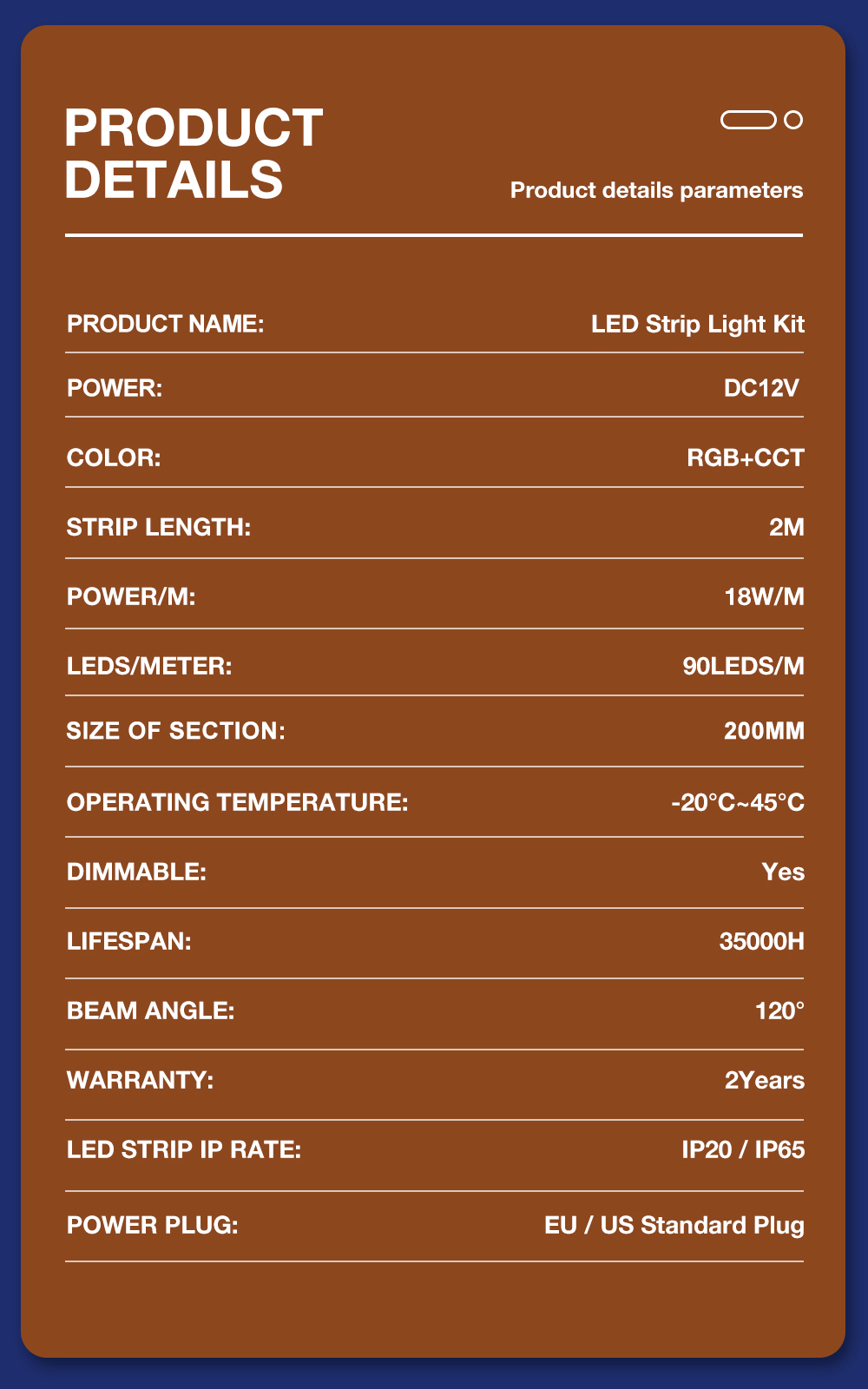

Product Paramenters
zigbee led strip controller kit

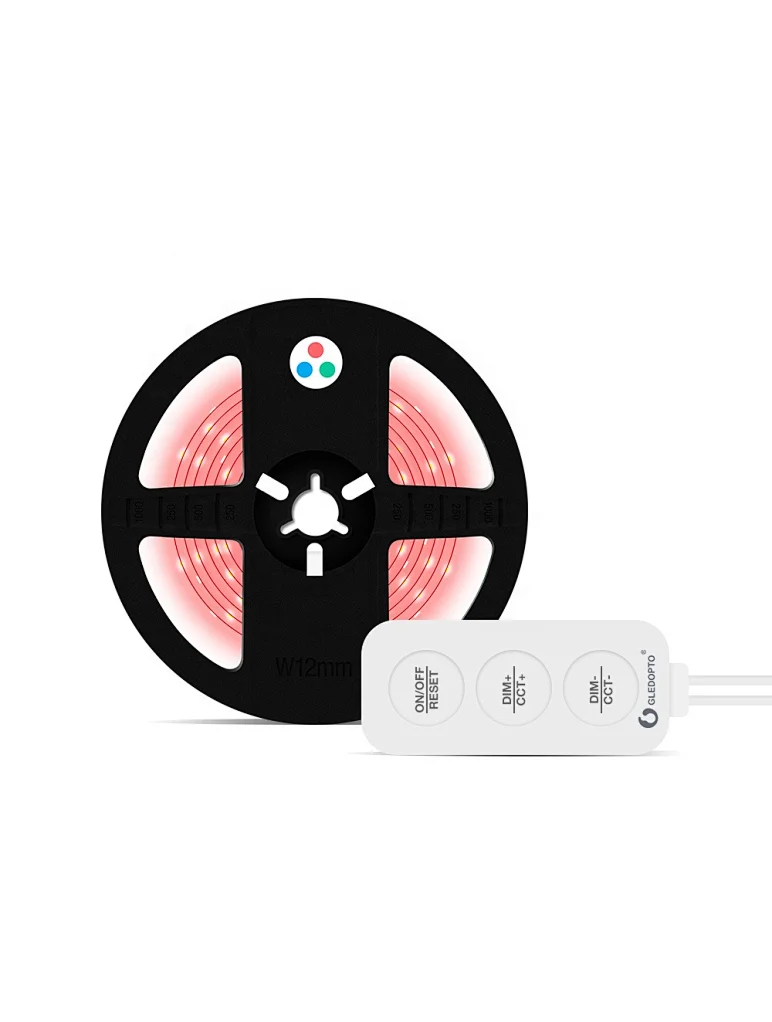

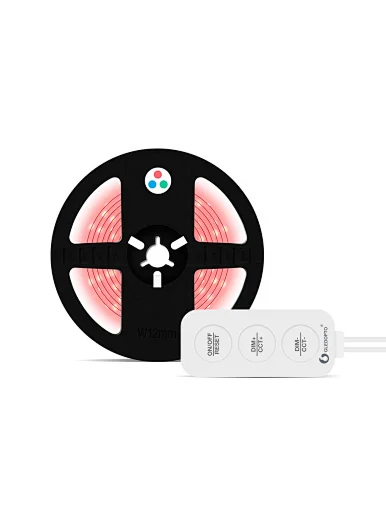

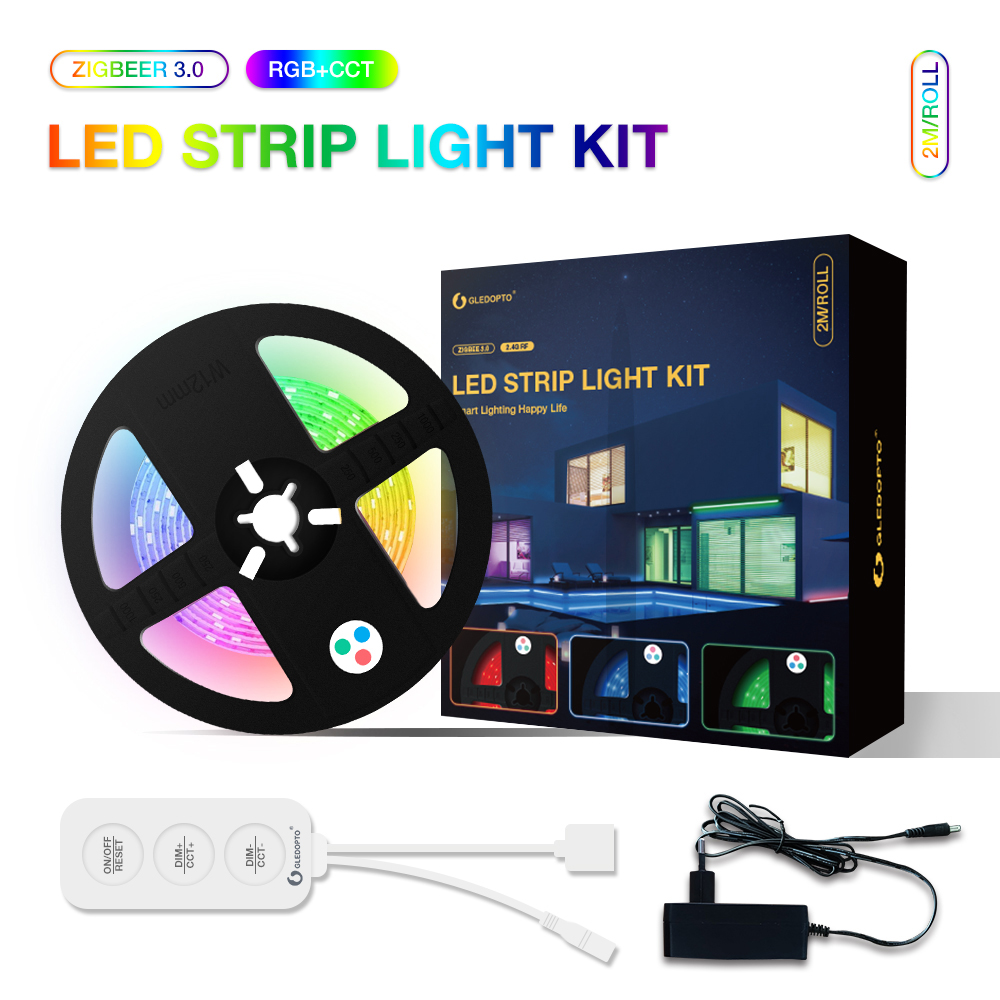

3-Button RGBCCT ZigBee 3.0 LED Strip Controller Kit
Input Volt.
12V DC
Output Power
24W max.
Common Anode
Yes
Control Tech.
ZigBee 3.0 + 2.4G RF
Lighting Color
RGB+CCT
Remote Distance
30Meter
Shelf Material
ABS
Working Temp.
-20°C~60°C
zigbee led strip controller kit
zigbee led strip controller kit
Product Description
zigbee led strip controller kit

Product Features

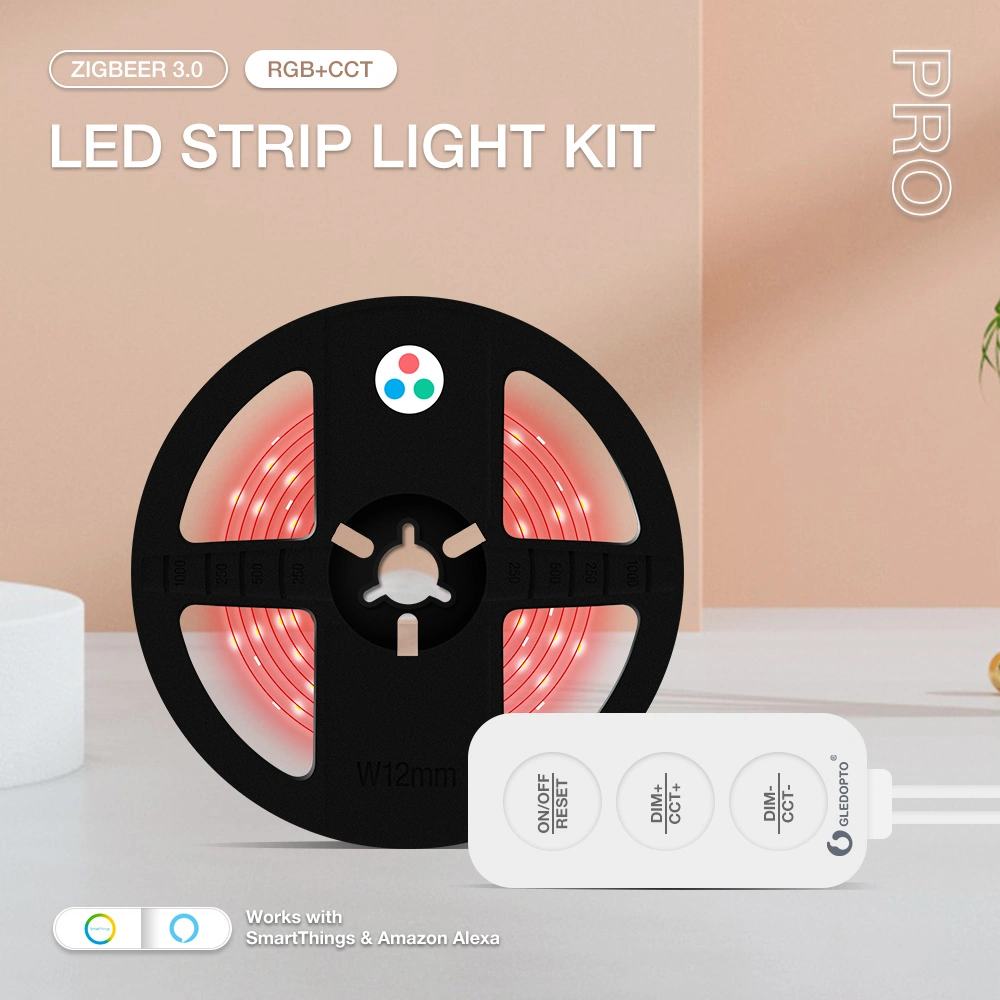

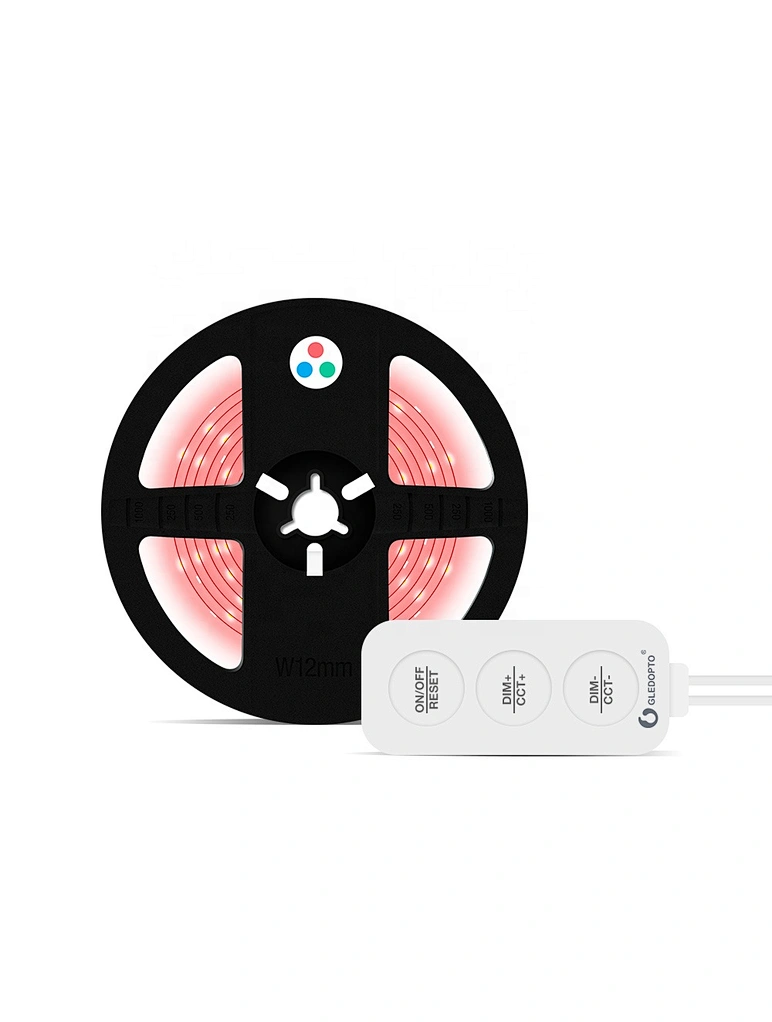

This new Gledopto Three-button ZigBee RGB+CCT LED Strip Controller is newly developed starter kit package based on ZigBee Pro version design, to be wirelessly controlled by 6-zone or 8-zone remote control or via App/Voice after connecting with the ZLL/ZigBee 3.0 hubs.

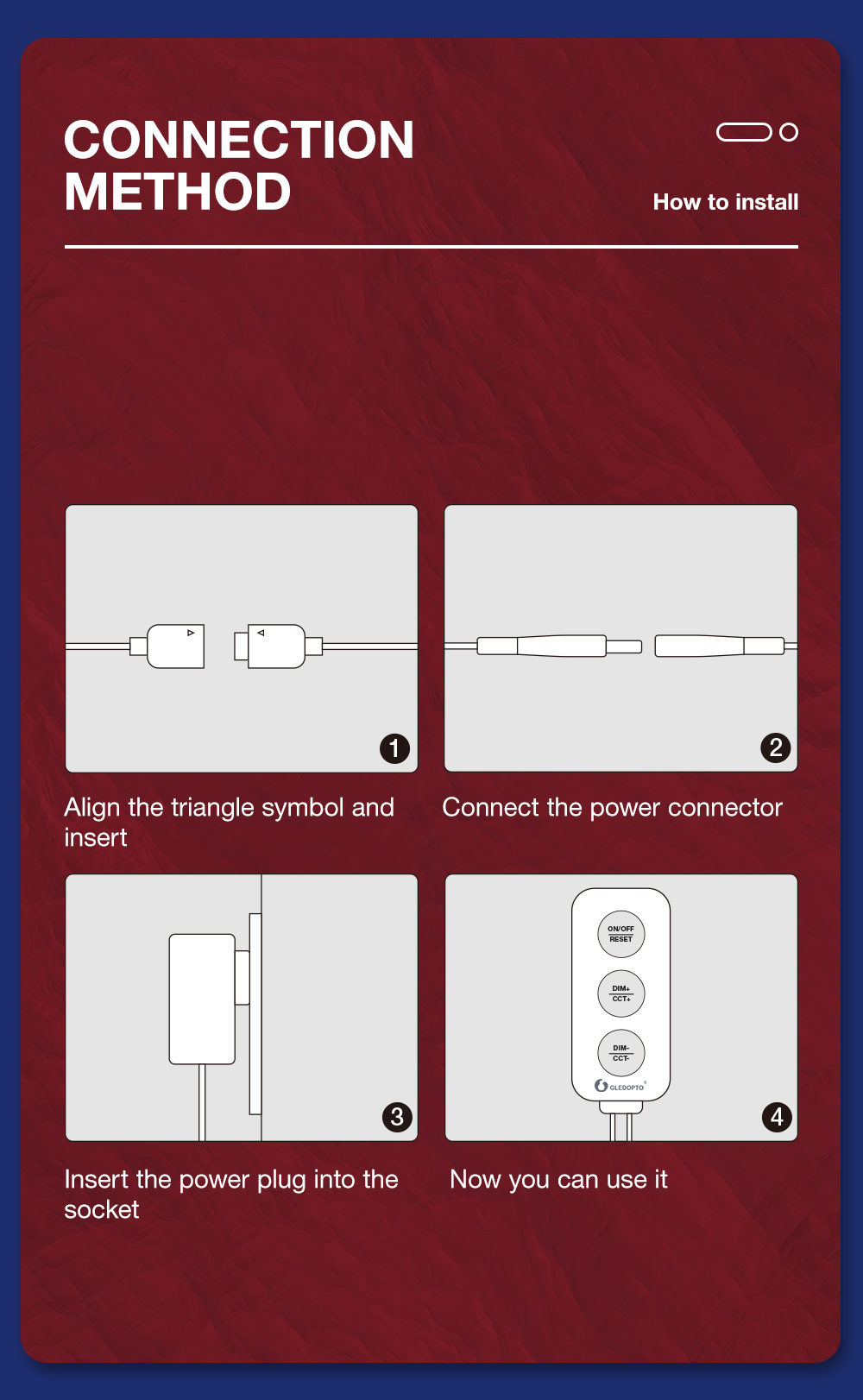

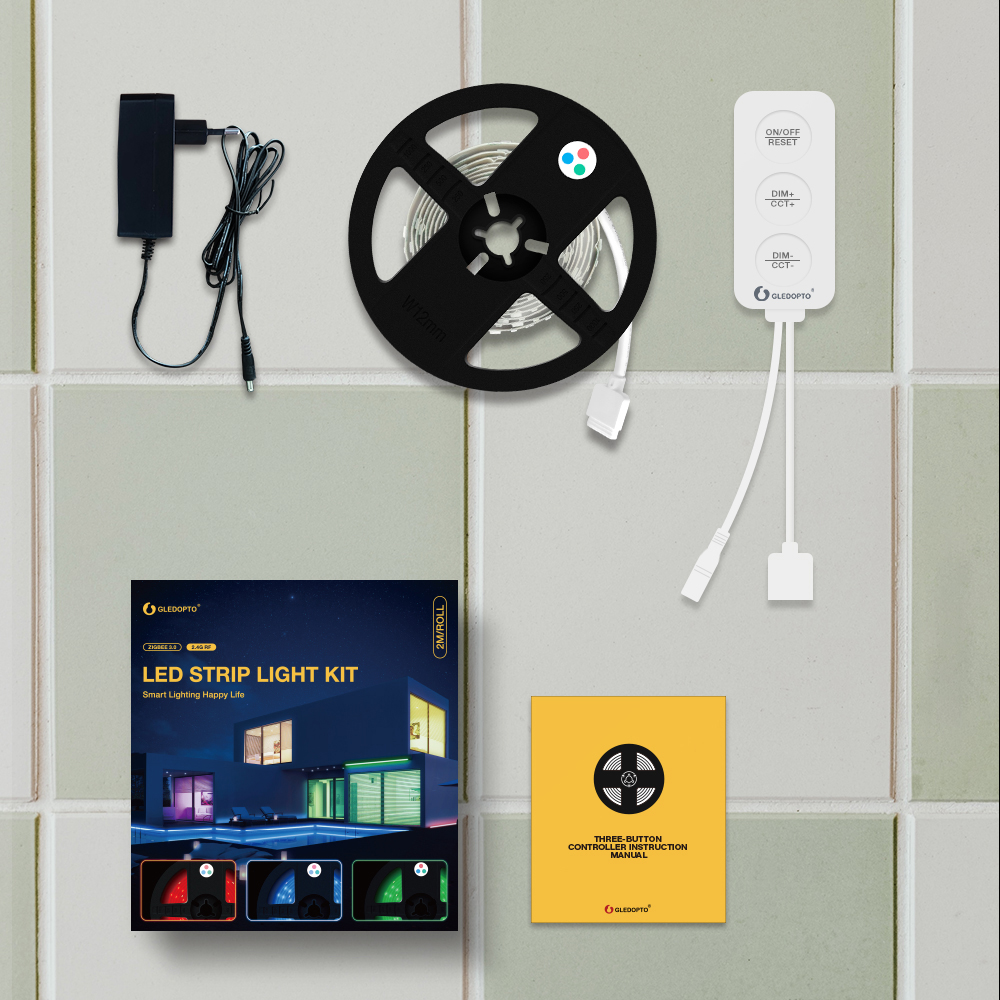

This complete kit has included 1x RGBCCT controller, 1x DC12V RGBCCT LED Strip 2Mtr length, 1x US/EU LED Driver, and 1x User Manul. So the user can use this whole kit directly after receiving the kit, no need to buy elsewhere the needed accessories to save lots of time.

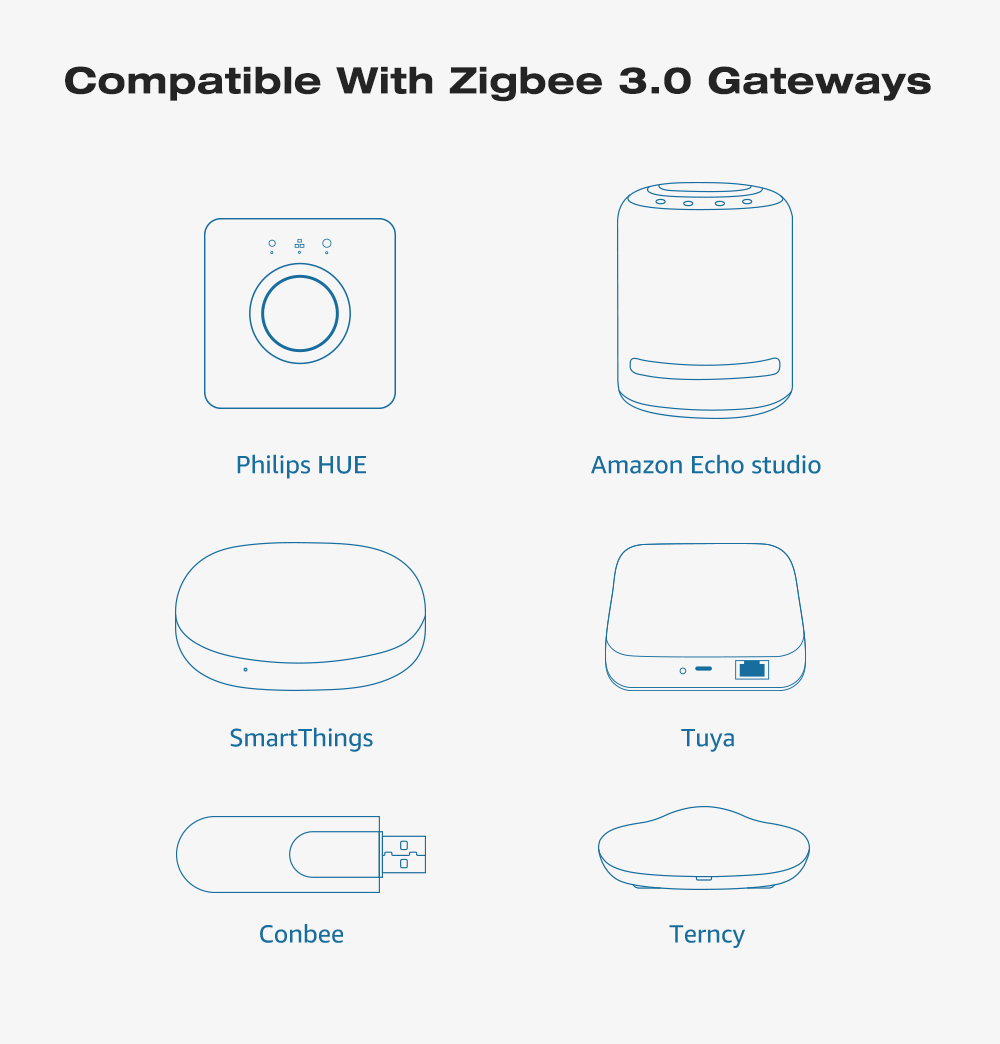

It is made of delicate & fashionable ABS housing body, based on standard ZigBee protocol which compatible to ZigBee gateways such as Philips Hue, Amazon Echo Plus, Samsung Smartthings, ConBee/RaspBee II, Hubitat, Homee, Homey, etc. for constant voltage RGB + CCT LED strip light 12V DC input.

This latest Pro serie controllers or LED lamps are designed for purpose of considering the users who are not familiar with ZigBee controlling, so alternatively it is can be controlled by the remote directly and much easy to manage the multiple lighting control functions.

Quick Controlling by Pressing Keys/Buttons

There are three buttons on the controller, you can make quick controlling directly by pressing these buttons without using the App.

OnOff/Reset:

Short press on/off, and long press for more than 5 seconds to reset the controller

DIM+/CCT+:

Short press to increase brightness, and long press to increase the color temperature

DIM-/CCT-:

Short press to decrease brightness, and long press to decrease the color temperature

zigbee led strip controller kit
zigbee led strip controller kit

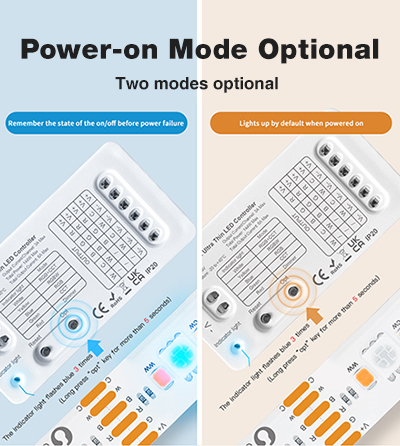

Power-on-behavior Setting and more functions

The device will enter"touch link"mode by default after power off and restart, this mode will be turned off after 160 seconds. If the device has been connected to the ZigBee network, it will enter"find and binding"mode directly, this mode will be turned off after 180 seconds.

Repeat power off and on 3 times to enter into the"Power-On-Behavior"mode ( the device will"save the status before powering off"), which means: If the lighting is on, after electricity break and back again, the lighting will still be on. If the lighting is off, after electricity break and back again, the lighting will still be off. Power on/off 3 times to turn off the"Power-On-Behavior"mode, the device will be back to"default lighting on"status.

Reset: repeat power off and on 5 times

TO CONTROL GLEDOPTO ZIGBEE SMART CONTROLLERS/LIGHTS W/O A ZIGBEE HUB

>The Pro series is ZigBee + 2.4G HZ Radio Frequency controlling design. The LED strip controllers and indoor/outdoor lamps will work with both the RF Remote and ZigBee.
>These are great if you want to control your lights with just the remote or with your ZigBee hub. Sometimes you don't want to pull out the phone to open an App just to turn on the lights, the remote or the wall mounted controller can do it.
>Or if you are putting these lights somewhere outside of the WiFi coverage, e.g. a camper, backyard, garage workshop, etc., you can use the RF Remote Controller directly, no need to find to link to a ZigBee bridge.
>Auto sync & transfer.
This is the best feature for 2.4GHZ RF Remote Controlling design, most suitable for big lighting project. Your RGBW or RGB+CCT color LED lights can receive the controlling signal sent from the remote or wall controller, as long as the distance between two lamps is within 15mtr to 20mtr, the first lamp can send the signal automatically to the second lamp, and then to third lamp, and so on, until all lamps totally synced and changing the lighting color or modes all the same at the same time.
Compared to those color changing lamps with signal transferred through wires, this wireless controlling design will save huge the labour job and cost.

zigbee led strip controller kit
2.4G RF & Zigbee 3.0 Hub Control

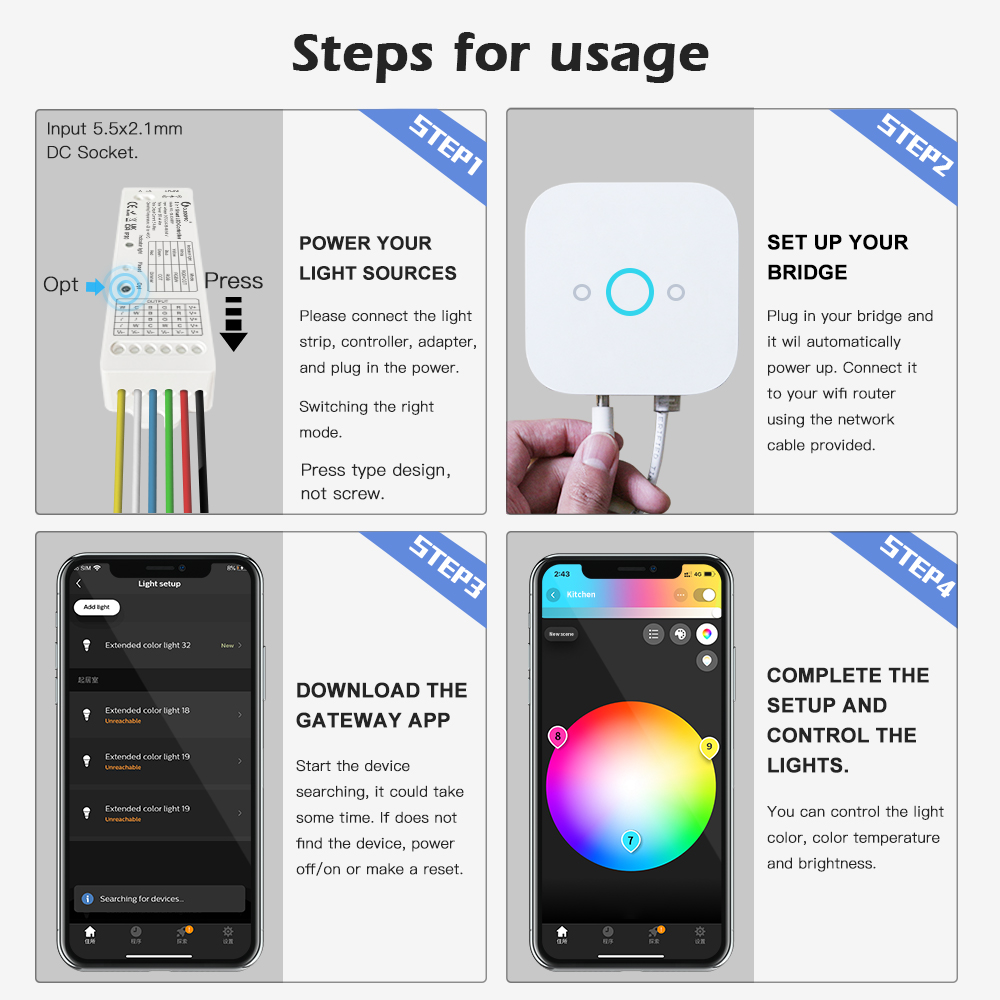

Quick Start to Connect ZigBee LED Controller to ZigBee 3.0 or ZigBee Light Link Bridge

Connecting with ZigBee gateway
△ Start the device searching on the ZigBee Light Link or ZigBee 3.0 gateway, it could take some time. If the gateway does not find the device, power off and on or make a reset to try again.
△ After finding the device, the light will turn green and flash 3 times, then you can save it to the rooms or groups.
Now you can use the device.
zigbee led strip controller kit

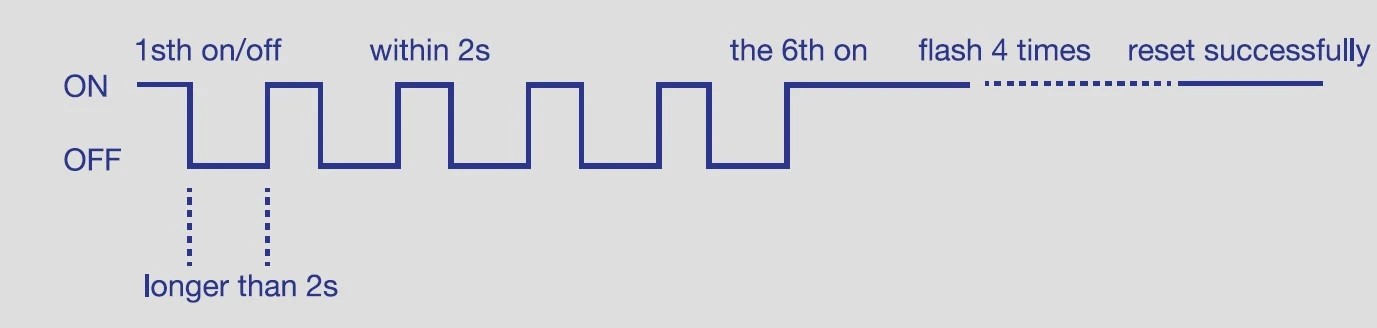

Make Factory Reset of ZigBee Network
△ Switch on your device.

△ Now turns off in less than 2 seconds, wait longer than 2 seconds and then turn it on again.
△ Repeat off and on 5 times.
△ Reset is done when the device is switched on in the 5th time, and the LED lights are flashing 4 times and then turn into white light, (if remote control are not paired, it will tuen to white light, otherwise the light will keep the original color)
zigbee led strip controller kit
GLEDOPTO® Smart Controller 2.4G RF Network Pairing & Unpairing
zigbee led strip controller kit

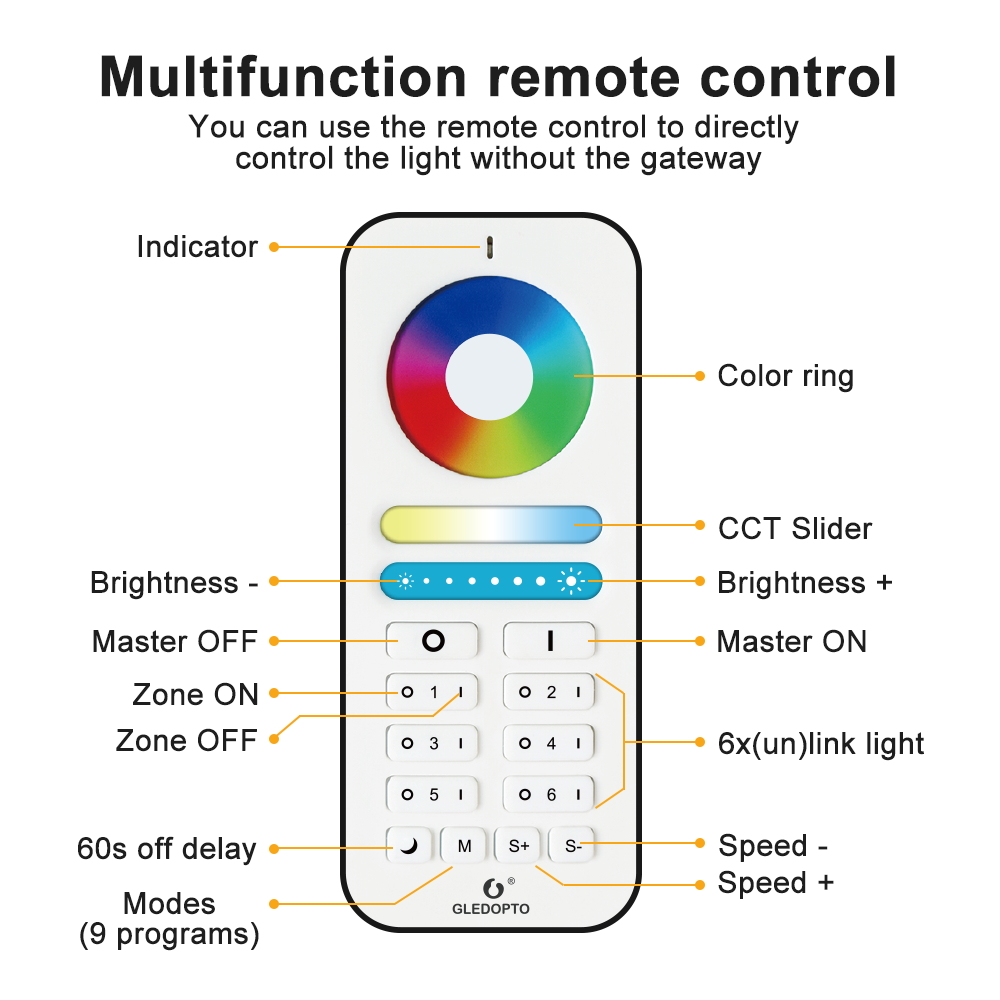

How to pair and use the Remote Control

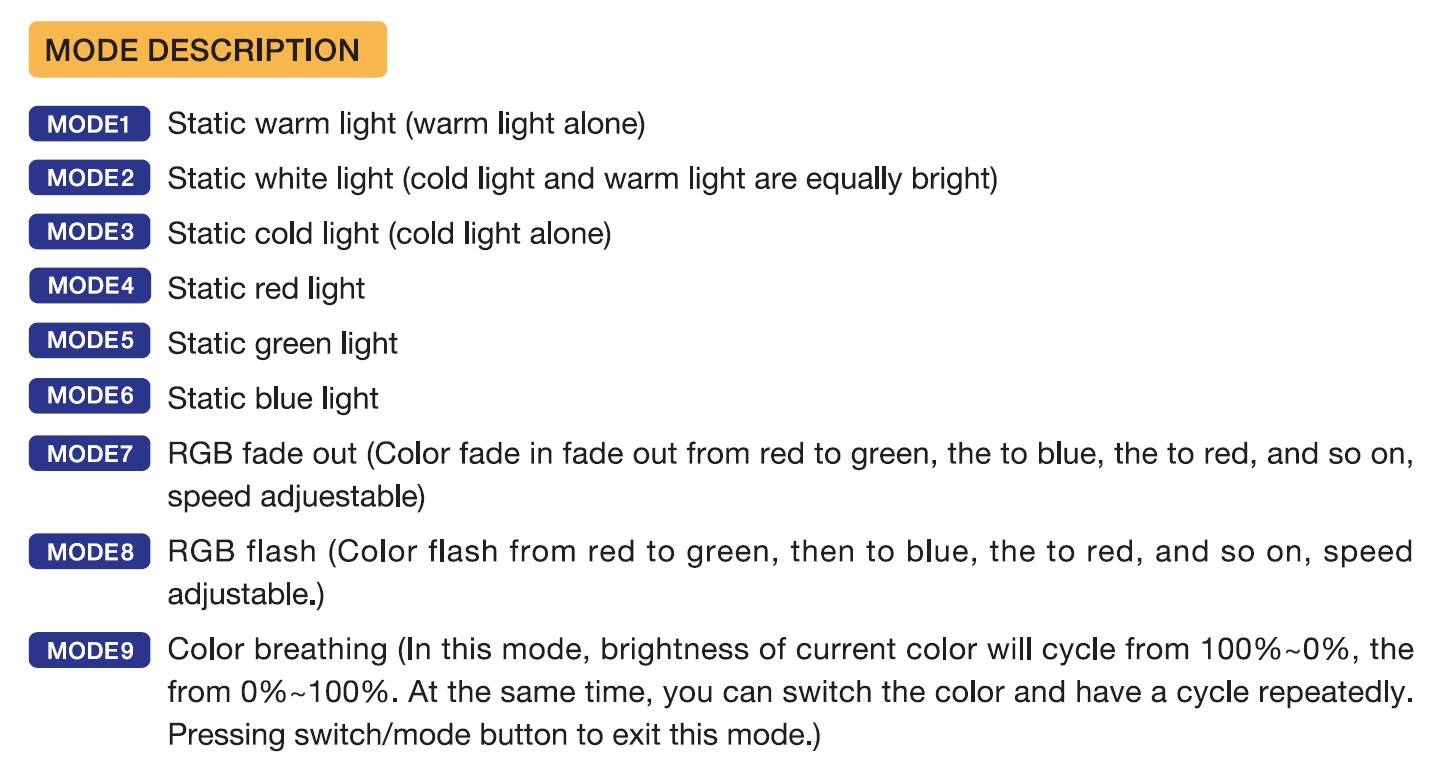

△ Within 3 seconds after the light powered on, click the"on"button in the group to perform code matching. The LED light turns green means successful code matching. △ Long press the"off"button of the remote control to enter the night mode, and the brightness and color can still be adjusted at the same time. △ Long press the small moon key to enter the 60 seconds delay to off status. △ Click the"M"key to enter automatic lighting changing mode.

How to unpair the 2.4G HZ RF Remote Controlling

△ Within 4 seconds of powering on the light, press the"main on"button 5 times, and the light flashes indicating that the light is unpaired from all the remote control which been paired, and will not be controlled by any remote control.

△ Within 4 seconds of powering on the light, press the paired"group on"button 5 times, and the light flashes indicating that the light is unpaired from the remote control, and will not be controlled by the remote control paired in the before. The other paired remote control can still control the controller.
zigbee led strip controller kit

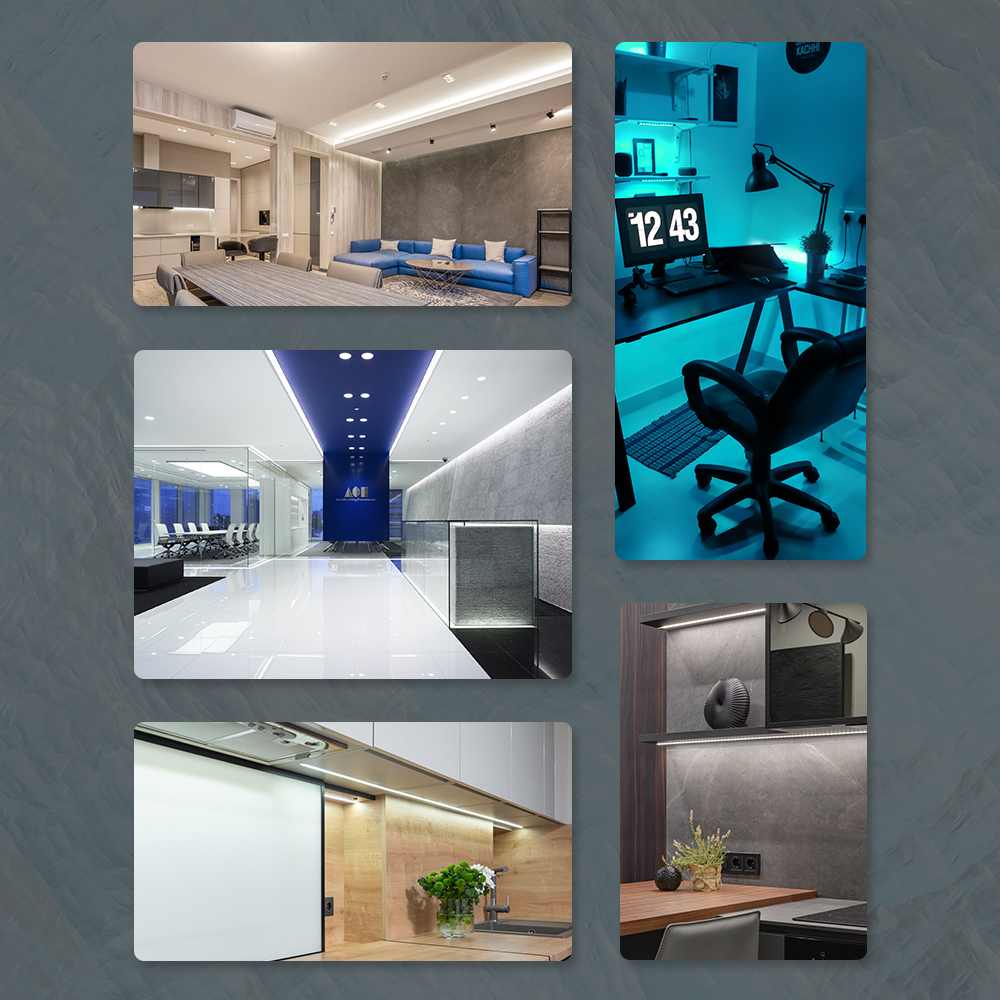

More Features & Lighting Application
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
Gledopto ZigBee LED Strip Rope String Light Controller Packing Details
zigbee led strip controller kit
Related Products

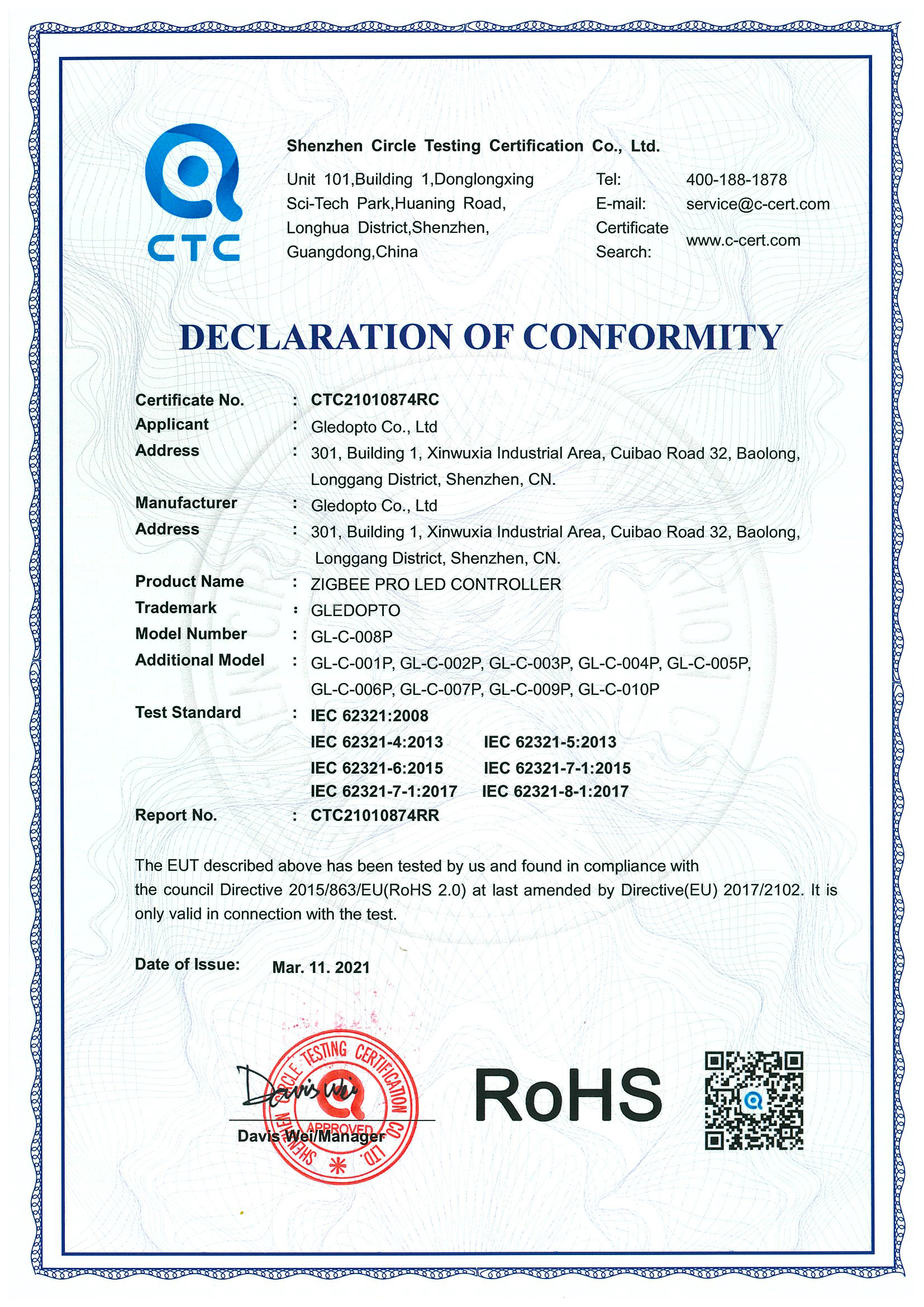

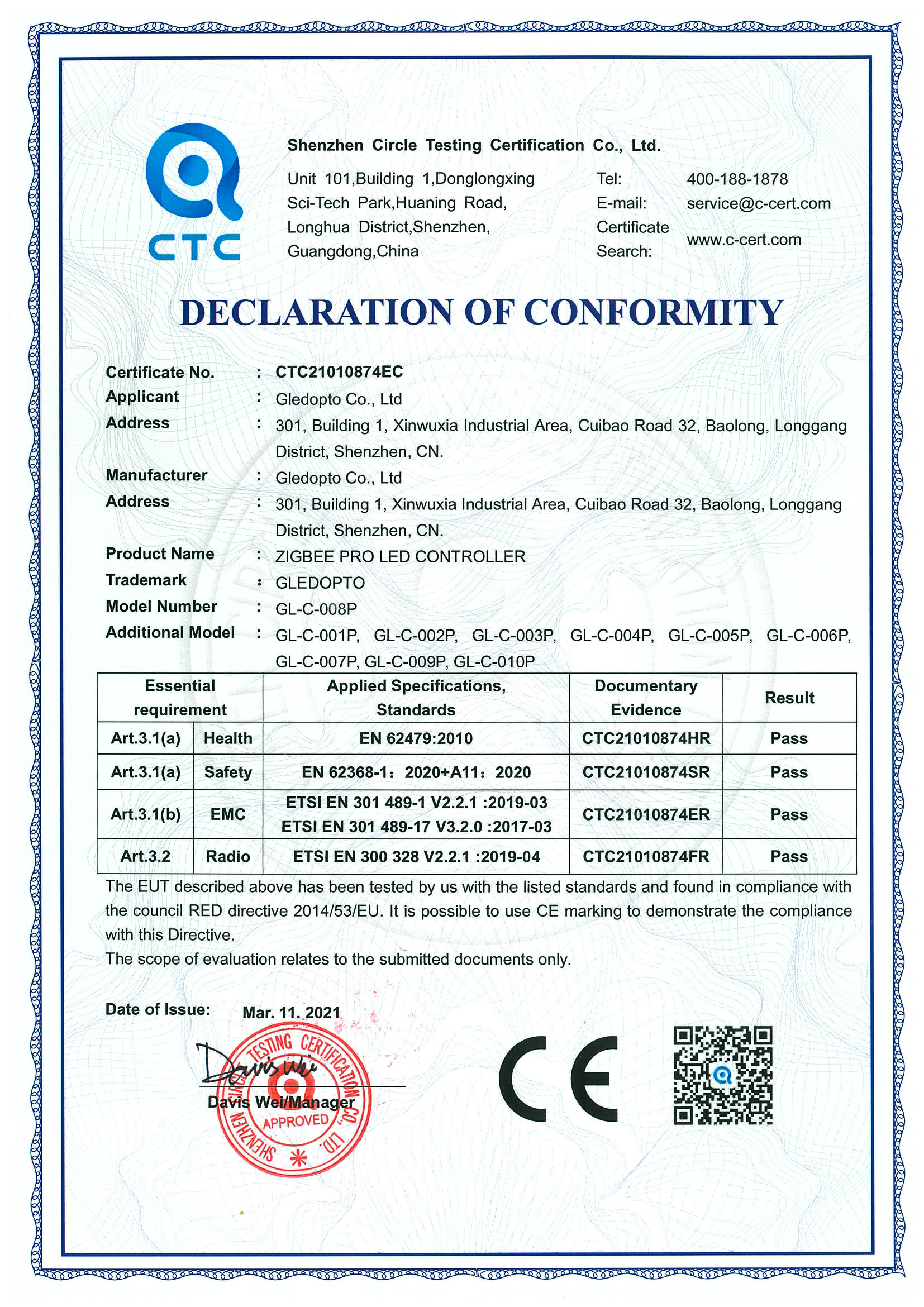

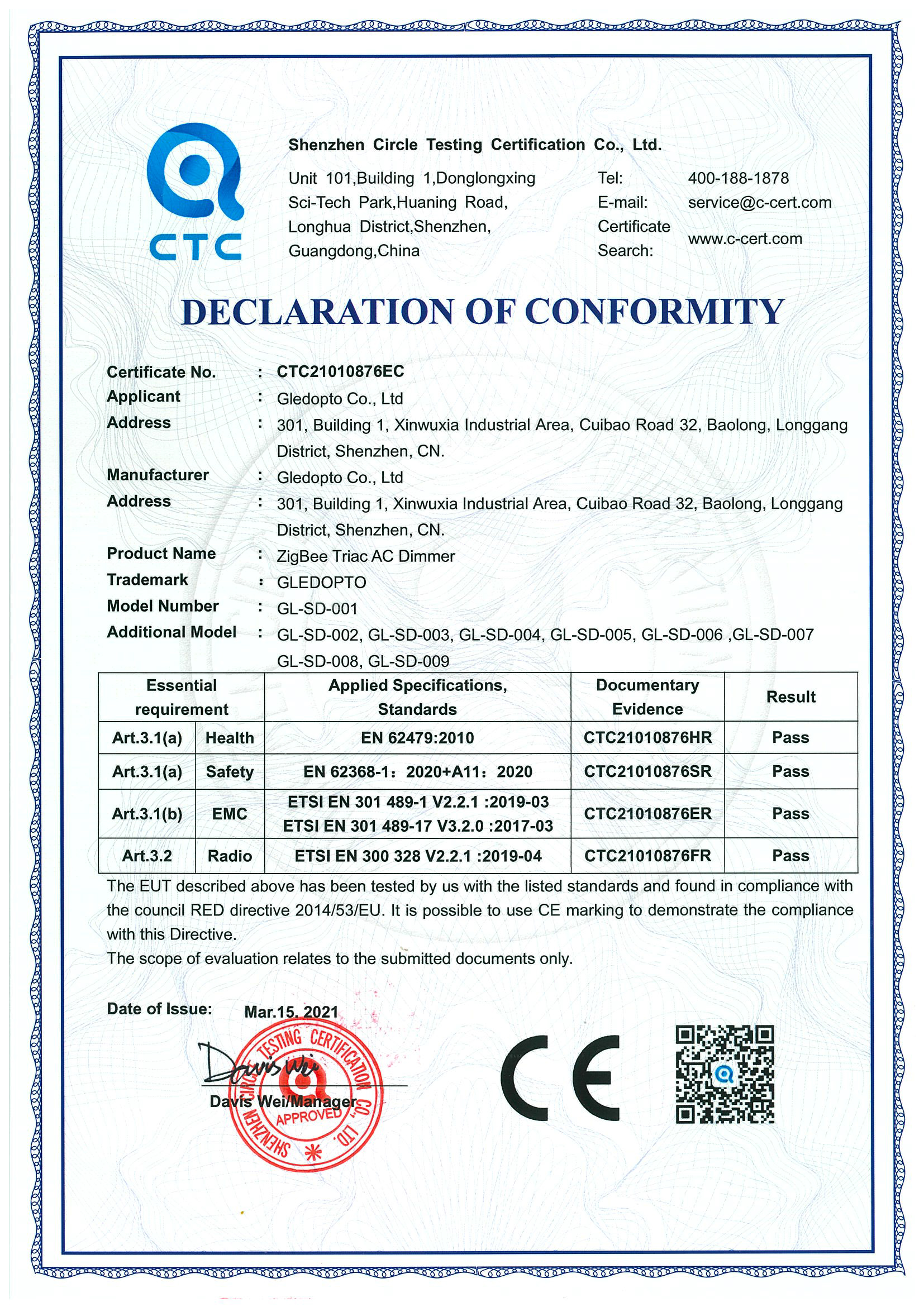

Certifications
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit
zigbee led strip controller kit

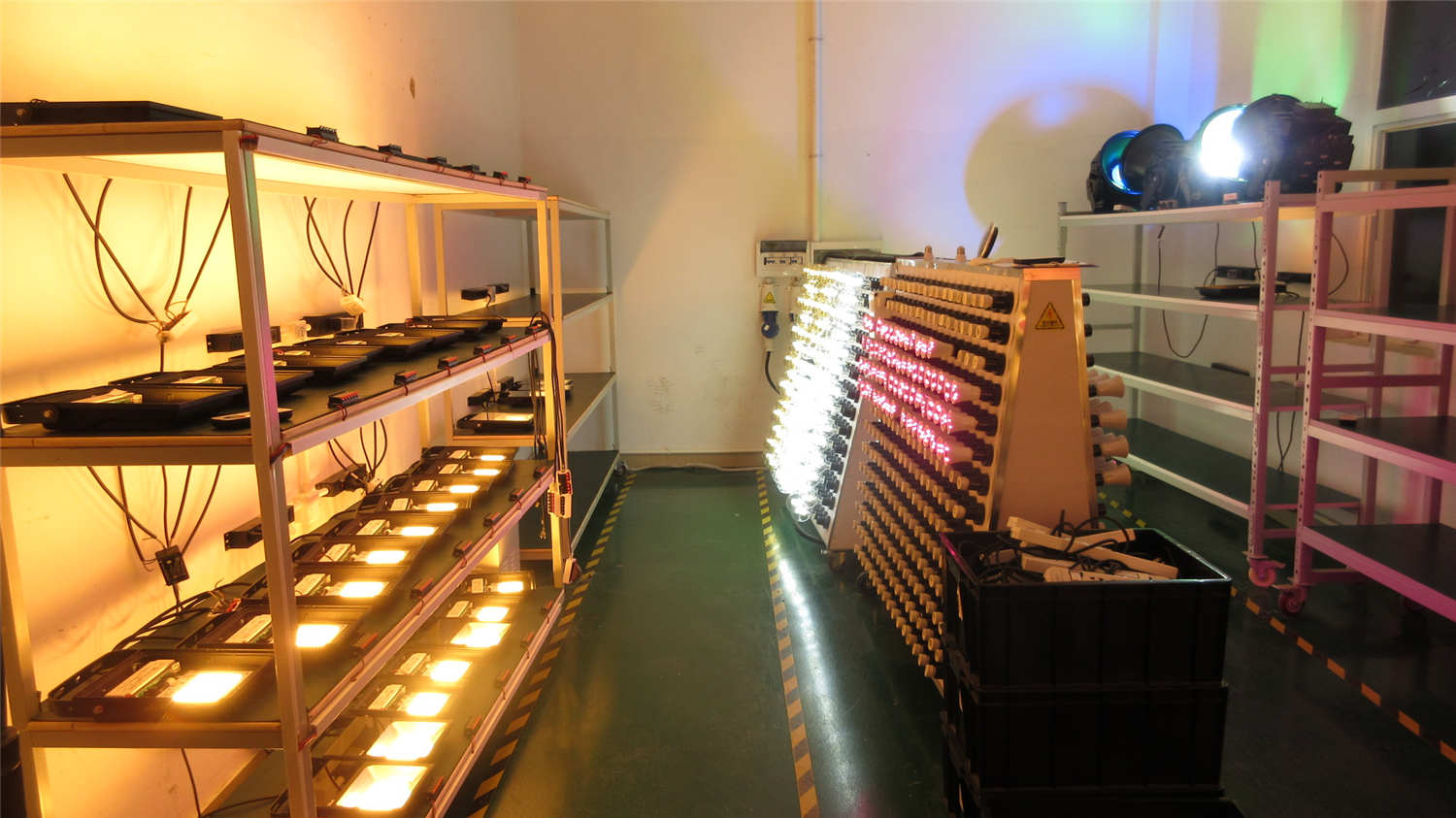

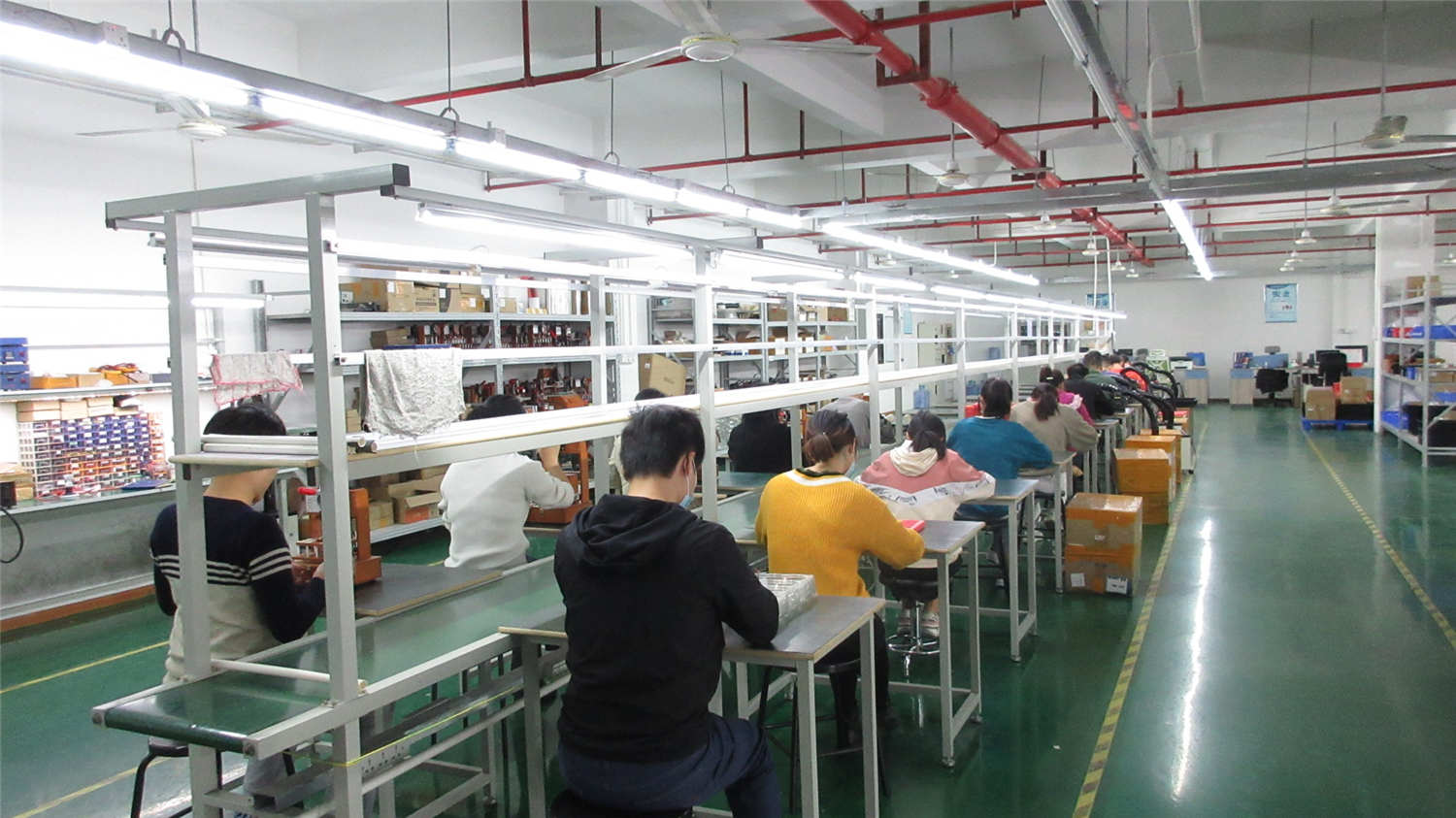

Company Information
