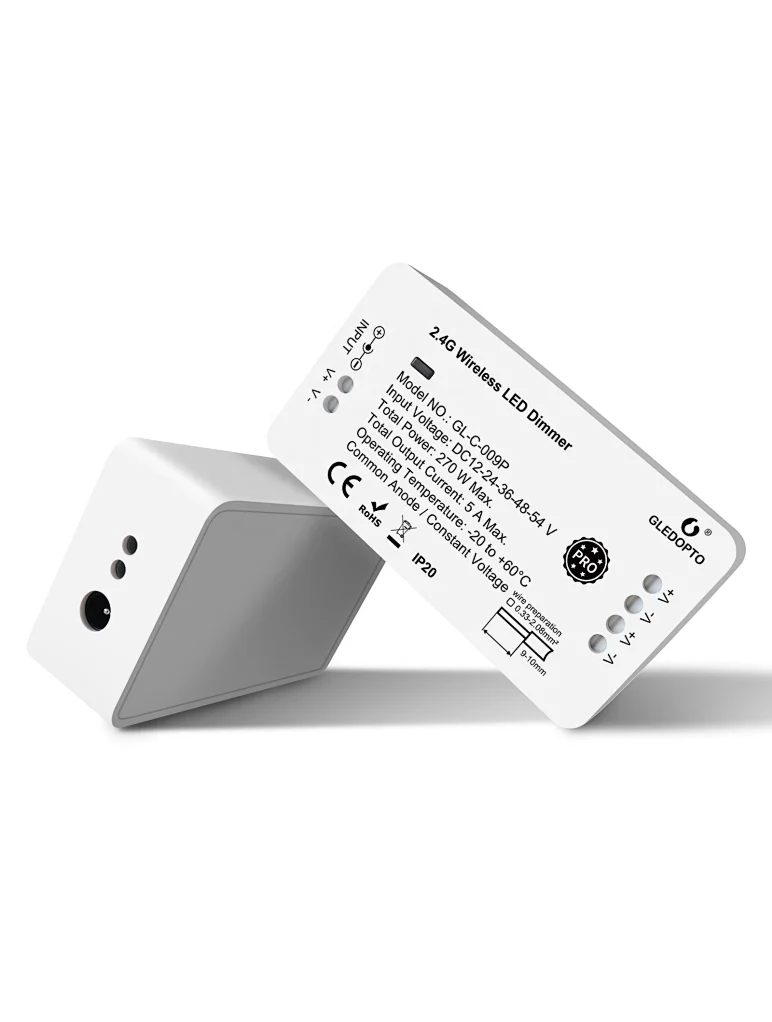

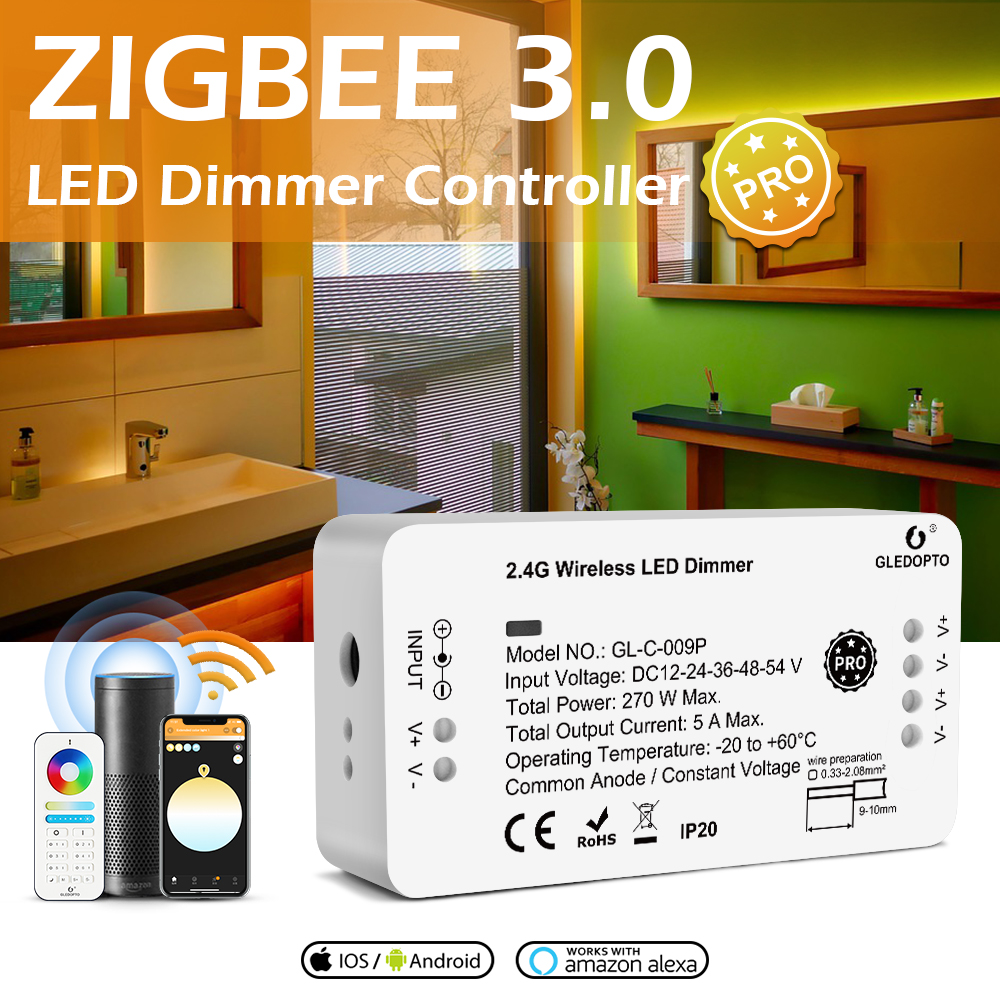

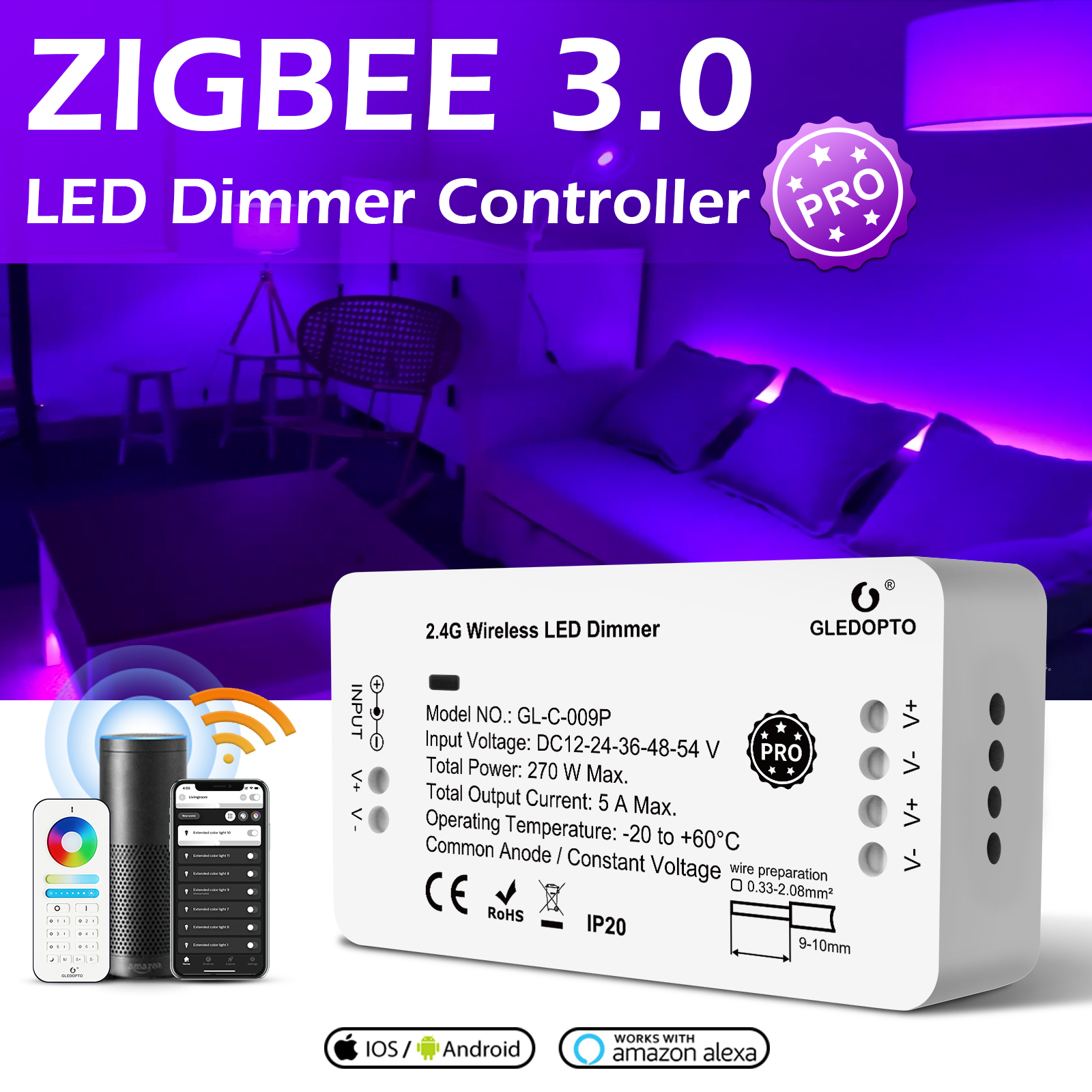

GL-C-009P Gledopto LED Strip Light Dimmer ZigBee Remote Control Alexa Light Dimmers 12V 24V LED Strips ZigBee Dimmer RF Remote

Zigbee led dimmer
GL-C-009P Gledopto LED Strip Light Dimmer ZigBee Remote Control Alexa Light Dimmers 12V 24V LED Strips ZigBee Dimmer RF Remote

$13.49 - $28.99 / piece

1 piece
  • Warranty(Year):2-Year
  • Lighting solutions service:Smart Lighting Control Solution
  • Luminous Efficacy(lm/w):0
  • Product Weight(kg):0.12
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control
  • Max. Load Power:270W
  • Connection Mode:Wireless Connection
  • Input Voltage:12-54V DC
  • Max Current per Channel:5A
  • Output Channel:2 Channels
  • Controlling Protocol:ZigBee 3.0 + 2.4G RF
  • Remote Control Distance:≥30meter
  • Working Temperature:-20-60℃
  • Shell Material:ABS Material
  • Size:L89*W48*H23.5mm
  • Warranty:2Year
  • Output Way:2*V+ & 2*V-

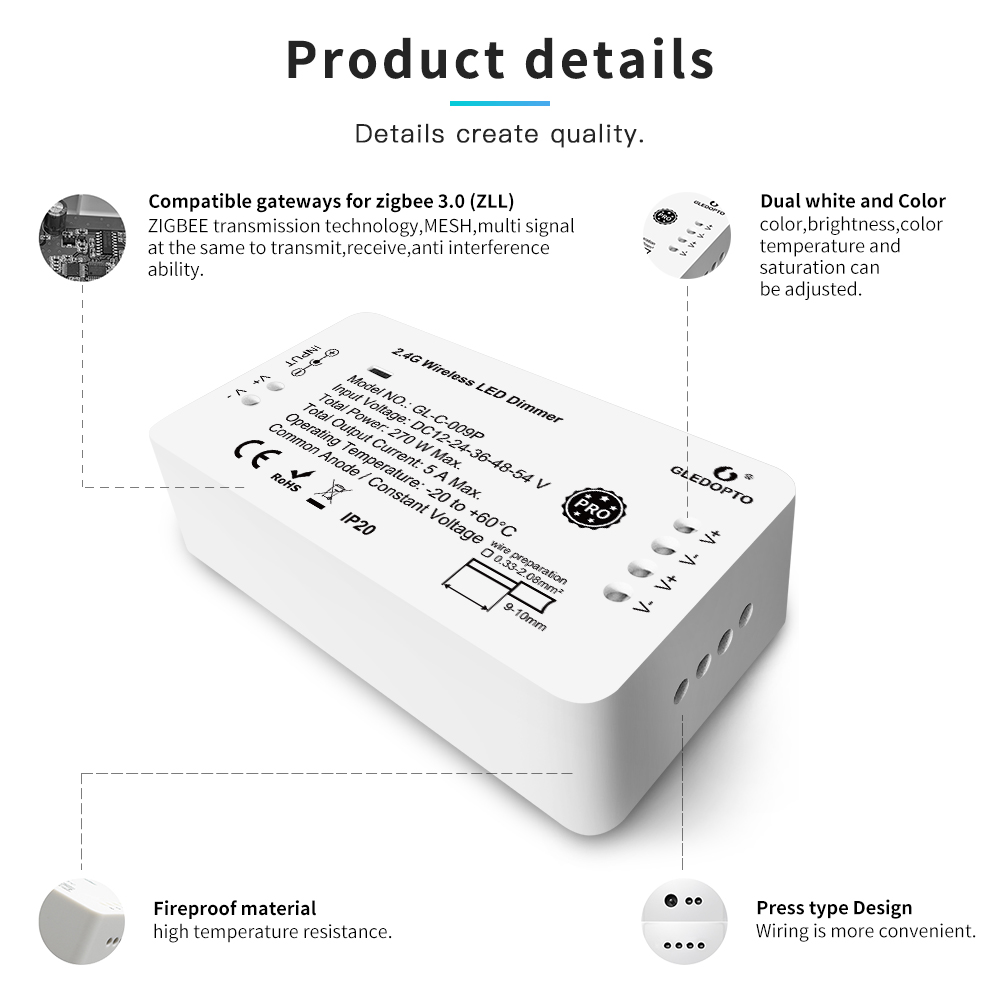

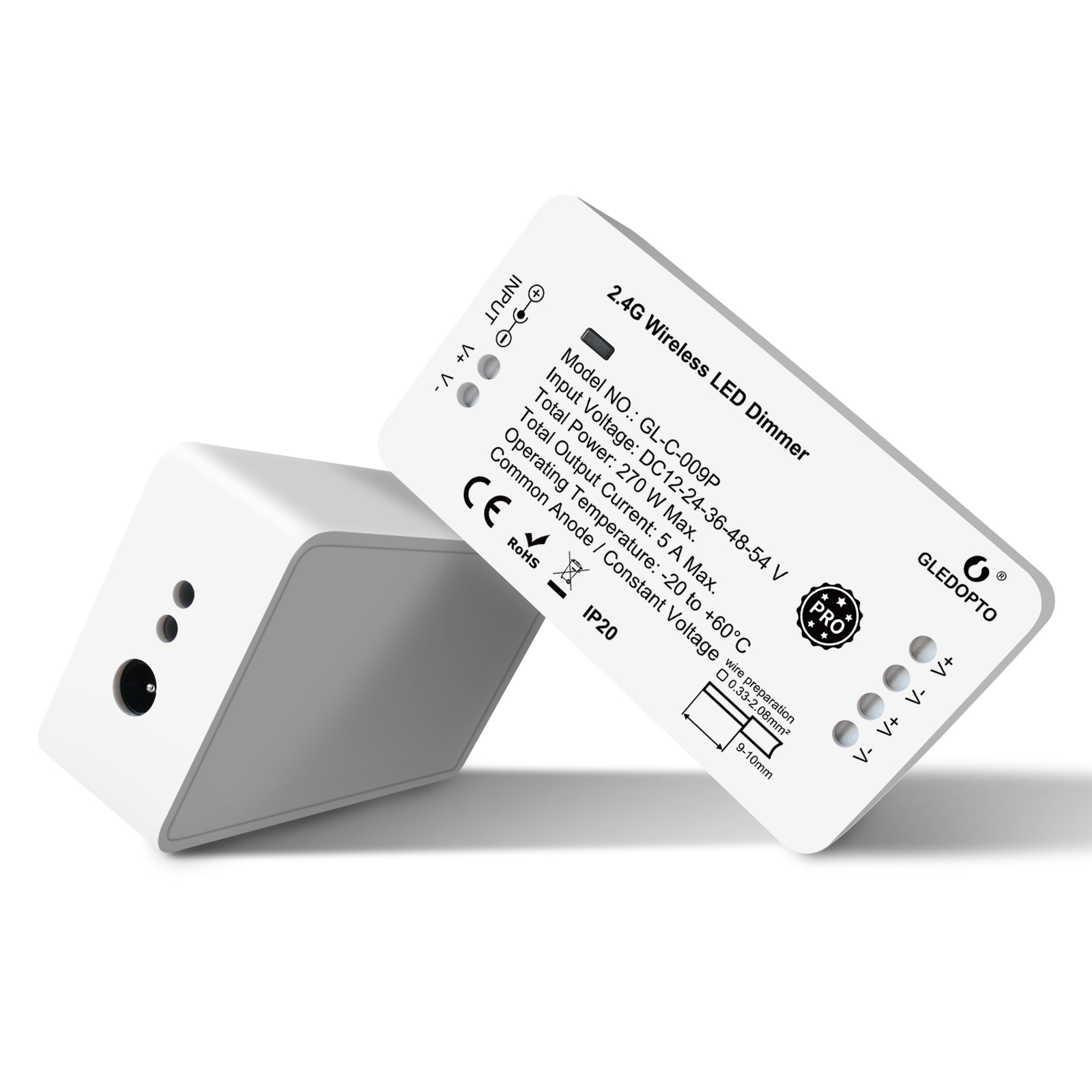

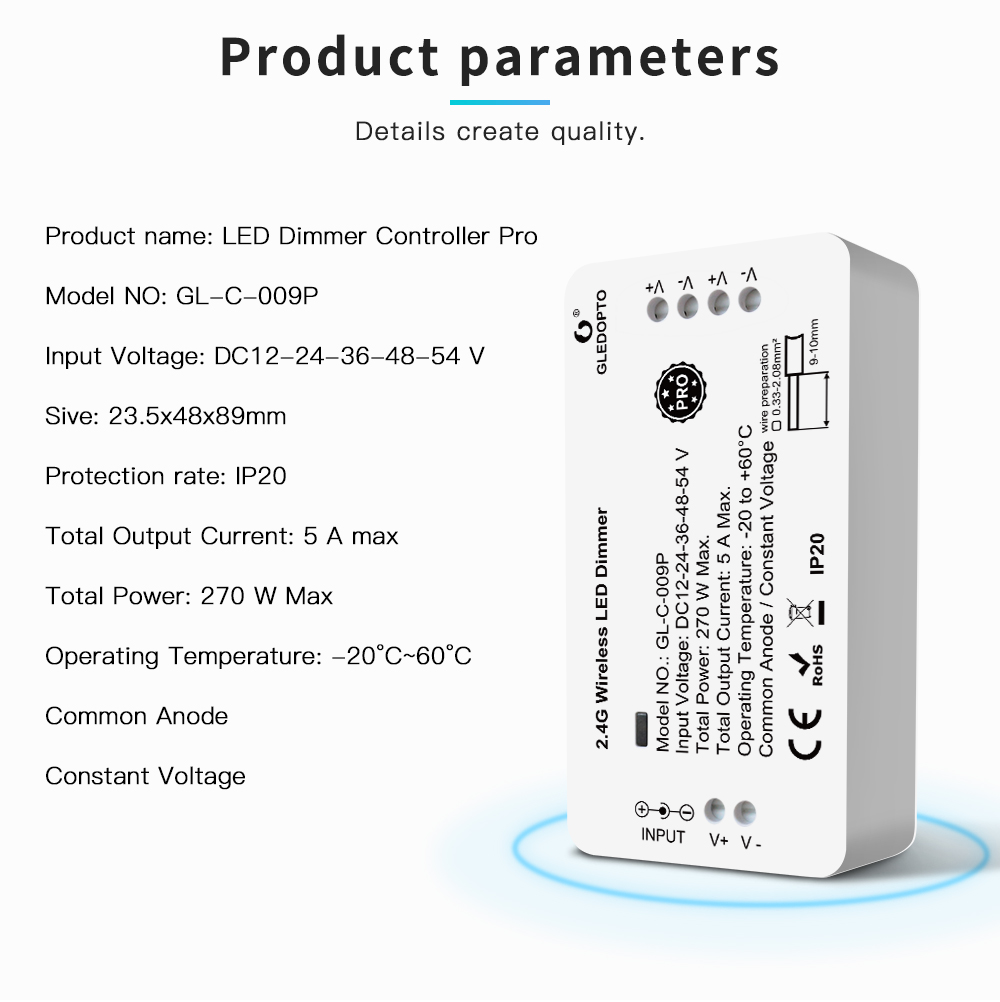

Product Paramenters
Zigbee led dimmer
Main Specs of ZigBee 3.0 LED Strip Controller Pro
Input Volt.
12V ~54V DC
Output Power
Total 270W max.
Common Anode
Control Tech.
ZigBee 3.0 + 2.4G RF
Lighting Color
Single Color
Remote Distance
Shelf Material
Working Temp.
Product Description
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer

Lighting Features of White And Color Ambiance Smart Control LED Controller

Gledopto ZigBee RGBW, RGB+CCT, CCT LED Strip Controllers and Single Color LED Dimmer Pro series are the newly developed LED controllers available to be controlled by 6-zone or 8-zone remote control and also controllable via ZigBee 3.0 hubs.

It is made of delicate & fashionable ABS housing body, based on standard ZigBee protocol which compatible to ZigBee gateways such as Philips Hue, Amazon Echo Plus, Samsung Smartthings, ConBee/RaspBee II, Hubitat, Homee, etc. for common LED lighting with RGB color change, RGB + WW, RGB + CCT, CCT and single color LED lighting with 12V or 24V DC voltage.

This latest Pro serie controllers or LED lamps are designed for purpose of considering the users who are not familiar with ZigBee controlling, so alternatively it is can be controlled by the remote directly and much easy to manage the multiple lighting control functions.

ZigBee 3.0 Lighting Control Features

△ Creat Rooms, divide your lamps into one or several rooms, to control lamps in each room together or seperately

△ Set the Scene, Scenes that automatically adjust to the lights in your room according to environment

△ Home or away, set time to turn on your lights automatically even you are away from home, as a reminder there's people at home

△ Wake up, set time to turn on light gently, to wake you up in the morning

△ Sync Effect with Screenbloom, sync your lights with movies, music and games, to enjoy the lighting effect which synchronizes with the plot of the picture changes

△ Powerful Mesh feature which enables you to make long distance remote controlling, best for large area lighting project

△ Switch on/off the controllers or lights at the same time without any delay

Extremely low standby power consumption: GU10, MR16, candle light≤0.3W; controllers: 10mA

△ Smoothly dimming & tunable feature, soft starting.

Zigbee led dimmer
Zigbee led dimmer

More Smart Home Controlling Features

>Dimmable Brightness
The brightness is dimmable from 1% to 100% either via App or Voice command, or to turn off the light directly by App or Voice, make wireless controlling easily at anytime or places (of course network needed).
>Group Control
You can create rooms on the app to manage two or more lights. Synchronous switch, color changes, the scene mode selection and timer will be realized through smart lamp group.

>Timer Setting
You do not have to remember to turn off the bulb before you go to sleep. The sleep timer will automatically turn off the light after the preset time has elapsed per your settings. You also can set a wake-up time with your favorite color.
>Voice Control & Remote Control while away
The smart bulbs are compatible with Alexa. It can help you save time and it is convenient to your life through voice control. The light works with your existing Wi-Fi or cellphone traffic. You can control your bulb no matter where you are. You can turn it on or turn it off without leaving your bed.

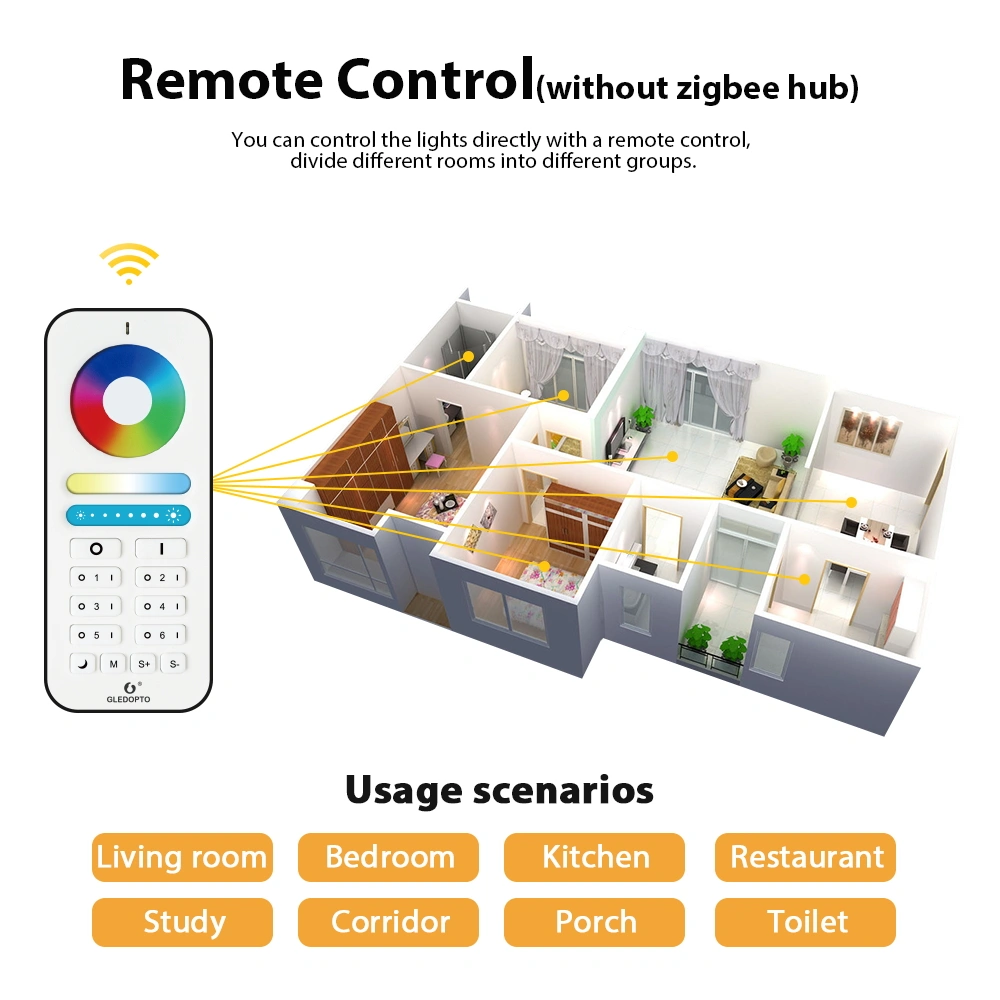

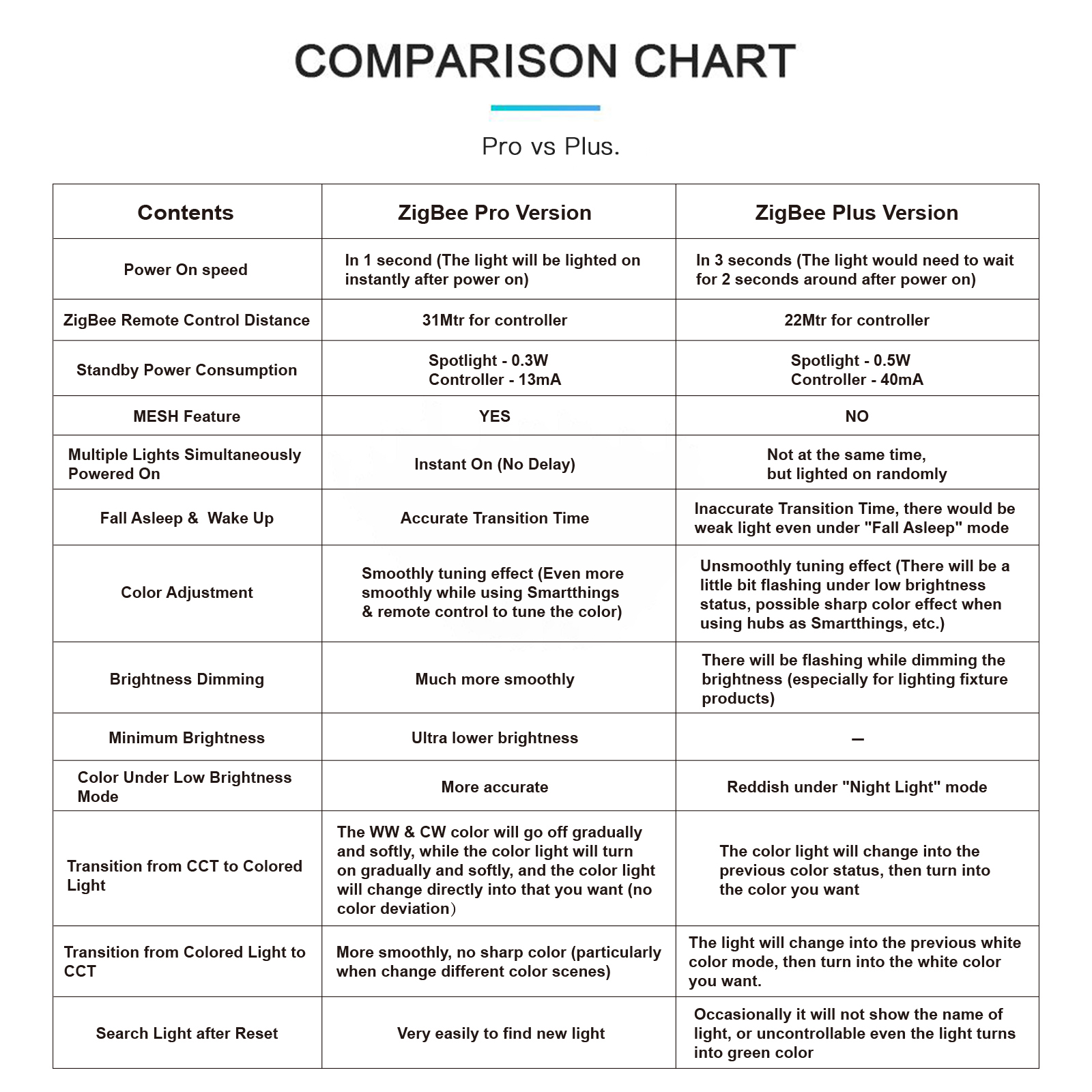

>The Plus/Pro series is ZigBee + Radio Frequency controlling design. The LED strip controllers and indoor/outdoor lamps will work with both the RF Remote and ZigBee.
>These are great if you want to control your lights with just the remote or with your ZigBee

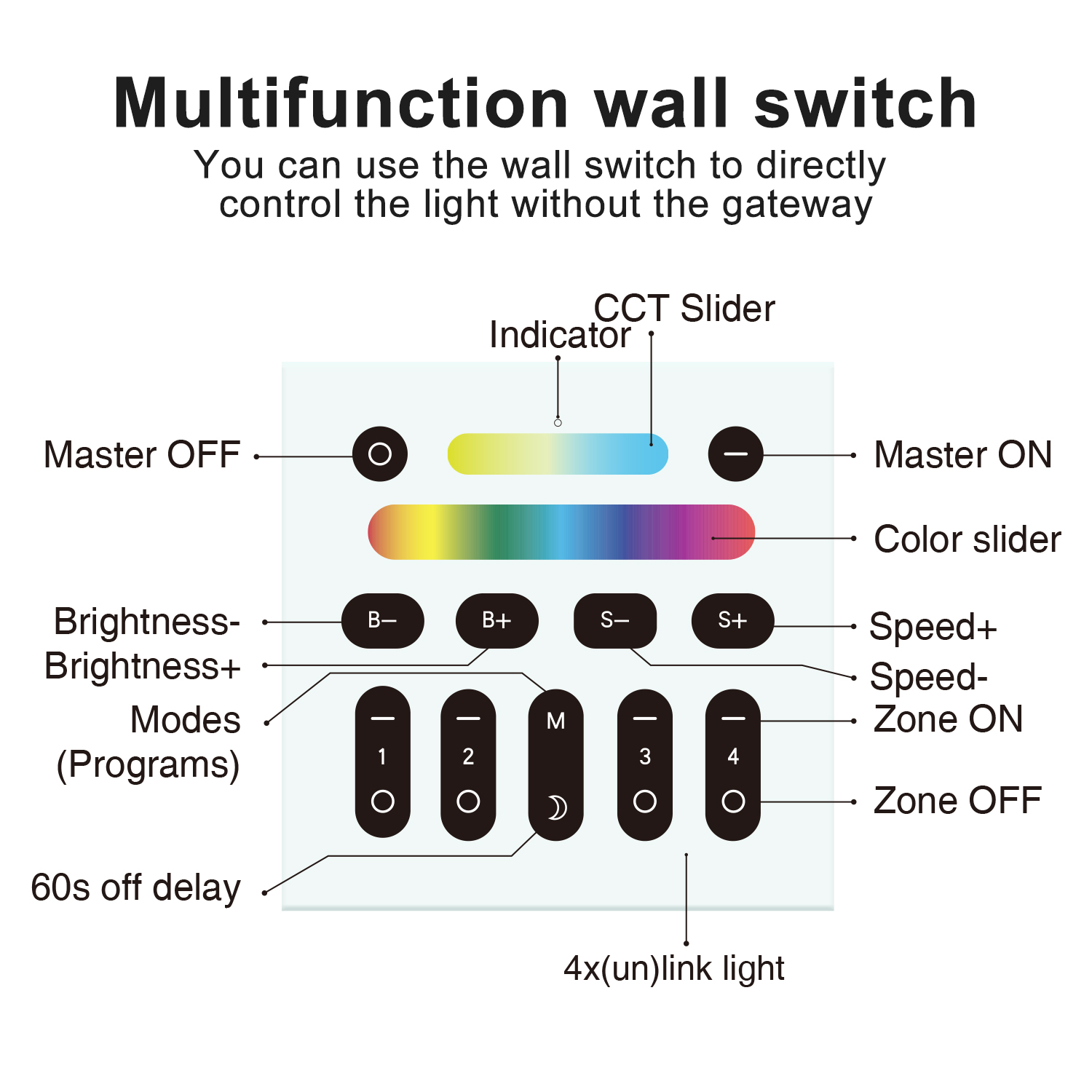

hub. Sometimes you don't want to pull out the phone to open an App just to turn on the lights, the remote or the wall mounted controller can do it.
>Or if you are putting these lights somewhere outside of the WiFi coverage, e.g. a camper, backyard, garage workshop, etc., you can use the RF Remote Controller directly, no need to find to link to a ZigBee bridge.
>Auto sync & transfer.

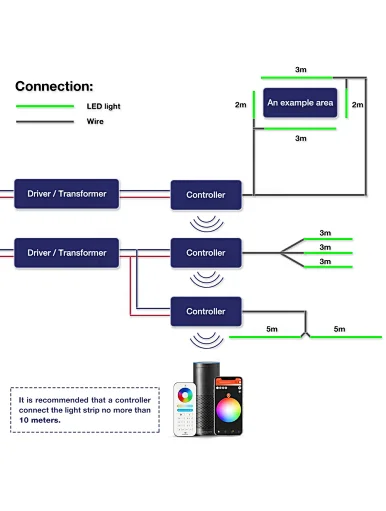

This is the best feature for 2.4GHZ RF Remote Controlling design, it's most suitable for long distance and large area lighting application. Your RGBW or RGB+CCT color LED lights can receive the controlling signal sent from the handheld or wall mounted remote control, as long as the distance between two lamps is within 15mtr to 20mtr, the first lamp can send the signal automatically to the second lamp, and then to third lamp, and so on, until all lamps totally synced and changing the lighting
color or modes all the same at the same time.

Zigbee led dimmer
2.4G RF & Zigbee 3.0 Hub Control

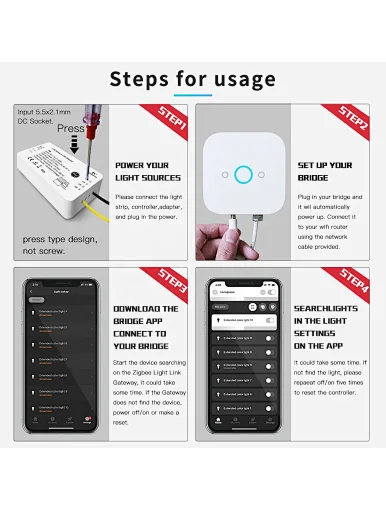

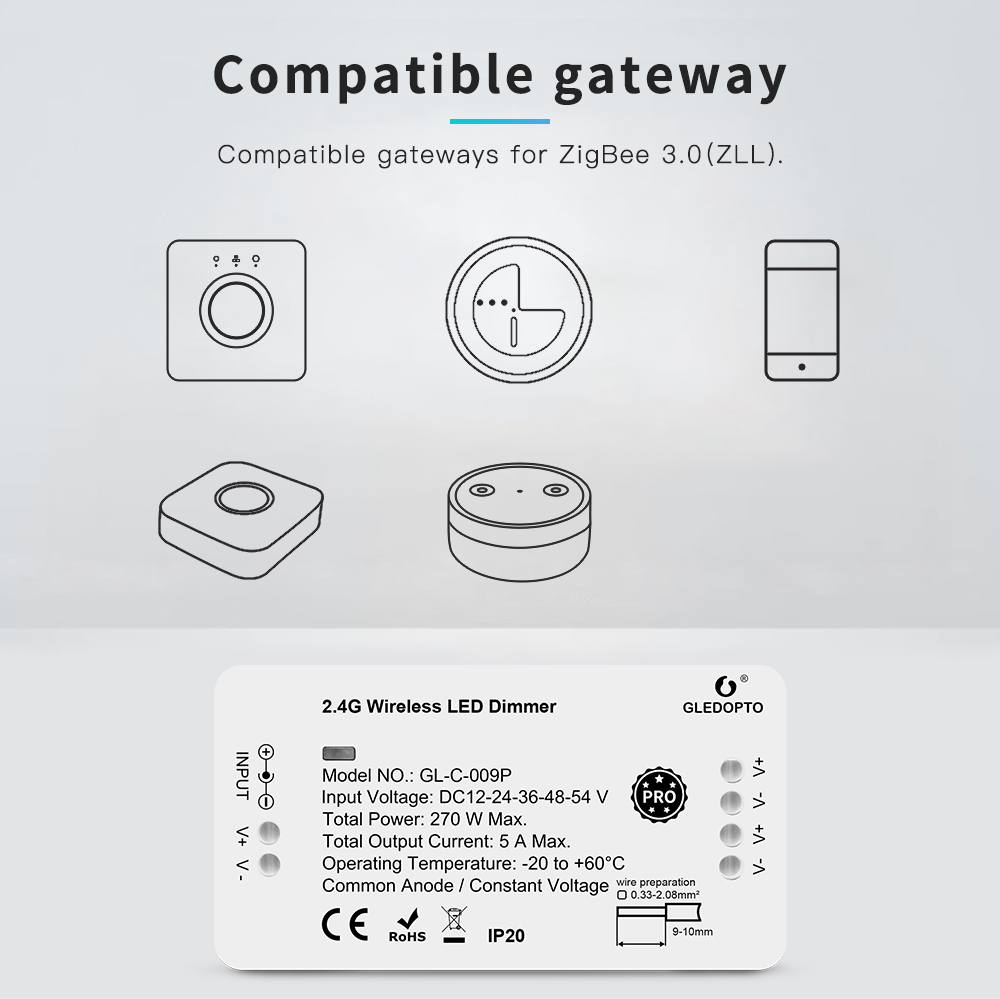

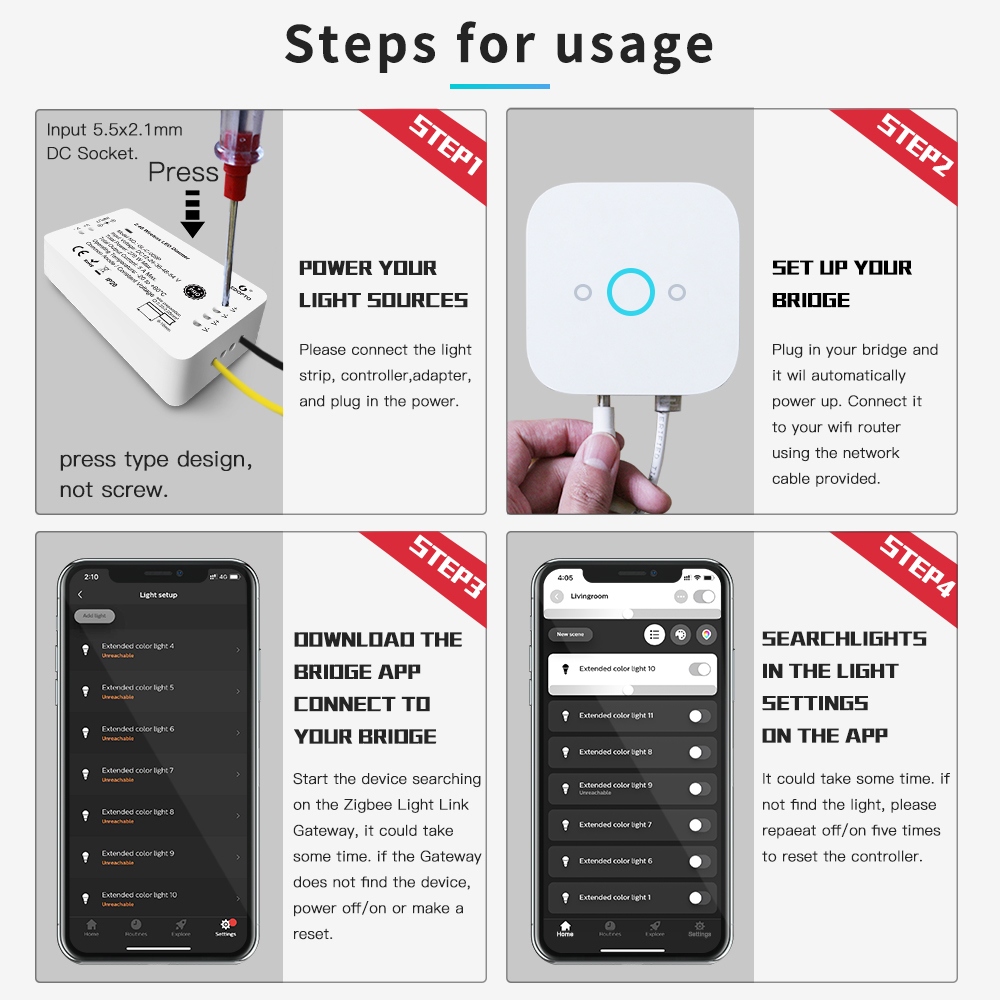

Quick Start to Connect ZigBee LED Controller to ZigBee 3.0 or ZigBee Light Link Bridge
Zigbee led dimmer


1.Turn off the Power.
2.Plug in the bulb.
3.Now you can connect it with the gateway.
Connection with Gateway:
1.Start the device searching on the ZigBee Light Link Gateway, it could take some time.
If the Gateway does not find the device, switch off/on the gateway and try again or
3.The Gateway found your device and you can assign it to the different rooms/zones/groups.
4.Now you can use the device.
Factory Reset
1.Switch on your device.
2.Now switch off and on within 2 seconds.
3.Repeat off/on four times.
4.Reset is done when the device is switched on in the fifth time and the light stays on after blinking 4 times.
GLEDOPTO® 2.4G RF Remote Control LED Controller Connection
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer

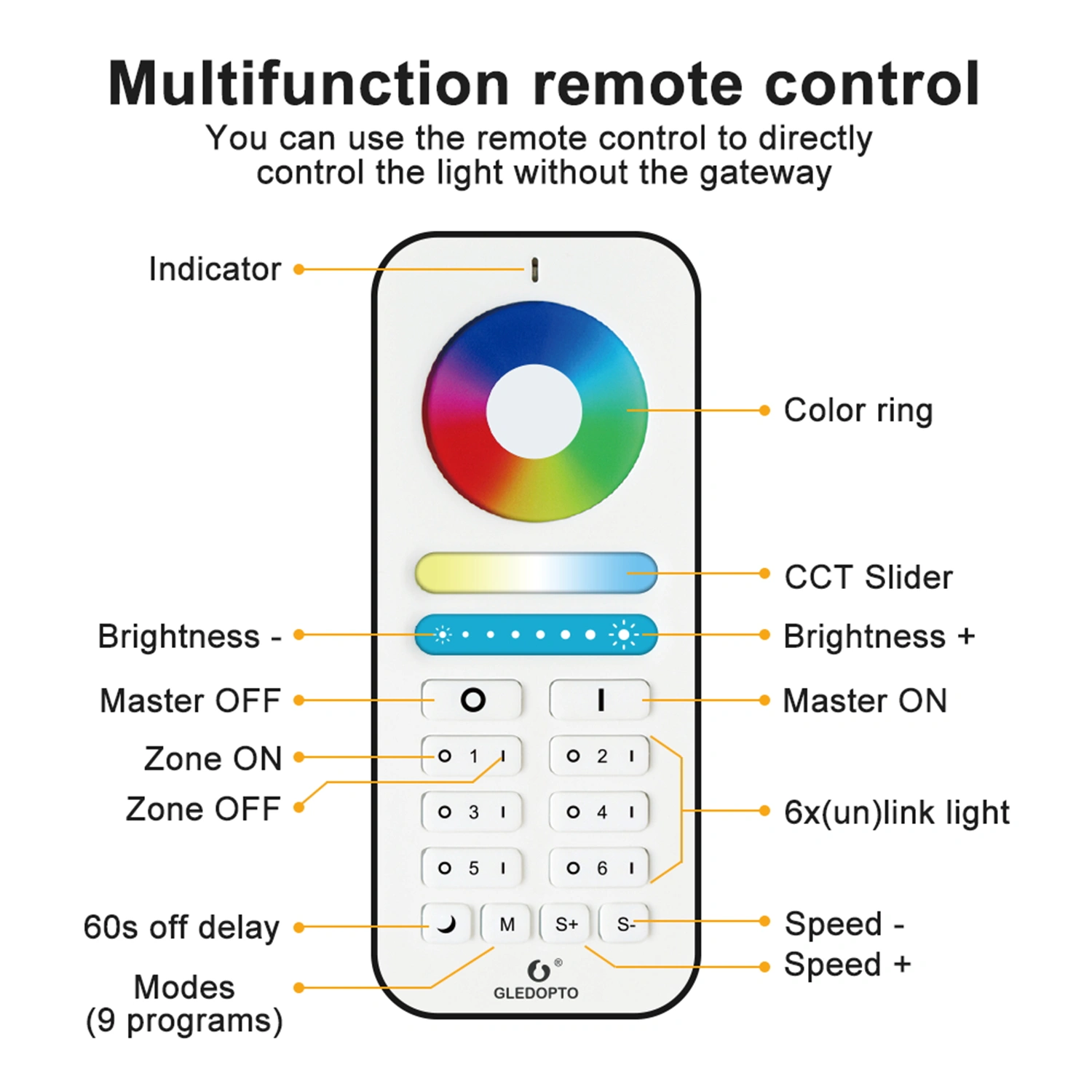

Link & unlink with 2.4GHZ RF Remote Control

> How to Link1. Within 3 seconds after power on, click the"on"button of the group to conduct code matching, and the LED lights turns green, indicating successful code matching.
2. Long press the"off"button of the remote control to enter the night light mode, and the brightness and color can still be adjusted at this time.
3. Long press the small moon key to enter the 60 seconds delay shutdown state.
4. Long press M key to enter automatic mode.
> How to unlink
1. If the LED is still connected to the ZigBee gateway, long press the"on"button on the remote control within 3 seconds after power on or press the button for 5 times continuously, the light will flash for 5 times in the current color.
2. If the LED is not connected to the ZigBee gateway status, lon gpress the"on"button on the remote control within 3 seconds after power on or press the button for 5 times continuously, then the LED light will be fully bright and flashing for 5 times.
Zigbee led dimmer

Different Modes Description

Mode 1: Static warm white color (warm white color only)
Mode 2: Static white color (cold and warm white color are equally bright)
Mode 3: Static cold white color (cold white color only)
Mode 4: Static red color
Mode 5: Static green color
Mode 6: Static blue color
Mode 7: RGB fade in and out (from red --> green --> blue --> red, and so on, speed adjustable)
Mode 8: RGB flashing (from red --> green --> blue --> red, and so on, speed adjustable)
Mode 9: Color breathing (On this mode, the brightness of current color will cycle from 100% to 0%, then from 0% to 100%. At the same time, you can switch the color and have a cycle repeatedly. Pressing switch/mode button to exit this mode)

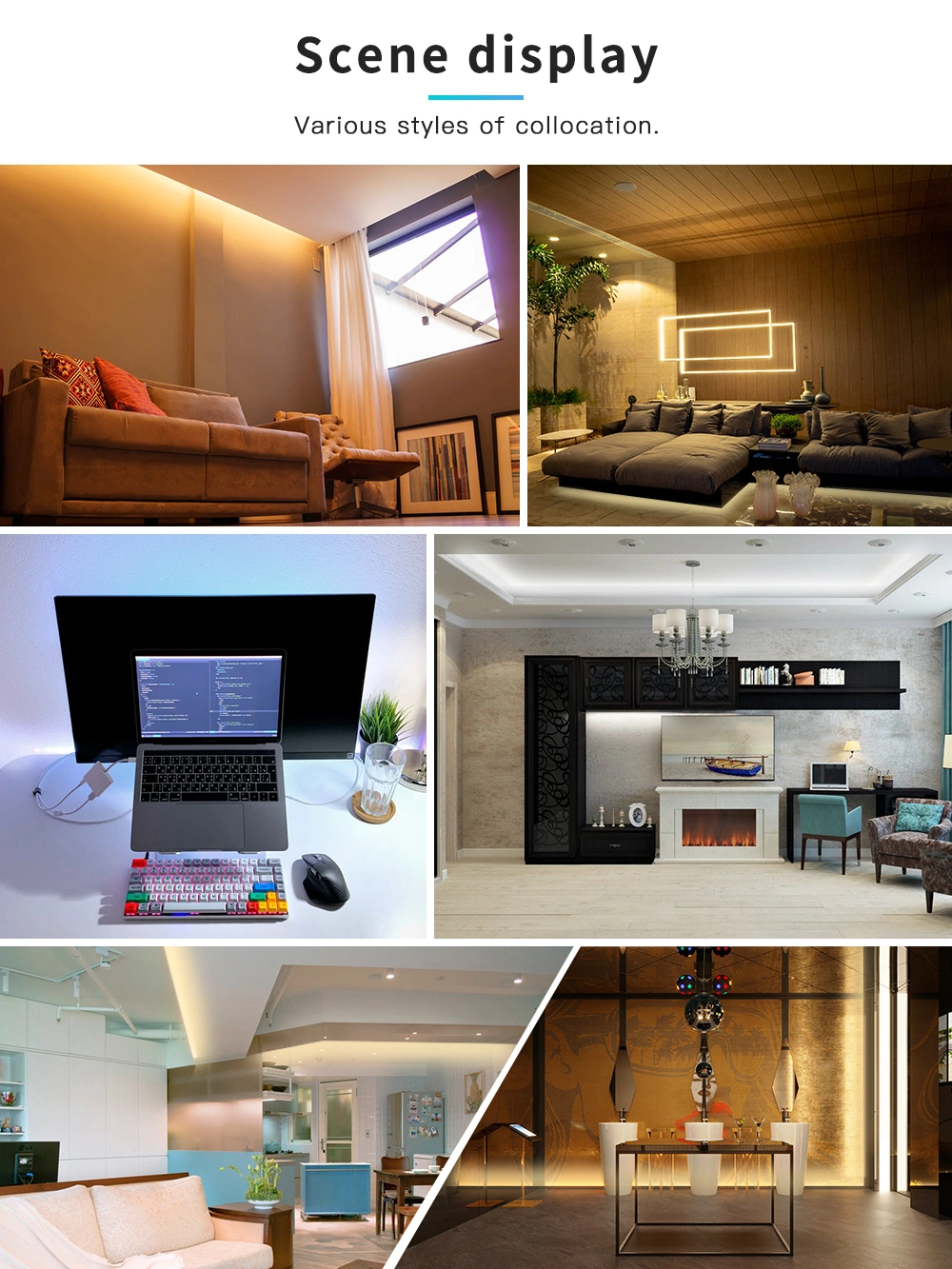

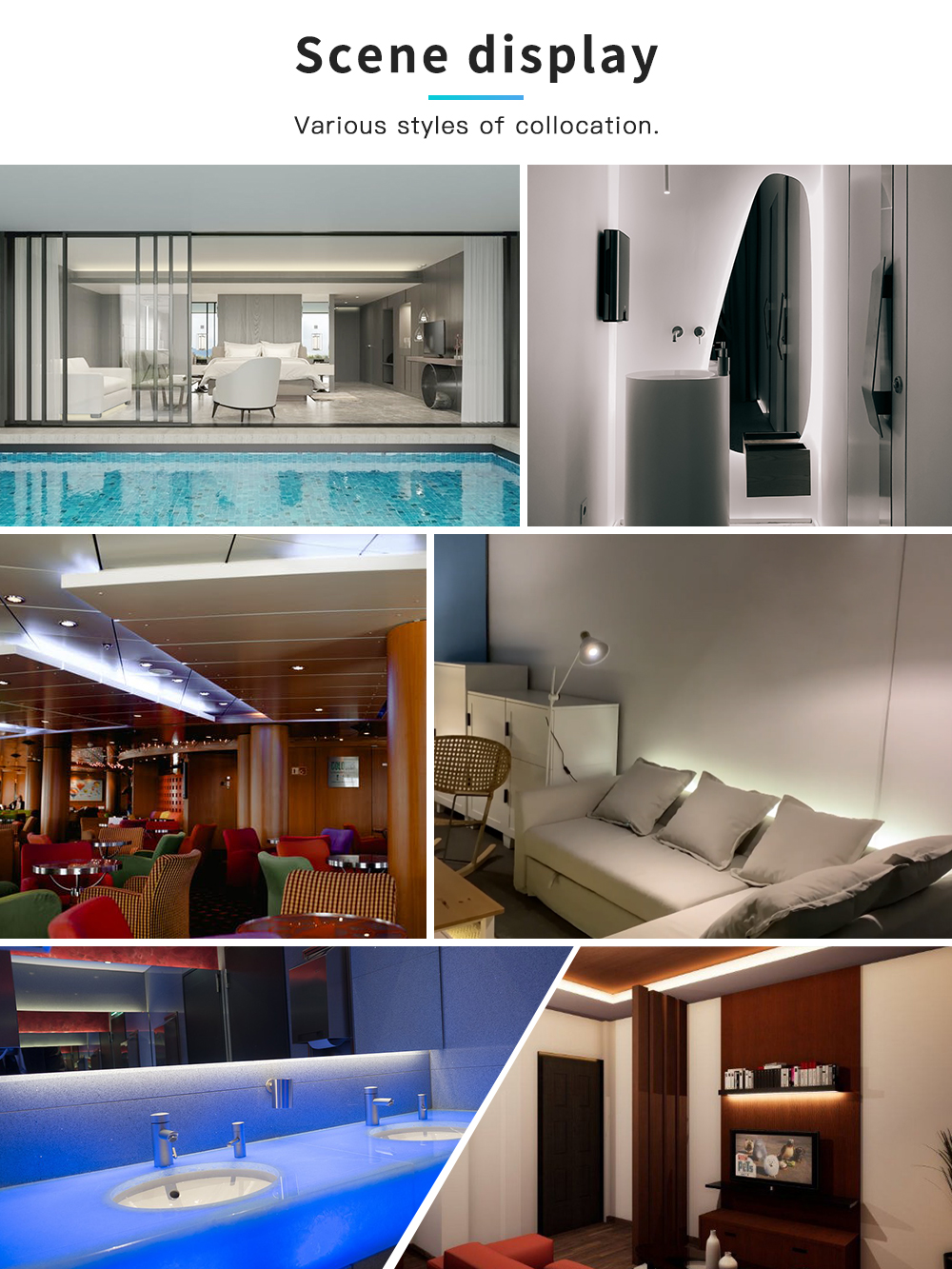

More Features & Lighting Application
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer

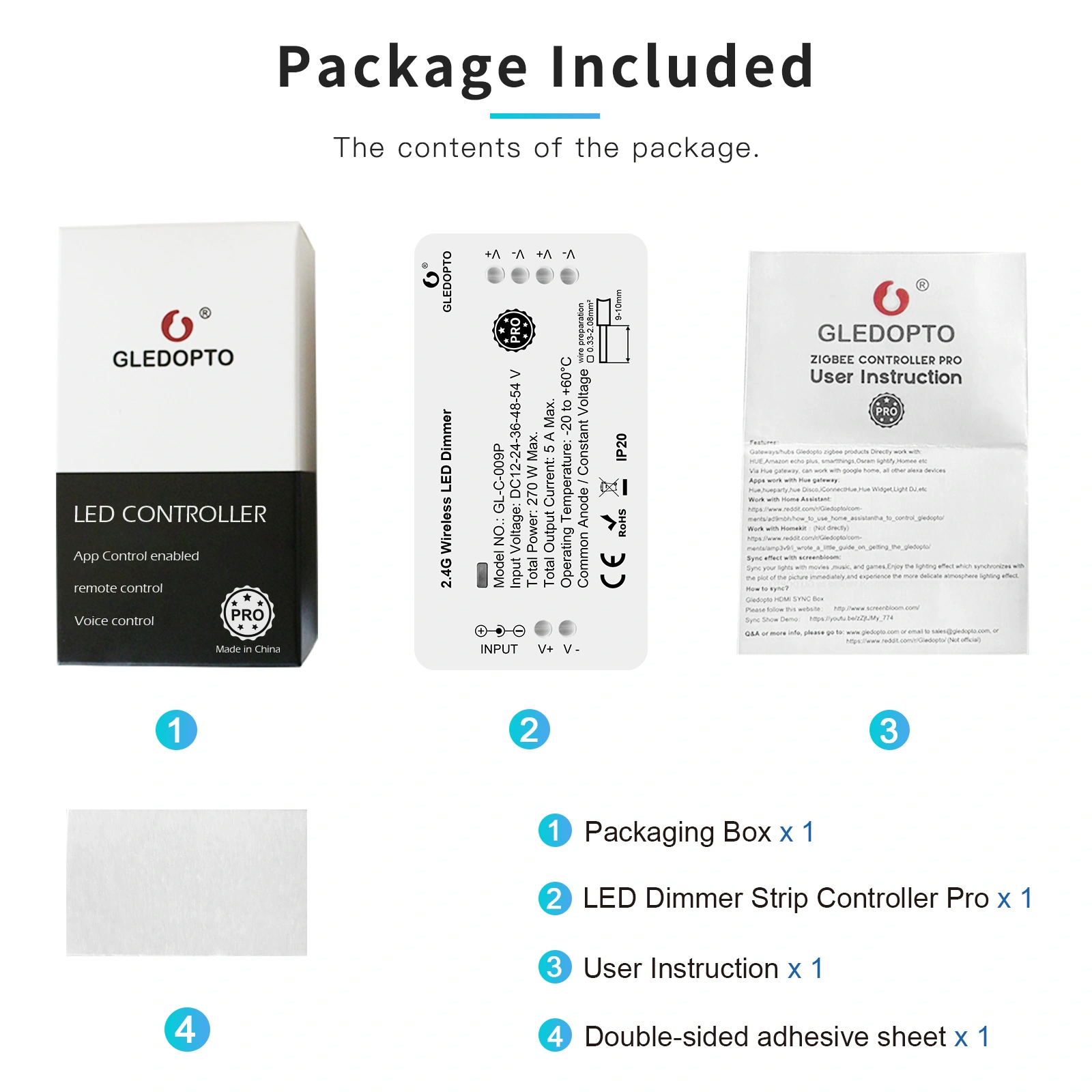

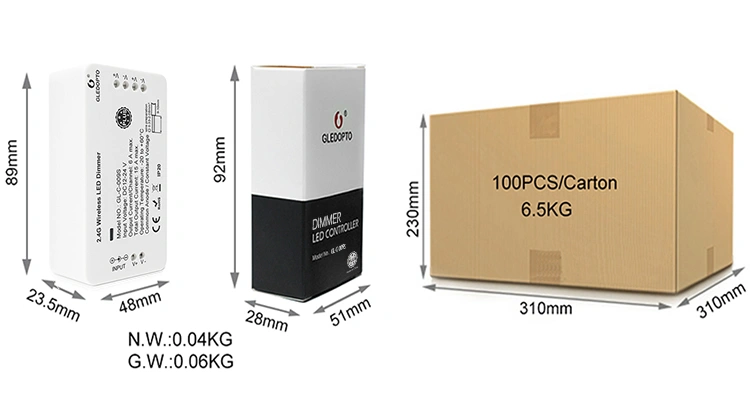

Gledopto ZigBee LED Strip Rope String Light Controller Packing Details
Zigbee led dimmer
Zigbee led dimmer
Related Products
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer
Zigbee led dimmer

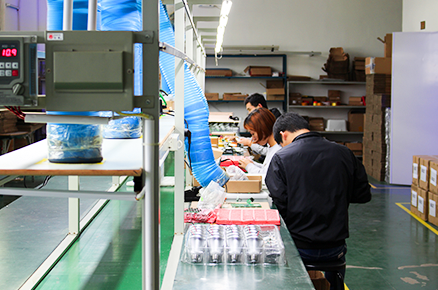

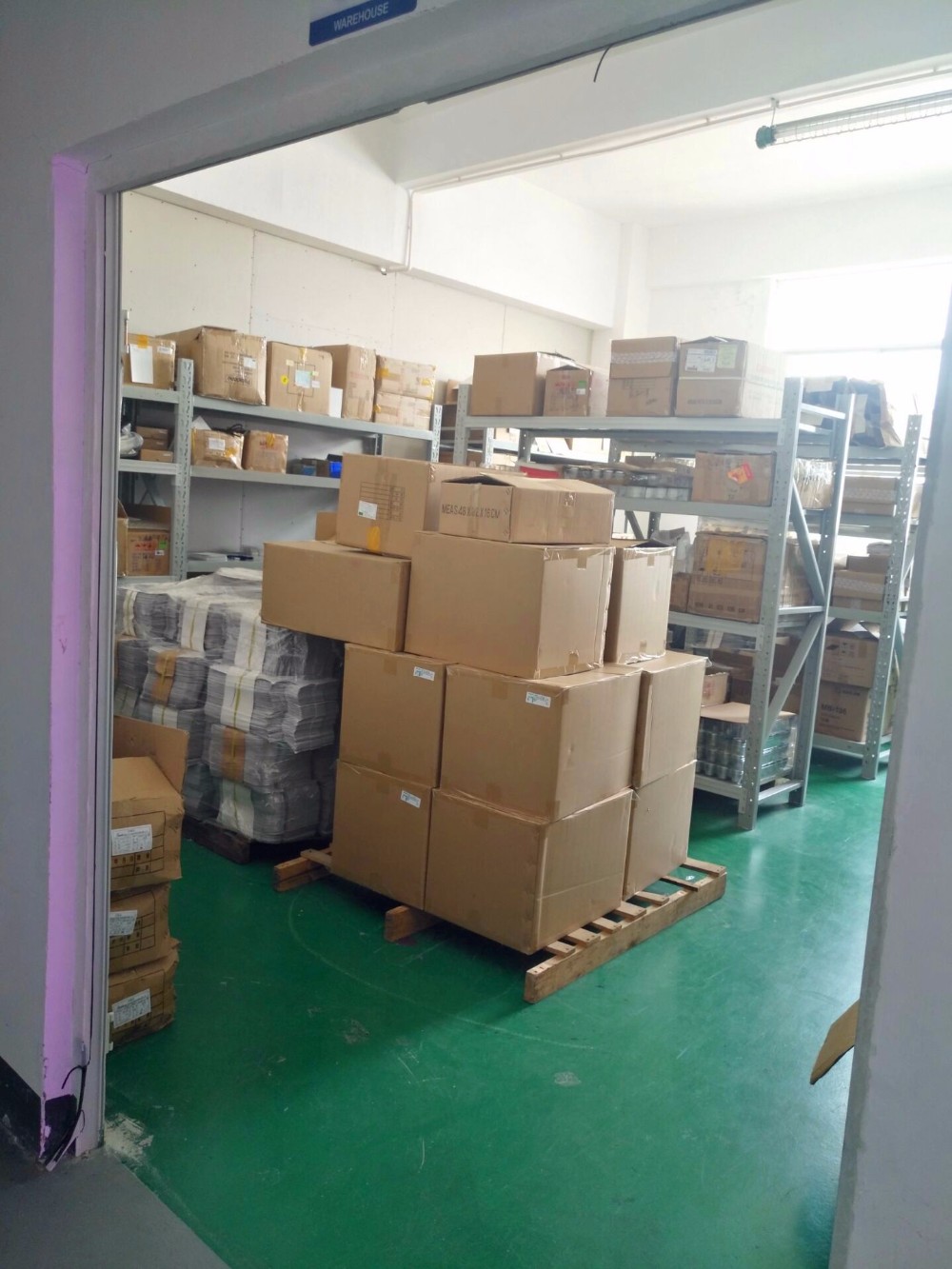

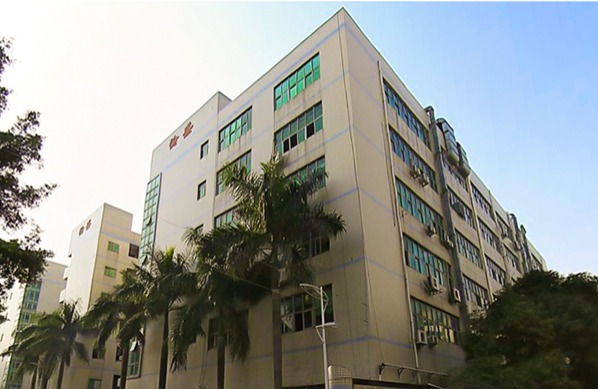

Company Information
