$14.79 - $28.99 / piece
- Warranty(Year):2-Year
- Lighting solutions service:Smart Lighting Control Solution
- Luminous Efficacy(lm/w):0
- Product Weight（kg）:0.12
- Place of Origin:Guangdong, China
- Brand Name:GLEDOPTO
- Type:Remote Control
- Max. Load Power:270W
- Connection Mode:Wireless Connection
- Input Voltage:12-54V DC
- Max Current per Channel:5A
- Output Channel:5 Channel
- Controlling Protocol:ZigBee 3.0
- Remote Control Distance:30meter
- Working Temperature:-20-60℃
- Shell Material:ABS Material
- Size:L89*W48*H23.5mm
- Warranty:2Year
- Output Way:Common Anode & Constant Voltage

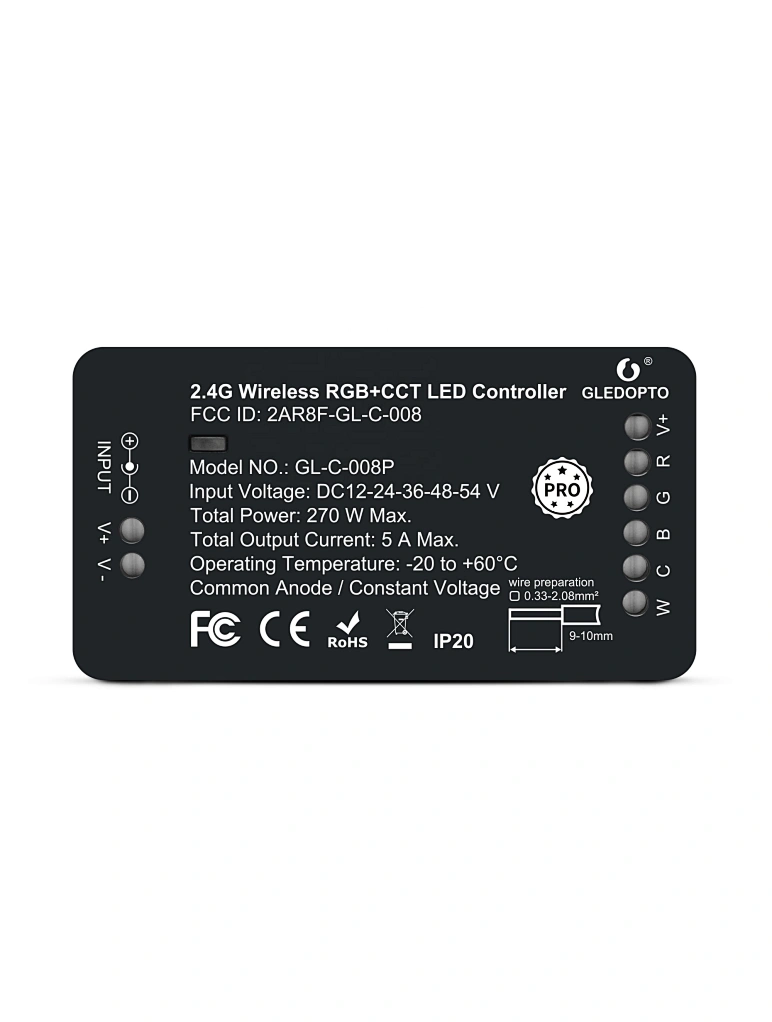

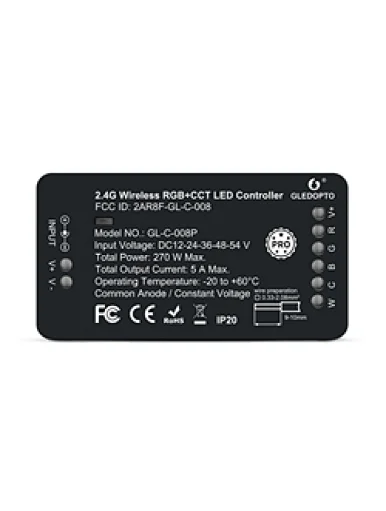

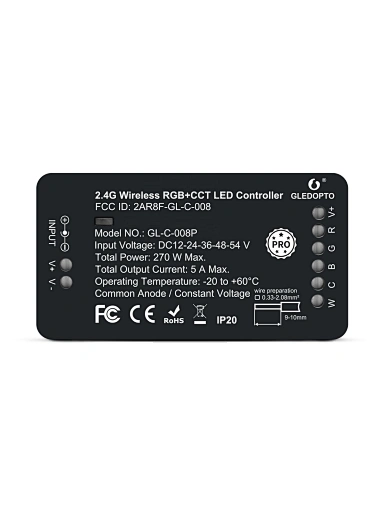

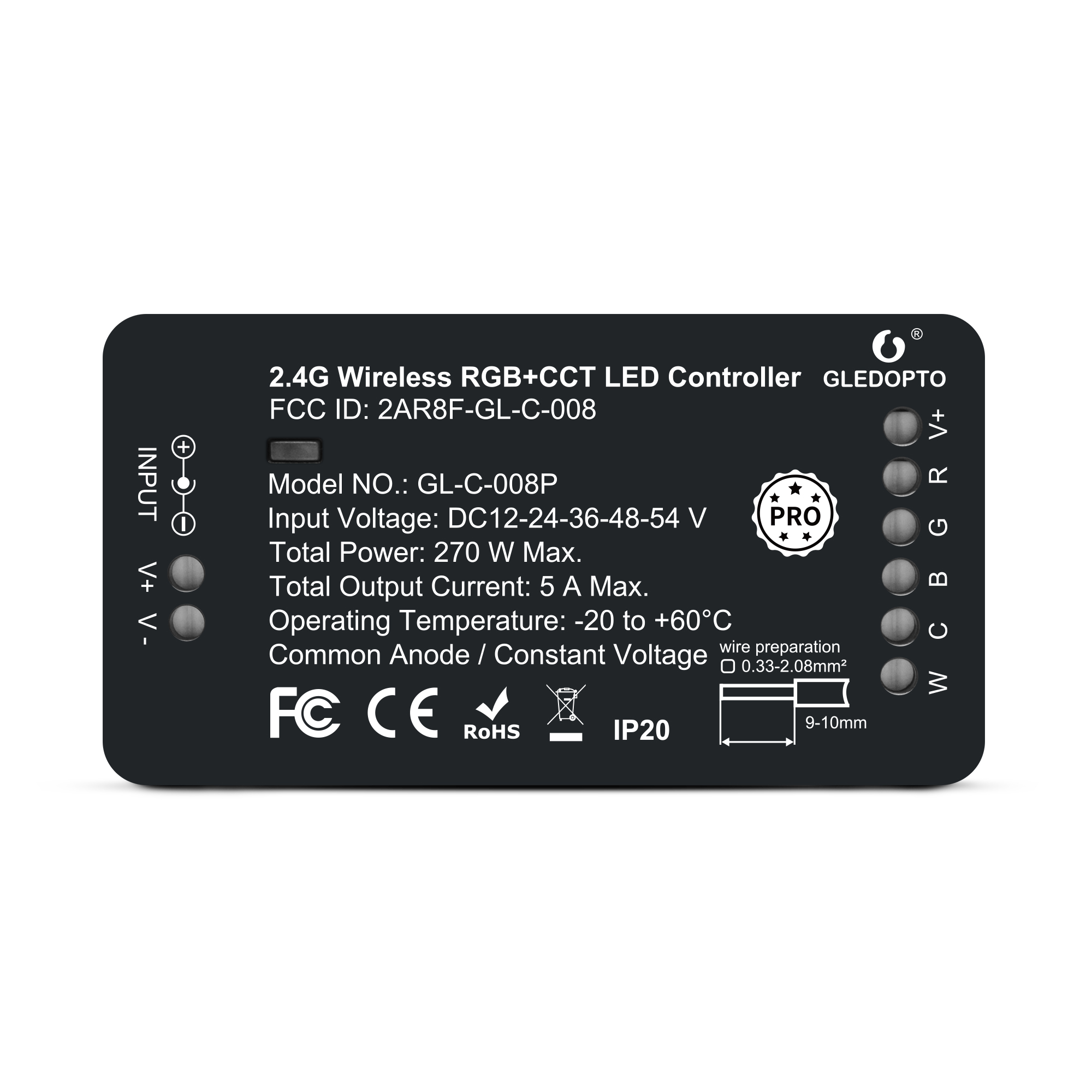

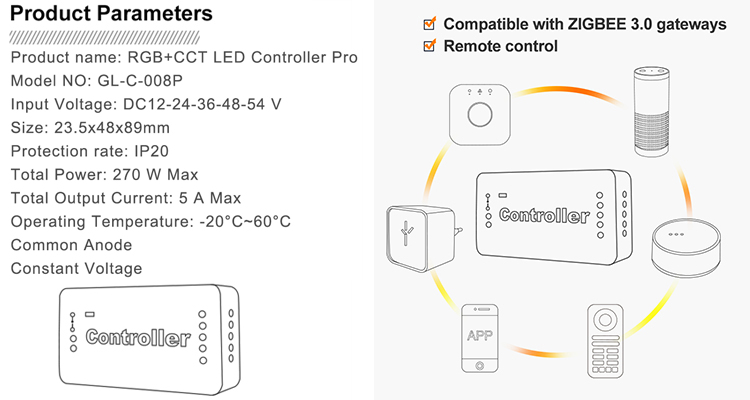

Main Specs of ZigBee 3.0 LED Strip Controller Pro | ||
Input Volt. | 12V ~54V DC | |
Output Power | Total 270W max. | |
Common Anode | Yes | |
Control Tech. | ZigBee 3.0 + 2.4G RF | |
Lighting Color | RGB+CCT | |
Remote Distance | 30Meter | |
Shelf Material | ABS | |
Working Temp. | -20°C~60°C | |
Product Features

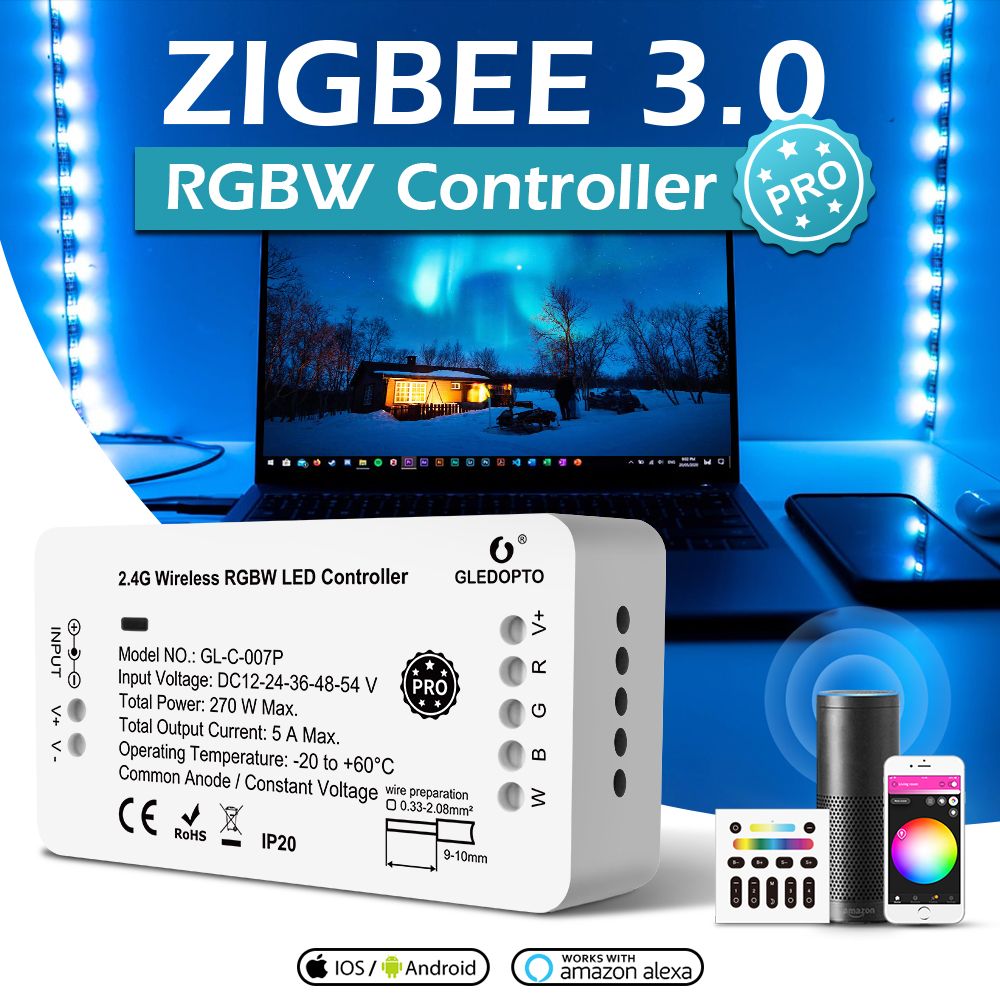

Gledopto ZigBee RGBW/RGB+CCT LED Strip Controller Pro series is the newly developed LED controller available to be controlled by 6-zone or 8-zone remote control and via ZigBee 3.0 hubs.
It is made of delicate & fashionable ABS housing body, based on standard ZigBee protocol which compatible to ZigBee gateways such as Philips Hue, Amazon Echo Plus, Samsung Smartthings, ConBee/RaspBee II, Hubitat, Homee, etc. for common LED lighting with RGB color change, RGB + WW, RGB + CCT, CCT and single color LED lighting with 12V or 24V DC voltage.
This latest Pro serie controllers or LED lamps are designed for purpose of considering the users who are not familiar with ZigBee controlling, so alternatively it is can be controlled by the remote directly and much easy to manage the multiple lighting control functions.

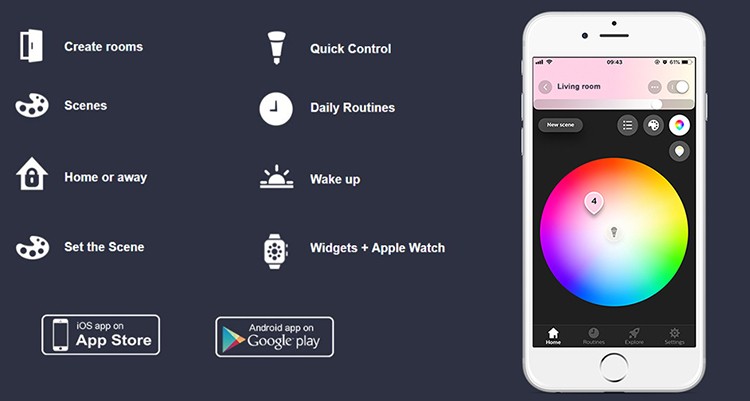

Main features to be controlled by different ZigBee Gateways
△ Creat Rooms, divide your lamps into one or several rooms, to control lamps in each room together or seperately
△ Set the Scene, Scenes that automatically adjust to the lights in your room according to environment
△ Home or away, set time to turn on your lights automatically even you are away from home, as a reminder there's people at home
△ Wake up, set time to turn on light gently, to wake you up in the morning
△ Sync Effect with Screenbloom, sync your lights with movies, music and games, to enjoy the lighting effect which synchronizes with the plot of the picture changes
△ Powerful Mesh feature which enables you to make long distance remote controlling, best for large area lighting project
△ Switch on/off the controllers or lights at the same time without any delay
△ Extremelt low standby power consumption: GU10, MR16, candle light≤0.3W; controllers: 10mA
△ Smoothly dimming & tunable feature, soft starting.

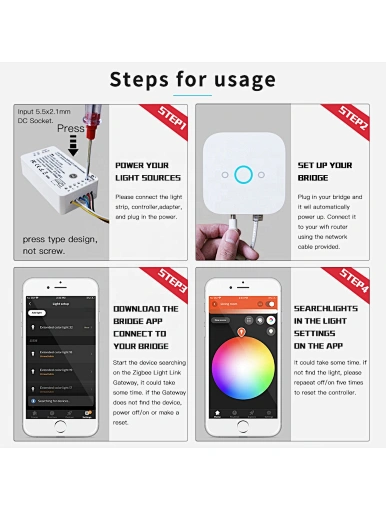

Easy Guide to Connect with ZigBee Home Automation Gateways
Installation:
1. Turn off the power
2. Plug in the controller
3. Now you can connect it with the gateway
Connection with Gateway:

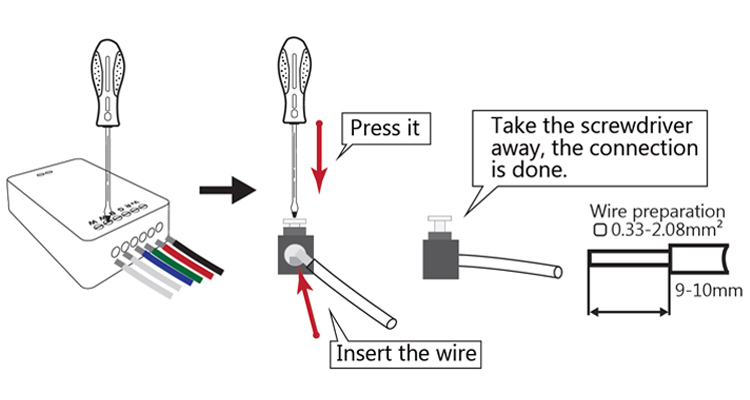

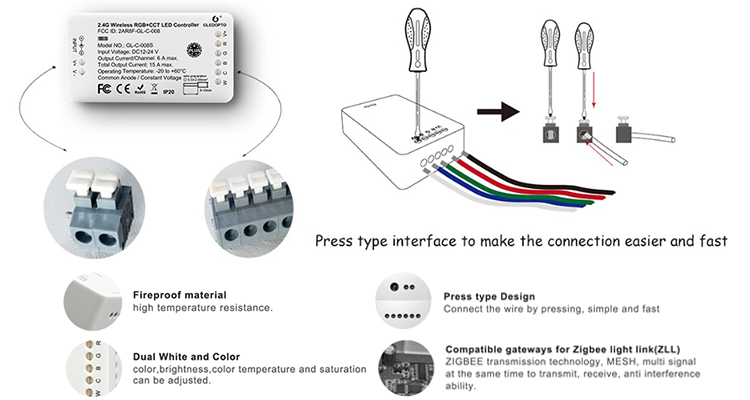

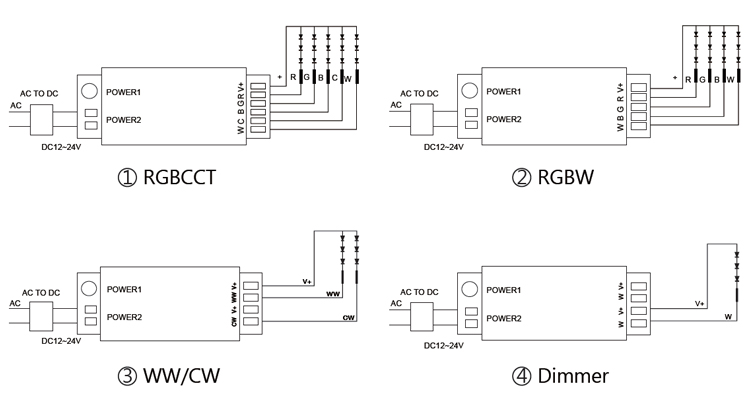

1. Connect the LED product to the controller see section"wire connection"
2. Start the device searching on the ZigBee Light Link gateway, it would take some time to complete.
If the gateway does not find the device, power on/off or reset it again.
3. After finding the device, the light will turn green, then you can save it to the rooms/groups
4. Now you can use the device

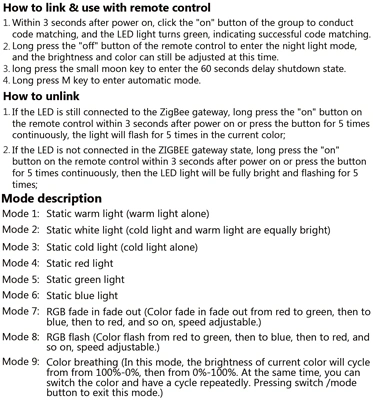

Reset:
1. Switch on your device
2. Now within 2 seconds on/off again
3. Repeat off/on four times
4. Reset is done when the device is switched on at the 5th time, and the LED light will be fully bright, then flashing for 5 times.
TO CONTROL GLEDOPTO ZIGBEE SMART LIGHTS W/O A ZIGBEE HUB
>Or if you are putting these lights somewhere outside of the WiFi coverage, e.g. a camper, backyard, garage workshop, etc., you can use the RF Remote Controller directly, no need to find to link to a ZigBee bridge.
>Auto sync & transfer.
This is the best feature for 2.4GHZ RF Remote Controlling design, most suitable for big lighting project. Your RGBW or RGB+CCT color LED lights can receive the controlling signal sent from the remote or wall controller, as long as the distance between two lamps is within 15mtr to 20mtr, the first lamp can send the signal automatically to the second lamp, and then to third lamp, and so on, until all lamps totally synced and changing the lighting color or modes all the same at the same time.
Compared to those color changing lamps with signal transferred through wires, this wireless controlling design will save huge the labour job and cost.

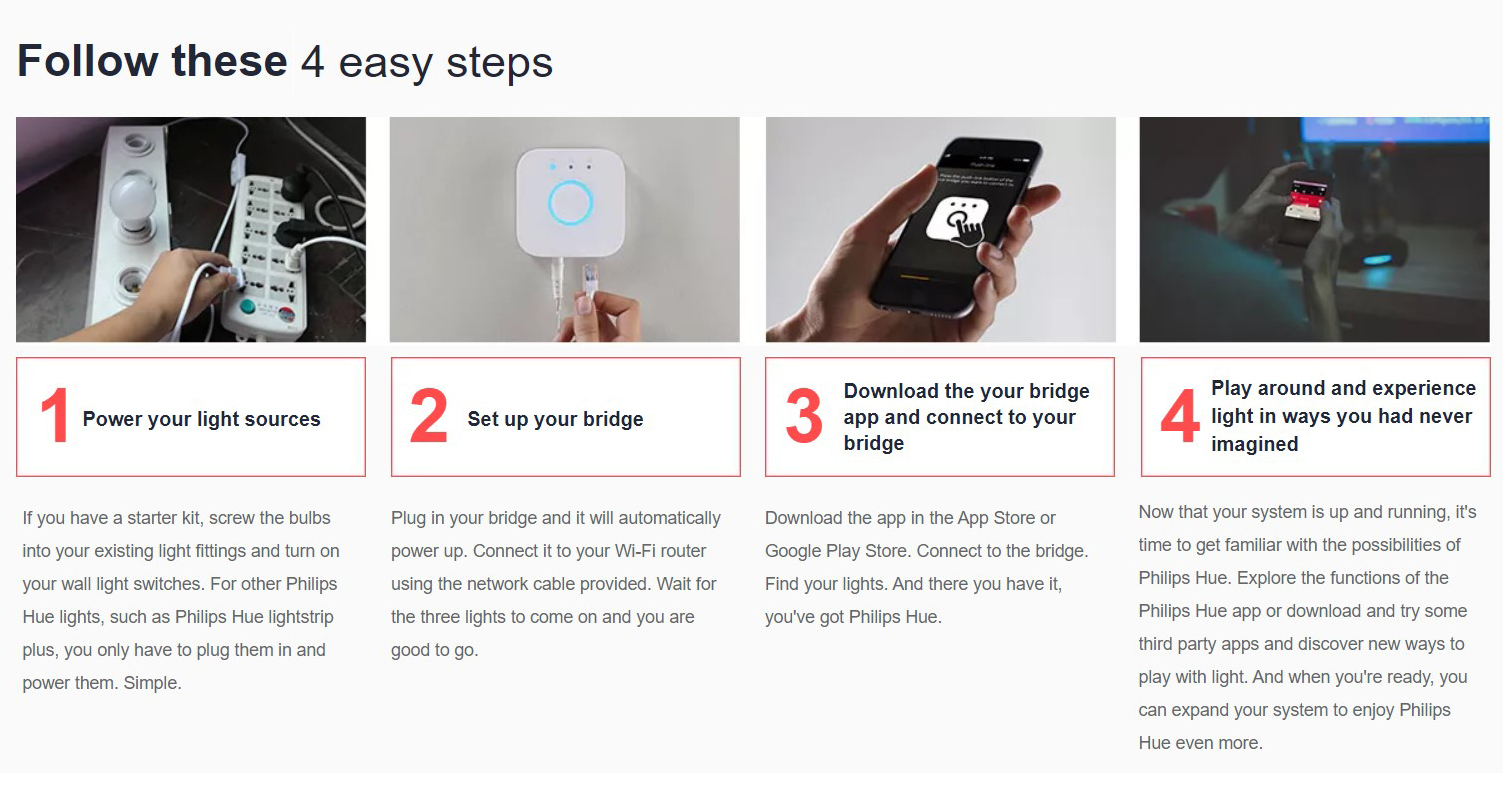

Quick Start to Connect ZigBee LED Controller to ZigBee 3.0 or ZigBee Light Link Bridge | ||||||

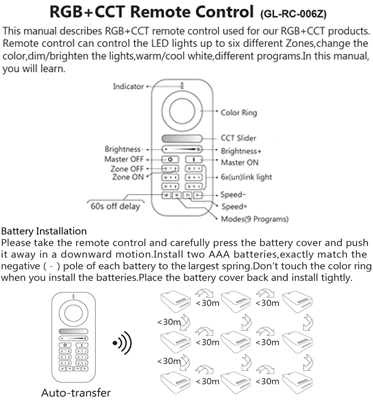

GLEDOPTO® 2.4G RF Remote Control LED Controller Connection | ||||||

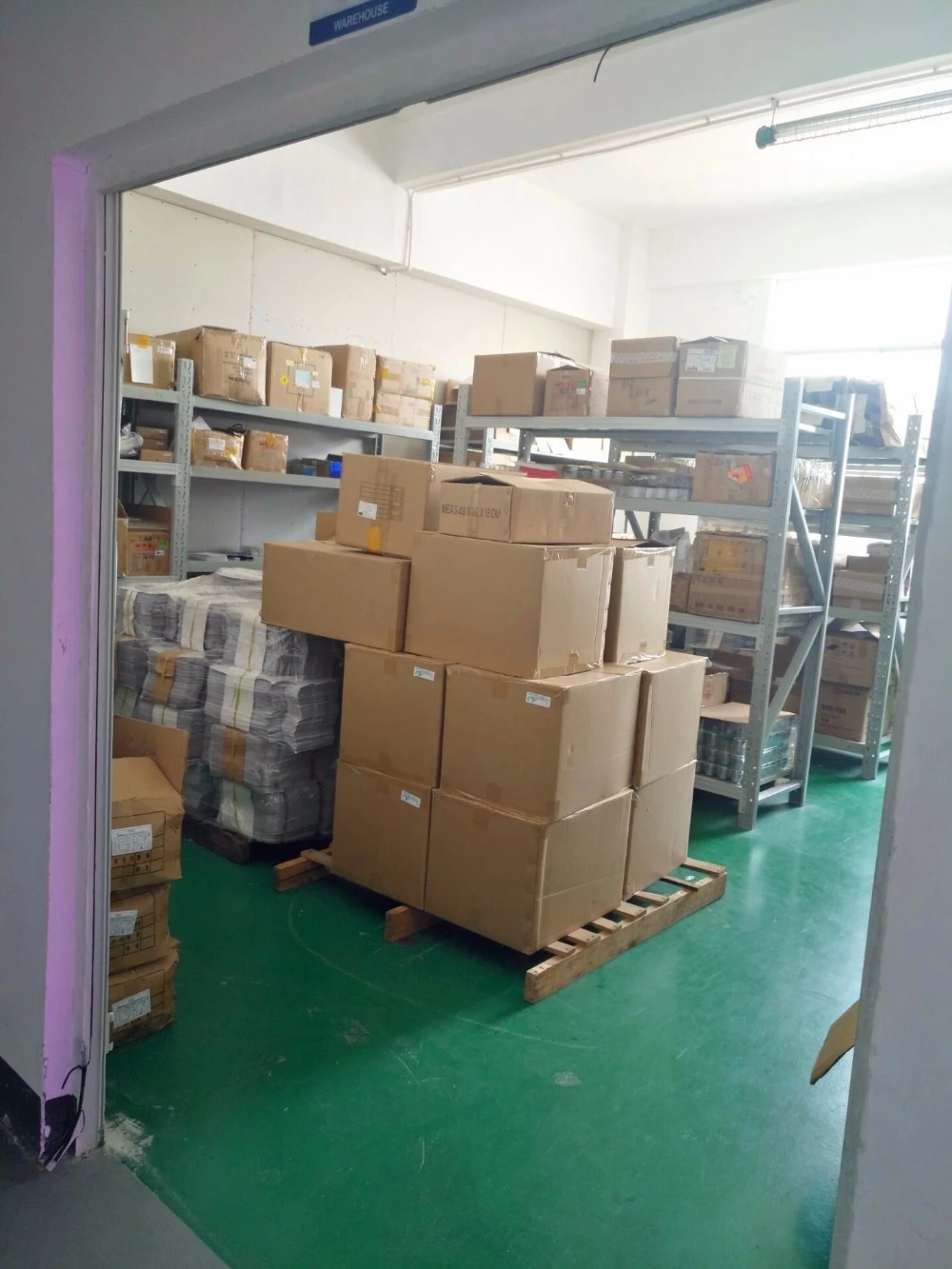

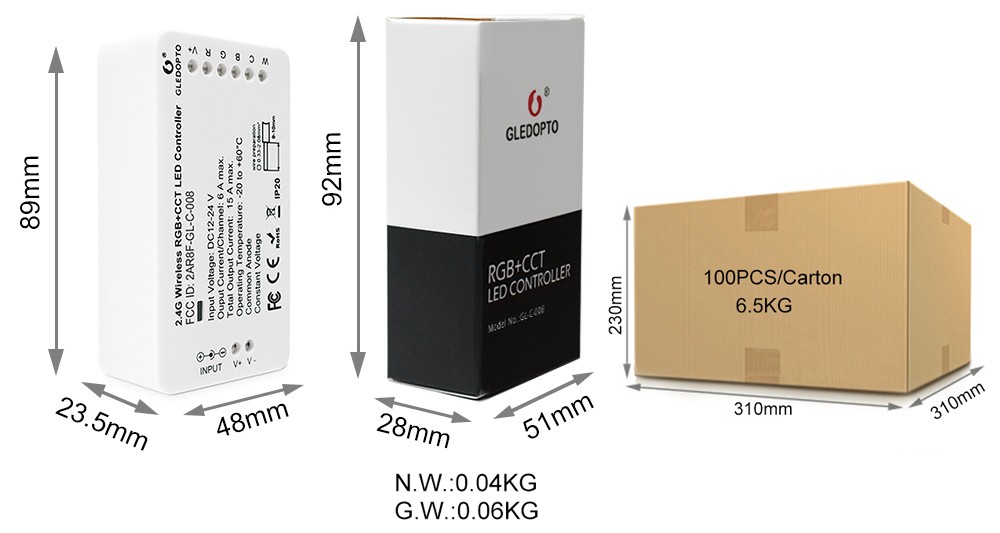

Gledopto ZigBee LED Strip Rope String Light Controller Packing Details | ||||||
