Gledopto LED Controller With RF Remote Control ZigBee Dimmer Switch 5V DC USB LED Controller Google Home Compatible Dimmers RGBW

Gledopto LED Controller With RF Remote Control ZigBee Dimmer Switch 5V DC USB LED Controller Google Home Compatible Dimmers RGBW
price

$6.99 - $13.99

GL-MC-001P
1 piece
Quantity
  • Warranty(Year):2-Year
  • Lighting solutions service:Smart Lighting Control Solution
  • Luminous Efficacy(lm/w):0
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control
  • Max. Load Power:2A
  • Connection Mode:USB
  • Input Voltage:5V DC
  • Max Current Output:2A
  • Max Power Loaded:10W
  • Controlling Protocol:ZigBee 3.0
  • Remote Control Distance:≥30meter
  • Lighting Color:RGB+CCT
  • Working Temperature:-20-60℃
  • Shell Material:ABS Material

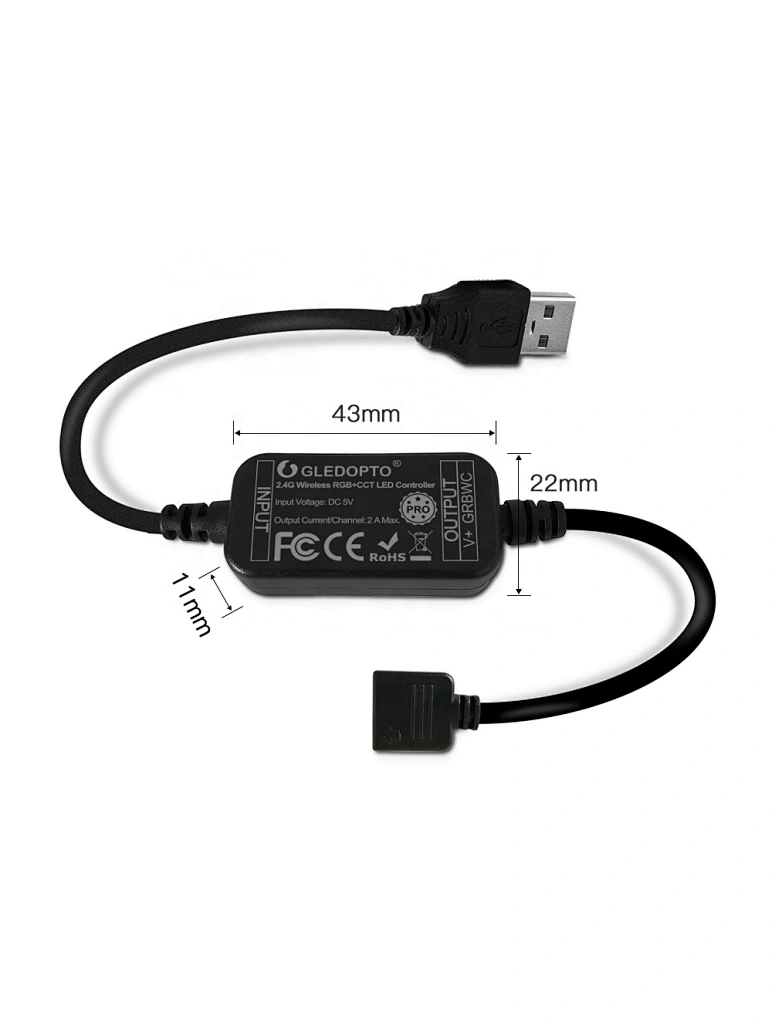

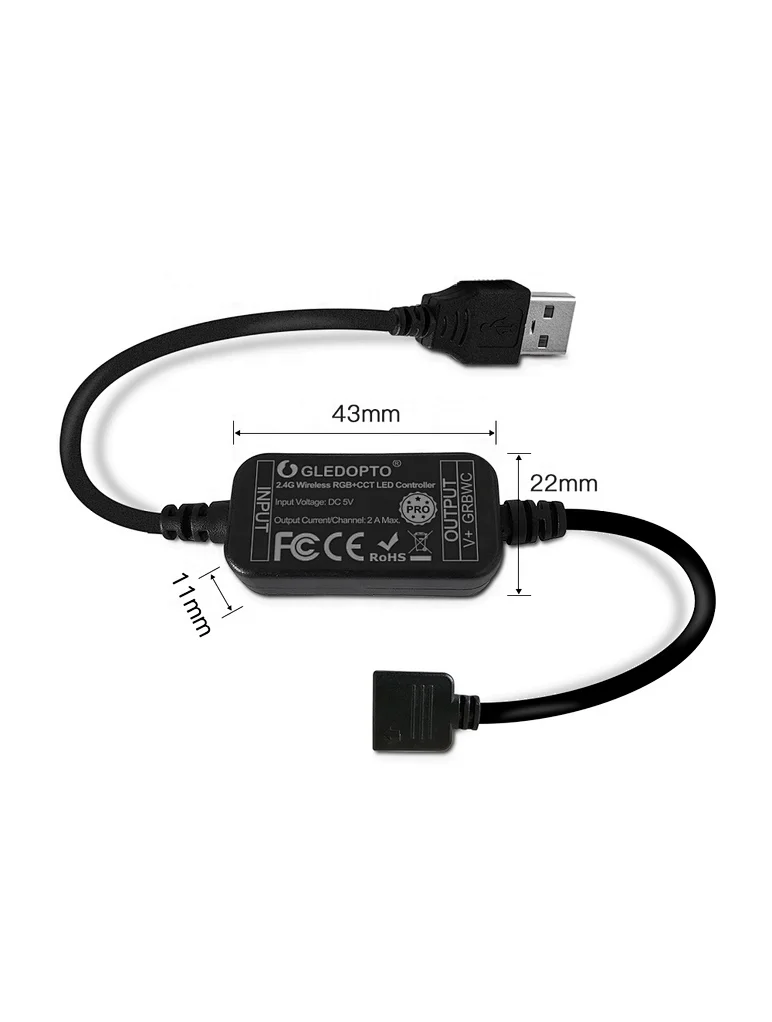

  • Size:L11*W22*H43mm
  • Warranty:2Year
Product Description
zigbee led controller google home

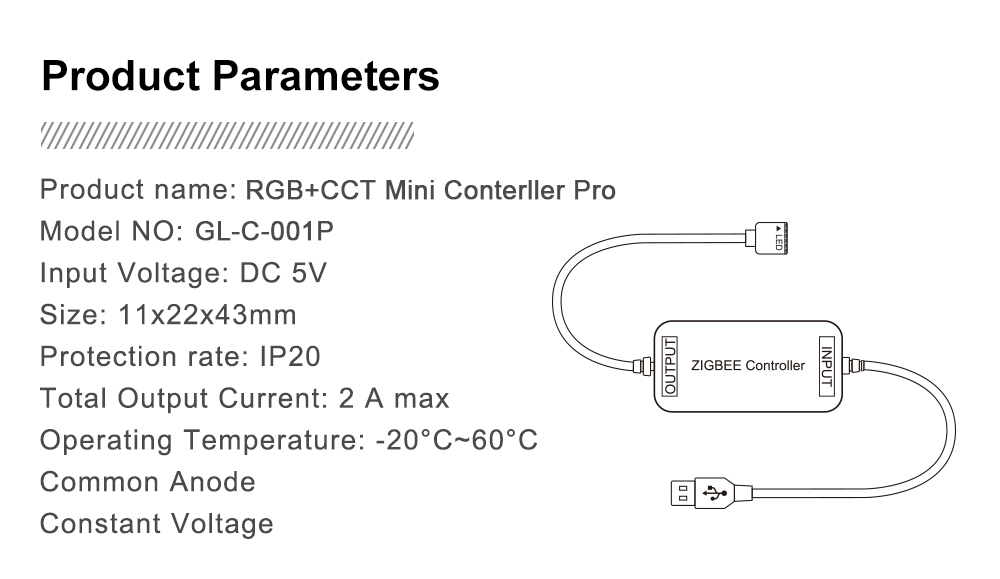

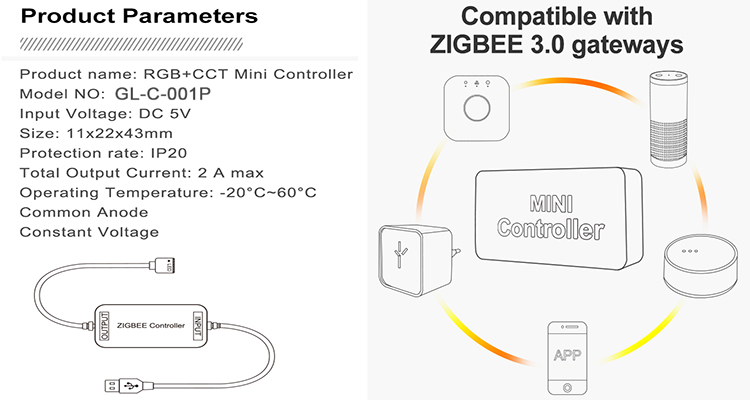

Main Specs of DC5V ZigBee3.0 Mini LED Strip Controller
Input Volt.
5V DC
Output Current
Total 2A max.
Common Anode
Yes
Control Tech.
ZigBee 3.0
Lighting Color
RGB+CCT
Remote Distance
≥30Meter
Shelf Material
ABS Plastic
Working Temp.
-20°C~60°C
zigbee led controller google home
zigbee led controller google home
Main Specs & Zigbee 3.0 Compatible
zigbee led controller google home

Product Features

This mini ZigBee RGBW/RGB+CCT LED Strip Controller is a newly developed LED controller designed by GLEDOPTO®

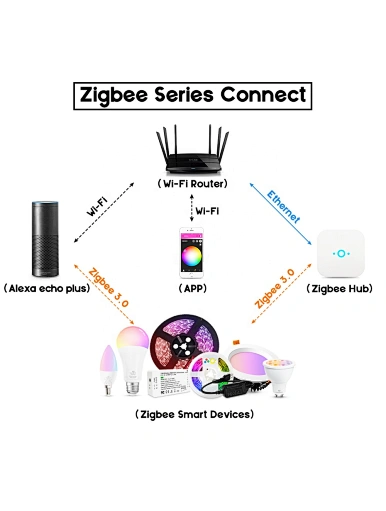

It is designed by a delicate & fashionable ABS housing body; based on ZigBee 3.0 protocol, which compatible to ZigBee 3.0 & ZLL gateways such as Philips Hue, Amazon Echo Plus, Samsung Smartthings, Tuya, Homey, Homee, Hubitat, Conbee/Raspbee, etc. for residential or commercial LED lighting application with multi color changing and various color scenes for option, 2700K to 6500K color temperature tunable.

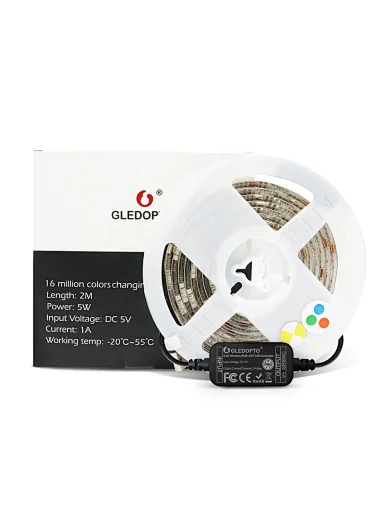

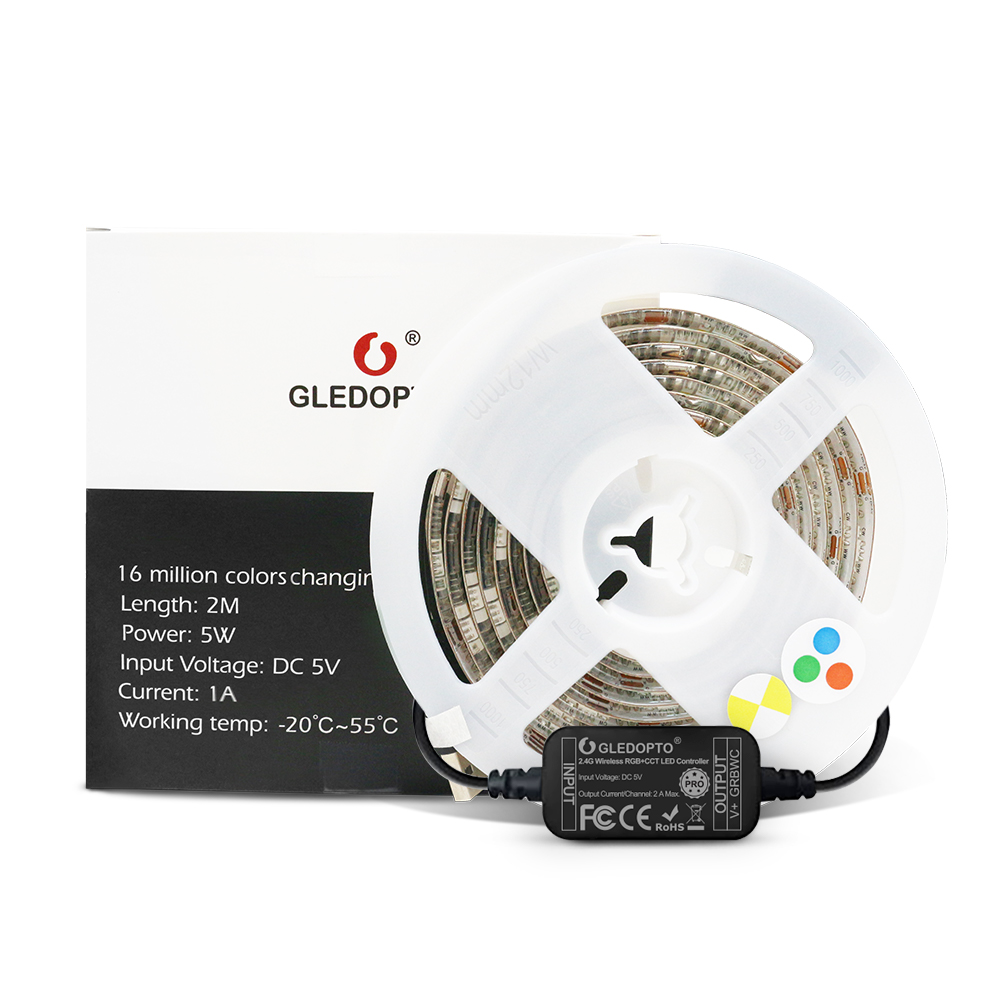

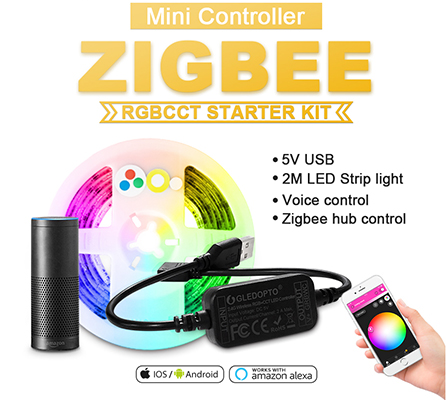

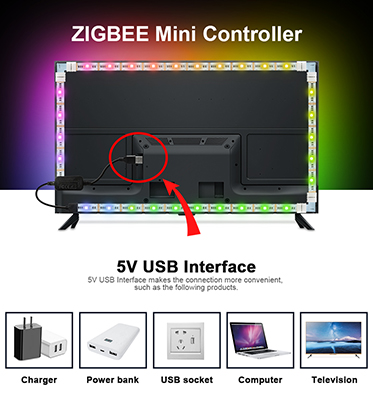

Since it is designed as 5V DC input with USB 3.0 interface, it is very convenient to connect it to your charger, power bank, laptop or TV set, etc. And you only need to connect it with GLEDOPTO RGB+CCT LED Strip Kit 2Mtr/pc, to use the strip kit as back lighting of your TV, laptops, computers, the lighting color will be auto synced with the change of screen colors.

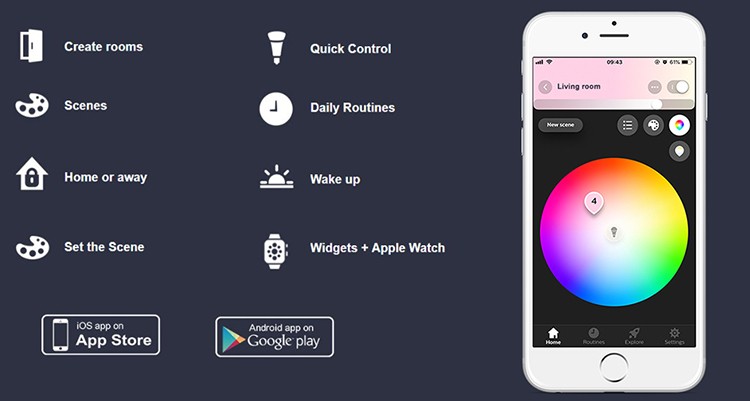

Main Functions of RGB+CCT LED Controller

△ Creat Rooms, divide your lamps into one or several rooms, to control lamps in each room together or seperately

△ Set the Scene, Scenes that automatically adjust to the lights in your room according to environment

△ Home or away, set time to turn on your lights automatically even you are away from home, as a reminder there's people at home

△ Wake up, set time to turn on light gently, to wake you up in the morning

△ Voice and RF Remote Control, this mini size controller compatible with Alexa. It can help you save time and it is convenient to your life through voice control. The light works with your existing Wi-Fi or cellphone traffic. You can control your lighting no matter where you are. You can turn it on or turn it off without leaving your bed.

△ Sync Effect with Screenbloom, H-u-e Disco, sync your lights with movies, music and games, to enjoy the lighting effect which synchronizes with the plot of the picture changes.

zigbee led controller google home
zigbee led controller google home

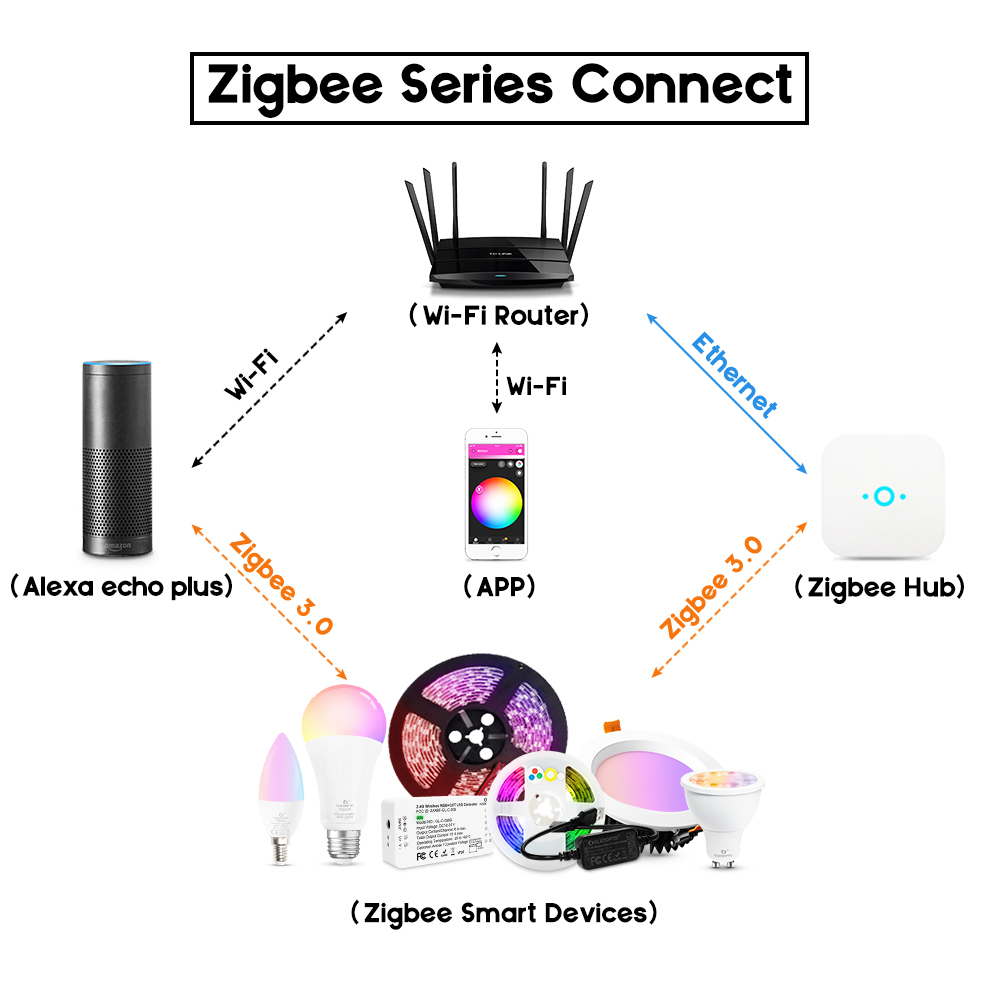

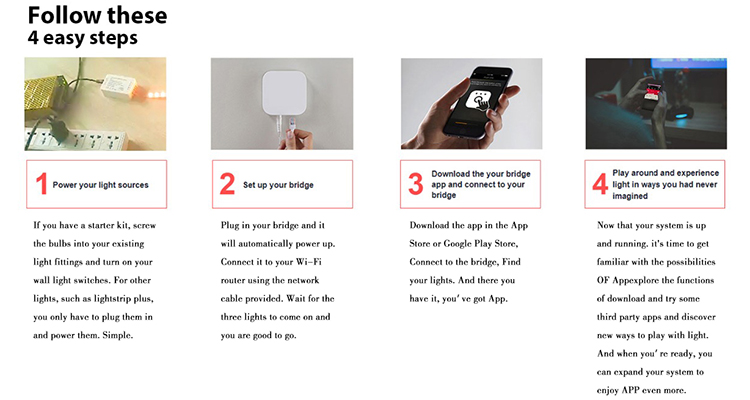

Easy Guide to Connect with ZigBee 3.0 Gateways

Installation:

1. Tuen off the power

2. Plug in the controller

3. Now you can connect it with the gateway

Connection with Gateway:

1. Connect the LED product to the controller see section"wire connection"

2. Start the device searching on the ZigBee Light Link gateway, it would take some time to complete.

    If the gateway does not find the device, power on/off or reset it again.

3. After finding the device, the light will turn green, then you can save it to the rooms/groups

4. Now you can use the device

Reset:

1. Switch on your device

2. Now within 2 seconds switch off and on it again

3. Repeat off/on four times

4. Reset is done when the device is switched on at the 5th time, and the LED light will be fully bright, then flashing for 5 times.

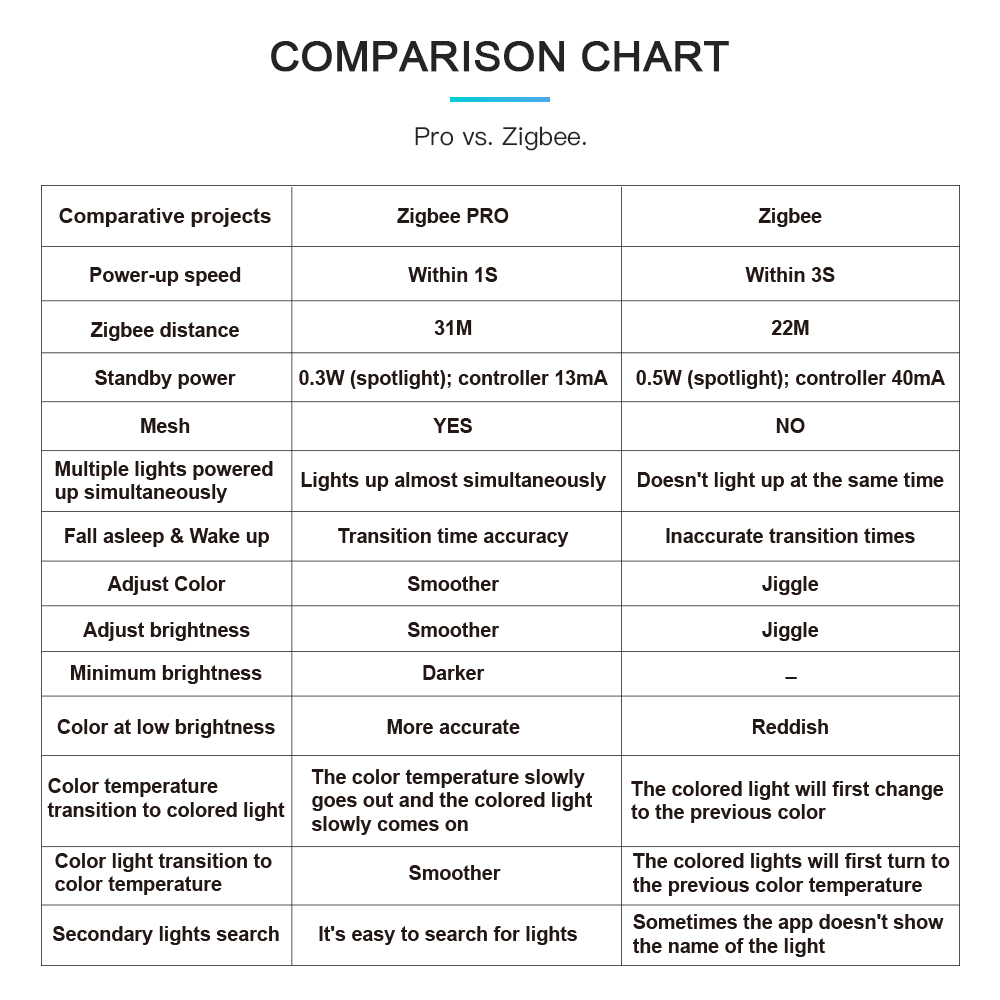

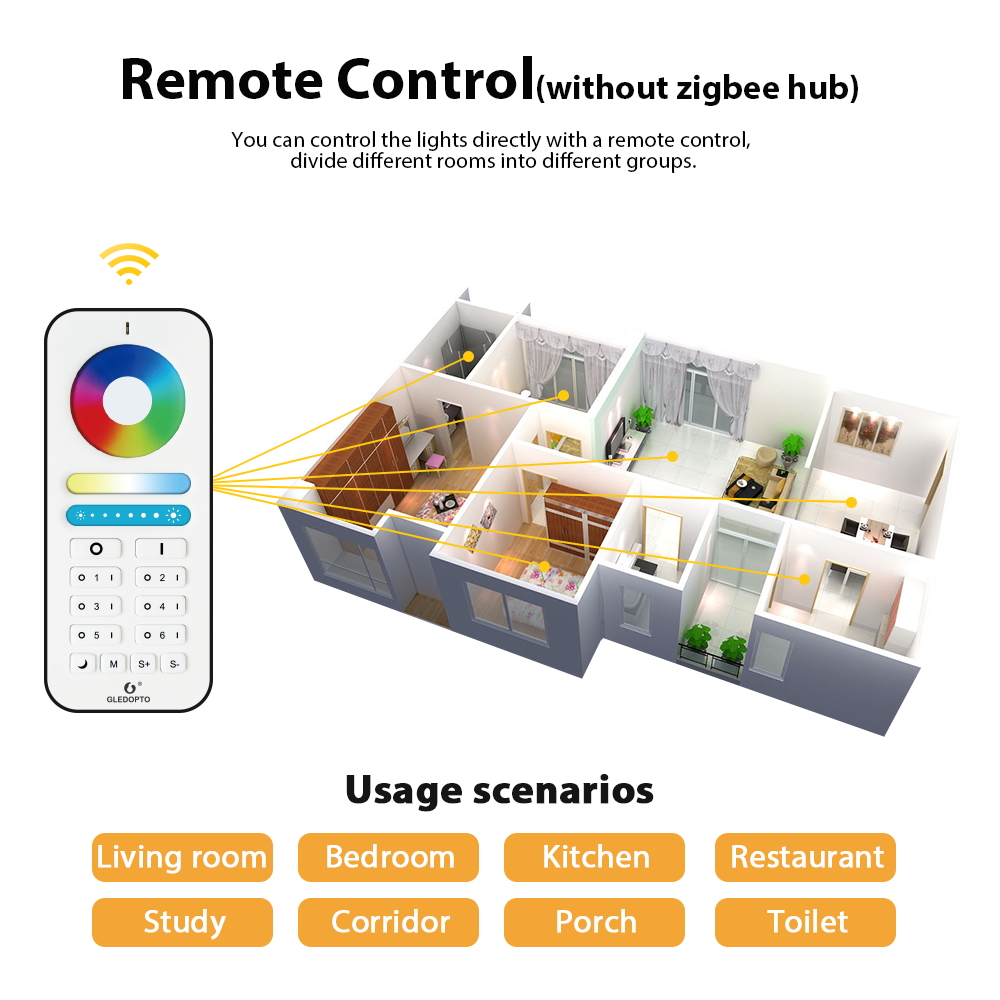

CONTROL GLEDOPTO PRO WITHOUT A ZIGBEE BRIDGE

>All Gledopto Plus/Pro version smart lights are ZigBee + Radio Frequency controlling design. The LED strip controllers and indoor/outdoor lamps will work with
both the RF Remote and ZigBee.
>These are great if you want to control your lights with just the remote or with your ZigBee hub. Sometimes you don't want to pull out the phone to open an App just to turn on the lights, the remote or the wall mounted controller can do it.
>Or if you are putting these lights somewhere outside of the WiFi coverage, e.g. a camper, backyard, garage workshop, etc., you can use the RF Remote Controller directly, no need to find to link to a ZigBee bridge.
>Auto sync & transfer.
This is the best feature for 2.4GHZ RF Remote Controlling design, it's most suitable for long distance and large area lighting application. Your RGBW or RGB+CCT color LED lights can receive the controlling signal sent from the handheld or wall mounted remote control, as long as the distance between two lamps is within 15mtr to 20mtr, the first lamp can send the signal automatically to the second lamp, and then to third lamp, and so on, until all lamps totally synced and changing the lighting
color or modes all the same at the same time.

zigbee led controller google home

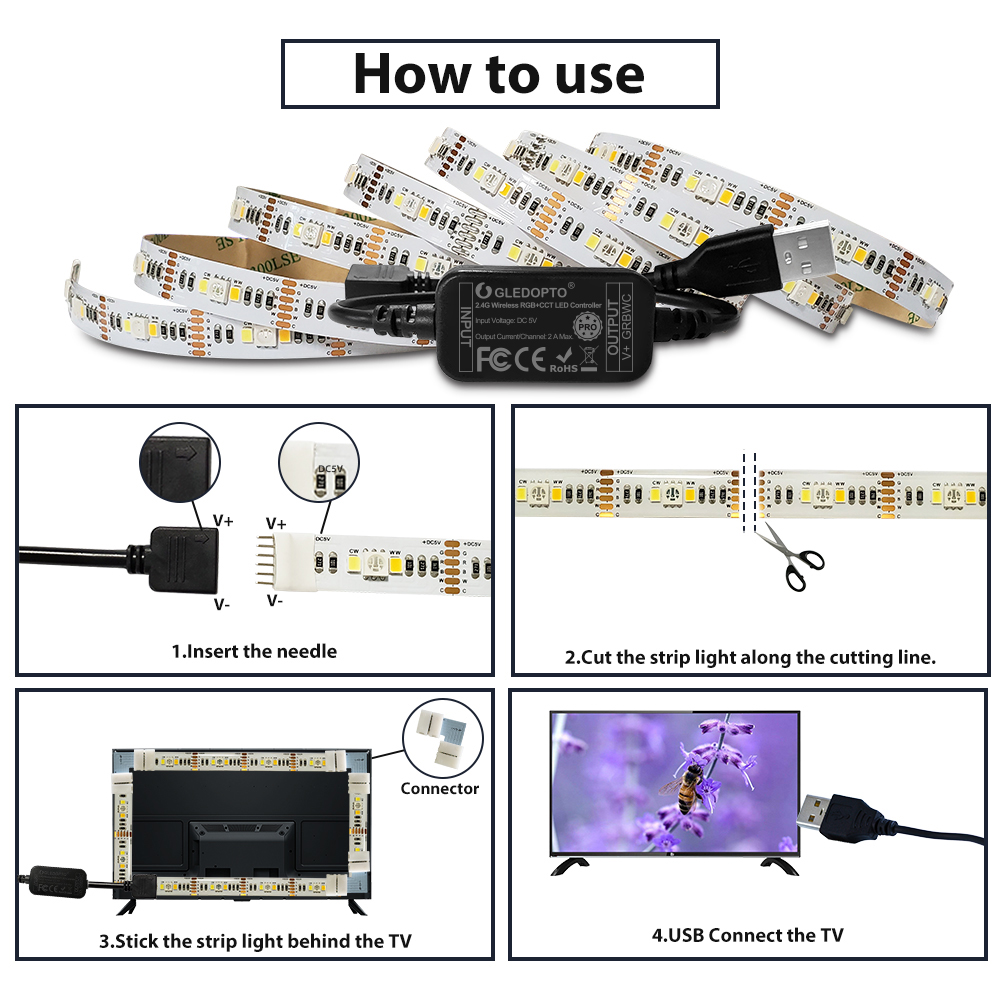

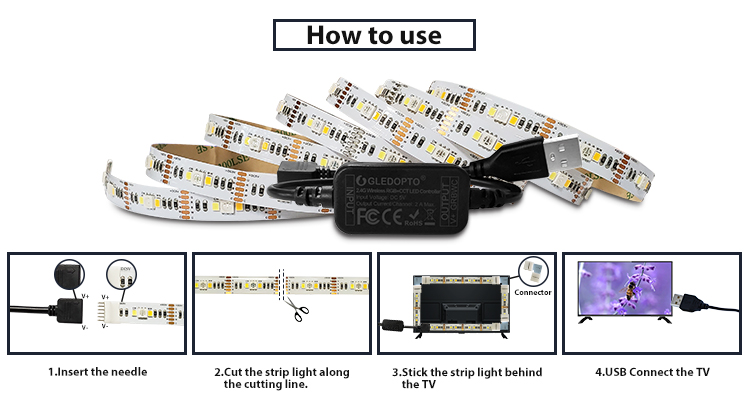

Installation & Connection Instructions
zigbee led controller google home
zigbee led controller google home
zigbee led controller google home
zigbee led controller google home
zigbee led controller google home
What You Can Do by Using GLEDOPTO® ZigBee LED Controllers & Lamps
zigbee led controller google home

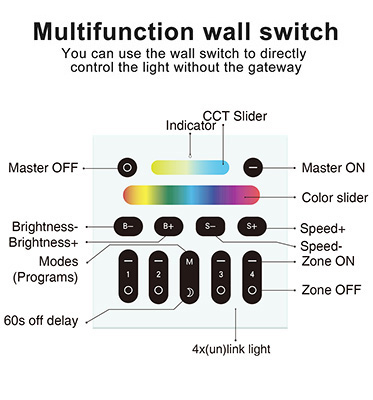

2.4G RF Remote Controlling Setting -w/o a Bridge
zigbee led controller google home

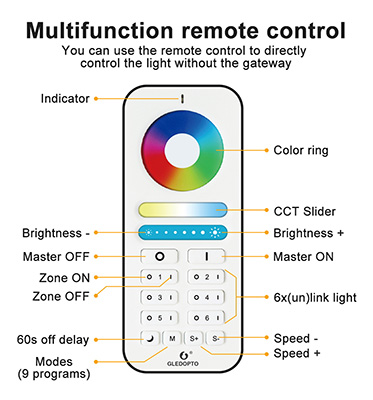

Link & unlink with 2.4GHZ RF Remote Control

> How to Link1. Within 3 seconds after power on, click the"on"button of the group to conduct code matching, and the LED lights turns green, indicating successful code matching.
2. Long press the"off"button of the remote control to enter the night light mode, and the brightness and color can still be adjusted at this time.
3. Long press the small moon key to enter the 60 seconds delay shutdown state.
4. Long press M key to enter automatic mode.
> How to unlink
1. If the LED is still connected to the ZigBee gateway, long press the"on"button on the remote control within 3 seconds after power on or press the button for 5 times continuously, the light will flash for 5 times in the current color.
2. If the LED is not connected to the ZigBee gateway status, lon gpress the"on"button on the remote control within 3 seconds after power on or press the button for 5 times continuously, then the LED light will be fully bright and flashing for 5 times.
zigbee led controller google home

Different Lighting Modes Description

Mode 1: Static warm white color (warm white color only)Mode 2: Static white color (cold and warm white color are equally bright)
Mode 3: Static cold white color (cold white color only)
Mode 4: Static red color
Mode 5: Static green color
Mode 6: Static blue color
Mode 7: RGB fade in and out (from red --> green --> blue --> red, and so on, speed adjustable)
Mode 8: RGB flashing (from red --> green --> blue --> red, and so on, speed adjustable)
Mode 9: Color breathing (On this mode, the brightness of current color will cycle from 100% to 0%, then from 0% to 100%. At the
same time, you can switch the color and have a cycle repeatedly. Pressing switch/mode button to exit this mode)

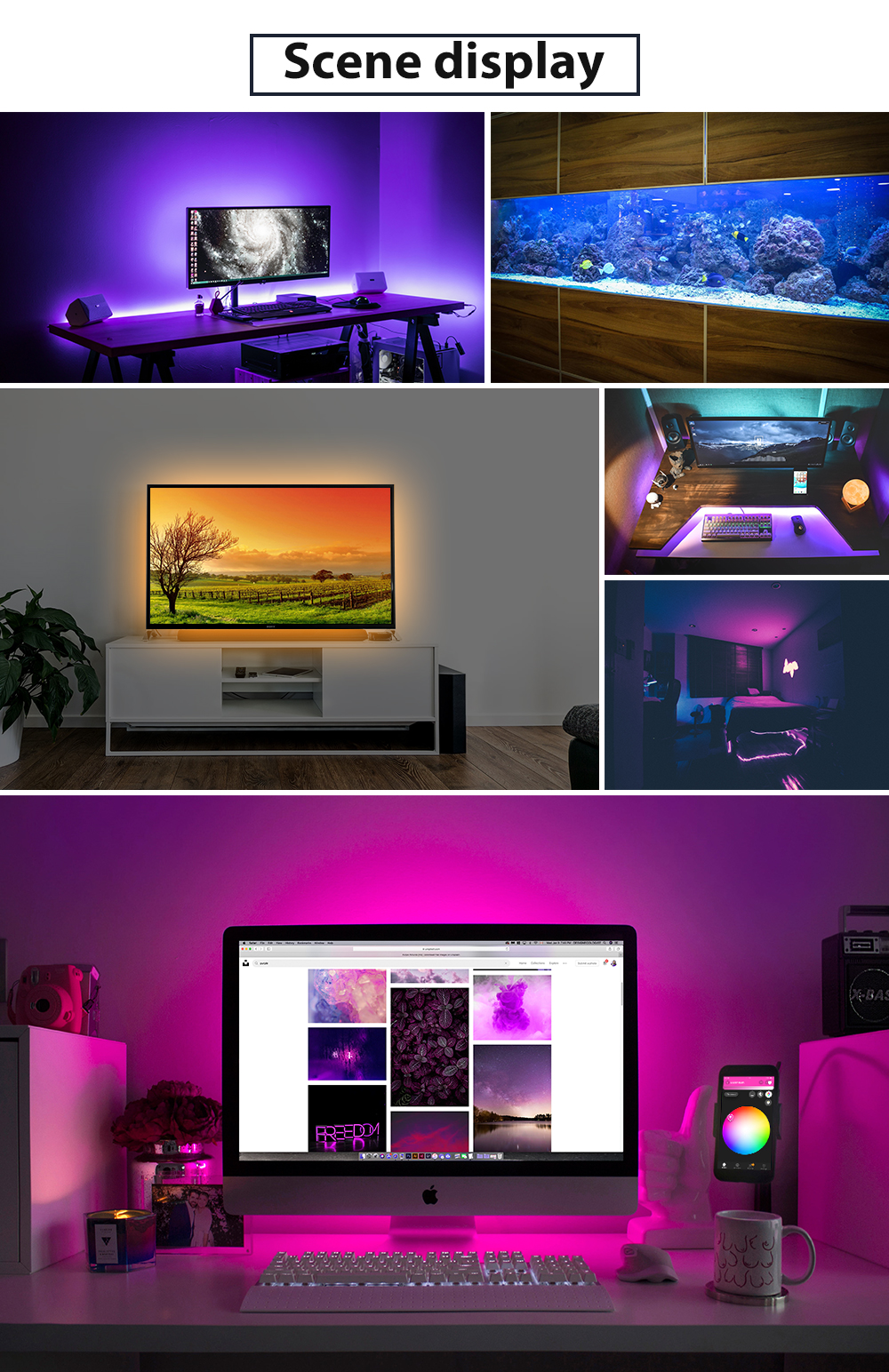

Applications Cases
zigbee led controller google home
zigbee led controller google home
zigbee led controller google home

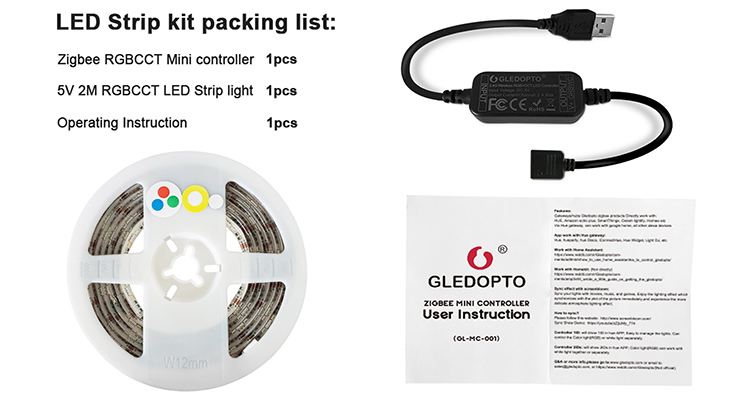

Gledopto ZigBee LED Strip Rope String Light Controller DC5V Packing List
zigbee led controller google home
Similar RGBW/WW&CW/Single Color ZigBee LED Flexible Strip Controllers
Certifications
zigbee led controller google home
zigbee led controller google home
zigbee led controller google home
zigbee led controller google home

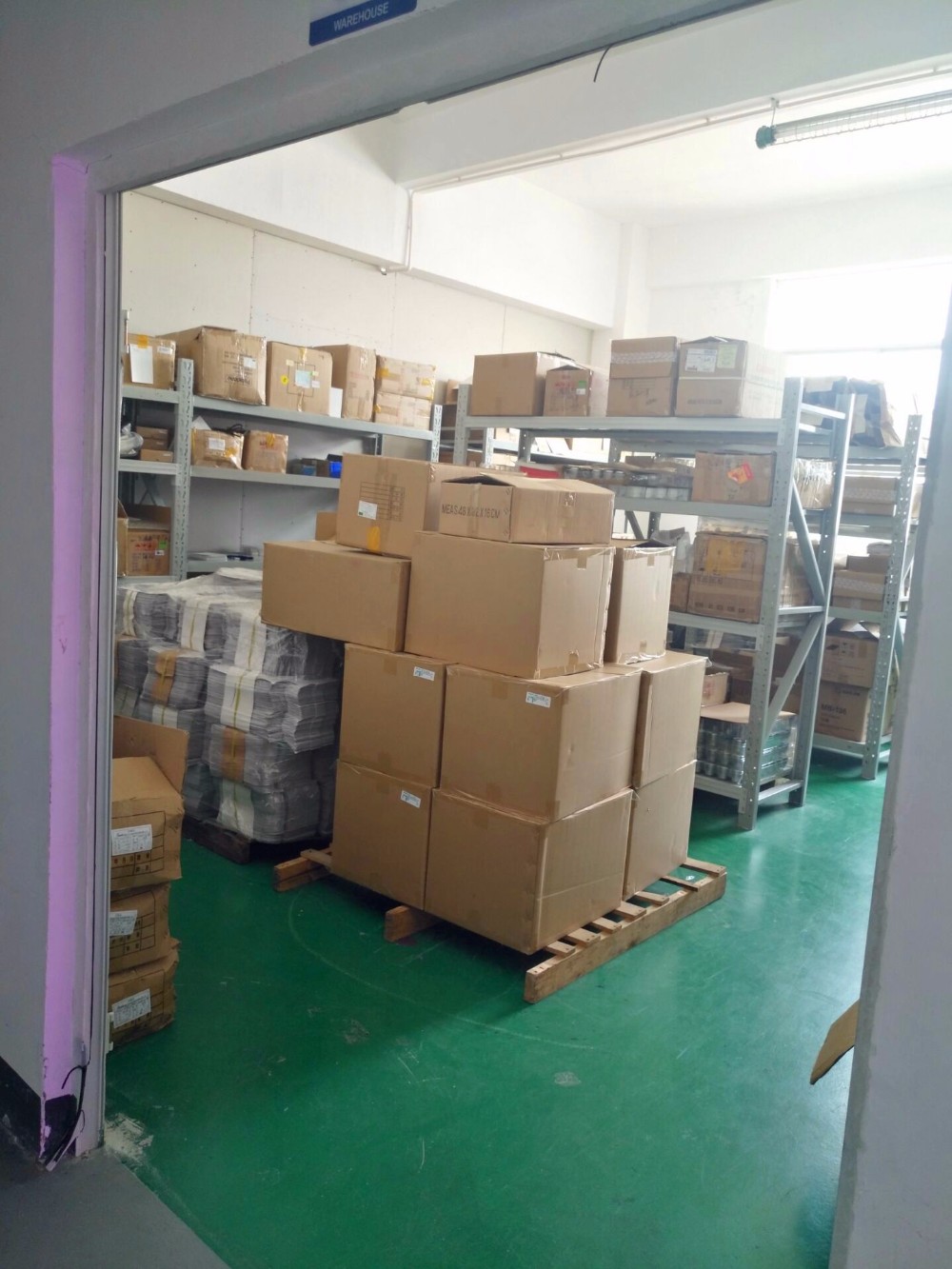

Company Information
zigbee led controller google home
zigbee led controller google home
zigbee led controller google home
zigbee led controller google home
