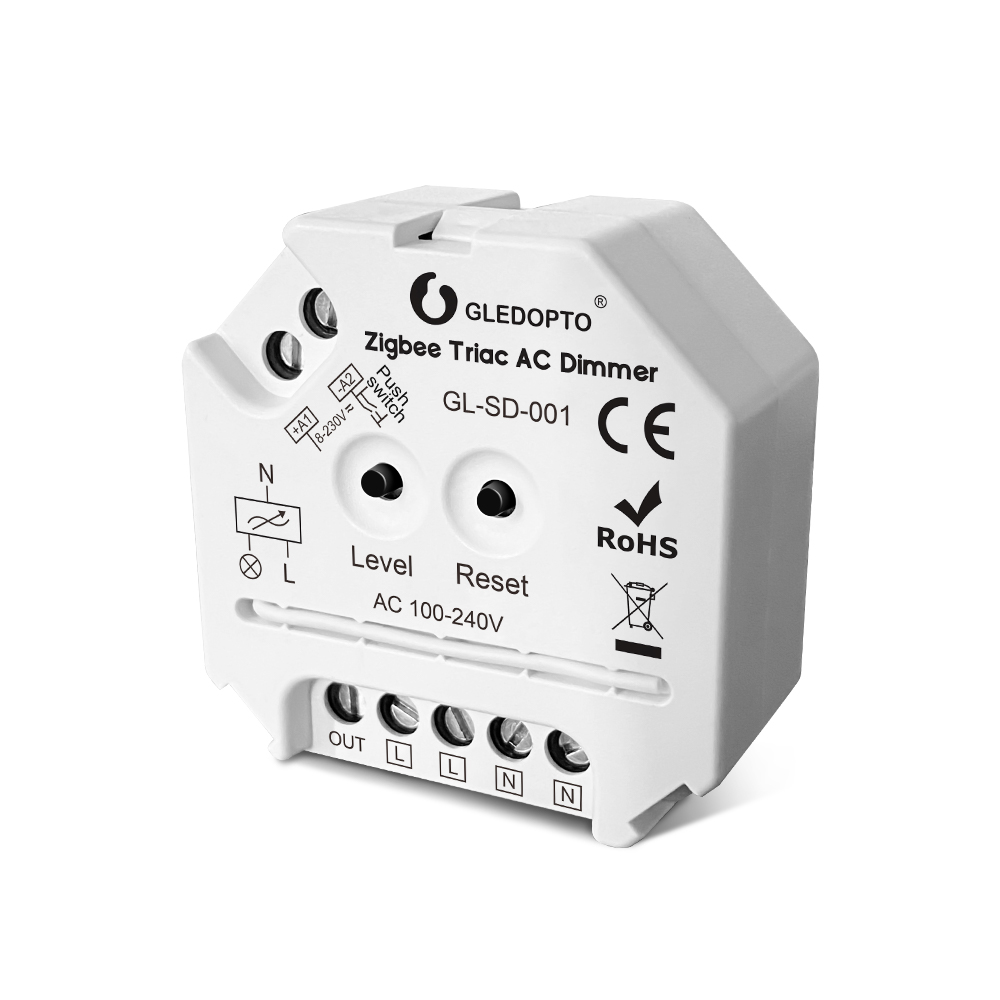

GELDOPTO Zigbee 3.0 Smart Home Triac AC Dimmer LED-Touch Control Push-Switch Work with 2.4G Remote Control Smartthings
price
$14.30 - $17.00 / piece
GL-SD-001
1 piece
Quantity
- Warranty(Year):2-Year
- Lighting solutions service:Lighting and circuitry design, auto CAD layout, Project Installation, Zigbee home automation
- Product Weight(kg):0.095
- Place of Origin:Guangdong, China
- Brand Name:GLEDOPTO
- Type:Remote Control
- Max. Load Power:max 400W power loaded
- Connection Mode:Zigbee 3.0 + RF
- Name:Zigbee Triac AC Dimmer
- Protocol:ZIGBEE3.0 + RF
- Function:switching and dimming the brightness
- Control way:smartphone, voice, remote control
- Control distance:30meters
- Advantage:Mesh signal auto-transfer to a larger distance
- Input Voltage:AC100-240V
- Frequency:2.4GHz
- Application:Control Lights
- Feature:RF remote controllable
Product Description
GLEDOPTO

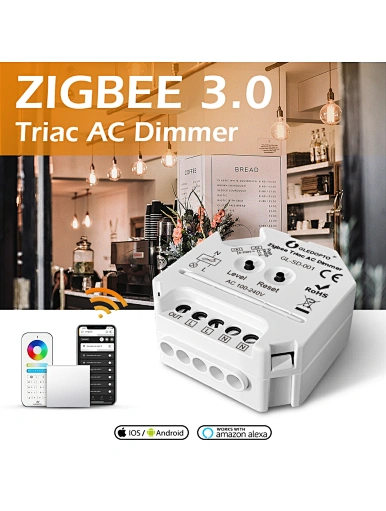

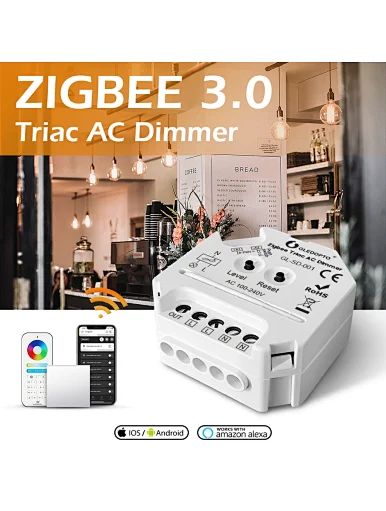

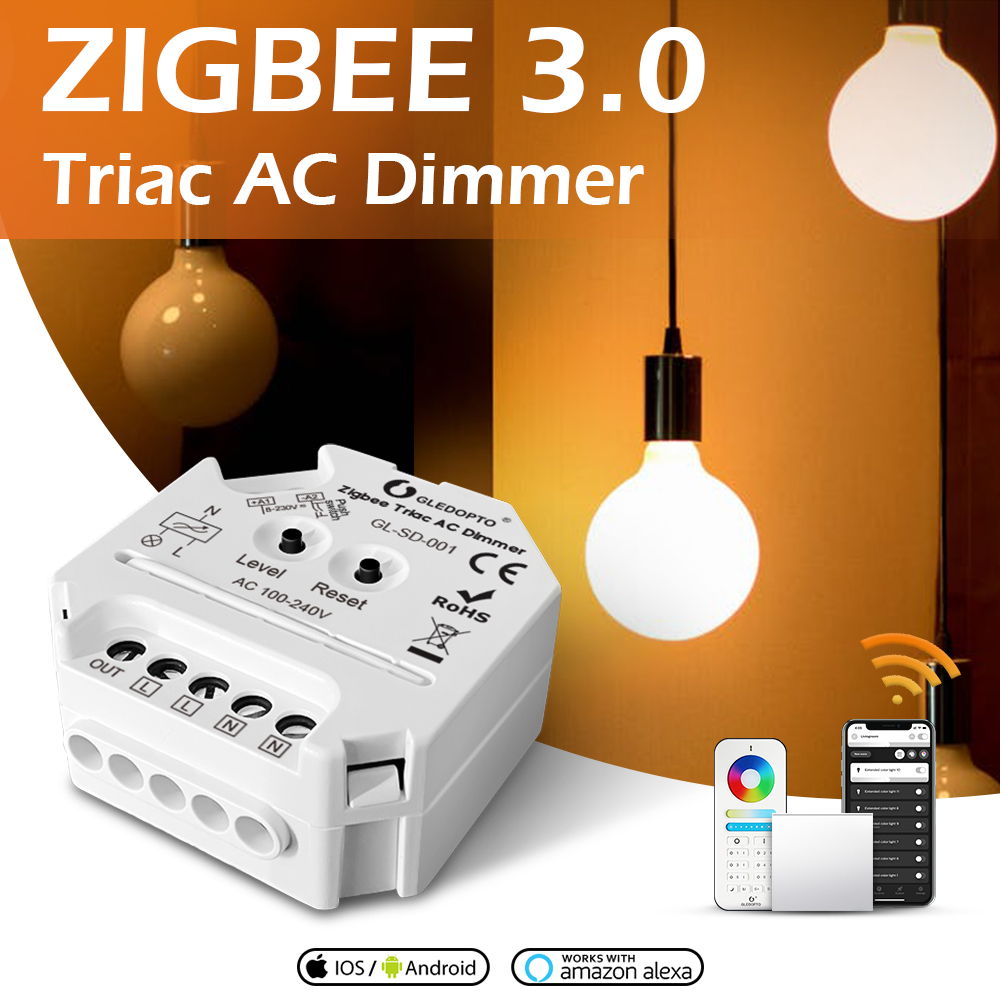

ZIGBEE Triac AC Dimmer
100-240V
This controller use two protocol of 2.4GHz Zigbee3.0 and RF combined into one dimmer, which makes it even more convenient for smart control and voice command control.

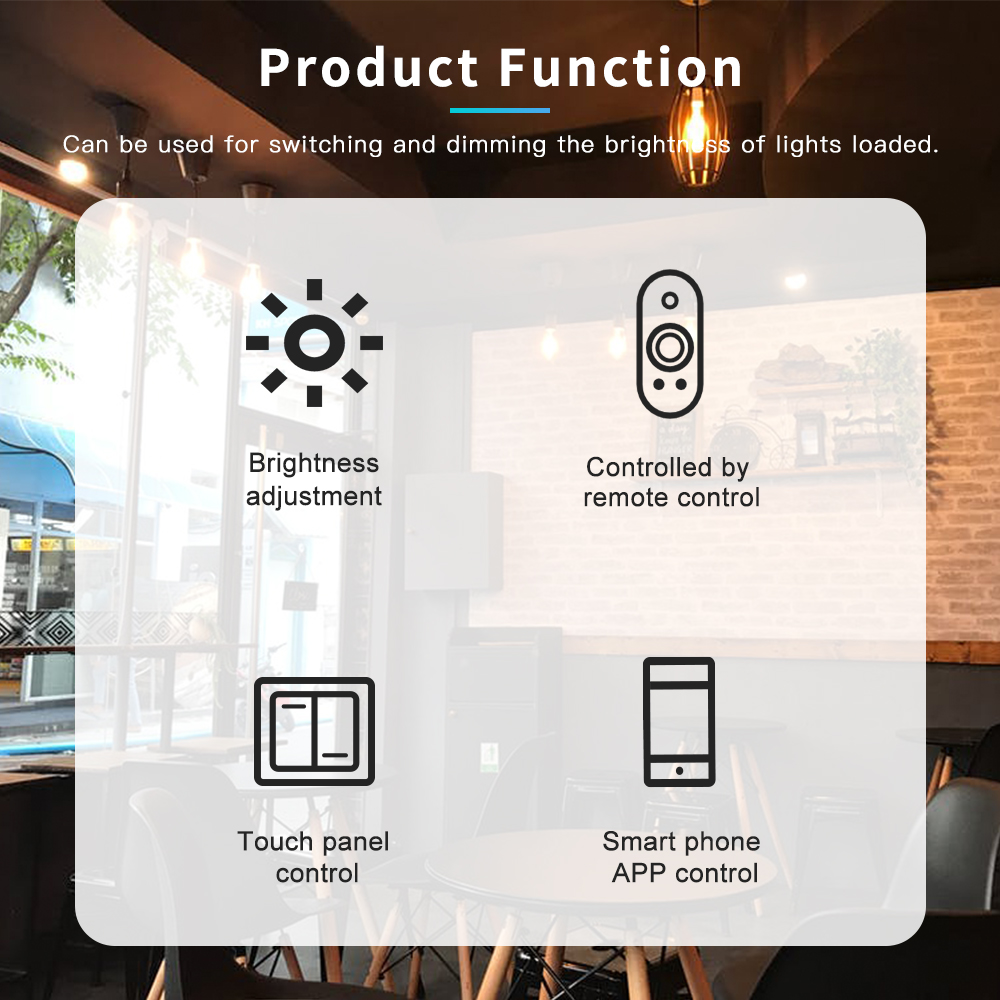

1.Used for switching and
dimming the brightness of lights loaded.
dimming the brightness of lights loaded.
2.Enable to control ON/OFF of connected load.



Details Images

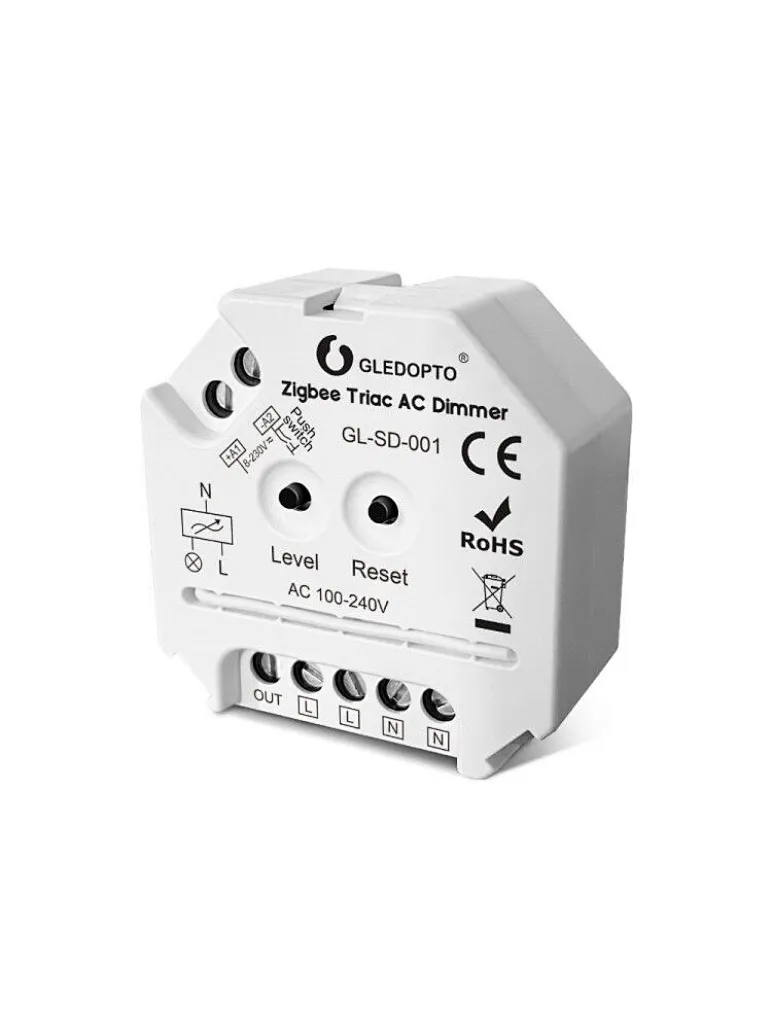

The controller is designed with 100-240VAC input and output, one channel and maximum 400W output. The ZigBee AC dimmer is available with trailing edge dimming version.

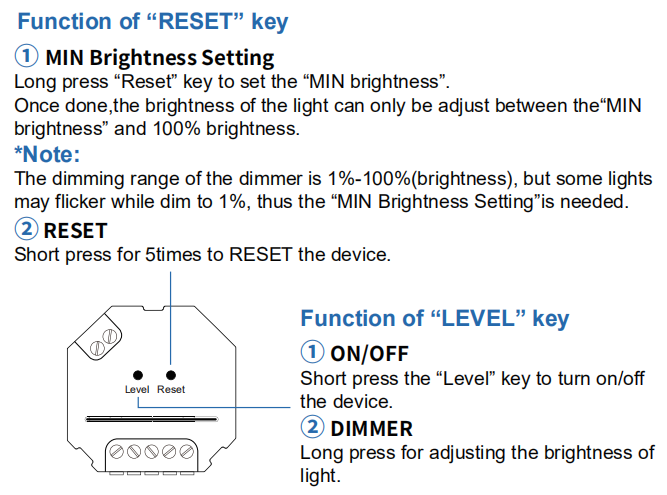

The minimum brightness setting function enables users to set a minimum brightness and dim from this minimum brightness to 100% brightness.

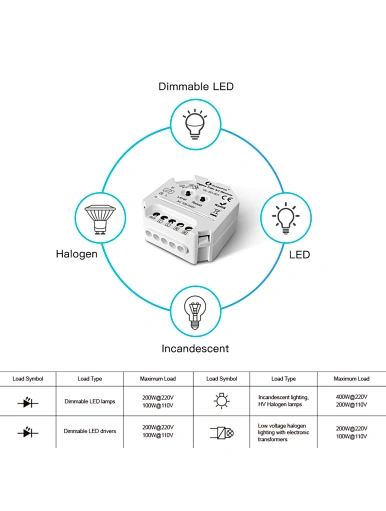

To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.

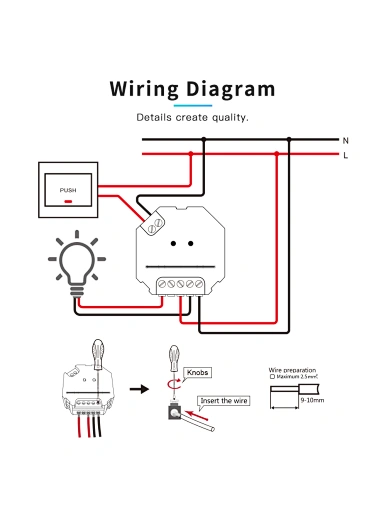

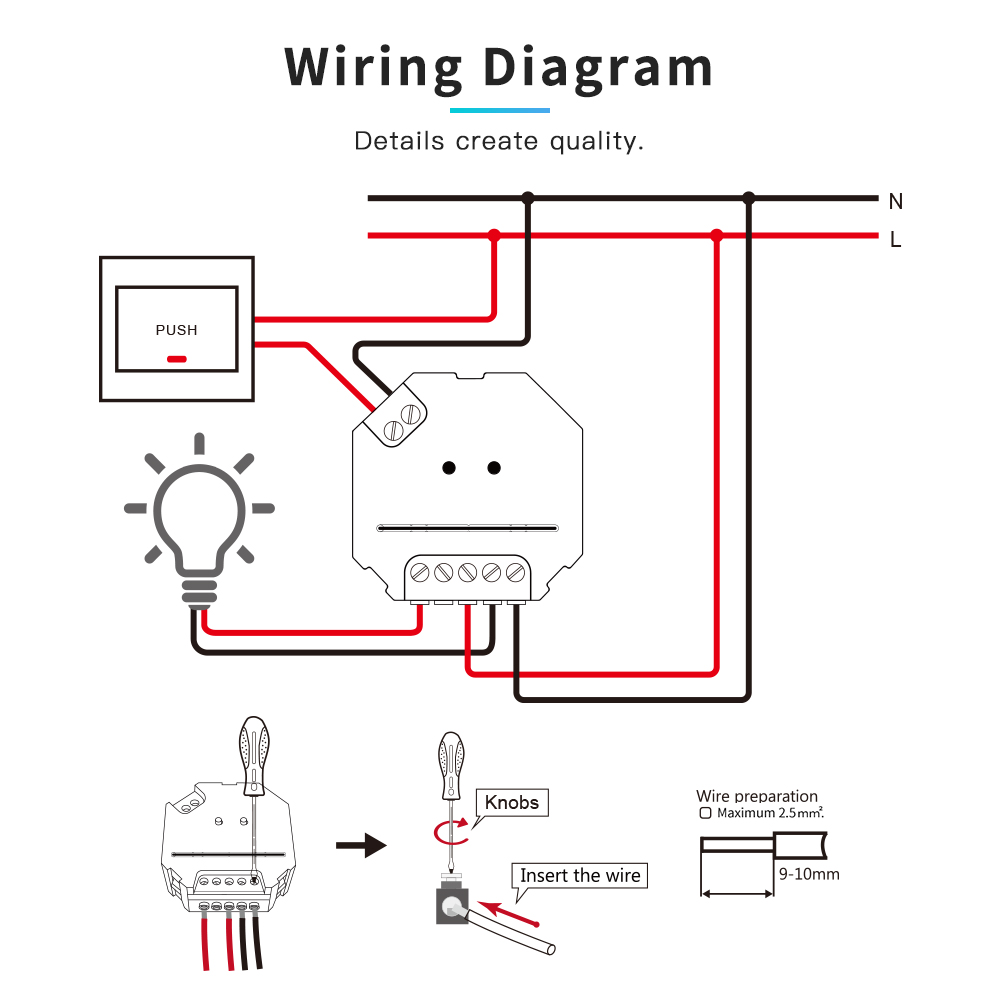

Input and Output with Screw Terminals, Safe and Reliable.

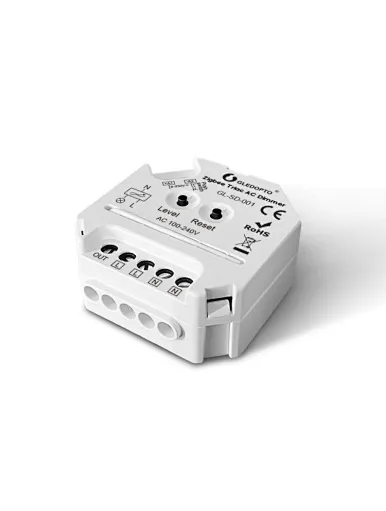

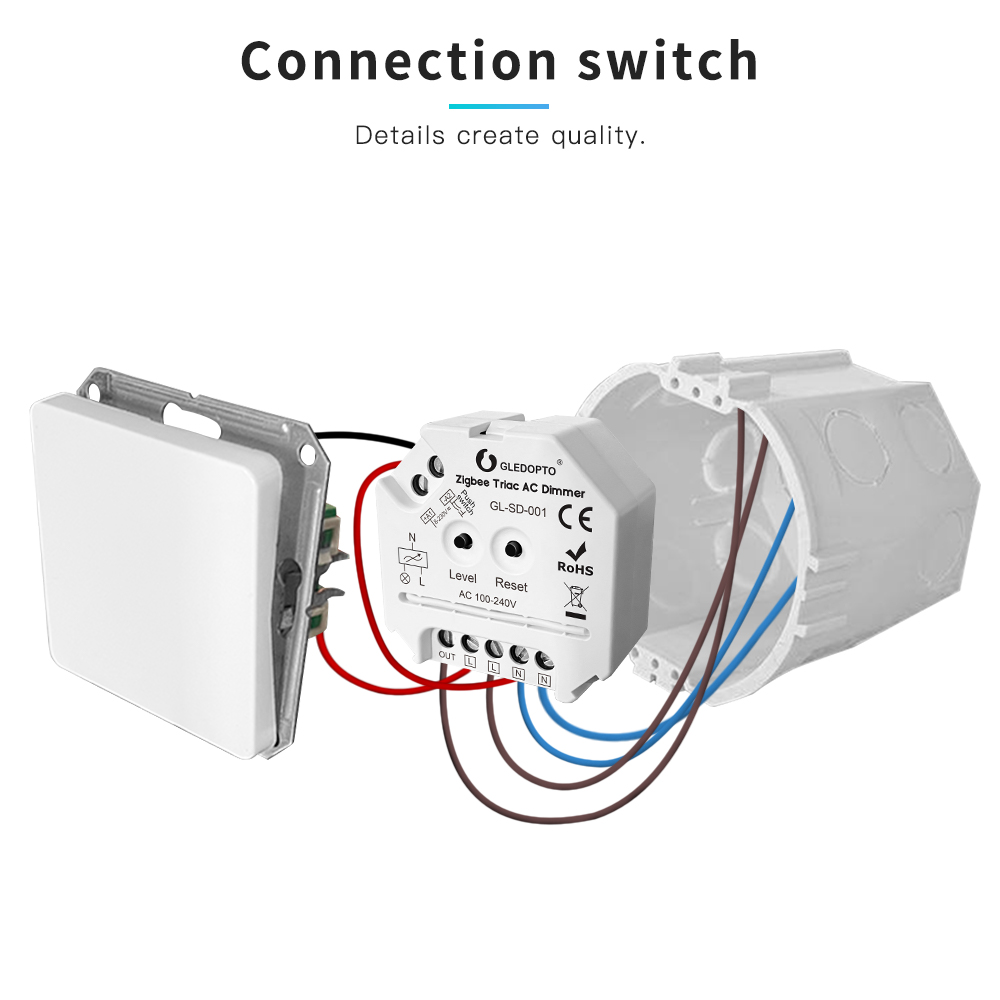

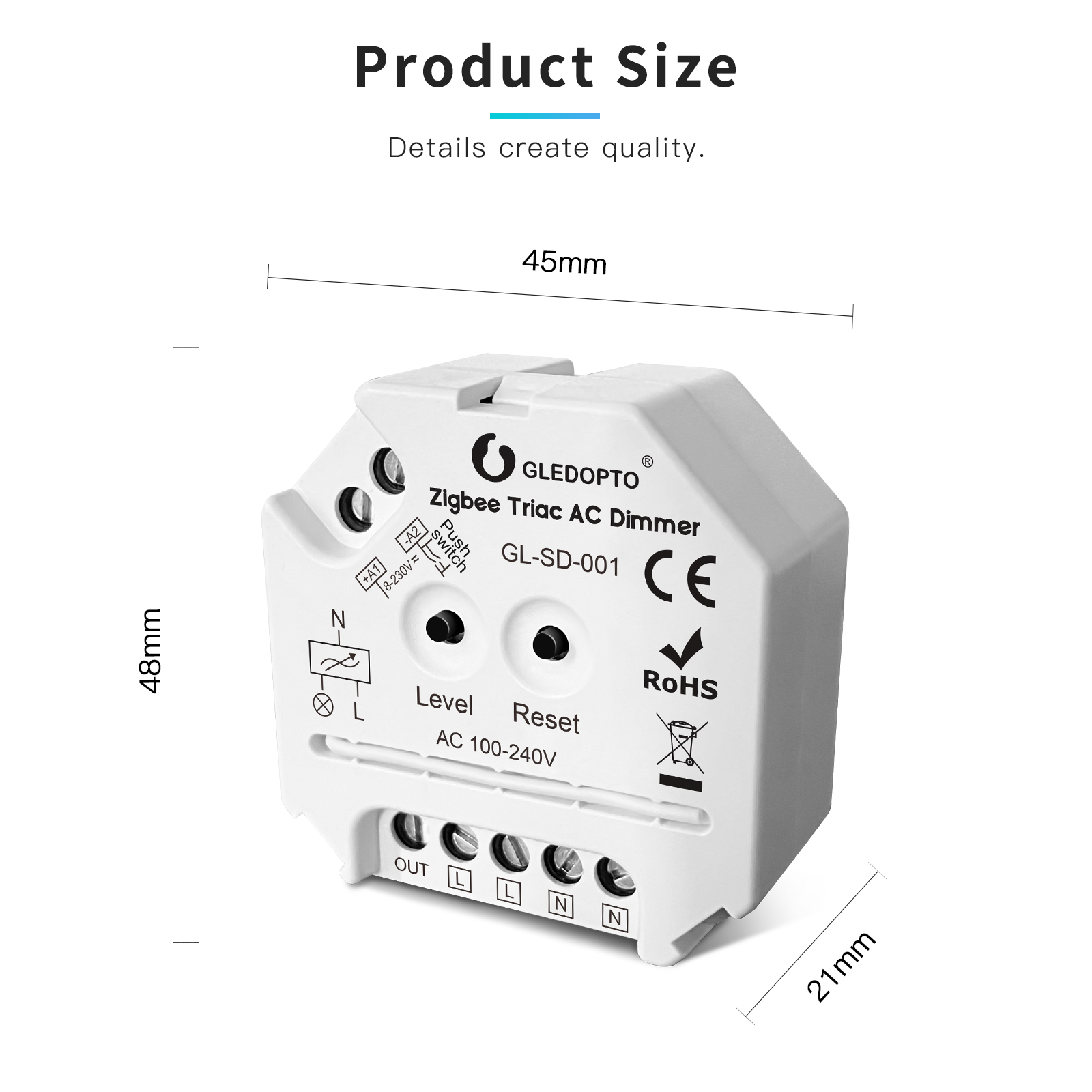

Mini Size, Easy to be Installed into A Standard 86* 86mm Wall Box.
Mini Size, Easy to be Installed into A Standard 86* 86mm Wall Box.

Name | Zigbee Triac AC Dimmer |
Type | One channel and maximum 400W output |
Function | switching and dimming the brightness of lights loaded. |
Dimmable | YES |
Input Voltage | 100-240V |
Output Current | 1.5 A Max |
Control methods | smart phone, voice, remote control. |
Protocol | 2.4GHz ZIGBEE3.0 + RF |


Multiple methods control

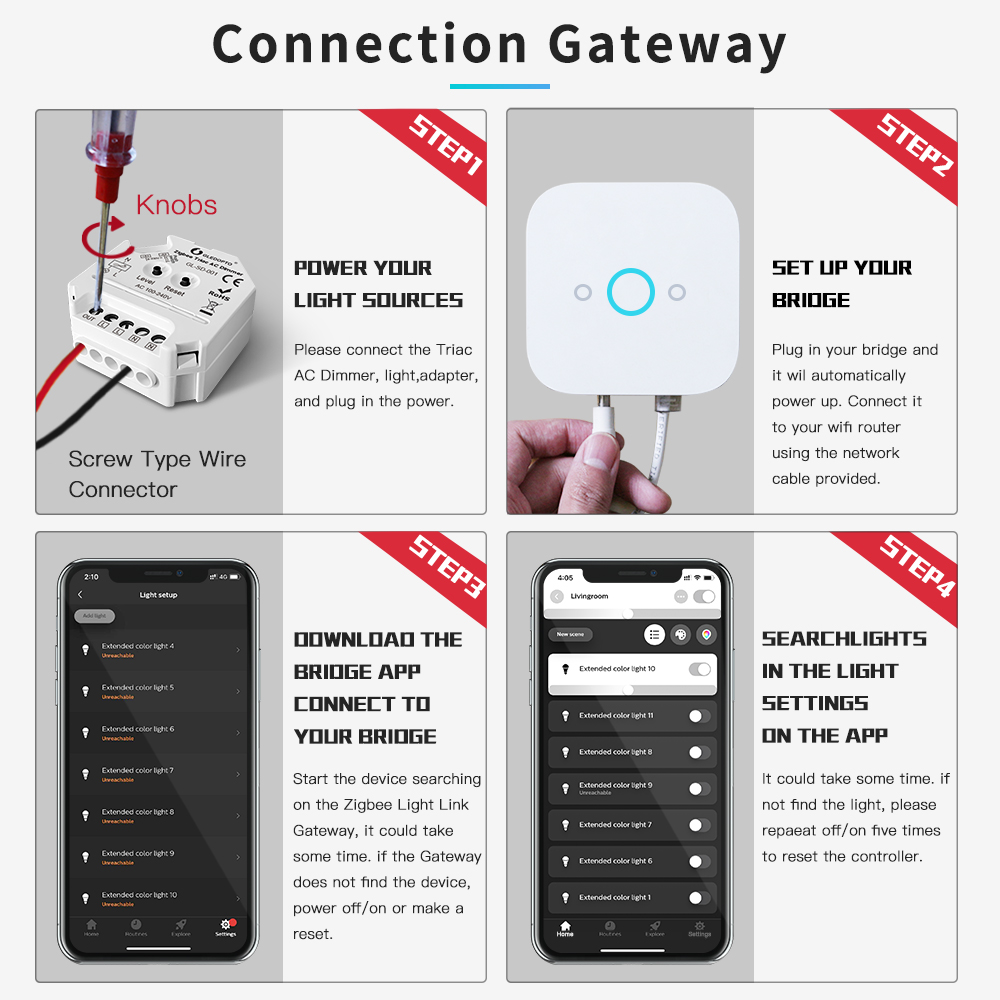

1.The AC dimmer compatible with universal ZigBee coordinator or gateway.
2.Touchlink Commissioning for paring with max. 30pcs ZIGBEE remote control.
3.Paring with Gledopto 2.4G RF remote control.
