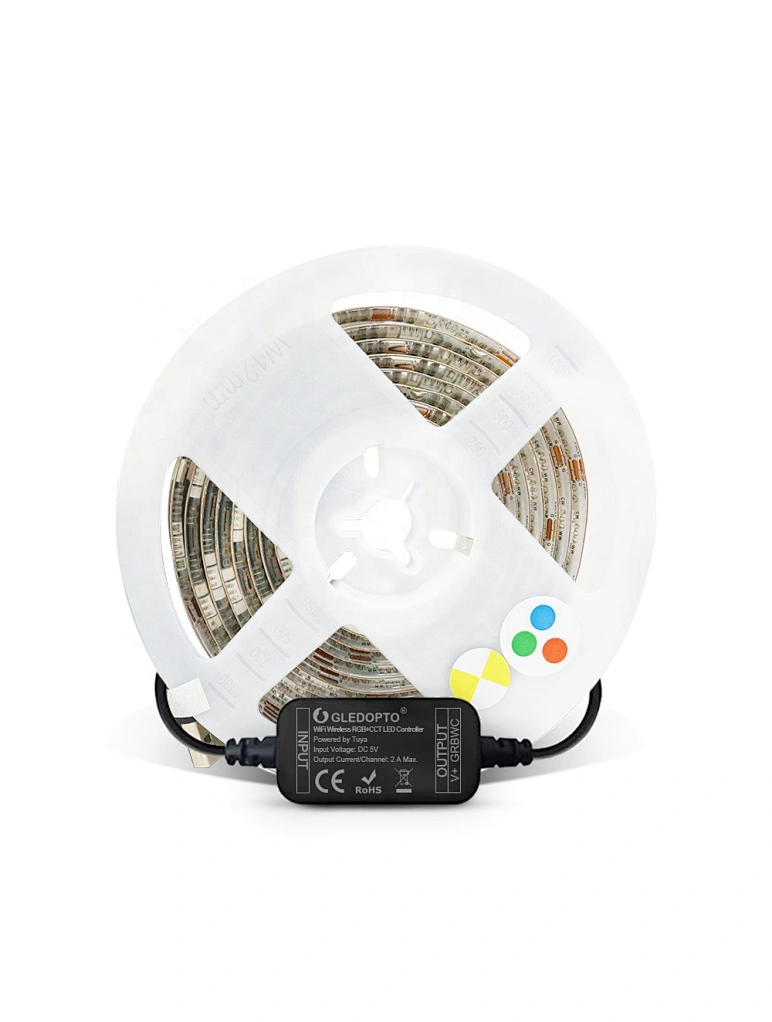

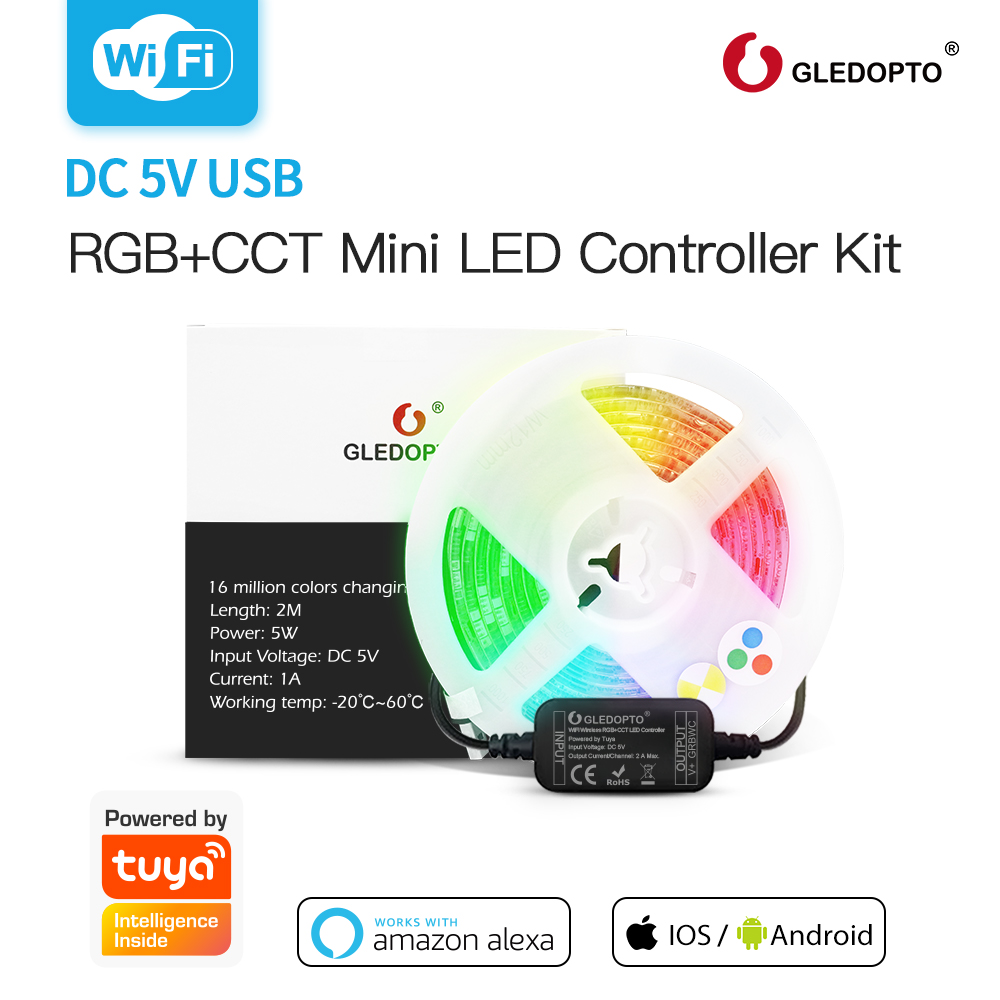

GL-MC-001W Gledopto IP20/65 Mini Size USB WiFi LED Strip Controller APP DIY Multiple Scenes Magic Home LED Controller RGBWW

GL-MC-001W Gledopto IP20/65 Mini Size USB WiFi LED Strip Controller APP DIY Multiple Scenes Magic Home LED Controller RGBWW
price

$13.79 - $15.79

GL-MC-001W-IP20
1 piece
Quantity
  • Warranty(Year):2-Year
  • Lighting solutions service:Smart Lighting Control Solution
  • Luminous Efficacy(lm/w):0
  • Product Weight(kg):0.15
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control
  • Max. Load Power:10W
  • Connection Mode:Wireless WiFi Connection
  • Lighting Color:RGB+CCT

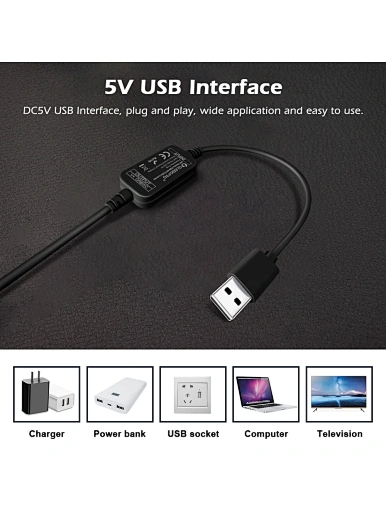

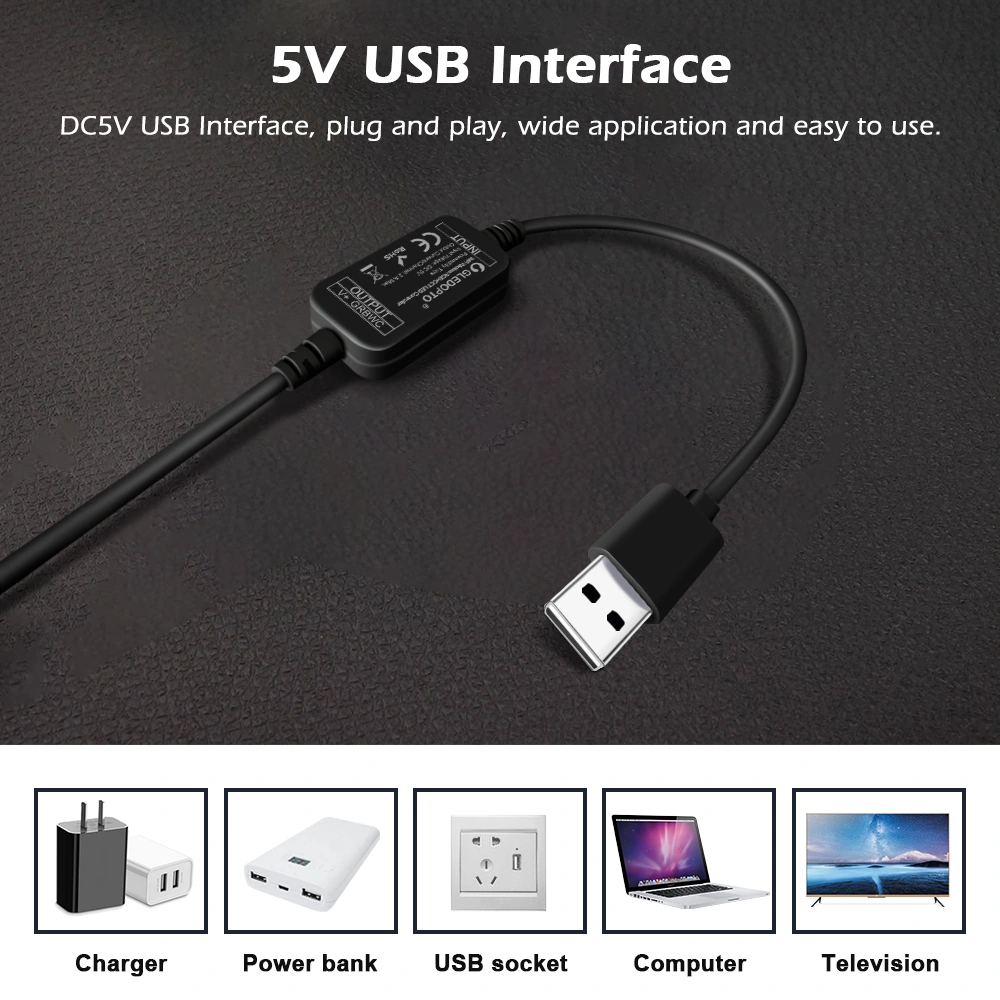

  • Input Voltage:5V DC
  • Max Current per Channel:2A
  • Max Power Loaded:10W
  • Controlling Protocol:Tuya WiFI
  • Remote Control Distance:≥30meter
  • Working Temperature:-20-60℃
  • Shell Material:ABS Material

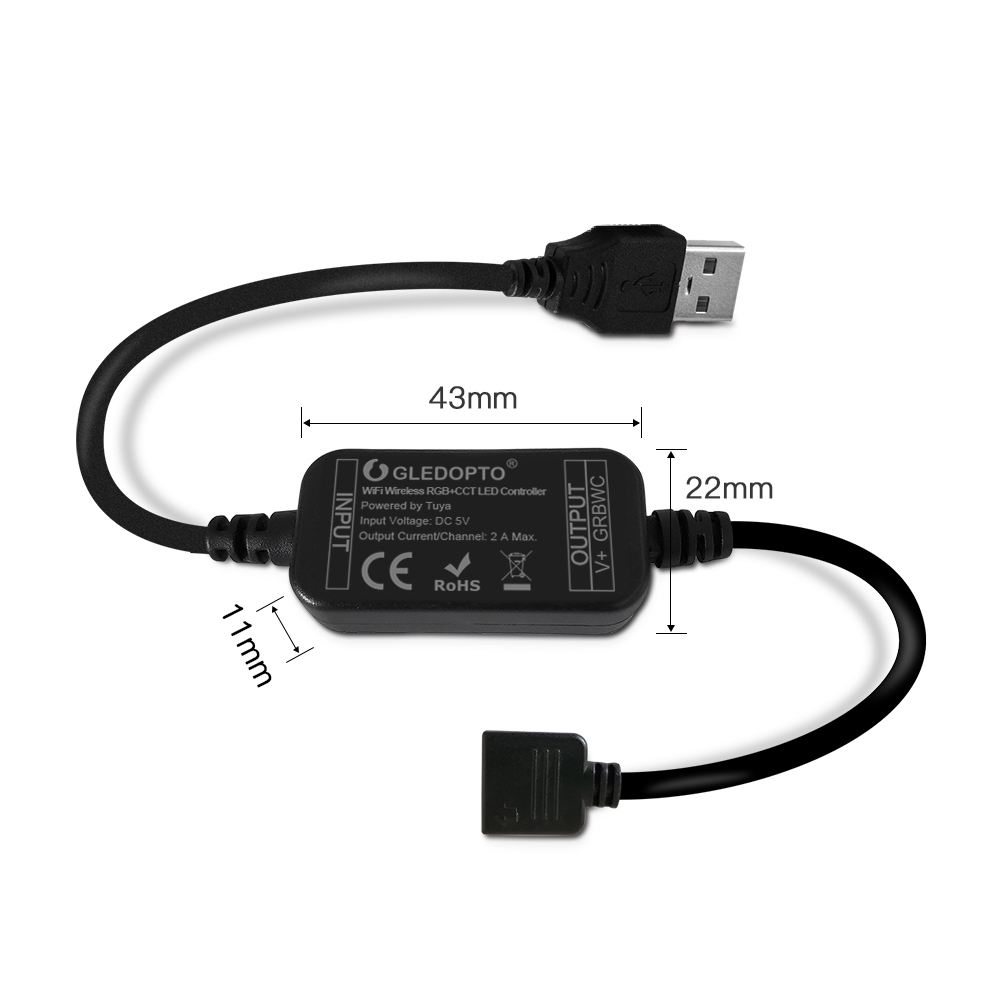

  • Size:L11*W22*H43mm
  • Warranty:2Year

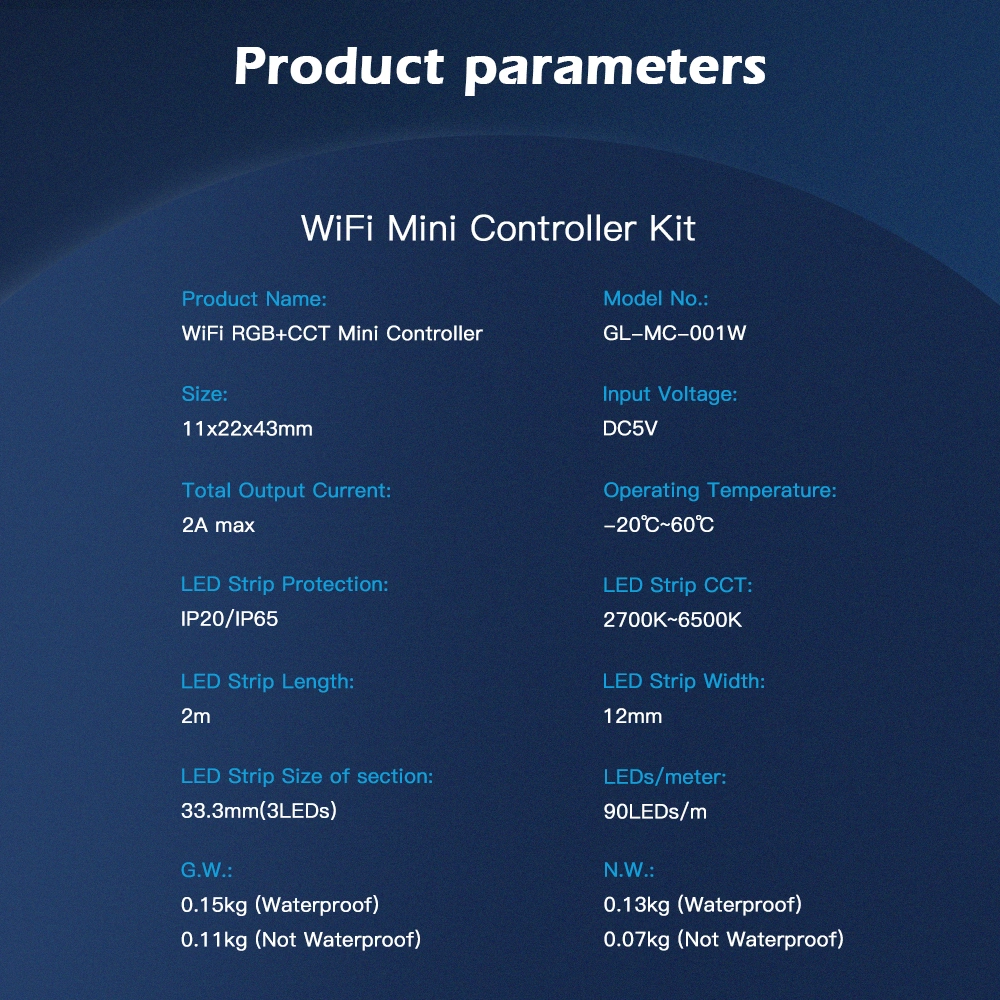

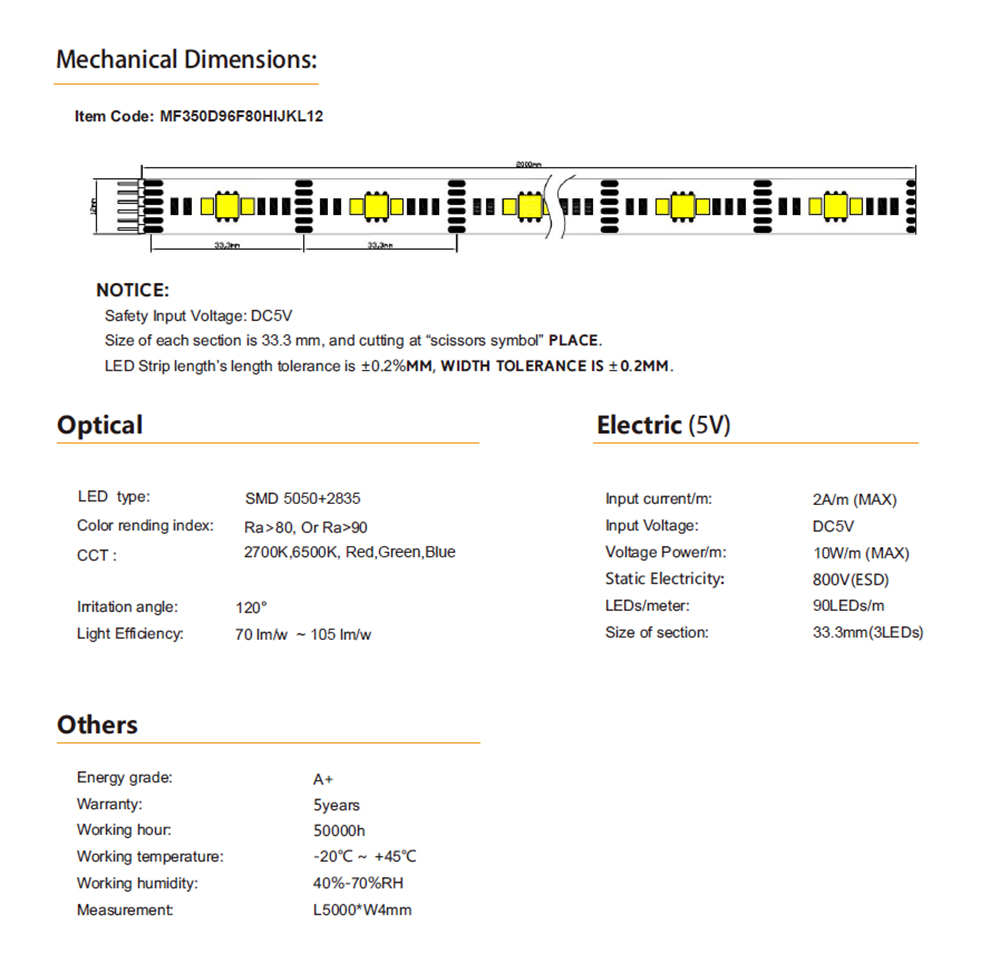

Product Paramenters
wifi led strip controller rgb cct
Main Specs of Gledopto WiFi LED Strip Controller Pro
Input Volt.
5V DC
Output Power
Total 10W max.
Common Anode
Yes
Control Tech.
WiFi powered by Tuya
Lighting Color
RGBW
Remote Distance
30Meter
Shelf Material
ABS
Working Temp.
-20°C~60°C

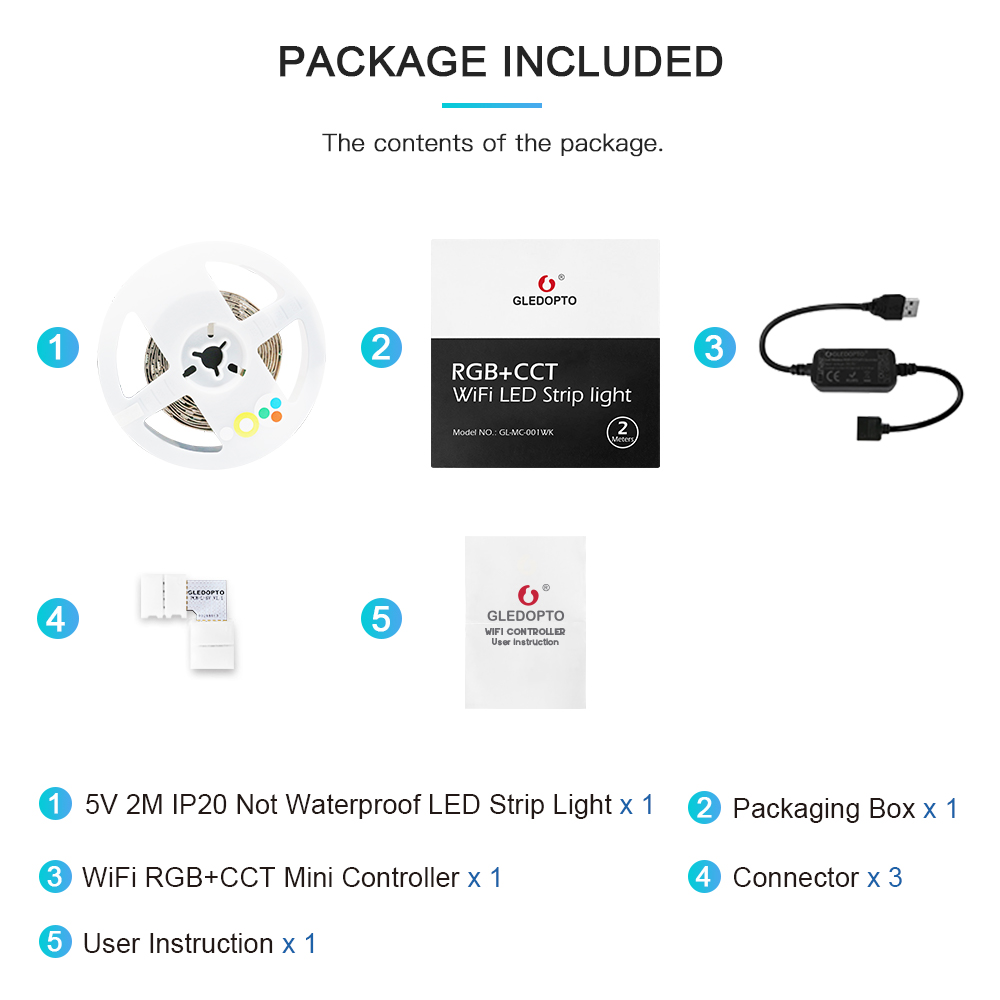

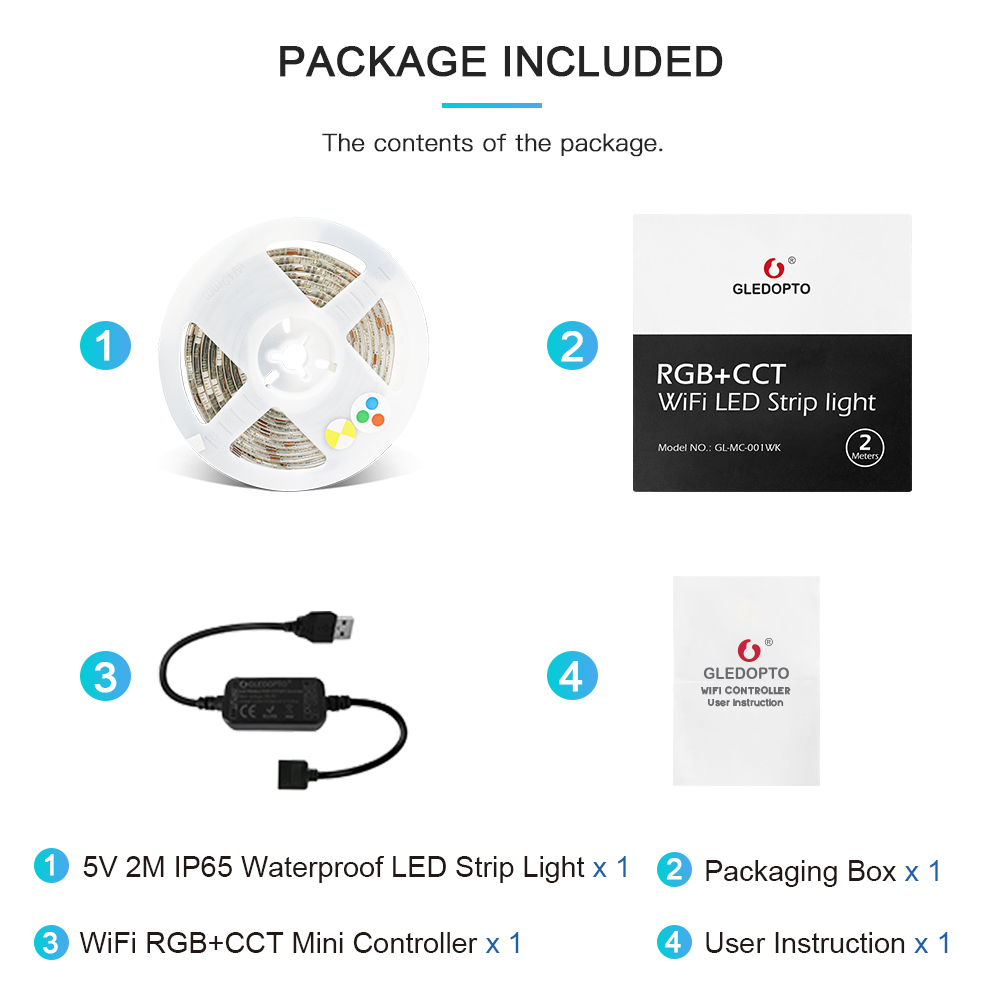

Product Description
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct

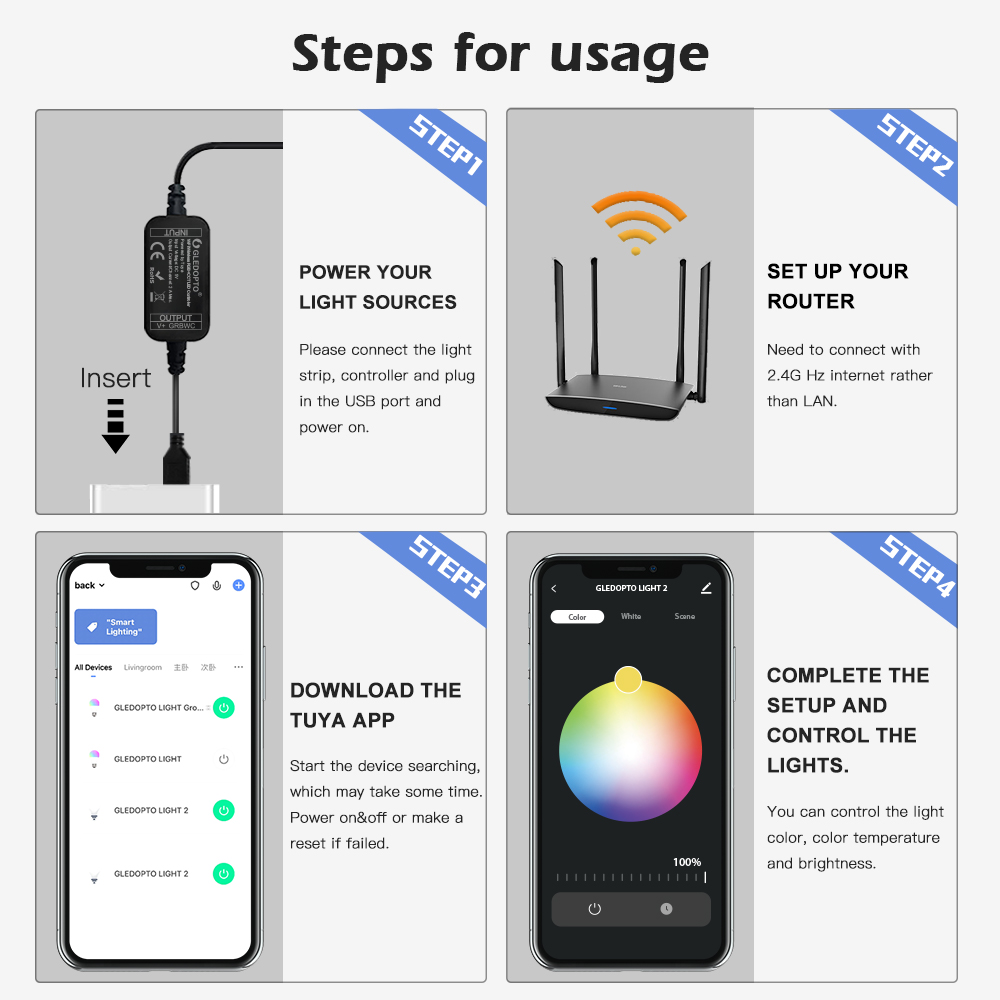

2.4G HZ WiFi Network Settings
wifi led strip controller rgb cct

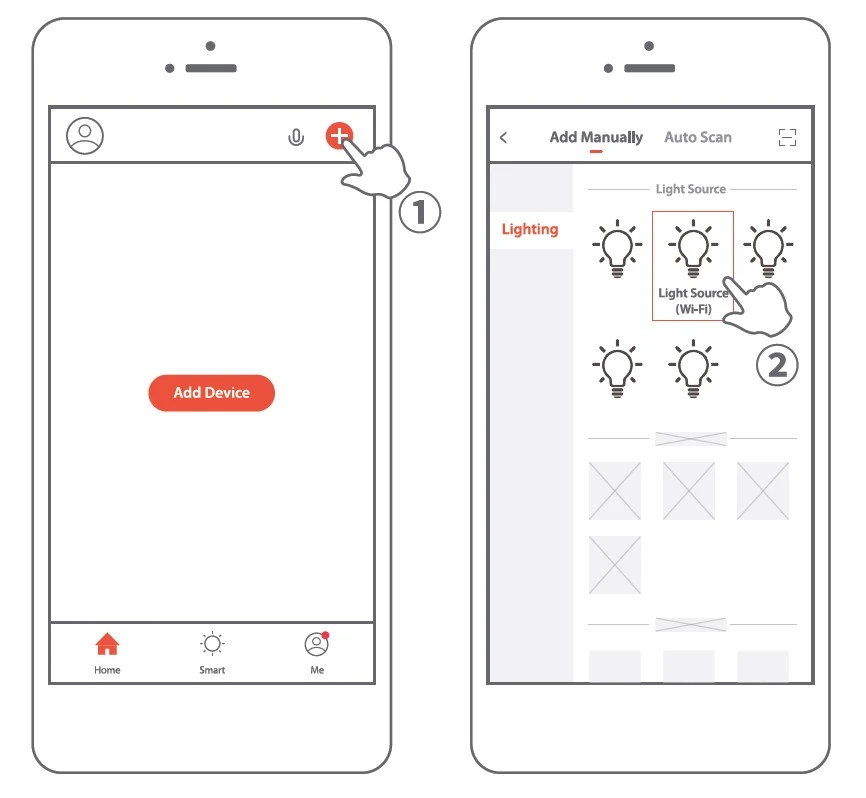

Pairing Your Mobile Phone with 2.4G HZ WiFi Network
1> Turn on"Smart Life"app on your mobile phone to manually add the WiFi device.

* Check if the device has been reset and the light strip is blinking quickly.
wifi led strip controller rgb cct
wifi led strip controller rgb cct

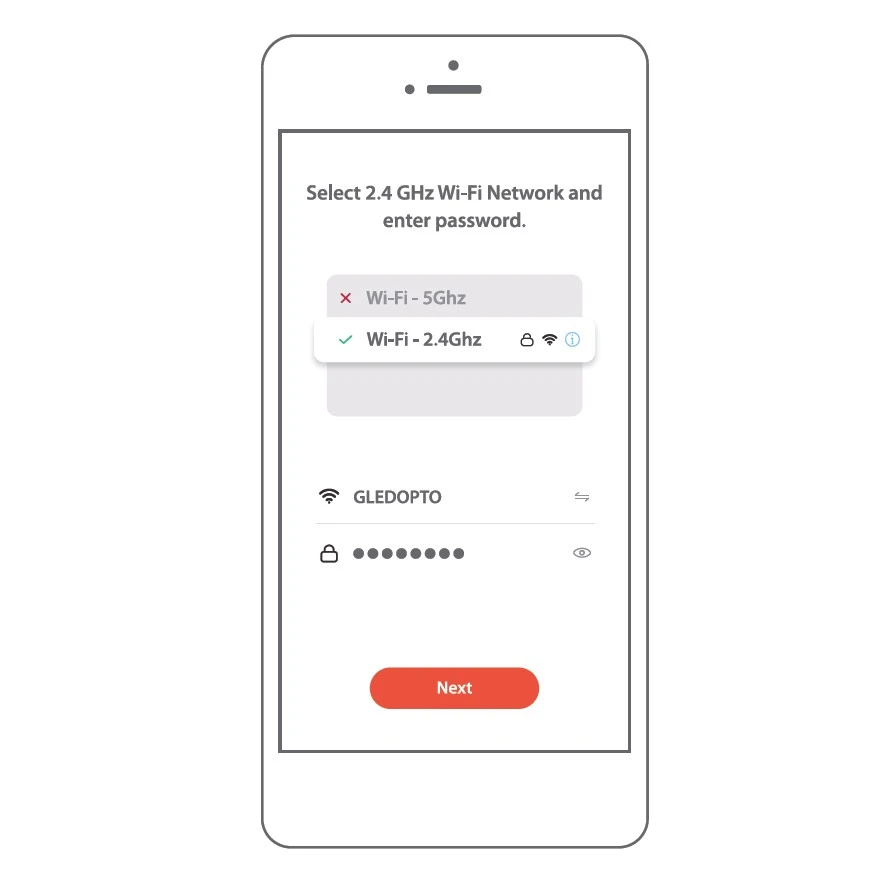

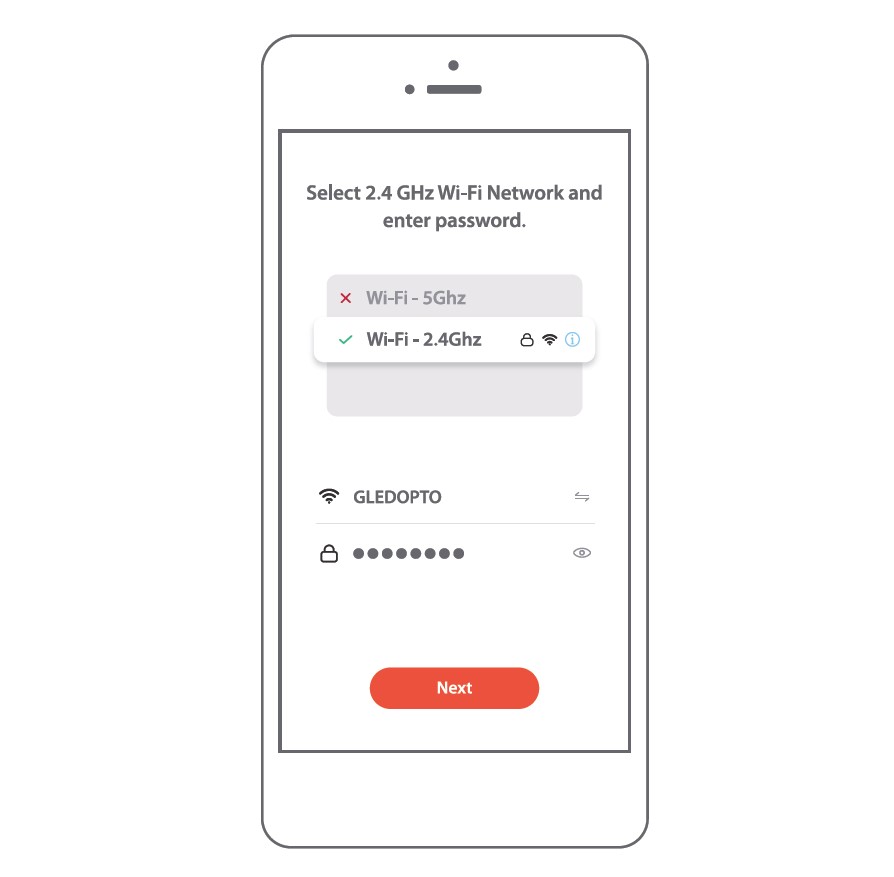

2> Enter the password to connect with the 2.4G HZ WiFi network of your router.
* Check if it is 2.4G HZ WiFi
3> Adding and searching the WiFi controller.

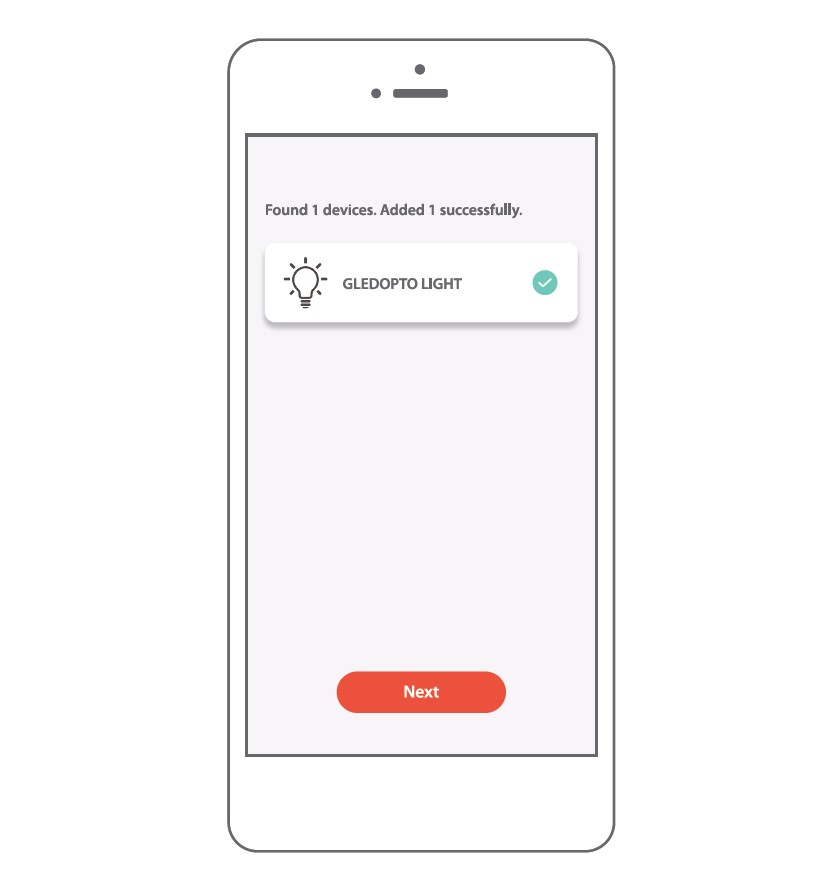

* If paring successfully, there will be"GLEDOPTO LIGHT"shown on the app.
wifi led strip controller rgb cct

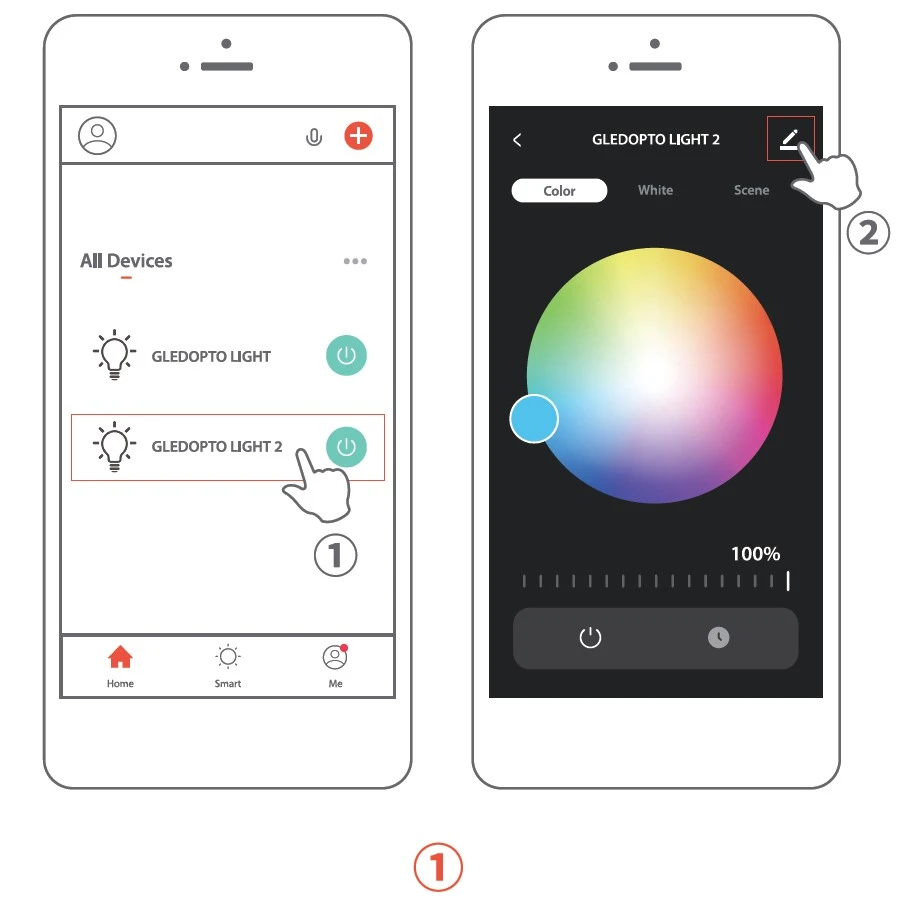

Group Controlling
wifi led strip controller rgb cct

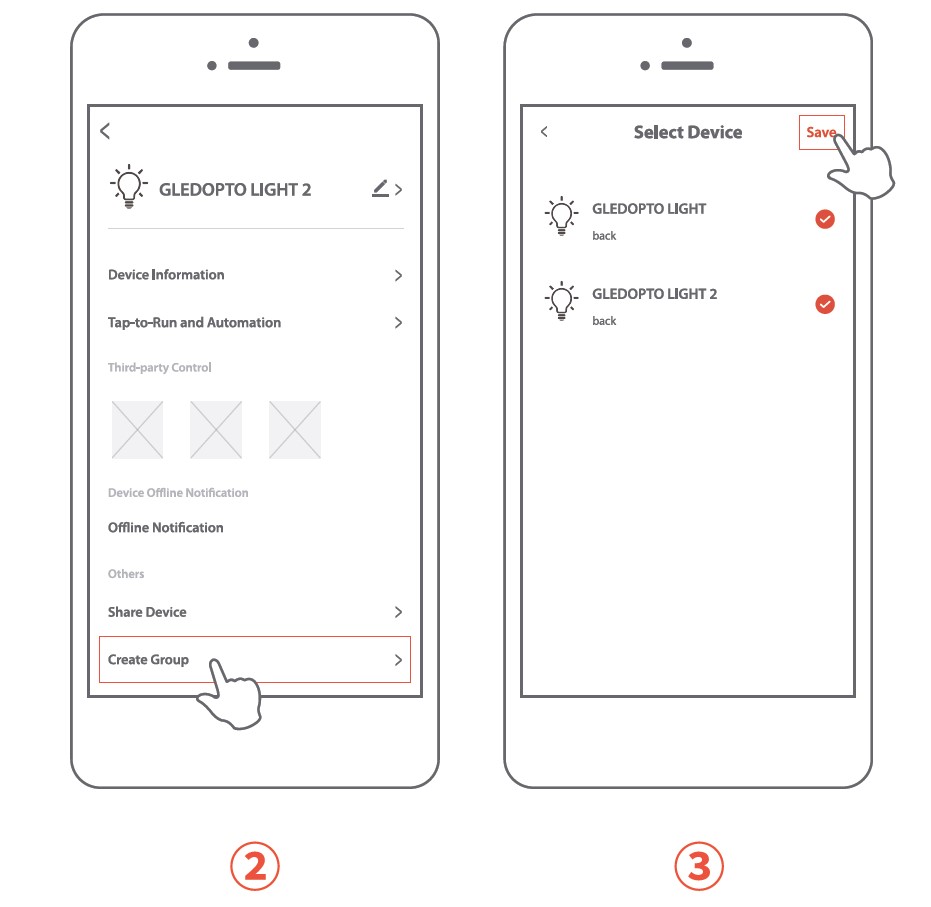

1> Click any device to enter the adjustment table, and select the top right corner icon to enter the edit table.
2> Click"Create Group"and select the device you want to add.

3> Click"Save", then edit a group name and tap"Confirm"to save the name.
wifi led strip controller rgb cct
Factory Reset
wifi led strip controller rgb cct

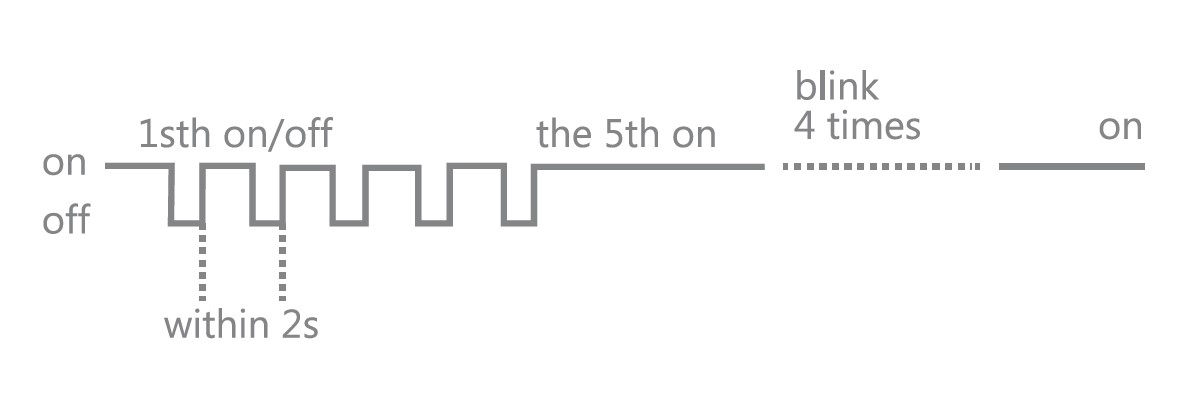

Method #1

Power off and on the device 5 times, the light should turn to be cold white and flashing slowly to indicate the Reset successfully.
wifi led strip controller rgb cct

Method #2

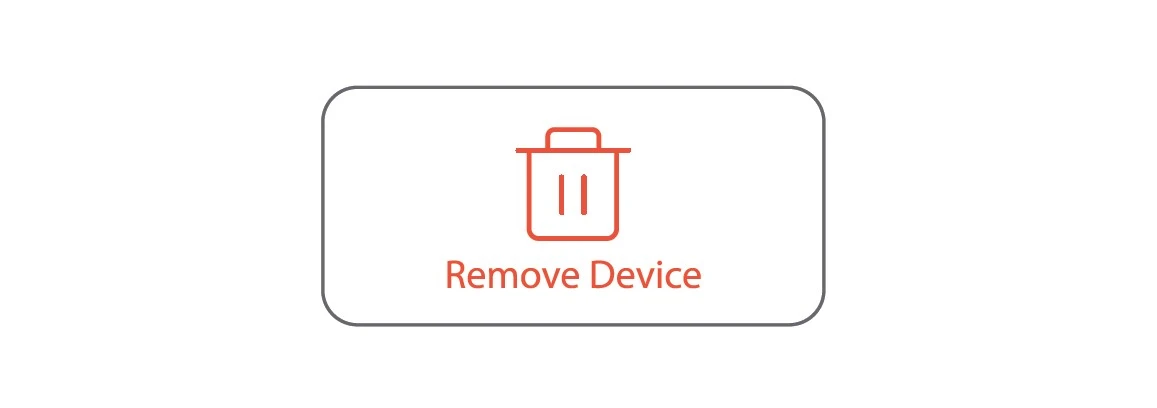

Delete the device on the app, the light should turn to be cor white and flashing slowly to indicate the Rest successfully.
Applications Cases
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
Related Products

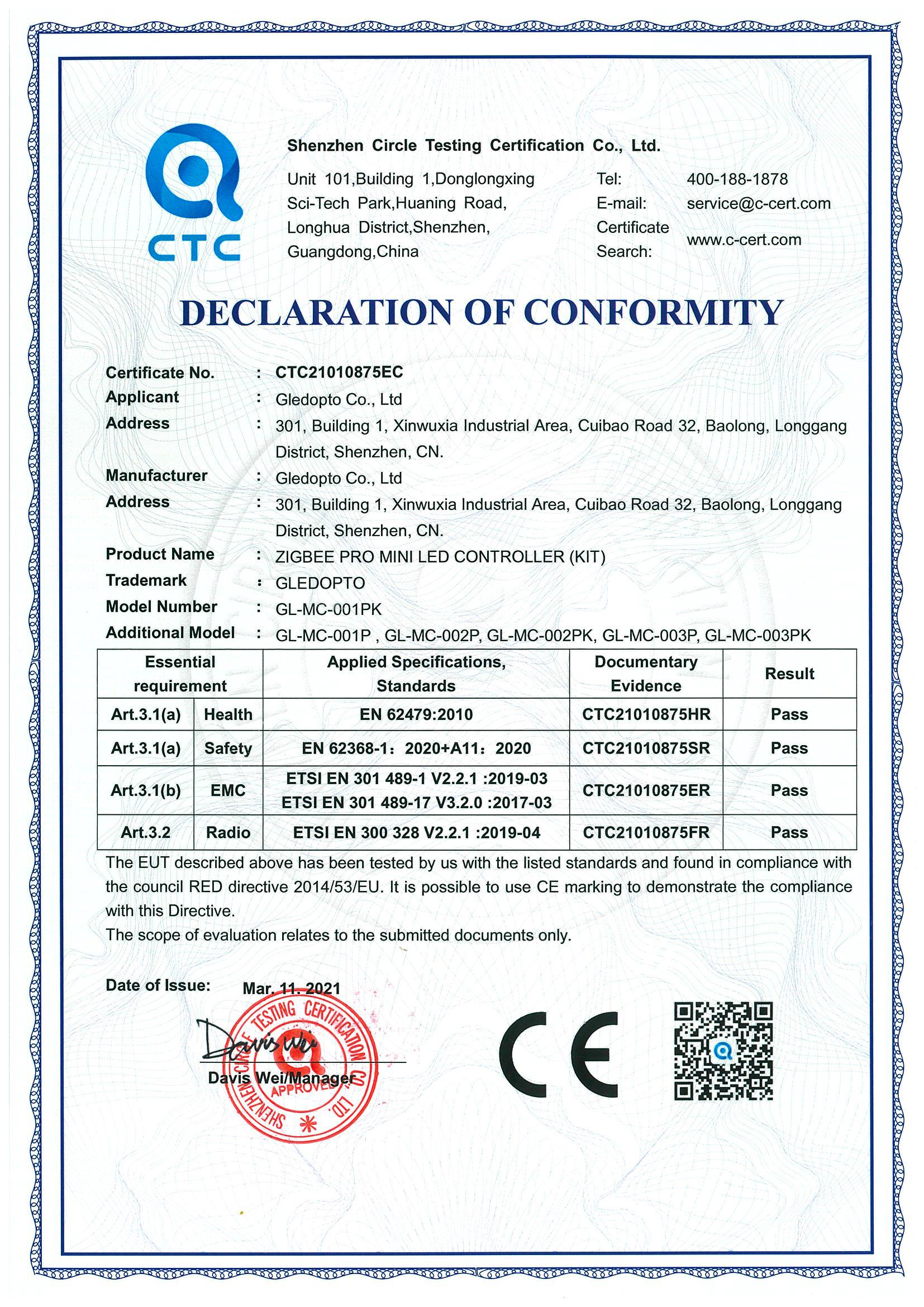

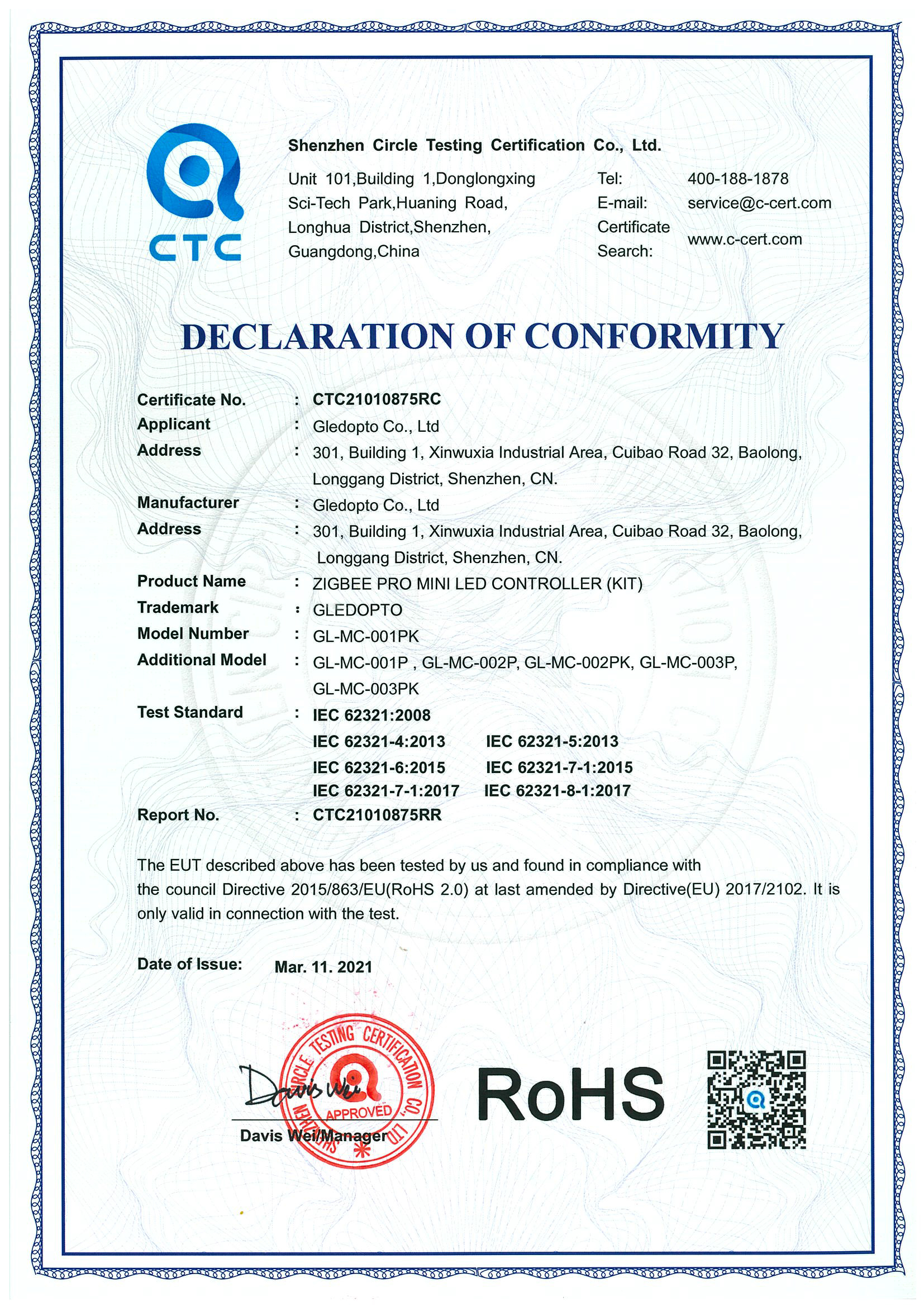

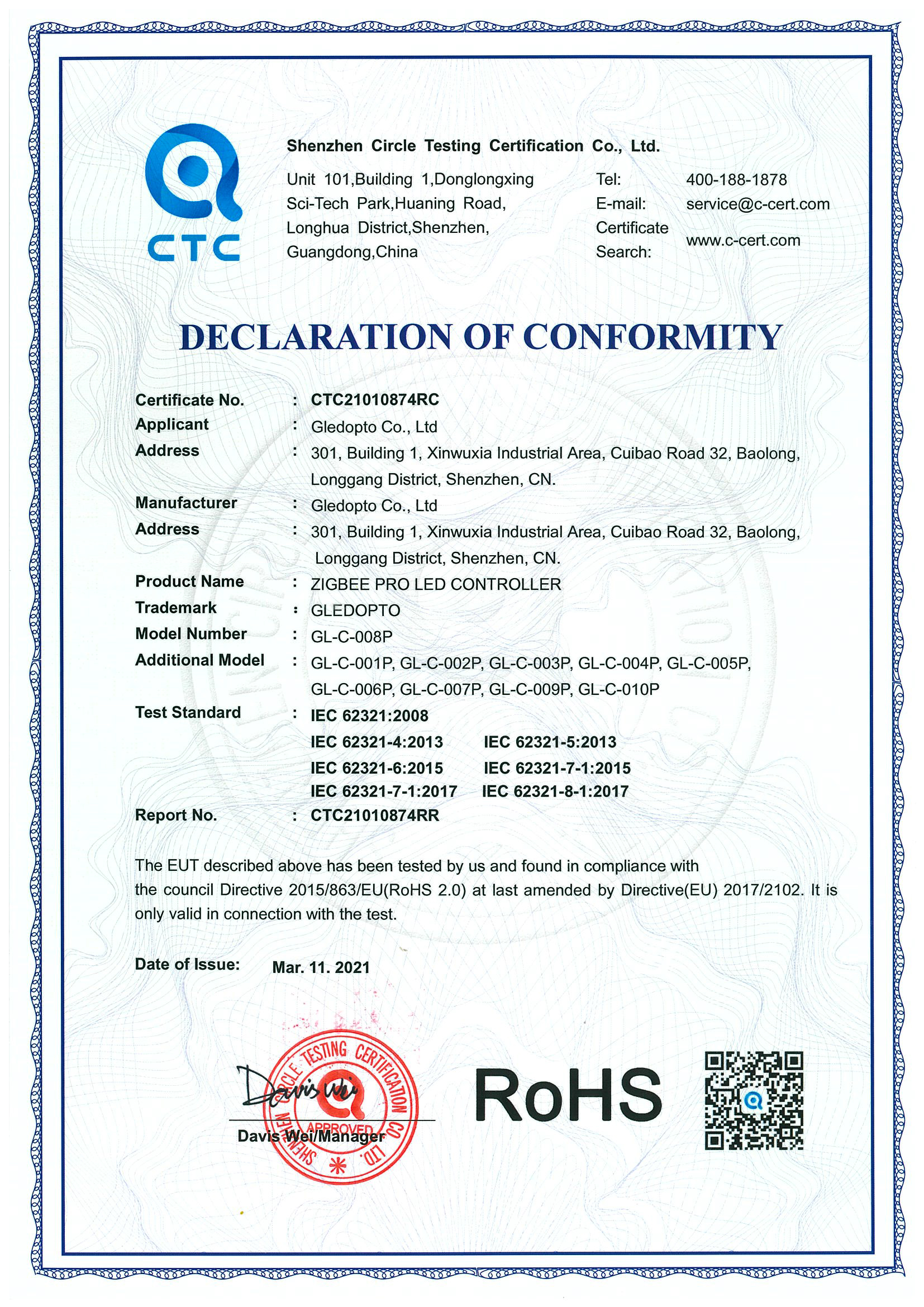

Certifications
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct
wifi led strip controller rgb cct

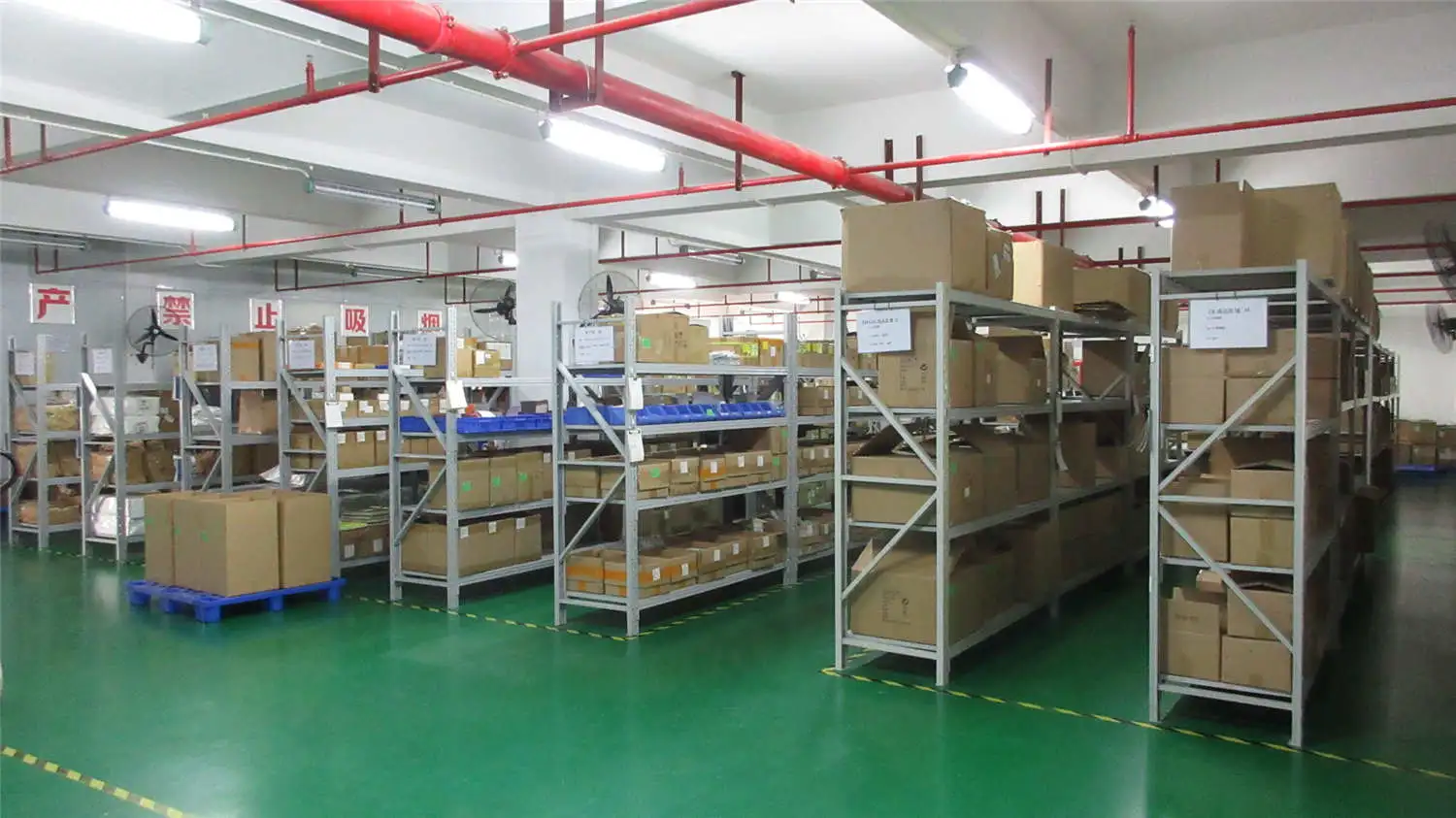

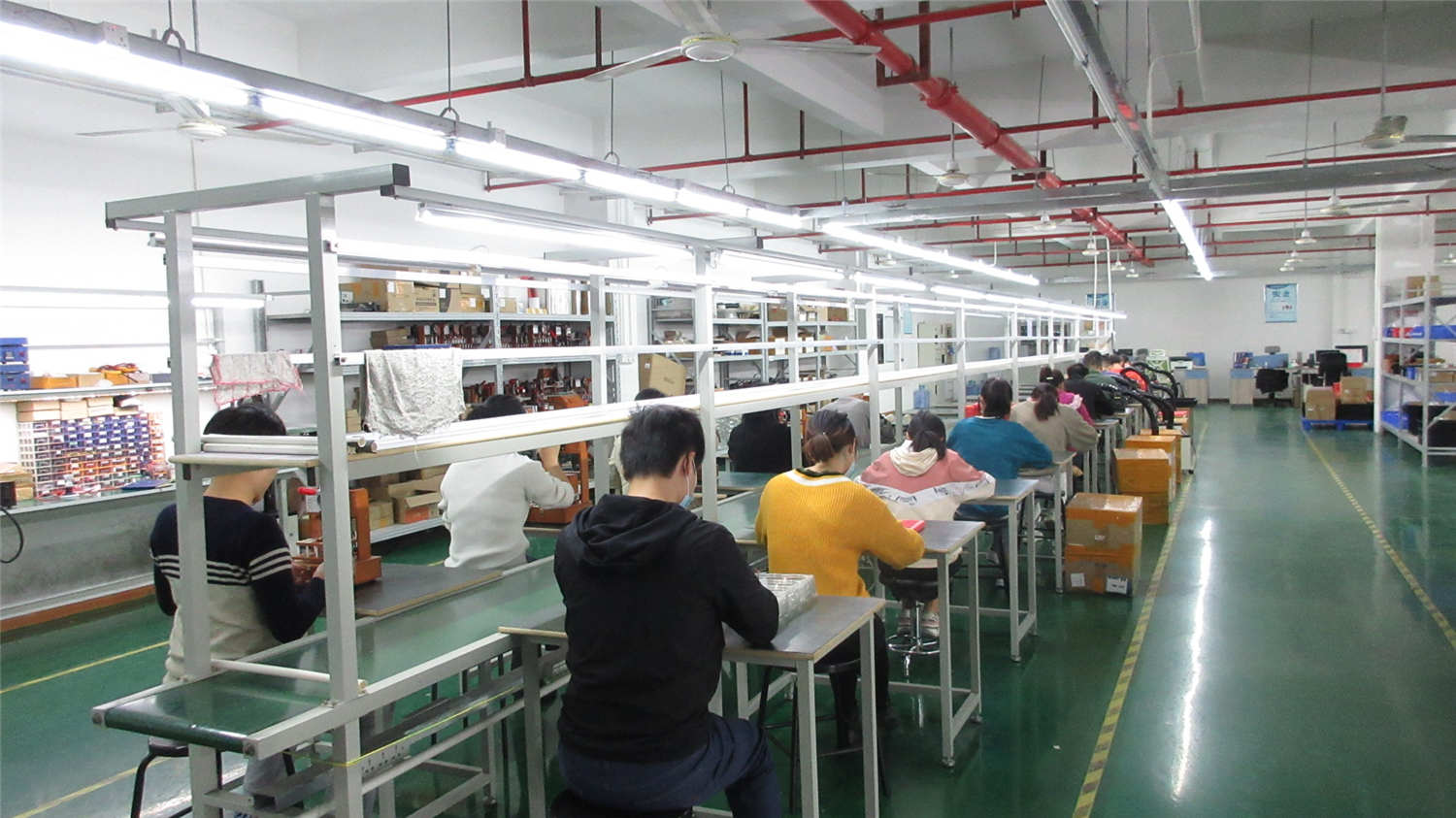

Company Information
