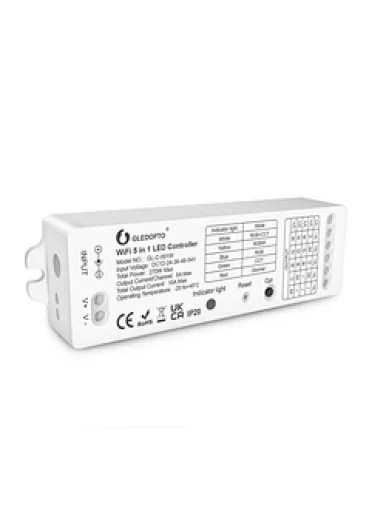

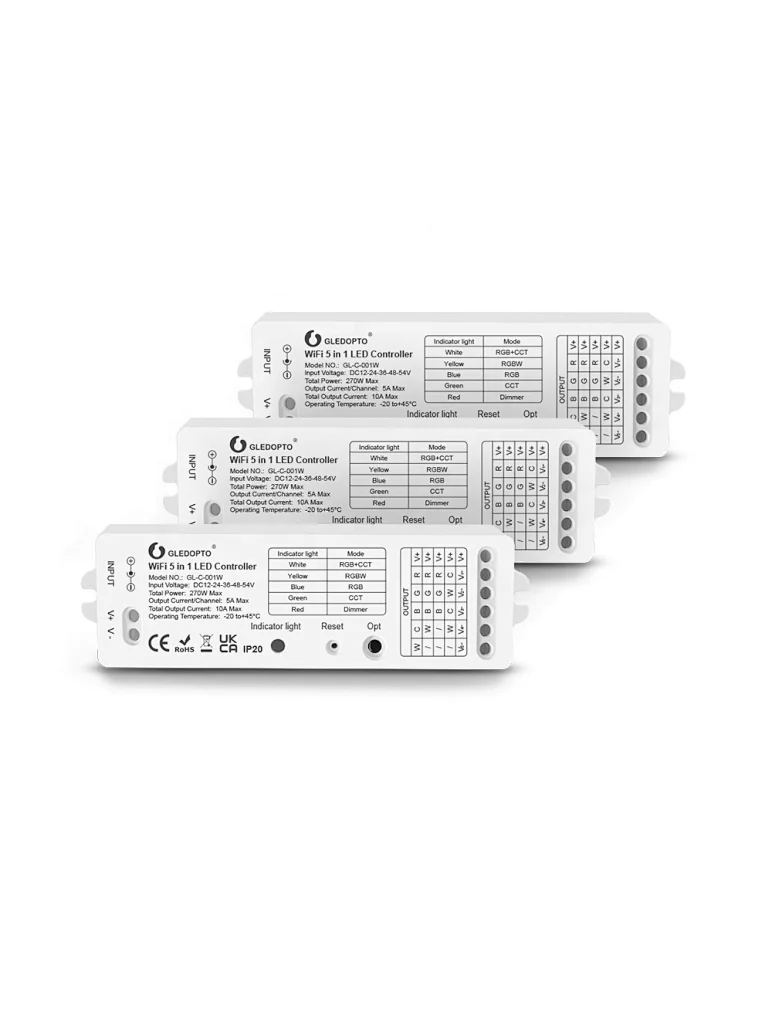

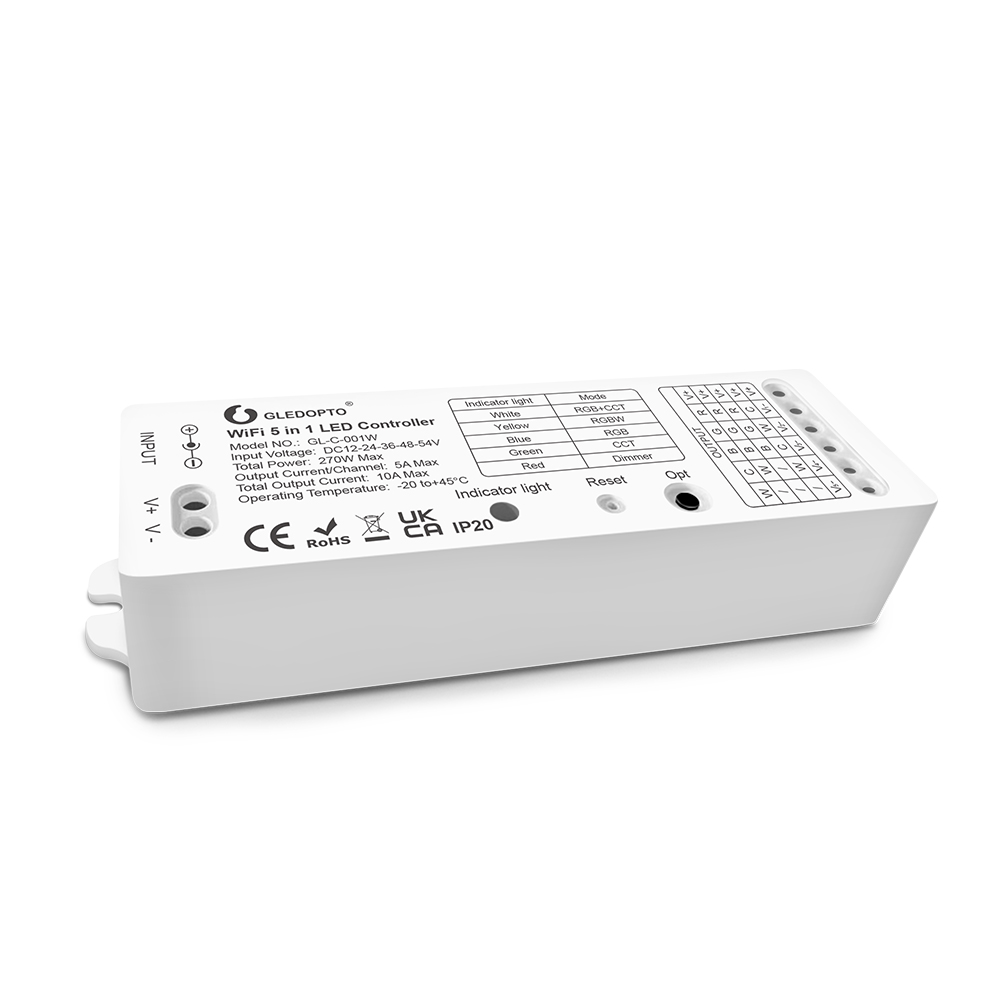

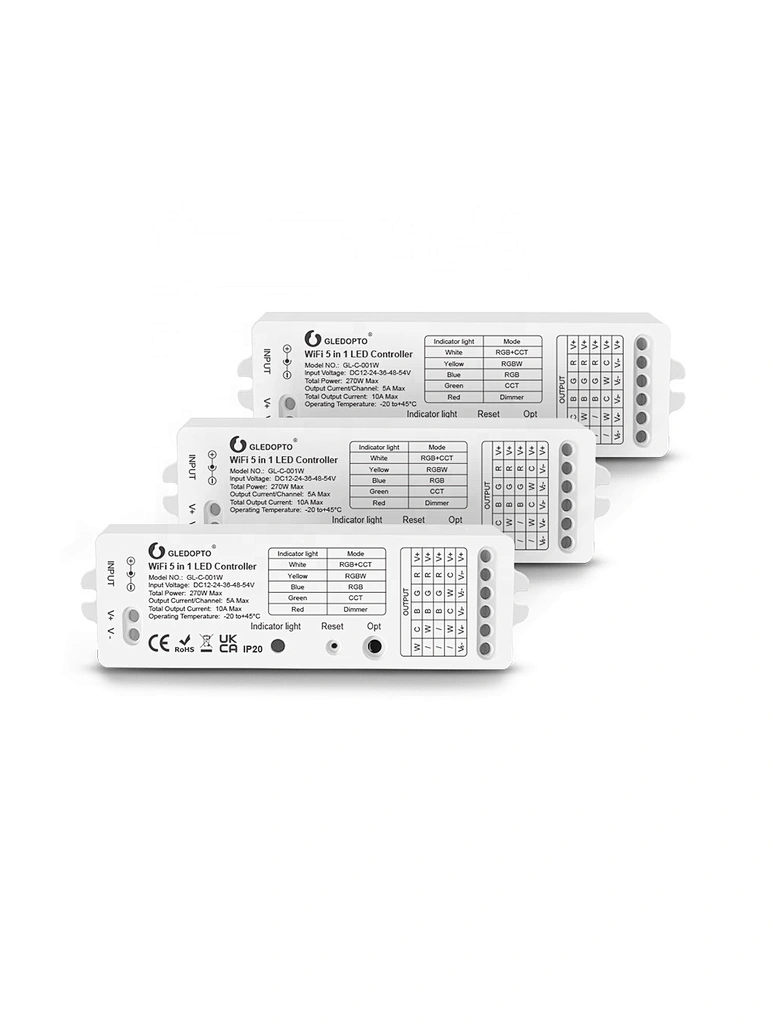

GL-C-001W Gledopto RGB RGBW RGBCCT CCT DIM 5IN1 WiFi LED Controller 12-54V DC Smart Life LED Controller RGBW Alexa LED Dimmer

GL-C-001W Gledopto RGB RGBW RGBCCT CCT DIM 5IN1 WiFi LED Controller 12-54V DC Smart Life LED Controller RGBW Alexa LED Dimmer
price

$9.80 - $19.99

GL-C-001W
1 piece
Quantity
  • Warranty(Year):2-Year
  • Lighting solutions service:Smart Lighting Control Solution
  • Luminous Efficacy(lm/w):0
  • Product Weight(kg):0.08
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control

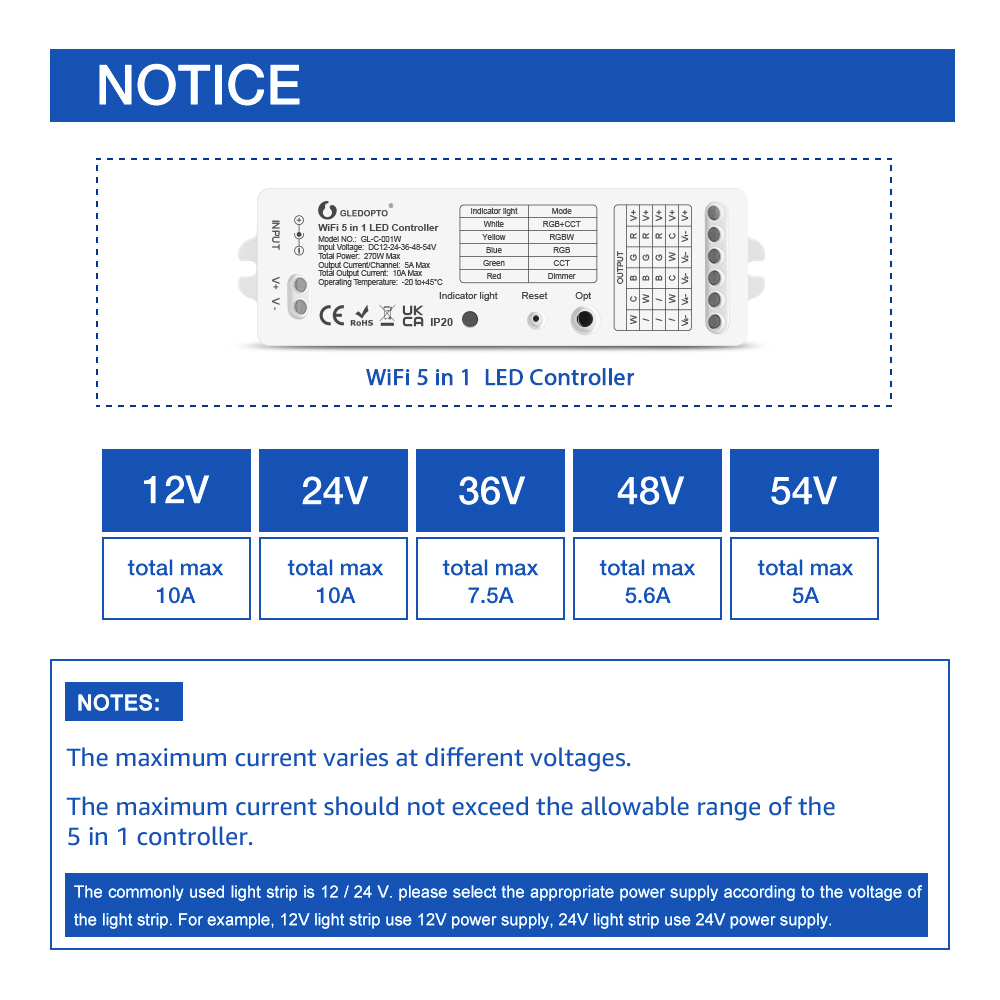

  • Max. Load Power:270W
  • Connection Mode:Press-to-insert

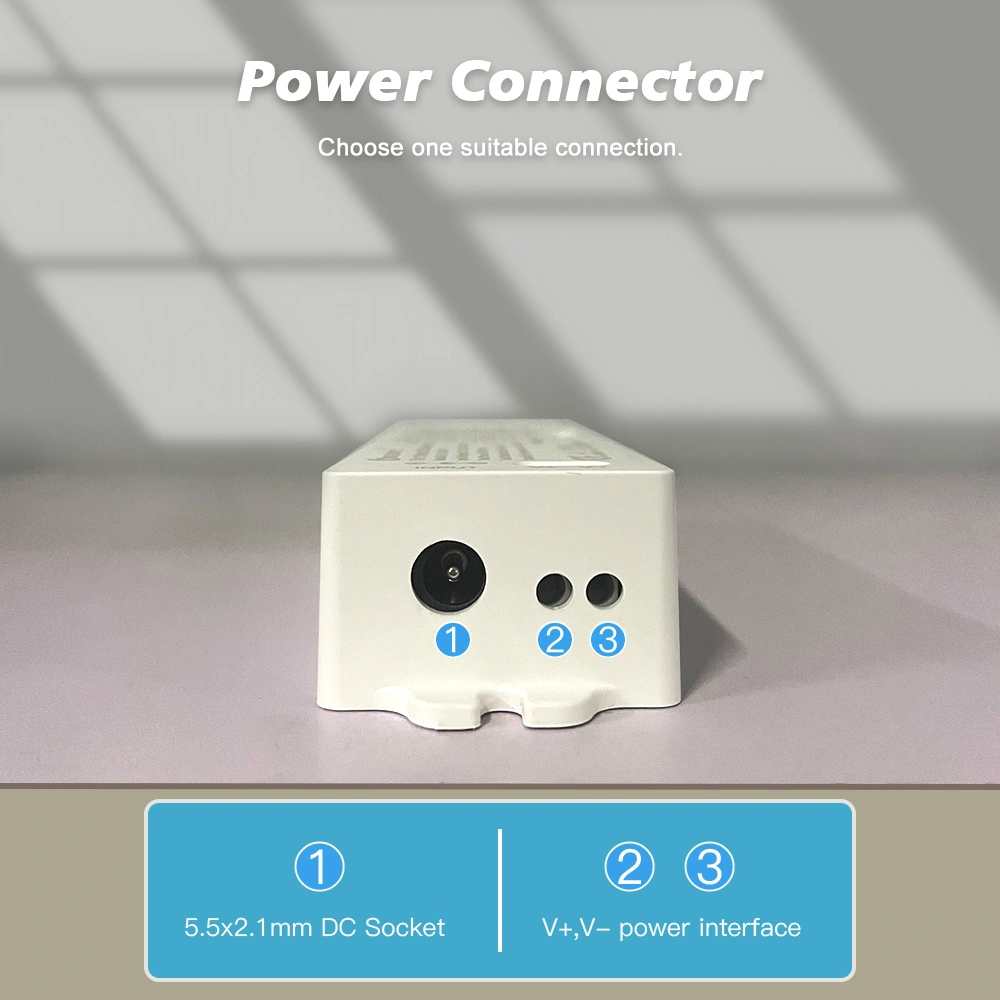

  • Input Voltage:DC 12-54V
  • Total Channels:5
  • Max Output Current per Channel:5A
  • Total Max Output Current:10A
  • Total Output Power:270W
  • Controlling Solution:WiFi + 2.4G RF Remote Control
  • Size:125*37*24mm
  • Net Weight:62g
  • Materials:Plastic
  • IP Rate:IP20

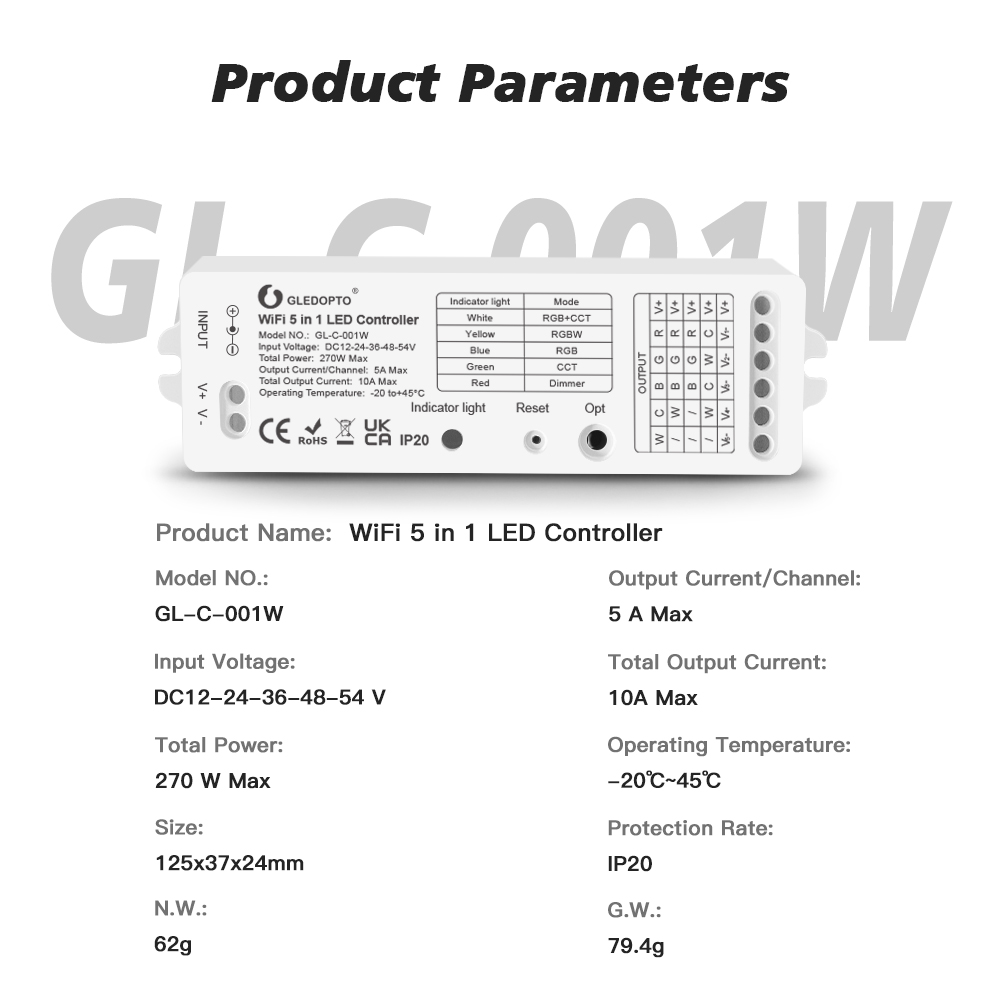

Product Paramenters
wifi led controller 5-in-1
Main Specs of Gledopto 5in1 WiFi LED Strip Controller

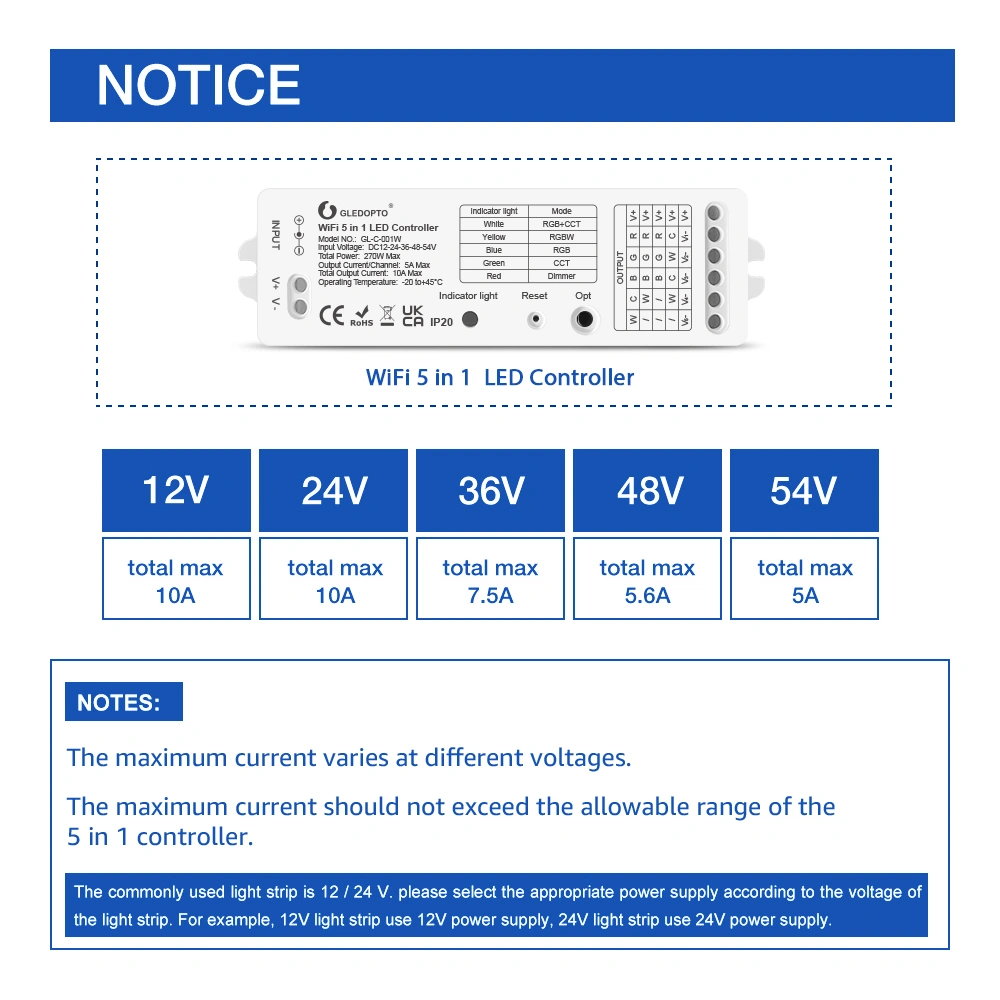

Input Volt.
12V ~ 54V DC
Output Power
Total 270W max.
Common Anode
Yes
Control Tech.
WiFi + 2.4G RF
Lighting Color
RGB/RGBW/RGBCCT/CCT/Dimer
Remote Distance
30Meter
Shelf Material
ABS
Working Temp.
-20°C~60°C
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1

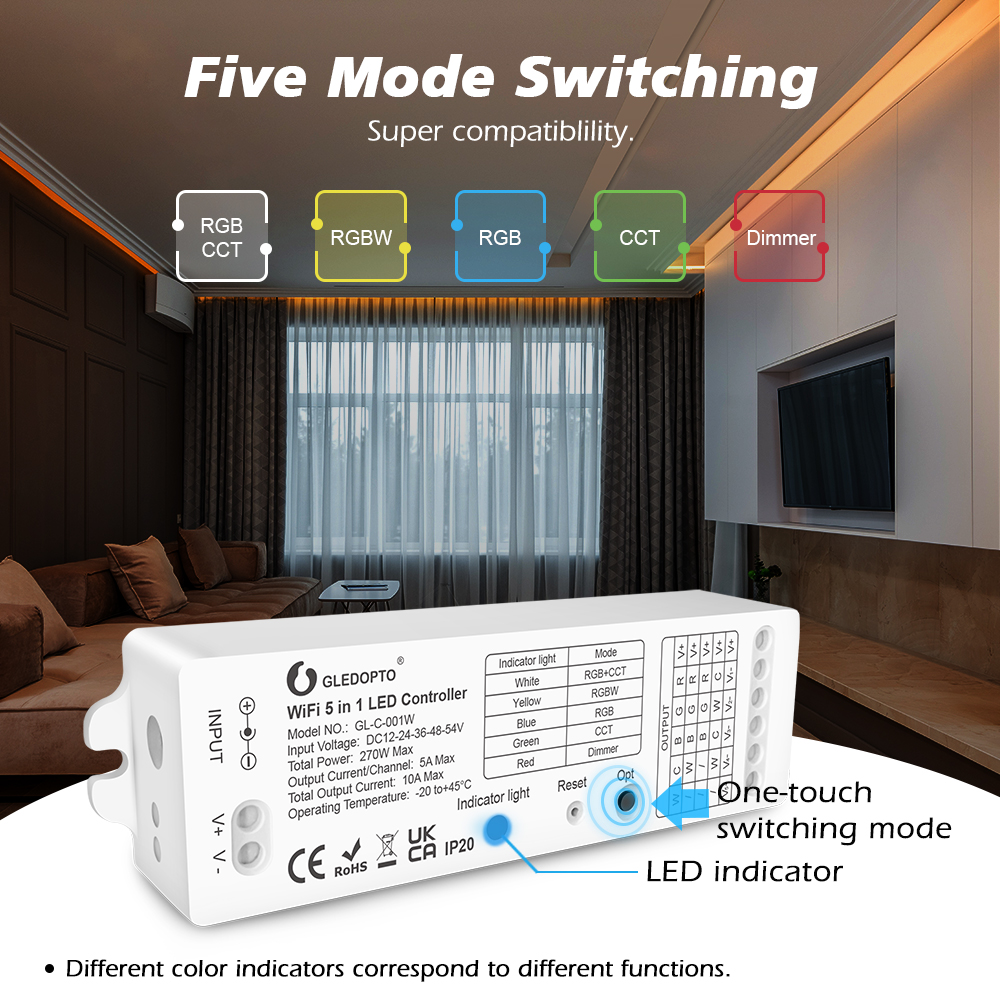

Key Features of Gledopto 5in1 Controller
wifi led controller 5-in-1

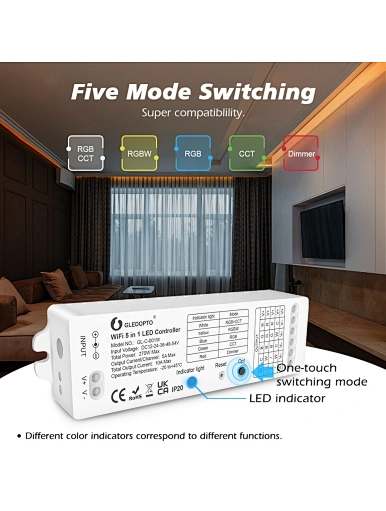

5-in-1 Smart WiFi LED Controller

1.LED Indicator:

Different indicator colors represent different functions.

2.Reset:

Short press once to switch PWM frequency;

Long press 2 seconds for system reset.

3.OPT:

Short press to switch modes; Long press to memorize if the light is under OFF status or not.

Note:

Short press the"OPT"key once (when switching the functions), the device will be disconnected to the network, and you will need to search the lights again.

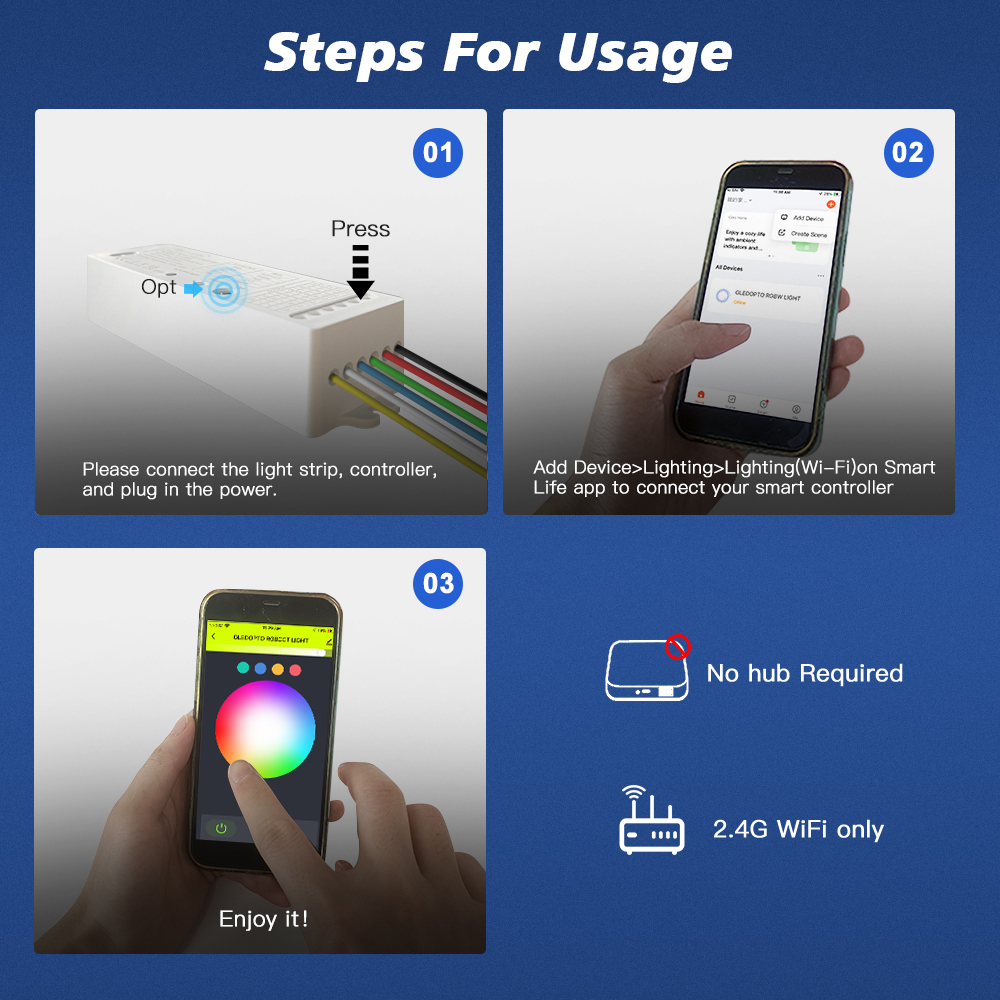

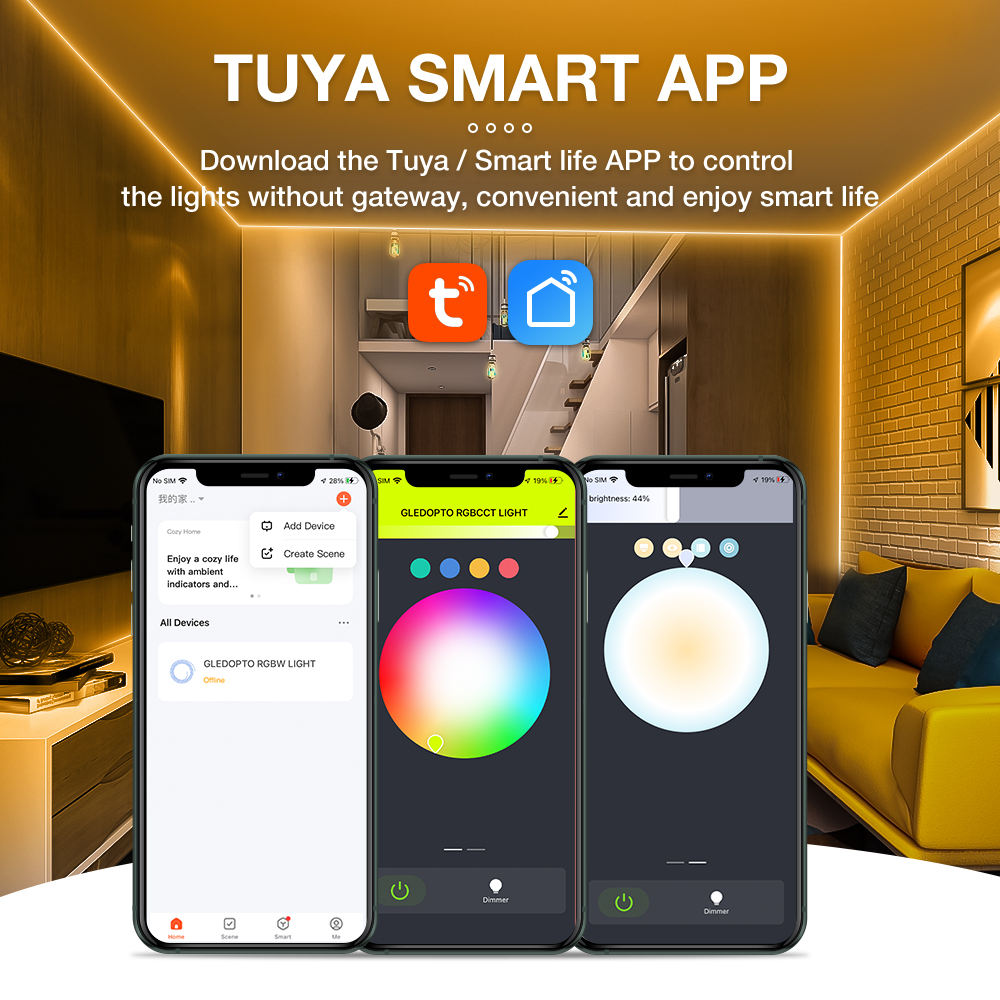

Pairing with your phone

Add the device to the WiFi network.

1> Please make sure the device not being paired. Otherwise, please"Reset"the device according to the method of"Reset".

2> After step 1, there will be a pairing process about 90s. The indicator light will blink slowly.

3> Open the Tuya App to add the device.

4>If the pairing done successfully after the above steps, the indicator light will stop flashing and the strip light will turn into Green color (cool white).

wifi led controller 5-in-1
wifi led controller 5-in-1

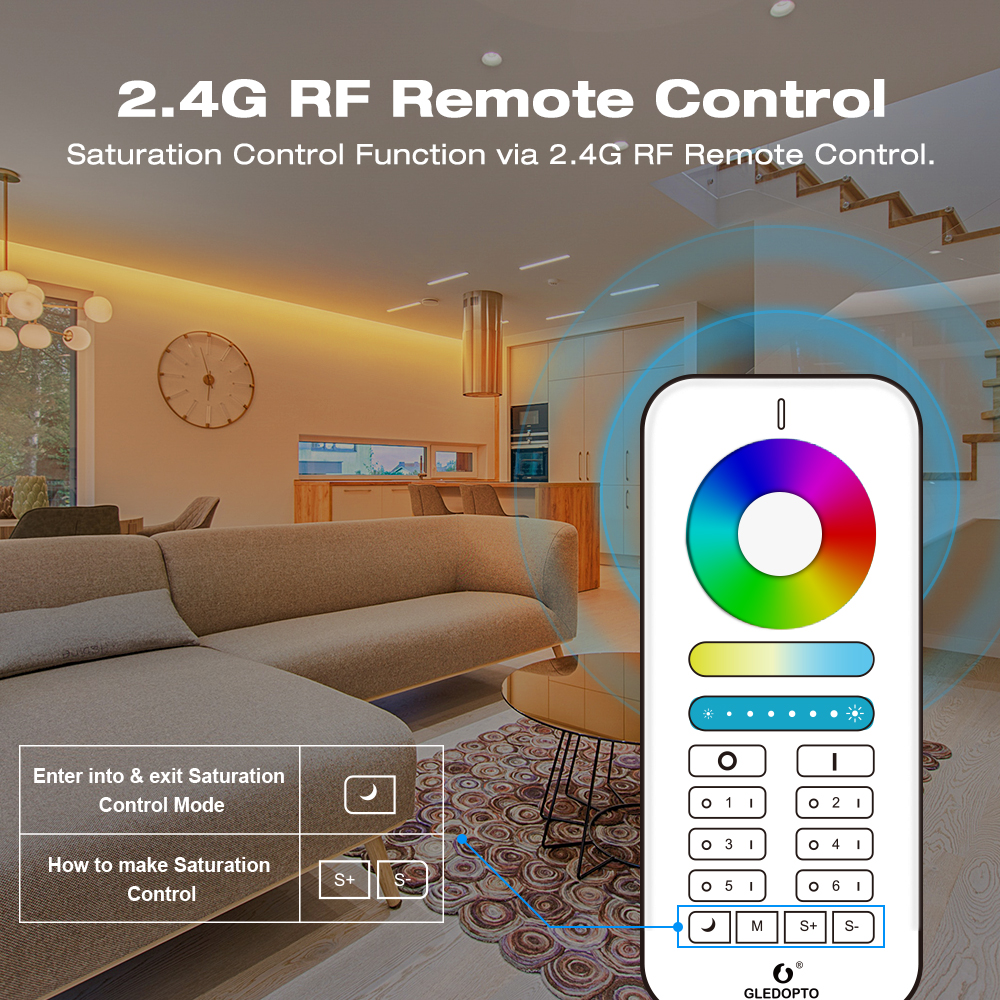

Pairing with 2.4G HZ RF Remote Control/Touch Panel

1>The pairing will be timeout after 4 seconds when the device powered on.



2>The pairing will be done successfully by pressing any zone “I” key of the 2.4G RF Remote or touch panel.
3>The strip light connected with the device will blink 3 times.
wifi led controller 5-in-1

Unpairing the WiFi Network

Method 1> Delete the device on the App directly, the indicator light will start flashing after a period of time.

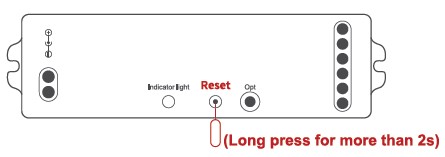

Method 2> Long press key"Reset"for more than 2 seconds to unpair the network, the device will blink 2 times.
wifi led controller 5-in-1

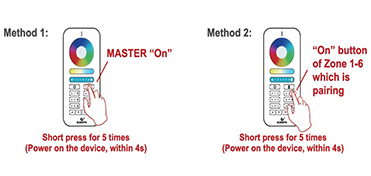

Unpairing the 2.4G HZ RF Network

1> Short press"Master"key within 4s for 5 times, the device will blink 3 times.
2> Short press continuously 5 times the zone"on"key the device being paired within 4s after the device powered on, the device
will blink 3 times.
wifi led controller 5-in-1

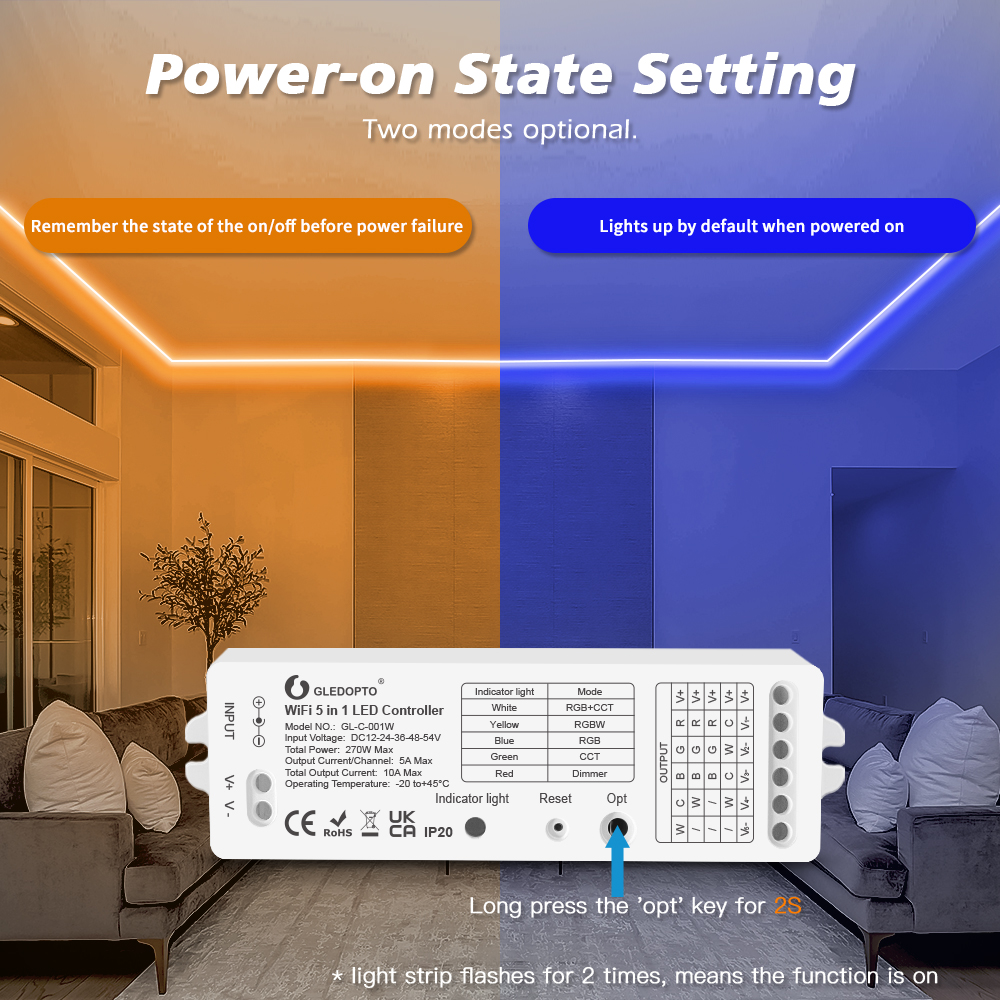

Status of Power-on-behaviour Settings

Long press"OPT"key for 2 seconds, the light strip flashes for 2 times, the device will remember the on/off status before the last power failure and return to the previous status when power on again.
Repeat the operation again to cancel this function, the device will be on by default when power on again.
wifi led controller 5-in-1

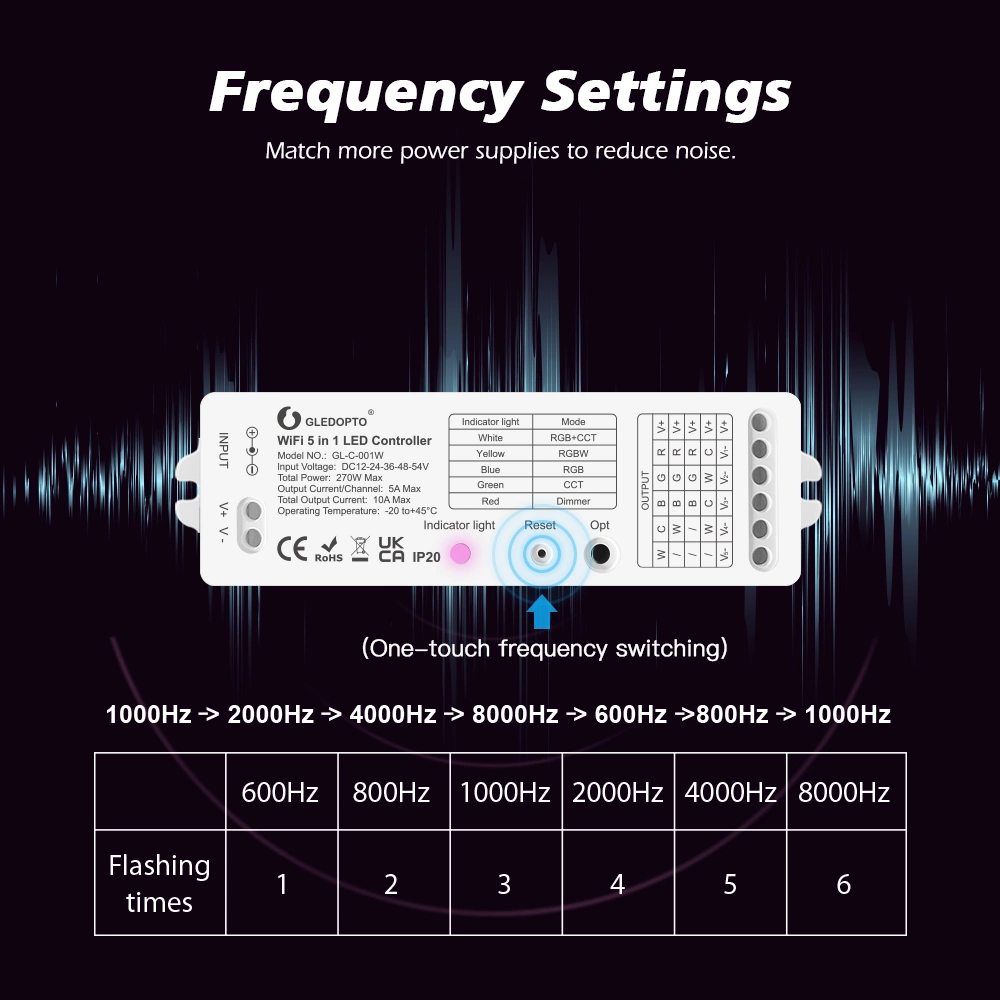

Frequency Settings

In order to be applicable to different power supplies, the frequency of device is selectable as 600HZ, 800HZ, 1000HZ, 2000HZ, 4000HZ, 8000HZ with default frequency 1000HZ. Once short pressing"Reset"key, the frequency will switch into the next one. The indicator will flash in Pink color and resume to previous color. The rule of indicator flashing times for different frequency please refer to the table.

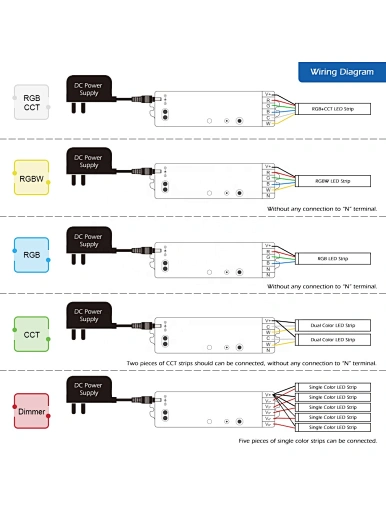

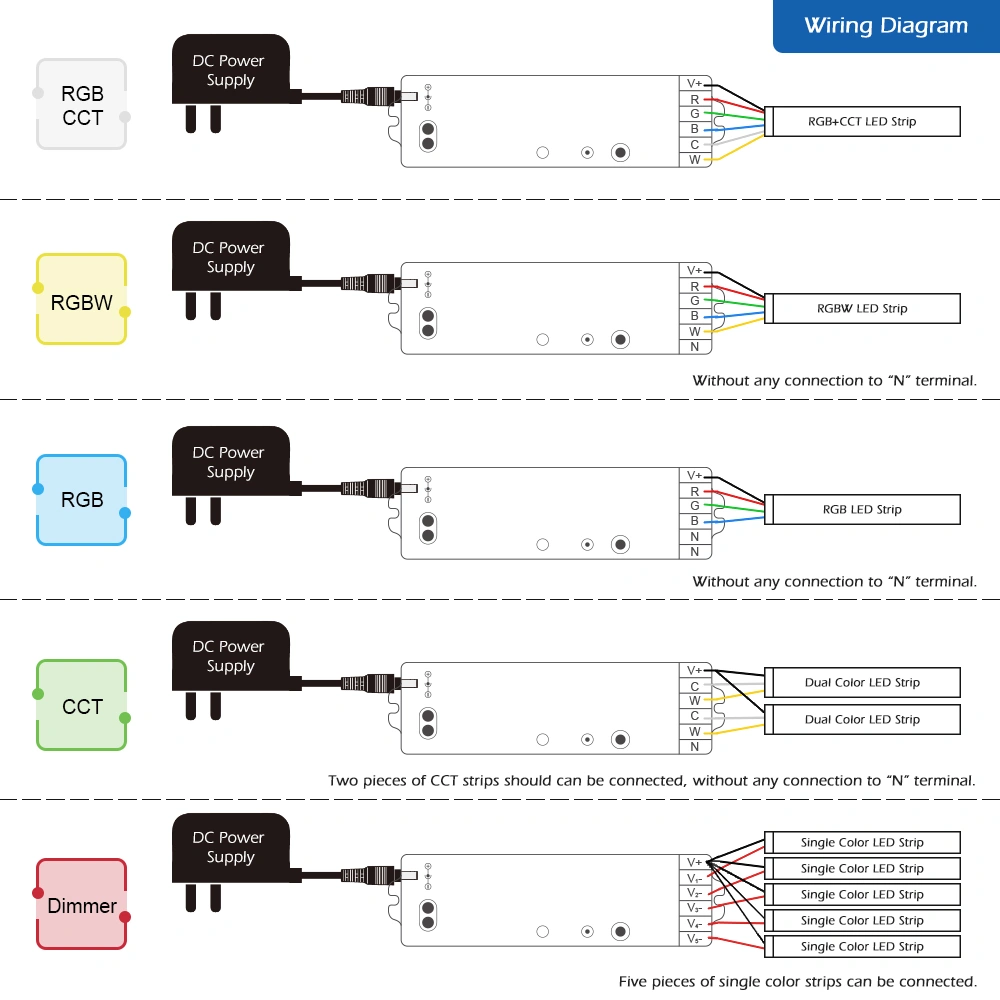

IP20 IP65 IP68 Strips Wiring & App Set-up
wifi led controller 5-in-1
wifi led controller 5-in-1
More Features & Lighting Application
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1
Related Products

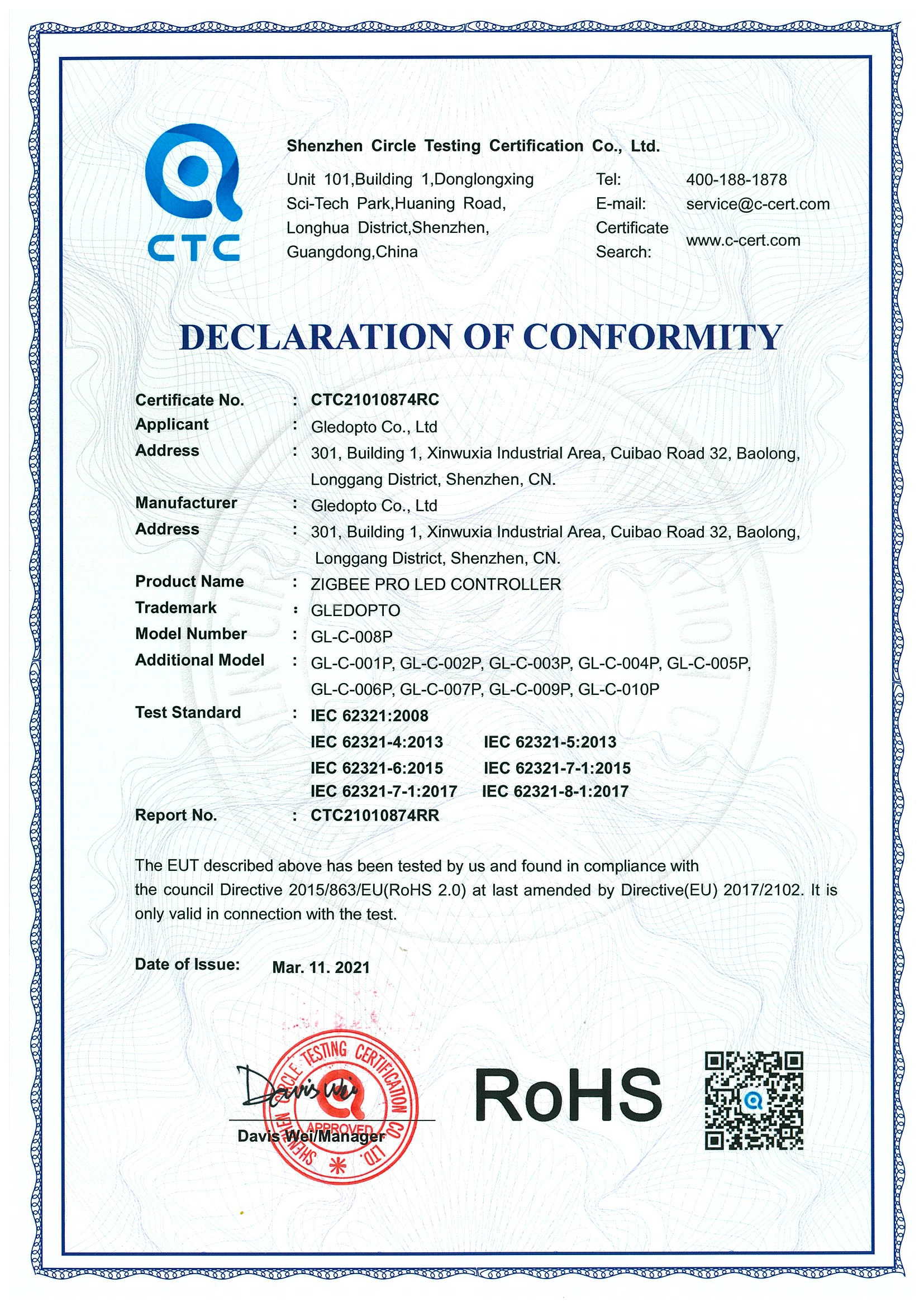

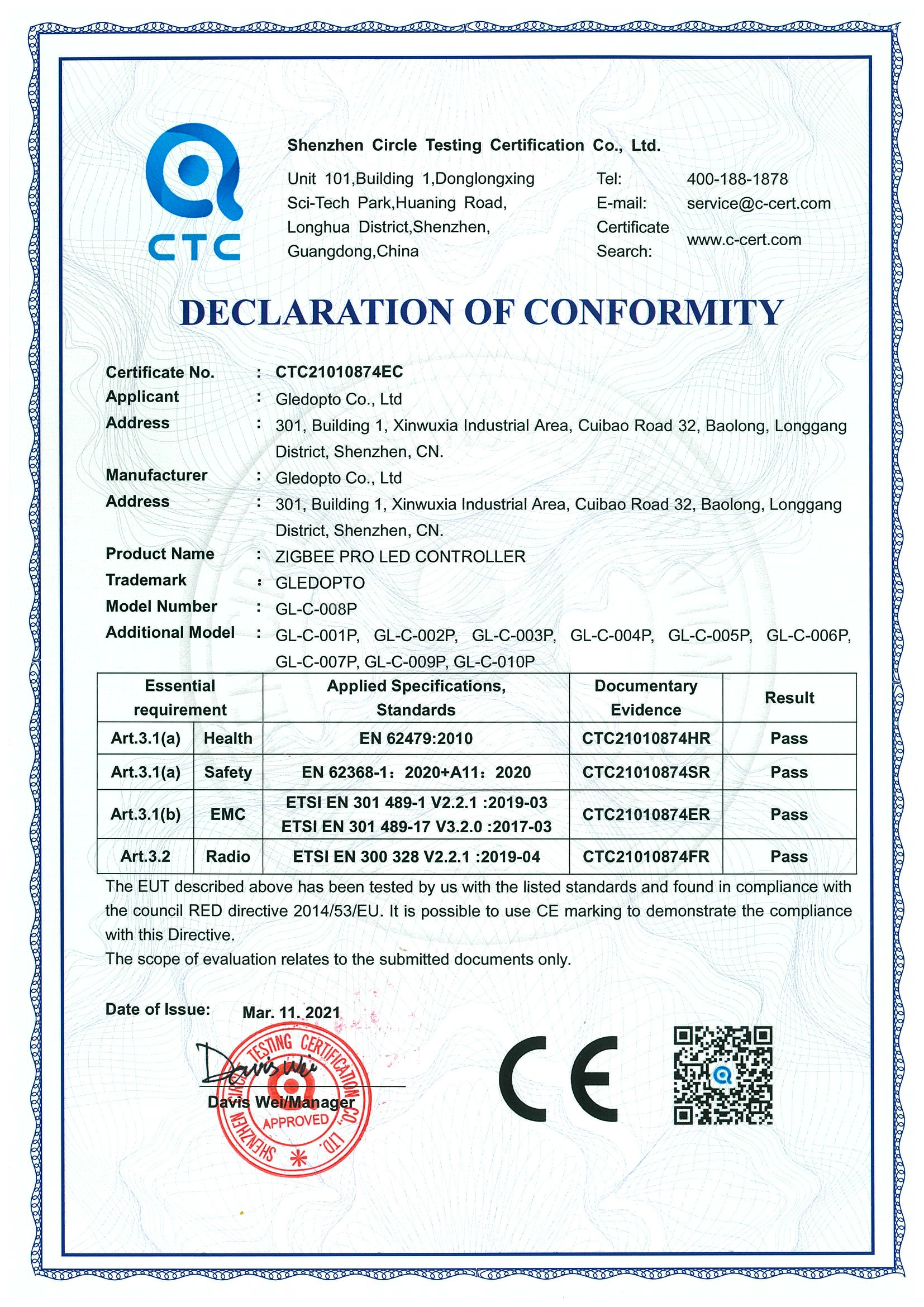

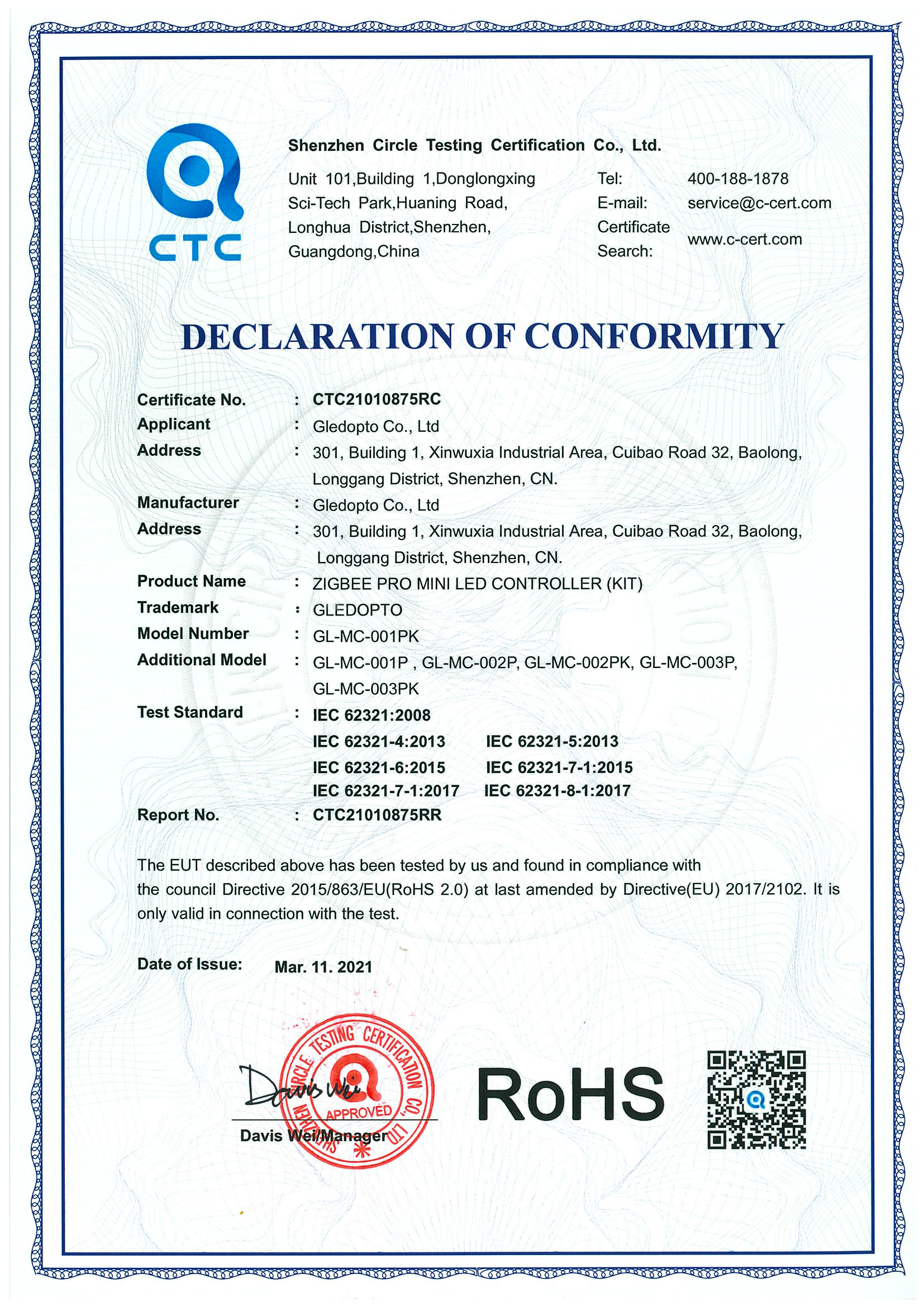

Certifications
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1
wifi led controller 5-in-1

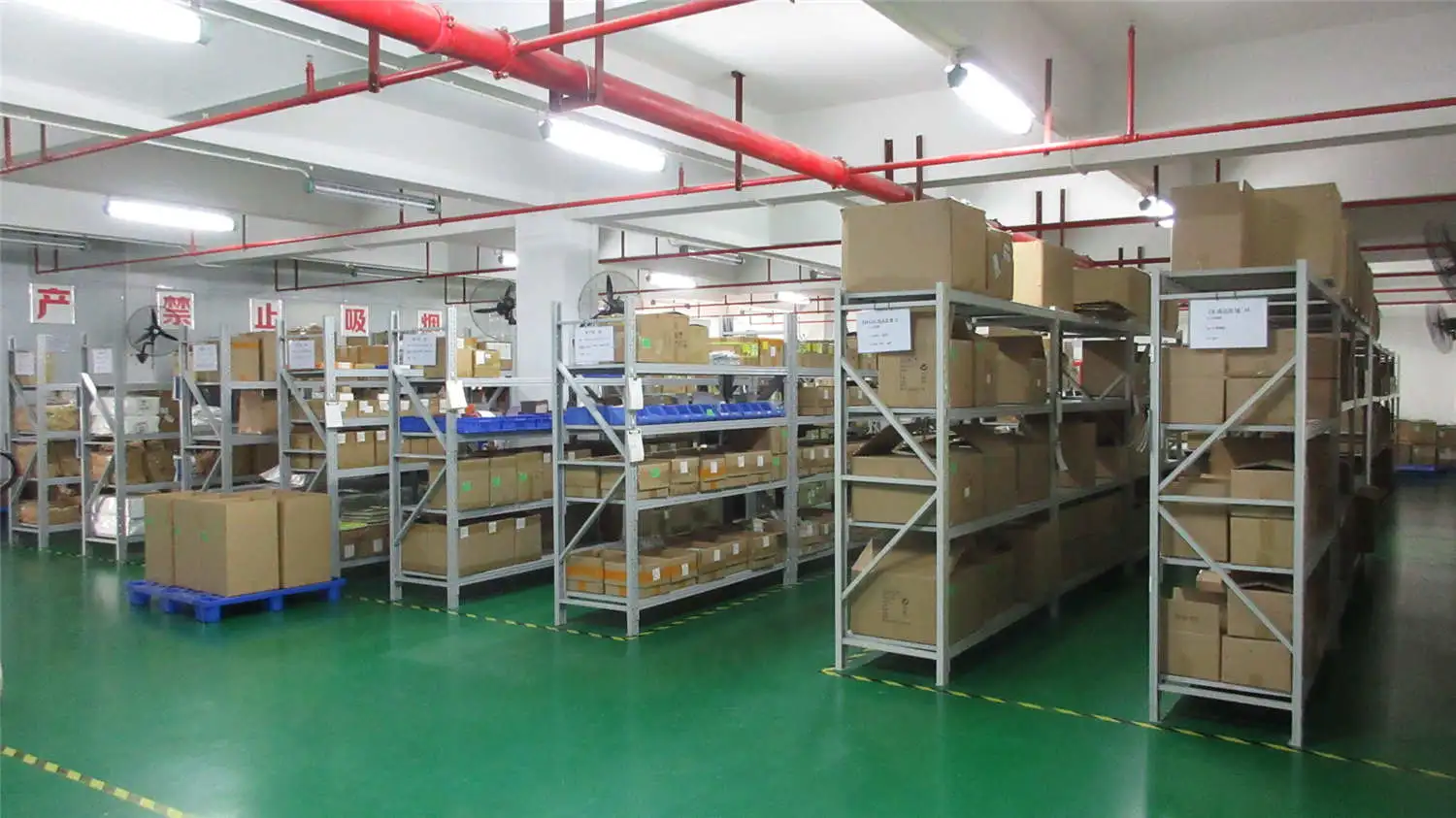

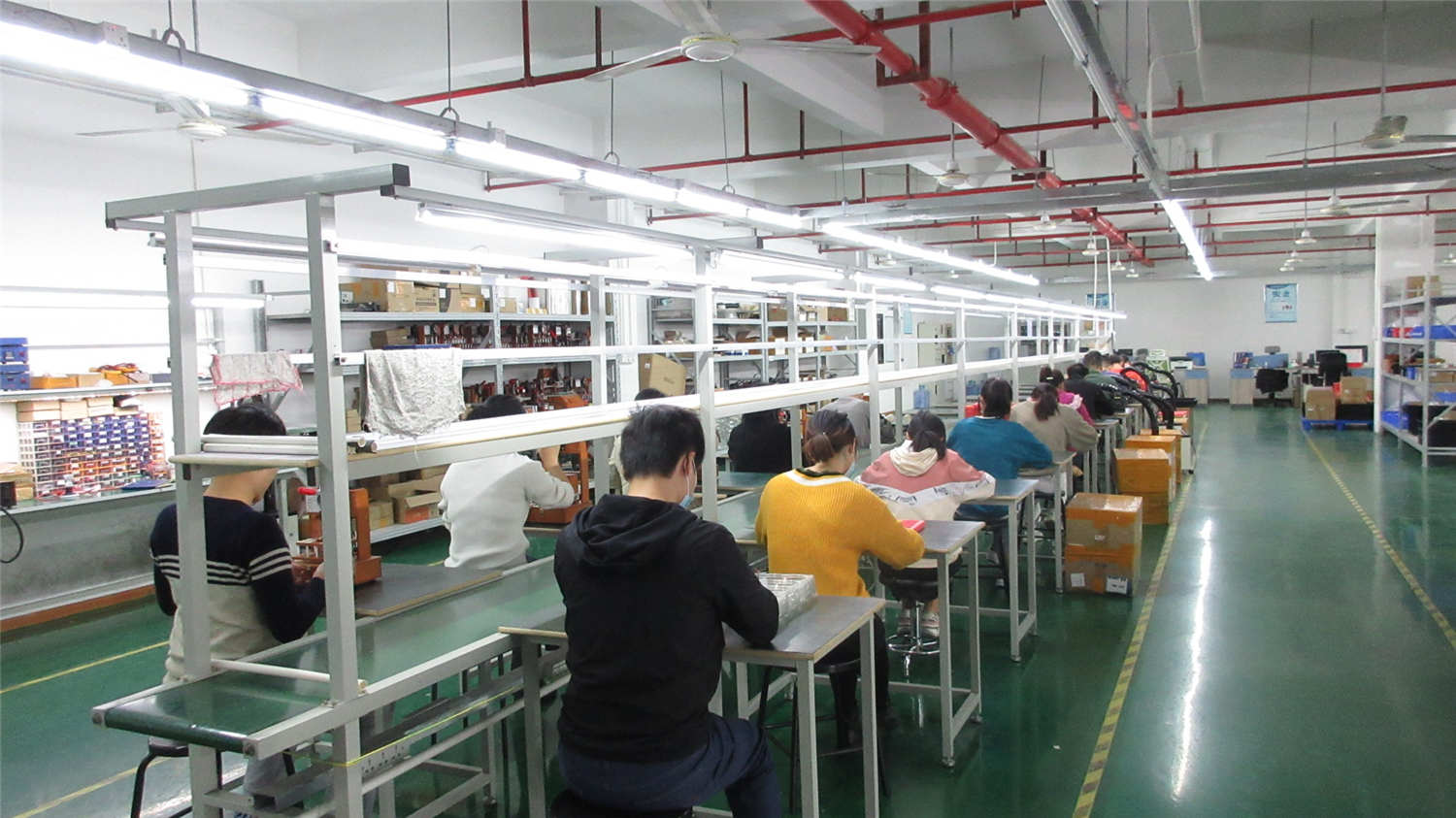

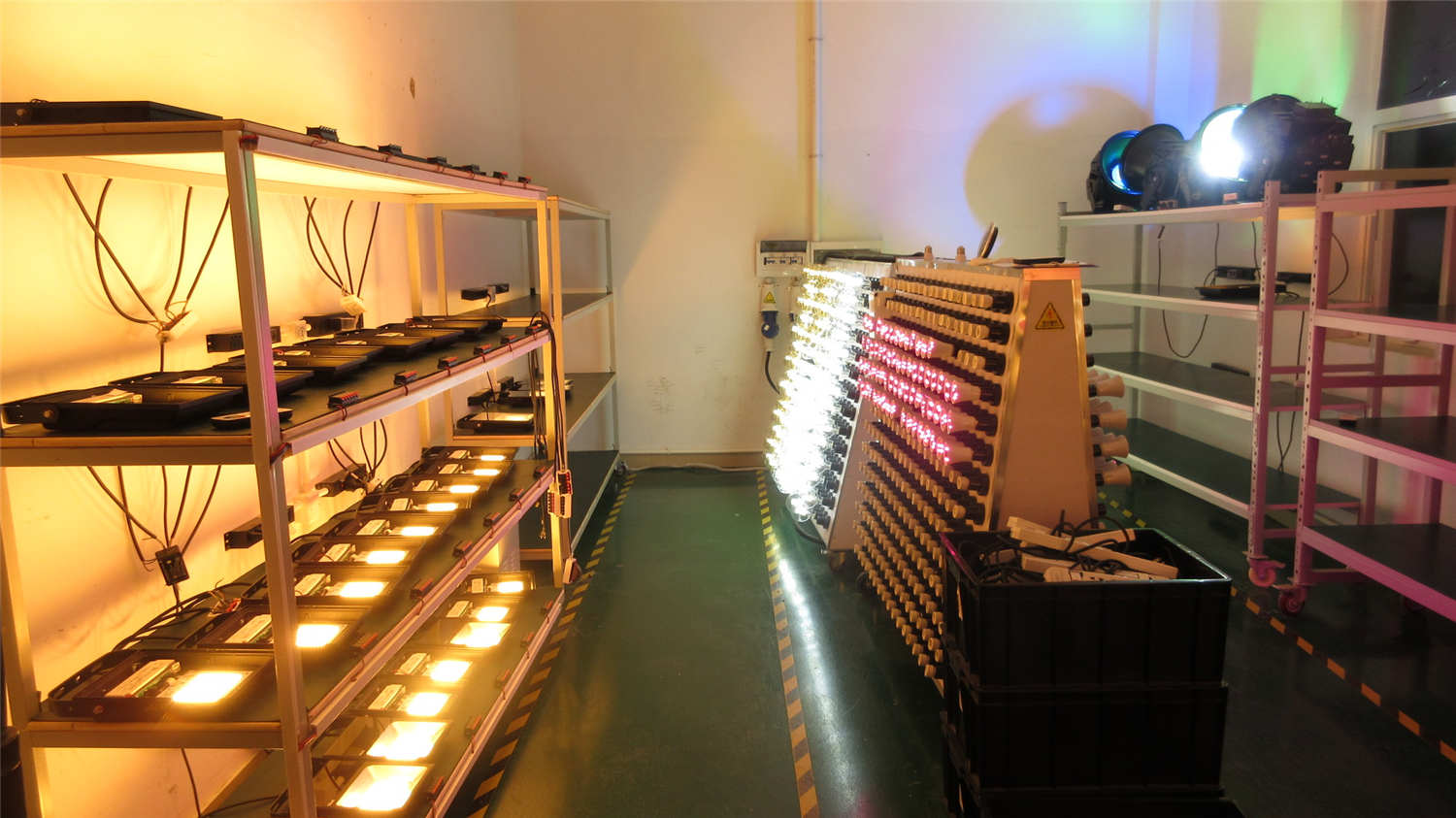

Company Information
