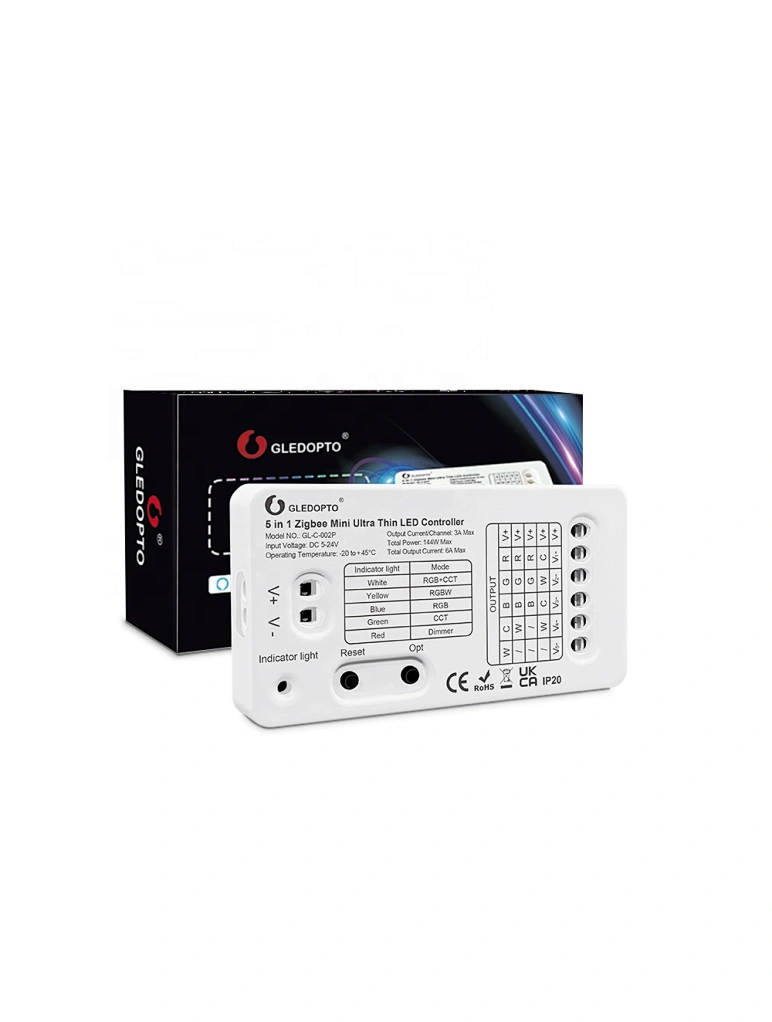

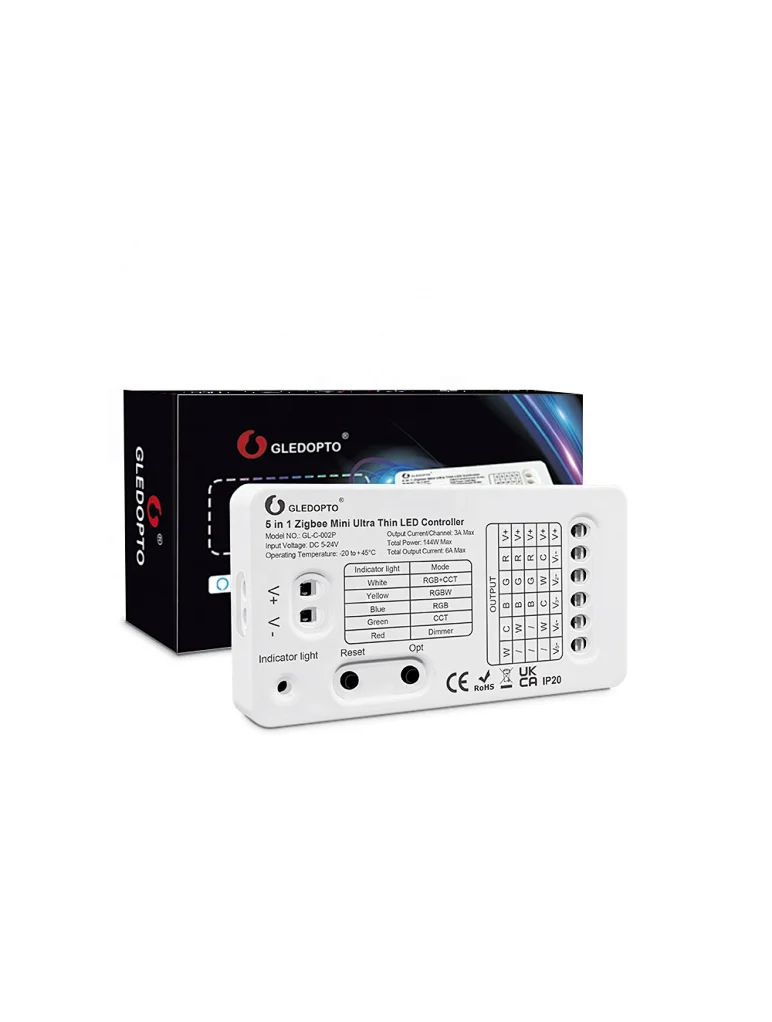

GL-C-002P Gledopto New Mini 5in1 ZigBee LED Controller Power-on Behaviour Settable Smart Light LED Dimmer Controller 5-24V 144W

GL-C-002P Gledopto New Mini 5in1 ZigBee LED Controller Power-on Behaviour Settable Smart Light LED Dimmer Controller 5-24V 144W
price

$7.19 - $16.99

GL-C-002P
1 piece
Quantity
  • Warranty(Year):2-Year
  • Lighting solutions service:Smart Lighting Control Solution
  • Luminous Efficacy(lm/w):0
  • Product Weight(kg):0.04
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control
  • Max. Load Power:144W
  • Connection Mode:Press-to-insert
  • Input Voltage:DC 5-24V
  • Total Channels:5
  • Max Output Current per Channel:3A
  • Total Max Output Current:6A
  • Total Output Power:144W
  • Controlling Solution:ZigBee 3.0 + 2.4G RF Remote Control

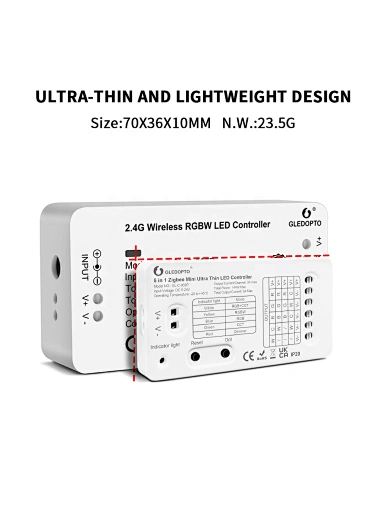

  • Size:70*36*10mm
  • Net Weight:23.5g
  • Materials:Plastic
  • IP Rate:IP20

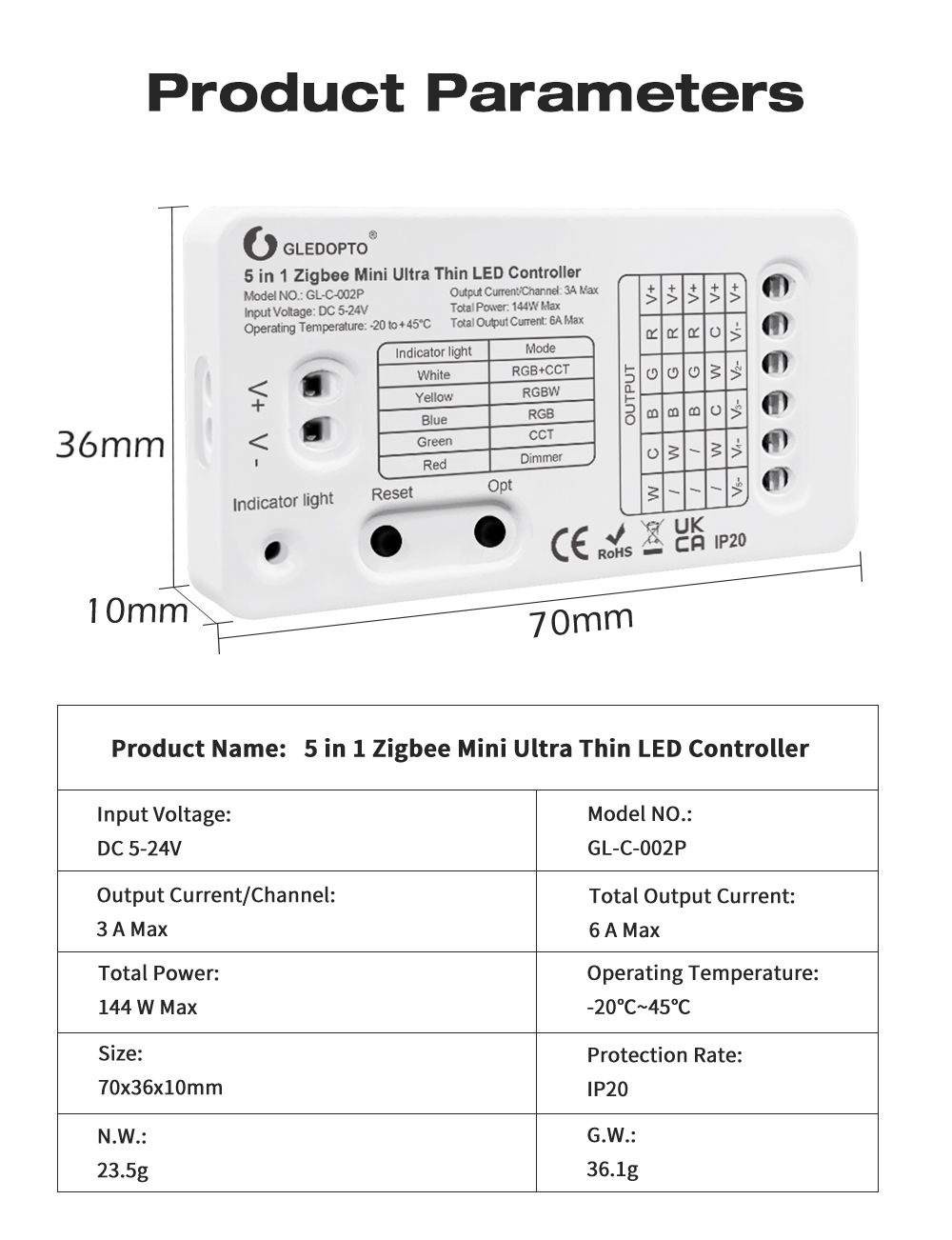

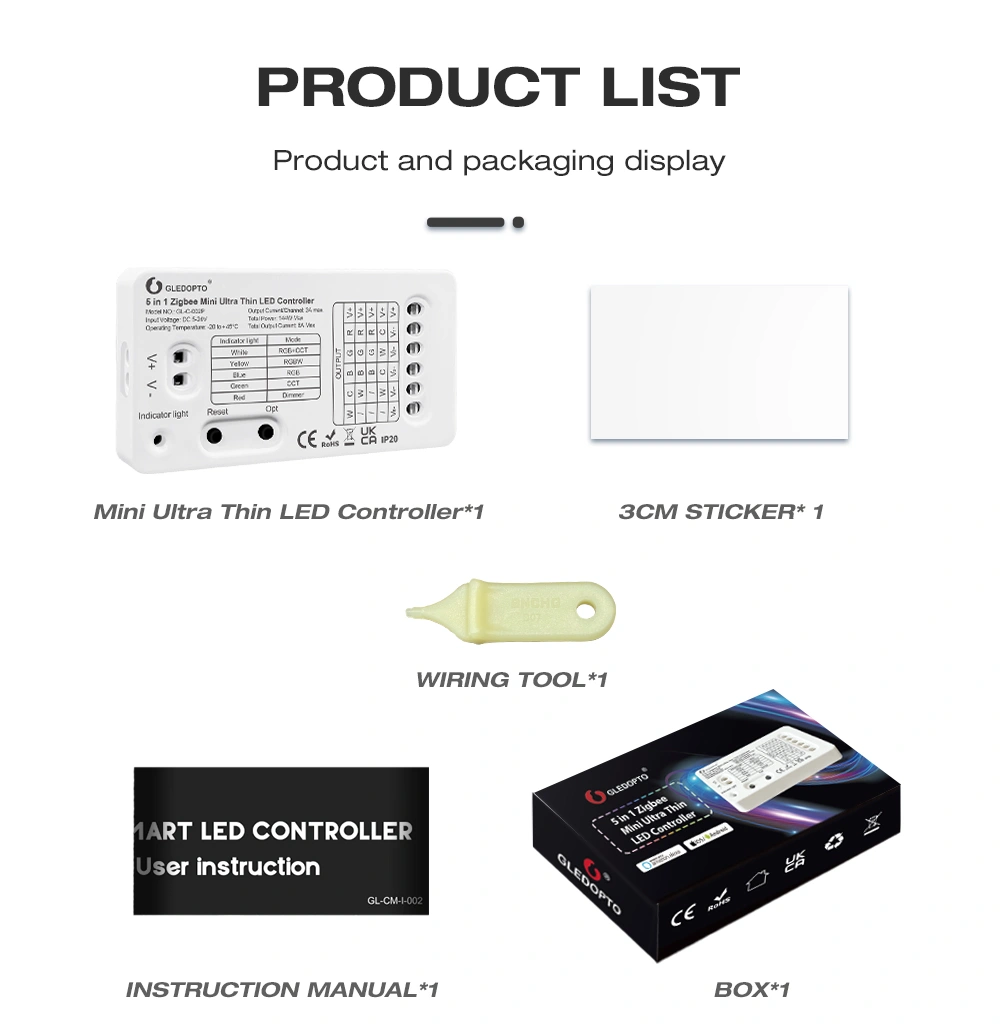

Product Paramenters

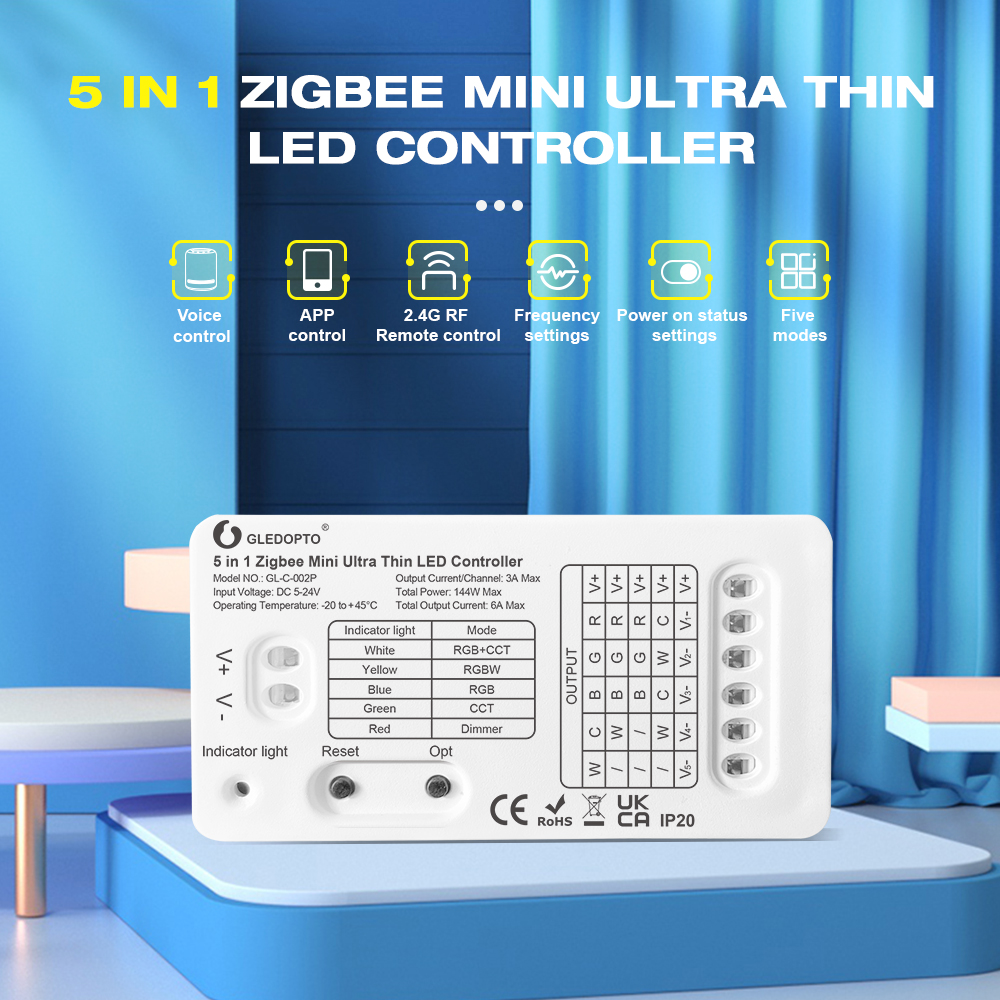

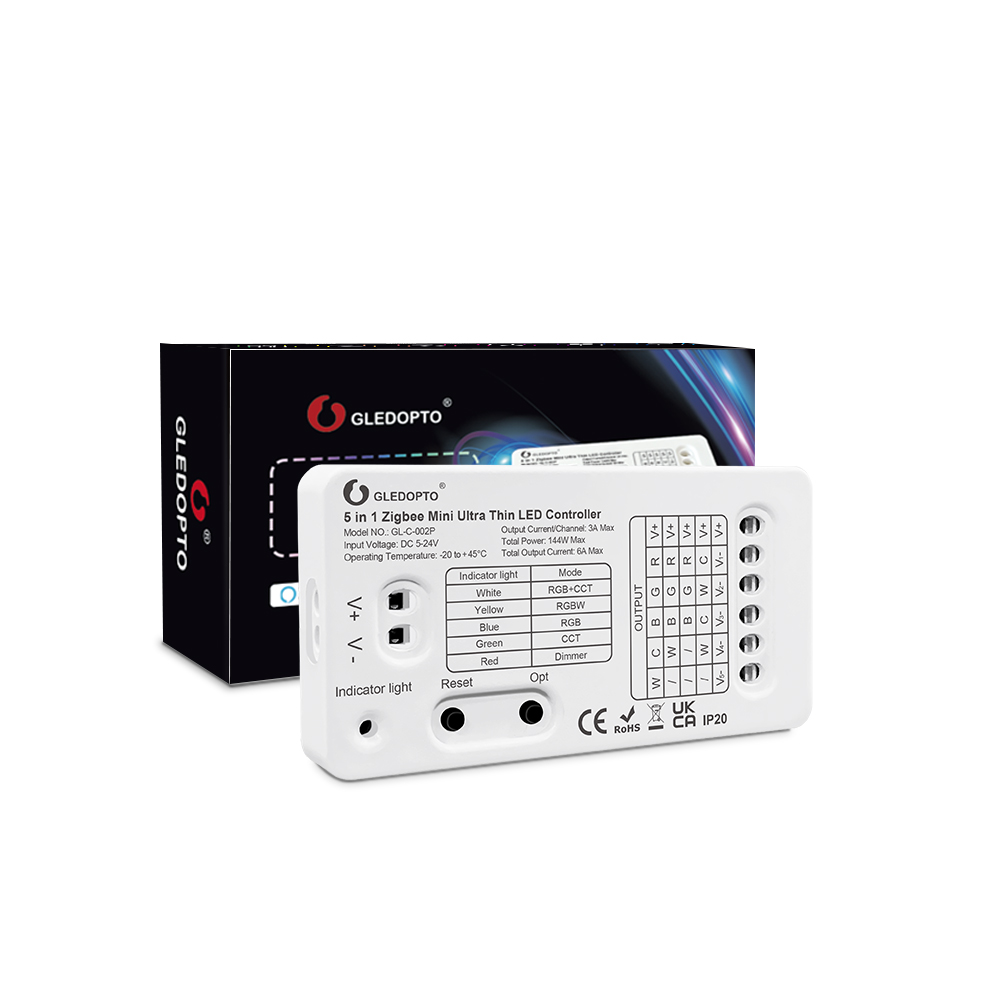

GLEDOPTO zigbee mini LED controller
Main Specs of Mini 5in1 ZigBee 3.0 LED Strip Controller
Input Volt.
5V ~ 24V DC
Output Power
Total 144W max.
Common Anode
Yes
Control Tech.
ZigBee 3.0 + 2.4G RF
Lighting Color
RGB/RGBW/RGBCCT/CCT/Dimer
Remote Distance
30Meter
Shelf Material
ABS
Working Temp.
-20°C~60°C
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller

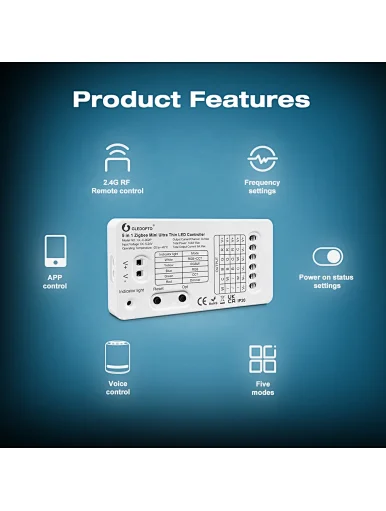

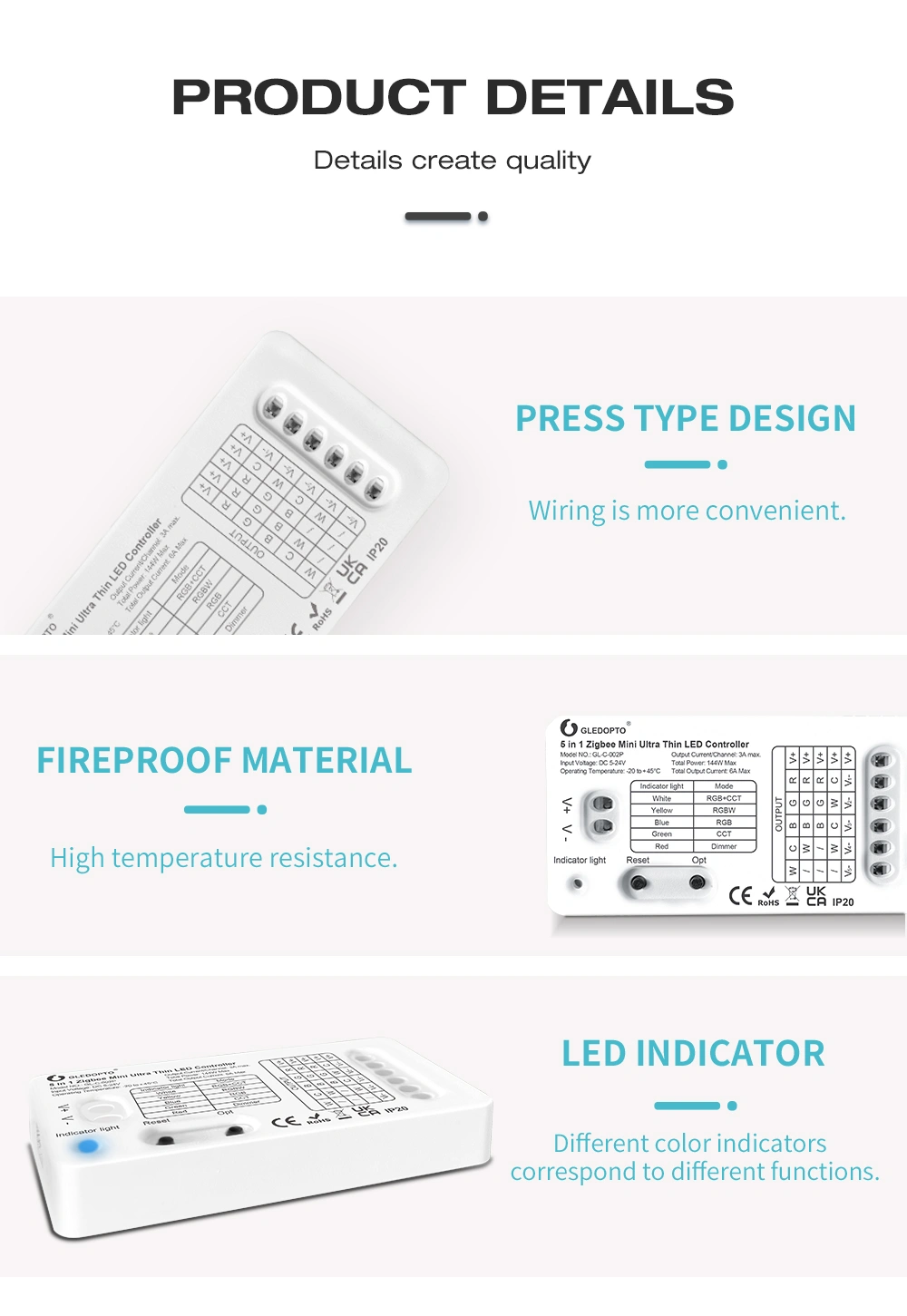

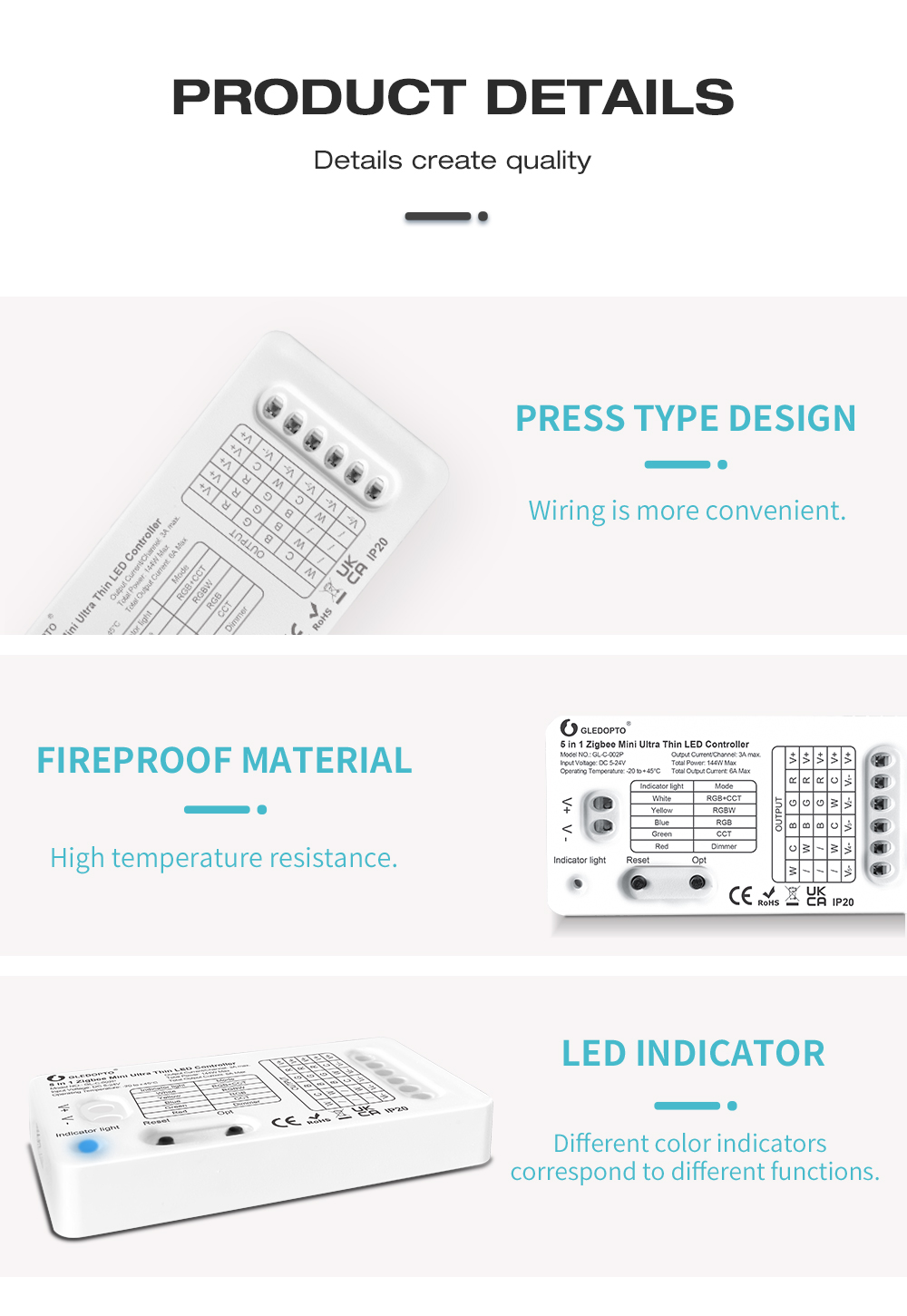

Key Features of Gledopto 5in1 Controller
GLEDOPTO zigbee mini LED controller

5-in-1 Smart ZigBee LED Controller

1.LED Indicator:

Different indicator colors represent different functions.

2.Reset:

Short press once to switch PWM frequency;

Short press twice to enter into Find and Binding;

Short press three times to enter into ZigBee Touchlink Commisioning;

3.OPT:

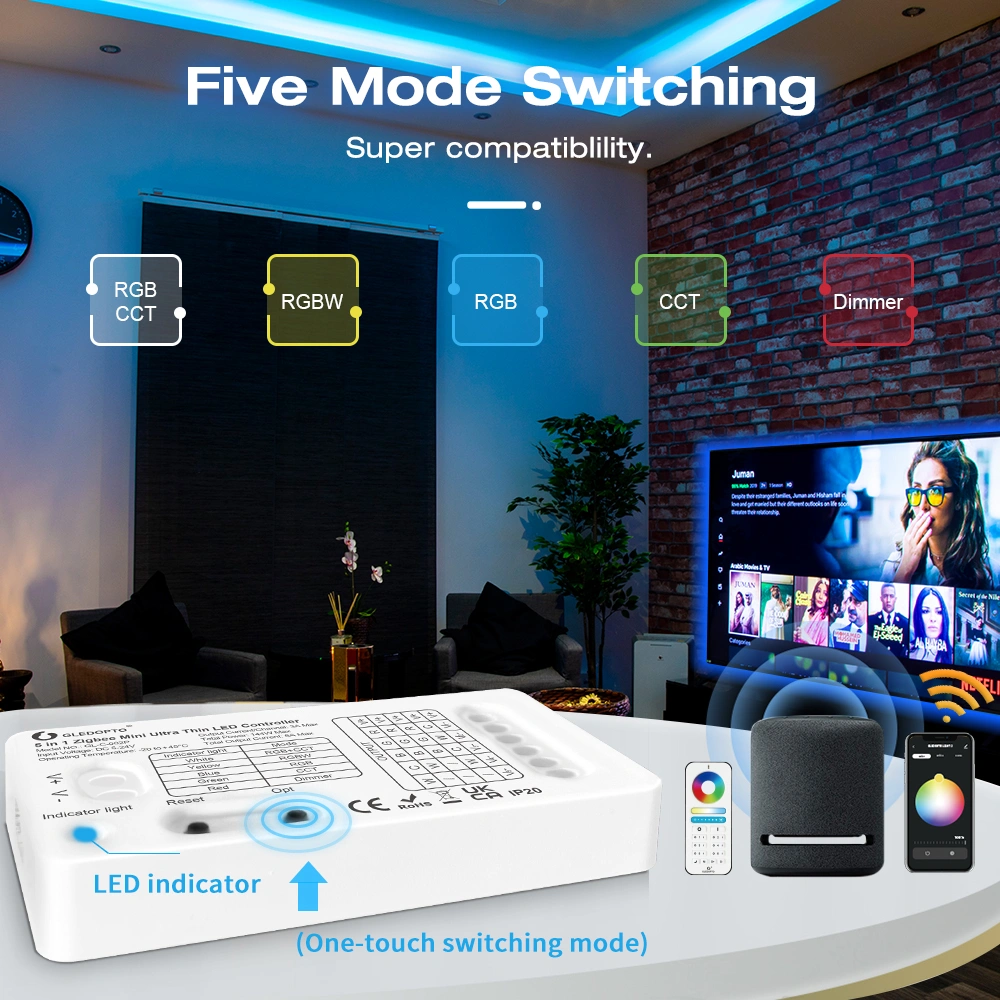

Short press once to switch functions for different colors of LED strips RGBCCT->RGBW->RGB->CCT->Dimmer

4.Power-on-behaviour status setting:

Press"OPT"key and hold for more than 5 seconds to set power-on status.

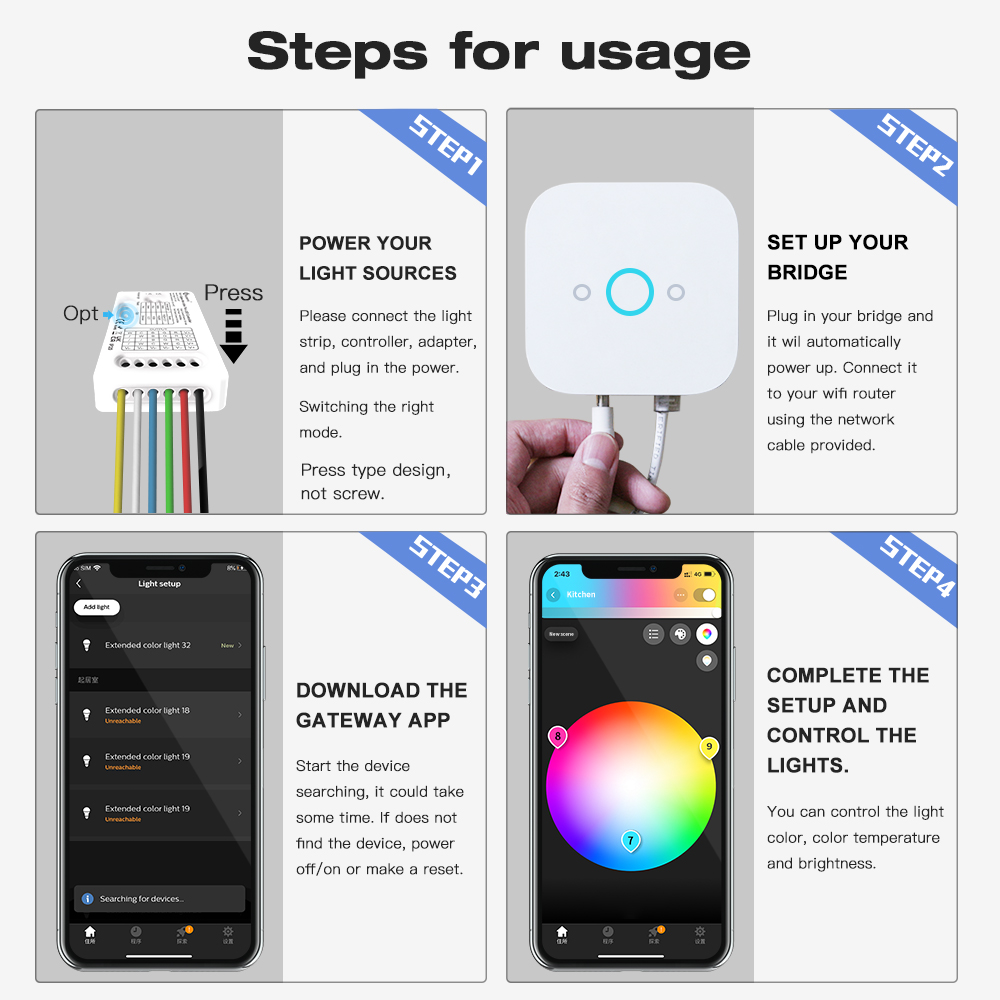

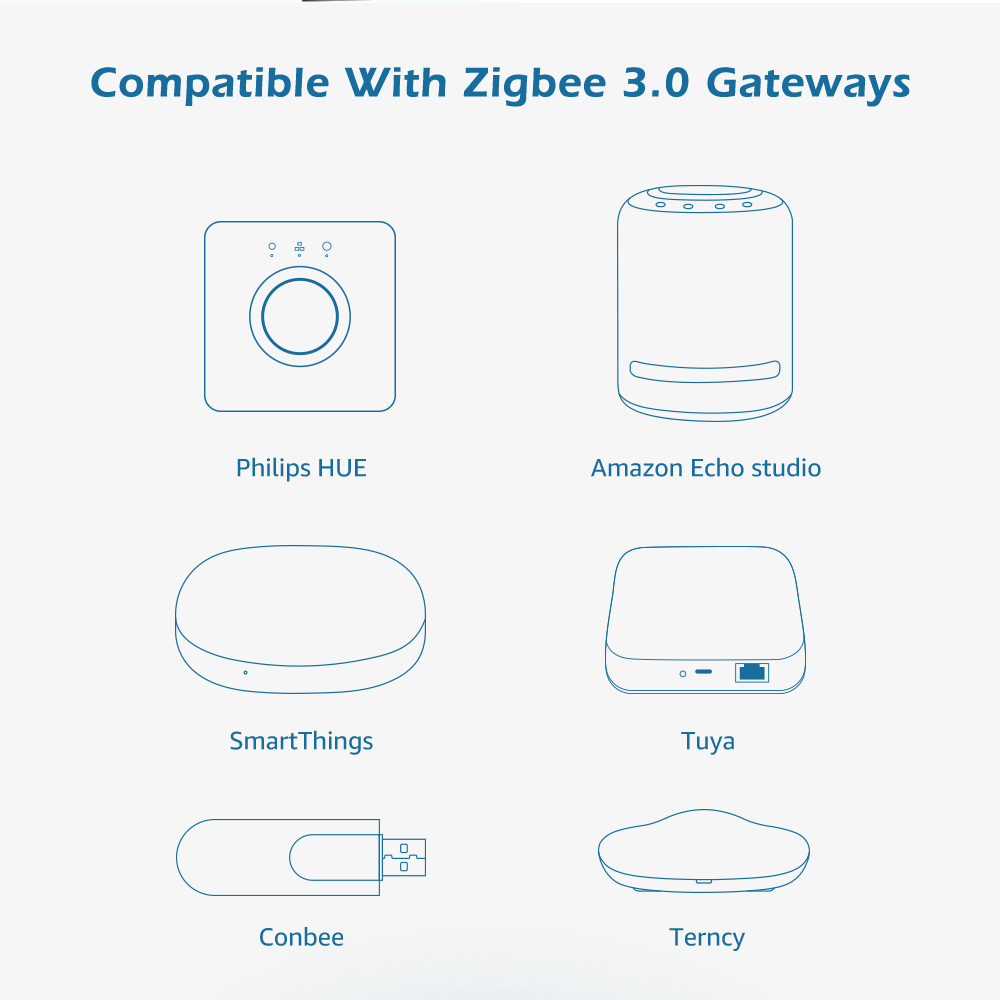

Pairing with ZigBee Network

Add the device to a ZigBee network via coordinator or hub.

1> Please make sure the device not being paired. Otherwise, please"Reset"the device according to the method of"Reset".

2> After step 1, there will be a pairing process about 90s. Once time out, you need to repeat Step 1 again.

3> Open the ZigBee App (Hue or Amazon Alexa) to add the device.

4> If the pairing done successfully after the above steps, the device will blink 3 times.

Touchlink to a ZigBee Remote Control or Touch Panel.

1> Make sure the distance between the device and remote control or touch panel less than 10cm.

2>Method A: Please short press key"Reset"3 times or power on/off the device 3 times to enter into"Touchlink Commissioning"mode, the device will blink 5 times.

Method B: Re-power on the device, Touchlink Commissioning will start after 15s if not being added to a ZigBee network, 165s time out. Or start immediately if it's already being added to a network, 180s time out. Once time out, repeat the operation again.

3> Set the remote or touch panel to enter"Touchlink Commissioning", please refer to the user manual of the corresponding remote or touch panel.

4> There shall be indication on the remote or touch panel for a successful pairing, the device will blink 2 times. Now the device shall be controllable via the remote or touch panel.

GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller

ZigBee Find and Bind Mode

Note: Make sure that the device and remote are in the same network.

1> Short press"Reset"key (or re-power on the device) for 2 times. The device will blink twice, and start"Find and Bind"mode to find the"Target Node"

2> Set the remote control or touch panel (target node) to enter the"Find and Bind"mode to search for"Bind Initiator". Please refer to the user manual of the corresponding remote or touch panel.

3>"Find and Bind"is completed, the remote or touch panel shall have indication. Now the device shall be remote control or touch panel controllable.

Pairing with 2.4G HZ RF Remote Control/Touch Panel (No ZigBee Hub Needed)

1>The pairing will be timeout after 4 seconds when the device powered on.


2>The pairing will be done successfully by pressing any zone “I” key of the 2.4G RF Remote or touch panel.
3>The indicator from the device will blink 3 times.
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller

Unpairing the ZigBee Network

1> Delete the device on the App directly, the device will blink 2 times.
2> Long press key"Reset"for more than 5 seconds (or re-power on the device 5 times) to unpair the network, the device will blink 2 times.
GLEDOPTO zigbee mini LED controller

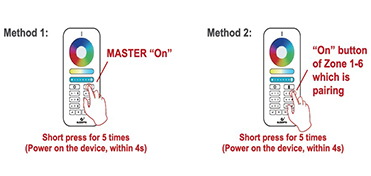

Unpairing the 2.4G HZ RF Network

1> Short press"Master"key within 4s for 5 times, the device will blink 3 times.
2> Short press continuously 5 times the zone"on"key the device being paired within 4s after the device powered on, the device
will blink 3 times.
GLEDOPTO zigbee mini LED controller

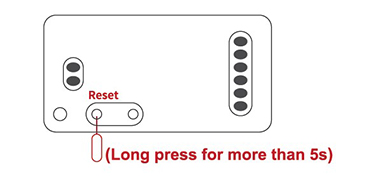

Factory Reset
The Factory Reset will be done successfully by long pressing"Reset"key more than 5s (or re-power on the device 5 times or more). All configuration parameters will be reset after the device is reset or removed from the network, including ZigBee and 2.4G RF Network. The indicator will flash firstly 3 times in the color of corresponding function selected, and turn into default Pink color (in default RGBCCT function) after flashing 4 times again.
GLEDOPTO zigbee mini LED controller

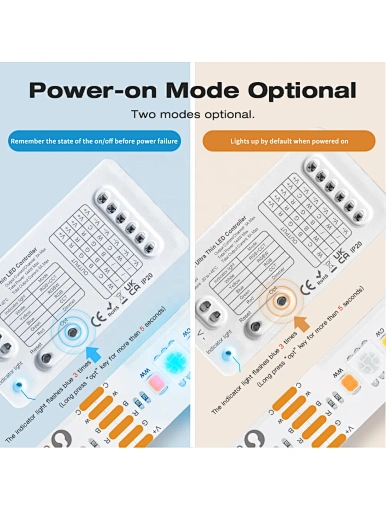

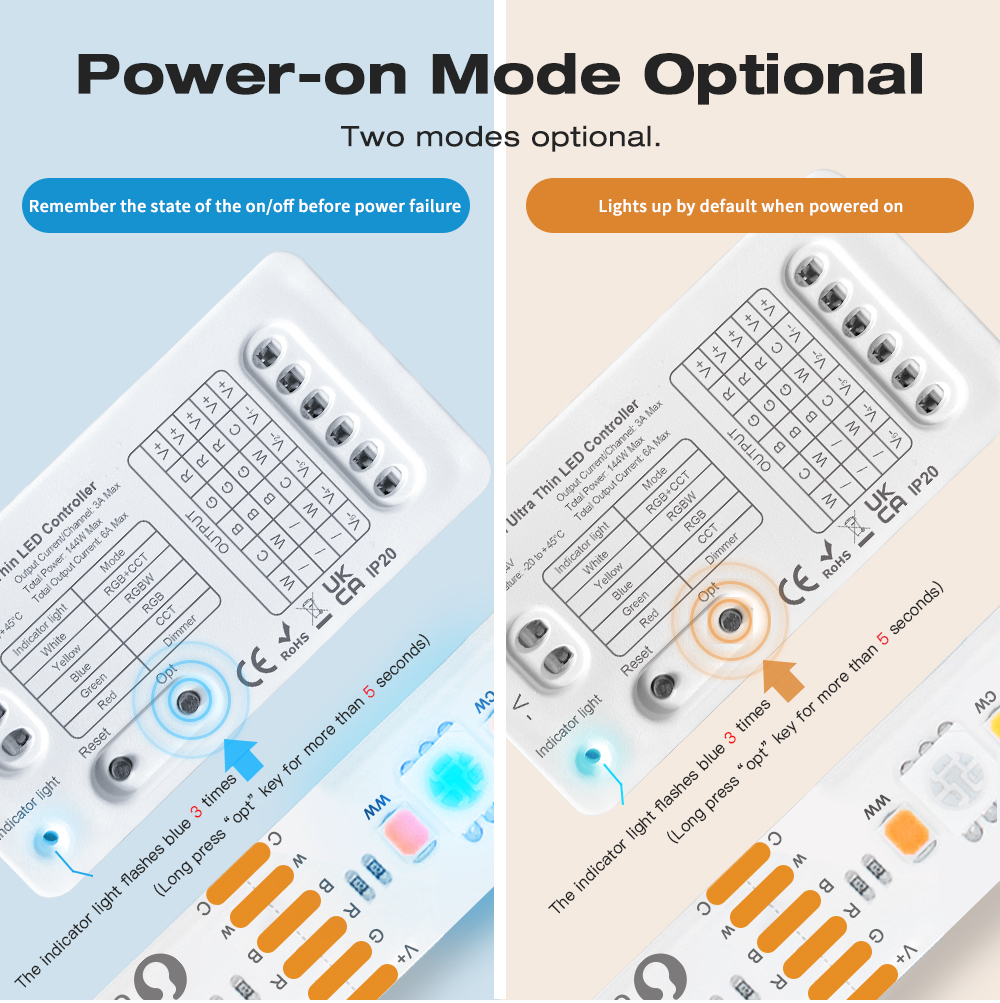

Status of Power-on-behaviour Settings

Long press"OPT"key for more than 5 seconds, the indicator will flash in blue color for 3 times, the device will remember the on/off status before the last power failure and return to the previous status when power on again.
Repeat the operation again to cancel this function, the device will be on by default when power on again.
GLEDOPTO zigbee mini LED controller

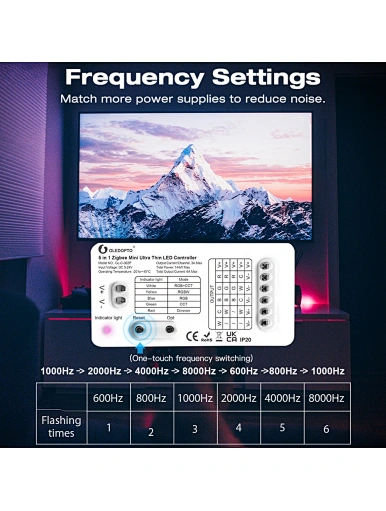

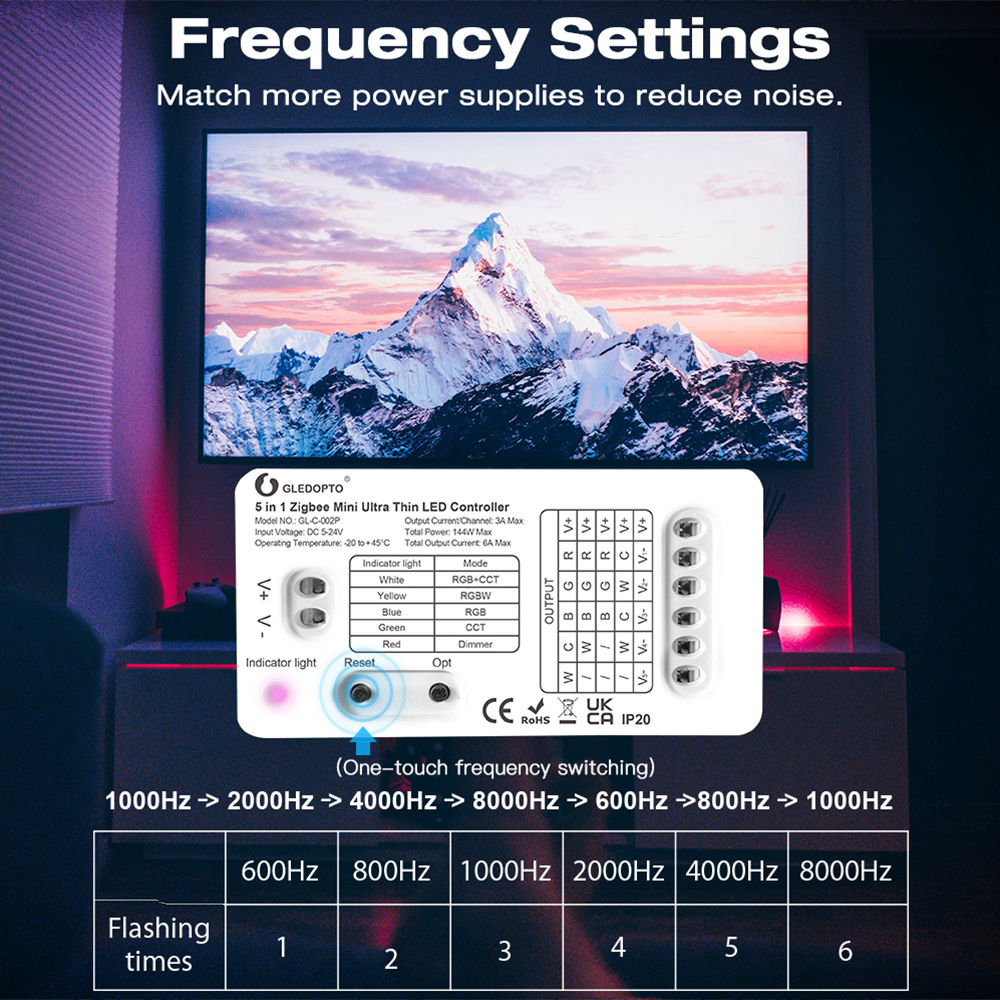

Frequency Settings

In order to be applicable to different power supplies, the frequency of device is selectable as 600HZ, 800HZ, 1000HZ, 2000HZ, 4000HZ, 8000HZ with default frequency 1000HZ. Once short pressing"Reset"key, the frequency will switch into the next one. The indicator will flash in Pink color and resume to previous color after"off"for 2s. The rule of indicator flashing times for different frequency please refer to the table.
GLEDOPTO zigbee mini LED controller

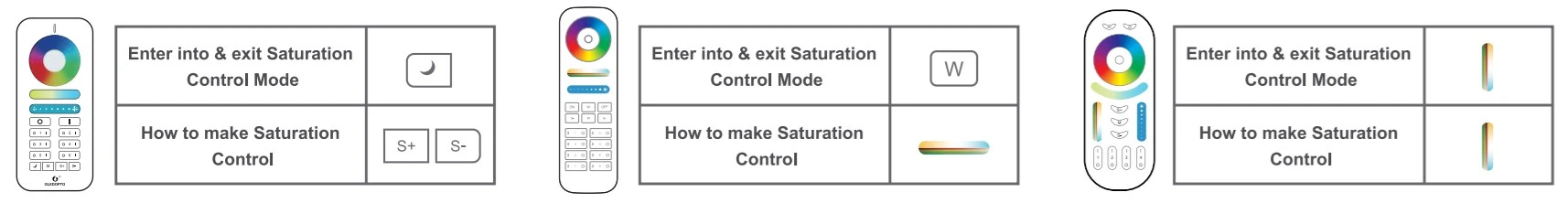

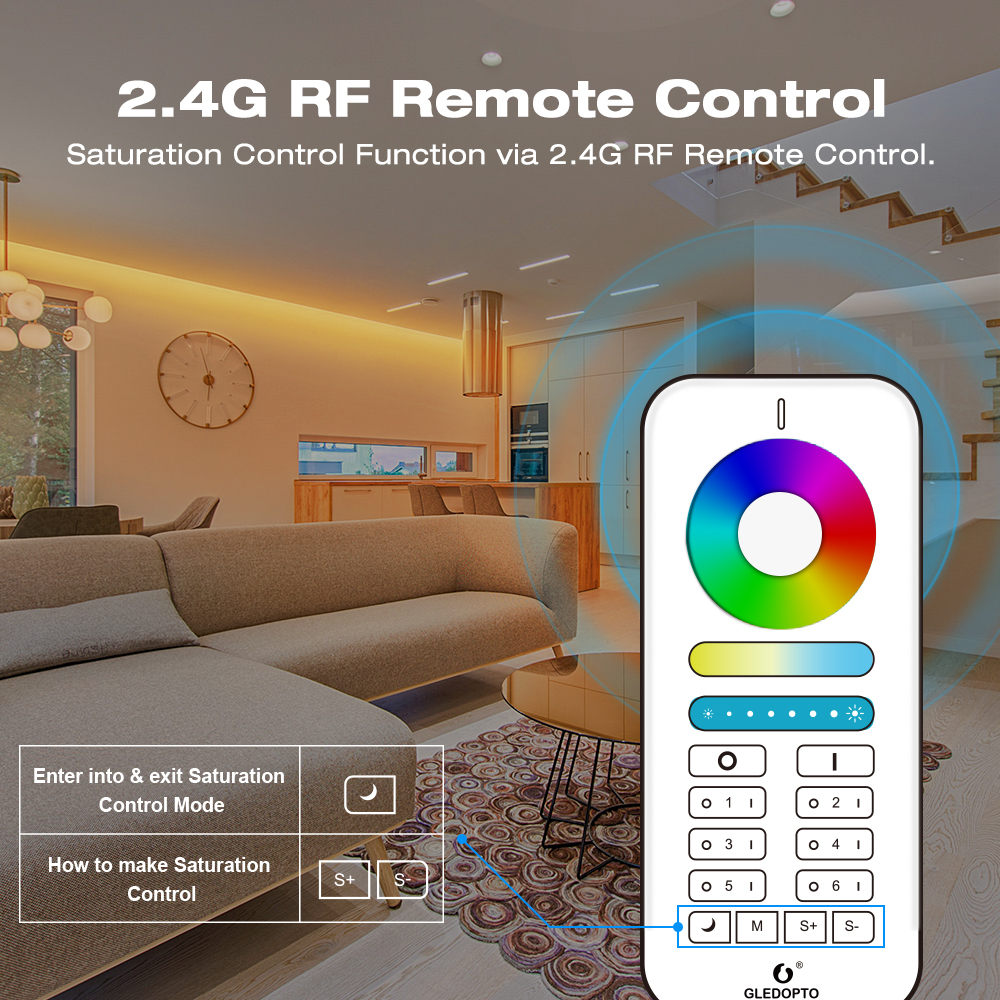

Saturation Control Function with 2.4G RF Remote Control
White and RGB color light will be on at the same time, you can choose any colors, and dim the brightness of white color in the meanwhile, to make the saturation more colorful.

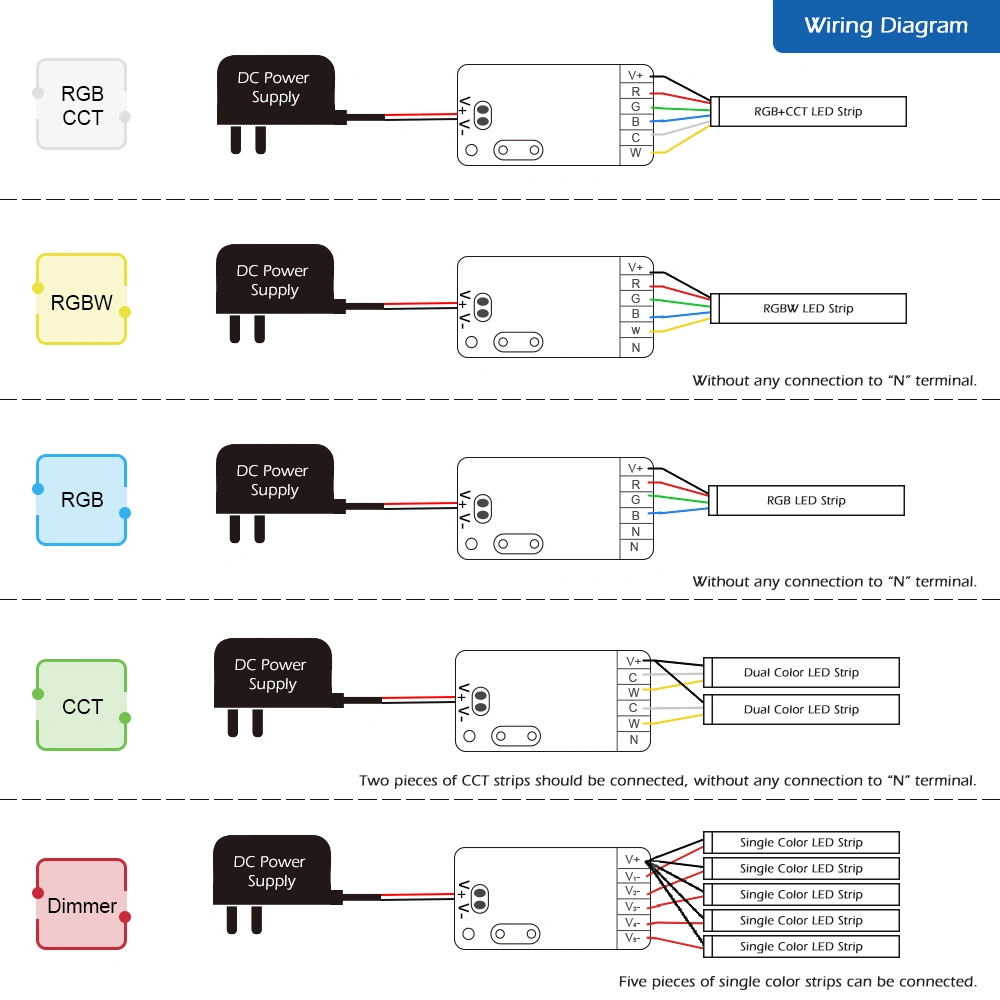

IP20 IP65 IP68 Strips Wiring & App Set-up
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller
More Features & Lighting Application
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller
GLEDOPTO zigbee mini LED controller
Related Products

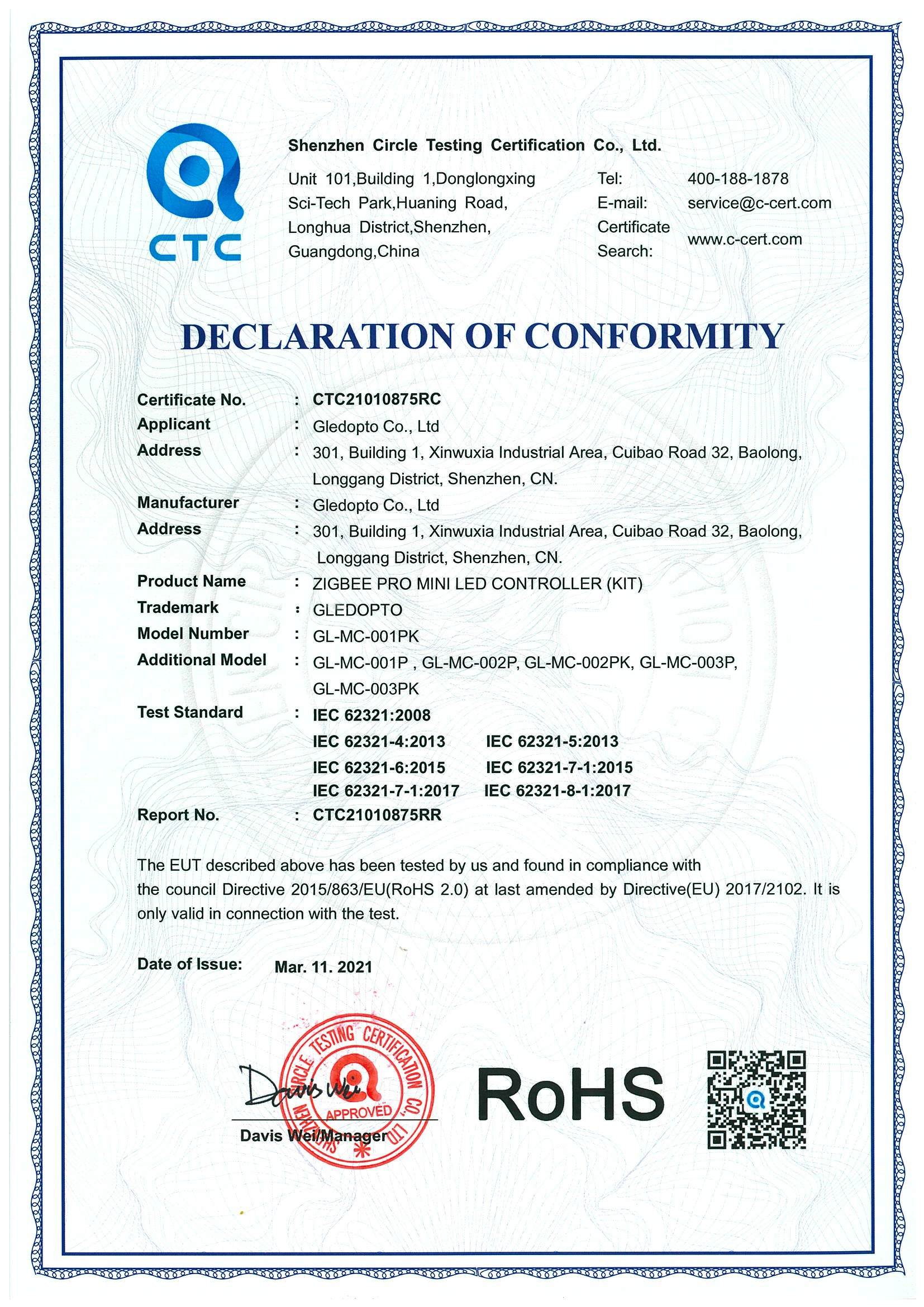

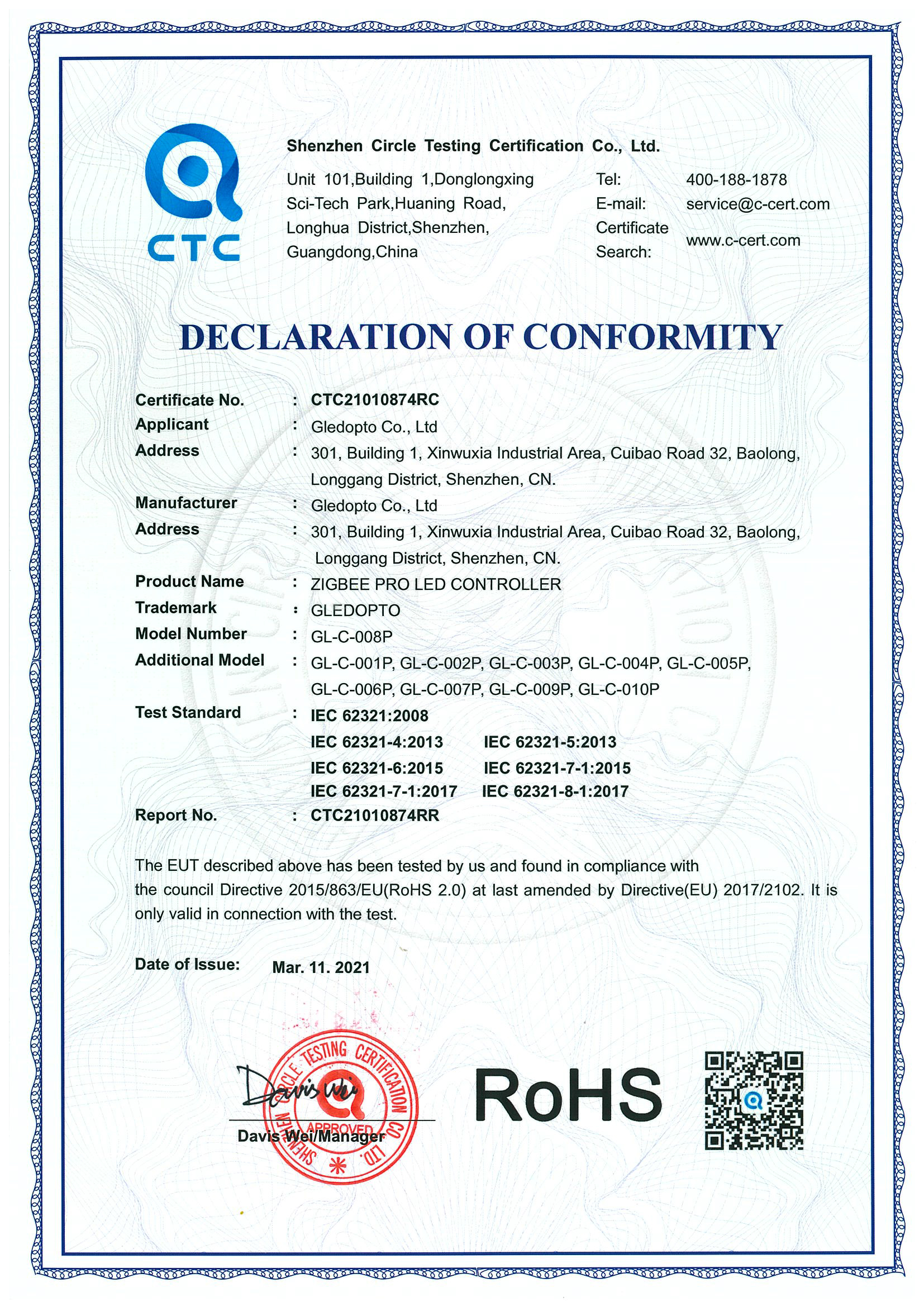

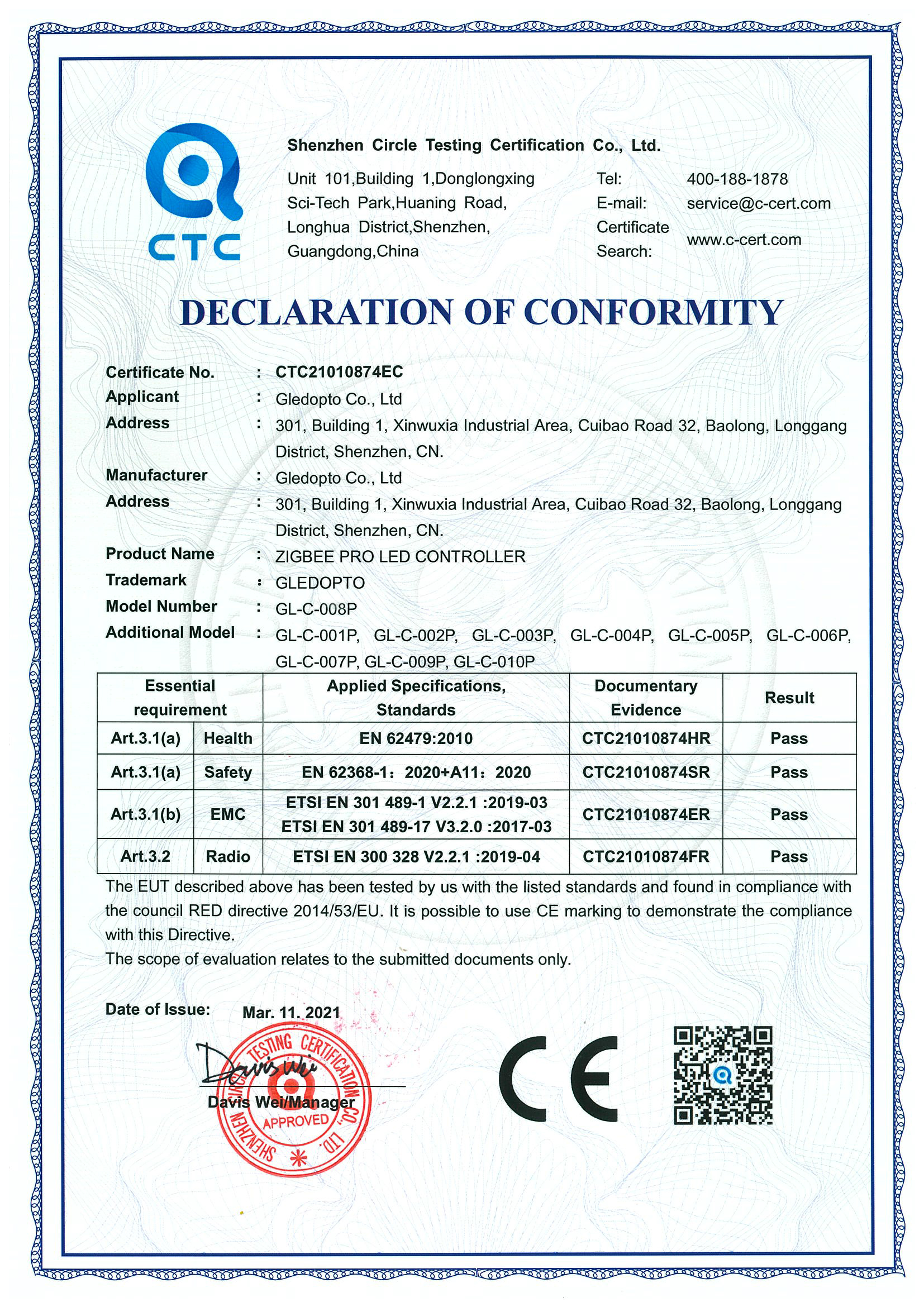

Certifications
