Zigbee Controller 1 channel Single Color LED Controller Zigbee 3.0 Dimmer for Home LED Strip Light

Zigbee Controller 1 channel Single Color LED Controller Zigbee 3.0 Dimmer for Home LED Strip Light

price

$13.50 - $16.00 / piece

Model NO. GL-C-001P

minimum order 1 piece

Quantity

Warranty(Year):2-Year
Lighting solutions service:Lighting and circuitry design, Project Installation
Luminous Efficacy(lm/w):0
Product Weight（kg）:0.08
Place of Origin:Guangdong, China
Brand Name:Gledopto
Type:Remote Control
Max. Load Power:270w
Connection Mode:Zigbee3.0+RF

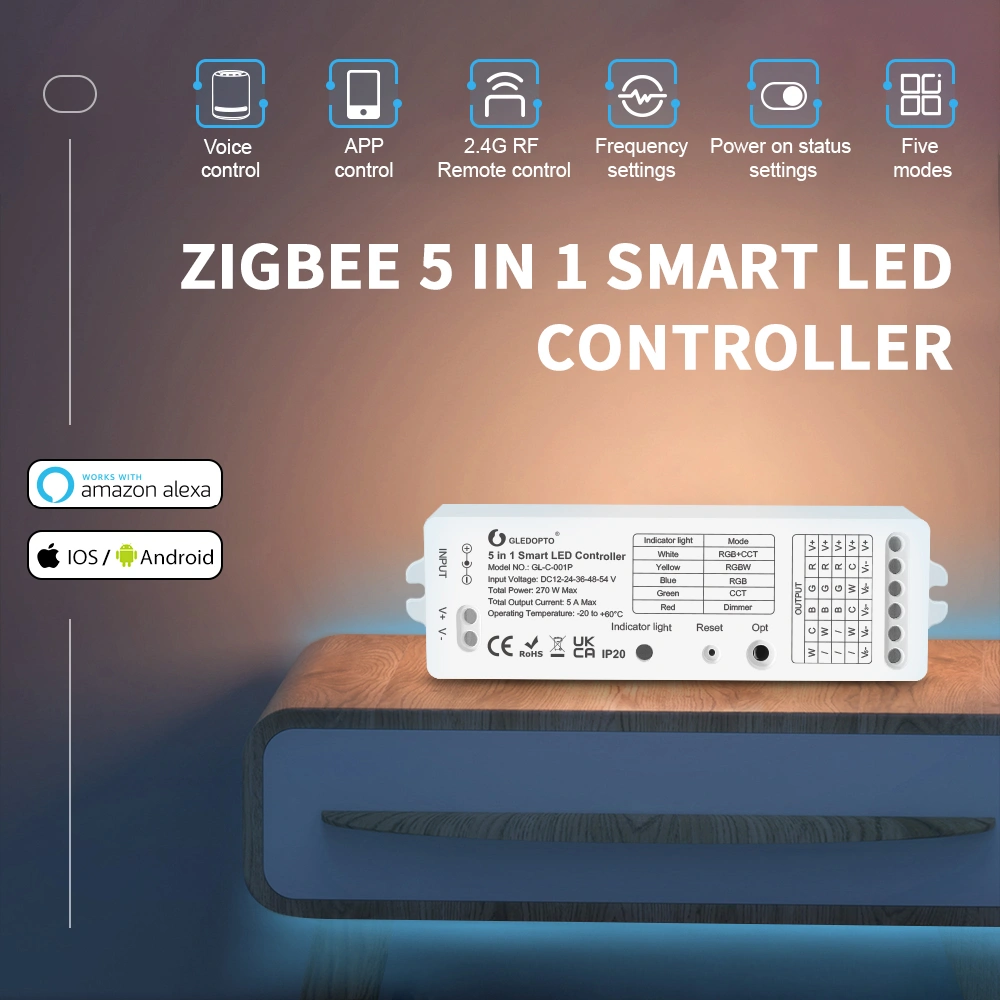

Product name:Zigbee PRO 5in1 Smart LED Controller
Compatible with:Zigbee3.0& RF 2.4G
Five Modes:RGBCCT/RGBW/RGB/CCT/Dimmer
Certification:EMC/CE/Rohs/LVD

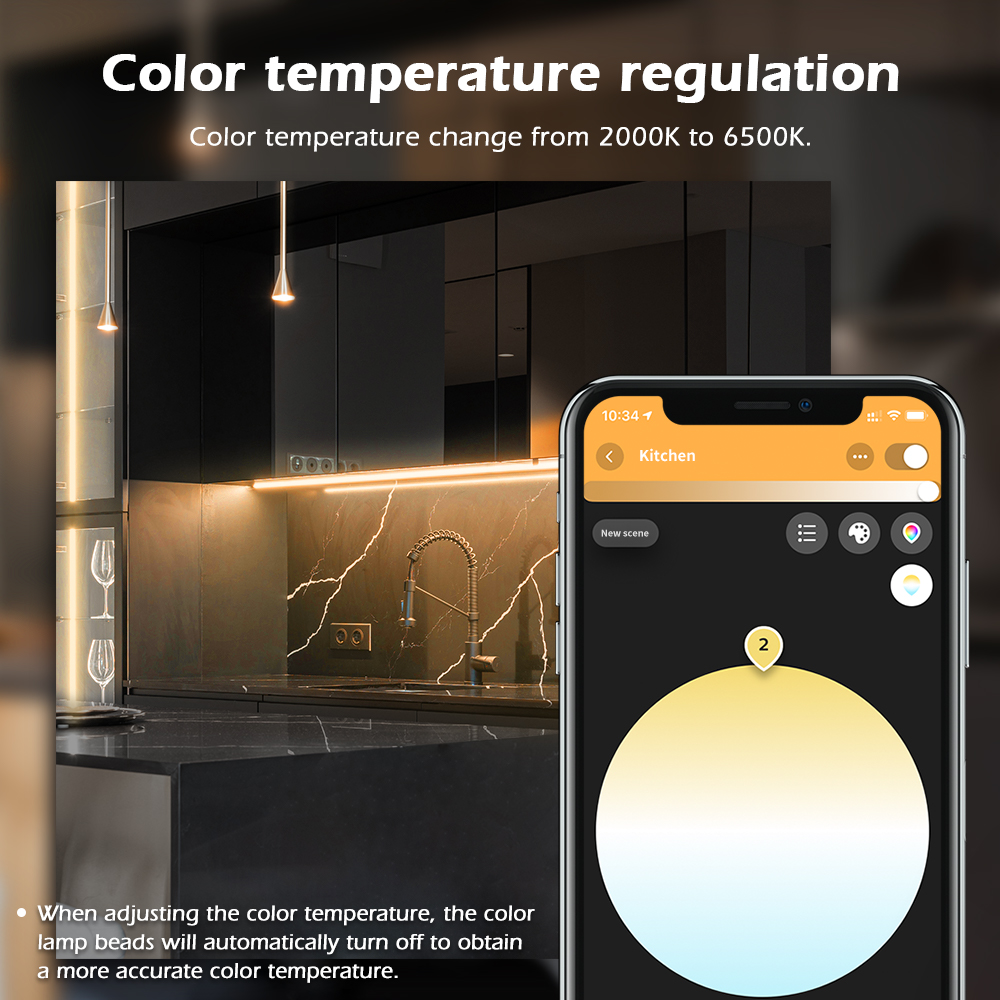

CCT temperature:2200-6500K
Control way:Smartphone APP+ Voice control+Remote Control
Protection rate:IP20
Power Supply:DC12-54V
max power loaded:max 270W power loaded
Fit for:various installation and DIY scenes

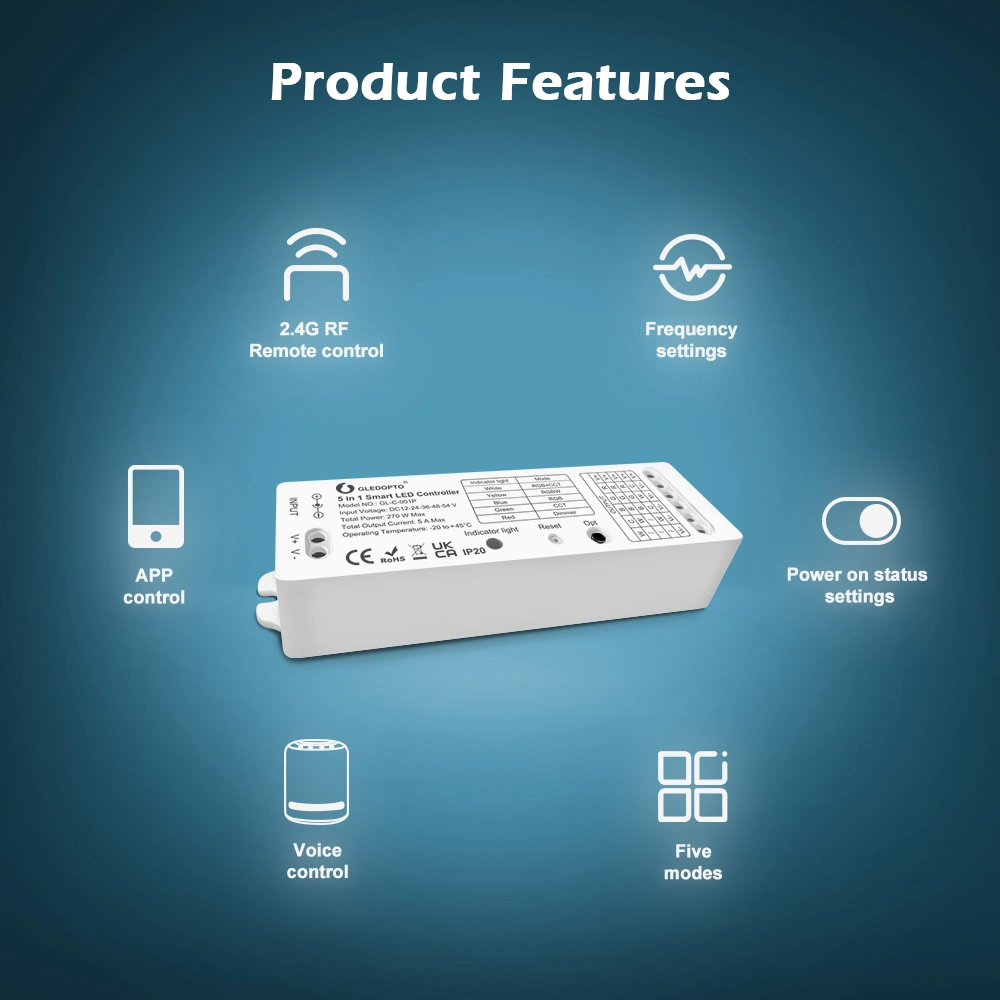

Product Description

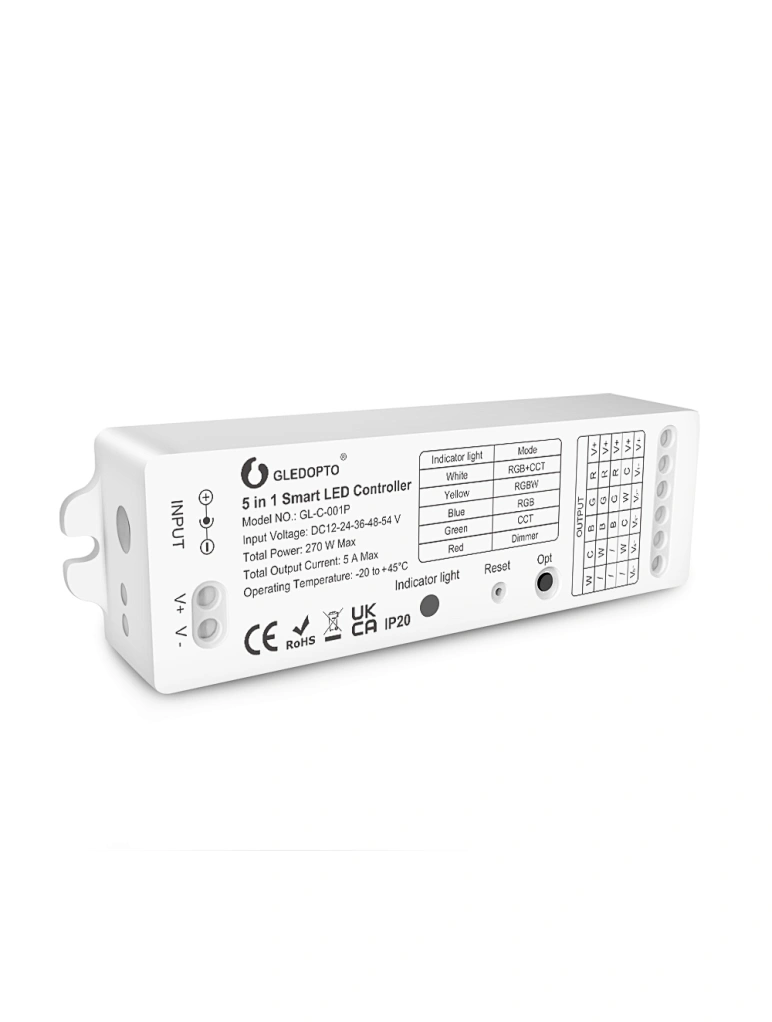

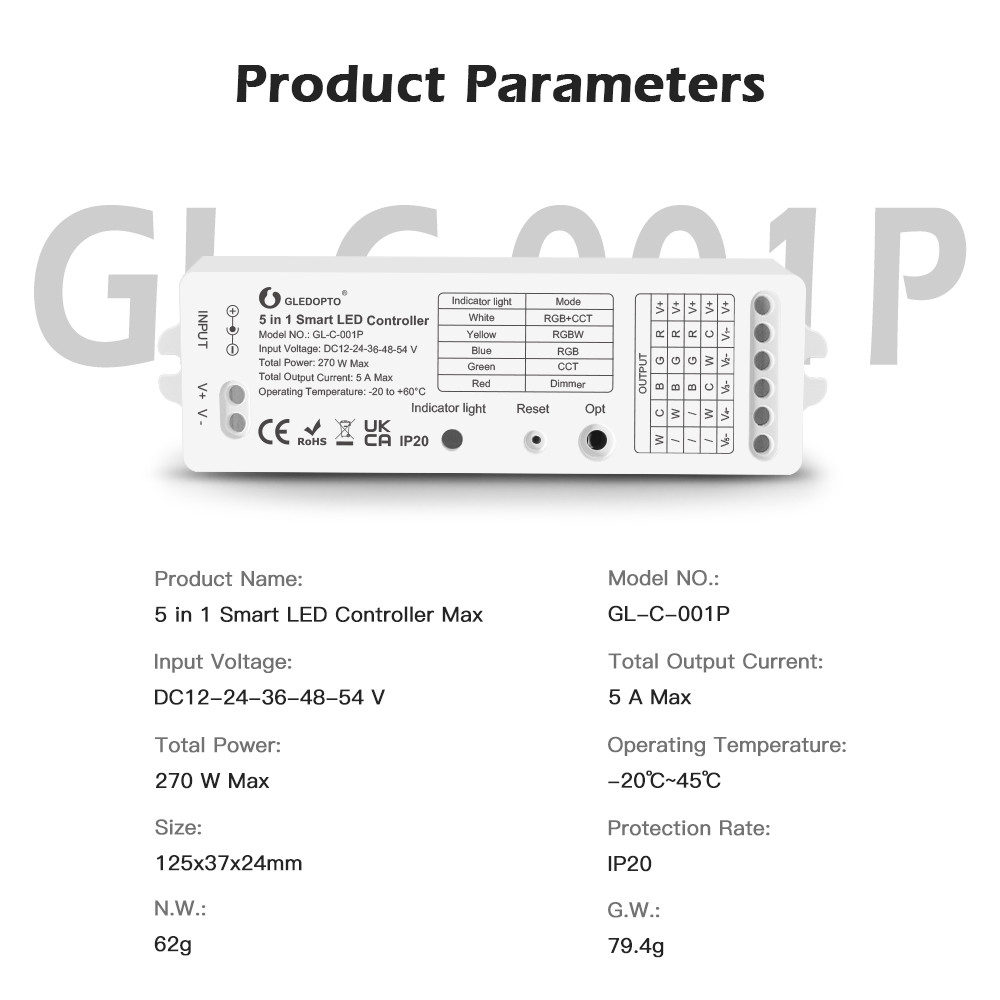

Product Name	Zigbee PRO 5in1 Smart LED Controller
Model	GL-C-001P

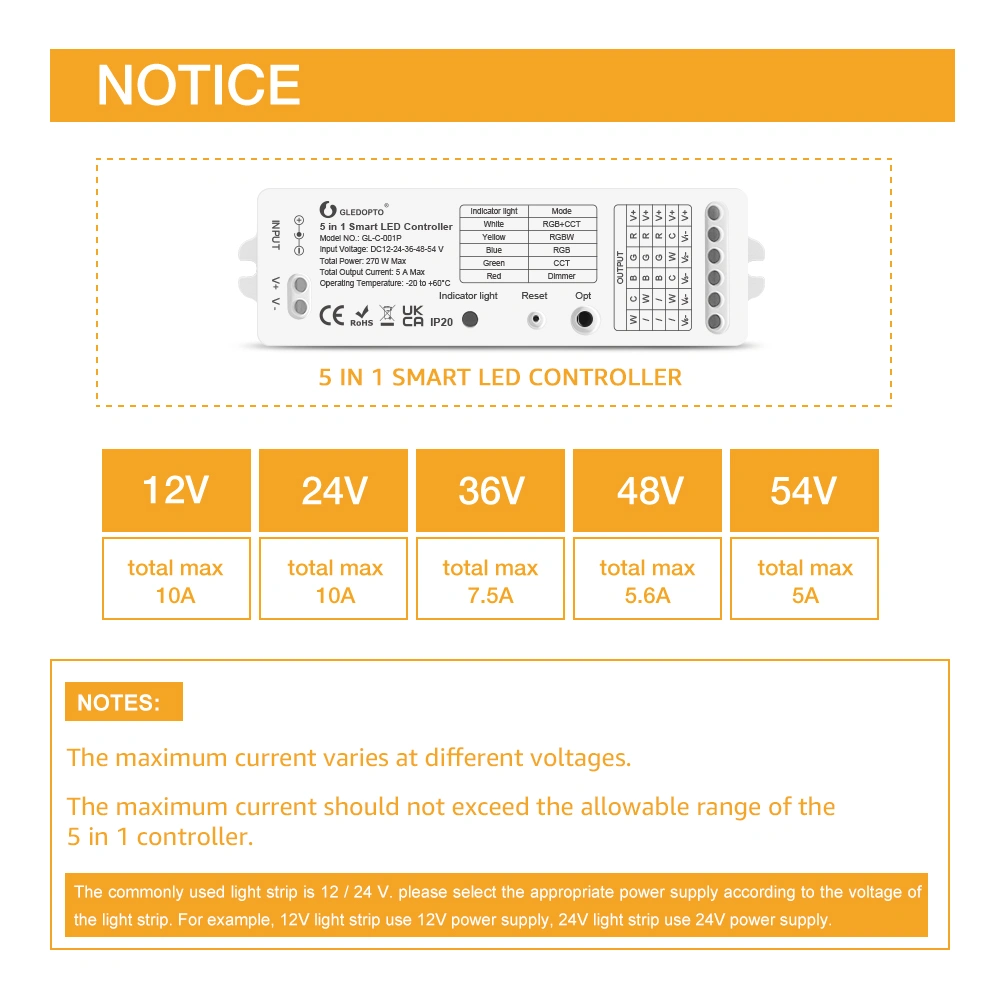

Input Voltage	DC12-54V
Color	RGB+CCT
Output Current/Channel	5A Max
Total Output Current	10A Max
Total Power	270W Max
Remote Distance	30Meter
Control Way	APP/Voice/RF Remote Control

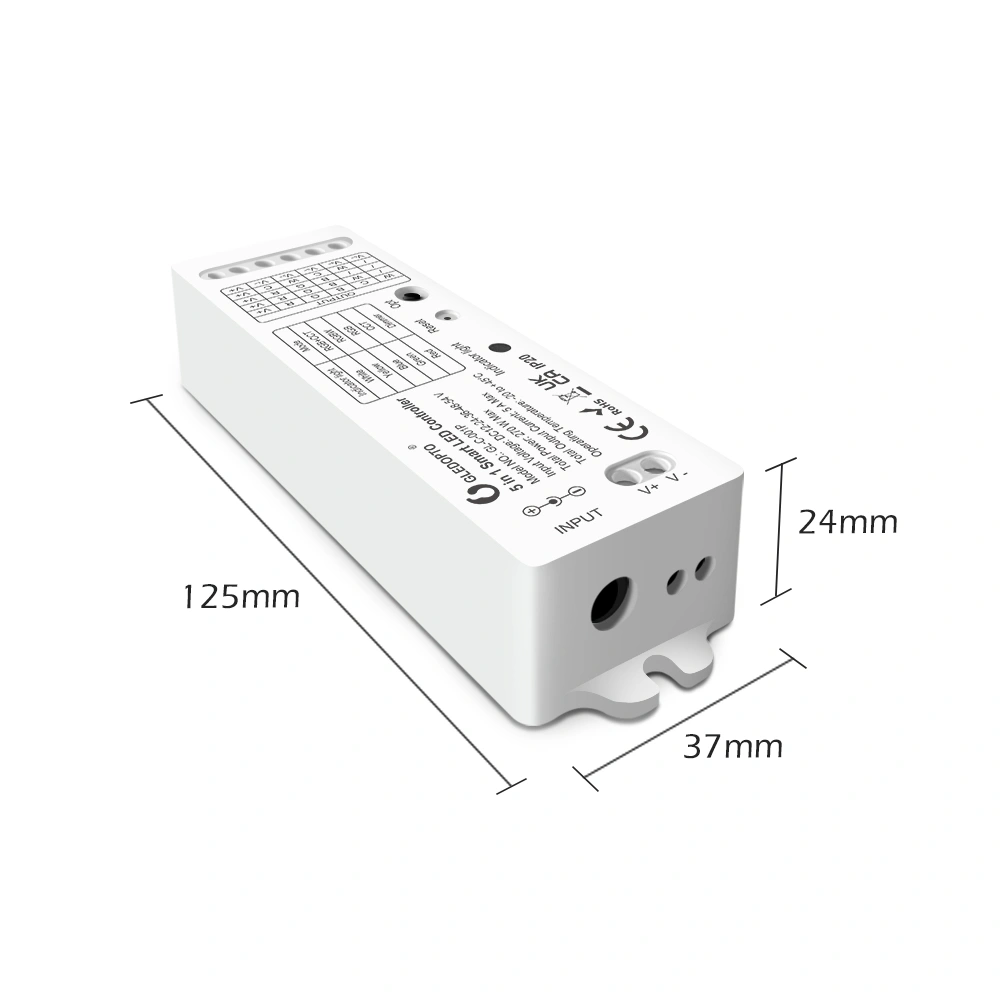

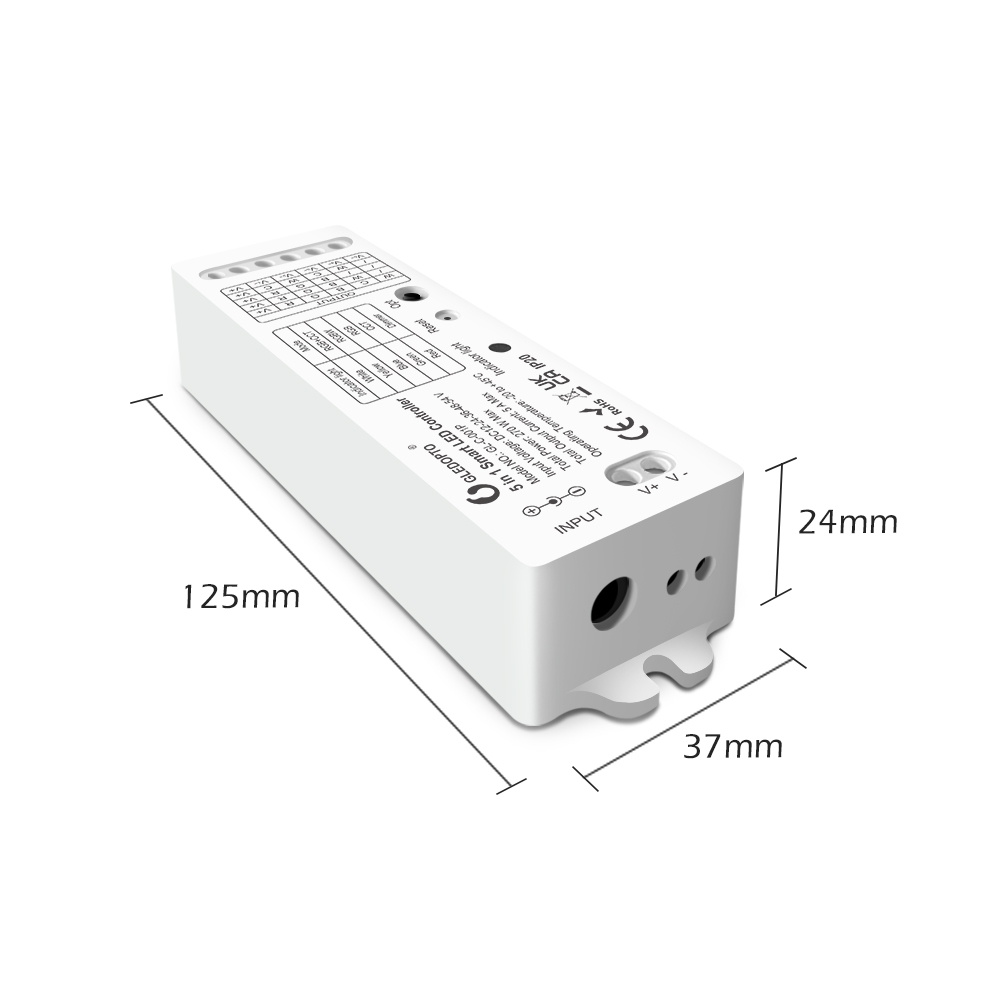

Size	125x37x24mm
Operation Temperature	-20°C-45°C
Protection Rate	IP20
Net Weight	62g
Gross Weight	80g
Warranty	2years

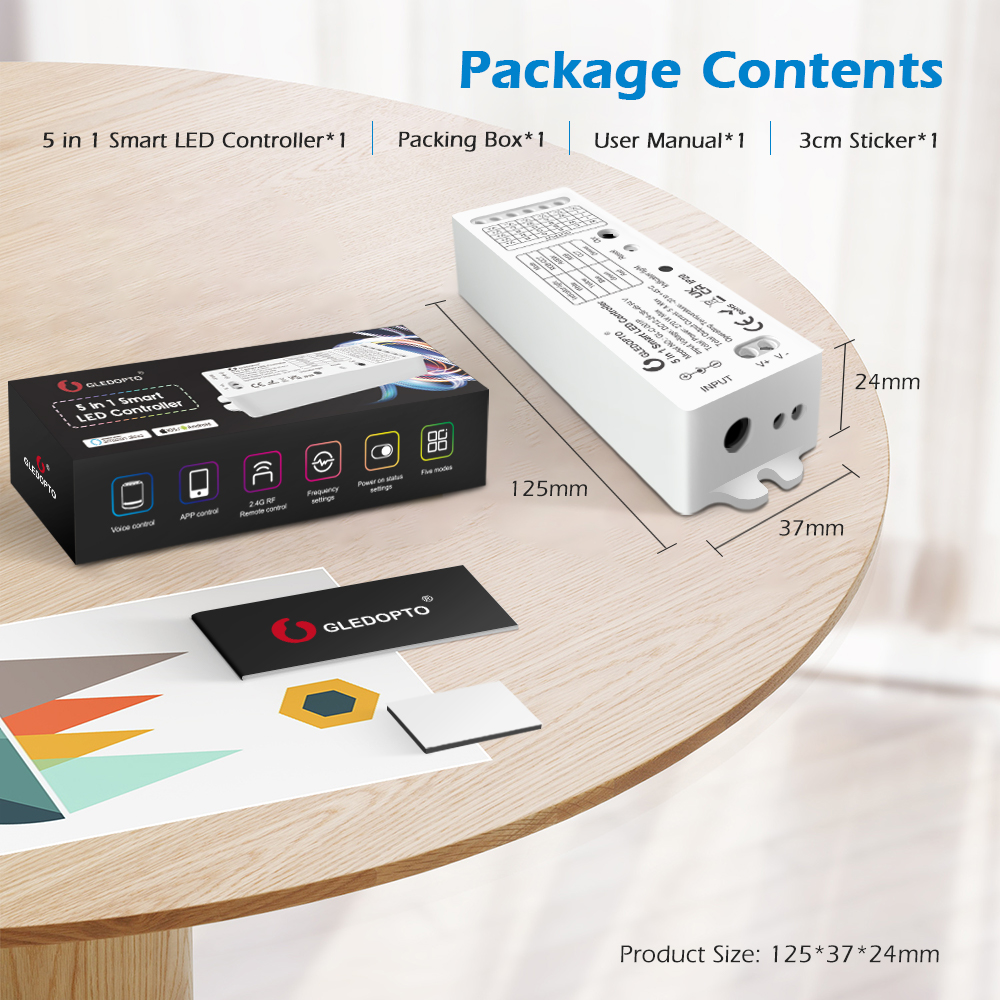

Package Included:	1. 5in1 LED Controller1 2. 3cm Sticker1 3. Instruction Manual1 4. Box 1

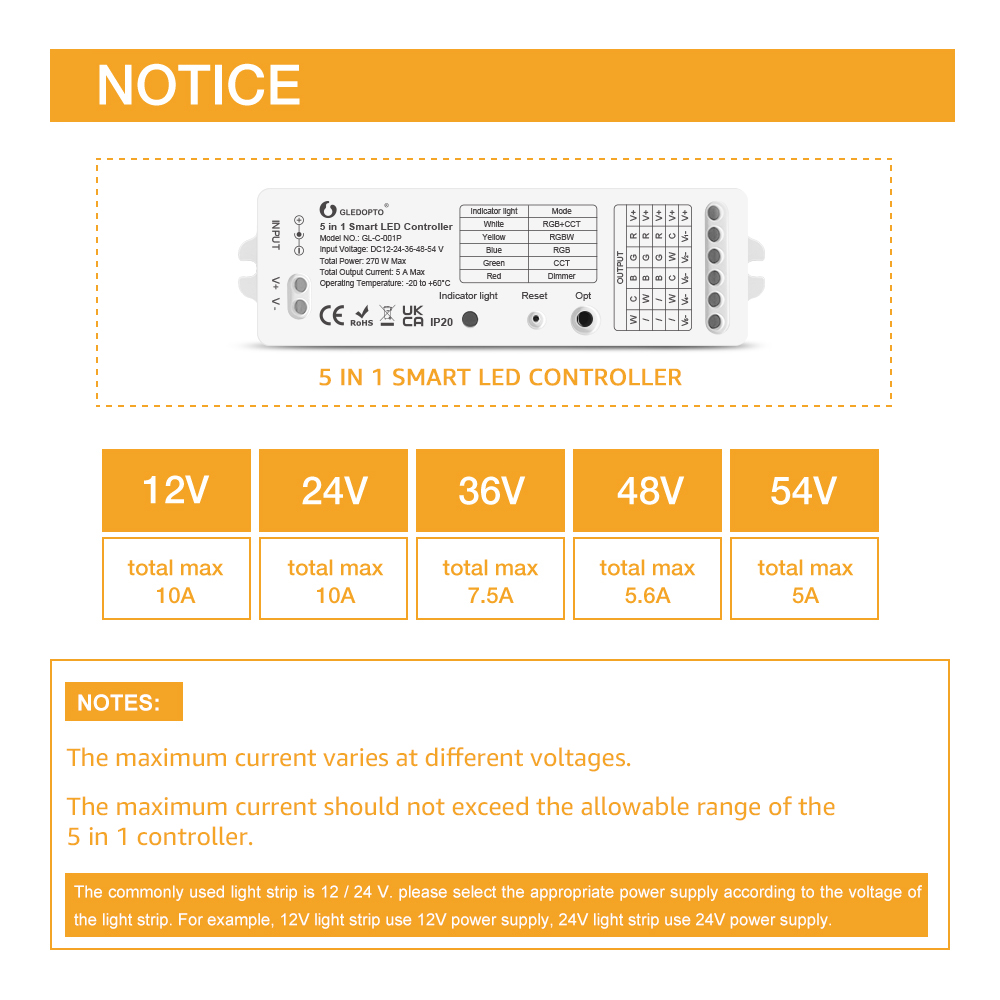

Input Voltage

Fit for 12-54V LED Strip Light.

Suitable for various installation and DIY scenes

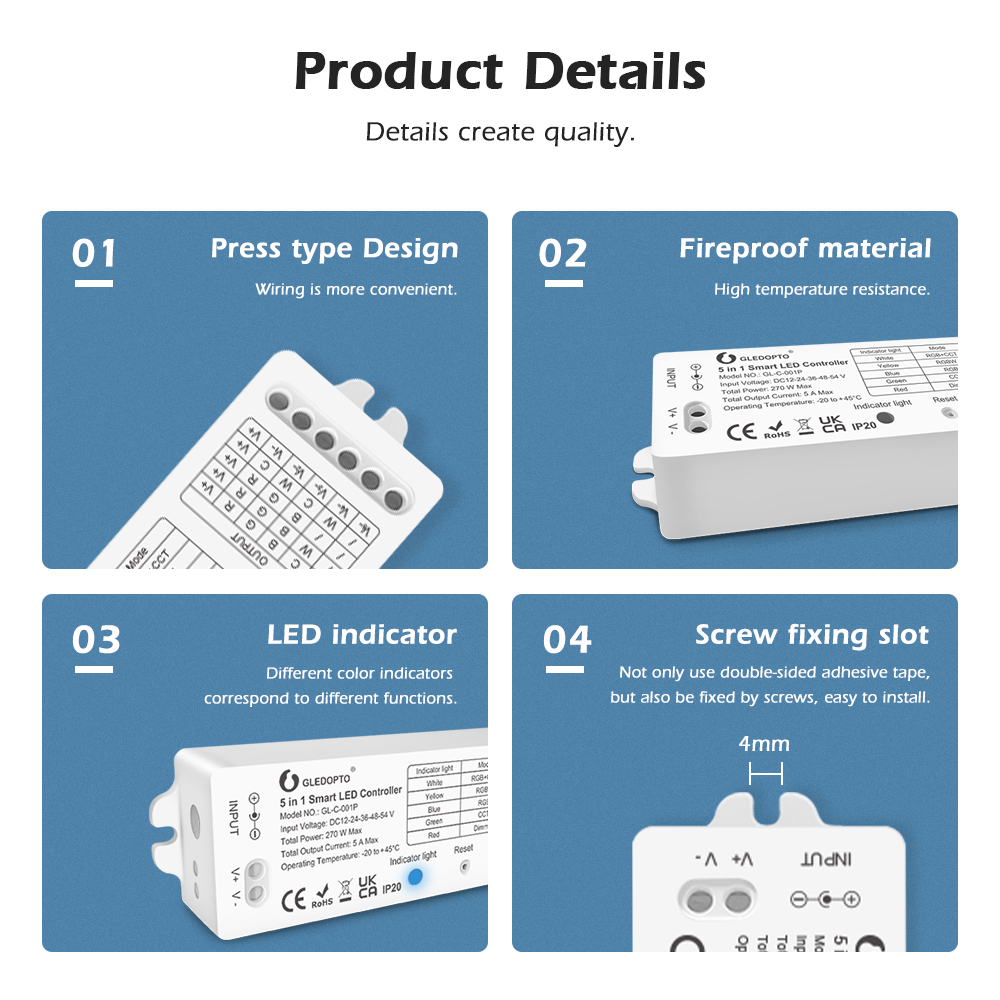

Indicator Light , Reset and Opt Button:

Indicator Light:

Different indicator colors represent different functions.

Reset:

Short press once to switch PWM frequency;
Short press twice to enter into Find and Binding;
Short press three times to enter into ZigBee Touchlink Commisioning;

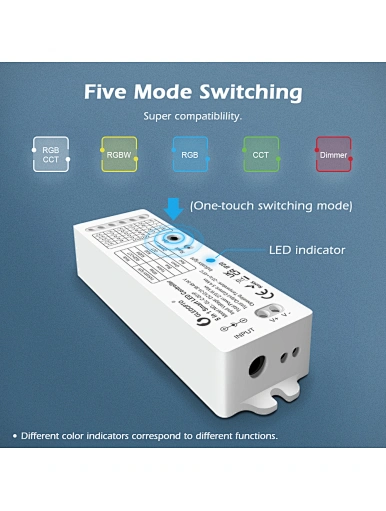

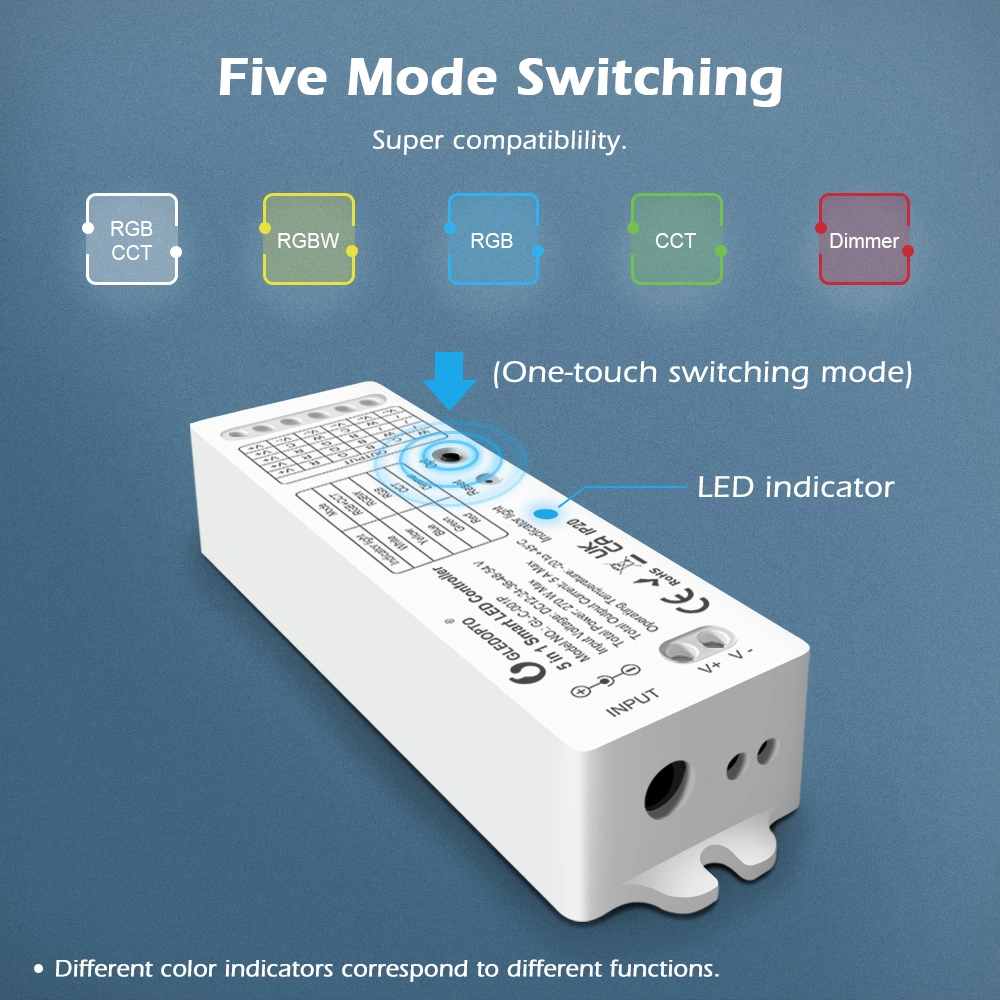

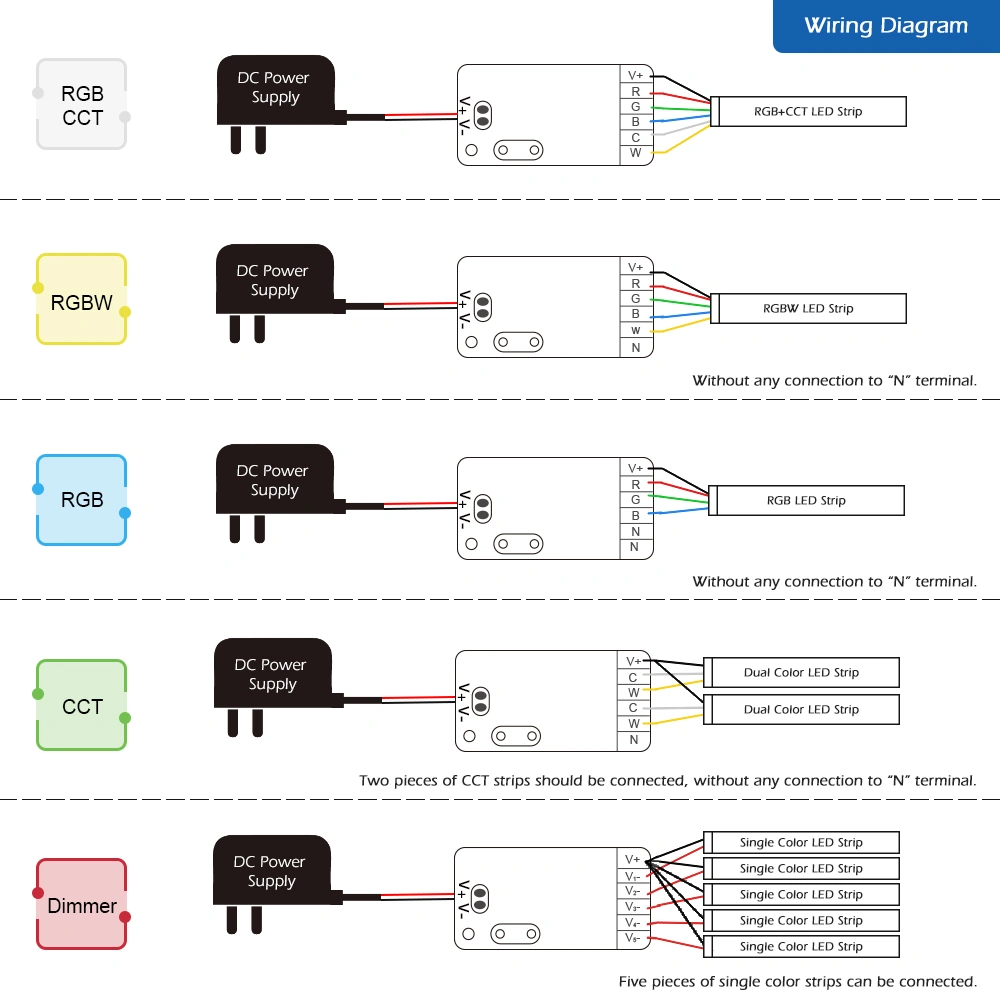

OPT (Five Mode Switching):

1. There has five modes to connect with led strip: RGBCCT/RGBW/RGB/CCT/Dimmer, and different color indicator correspond to different functions. One-touch switching mode.

2. You can click the"opt"button, short press once to switch one of functions that you want according to the different indicator color, then you can connect between the different port of controller and corresponding wires of your led strip.

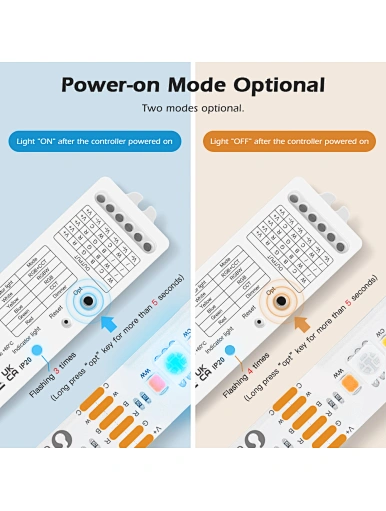

Power-on Mode Optional

Long press the"opt"key for 5 seconds, the indicator of device will flash in blue color for 3 times, it will go into the"power on/off status“ mode, and the device will save the previous status before power off. It will has two options state under: ① if the device is powering on, after the electricity drop and power on again, the device will keep on; ② if the device is powering off, after the electricity drop and power on again, the device will keep off. Repeat the operation again to cancel this function, the device will be on by default status when powered on.

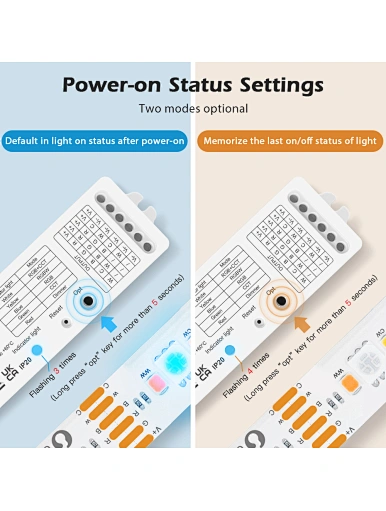

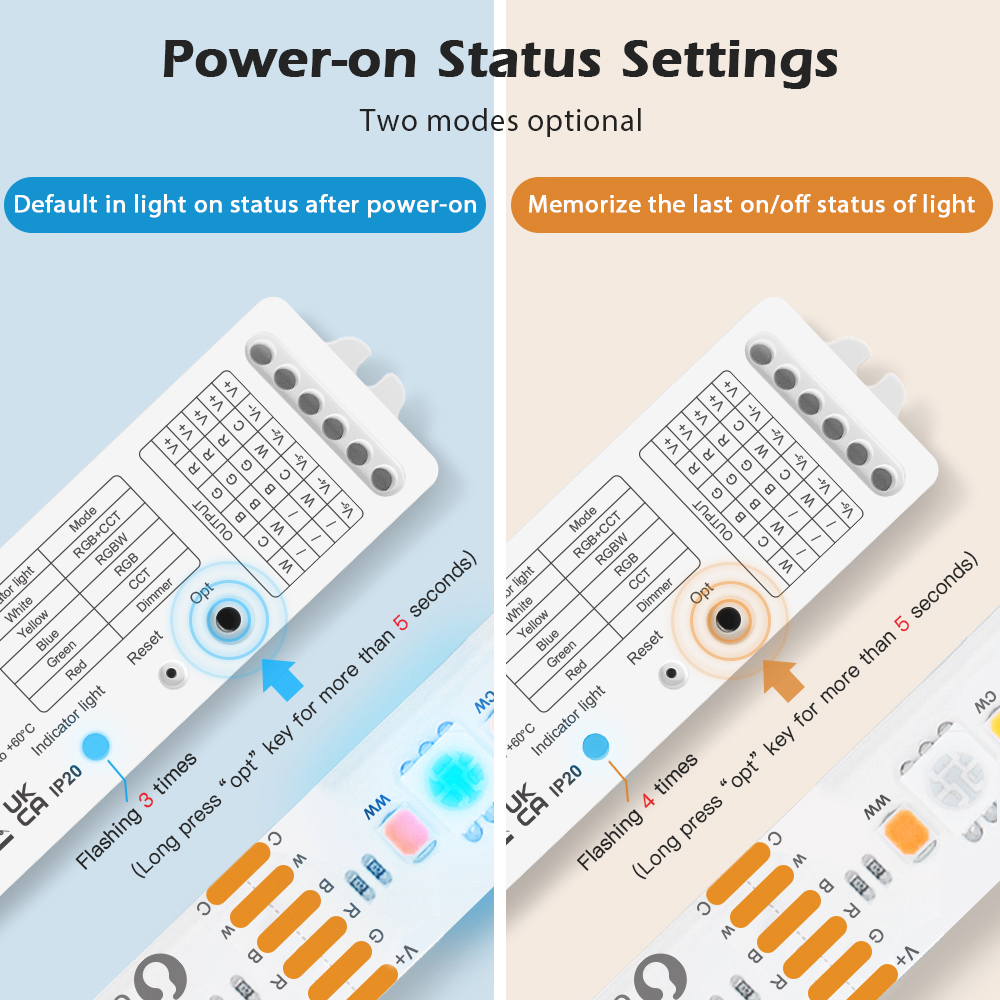

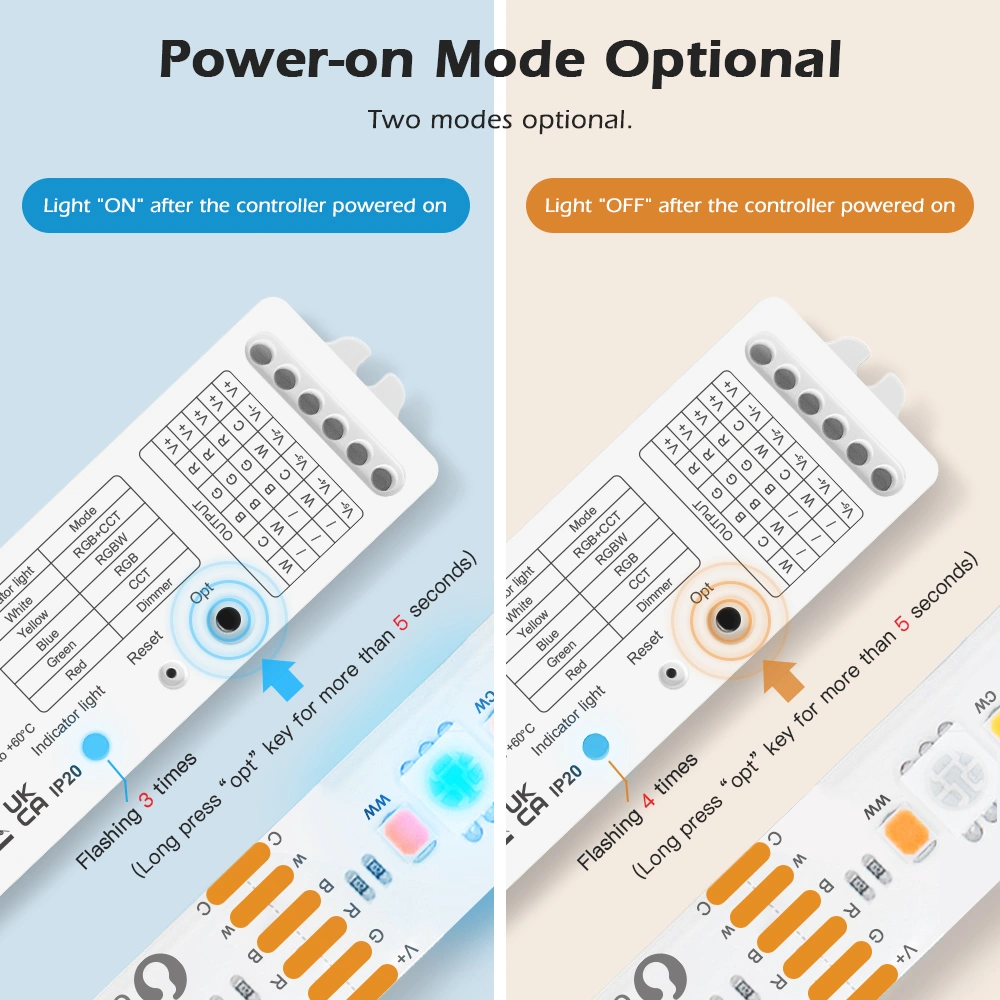

Power-on Status Settings:

Long press"opt"button for more than 5 seconds, the indicator will flash in light blue color and resume to previous color after
"off"for 4 seconds to complete power-on status setting.
The default power-on status is light on.The indicator flashing 3 times, in light blue means lighting on under power-on status,
flashing 4 time in light blue means light off under power-on status.

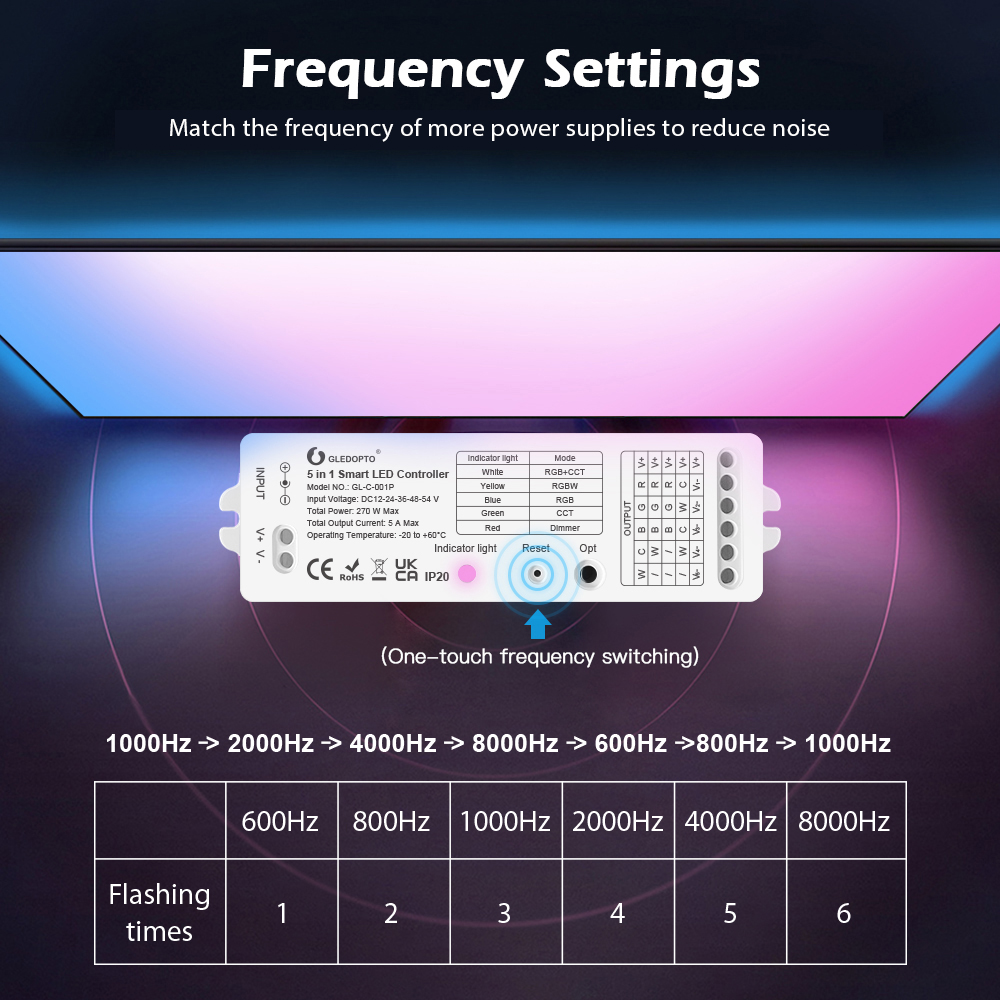

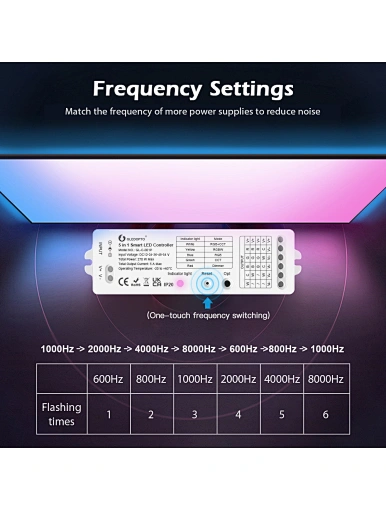

PWM frequency adjustable

Match more power supplies to reduce the noise.

In order to be applicable to different power supplies, the frequency of device is selectable as 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz and 8000Hz, and default frequency 1000Hz.
Once short press"reset"key, the frequency will switch into the next one. The indicator will flash in pink color and resume to previous color after"off"for 2 seconds. The indicator flashing times corresponding to different frequency.

Factory Reset The Factory Reset will be done successfully by long pressing"Reset"key more than 5s (or re-power on the device 5 times or more). All configuration parameters will be reset after the device is reset or removed from the network, including ZigBee and 2.4G RF Network. The indicator will flash firstly 3 times in the color of corresponding function selected, and turn into default Pink color (in default RGBCCT function) after flashing 4 times again.

2.4G RF Remote Control

Pairing with 2.4G HZ RF Remote Control/Touch Panel (No ZigBee Hub Needed) 1. The pairing will be timeout after 4 seconds when the device powered on. 2. The pairing will be done successfully by pressing any zone “I” key of the 2.4G RF Remote or touch panel. 3. The indicator from the device will blink 3 times.

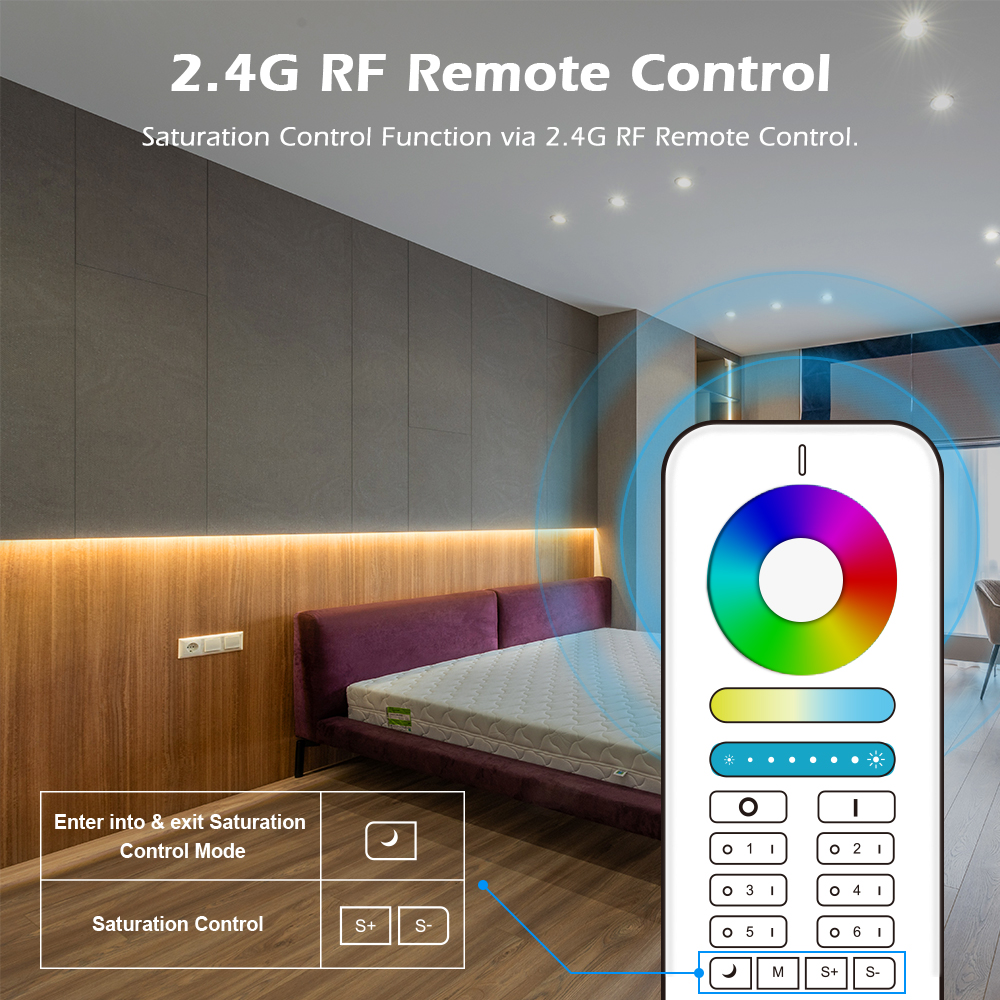

Saturation Control Function with 2.4G RF Remote Control

White and RGB color light will be on at the same time, you can choose any colors, and dim the brightness of white color in the meanwhile, to make the saturation more colorful.

Works with Amazon echo plus

adjust on/off, brightness , and change light colors through your voice command.

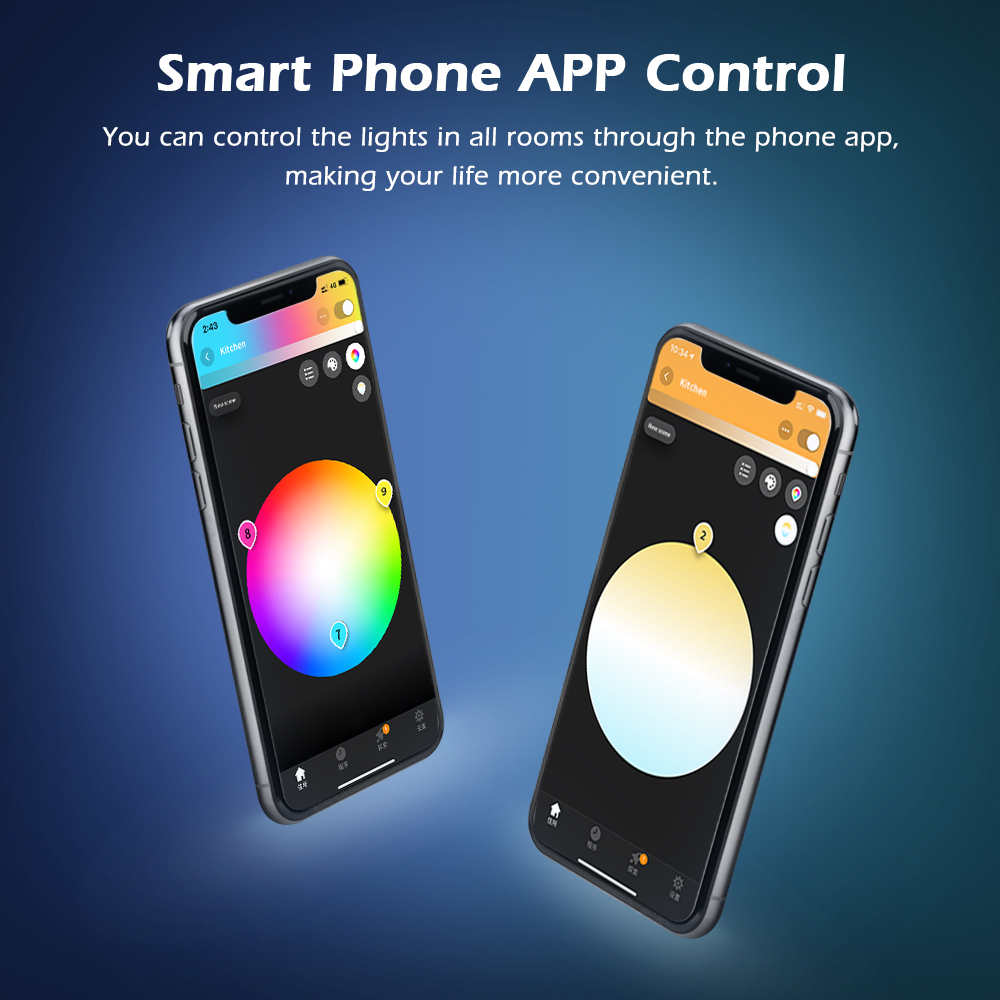

Smart phone APP control

You can control the lights in all rooms through the phone app, making your life more convenient.

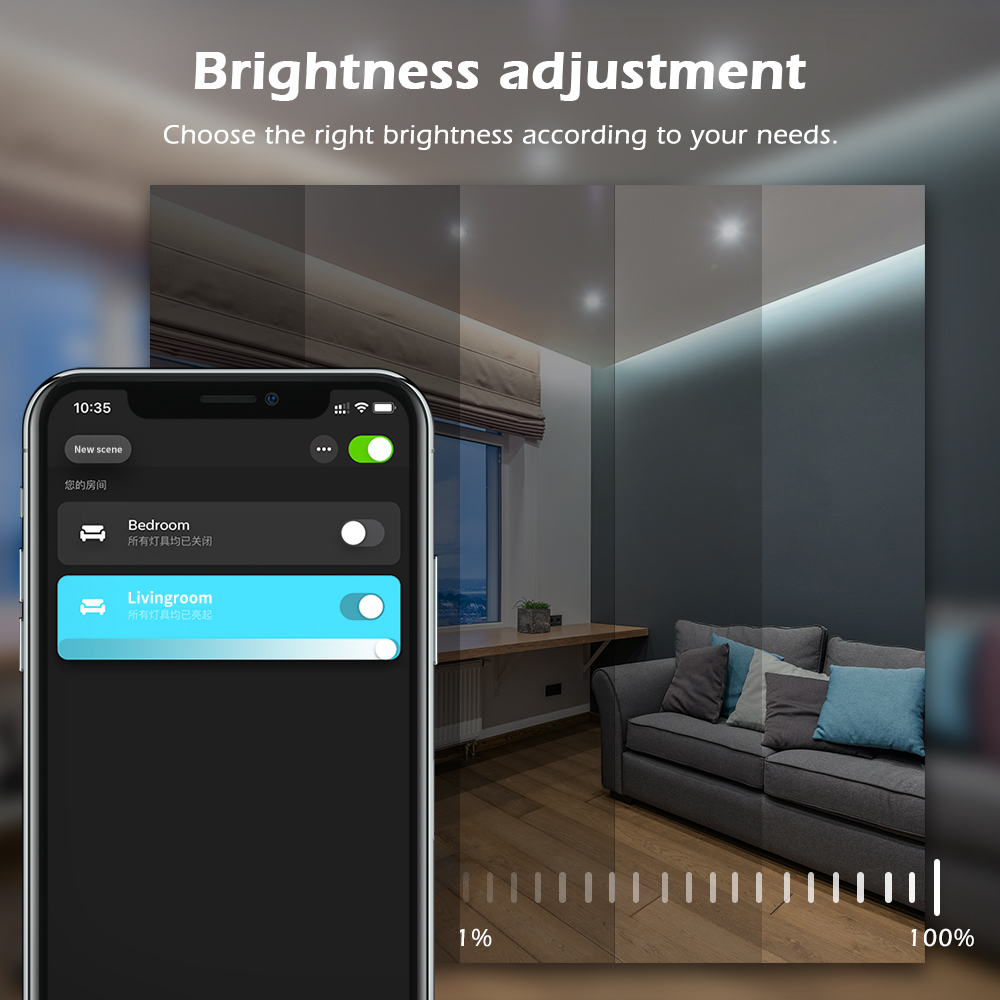

Brightness adjustment

Choose the right brightness according to your needs.

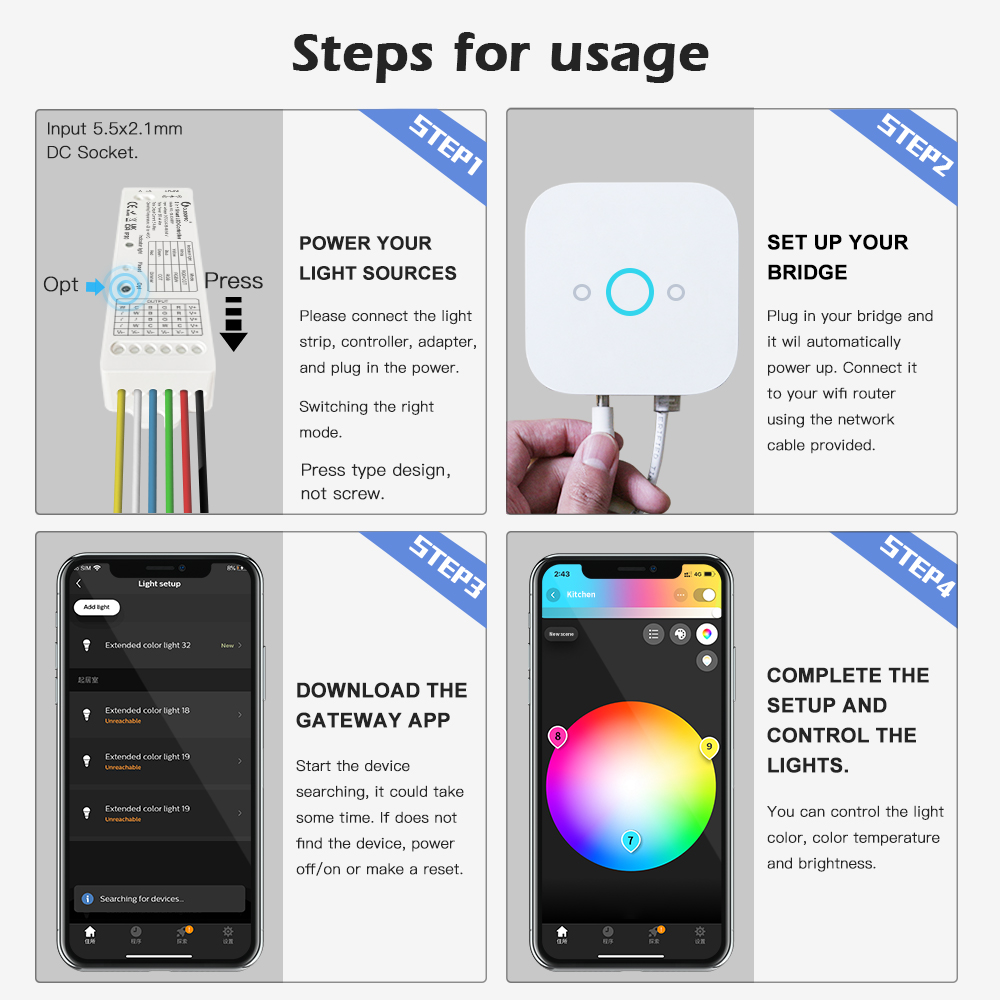

Pairing with ZigBee Network

Add the device to a ZigBee network via coordinator or hub. 1. Please make sure the device not being paired. Otherwise, please"Reset"the device according to the method of"Reset". 2. After step 1, there will be a pairing process about 90s. Once time out, you need to repeat Step 1 again. 3. Open the ZigBee App (Hue or Amazon Alexa) to add the device. 4. If the pairing done successfully after the above steps, the device will blink 3 times.

ZigBee Find and Bind Mode

Note: Make sure that the device and remote are in the same network.

1. Short press"Reset"key (or re-power on the device) for 2
times. The device will blink twice, and start"Find and Bind"mode to find the"Target Node"

2. Set the remote control or touch
panel (target node) to enter the"Find and Bind"mode to search for"Bind Initiator". Please refer to the user manual of the
corresponding remote or touch panel.

3."Find and Bind"is completed, the remote or touch panel shall have indication.

Now the device shall be remote control or touch panel controllable.

Touchlink to a ZigBee Remote Control or Touch Panel.

1. Make sure the distance between the device and remote control or touch panel less than 10cm.

2. Method A: Please short press key"Reset"3 times or power on/off the device 3 times to enter into"Touchlink Commissioning"mode, the device will blink 5 times.

Method B: Re-power on the device, Touchlink Commissioning will start after 15s if not being added to a ZigBee network, 165s time out. Or start immediately if it's already being added to a network, 180s time out. Once time out, repeat the operation again.

3. Set the remote or touch panel to enter"Touchlink Commissioning", please refer to the user manual of the corresponding remote
or touch panel.

4. There shall be indication on the remote or touch panel for a successful pairing, the device will blink 2 times.

Now the device shall be controllable via the remote or touch panel.

Note:
(1) If the device & remote control in different zigbee network each remote can link with one devic
(2) If the device & remote control in the same zigbee network, max 30 remotes can link with one device
(3) For the Philips Hue /Amazon Echo Plus, the device & remote control should in the same network before TouchLink.

RESET the Zigbee Network

Method 1: Delete the device on theAPP the device will blink 2 times. Method 2: Long press for more than 5s to reset(Or re-power on the device 4 times) to unpair the networkthe device will blink 2 times.

RESET the 24GHz RF Network

1) Method 1: Short press the Master"On"kev 5 times within 4 seconds after the device powered on, the device will blink 3 times. 2)Method 2: Short press continuously 5 times the Zone"On"key the device being paired within 4 seconds after the device powered on, the device will blink 3 times.
