$5.99 - $11.99 / piece
- Place of Origin:Guangdong, China
- Brand Name:GLEDOPTO
- Type:Remote Control
- Max. Load Power:2A
- Voltage:DC5V
- Input Voltage:5V DC
- Max Current Output:2A
- Max Power Loaded:10W
- Controlling Protocol:ZigBee (ZigBee3.0, ZLL, ZHA)
- Remote Control Distance:≤30meter
- Lighting Color:RGB+CCT
- Working Temperature:-20-60℃
- Shell Material:ABS Material
- Size:L11*W22*H43mm
- Warranty:2Year

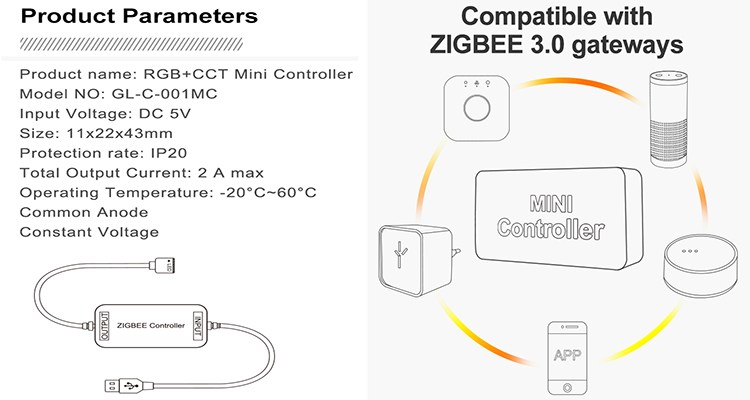

Main Specs of DC5V ZigBee Mini LED Strip Controller | ||
Input Volt. | 5V DC | |
Output Current | Total 2A max. | |
Common Anode | Yes | |
Control Tech. | ZigBee 3.0 | |
Lighting Color | RGB+CCT | |
Remote Distance | ≤30Meter | |
Shelf Material | ABS Plastic | |
Working Temp. | -20°C~60°C | |
Product Features

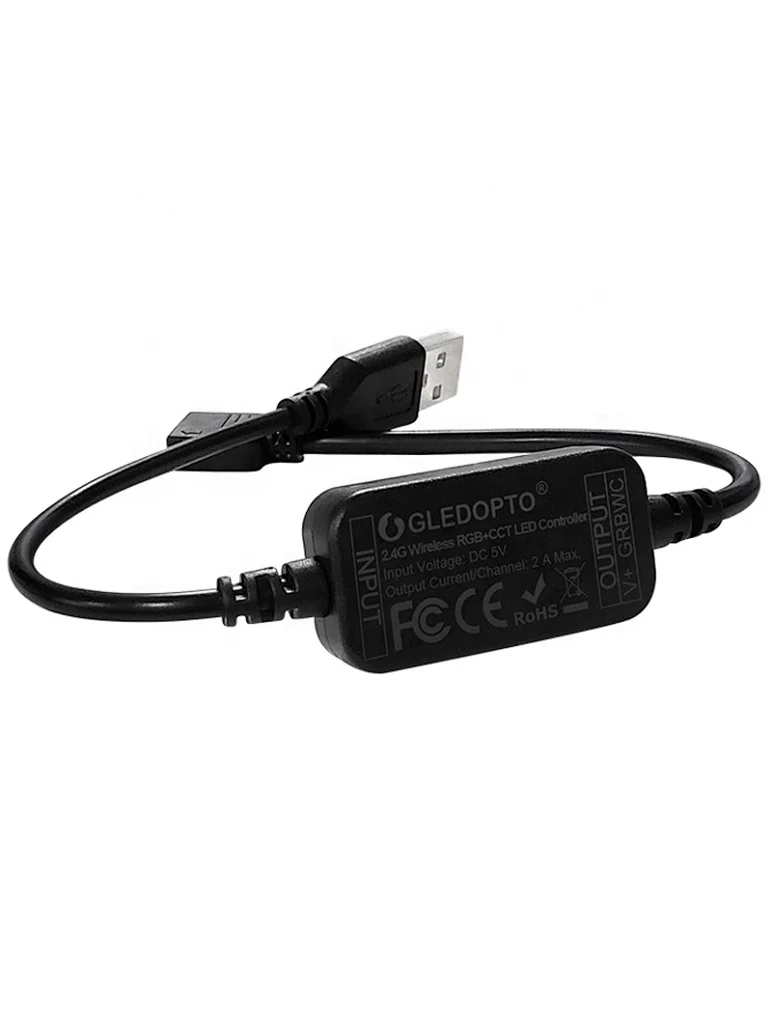

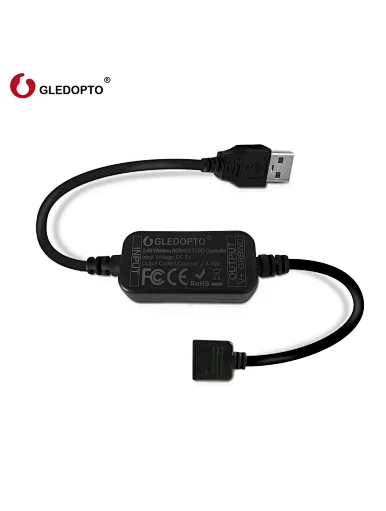

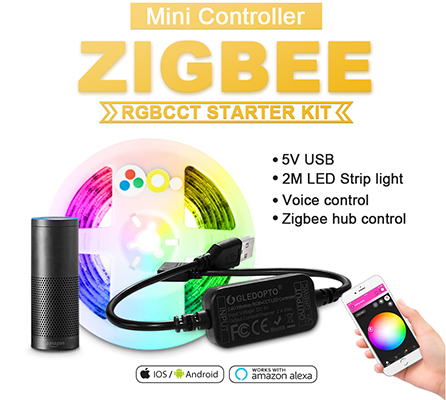

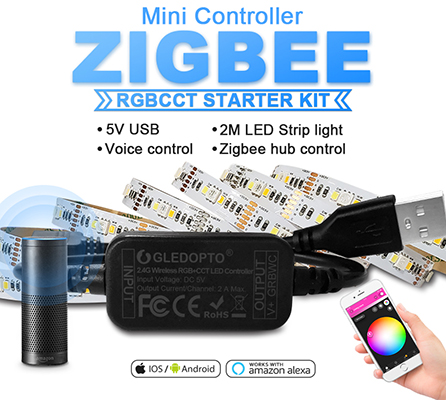

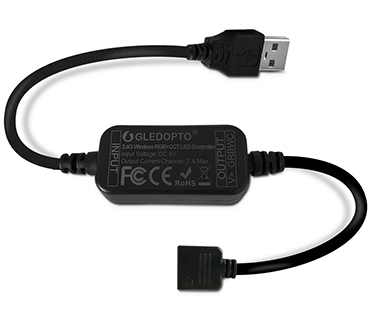

This mini ZigBee RGBW/RGB+CCT LED Strip Controller is a newly developed LED controller designed by GLEDOPTO®.
It is designed by a delicate & fashionable ABS housing body; based on ZigBee 3.0 protocol, which compatible to ZLL gateways such as Philips Hue, Amazon Echo Plus, Ikea Tradfri, Samsung Smartthings, etc. for residential or commercial LED lighting application with multi color changing and various color scenes for option, 2700K to 6500K color temperature tunable.

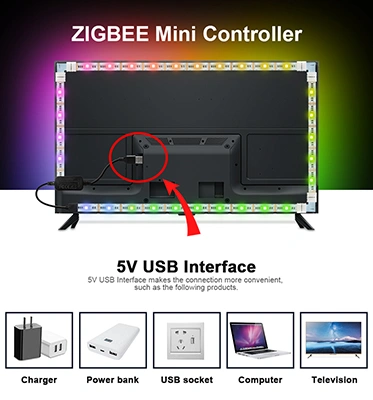

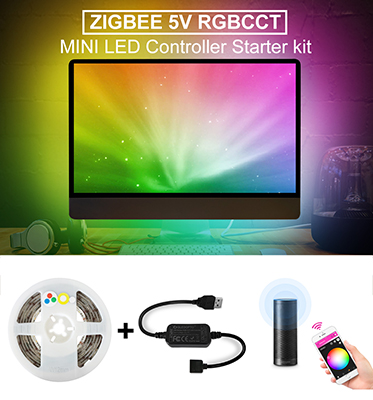

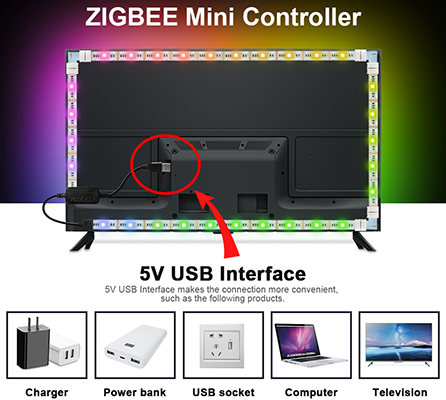

Since it is designed as 5V DC input with USB 3.0 interface, it is very convenient to connect it to your charger, power bank, laptop or TV set, etc. And you only need to connect it with GLEDOPTO RGB+CCT LED Strip Kit 2Mtr/pc, to use the strip kit as back lighting of your TV, laptops, computers, the lighting color will be auto synced with the change of screen colors.

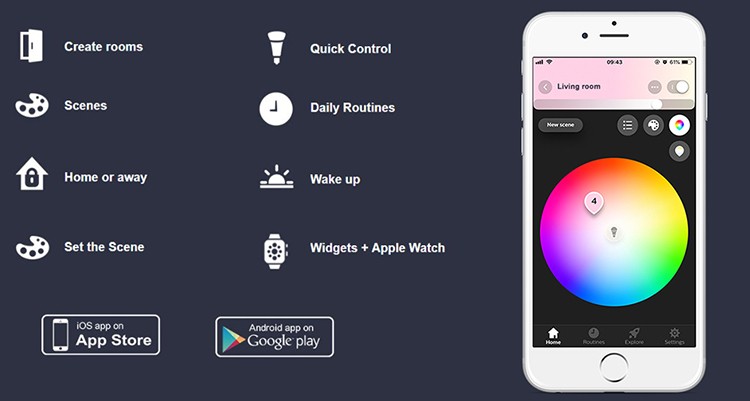

Main Functions of RGB+CCT LED Controller
△ Creat Rooms, divide your lamps into one or several rooms, to control lamps in each room together or seperately
△ Set the Scene, Scenes that automatically adjust to the lights in your room according to environment
△ Home or away, set time to turn on your lights automatically even you are away from home, as a reminder there's people at home
△ Wake up, set time to turn on light gently, to wake you up in the morning
△ Sync Effect with Screenbloom, sync your lights with movies, music and games, to enjoy the lighting effect which synchronizes with the plot of the picture changes

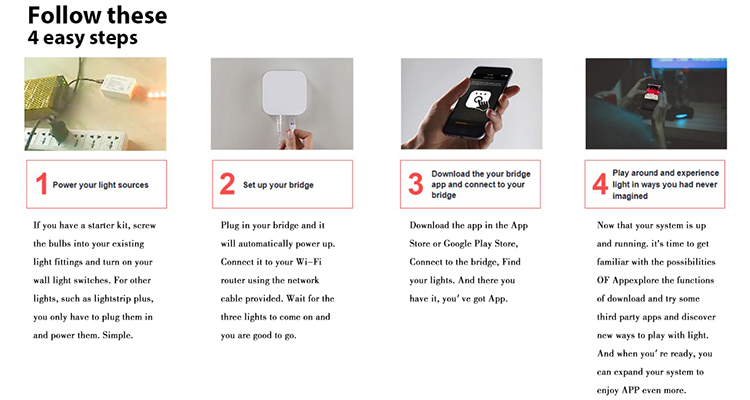

Easy Guide to Connect with ZigBee 3.0 Gateways

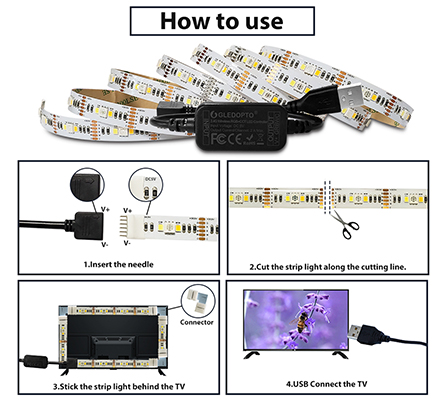

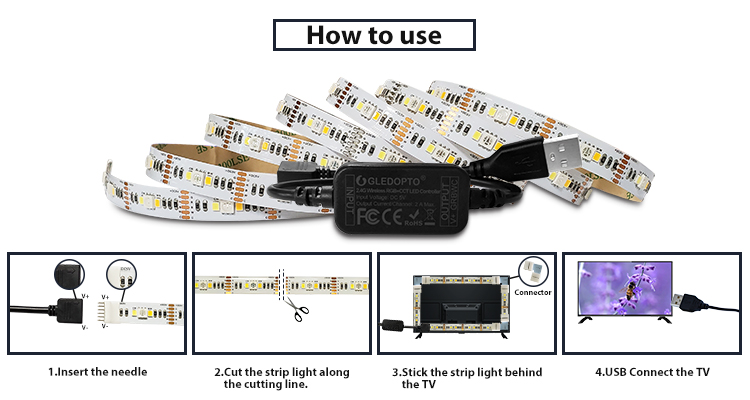

Installation:
1. Tuen off the power
2. Plug in the controller
3. Now you can connect it with the gateway
Connection with Gateway:

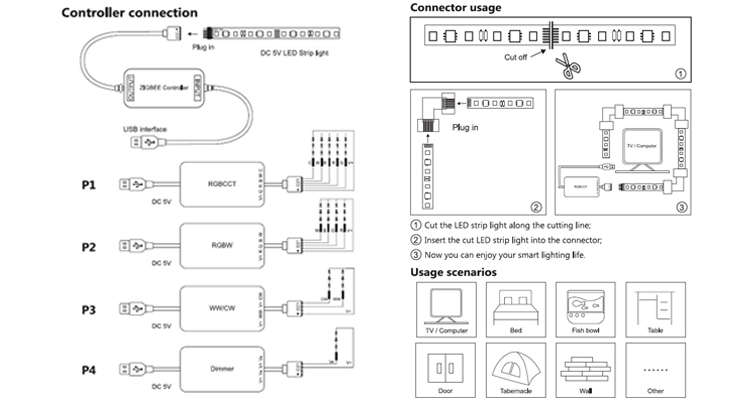

1. Connect the LED product to the controller see section"wire connection"
2. Start the device searching on the ZigBee Light Link gateway, it would take some time to complete.
If the gateway does not find the device, power on/off or reset it again.
3. After finding the device, the light will turn green, then you can save it to the rooms/groups
4. Now you can use the device
Reset:
1. Switch on your device
2. Now within 2 seconds switch off and on it again
3. Repeat off/on four times
4. Reset is done when the device is switched on at the 5th time, and the LED light will be fully bright, then flashing for 5 times.
Compatibility - to work with different ZLL Gateways and Apps.
App work with Hue gateway:
Hue, hueparty, hue Disco, iConnectHue, Hue Widget, Light DJ, etc.
Work with Home Assistant:
https://www.reddit.com/r/Gledopto/comments/ad9mbh/how_to_use_home_assistantha_to_control_gledopto/
Work with Homekit:
https://www.reddit.com/r/Gledopto/comments/amp3v9/i_wrote_a_little_guide_on_getting_the_gledopto/
Sync effect with screenbloom:
Sync your lights with movies, music and games, enjoy the lighting effect which synchronizes with the plot of the picture immediately, and experience the more delicate atmosphere lighting effect.
How to sync?
Please follow this website: http://www.screenbloom.com/
Demo Show of Sync: https://youtu.be/zZjtJMy_774
What You Can Do by Using GLEDOPTO® ZigBee LED Controllers & Lamps | ||||||

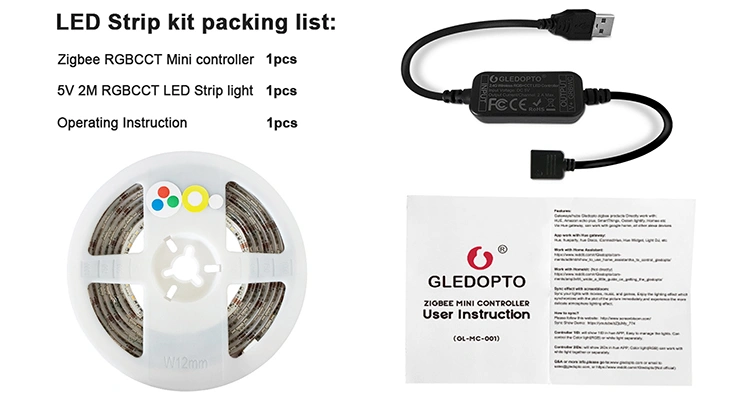

Gledopto ZigBee LED Strip Rope String Light Controller DC5V Packing List | ||||||
Similar RGBW/WW&CW/Single Color ZigBee LED Flexible Strip Controllers | ||
Item No. | #GL-W-001Z | #GL-C-006 | #GL-C-007 | #GL-C-009 | |||
Input Volt. | AC 100~240V | DC 12~24V | DC 12~24V | DC 12~24V | |||
Control Tech. | ZigBee protocol compatible to ZLL gatways, e.g. Philips Hue, Amazon Echo Plus, Ikea Tradfri, .. | ||||||
Lighting Color | on/off function | RGBWW/CW | RGBW | Single Color Dimmer | |||
