GL-C-001P Gledopto ZigBee LED Controller 5IN1 PWM Adjustable 600HZ 800HZ 1000HZ 2000HZ 4000HZ 8000HZ ZigBee LED Controller RGBW

GL-C-001P Gledopto ZigBee LED Controller 5IN1 PWM Adjustable 600HZ 800HZ 1000HZ 2000HZ 4000HZ 8000HZ ZigBee LED Controller RGBW
price

$14.99 - $34.99

GL-C-001P
1 piece
Quantity
  • Warranty(Year):2-Year
  • Lighting solutions service:Smart Lighting Control Solution
  • Luminous Efficacy(lm/w):0
  • Product Weight(kg):0.15
  • Place of Origin:Guangdong, China
  • Brand Name:GLEDOPTO
  • Type:Remote Control
  • Max. Load Power:270W
  • Connection Mode:Wireless Connection
  • Input Voltage:12-54V DC
  • Max Current per Channel:5A
  • Output Channel:5 Channel
  • Controlling Protocol:ZigBee 3.0 + 2.4G RF
  • Remote Control Distance:30meter
  • Working Temperature:-20-60℃
  • Shell Material:ABS Material

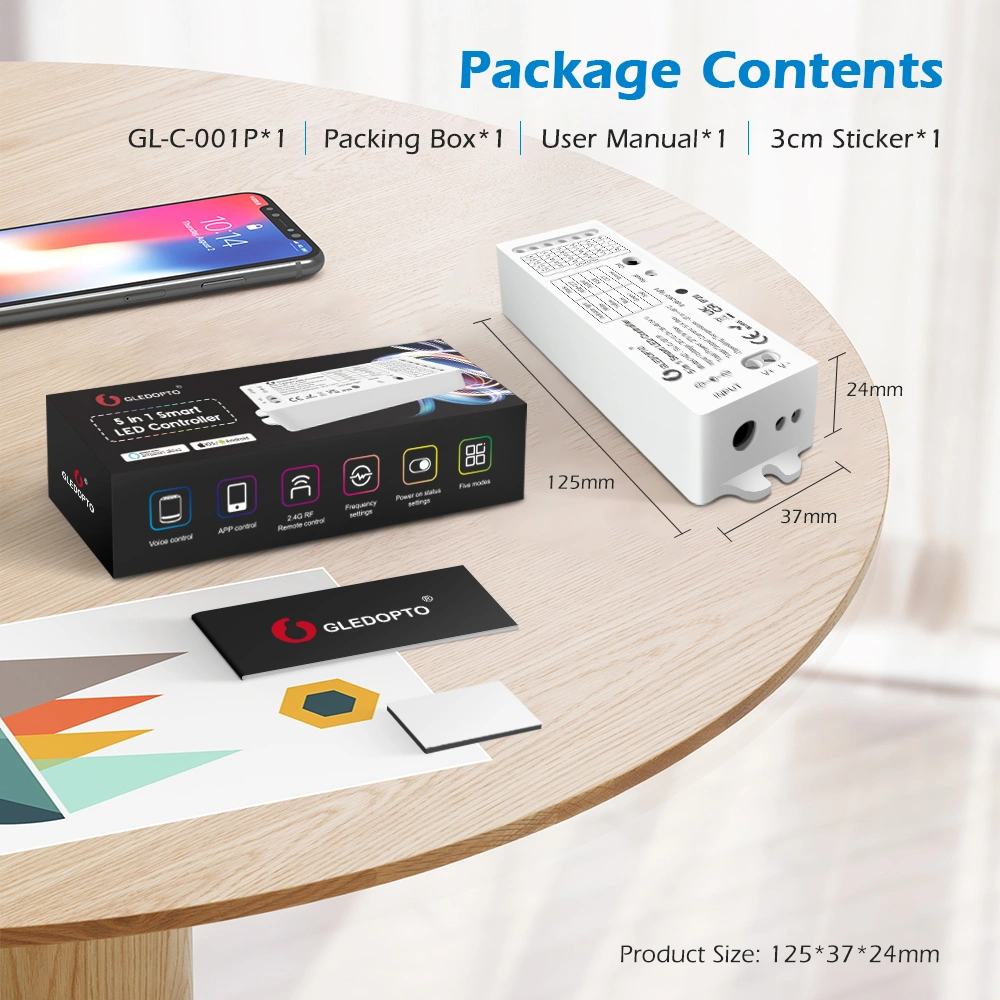

  • Size:L125*W37*H24mm
  • Warranty:2Year
  • Output Way:Common Anode & Constant Voltage

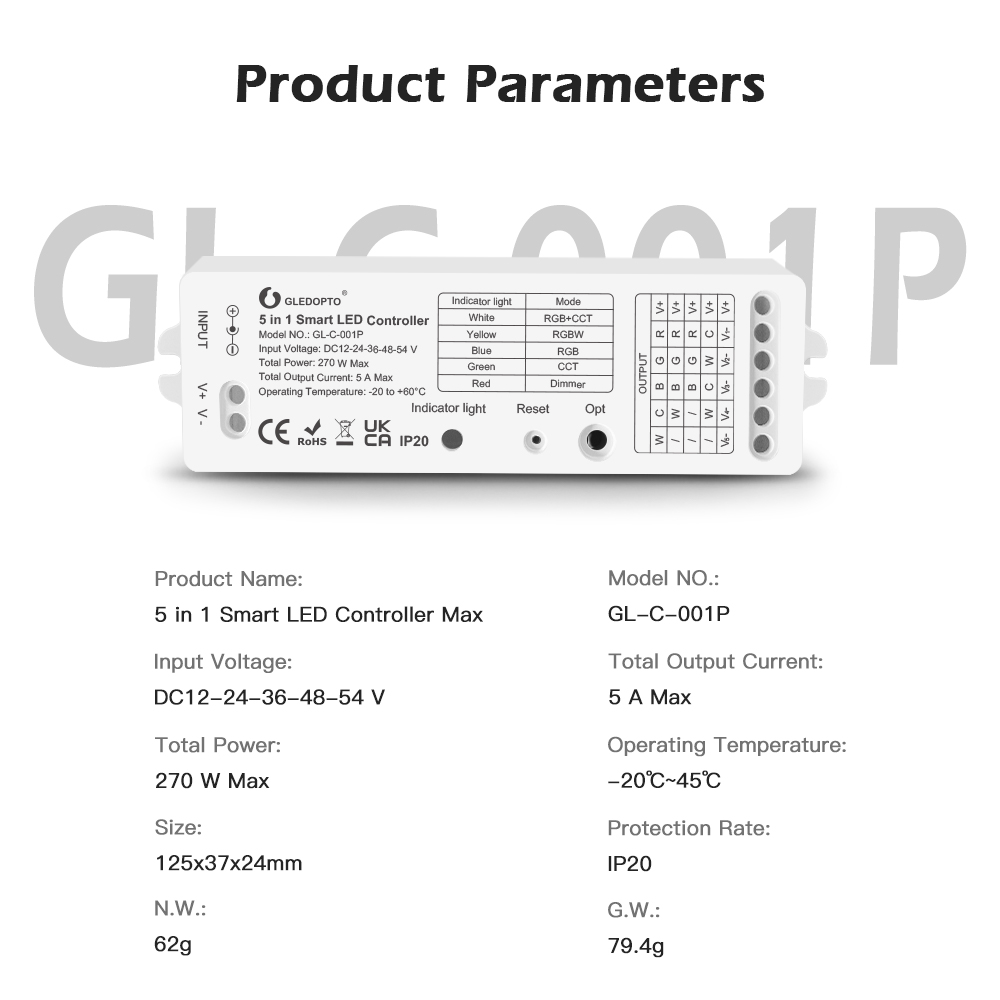

Product Paramenters
zigbee led controller
Main Specs of ZigBee 3.0 LED Strip Controller Pro
Input Volt.
12V ~54V DC
Output Power
Total 270W max.
Common Anode
Yes
Control Tech.
ZigBee 3.0 + 2.4G RF
Lighting Color
RGB/RGBW/RGBCCT/CCT/Dimer
Remote Distance
30Meter
Shelf Material
ABS
Working Temp.
-20°C~60°C
zigbee led controller
zigbee led controller
Key Features of Gledopto 5in1 Controller
zigbee led controller

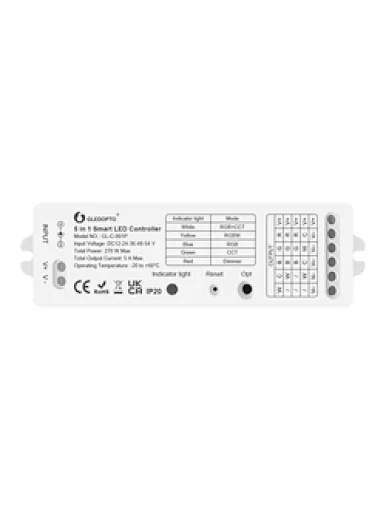

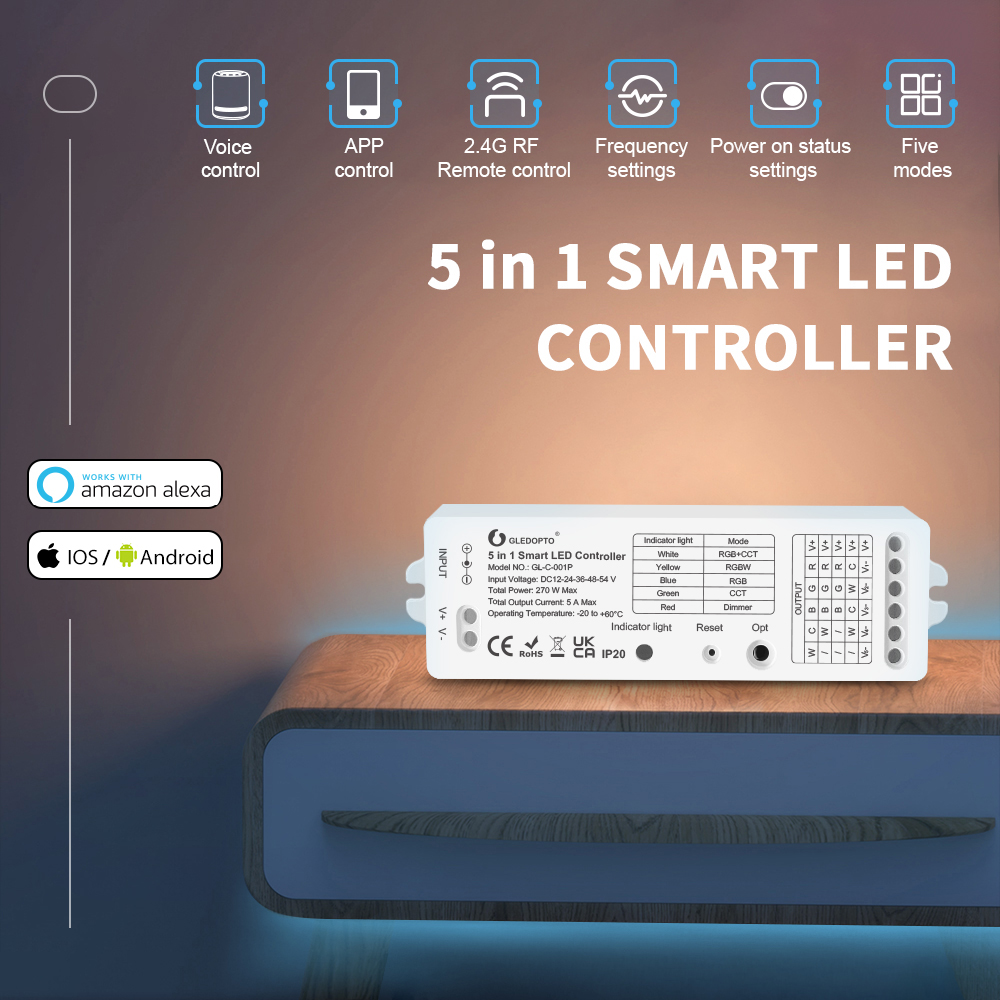

5-in-1 Smart ZigBee LED Controller

1.LED Indicator:

Different indicator colors represent different functions.

2.Reset:

Short press once to switch PWM frequency;

Short press twice to enter into Find and Binding;

Short press three times to enter into ZigBee Touchlink Commisioning;

Short press four times to clear ZigBee Network.

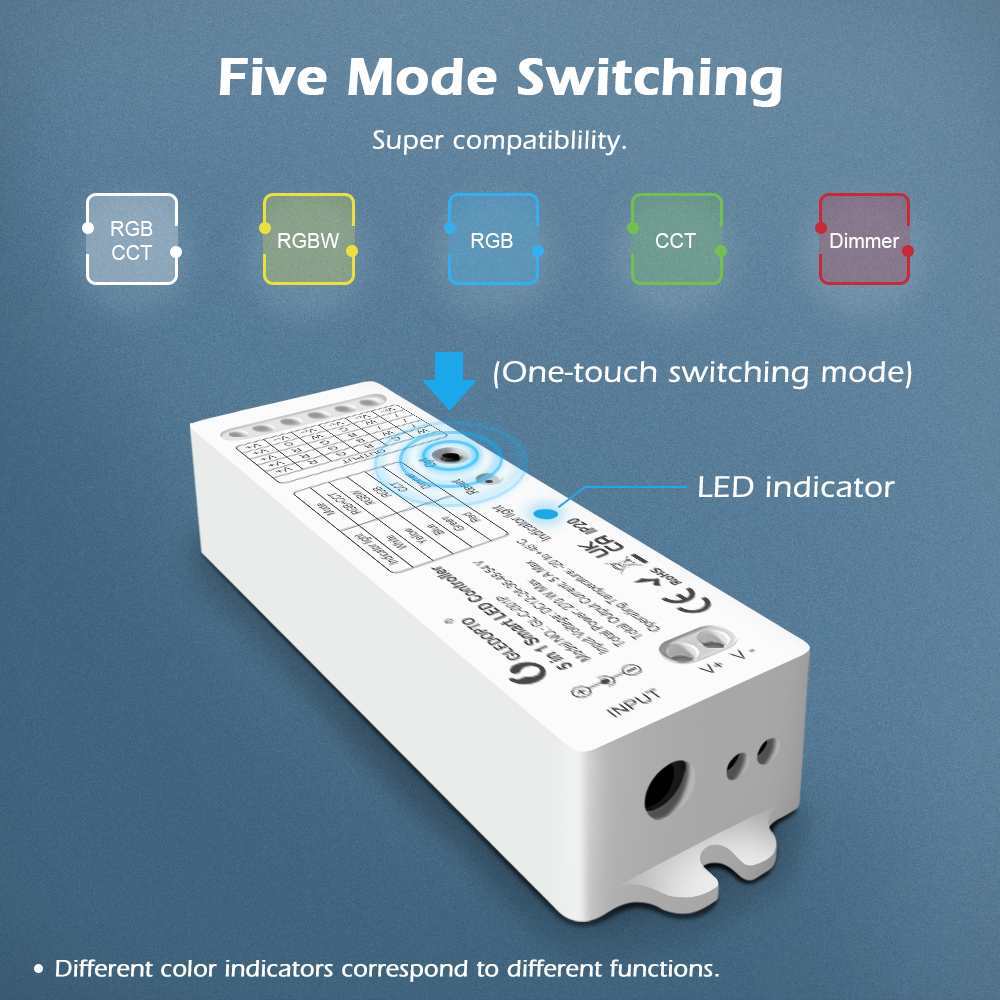

3.OPT:

Short press once to switch functions for different colors of LED strips RGBCCT->RGBW->RGB->CCT->Dimmer

4.Power-on-behaviour status setting:

Press"OPT"key and hold for more than 5 seconds to set power-on status.

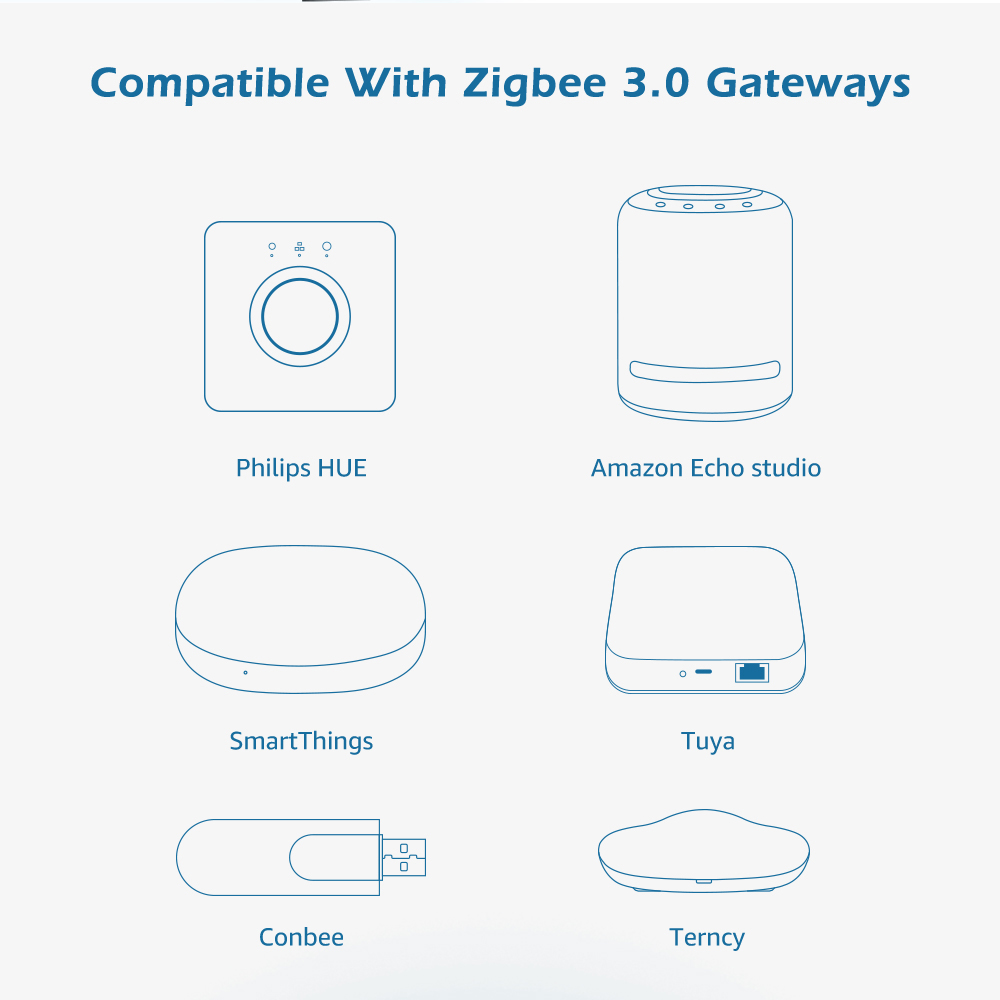

Pairing with ZigBee Network

Add the device to a ZigBee network via coordinator or hub.

1> Please make sure the device not being paired. Otherwise, please"Reset"the device according to the method of"Reset".

2> After step 1, there will be a pairing process about 90s. Once time out, you need to repeat Step 1 again.

3> Open the ZigBee App (Hue or Amazon Alexa) to add the device.

4> If the pairing done successfully after the above steps, the device will blink 3 times.

Touchlink to a ZigBee Remote Control or Touch Panel.

1> Make sure the distance between the device and remote control or touch panel less than 10cm.

2>Method A: Please short press key"Reset"3 times or power on/off the device 3 times to enter into"Touchlink Commissioning"mode, the device will blink 5 times.

Method B: Re-power on the device, Touchlink Commissioning will start after 15s if not being added to a ZigBee network, 165s time out. Or start immediately if it's already being added to a network, 180s time out. Once time out, repeat the operation again.

3> Set the remote or touch panel to enter"Touchlink Commissioning", please refer to the user manual of the corresponding remote or touch panel.

4> There shall be indication on the remote or touch panel for a successful pairing, the device will blink 2 times. Now the device shall be controllable via the remote or touch panel.

zigbee led controller
zigbee led controller

ZigBee Find and Bind Mode

Note: Make sure that the device and remote are in the same network.

1> Short press"Reset"key (or re-power on the device) for 2 times. The device will blink twice, and start"Find and Bind"mode to find the"Target Node"

2> Set the remote control or touch panel (target node) to enter the"Find and Bind"mode to search for"Bind Initiator". Please refer to the user manual of the corresponding remote or touch panel.

3>"Find and Bind"is completed, the remote or touch panel shall have indication. Now the device shall be remote control or touch panel controllable.

Pairing with 2.4G HZ RF Remote Control/Touch Panel (No ZigBee Hub Needed)

1>The pairing will be timeout after 4 seconds when the device powered on.


2>The pairing will be done successfully by pressing any zone “I” key of the 2.4G RF Remote or touch panel.
3>The indicator from the device will blink 3 times.
zigbee led controller
zigbee led controller

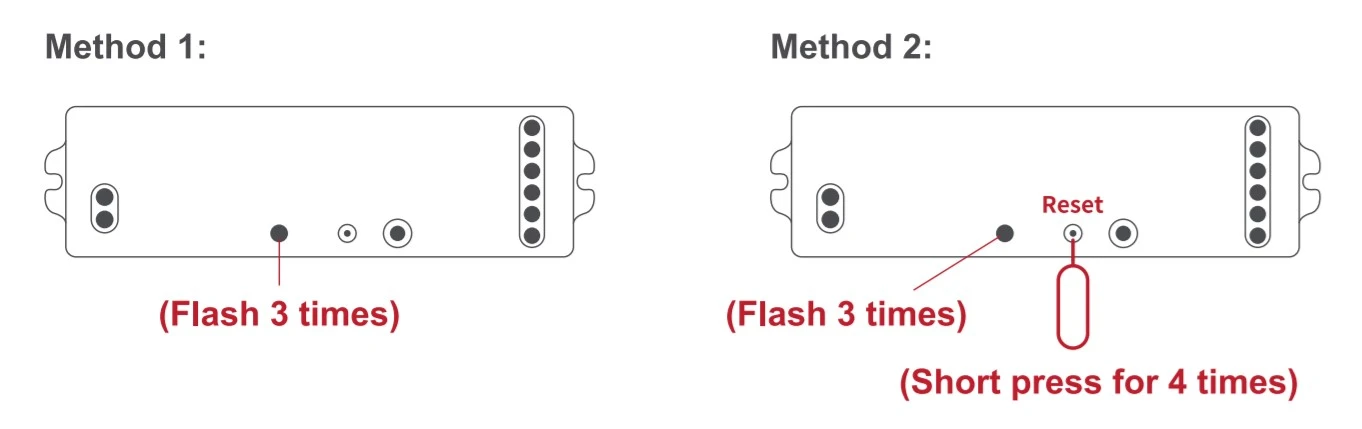

Unpairing the ZigBee Network

1> Delete the device on the App directly, the device will blink 3 times.
2> Short press key"Reset"4 times (or re-power on the device 4 times) to unpair the network, the device will blink 3 times.
zigbee led controller

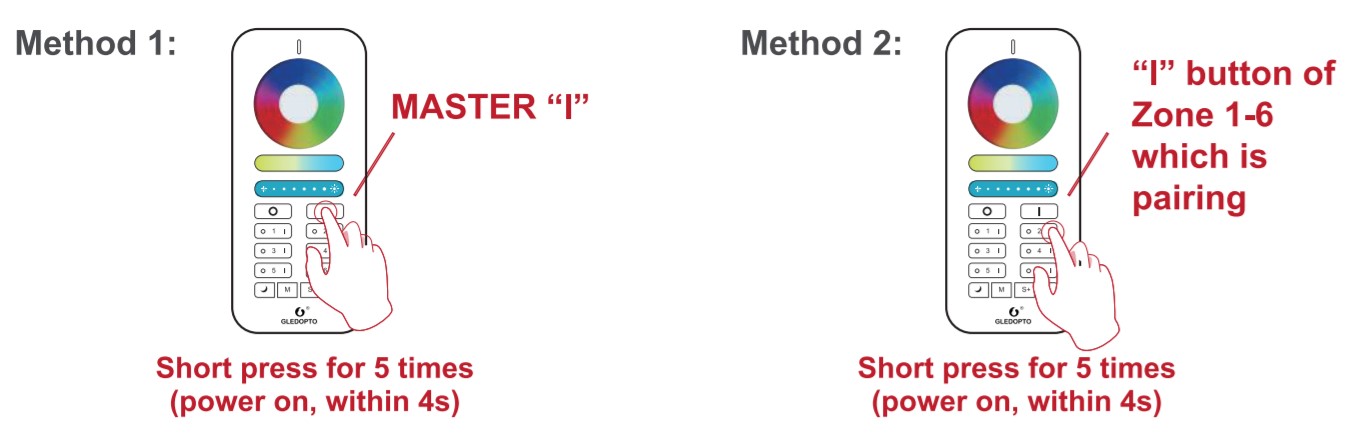

Unpairing the 2.4G HZ RF Network

1> Short press"Master"key within 4s for 5 times (or"I"key of zone 1-6 which being paired), the device will blink 3 times.
2> Short press continuously 5 times the zone"on"key the device being paired within 4s after the device powered on, the device
will blink 3 times.
zigbee led controller

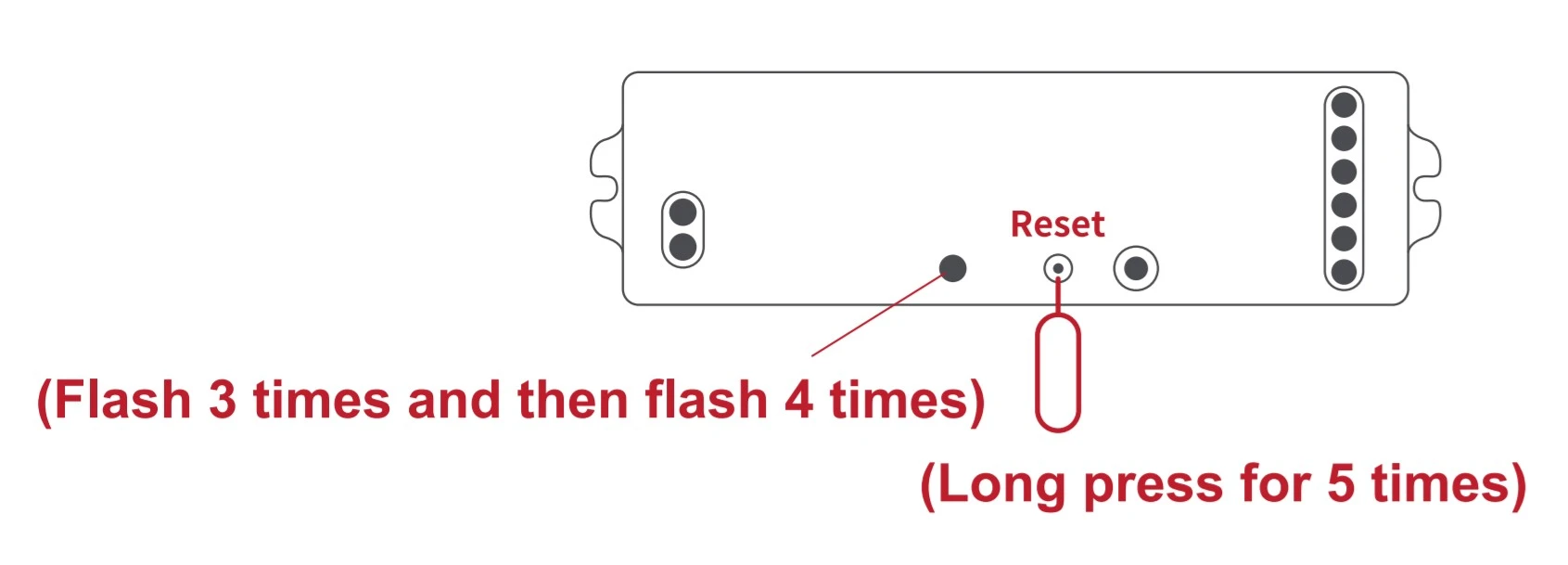

Factory Reset
The Factory Reset will be done successfully by long pressing"Reset"key more than 5s (or re-power on the device 5 times or more). All configuration parameters will be reset after the device is reset or removed from the network, including ZigBee and 2.4G RF Network. The indicator will flash firstly 3 times in the color of corresponding function selected, and turn into default Pink color (in default RGBCCT function) after flashing 4 times again.
zigbee led controller

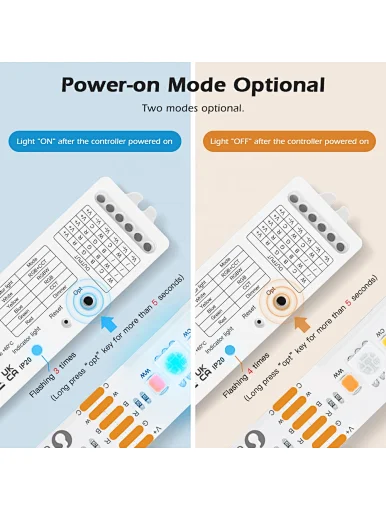

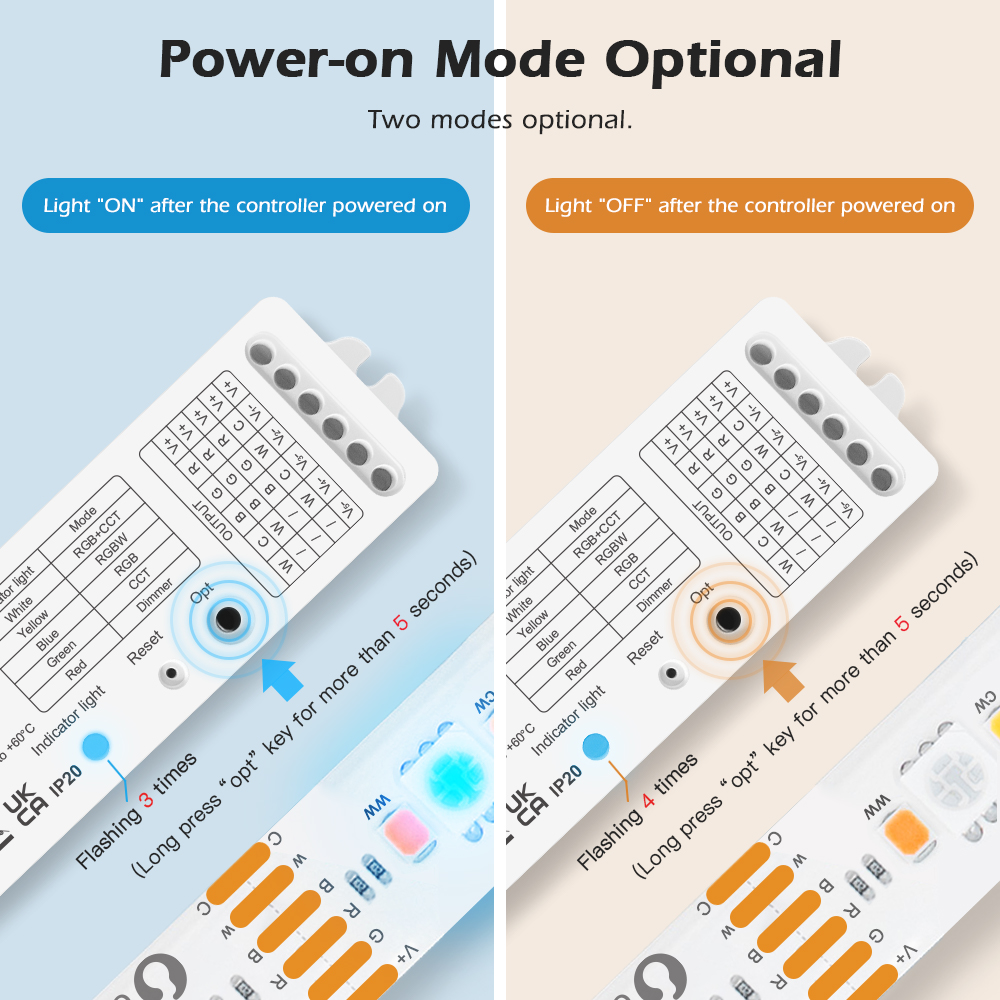

Status of Power-on-behaviour Settings

Long press"OPT"key for more than 5 seconds, the indicator will flash in light blue color and resume to previous color after"off"for 4s to complete power-on status setting. The default power-on status is light on. The indicator flashing 3 times in light blue means light on under power-on status, flashing 4 times in light blue means light off under power-on status.
zigbee led controller

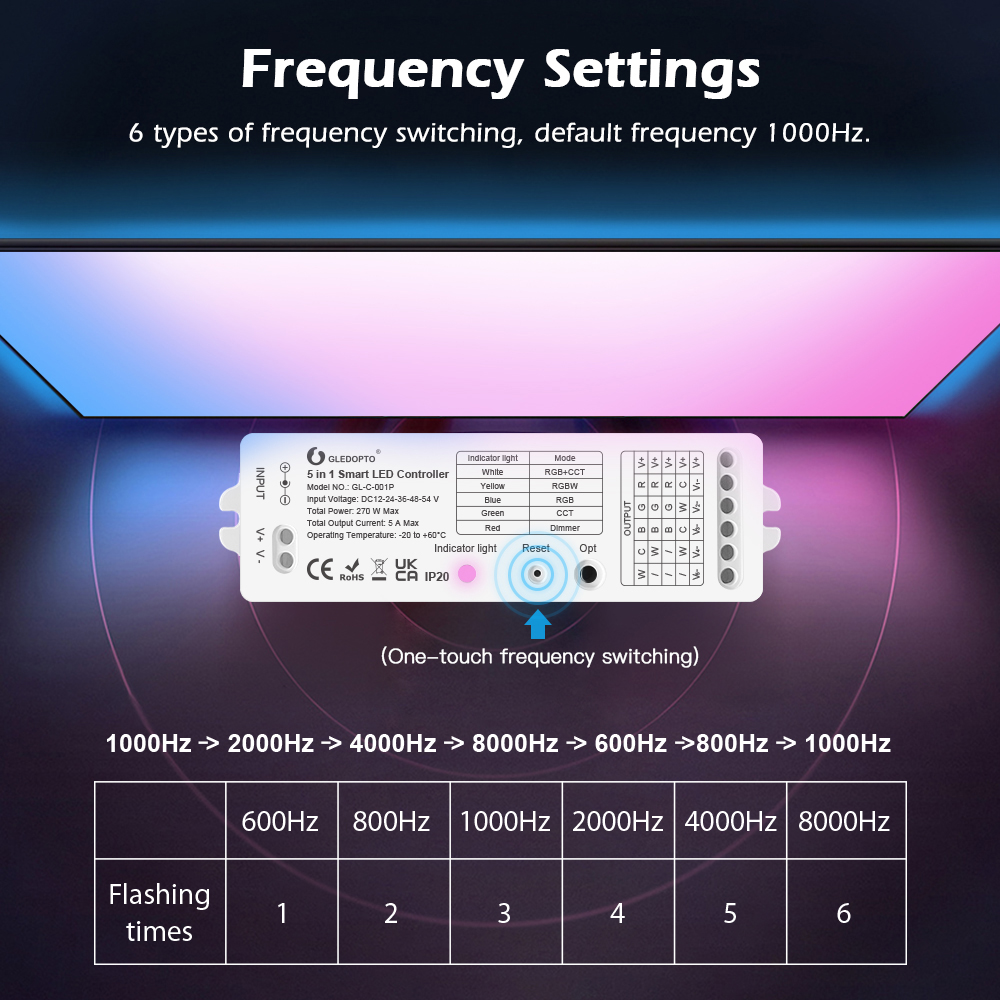

Frequency Settings

In order to be applicable to different power supplies, the frequency of device is selectable as 600HZ, 800HZ, 1000HZ, 2000HZ,
4000HZ, 8000HZ with default frequency 1000HZ. ONce short pressing"Reset"key, the frequency will switch into the next one. The
indicator will flash in Pink color and resume to previous color after"off"for 2s. The rule of indicator flashing times for
different frequency please refer to the table.
zigbee led controller

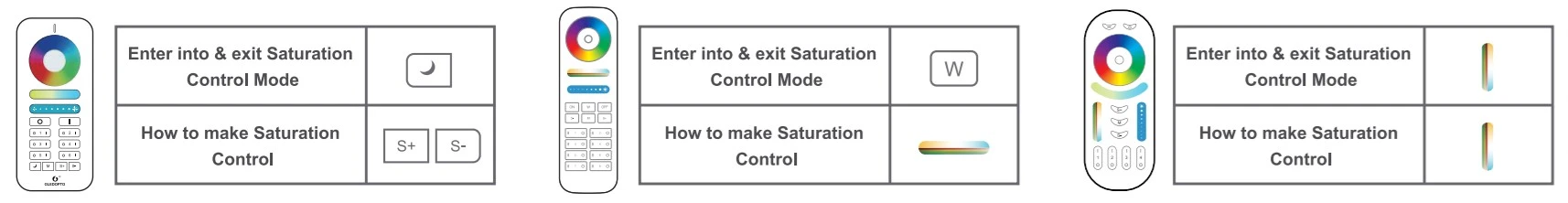

Saturation Control Function with 2.4G RF Remote Control
White and RGB color light will be on at the same time, you can choose any colors, and dim the brightness of white color in the meanwhile, to make the saturation more colorful.

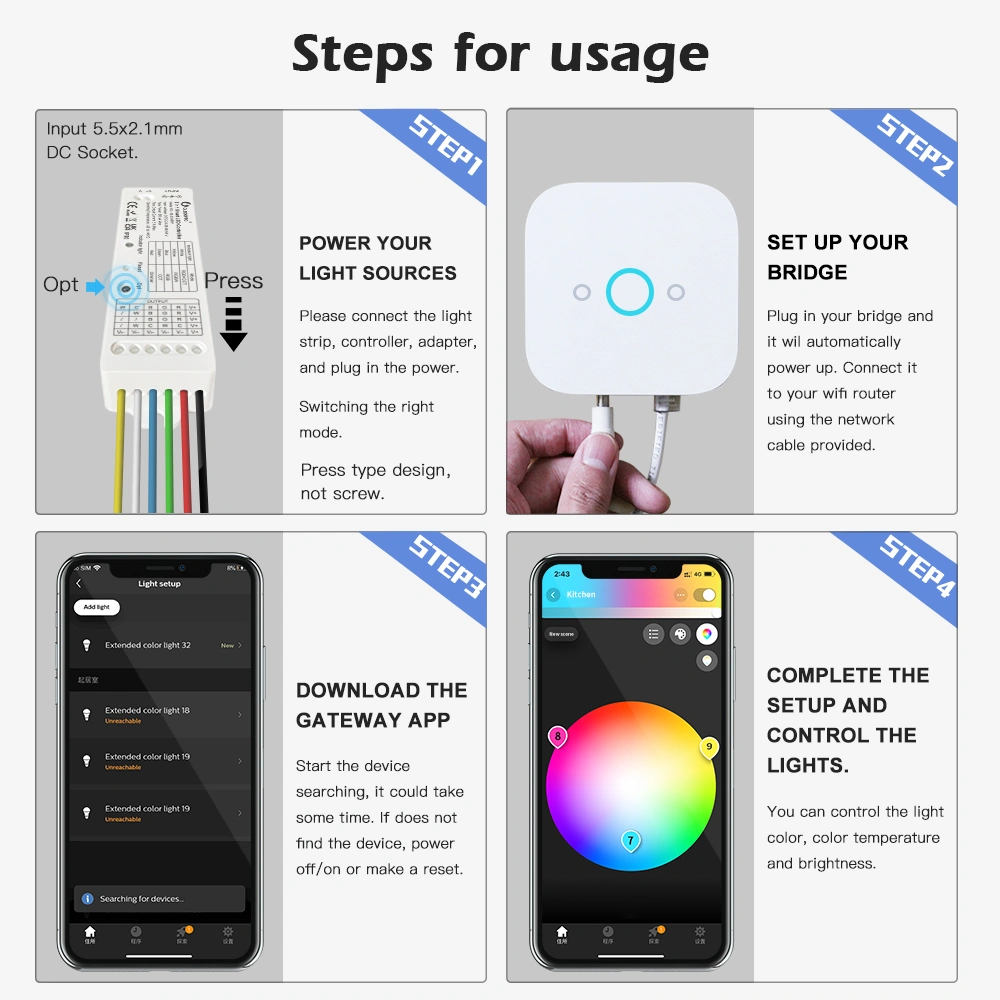

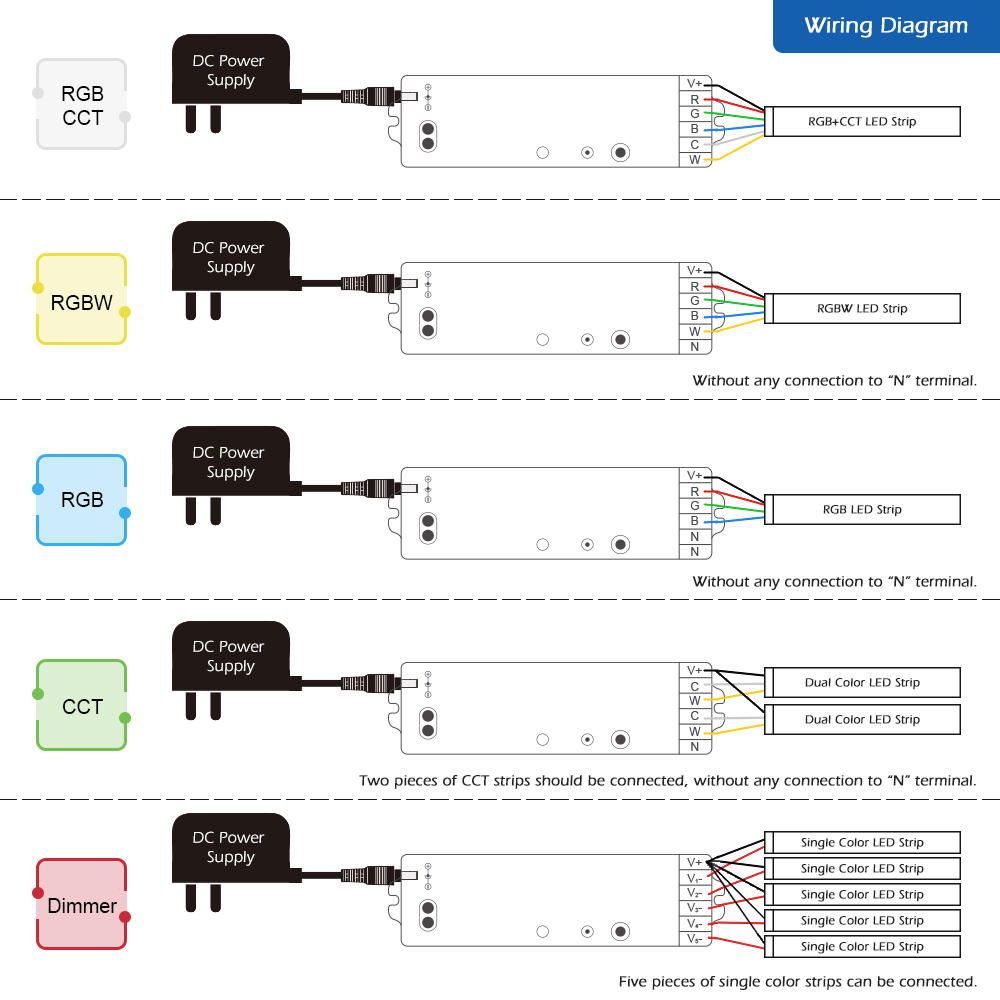

IP20 IP65 IP68 Strips Wiring & App Set-up
zigbee led controller
zigbee led controller

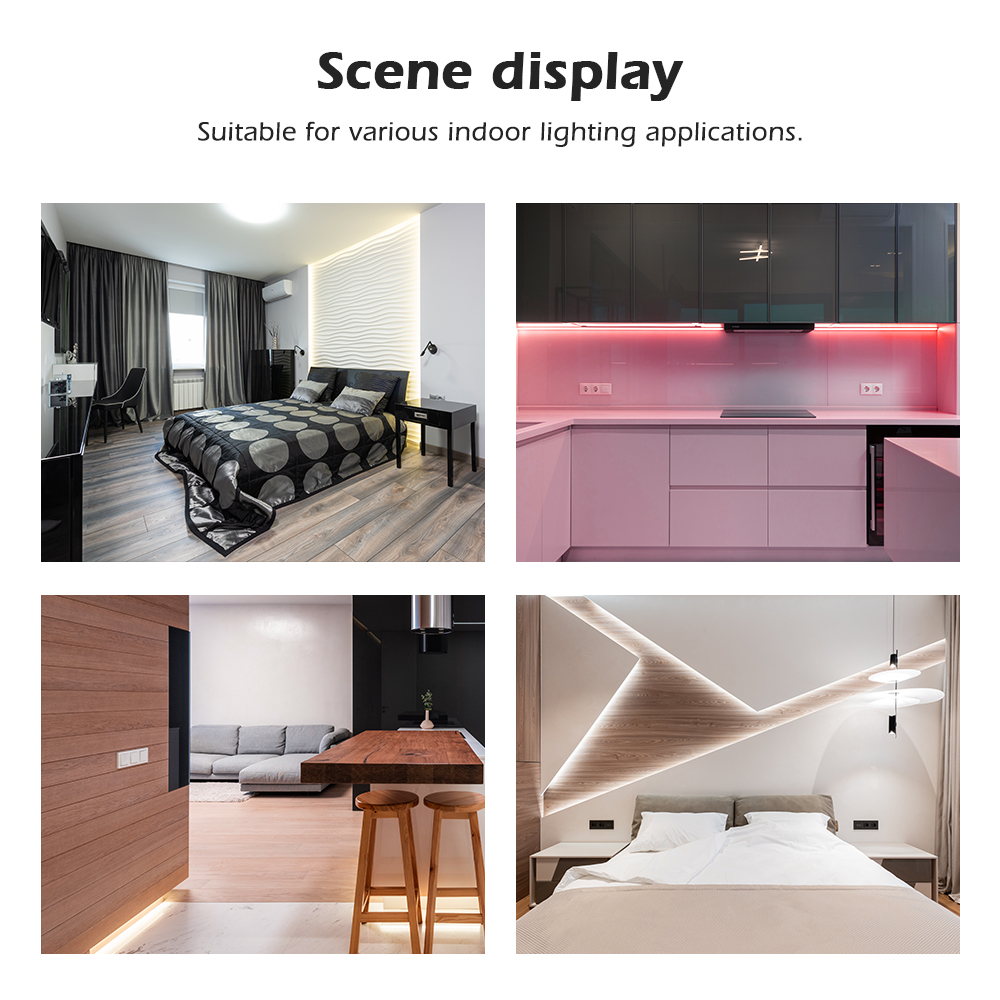

More Features & Lighting Application
zigbee led controller
zigbee led controller
zigbee led controller
zigbee led controller
zigbee led controller
zigbee led controller
zigbee led controller
zigbee led controller
Related Products

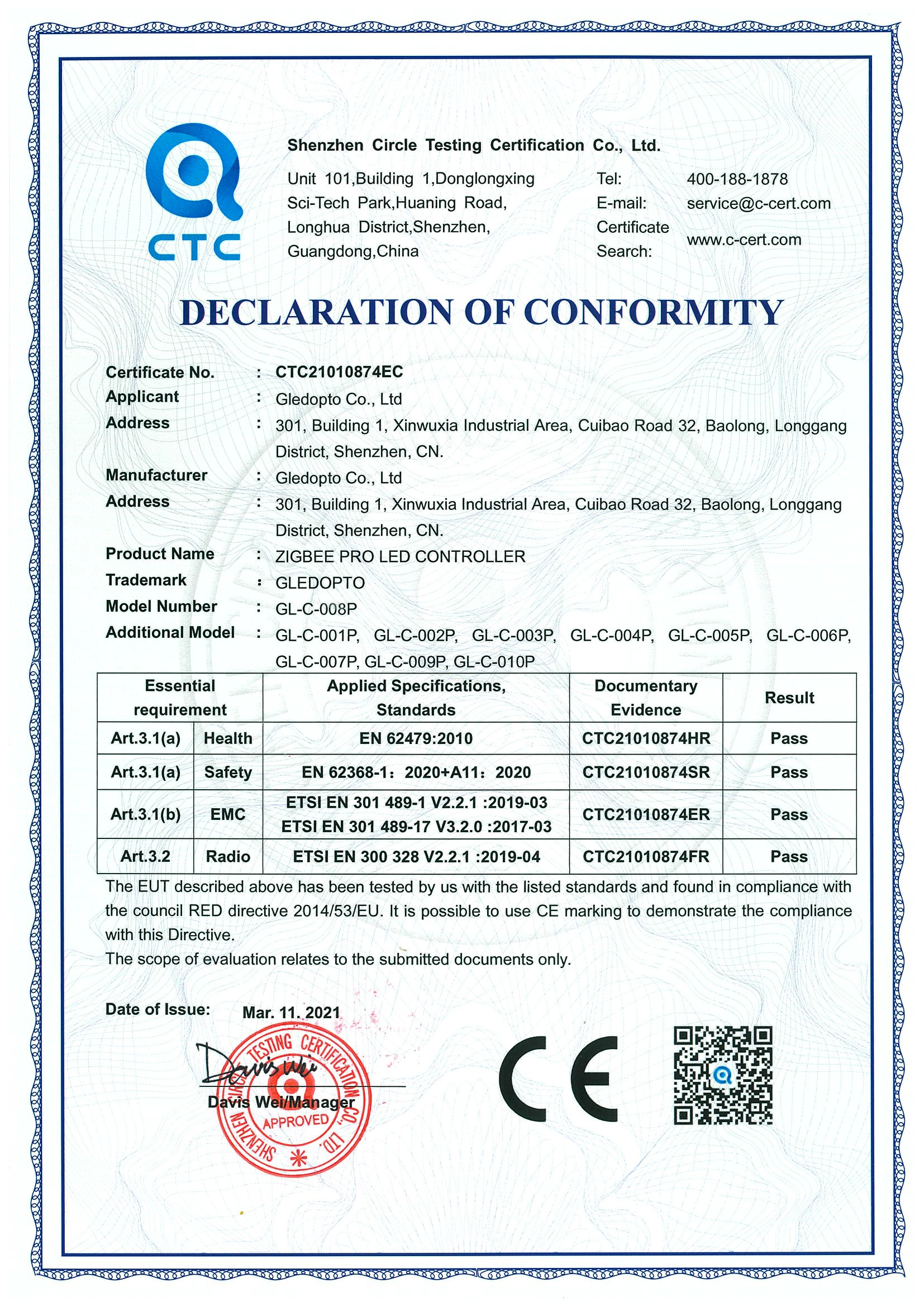

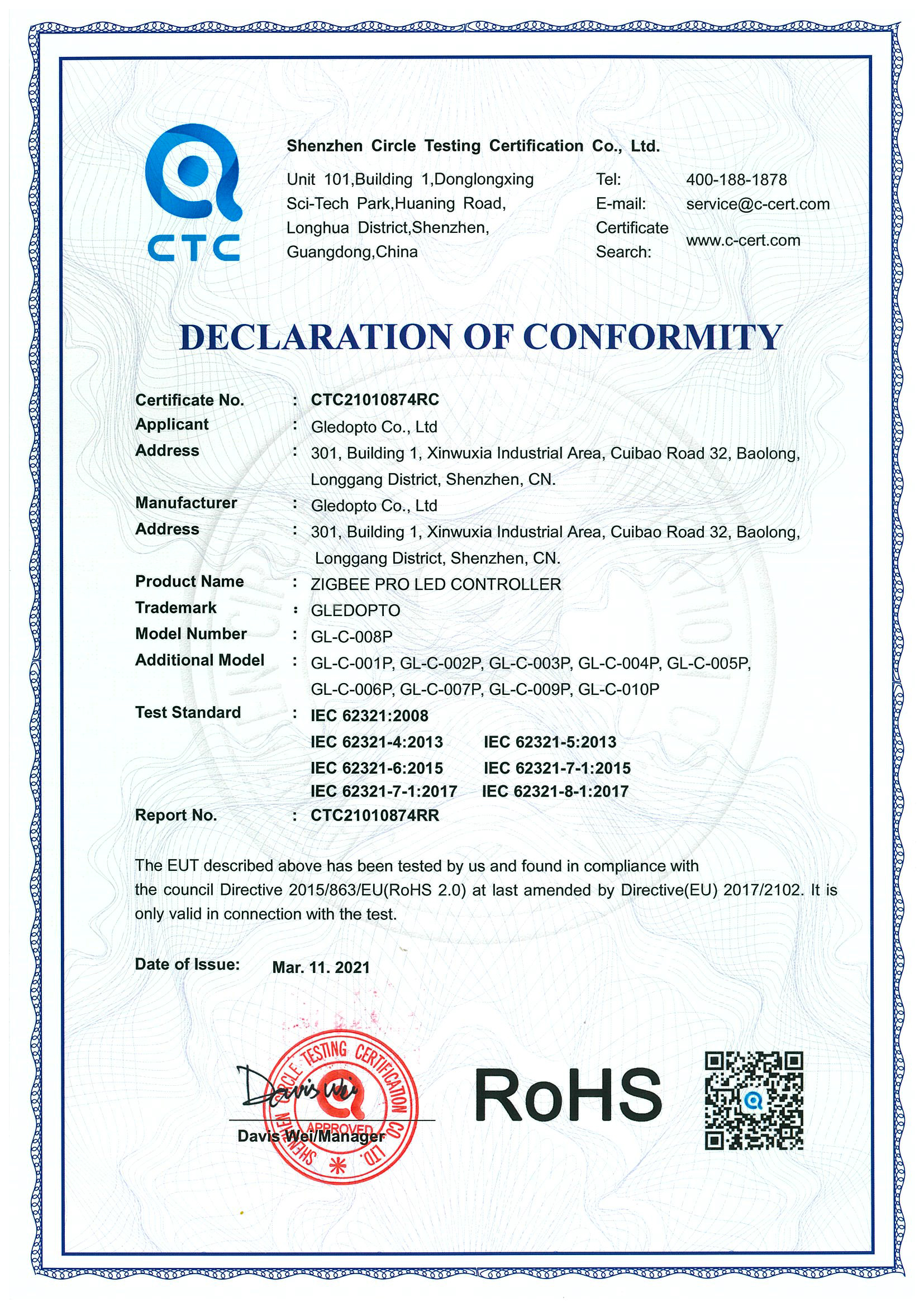

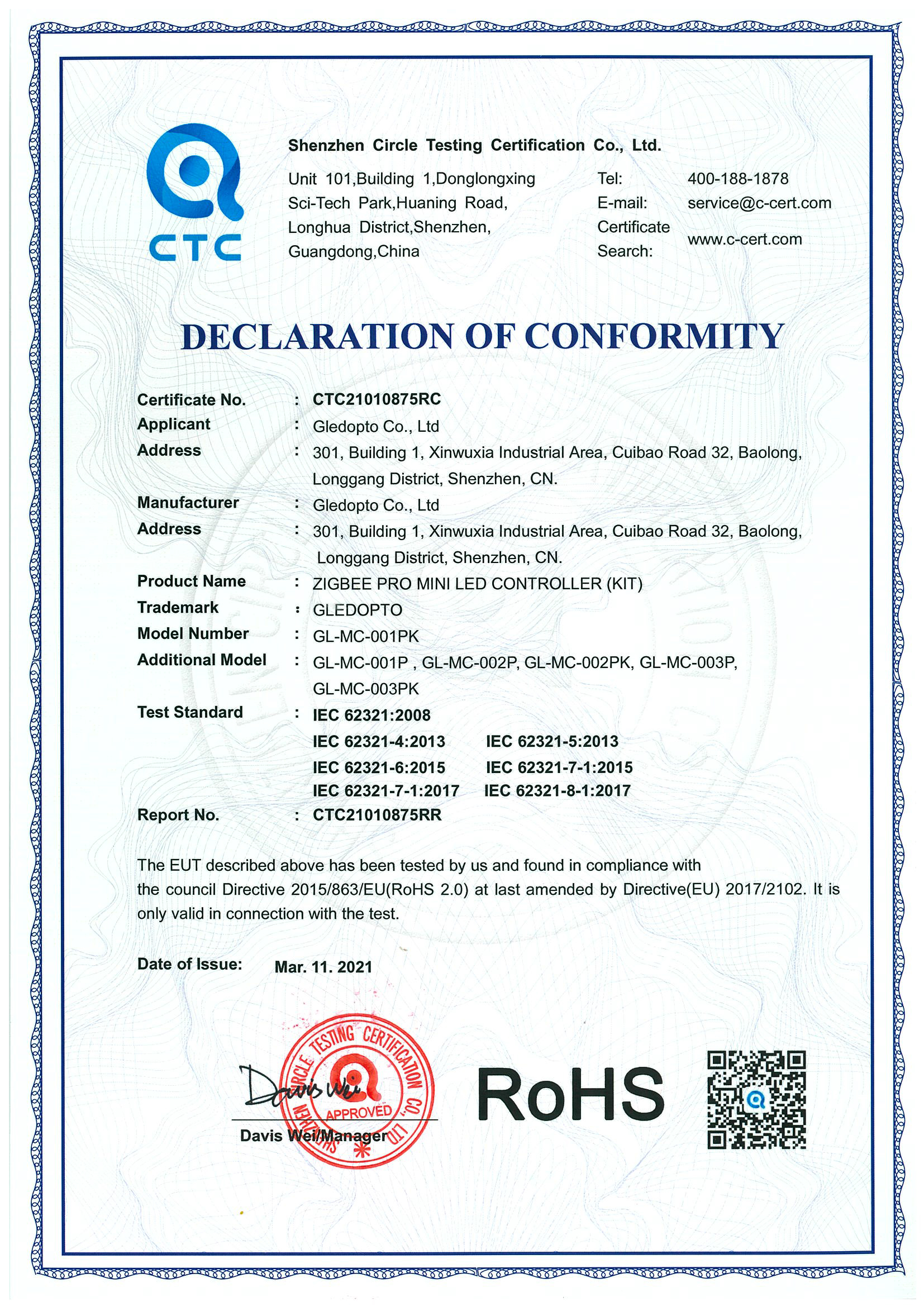

Certifications
zigbee led controller
zigbee led controller
zigbee led controller
zigbee led controller

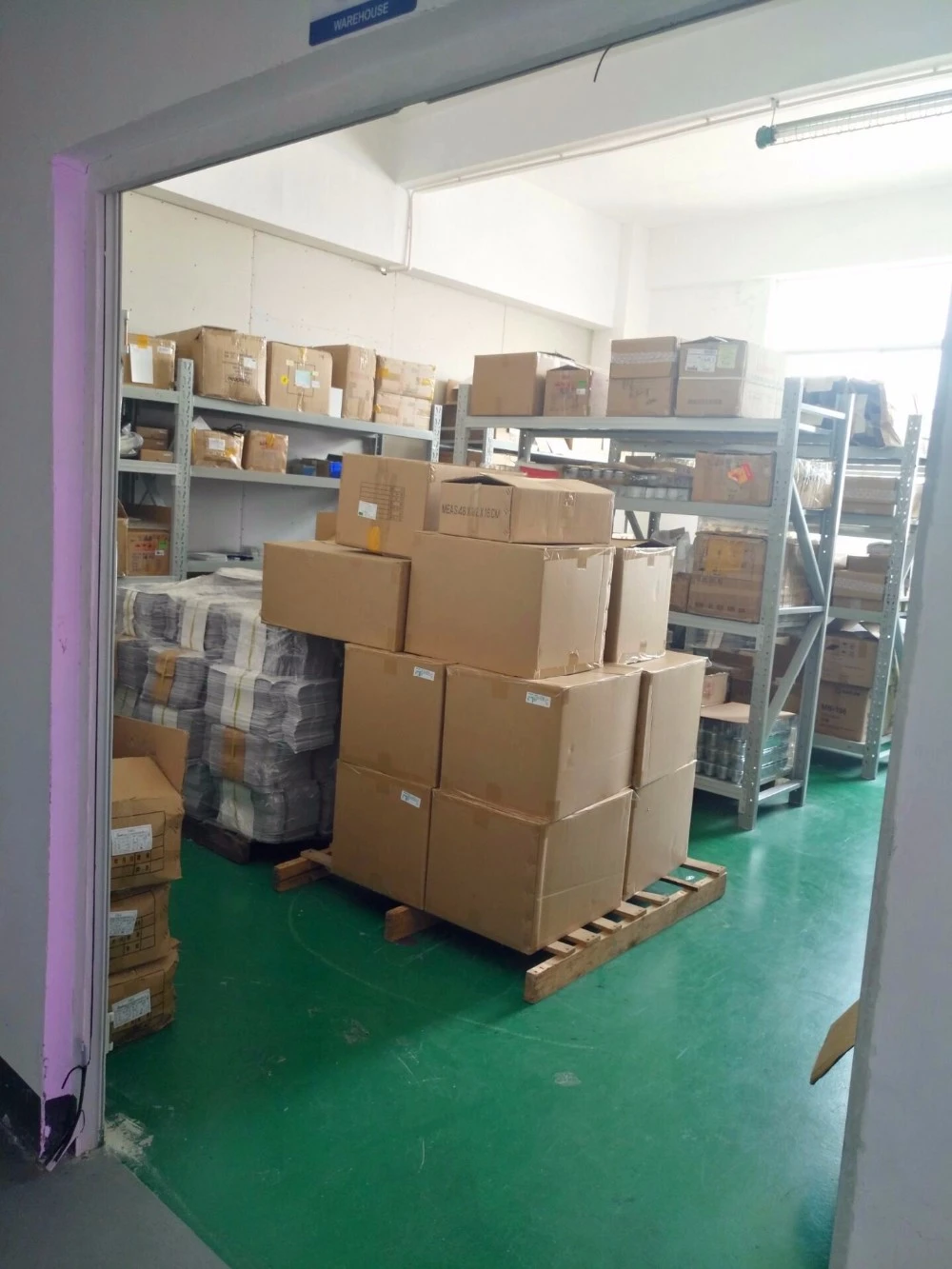

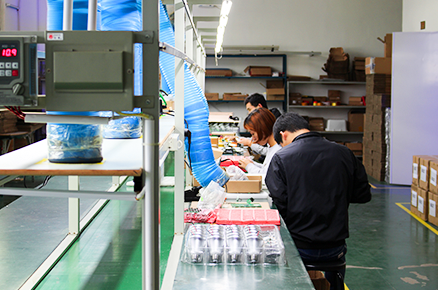

Company Information
