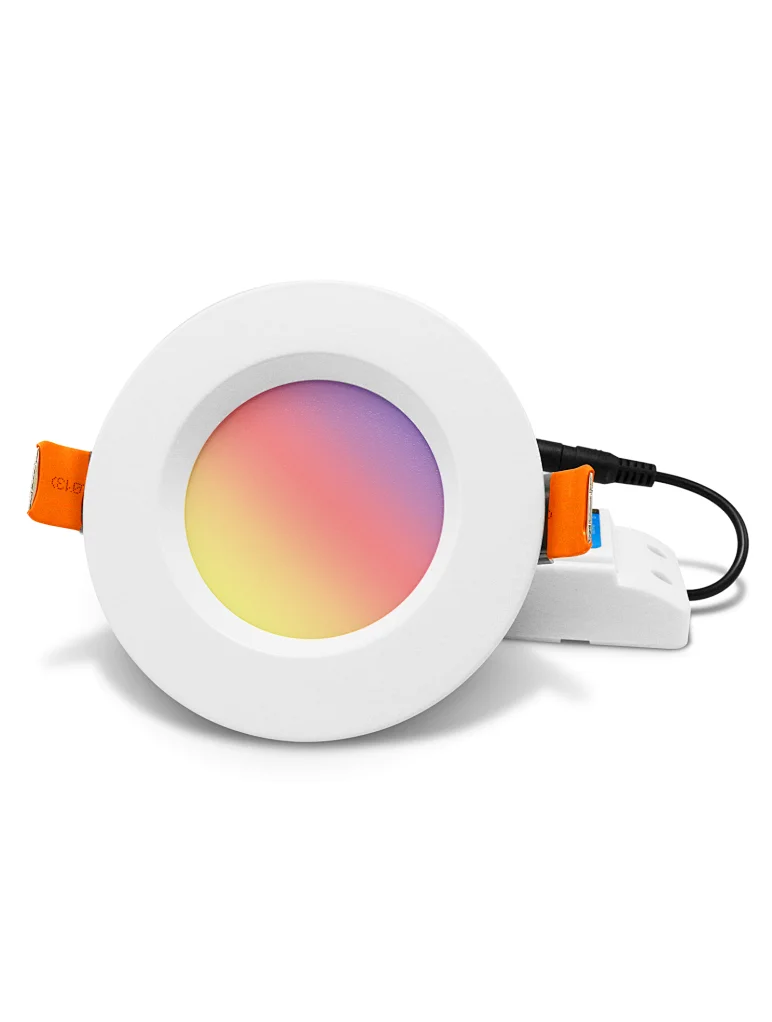

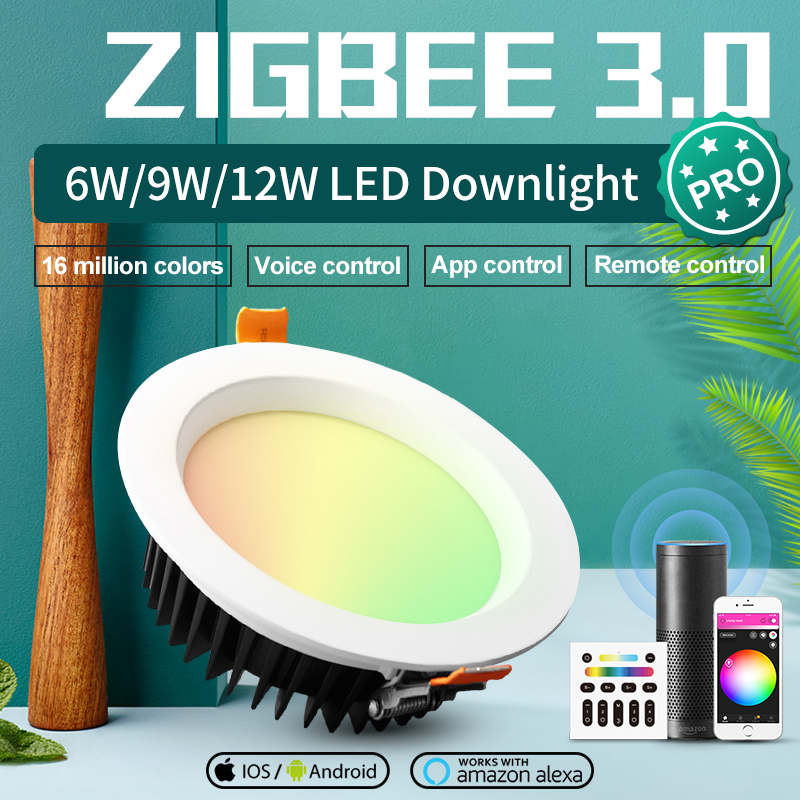

GLEDOPTO zigbee downlight

Cabinet spot led downlight with spring clip round ceiling smart lamp with 105mm cutout

price

$13.00 - $15.00 / piece

Model NO. GL-D-003P

Minimum order quantity: 1 piece

Quantity

Color Temperature(CCT):2200-6500K
Lamp Luminous Efficiency(lm/w):88
Color Rendering Index(Ra):80
Light Source:LED
Support Dimmer:Yes
Lighting solutions service:Lighting and circuitry design, Project Installation, smart home lighting
Application:Living Room
Design Style:Midcentury
Lifespan (hours):50000
Working Time (hours):50000
Product Weight（kg）:0.45
Input Voltage(V):100-240V
Lamp Luminous Flux(lm):500~550
CRI (Ra>):80
Lamp Body Material:Aluminum
IP Rating:Ip44
Model Number:GL-D-003P
Place of Origin:Guangdong, China
Brand Name:GLEDOPTO
Install Style:Embeded
Switch Type:Remote Control
Warranty(Year):2-Year

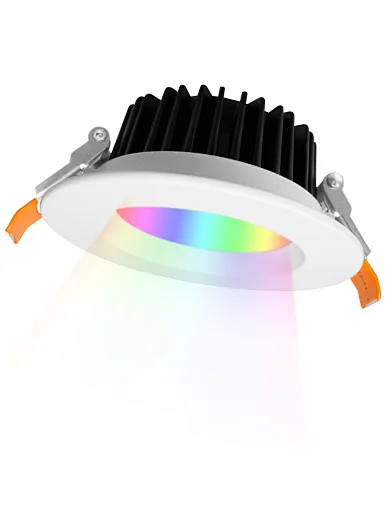

Product name:ZIGBEE PRO 6W LED Downlight
Protocol:2.4GHz Zigbee3.0 + RF
Color:RGB+CCT(2000-6500K)
Control way:Smartphone, voice, remote control
Control distance:30meters
Advantage:Zigbee mesh signal to a larger distance
Size:110X45 mm
LED Light Source:Epistar LEDs SMD5050 RGB 4pcs SMD3030 white 24pcs
Cutout:4inch
Certification:ce/RoHS/FCC/LVD

Product Description

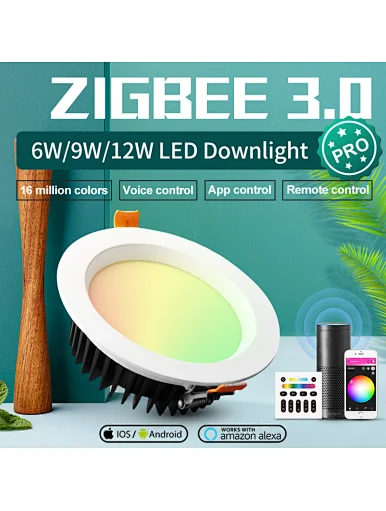

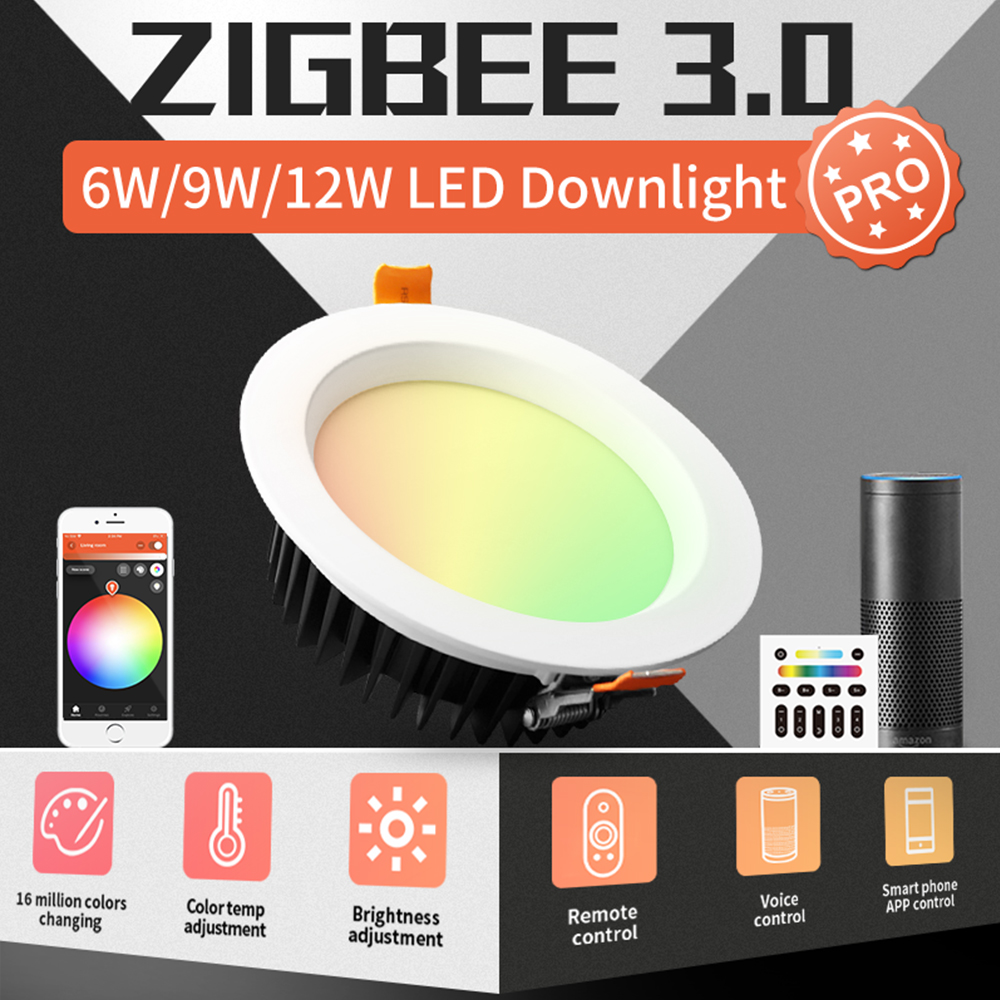

ZIGBEE PRO

RGBCCT LED DOWNLIGHT 6W

Latest ZIGBEE3.0 communication method for more smooth wireless control.

RGBCCT 16million color changeable;
CCT color temperature from 2000-6500K adjustable;
Brightness from 1%-100% dimmable;

Project case

Gledopto zigbee led smart downlight source is energy-saving, environmentally friendly, and non-ultraviolet.

Smart downlights can create a high-quality lighting environment which the other traditional lighting sources cannot match.

Perfect ceilling lamp -Reduce pressure

Downlight is a lighting fixture that is embedded in the ceiling and emits down the light.

Its feature is that it can maintain the overall unity and perfection of architectural decoration, and will not destroy the perfect unity of ceiling art because of the setting of lamps.

Downlights do not occupy space and can increase the soft atmosphere of the space. If you want to create a warm feeling, you can try to install multiple downlights to reduce the pressure of space.

Generally used in hotels, residential, coffee shops.

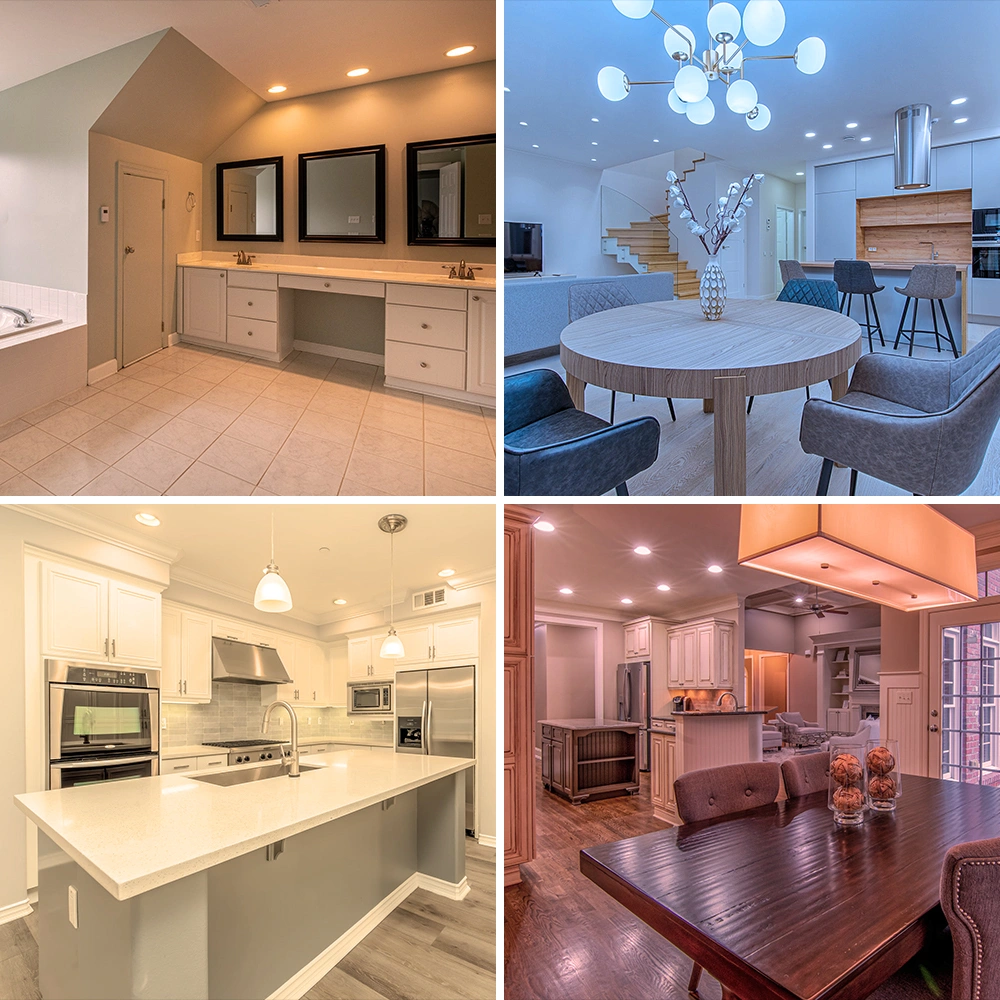

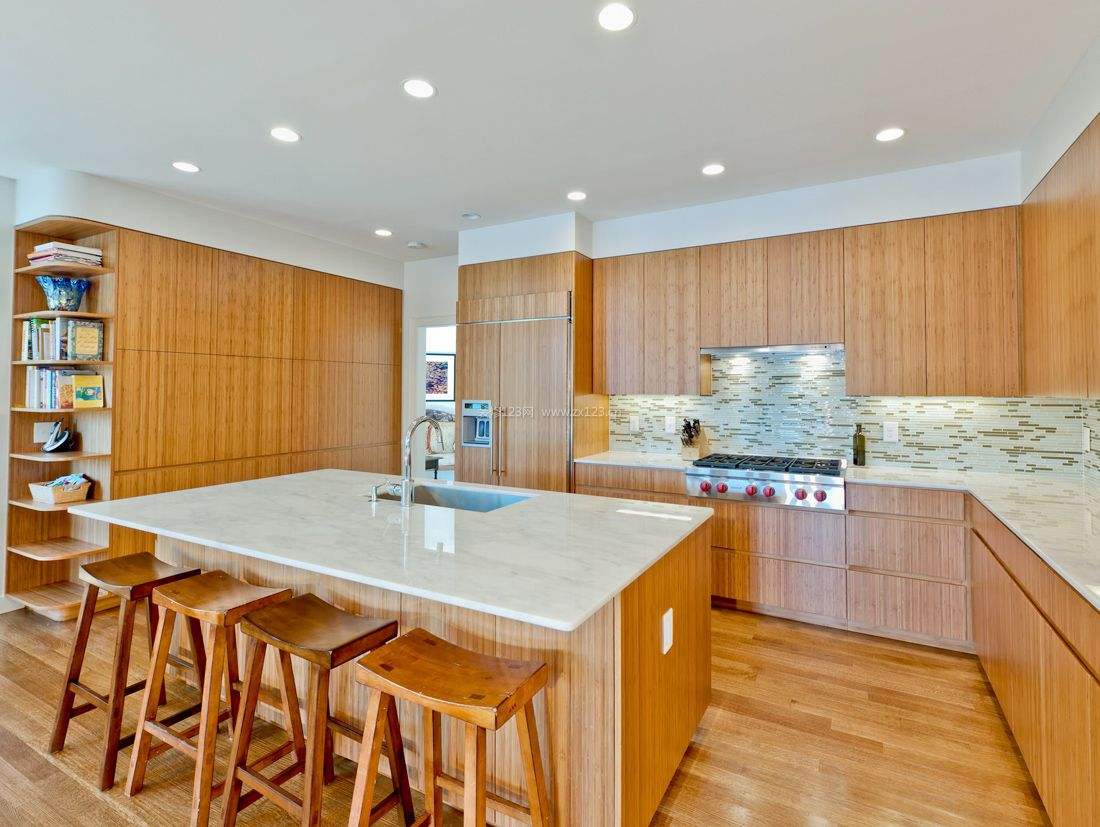

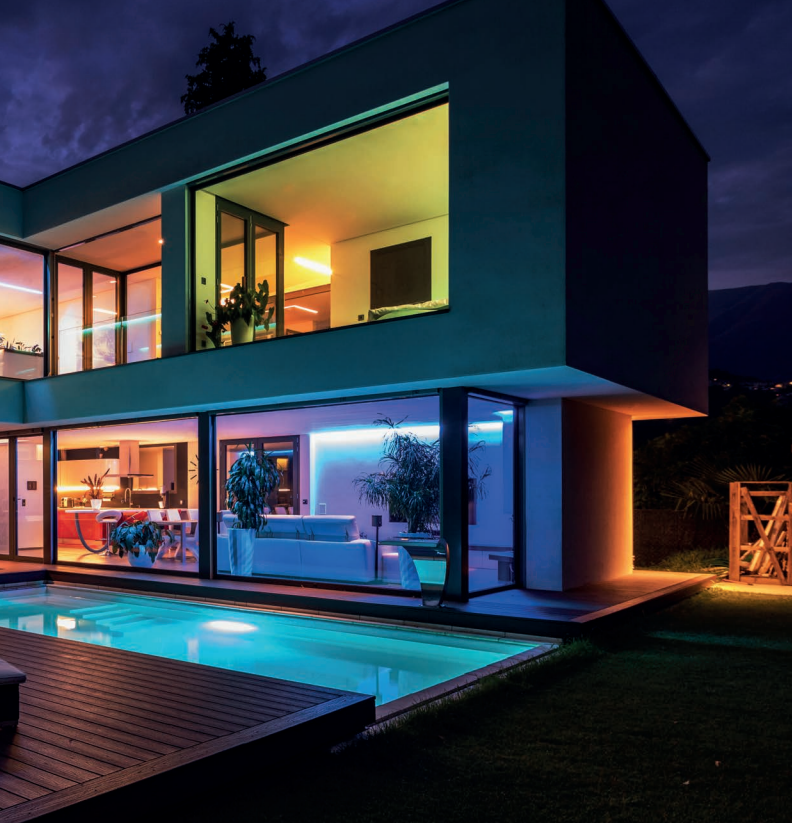

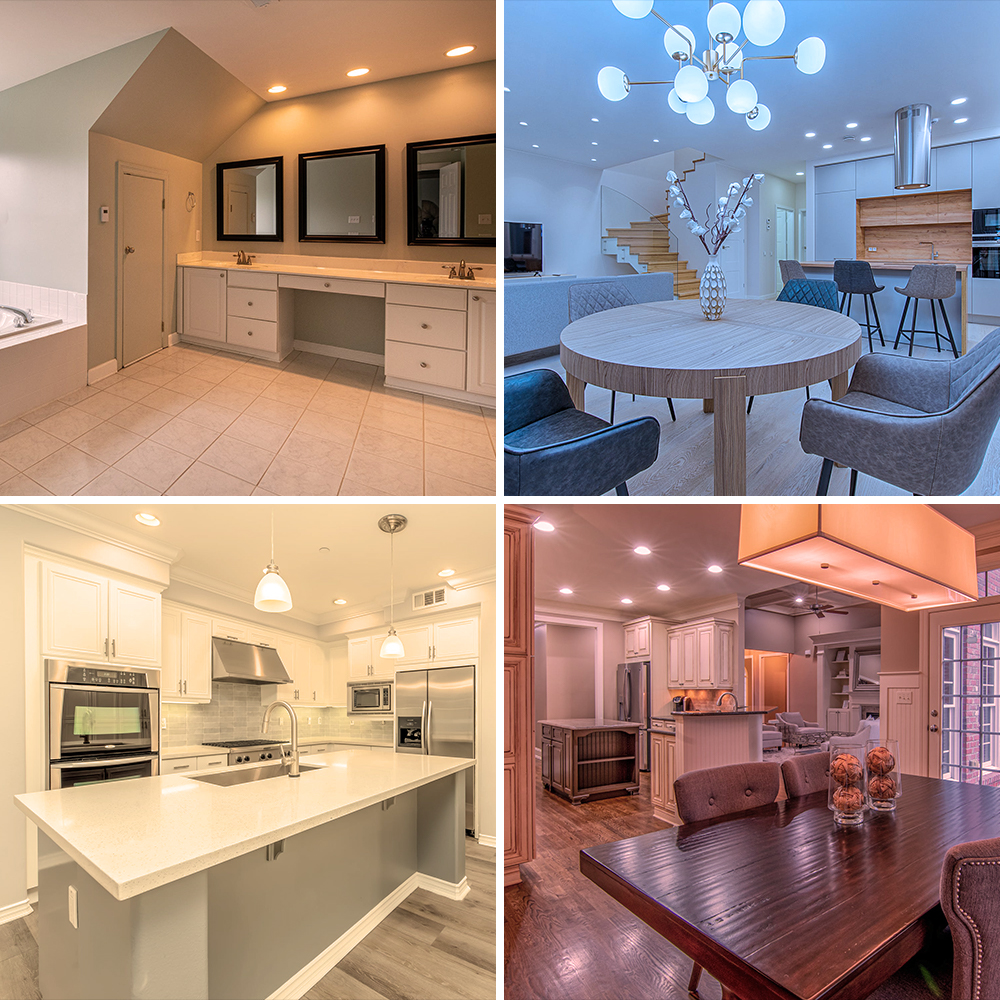

Possible Scene

Product Name	ZIGBEE PRO 6W LED DOWNLIGHT
Luminous Flux	800~850lm
Power	6Watt
Voltage	100-240V
Type	Wireless smart control
Color	RGBCW 16million color change
Material	Aluminum

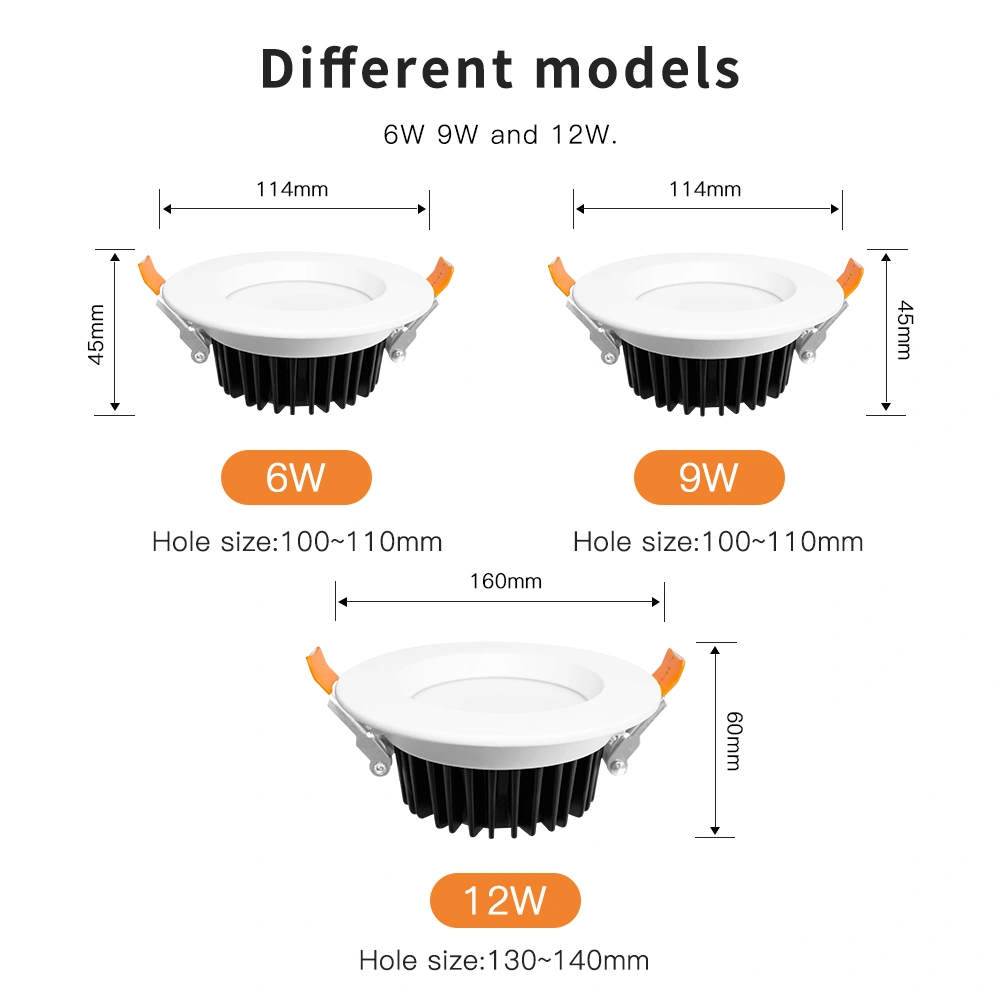

Power	Cutout	CCT Temperature	Diameter	Height	Luminous Flux
6W	100-110mm	2000-6500k	114mm	45mm	500~550lm
9W	100-110mm	2000-6500k	114mm	45mm	500~550lm
12W	130-140mm	2000-6500k	160mm	60mm	1000~1050lm

COLOR & TEMPERATURE ADJUSTABLE

SMD RGB and white bead for 16 million color change, dimmable;Color temperature is adjustable from 2000K to 6500K so you can choose from soft warm white to daylight white.
They are your brushes which paint your flat, house or castle in a realistic manner or like a fairy tale, perfectly suiting your
wishes or mood.

VISUAL TIMER

Via the app, you can easily add timers to make the light turn on/off automatically at a preset time.Connect with the sensors, you can make the light to turn on and off with to your motion. A perfect choose when you get up at night.
Set the lights to work based around your daily routine to have a better smart home experience.

CUSTOM SCENES

Our bodies respond to the psychological effects of lighting, and it often can change our moods. When light biologically impacts us, it can improve or disrupt our sleep,
cognition, mood and even stabilize our circadian rhythms.
Gledopto light can be adjust to different brightness& color temperature to suit the multi-scenes: party, reading, Watching TV, Sleeping, etc.

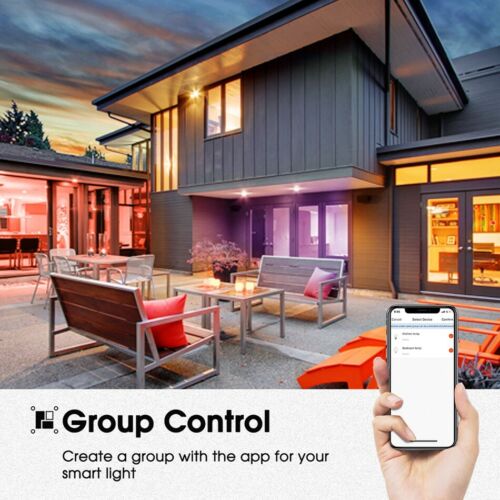

GROUP CONTROL

Gledopto lights can be managed to different group according to the lights located area or the personal preference.

Assign a name to each smart light or group to control them at the same time...

How to use

Introduction of usage

SMARTPHONE

1. connect GLEDOPTO light source to a power supply.

2. connect the Zigbee Bridge to a power supply and connect to your router.
3. download and install the Zigbee bridge app
4. Search the light on the App's settings.

5. create and modify your own zigbee network

Introduction of usage

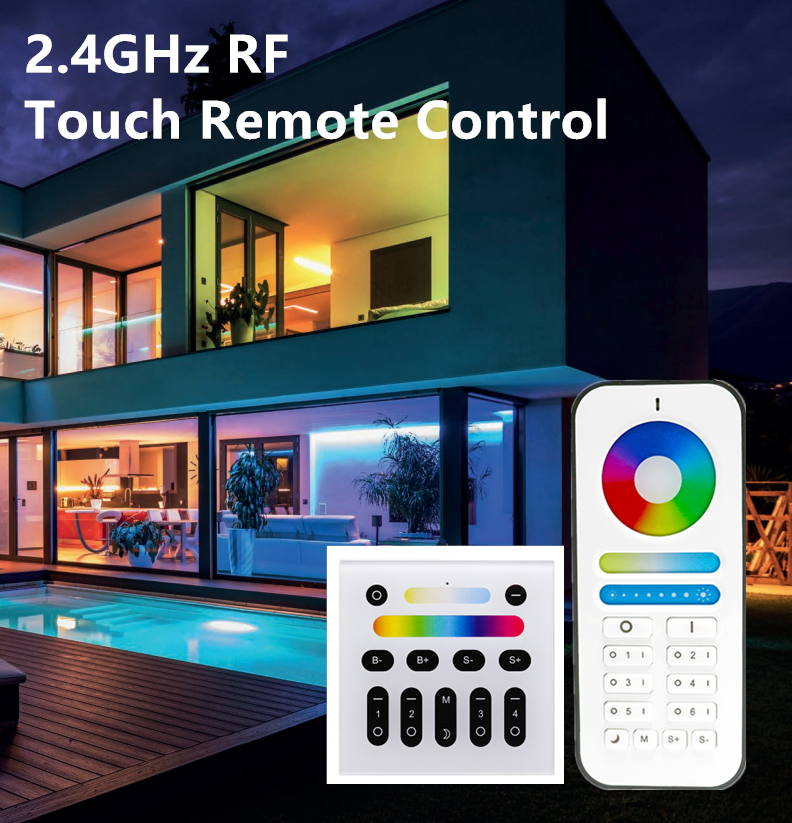

REMOTE CONTROL

MATCH (more about “DELETE process” please refer the User Instruction)
1. battery power on the wall switch or manual remote control.
2. within 3s of power on the gledopto light source, press zone “I” (of any group you want the light in) to start the paring
process.
3. the indicator turns GREEN to indicate successfully paring.

Introduction of usage

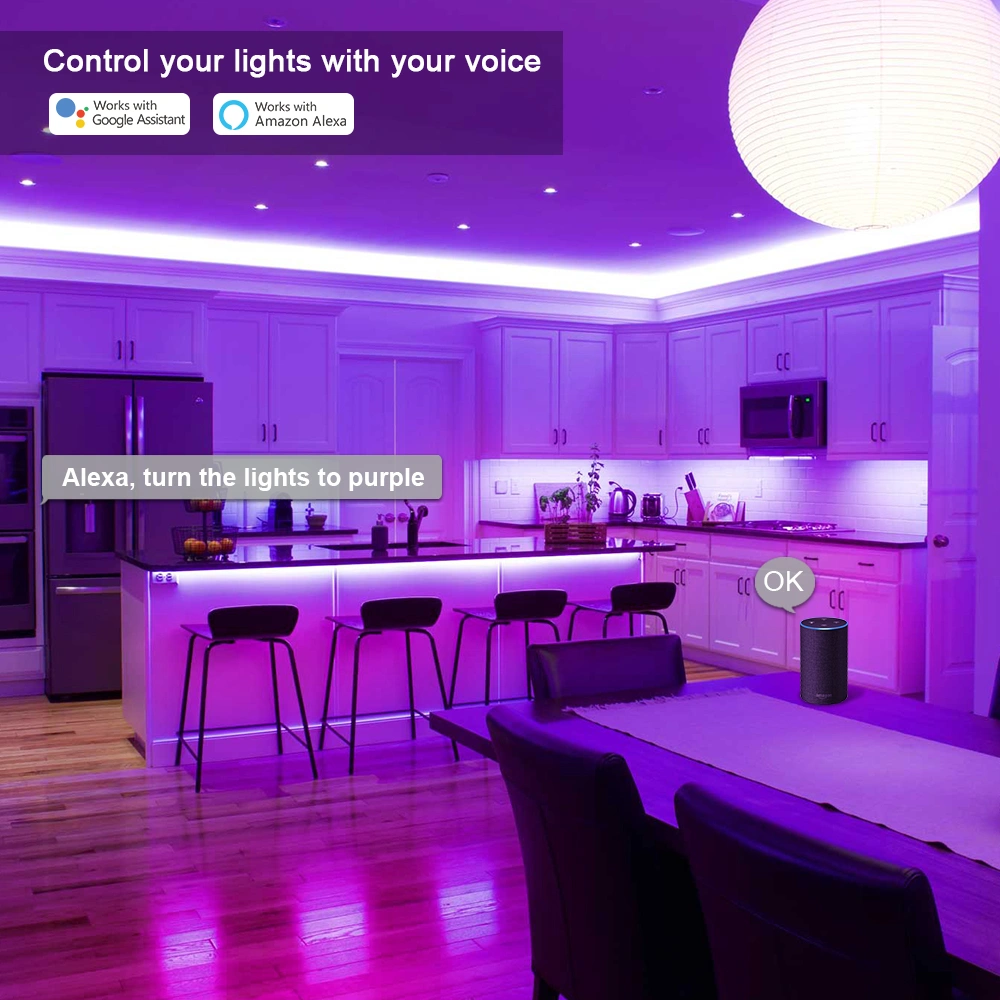

VOICE CONTROL

You can seamlessly connects and controls your Zigbee-based smart devices to Alexa using the Zigbee hub built-in to the new Echo
Show （since 2nd generation） and Echo Plus. without the need for separate hubs or a smart home skill.

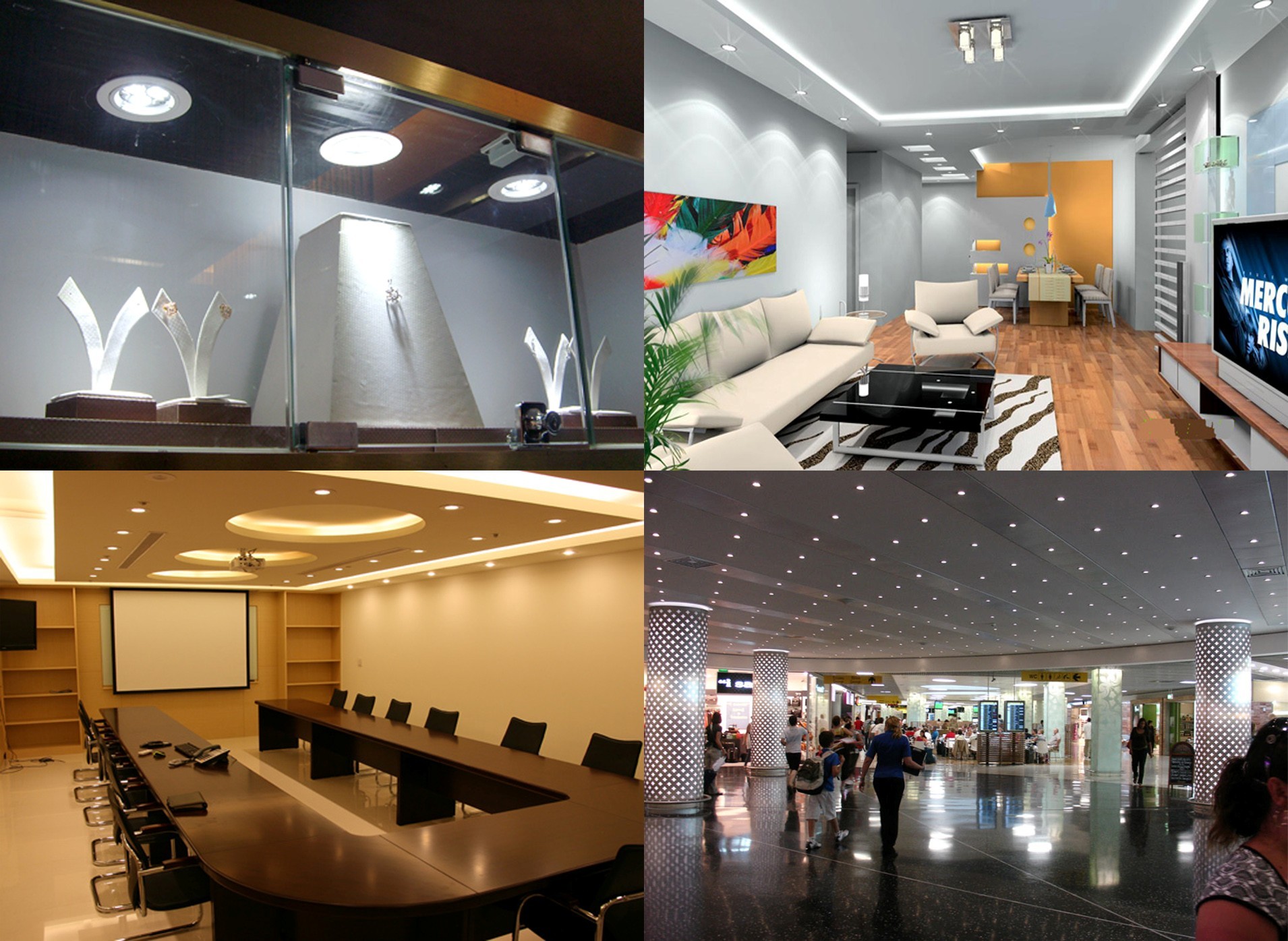

Product Presentation

The hotel’s lighting

uses LED downlights to bring customers a different feeling. In addition to saving energy, it can also show luxury and warmth. Smart LED downlights create a personalized light environment which can fully demonstrate the strength of the enterprise.

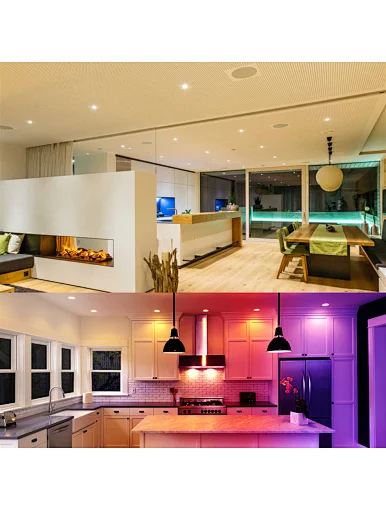

Living room and home theater lighting

Use the multi-color LED downlight to highlight a warm, harmonious, and warm atmosphere, reflecting a comfortable and casual atmosphere. The application of LED downlights bring immersive experience for home lighting and cinema.

Conference room, Multi-Purpose Halllighting

The intelligently controlled LED downlight can be adjusted in CCT temperature, and the lighting environment of the meeting room or multi-function hall can be adjusted according to the content of the meeting. It can be set freely for serious or lively. The intelligent lighting of LED downlight can meet different meeting themes. The needs of light environment.

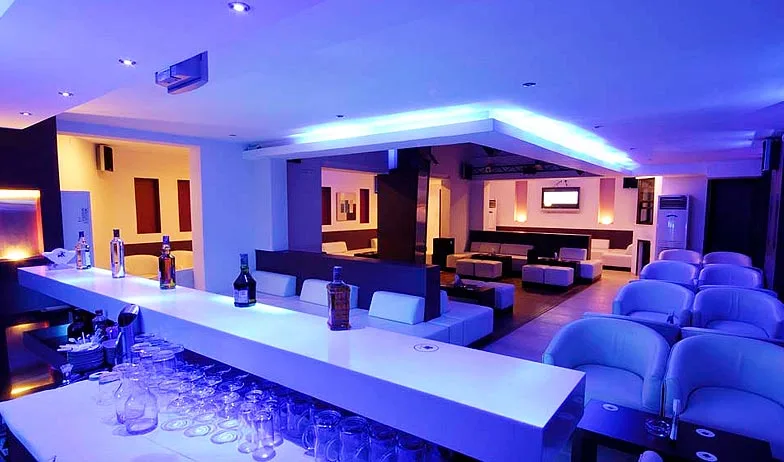

Indoor commercial atmosphere lighting for middle and high-end specialty stores, shopping malls, etc.

It caters to the merchants’ psychology of displaying personalized light environment, and has become the preferred light source for some special products. Its full-spectrum color range is very suitable to set off the atmosphere of specialty stores and shopping malls.
