$9.80 - $19.99 / piece
- Lighting solutions service:Smart Lighting Control Solution
- Luminous Efficacy(lm/w):0
- Product Weight（kg）:0.08
- Place of Origin:Guangdong, China
- Brand Name:GLEDOPTO
- Type:Remote Control
- Max. Load Power:270W
- Connection Mode:Press-to-insert
- Input Voltage:DC 12-54V
- Total Channels:5
- Max Output Current per Channel:5A
- Total Max Output Current:10A
- Total Output Power:270W
- Controlling Solution:WiFi + 2.4G RF Remote Control
- Net Weight:62g
- IP Rate:IP20

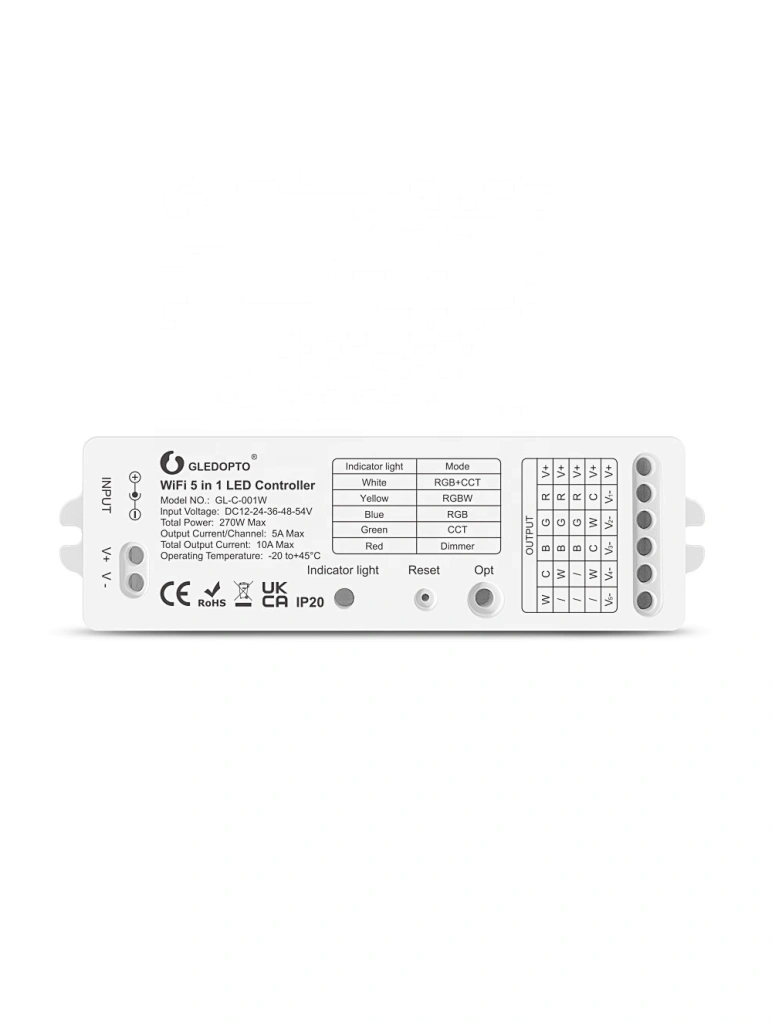

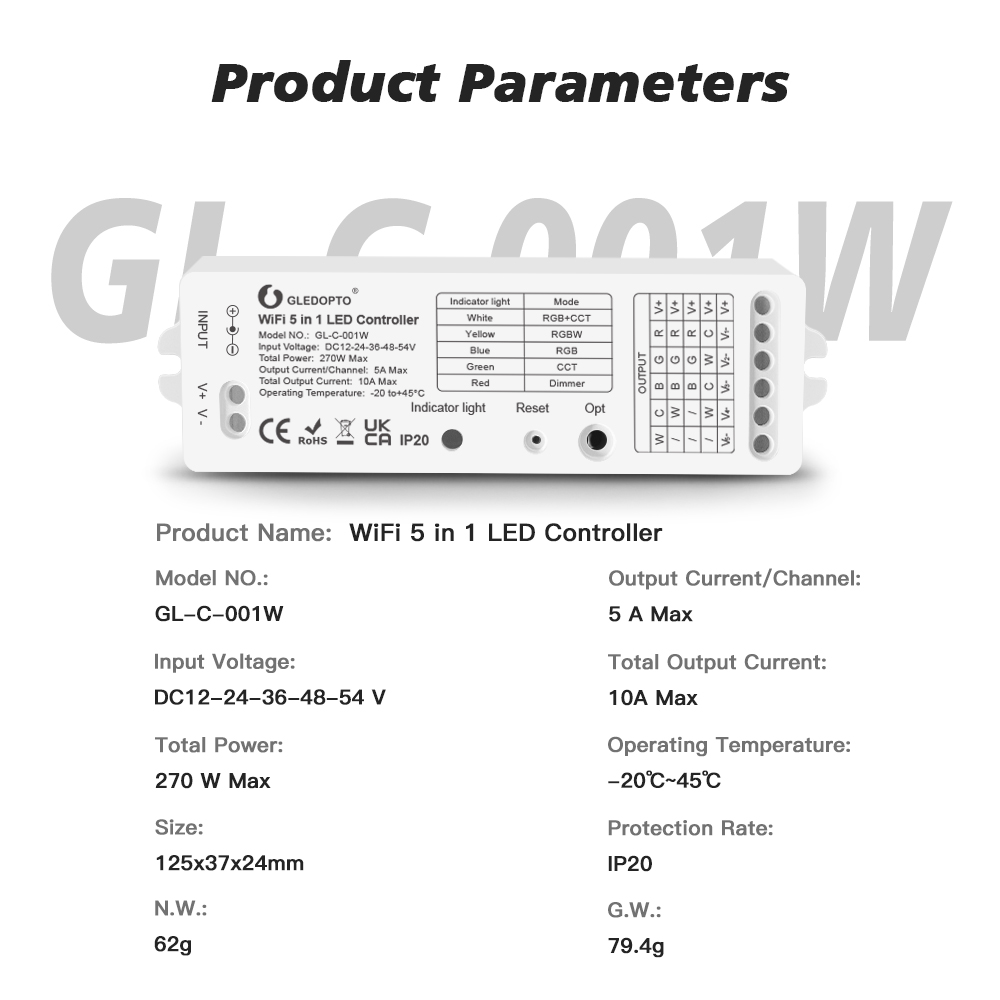

Main Specs of Gledopto 5in1 WiFi LED Strip Controller

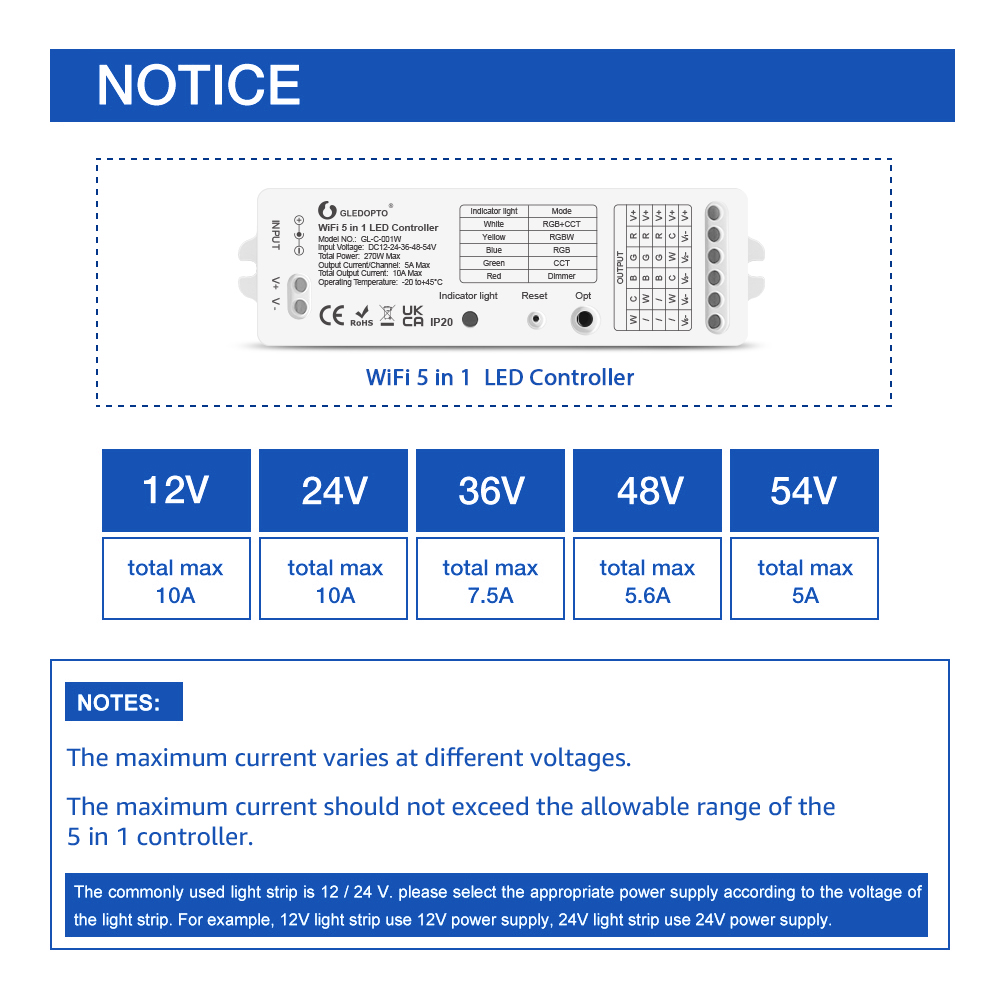

12V ~ 54V DC
Total 270W max.
WiFi + 2.4G RF

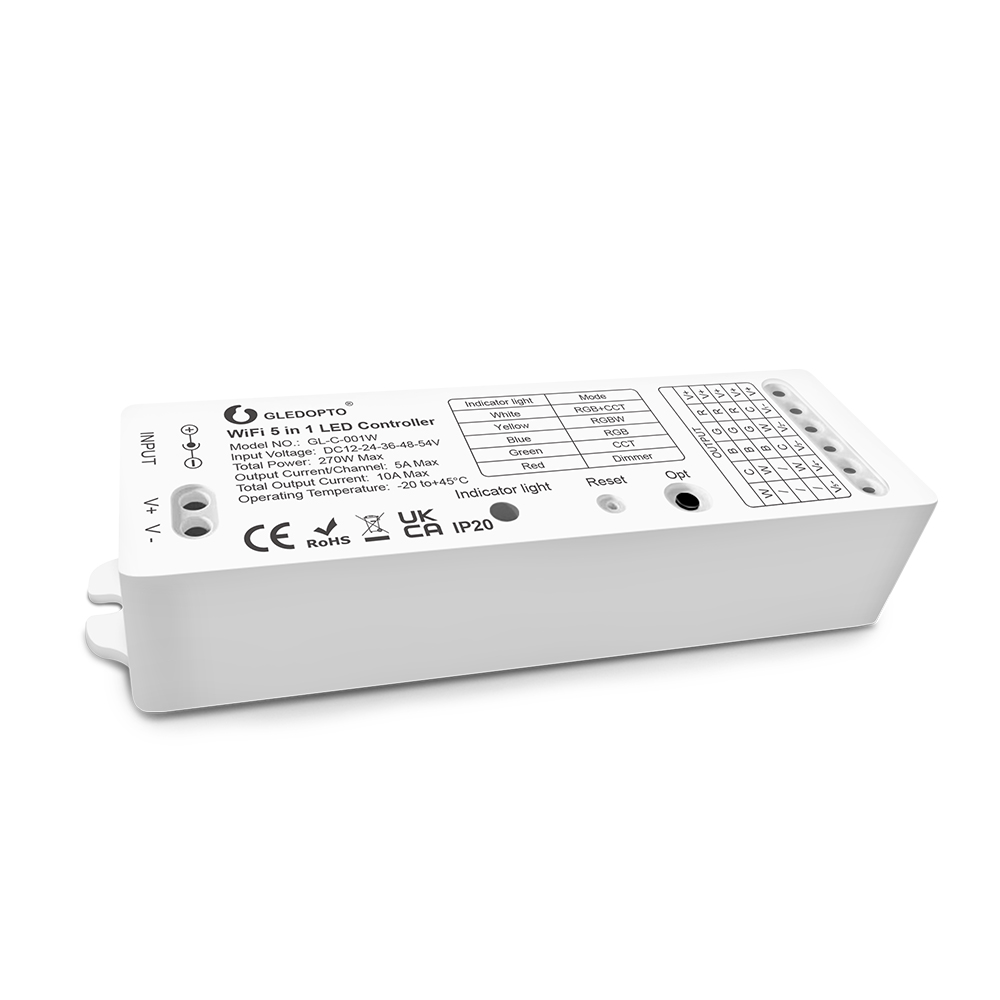

5-in-1 Smart WiFi LED Controller

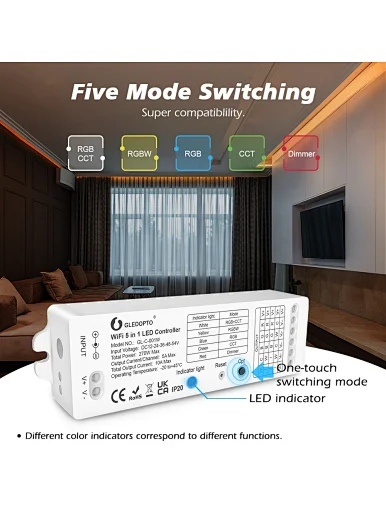

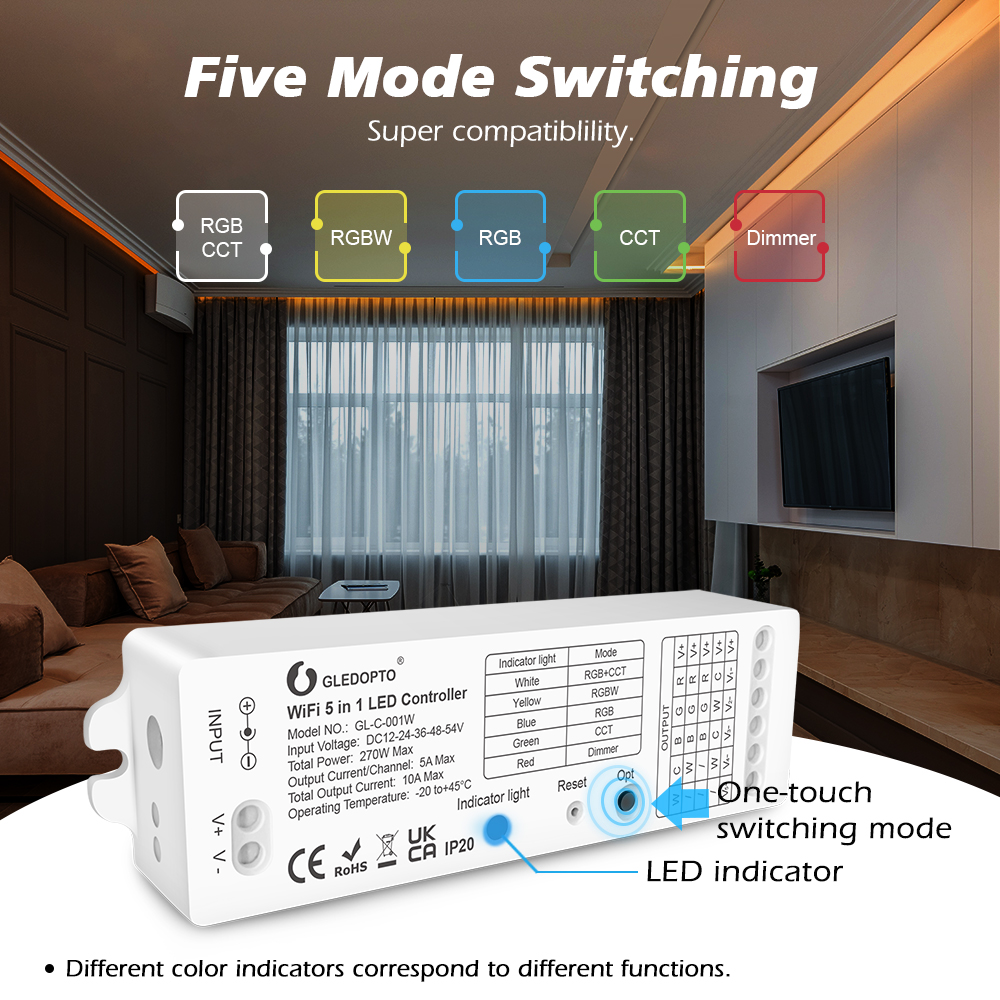

Different indicator colors represent different functions.

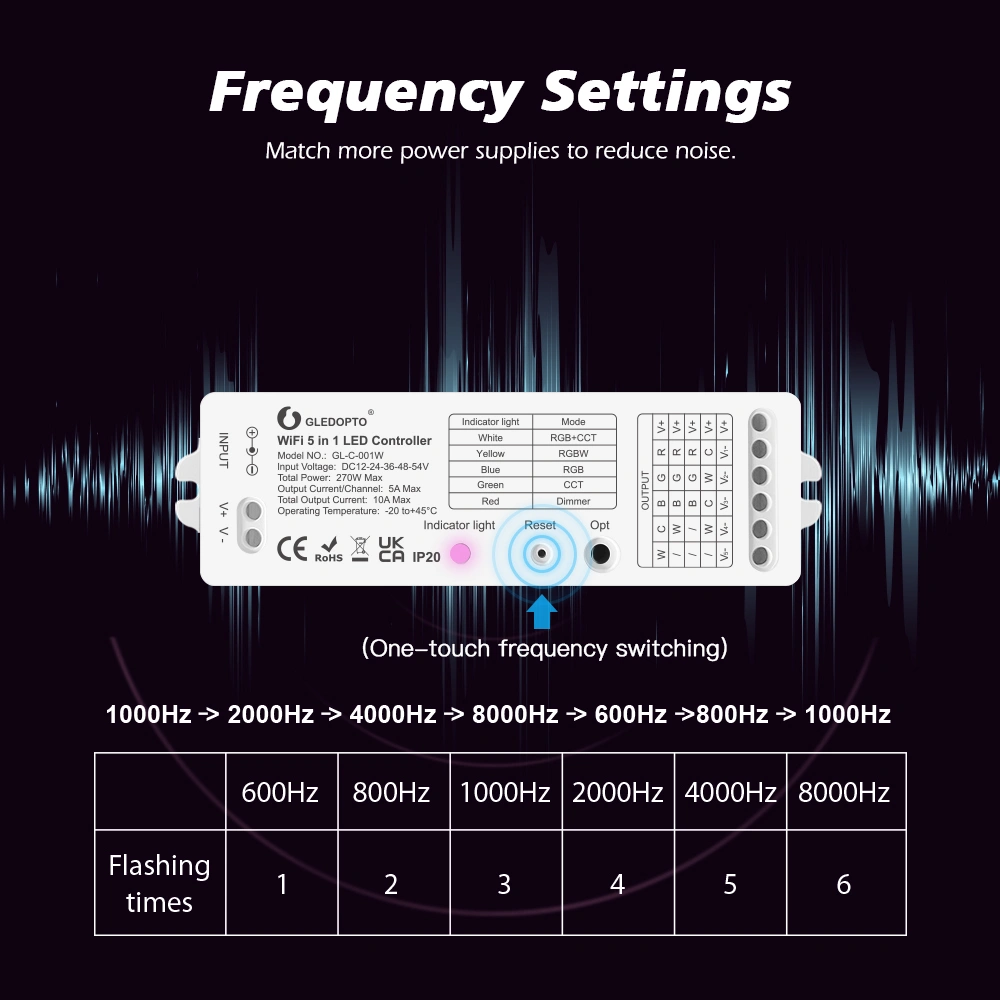

Short press once to switch PWM frequency;

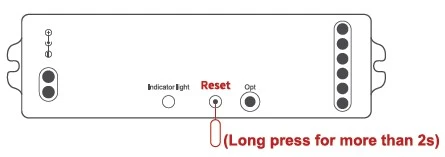

Long press 2 seconds for system reset.
Short press to switch modes; Long press to memorize if the light is under OFF status or not.
Short press the"OPT"key once (when switching the functions), the device will be disconnected to the network, and you will need to search the lights again.

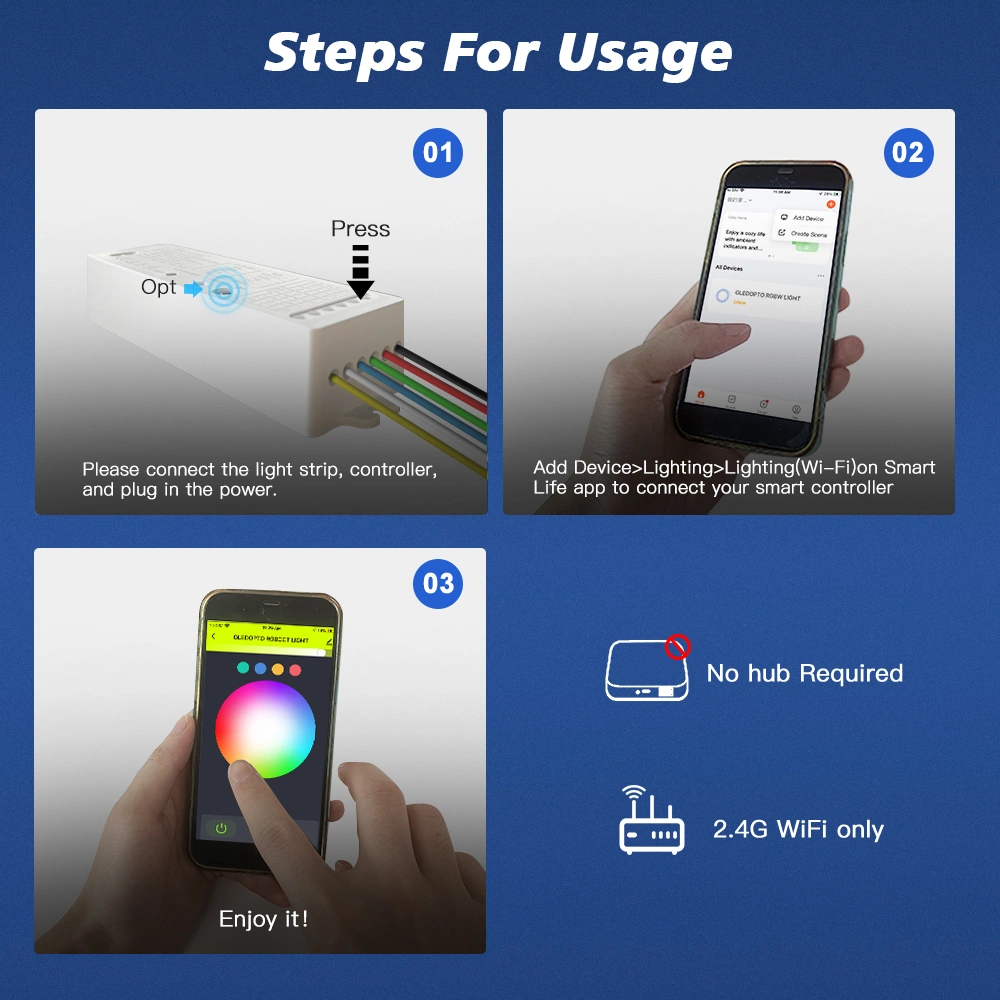

Pairing with your phone
Add the device to the WiFi network.
1> Please make sure the device not being paired. Otherwise, please"Reset"the device according to the method of"Reset".
2> After step 1, there will be a pairing process about 90s. The indicator light will blink slowly.

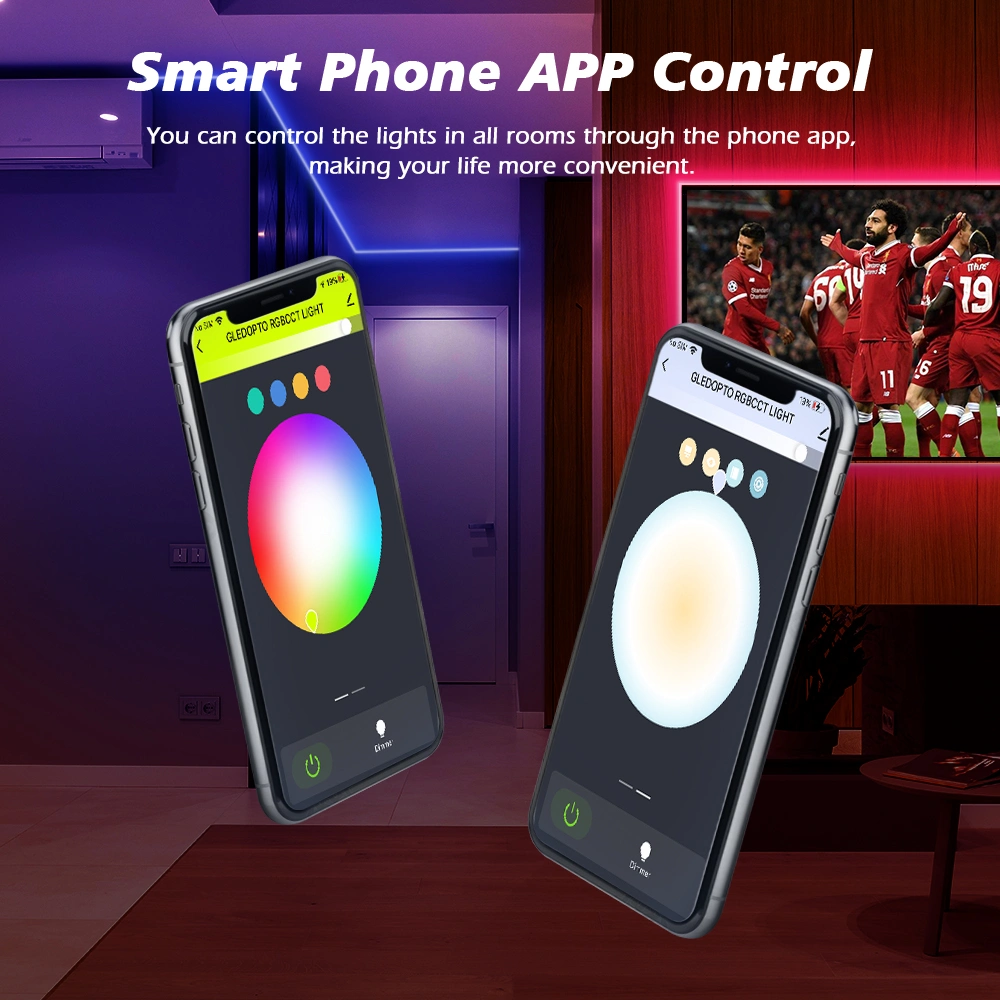

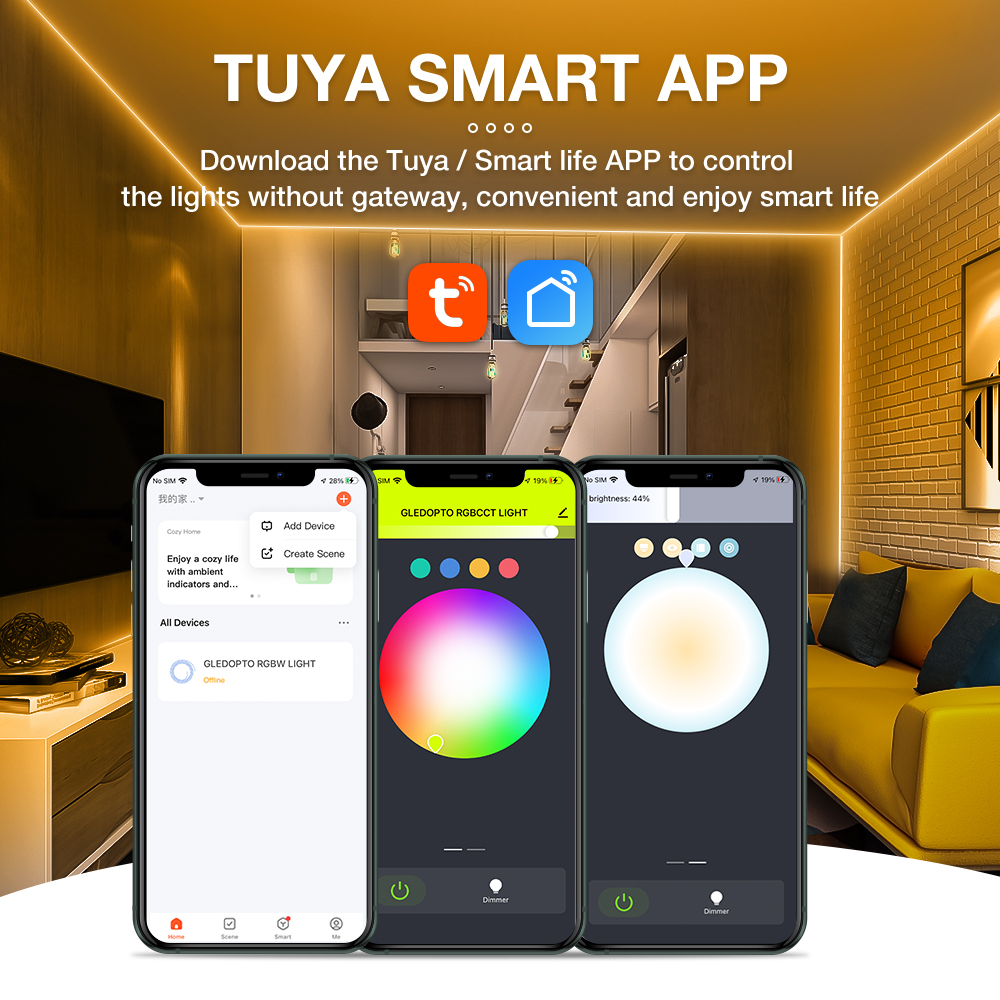

3> Open the Tuya App to add the device.
4>If the pairing done successfully after the above steps, the indicator light will stop flashing and the strip light will turn into Green color (cool white).

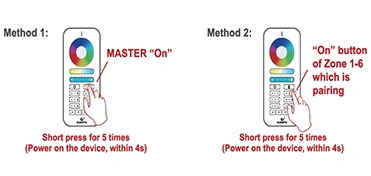

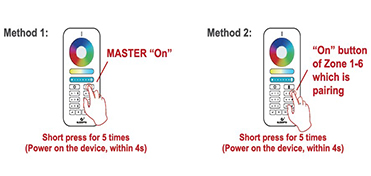

Pairing with 2.4G HZ RF Remote Control/Touch Panel
Unpairing the WiFi Network
Unpairing the 2.4G HZ RF Network
2> Short press continuously 5 times the zone"on"key the device being paired within 4s after the device powered on, the device
will blink 3 times.

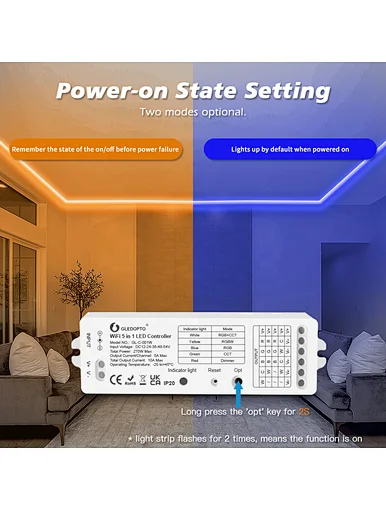

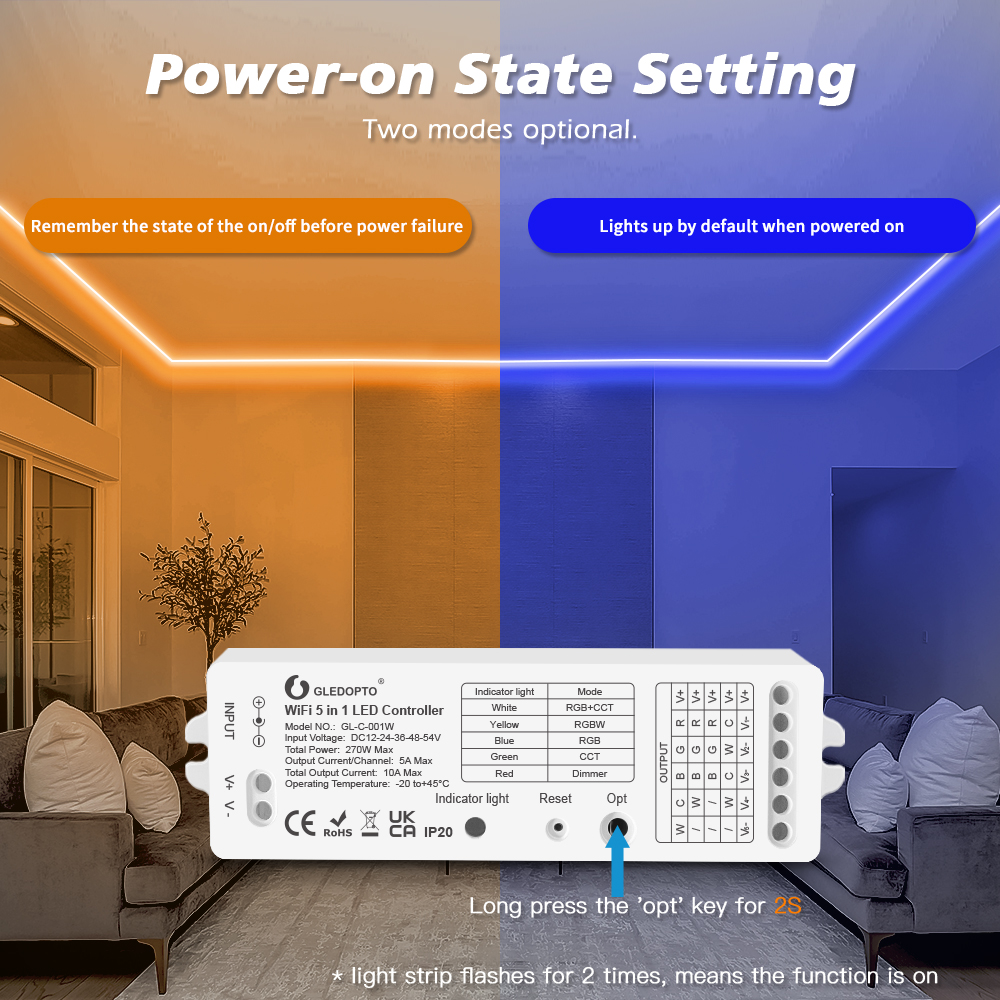

Status of Power-on-behaviour Settings
